6-35 — FRONT DOOR TRIM (#42607) — 140 parça

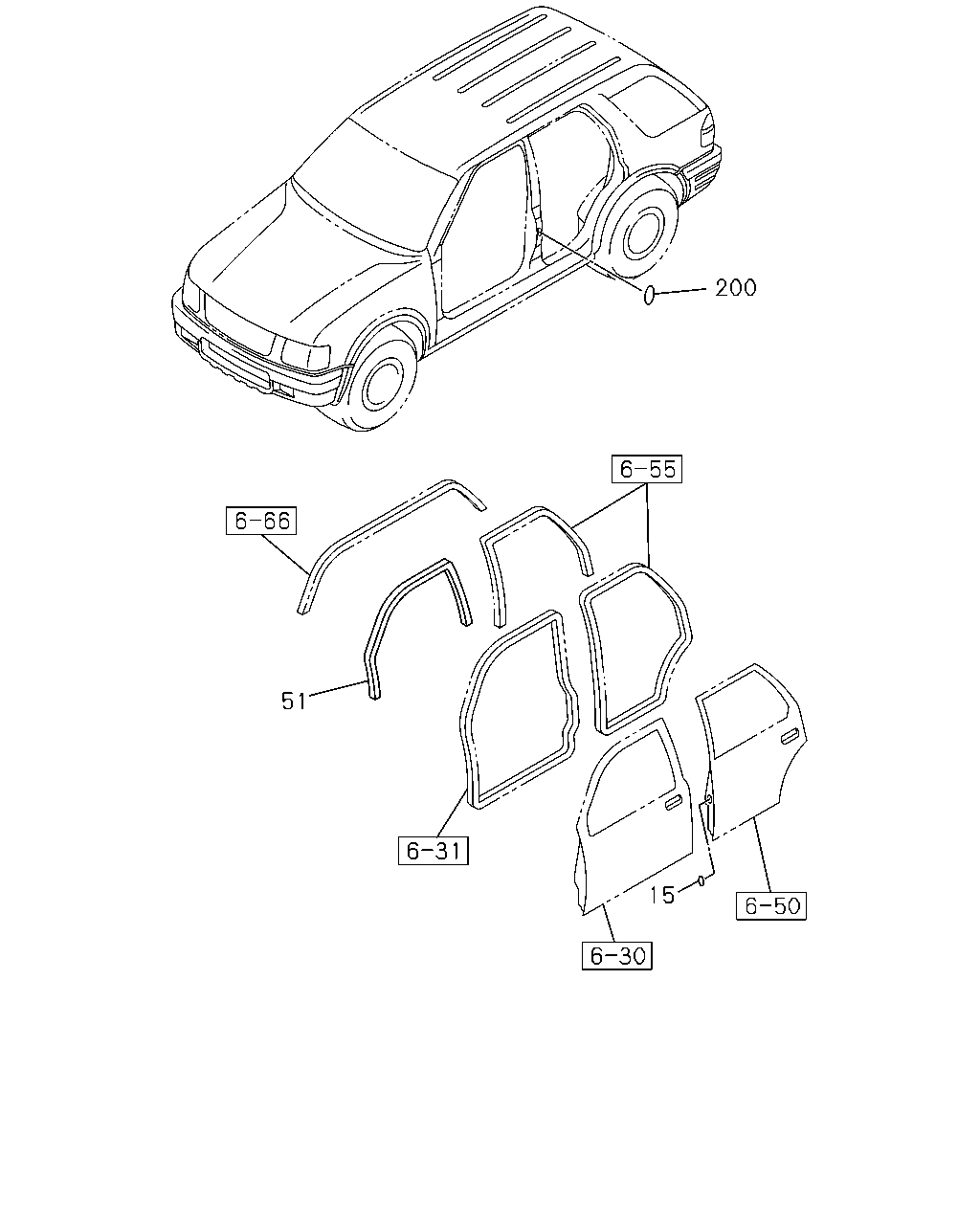

çizim 17760
200 51 15
BalonParca AdiParca NoAdetTipApplied Date A B C
15 COVER; HOLE,DOOR TRIM 8-97137-073-0 02 1 9707-9807 ● ●
51 WEATHERSTRIP; FRONT DOOR 8-97124-819-3 01 1 9707-9908 ● ●
51 WEATHERSTRIP; FRONT DOOR 8-97124-819-3 01 1 9909-0307 ● ● ●
51 WEATHERSTRIP; FRONT DOOR 8-97124-819-3 01 1 0308- ● ●
51 WEATHERSTRIP; FRONT DOOR 8-97124-818-3 01 1 9707-9908 ● ●
51 WEATHERSTRIP; FRONT DOOR 8-97124-818-3 01 1 9909-0307 ● ● ●
51 WEATHERSTRIP; FRONT DOOR 8-97124-818-3 01 1 0308- ● ●
200 COVER; HOLE,BODY
EXC. POWER WINDOW<A30> OD=45 BLACK 		1-76798-017-0 02 1 9707-9908 ● ●
200 COVER; HOLE,BODY
EXC. POWER WINDOW<A30> OD=45 BLACK 		1-76798-017-0 02 1 9909-0007 ● ● ●

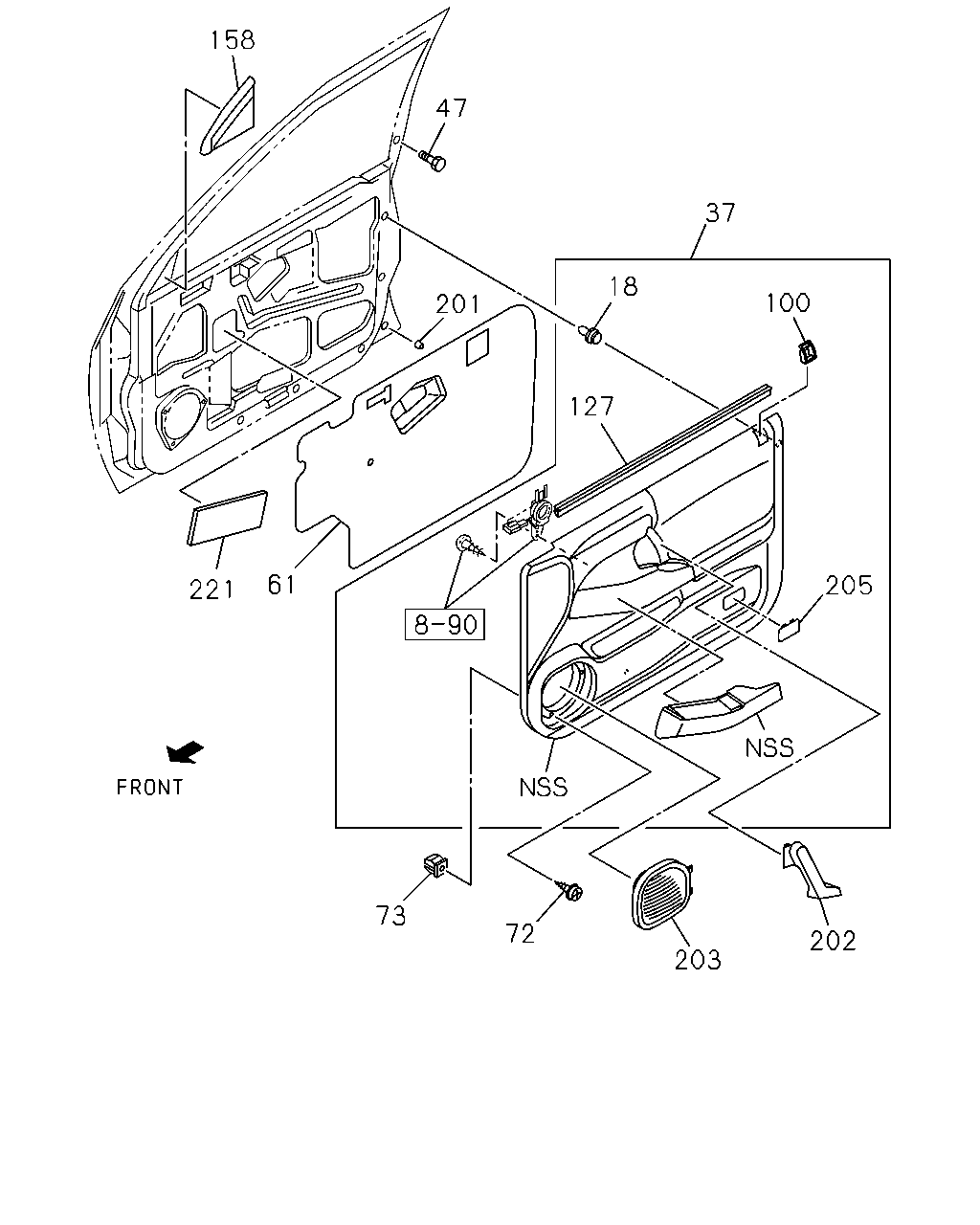

çizim 68916
158 47 37 18 100 201 127 61 205 221 73 72 202 203
BalonParca AdiParca NoAdetTipApplied Date A B C
18 CLIP; DOOR PAD
H=16.7 		8-97022-017-0 12 1 9707-9908 ● ●
18 CLIP; DOOR PAD
H=16.7 		8-97022-017-0 12 1 9909-0307 ● ● ●
18 CLIP; DOOR PAD
H=16.7 		8-97022-017-0 12 1 0308- ● ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR GRAY(180) EXC. POWER WINDOW<A30> DARK GRAY 		8-97296-822-5 01 1 0008-0206 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR TAUPE GRAY(182) EXC. POWER WINDOW<A30> DARK GRAY 		8-97391-746-4 01 1 0207-0307 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR GRAY(180) EXC. POWER WINDOW<A30> DARK GRAY 		8-97296-821-5 01 1 0008-0206 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR TAUPE GRAY(182) EXC. POWER WINDOW<A30> DARK GRAY 		8-97391-745-4 01 1 0207-0307 ●
37 TRIM; FULL FRT DOOR
POWER WINDOW<A30> EXC. UP GRADE PACKAGE<7MA> GRAY 		8-97157-368-5 01 1 9808-9908 ●
37 TRIM; FULL FRT DOOR
POWER WINDOW<A30> EXC. UP GRADE PACKAGE<7MA> GRAY 		8-97157-367-5 01 1 9808-9908 ●
37 TRIM; FULL FRT DOOR
EXC. POWER WINDOW<A30> GRAY 		8-97157-360-5 01 1 9707-9908 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR GRAY(180) EXC. POWER WINDOW<A30> GRAY 		8-97291-499-2 01 1 9909-0007 ●
37 TRIM; FULL FRT DOOR
EXC. POWER WINDOW<A30> GRAY 		8-97157-359-5 01 1 9707-9908 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR GRAY(180) EXC. POWER WINDOW<A30> GRAY 		8-97291-498-2 01 1 9909-0007 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR BEIGE(181) POWER WINDOW<A30> LIGHT BEIGE 		8-97291-572-2 01 1 9909-0007 ● ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR BEIGE(181) POWER WINDOW<A30> LIGHT BEIGE 		8-97296-016-6 01 1 0008-0206 ● ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97391-750-4 01 1 0207-0207 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR BEIGE(181) EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97391-750-4 01 1 0208- ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR BEIGE(181) POWER WINDOW<A30> LIGHT BEIGE 		8-97291-571-2 01 1 9909-0007 ● ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR BEIGE(181) POWER WINDOW<A30> LIGHT BEIGE 		8-97296-014-6 01 1 0008-0206 ● ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97391-748-4 01 1 0207-0207 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR BEIGE(181) EXC. LEATHER SEAT<6TB> LIGHT BEIGE 		8-97391-748-4 01 1 0208- ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR GRAY(180) POWER WINDOW<A30> GRAY 		8-97291-507-2 01 1 9909-0007 ● ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR GRAY(180) POWER WINDOW<A30> GRAY 		8-97296-015-6 01 1 0008-0206 ● ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR TAUPE GRAY(182) POWER WINDOW<A30> DARK GRAY 		8-97391-744-4 01 1 0207-0307 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR GRAY(180) POWER WINDOW<A30> GRAY 		8-97291-506-2 01 1 9909-0007 ● ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR GRAY(180) POWER WINDOW<A30> GRAY 		8-97296-013-6 01 1 0008-0206 ● ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR TAUPE GRAY(182) POWER WINDOW<A30> DARK GRAY 		8-97391-743-4 01 1 0207-0307 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97391-754-4 01 1 0207-0207 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97391-754-4 01 1 0208- ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> LIGHT BEIGE 		8-97391-754-4 01 1 0208- ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97391-752-4 01 1 0207-0207 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97391-752-4 01 1 0208- ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> LIGHT BEIGE 		8-97391-752-4 01 1 0208- ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> LIGHT BEIGE 		8-97291-576-2 01 1 9909-0007 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> LIGHT BEIGE 		8-97296-024-3 01 1 0008-0202 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> LIGHT BEIGE 		8-97291-575-2 01 1 9909-0007 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> LIGHT BEIGE 		8-97296-022-3 01 1 0008-0202 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> 		8-97394-417-1 01 1 0203-0206 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR BEIGE(181) LEATHER SEAT<6TB> 		8-97394-415-1 01 1 0203-0206 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR GRAY(180) LEATHER SEAT<6TB> 		8-97394-416-1 01 1 0203-0206 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR GRAY(180) LEATHER SEAT<6TB> 		8-97394-414-1 01 1 0203-0206 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-753-4 01 1 0207-0207 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-753-4 01 1 0208- ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR TAUPE GRAY(182) LEATHER SEAT<6TB> DARK GRAY 		8-97391-753-4 01 1 0208- ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-751-4 01 1 0207-0207 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-751-4 01 1 0208- ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR TAUPE GRAY(182) LEATHER SEAT<6TB> DARK GRAY 		8-97391-751-4 01 1 0208- ●
37 TRIM; FULL FRT DOOR
LEATHER SEAT<6TB> GRAY 		8-97157-833-5 01 1 9707-9908 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR GRAY(180) LEATHER SEAT<6TB> GRAY 		8-97291-511-2 01 1 9909-0007 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR GRAY(180) LEATHER SEAT<6TB> GRAY 		8-97296-023-3 01 1 0008-0202 ●
37 TRIM; FULL FRT DOOR
LEATHER SEAT<6TB> GRAY 		8-97157-832-5 01 1 9707-9908 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR GRAY(180) LEATHER SEAT<6TB> GRAY 		8-97291-510-2 01 1 9909-0007 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR GRAY(180) LEATHER SEAT<6TB> GRAY 		8-97296-021-3 01 1 0008-0202 ●
37 TRIM; FULL FRT DOOR
EXC. LEATHER SEAT<6TB> GRAY 		8-97157-364-4 01 1 9707-9807 ●
37 TRIM; FULL FRT DOOR
EXC. LEATHER SEAT<6TB> GRAY 		8-97157-363-4 01 1 9707-9807 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-749-4 01 1 0207-0207 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR TAUPE GRAY(182) EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97391-749-4 01 1 0208- ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-747-4 01 1 0207-0207 ●
37 TRIM; FULL FRT DOOR
INTERIOR COLOR TAUPE GRAY(182) EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97391-747-4 01 1 0208- ●
47 SCREW
M5X8 		8-97165-795-0 02 1 9707-9908 ● ●
47 SCREW
M5X8 		8-97165-795-0 02 1 9909-0307 ● ● ●
47 SCREW
M5X8 		8-97165-795-0 02 1 0308- ● ●
61 SEAL; WATER,DOOR PAD
POWER WINDOW<A30> 		8-97124-801-2 01 1 9707-9908 ● ●
61 SEAL; WATER,DOOR PAD
POWER WINDOW<A30> 		8-97124-801-2 01 1 9909-0208 ● ● ●
61 SEAL; WATER,DOOR PAD
POWER WINDOW<A30> 		8-97328-553-0 01 1 0209-0307 ● ● ●
61 SEAL; WATER,DOOR PAD 8-97328-553-0 01 1 0308- ● ●
61 SEAL; WATER,DOOR PAD
POWER WINDOW<A30> 		8-97124-800-2 01 1 9707-9908 ● ●
61 SEAL; WATER,DOOR PAD
POWER WINDOW<A30> 		8-97124-800-2 01 1 9909-0208 ● ● ●
61 SEAL; WATER,DOOR PAD
POWER WINDOW<A30> 		8-97328-552-0 01 1 0209-0307 ● ● ●
61 SEAL; WATER,DOOR PAD 8-97328-552-0 01 1 0308- ● ●
61 SEAL; WATER,DOOR PAD
EXC. POWER WINDOW<A30> 		8-97124-799-2 01 1 9707-9908 ● ●
61 SEAL; WATER,DOOR PAD
EXC. POWER WINDOW<A30> 		8-97124-799-2 01 1 9909-0111 ● ● ●
61 SEAL; WATER,DOOR PAD
EXC. POWER WINDOW<A30> 		8-97328-551-0 01 1 0112-0307 ● ● ●
61 SEAL; WATER,DOOR PAD
EXC. POWER WINDOW<A30> 		8-97124-798-2 01 1 9707-9908 ● ●
61 SEAL; WATER,DOOR PAD
EXC. POWER WINDOW<A30> 		8-97124-798-2 01 1 9909-0111 ● ● ●
61 SEAL; WATER,DOOR PAD
EXC. POWER WINDOW<A30> 		8-97328-550-0 01 1 0112-0307 ● ● ●
72 SCREW; DOOR TRIM
M6X14 SELF TAPPING 		9-09629-040-0 10 1 9707-9908 ● ●
72 SCREW; DOOR TRIM
M6X14 SELF TAPPING 		9-09629-040-0 10 1 9909-0307 ● ● ●
72 SCREW; DOOR TRIM
M6X14 SELF TAPPING 		9-09629-040-0 10 1 0308- ● ●
73 GROMMET; DOOR TRIM 5-09470-001-0 10 1 9707-9908 ● ●
73 GROMMET; DOOR TRIM 5-09470-001-0 10 1 9909-0307 ● ● ●
73 GROMMET; DOOR TRIM 5-09470-001-0 10 1 0308- ● ●
100 GUIDE; HOLE,DOOR LOCK KNOB
GRAY 		8-97158-629-1 02 1 9707-9908 ● ●
100 GUIDE; HOLE,DOOR LOCK KNOB
INTERIOR COLOR GRAY(180) GRAY 		8-97158-629-1 02 1 9909-0206 ● ● ●
100 GUIDE; HOLE,DOOR LOCK KNOB
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-997-1 02 1 0207-0307 ● ● ●
100 GUIDE; HOLE,DOOR LOCK KNOB
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-997-1 02 1 0308- ● ●
100 GUIDE; HOLE,DOOR LOCK KNOB
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97292-432-1 02 1 9909- ● ●
127 SEAL; DOOR INNER 8-97124-809-0 01 1 9707-9908 ● ●
127 SEAL; DOOR INNER 8-97124-809-0 01 1 9909-0307 ● ● ●
127 SEAL; DOOR INNER 8-97124-809-0 01 1 0308- ● ●
127 SEAL; DOOR INNER 8-97124-808-0 01 1 9707-9908 ● ●
127 SEAL; DOOR INNER 8-97124-808-0 01 1 9909-0307 ● ● ●
127 SEAL; DOOR INNER 8-97124-808-0 01 1 0308- ● ●
158 GARNISH; DOOR
BLACK 		8-97157-374-0 01 1 9707-9908 ● ●
158 GARNISH; DOOR
BLACK 		8-97157-374-1 01 1 9909-0307 ● ● ●
158 GARNISH; DOOR
BLACK 		8-97157-374-1 01 1 0308- ● ●
158 GARNISH; DOOR
BLACK 		8-97157-373-0 01 1 9707-9908 ● ●
158 GARNISH; DOOR
BLACK 		8-97157-373-1 01 1 9909-0307 ● ● ●
158 GARNISH; DOOR
BLACK 		8-97157-373-1 01 1 0308- ● ●
201 BUFFER; DOOR 8-14030-512-0 04 1 9707-9908 ● ●
201 BUFFER; DOOR 8-14030-512-0 04 1 9909-0007 ● ● ●
201 BUFFER; DOOR 8-97258-864-0 04 1 0008-0307 ● ● ●
201 BUFFER; DOOR 8-97258-864-0 04 1 0308- ● ●
202 COVER; GRIP
GRAY 		8-97157-372-1 01 1 9707-9908 ● ●
202 COVER; GRIP
INTERIOR COLOR GRAY(180) GRAY 		8-97157-372-2 01 1 9909-0206 ● ● ●
202 COVER; GRIP
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-752-2 01 1 0207-0307 ● ● ●
202 COVER; GRIP
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-752-2 01 1 0308- ● ●
202 COVER; GRIP
GRAY 		8-97157-371-1 01 1 9707-9908 ● ●
202 COVER; GRIP
INTERIOR COLOR GRAY(180) GRAY 		8-97157-371-2 01 1 9909-0206 ● ● ●
202 COVER; GRIP
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-751-2 01 1 0207-0307 ● ● ●
202 COVER; GRIP
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97392-751-2 01 1 0308- ● ●
202 COVER; GRIP
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-578-2 01 1 9909- ● ●
202 COVER; GRIP
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-577-2 01 1 9909- ● ●
203 GRILLE; SPEAKER
GRAY 		8-97157-376-1 01 1 9707-9908 ● ●
203 GRILLE; SPEAKER
INTERIOR COLOR GRAY(180) GRAY 		8-97157-376-1 01 1 9909-0201 ● ● ●
203 GRILLE; SPEAKER
INTERIOR COLOR GRAY(180) GRAY 		8-97393-693-1 01 1 0202-0206 ● ● ●
203 GRILLE; SPEAKER
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97393-565-1 01 1 0207-0307 ● ● ●
203 GRILLE; SPEAKER
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97393-565-1 01 1 0308- ● ●
203 GRILLE; SPEAKER
GRAY 		8-97157-375-1 01 1 9707-9908 ● ●
203 GRILLE; SPEAKER
INTERIOR COLOR GRAY(180) GRAY 		8-97157-375-1 01 1 9909-0201 ● ● ●
203 GRILLE; SPEAKER
INTERIOR COLOR GRAY(180) GRAY 		8-97393-692-1 01 1 0202-0206 ● ● ●
203 GRILLE; SPEAKER
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97393-563-1 01 1 0207-0307 ● ● ●
203 GRILLE; SPEAKER
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97393-563-1 01 1 0308- ● ●
203 GRILLE; SPEAKER
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-580-1 01 1 9909-0201 ● ●
203 GRILLE; SPEAKER
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97393-566-1 01 1 0202- ● ●
203 GRILLE; SPEAKER
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-579-1 01 1 9909-0201 ● ●
203 GRILLE; SPEAKER
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97393-564-1 01 1 0202- ● ●
205 LID; COURTESY LIGHT
EXC. POWER WINDOW<A30> GRAY 		8-97158-632-0 02 1 9707-9908 ●
205 LID; COURTESY LIGHT
INTERIOR COLOR GRAY(180) EXC. POWER WINDOW<A30> GRAY 		8-97158-632-1 02 1 9909-0206 ●
221 PAD; INSULATOR 8-97215-077-0 02 1 9808-9908 ● ●
221 PAD; INSULATOR
POWER WINDOW<A30> 		8-97215-077-0 02 1 9909-0208 ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
