6-32 — FRONT DOOR LOCK AND HANDLE (#42606) — 91 parça

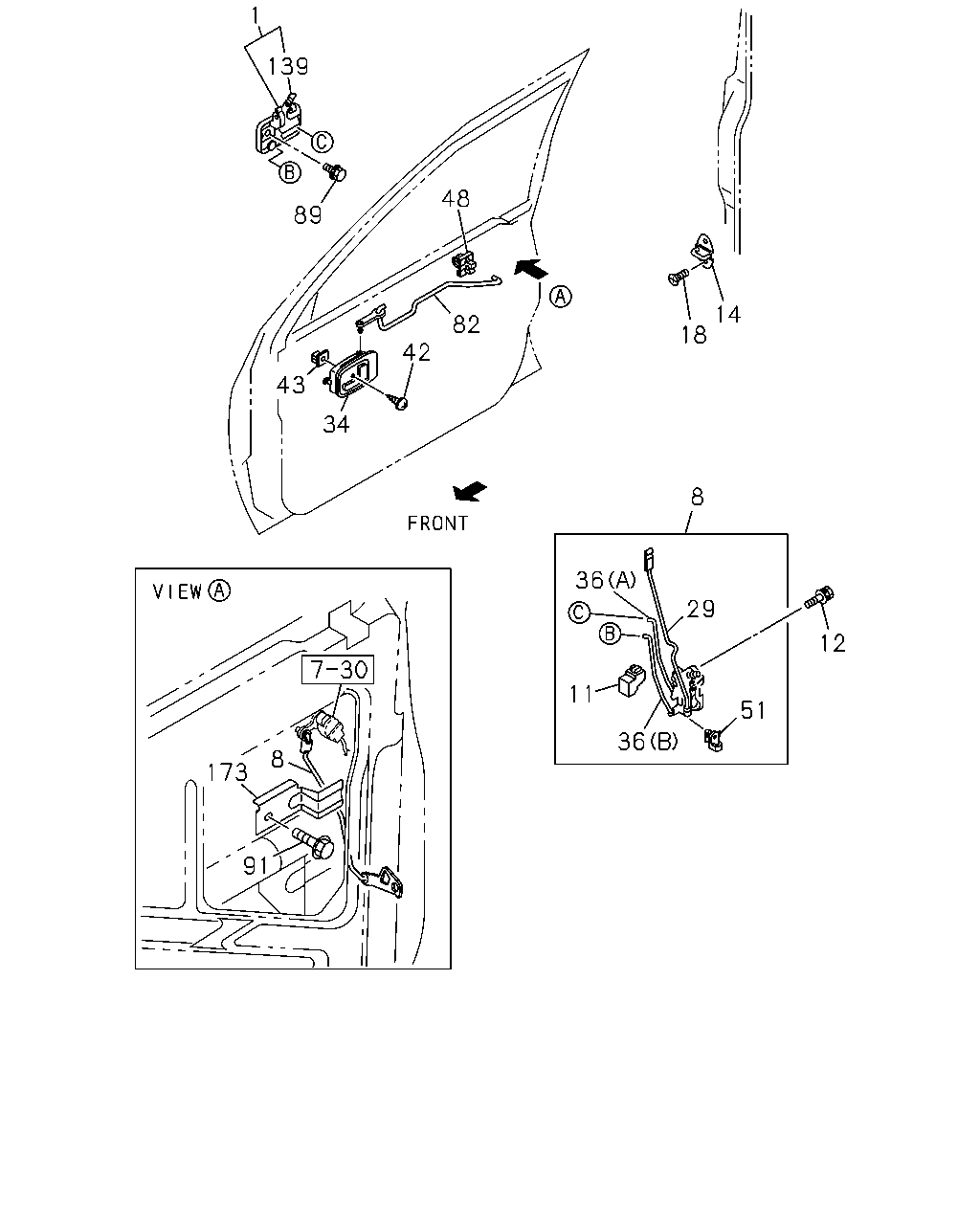

çizim 71193
1 139 48 89 14 82 18 42 43 34 8 36 29 12 11 51 8 36 173 91
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; OUTSIDE,FRT DOOR
GRADE LS/LSE(RBD) PRIMER 		8-97181-730-0 01 1 9707-0307
1 HANDLE; OUTSIDE,FRT DOOR
HANDLE O/S DOOR BODY COLOR<D75> PRIMER 		8-97181-730-0 01 1 0308-
1 HANDLE; OUTSIDE,FRT DOOR
GRADE LS/LSE(RBD) PRIMER 		8-97181-729-0 01 1 9707-0307
1 HANDLE; OUTSIDE,FRT DOOR
HANDLE O/S DOOR BODY COLOR<D75> PRIMER 		8-97181-729-0 01 1 0308-
1 HANDLE; OUTSIDE,FRT DOOR
GRADE S(RBA) 		8-97180-791-0 01 1 9707-9908
1 HANDLE; OUTSIDE,FRT DOOR
GRADE S(RBA),GRADE LS(RBB) 		8-97180-791-0 01 1 9909-0307
1 HANDLE; OUTSIDE,FRT DOOR
EXC. HANDLE O/S DOOR BODY COLOR<D75> 		8-97180-791-0 01 1 0308-
1 HANDLE; OUTSIDE,FRT DOOR
GRADE S(RBA) 		8-97180-790-0 01 1 9707-9908
1 HANDLE; OUTSIDE,FRT DOOR
GRADE S(RBA),GRADE LS(RBB) 		8-97180-790-0 01 1 9909-0307
1 HANDLE; OUTSIDE,FRT DOOR
EXC. HANDLE O/S DOOR BODY COLOR<D75> 		8-97180-790-0 01 1 0308-
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> GRAY 		8-97157-355-3 01 1 9707-9901
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> GRAY 		8-97292-183-0 01 1 9902-9908
8 LOCK; DOOR,FRT DOOR
INTERIOR COLOR GRAY(180) AUTO DOOR LOCK<AU4> GRAY 		8-97293-599-1 01 1 9909-0206
8 LOCK; DOOR,FRT DOOR
INTERIOR COLOR TAUPE GRAY(182) AUTO DOOR LOCK<AU4> DARK GRAY 		8-97391-739-1 01 1 0207-0307
8 LOCK; DOOR,FRT DOOR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-739-1 01 1 0308-
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> ANTI THEFT<UA6> GRAY 		8-97157-354-3 01 1 9707-9901
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> ANTI THEFT<UA6> GRAY 		8-97292-182-0 01 1 9902-9908
8 LOCK; DOOR,FRT DOOR
INTERIOR COLOR GRAY(180) AUTO DOOR LOCK<AU4> ANTI THEFT<UA6> GRAY 		8-97293-597-1 01 1 9909-0206
8 LOCK; DOOR,FRT DOOR
INTERIOR COLOR TAUPE GRAY(182) AUTO DOOR LOCK<AU4> ANTI THEFT<UA6> DARK GRAY 		8-97391-738-1 01 1 0207-0307
8 LOCK; DOOR,FRT DOOR
INTERIOR COLOR TAUPE GRAY(182) ANTI THEFT<UA6> DARK GRAY 		8-97391-738-1 01 1 0308-
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6> GRAY 		8-97157-353-3 01 1 9707-9901
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6> GRAY 		8-97292-181-0 01 1 9902-9908
8 LOCK; DOOR,FRT DOOR
INTERIOR COLOR GRAY(180) AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6> GRAY 		8-97293-595-0 01 1 9909-0206
8 LOCK; DOOR,FRT DOOR
INTERIOR COLOR TAUPE GRAY(182) AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6> DARK GRAY 		8-97391-737-0 01 1 0207-0307
8 LOCK; DOOR,FRT DOOR
INTERIOR COLOR TAUPE GRAY(182) EXC. ANTI THEFT<UA6> DARK GRAY 		8-97391-737-0 01 1 0308-
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> GRAY 		8-97157-352-3 01 1 9707-9908
8 LOCK; DOOR,FRT DOOR
INTERIOR COLOR GRAY(180) EXC. AUTO DOOR LOCK<AU4> GRAY 		8-97293-593-0 01 1 9909-0206
8 LOCK; DOOR,FRT DOOR
INTERIOR COLOR TAUPE GRAY(182) EXC. AUTO DOOR LOCK<AU4> DARK GRAY 		8-97391-736-0 01 1 0207-0307
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> GRAY 		8-97157-351-3 01 1 9707-9908
8 LOCK; DOOR,FRT DOOR
INTERIOR COLOR GRAY(180) EXC. AUTO DOOR LOCK<AU4> GRAY 		8-97293-591-0 01 1 9909-0206
8 LOCK; DOOR,FRT DOOR
INTERIOR COLOR TAUPE GRAY(182) EXC. AUTO DOOR LOCK<AU4> DARK GRAY 		8-97391-735-0 01 1 0207-0307
8 LOCK; DOOR,FRT DOOR
INTERIOR COLOR BEIGE(181) AUTO DOOR LOCK<AU4> LIGHT BEIGE 		8-97293-600-1 01 1 9909-0307
8 LOCK; DOOR,FRT DOOR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97293-600-1 01 1 0308-
8 LOCK; DOOR,FRT DOOR
INTERIOR COLOR BEIGE(181) AUTO DOOR LOCK<AU4> ANTI THEFT<UA6> LIGHT BEIGE 		8-97293-598-1 01 1 9909-0307
8 LOCK; DOOR,FRT DOOR
INTERIOR COLOR BEIGE(181) ANTI THEFT<UA6> LIGHT BEIGE 		8-97293-598-1 01 1 0308-
8 LOCK; DOOR,FRT DOOR
INTERIOR COLOR BEIGE(181) AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6> LIGHT BEIGE 		8-97293-596-0 01 1 9909-0307
8 LOCK; DOOR,FRT DOOR
INTERIOR COLOR BEIGE(181) EXC. ANTI THEFT<UA6> LIGHT BEIGE 		8-97293-596-0 01 1 0308-
8 LOCK; DOOR,FRT DOOR
INTERIOR COLOR BEIGE(181) EXC. AUTO DOOR LOCK<AU4> LIGHT BEIGE 		8-97293-594-0 01 1 9909-0307
8 LOCK; DOOR,FRT DOOR
INTERIOR COLOR BEIGE(181) EXC. AUTO DOOR LOCK<AU4> LIGHT BEIGE 		8-97293-592-0 01 1 9909-0307
11 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-16636-035-0 01 1 9707-9807
11 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-16820-539-0 01 1 9808-9901
11 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-16820-538-0 01 1 9808-9901
11 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6> 		8-16636-066-0 01 1 9707-9807
12 SCREW; DOOR LK 8-15685-550-0 06 1 9707-0102
12 SCREW; DOOR LK 8-97310-734-0 06 1 0103-
14 STRIKER; FRT DOOR 8-97176-259-0 02 1 9707-
18 SCREW; DOOR STRIKER 8-09442-471-0 04 1 9707-
29 LINK; SILL CONT 8-16636-033-0 01 1 9707-9712
29 LINK; SILL CONT 8-16638-825-0 01 1 9801-9807
29 LINK; SILL CONT 8-16636-033-0 01 1 9808-9901
29 LINK; SILL CONT
EXC. AUTO DOOR LOCK<AU4> 		8-16636-033-0 01 1 9902-9908
29 LINK; SILL CONT 8-16636-032-0 01 1 9707-9712
29 LINK; SILL CONT 8-16638-824-0 01 1 9801-9807
29 LINK; SILL CONT 8-16636-032-0 01 1 9808-9901
29 LINK; SILL CONT
EXC. AUTO DOOR LOCK<AU4> 		8-16636-032-0 01 1 9902-9908
34 HANDLE; INSIDE,FRT DOOR
GRAY 		8-97157-357-6 01 1 9707-9908
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR GRAY(180) GRAY 		8-97157-357-6 01 1 9909-0206
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-741-6 01 1 0207-0207
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97394-052-0 01 1 0208-
34 HANDLE; INSIDE,FRT DOOR
GRAY 		8-97157-356-6 01 1 9707-9908
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR GRAY(180) GRAY 		8-97157-356-6 01 1 9909-0206
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97391-740-6 01 1 0207-0207
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR TAUPE GRAY(182) DARK GRAY 		8-97394-051-0 01 1 0208-
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-672-6 01 1 9909-0207
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97394-050-0 01 1 0208-
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-379-6 01 1 9909-0207
34 HANDLE; INSIDE,FRT DOOR
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97394-048-0 01 1 0208-
36 LINK; DOOR LOCK,OUTSIDE
(B) 		8-16636-030-0 01 1 9707-9901
36 LINK; DOOR LOCK,OUTSIDE
EXC. AUTO DOOR LOCK<AU4> (B) 		8-16636-030-0 01 1 9902-9908
36 LINK; DOOR LOCK,OUTSIDE
AUTO DOOR LOCK<AU4> (A) 		8-16636-029-1 01 1 9707-9901
36 LINK; DOOR LOCK,OUTSIDE
AUTO DOOR LOCK<AU4> (A) 		8-16636-029-1 01 1 9707-9901
36 LINK; DOOR LOCK,OUTSIDE
EXC. AUTO DOOR LOCK<AU4> (A) 		8-16636-029-1 02 1 9707-9908
36 LINK; DOOR LOCK,OUTSIDE
EXC. AUTO DOOR LOCK<AU4> (B) 		8-16636-031-0 01 1 9707-9712
36 LINK; DOOR LOCK,OUTSIDE
(B) 		8-16636-031-0 01 1 9801-9901
36 LINK; DOOR LOCK,OUTSIDE
EXC. AUTO DOOR LOCK<AU4> (B) 		8-16636-031-0 01 1 9902-9908
42 SCREW; TAPPING,INSIDE LEVER
M5X14 		8-94152-495-0 02 1 9707-
43 GROMMET; SCREW,INSIDE LEVER,DOOR 8-94152-494-0 02 1 9707-
48 ANTIRATTLER; DOOR LINK 8-97126-660-0 02 1 9707-
51 SNAP; FRT DOOR LOCK CONT ROD 8-16636-047-0 02 1 9707-9712
51 SNAP; FRT DOOR LOCK CONT ROD 8-16632-180-0 01 1 9801-9901
51 SNAP; FRT DOOR LOCK CONT ROD
EXC. AUTO DOOR LOCK<AU4> 		8-16632-180-0 01 1 9902-9908
51 SNAP; FRT DOOR LOCK CONT ROD 8-16632-181-0 01 1 9801-9901
51 SNAP; FRT DOOR LOCK CONT ROD
EXC. AUTO DOOR LOCK<AU4> 		8-16632-181-0 01 1 9902-9908
82 LINK; DOOR INSIDE 8-97124-710-0 01 1 9707-
82 LINK; DOOR INSIDE 8-97124-709-0 01 1 9707-
89 BOLT; DOOR OUTSIDE HANDLE
M6X8 		8-94155-893-0 04 1 9707-
91 BOLT; DOOR LOCK
M6X14 FLANGE 		8-94327-380-0 02 1 0011-
139 HOLDER; ROD,DOOR HANDLE
WHITE 		8-97037-508-0 01 1 9707-
139 HOLDER; ROD,DOOR HANDLE
YELLOW 		8-97044-834-0 01 1 9707-
173 PLATE; LINK COVER 8-97255-691-3 01 1 0011-
173 PLATE; LINK COVER 8-97255-690-3 01 1 0011-
