◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#42605) — 34 parça

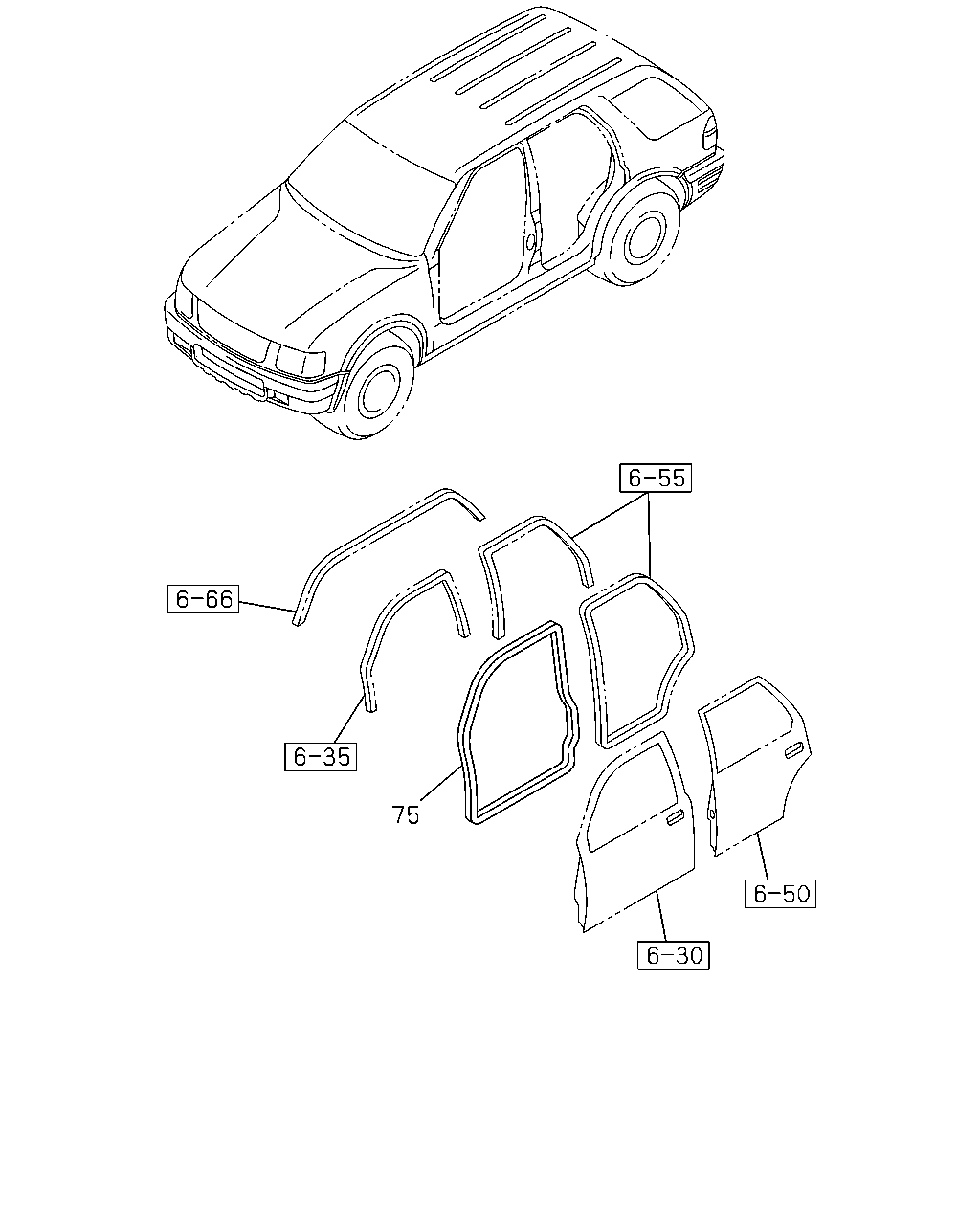

çizim 18640
75
BalonParca AdiParca NoAdetTipApplied Date
75 WEATHERSTRIP; FRT DOOR 8-97124-815-3 01 1 9707-0001
75 WEATHERSTRIP; FRT DOOR 8-97231-064-0 01 1 0002-0010
75 WEATHERSTRIP; FRT DOOR 8-97304-396-3 01 1 0011-
75 WEATHERSTRIP; FRT DOOR 8-97124-814-3 01 1 9707-0001
75 WEATHERSTRIP; FRT DOOR 8-97231-063-0 01 1 0002-0010
75 WEATHERSTRIP; FRT DOOR 8-97304-395-3 01 1 0011-

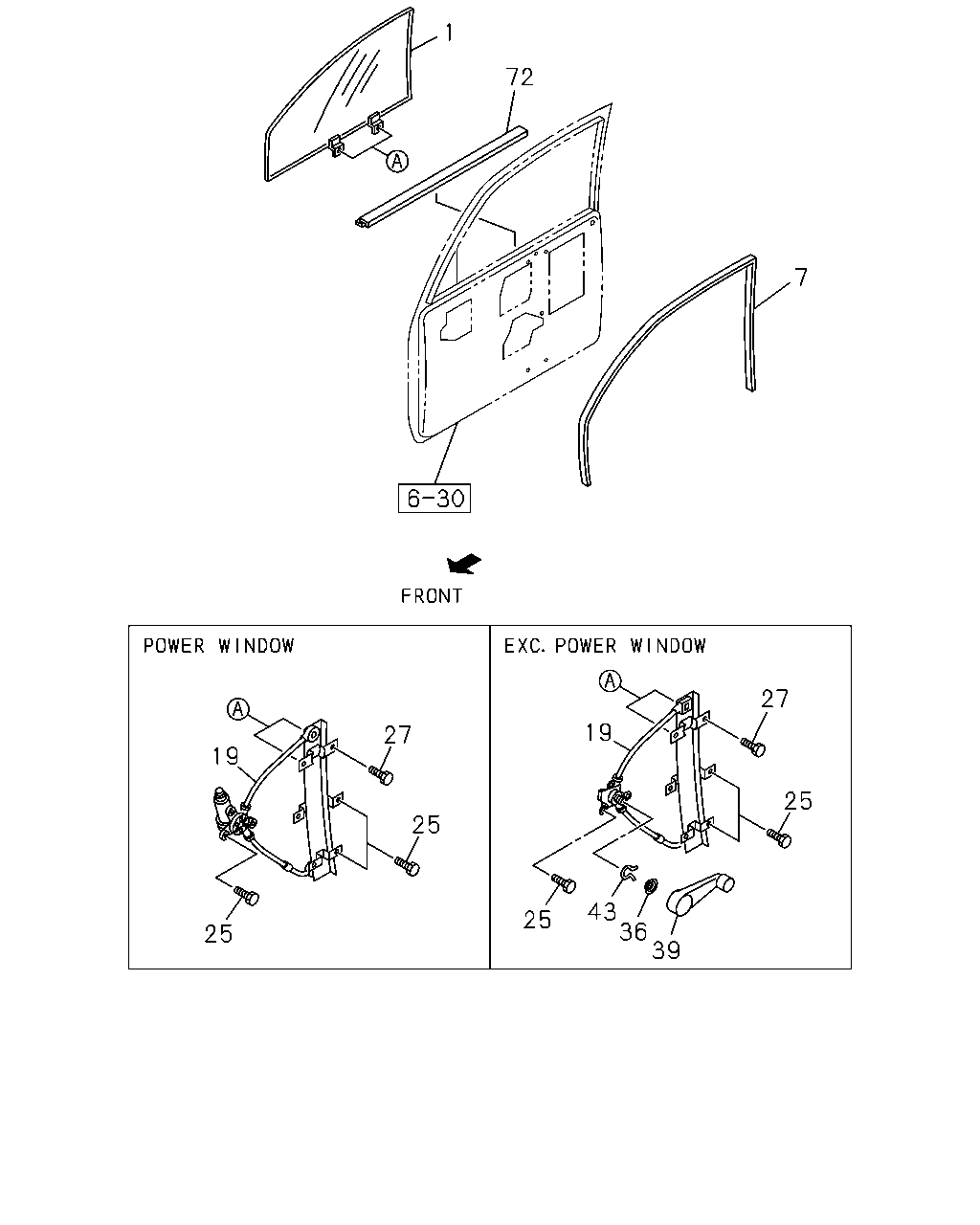

çizim 67230
1 72 7 27 19 27 19 25 25 43 36 39 25 25
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR 8-97124-782-0 01 1 9707-0007
1 GLASS; FRT DOOR 8-97251-741-0 01 1 0008-
1 GLASS; FRT DOOR 8-97124-781-0 01 1 9707-0007
1 GLASS; FRT DOOR 8-97251-740-0 01 1 0008-
7 GLASS RUN; FRT DOOR 8-97124-719-2 01 1 9707-9908
7 GLASS RUN; FRT DOOR 8-97213-262-2 01 1 9909-0209
7 GLASS RUN; FRT DOOR 8-97359-029-0 01 1 0210-
7 GLASS RUN; FRT DOOR 8-97124-718-2 01 1 9707-9908
7 GLASS RUN; FRT DOOR 8-97213-261-2 01 1 9909-0209
7 GLASS RUN; FRT DOOR 8-97359-028-0 01 1 0210-
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW<A30> 		8-97125-586-2 01 1 9707-9912
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW<A30> 		8-97233-035-0 01 1 0001-0003
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW<A30> 		8-97254-453-0 01 1 0004-0307
19 REGULATOR; WINDOW,FRT DOOR 8-97254-453-0 01 1 0308-
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW<A30> 		8-97125-585-2 01 1 9707-9912
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW<A30> 		8-97233-034-0 01 1 0001-0003
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW<A30> 		8-97254-452-0 01 1 0004-0307
19 REGULATOR; WINDOW,FRT DOOR 8-97254-452-0 01 1 0308-
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		8-97125-475-4 01 1 9707-0307
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		8-97125-474-4 01 1 9707-0307
25 BOLT; WINDOW REG
M6X8 		8-94155-893-0 14 1 9707-
27 BOLT; GLASS FIX
M6X8 		8-94155-893-0 04 1 9707-
36 ESCUTCHEON; HANDLE,WINDOW REG
EXC. POWER WINDOW<A30> 		8-94220-668-1 02 1 9707-0307
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> GRAY 		8-97157-358-0 02 1 9707-0206
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> DARK GRAY 		8-97391-742-0 02 1 0207-0307
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94220-591-0 02 1 9707-0307
72 SEAL; WAIST,FRT DOOR 8-97124-805-4 01 1 9707-
72 SEAL; WAIST,FRT DOOR 8-97124-804-4 01 1 9707-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
