Isuzu WW
▶
SUV
▶
UES
▶
50754 - UES(4DOOR)-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-30 - FRONT DOOR AND HINGE
▶

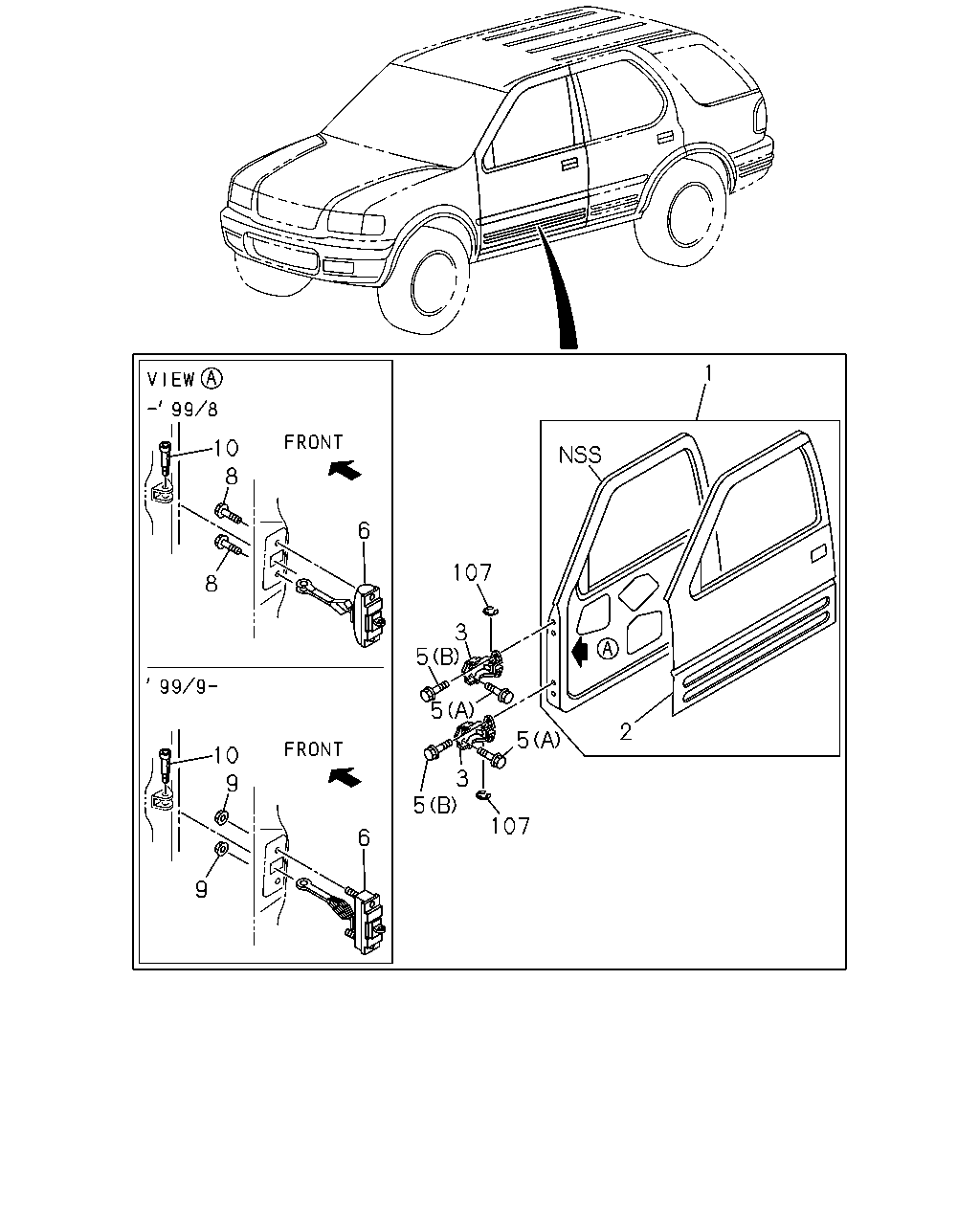

6-30 — FRONT DOOR AND HINGE
(#42604) — 18 parça
1
10
8
6
107
8
3
5
5
2
5
10
9
3
5
107
6
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DOOR ASM; FRT,WO/TRIM
8-97124-060-4
01
1
9707-
1
DOOR ASM; FRT,WO/TRIM
8-97124-059-4
01
1
9707-
2
PANEL; FRT DOOR OUTER
8-97135-126-3
01
1
9707-
2
PANEL; FRT DOOR OUTER
8-97135-125-3
01
1
9707-
3
HINGE; DOOR FRT
UPPER
8-97147-592-3
01
1
9707-
3
HINGE; DOOR FRT
LOWER
8-97147-594-3
01
1
9707-
3
HINGE; DOOR FRT
UPPER
8-97147-591-3
01
1
9707-
3
HINGE; DOOR FRT
LOWER
8-97147-593-3
01
1
9707-
5
BOLT; HINGE
(A) M8X23 FLANGE
8-94174-559-2
08
1
9707-
5
BOLT; HINGE
(B) M8X20 FLANGE
8-97089-067-0
08
1
9707-
6
ARM; CHECK,FRT DOOR
8-97038-979-2
02
1
9707-9908
6
ARM; CHECK,FRT DOOR
8-97233-754-0
02
1
9909-0007
6
ARM; CHECK,FRT DOOR
8-97288-285-0
02
1
0008-0109
6
ARM; CHECK,FRT DOOR
8-97325-331-0
02
1
0110-
8
BOLT; CHECK ARM
M6X20 FLANGE
0-28680-620-0
04
1
9707-9908
9
NUT; CHECK ARM
M6 FLANGE
5-09440-004-0
04
1
9909-
10
PIN; CHECK ARM
8-94111-468-0
02
1
9707-
107
RING; SNAP
8-97166-473-0
04
1
9707-
