◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#42603) — 141 parça

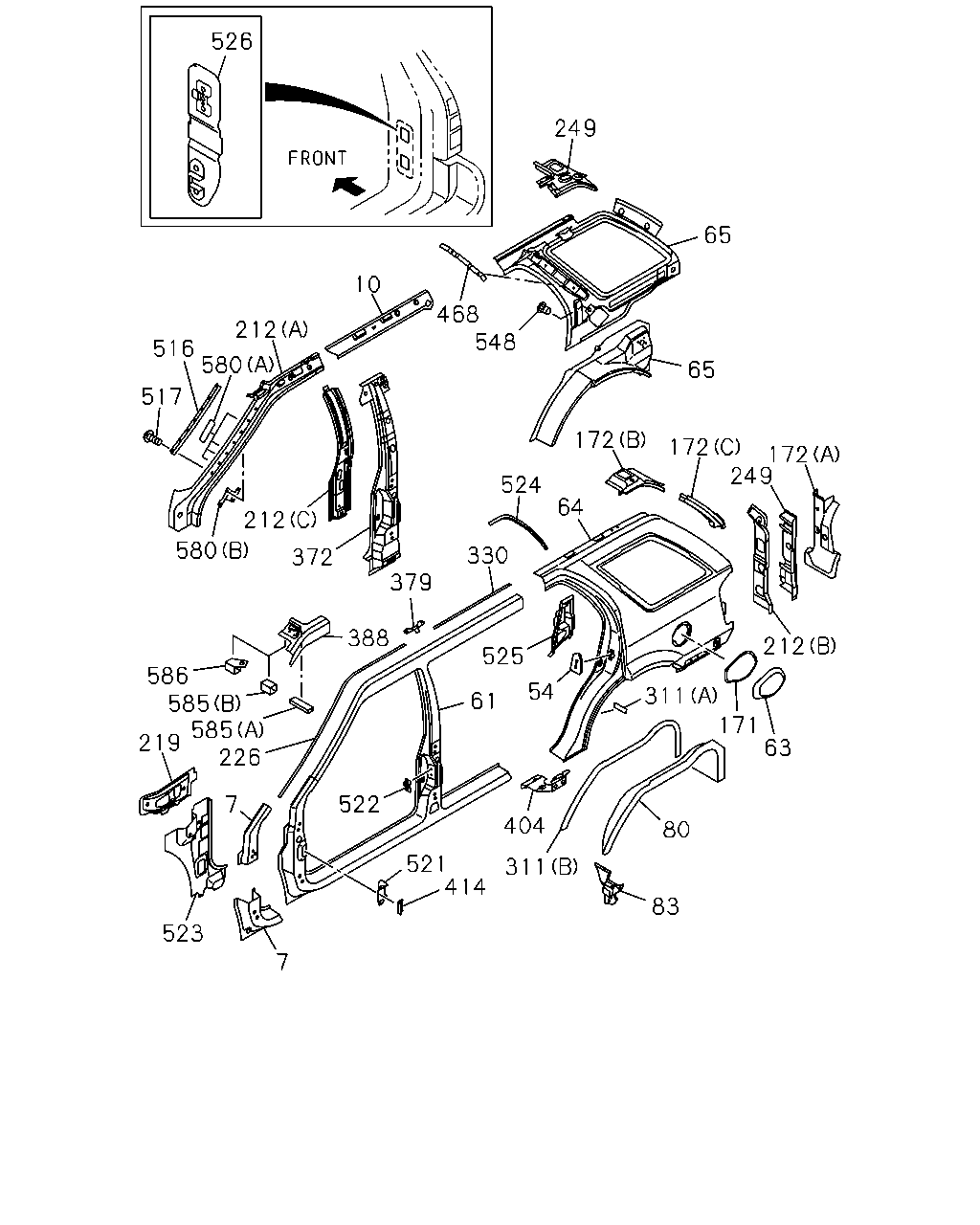

çizim 17447
526 249 65 10 468 548 212 516 580 65 517 172 172 172 249 524 64 212 580 330 372 379 388 212 525 586 585 585 226 54 311 61 171 219 63 522 7 404 80 521 414 311 83 523 7
BalonParca AdiParca NoAdetTipApplied Date
7 REINFORCEMENT; HINGE
UPPER 		8-97124-221-3 01 1 9707-
7 REINFORCEMENT; HINGE
LOWER 		8-97124-248-2 01 1 9707-
7 REINFORCEMENT; HINGE
UPPER 		8-97124-220-3 01 1 9707-
7 REINFORCEMENT; HINGE
LOWER 		8-97124-247-2 01 1 9707-
10 CLOSING; ROOF SIDE 8-97124-289-3 01 1 9707-
10 CLOSING; ROOF SIDE 8-97124-288-3 01 1 9707-
54 PATCH; DOOR STRIKER 8-97124-297-1 01 1 9707-
54 PATCH; DOOR STRIKER 8-97124-292-1 01 1 9707-
61 PANEL; SIDE OUTER 8-97123-581-7 01 1 9707-
61 PANEL; SIDE OUTER 8-97123-580-7 01 1 9707-
63 PANEL; FUEL FILLER RECESS 8-97124-326-0 01 1 9707-
64 PANEL; QUARTER OUTER 8-97123-583-8 01 1 9707-9908
64 PANEL; QUARTER OUTER
EXC. OVER FENDER<6GH> 		8-97123-583-8 01 1 9909-
64 PANEL; QUARTER OUTER 8-97123-582-7 01 1 9707-9908
64 PANEL; QUARTER OUTER
EXC. OVER FENDER<6GH> 		8-97123-582-7 01 1 9909-
64 PANEL; QUARTER OUTER
OVER FENDER<6GH> ROOF RAIL WITH CROSS BAR<8BV> 		8-97211-821-0 01 1 0009-0009
64 PANEL; QUARTER OUTER
IRONMAN/ANNIVERSARY EDITION<ER5> OVER FENDER<6GH> 		8-97211-821-0 01 1 0010-0106
64 PANEL; QUARTER OUTER
OVER FENDER<6GH> ROOF RAIL WITH CROSS BAR<8BV> 		8-97211-821-0 01 1 0010-0106
64 PANEL; QUARTER OUTER
OVER FENDER<6GH> ROOF RAIL WITH CROSS BAR<8BV> 		8-97211-821-0 01 1 0107-0307
64 PANEL; QUARTER OUTER
OVER FENDER<6GH> 		8-97211-821-0 01 1 0308-
64 PANEL; QUARTER OUTER
OVER FENDER<6GH> ROOF RAIL<7LC>,ROOF RAIL WITH CROSS BAR<8BV> 		8-97211-822-0 01 1 9909-0008
64 PANEL; QUARTER OUTER
OVER FENDER<6GH> ROOF RAIL WITH CROSS BAR<8BV> 		8-97211-822-0 01 1 0009-0009
64 PANEL; QUARTER OUTER
IRONMAN/ANNIVERSARY EDITION<ER5> OVER FENDER<6GH> 		8-97211-822-0 01 1 0010-0106
64 PANEL; QUARTER OUTER
OVER FENDER<6GH> ROOF RAIL WITH CROSS BAR<8BV> 		8-97211-822-0 01 1 0010-0106
64 PANEL; QUARTER OUTER
OVER FENDER<6GH> ROOF RAIL WITH CROSS BAR<8BV> 		8-97211-822-0 01 1 0107-0307
64 PANEL; QUARTER OUTER
OVER FENDER<6GH> 		8-97211-822-0 01 1 0308-
64 PANEL; QUARTER OUTER
OVER FENDER<6GH> ROOF RAIL<7LC>,ROOF RAIL WITH CROSS BAR<8BV> 		8-97211-821-0 01 1 9909-0008
64 PANEL; QUARTER OUTER 8-97123-582-7 01 1 0403-
64 PANEL; QUARTER OUTER 8-97123-583-8 01 1 0403-
65 PANEL; QUARTER,INNER
UPPER 		8-97123-382-8 01 1 9707-9812
65 PANEL; QUARTER,INNER
UPPER 		8-97220-464-2 01 1 9901-0109
65 PANEL; QUARTER,INNER
UPPER 		8-97320-282-0 01 1 0110-
65 PANEL; QUARTER,INNER
LOWER 		8-97124-647-2 01 1 9707-
65 PANEL; QUARTER,INNER
UPPER 		8-97123-381-8 01 1 9707-9812
65 PANEL; QUARTER,INNER
UPPER 		8-97220-463-3 01 1 9901-0109
65 PANEL; QUARTER,INNER
UPPER 		8-97320-281-0 01 1 0110-
65 PANEL; QUARTER,INNER
LOWER 		8-97124-646-2 01 1 9707-0109
65 PANEL; QUARTER,INNER
LOWER 		8-97320-275-0 01 1 0110-
80 PANEL; WHEEL HOUSE,INNER 8-97124-332-3 01 1 9707-
80 PANEL; WHEEL HOUSE,INNER 8-97124-331-3 01 1 9707-0109
80 PANEL; WHEEL HOUSE,INNER 8-97320-277-0 01 1 0110-
83 COVER; ROCKER RR 8-97124-283-1 01 1 9707-
83 COVER; ROCKER RR 8-97124-282-1 01 1 9707-
171 SEAL; FUEL FILLER RECESS 8-97170-324-0 01 1 9707-9908
172 EXTENSION; QUARTER PANEL
(A) 		8-97123-392-6 01 1 9707-9908
172 EXTENSION; QUARTER PANEL
(A) 		8-97213-548-0 01 1 9909-9909
172 EXTENSION; QUARTER PANEL
(A) 		8-97123-392-6 01 1 9910-
172 EXTENSION; QUARTER PANEL
(B) 		8-97124-309-1 01 1 9707-
172 EXTENSION; QUARTER PANEL
(C) 		8-97124-317-0 01 1 9707-
172 EXTENSION; QUARTER PANEL
(A) 		8-97123-391-6 01 1 9707-9908
172 EXTENSION; QUARTER PANEL
(A) 		8-97213-547-0 01 1 9909-9909
172 EXTENSION; QUARTER PANEL
(A) 		8-97123-391-6 01 1 9910-
172 EXTENSION; QUARTER PANEL
(B) 		8-97124-308-1 01 1 9707-
172 EXTENSION; QUARTER PANEL
(C) 		8-97124-316-0 01 1 9707-
212 CLOSING; PILLAR
(A) 		8-97123-414-4 01 1 9707-9805
212 CLOSING; PILLAR
(A) 		8-97201-428-1 01 1 9806-9908
212 CLOSING; PILLAR
(A) 		8-97208-672-2 01 1 9909-
212 CLOSING; PILLAR
(B) 		8-97124-368-6 01 1 9707-
212 CLOSING; PILLAR
(C) 		8-97211-709-0 01 1 9707-
212 CLOSING; PILLAR
(A) 		8-97123-413-4 01 1 9707-9805
212 CLOSING; PILLAR
(A) 		8-97201-427-1 01 1 9806-9908
212 CLOSING; PILLAR
(A) 		8-97208-671-2 01 1 9909-
212 CLOSING; PILLAR
(B) 		8-97124-362-4 01 1 9707-
212 CLOSING; PILLAR
(C) 		8-97211-708-0 01 1 9707-
219 REINFORCEMENT; SIDE PANEL 8-97142-615-2 01 1 9707-9805
219 REINFORCEMENT; SIDE PANEL 8-97208-041-0 01 1 9806-
219 REINFORCEMENT; SIDE PANEL 8-97142-614-2 01 1 9707-
226 RAIL; DRIP,FRT PILLAR 8-97124-213-4 01 1 9707-
226 RAIL; DRIP,FRT PILLAR 8-97124-212-4 01 1 9707-
249 REINFORCEMENT; RR PILLAR
LOWER 		8-97124-318-5 01 1 9707-
249 REINFORCEMENT; RR PILLAR
UPPER 		8-97124-375-0 01 1 9707-
249 REINFORCEMENT; RR PILLAR
LOWER 		8-97124-325-4 01 1 9707-
249 REINFORCEMENT; RR PILLAR
UPPER 		8-97124-374-0 01 1 9707-
311 SEAL; WHEEL HOUSE
(A) 		8-97147-629-0 02 1 9707-0106
311 SEAL; WHEEL HOUSE
(A) 		8-97321-898-0 02 1 0107-
311 SEAL; WHEEL HOUSE
(B) 		8-97170-322-0 04 1 9707-9908
330 RAIL; CENTER PILLAR,DRIP SIDE 8-97124-215-0 01 1 9707-
330 RAIL; CENTER PILLAR,DRIP SIDE 8-97124-214-0 01 1 9707-
372 REINFORCEMENT; CENTER PILLAR 8-97124-255-3 01 1 9707-9804
372 REINFORCEMENT; CENTER PILLAR 8-97201-824-1 01 1 9805-
372 REINFORCEMENT; CENTER PILLAR 8-97124-254-3 01 1 9707-9804
372 REINFORCEMENT; CENTER PILLAR 8-97201-822-1 01 1 9805-
379 PATCH; ROOF RACK
ROOF RAIL<7LC> 		8-97138-827-1 02 1 9707-9812
379 PATCH; ROOF RACK
ROOF RAIL<7LC> 		8-97215-724-0 02 1 9901-9909
379 PATCH; ROOF RACK
ROOF RAIL<7LC>,ROOF RAIL WITH CROSS BAR<8BV> 		8-97215-724-0 02 1 9910-0008
379 PATCH; ROOF RACK
ROOF RAIL WITH CROSS BAR<8BV> 		8-97215-724-0 02 1 0009-0009
379 PATCH; ROOF RACK
IRONMAN/ANNIVERSARY EDITION<ER5> 		8-97215-724-0 02 1 0010-0106
379 PATCH; ROOF RACK
ROOF RAIL WITH CROSS BAR<8BV> 		8-97215-724-0 02 1 0010-0106
379 PATCH; ROOF RACK
ROOF RAIL WITH CROSS BAR<8BV> 		8-97215-724-0 02 1 0107-0307
379 PATCH; ROOF RACK 8-97215-724-0 02 1 0308-
388 REINFORCEMENT; FRONT PILLAR 8-97124-209-5 01 1 9707-9908
388 REINFORCEMENT; FRONT PILLAR 8-97215-793-0 01 1 9909-
388 REINFORCEMENT; FRONT PILLAR 8-97124-208-5 01 1 9707-9908
388 REINFORCEMENT; FRONT PILLAR 8-97215-792-0 01 1 9909-
404 BRACKET
OVER FENDER<6GH> ROOF RAIL<7LC>,ROOF RAIL WITH CROSS BAR<8BV> 		8-97232-139-2 01 1 9909-0008
404 BRACKET
OVER FENDER<6GH> ROOF RAIL WITH CROSS BAR<8BV> 		8-97232-139-2 01 1 0009-0009
404 BRACKET
IRONMAN/ANNIVERSARY EDITION<ER5> OVER FENDER<6GH> 		8-97232-139-2 01 1 0010-0106
404 BRACKET
OVER FENDER<6GH> ROOF RAIL WITH CROSS BAR<8BV> 		8-97232-139-2 01 1 0010-0106
404 BRACKET
OVER FENDER<6GH> ROOF RAIL WITH CROSS BAR<8BV> 		8-97232-139-2 01 1 0107-0307
404 BRACKET
OVER FENDER<6GH> 		8-97232-139-2 01 1 0308-
404 BRACKET
OVER FENDER<6GH> ROOF RAIL<7LC>,ROOF RAIL WITH CROSS BAR<8BV> 		8-97232-138-2 01 1 9909-0008
404 BRACKET
OVER FENDER<6GH> ROOF RAIL WITH CROSS BAR<8BV> 		8-97232-138-2 01 1 0009-0009
404 BRACKET
IRONMAN/ANNIVERSARY EDITION<ER5> OVER FENDER<6GH> 		8-97232-138-2 01 1 0010-0106
404 BRACKET
OVER FENDER<6GH> ROOF RAIL WITH CROSS BAR<8BV> 		8-97232-138-2 01 1 0010-0106
404 BRACKET
OVER FENDER<6GH> ROOF RAIL WITH CROSS BAR<8BV> 		8-97232-138-2 01 1 0107-0307
404 BRACKET
OVER FENDER<6GH> 		8-97232-138-2 01 1 0308-
414 BRACKET; FENDER 8-97124-218-1 02 1 9707-
468 REINFORCEMENT; SEAT BELT ANCHOR 8-97138-874-0 02 1 9707-
516 RAIL; FRT PILLAR INNER 8-97160-163-2 02 1 9707-9908
516 RAIL; FRT PILLAR INNER 8-97215-804-0 02 1 9909-
517 SCREW; TAP
M6X18 		8-97162-219-0 14 1 9707-9801
517 SCREW; TAP
M6X18 		8-97162-219-0 10 1 9802-9906
517 SCREW; TAP
M6X9 		8-97223-510-0 10 1 9907-
521 REINFORCEMENT; CHECK ARM 8-97124-244-0 02 1 9707-
522 PLATE; TAPPING 8-97124-277-1 02 1 9707-
523 PANEL; DASH SIDE 8-97123-386-1 01 1 9707-9908
523 PANEL; DASH SIDE 8-97215-733-1 01 1 9909-
523 PANEL; DASH SIDE 8-97123-385-1 01 1 9707-9908
523 PANEL; DASH SIDE 8-97215-732-1 01 1 9909-0109
523 PANEL; DASH SIDE 8-97320-835-0 01 1 0110-
524 RAIL; DRIP RR 8-97124-328-2 01 1 9707-
524 RAIL; DRIP RR 8-97124-327-2 01 1 9707-
525 REINFORCEMENT; RR SEAT STRIKER 8-97124-349-2 01 1 9707-
525 REINFORCEMENT; RR SEAT STRIKER 8-97124-347-2 01 1 9707-
526 PATCH; TAIL GATE STRIKER 8-97124-366-2 01 1 9707-
548 NUT; BRKT
M6 POP 		8-94455-383-0 02 1 9909-
580 SPACER; BODY SIDE
(A) 		8-97240-951-0 08 1 9911-0110
580 SPACER; BODY SIDE
(B) 		8-97240-950-0 01 1 9911-0110
580 SPACER; BODY SIDE
(B) 		8-97302-060-0 01 1 0111-0402
580 SPACER; BODY SIDE
(B) 		8-97302-060-0 01 1 0403-
580 SPACER; BODY SIDE
(B) 		8-97240-949-0 01 1 9911-0110
580 SPACER; BODY SIDE
(B) 		8-97302-059-0 01 1 0111-0402
580 SPACER; BODY SIDE
(B) 		8-97302-059-0 01 1 0403-
585 HOSE; FLEX
(B) L=35 		8-97241-059-0 02 1 9911-0007
585 HOSE; FLEX
(A) L=70 		8-97244-643-0 02 1 9911-9911
585 HOSE; FLEX
(A) L=70 		8-97245-113-0 02 1 9911-0110
585 HOSE; FLEX
(B) L=35 		8-97241-059-0 02 1 0011-0110
586 PLATE; FLEX HOSE 8-97252-326-0 01 1 0008-0010
586 PLATE; FLEX HOSE 8-97286-945-2 01 1 0111-
586 PLATE; FLEX HOSE 8-97252-311-0 01 1 0008-0010
586 PLATE; FLEX HOSE 8-97286-944-2 01 1 0111-
