Isuzu WW
▶
SUV
▶
UES
▶
50754 - UES(4DOOR)-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-14 - DASH PANEL AND FENDER SKIRT
▶

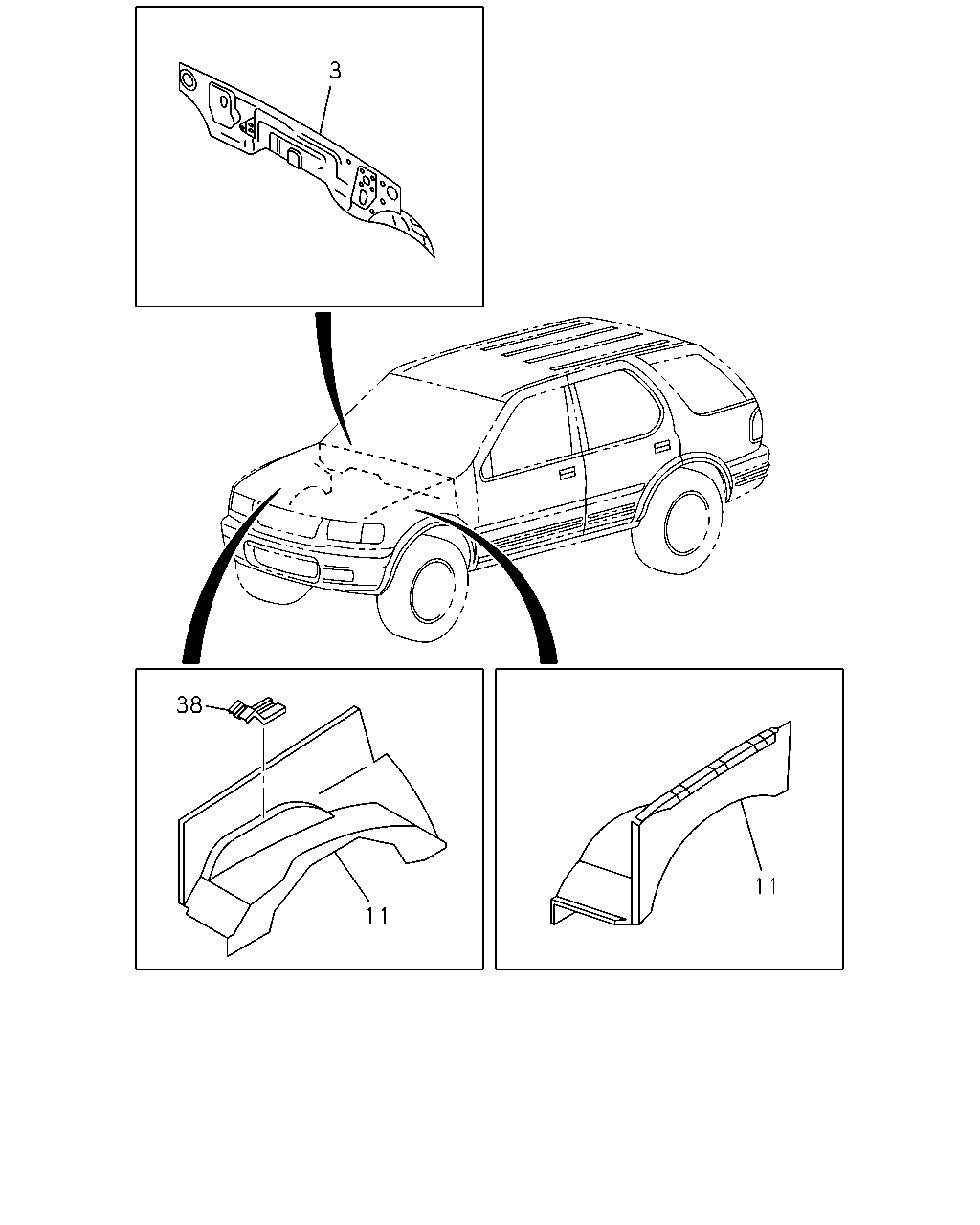

6-14 — DASH PANEL AND FENDER SKIRT
(#42602) — 12 parça
3
38
11
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
PANEL; SUB,DASH LWR
A/T THM(RMQ)
8-97138-641-0
01
1
9707-9908
3
PANEL; SUB,DASH LWR
A/T THM(RMQ)
8-97221-712-2
01
1
9909-0206
3
PANEL; SUB,DASH LWR
A/T AISIN(RMD)
8-97221-712-2
01
1
0207-0307
3
PANEL; SUB,DASH LWR
8-97221-712-2
01
1
0308-
3
PANEL; SUB,DASH LWR
M/T MUA 5 SPEED(RMN)
8-97177-737-0
01
1
9707-9908
3
PANEL; SUB,DASH LWR
M/T MUA 5 SPEED(RMN)
8-97221-713-2
01
1
9909-0206
3
PANEL; SUB,DASH LWR
M/T MUA 5 SPEED 5C(RSN)
8-97221-713-2
01
1
0207-0307
11
SKIRT; FRT FENDER PNL
8-97125-105-4
01
1
9707-9901
11
SKIRT; FRT FENDER PNL
8-97215-810-2
01
1
9902-
11
SKIRT; FRT FENDER PNL
8-97125-104-5
01
1
9707-9901
11
SKIRT; FRT FENDER PNL
8-97221-725-1
01
1
9902-
38
BRACKET; FUSE BOX
8-97161-983-0
01
1
9707-
