Isuzu WW
▶
SUV
▶
UES
▶
50754 - UES(4DOOR)-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-10 - ENGINE HOOD AND LOCK
▶

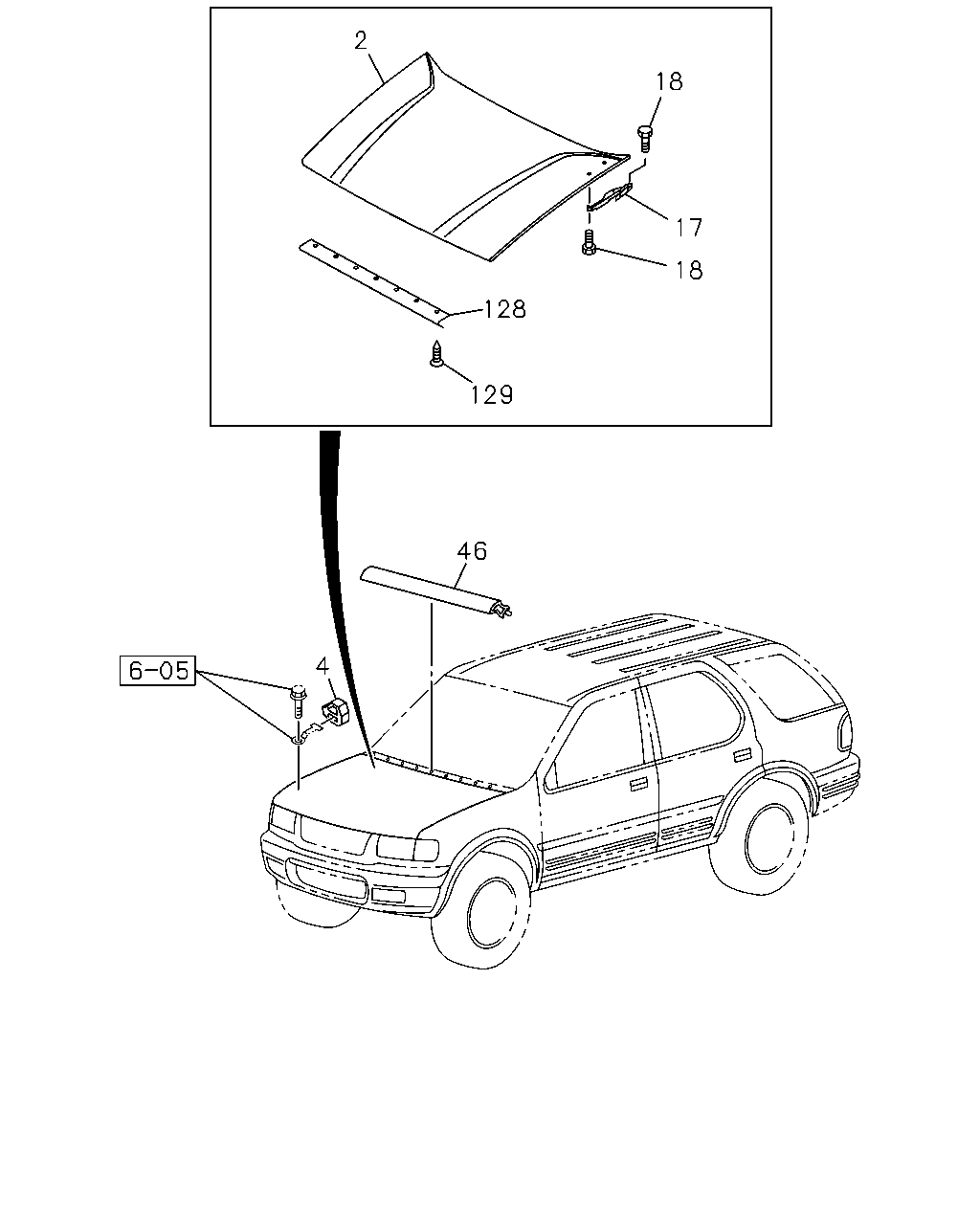

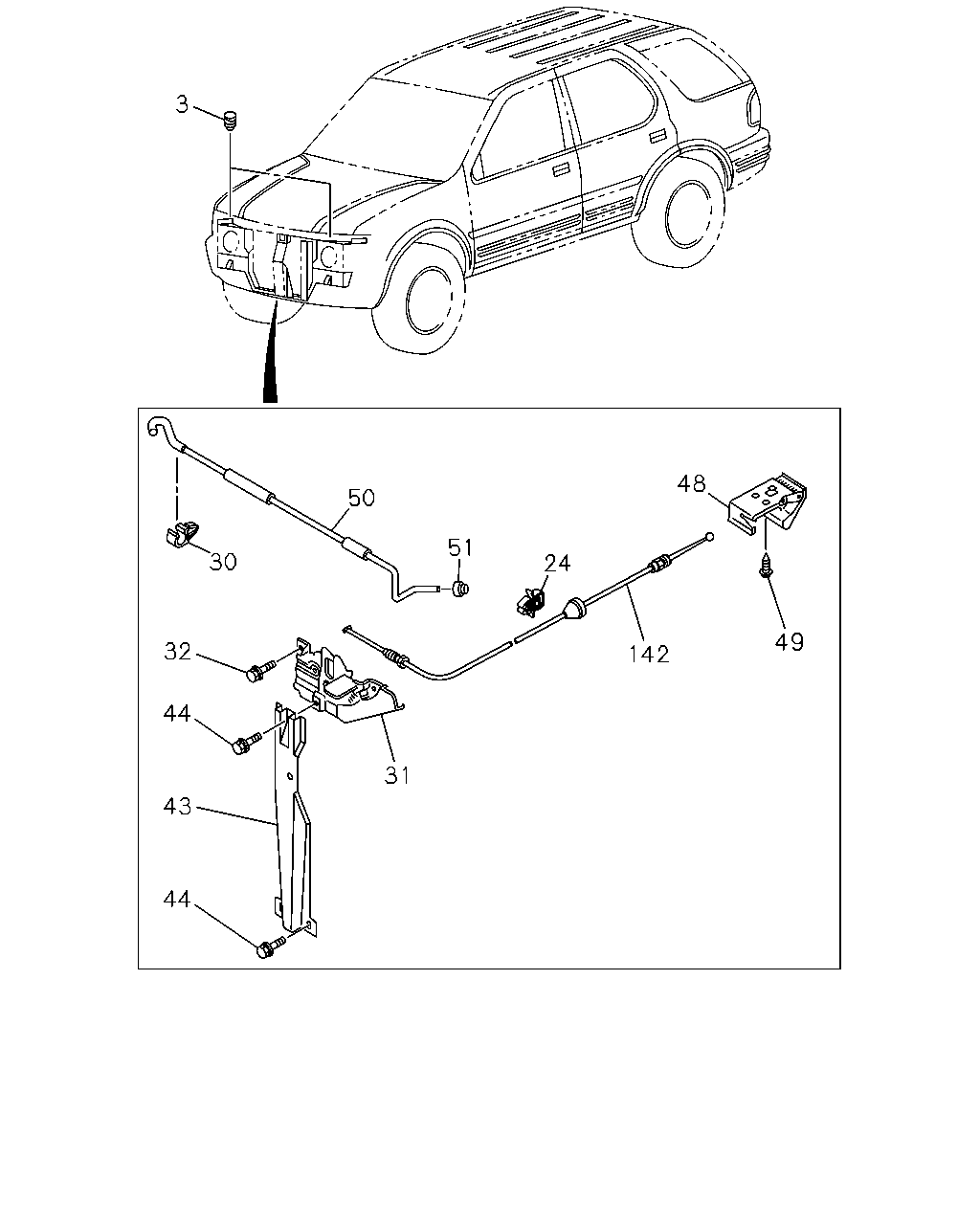

6-10 — ENGINE HOOD AND LOCK
(#42601) — 31 parça
◀
[610A] NO.1 (11 parça)
[610A] NO.2 (20 parça)
▶
2
18
17
18
128
129
46
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
PANEL; ENG HOOD
8-97125-254-2
01
1
9707-
4
REST; SIDE
8-94442-966-0
02
1
9707-9803
17
HINGE; ENG HOOD
8-97125-195-3
01
1
9707-
17
HINGE; ENG HOOD
8-97125-194-3
01
1
9707-
18
BOLT; HINGE
M8X16
8-94139-492-0
08
1
9707-
46
SEAL; ENG HOOD
8-97124-418-0
01
1
9707-
128
SEAL; PLATFORM
AIR CONDITIONER MANUAL CONT(C60)
8-97137-515-1
01
1
9707-0307
128
SEAL; PLATFORM
8-97137-515-1
01
1
0308-
129
CLIP; ENG HOOD SEAL
AIR CONDITIONER MANUAL CONT(C60) BLACK
8-94104-935-0
07
1
9707-9901
129
CLIP; ENG HOOD SEAL
AIR CONDITIONER MANUAL CONT(C60) BLACK
8-94104-935-0
05
1
9902-0307
129
CLIP; ENG HOOD SEAL
BLACK
8-94104-935-0
05
1
0308-
3
48
50
51
30
24
49
32
142
44
31
43
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
BUFFER; ENG HOOD,FRT
8-00472-450-1
02
1
9707-
24
CLIP; CONT CABLE
8-94225-098-0
02
1
9707-9709
24
CLIP; CONT CABLE
8-97182-405-0
02
1
9710-
30
CLIP; SUPPORT ROD,HOOD
8-15571-260-0
01
1
9707-
31
LOCK; ENG HOOD
8-97125-591-1
01
1
9707-
32
BOLT; HOOD LK
M6X18
8-97071-681-0
02
1
9707-
43
STAY; ENG HOOD,FRT END
8-97124-417-1
01
1
9707-9908
43
STAY; ENG HOOD,FRT END
8-97209-032-1
01
1
9909-0106
43
STAY; ENG HOOD,FRT END
EXC. GRAY PAINTED PACKAGE<7XA>
8-97209-032-1
01
1
0107-0206
43
STAY; ENG HOOD,FRT END
GRAY PAINTED PACKAGE<7XA>
8-97124-417-2
01
1
0107-0206
43
STAY; ENG HOOD,FRT END
8-97124-417-2
01
1
0207-
44
BOLT; STAY,HOOD
M6X18
8-97071-681-0
03
1
9707-
48
LEVER; ENG HOOD
BLACK
8-97808-822-0
01
1
9707-
49
SCREW; LEVER,ENG HOOD OPENER
M5X16
8-94279-312-0
02
1
9707-
50
ROD; SUPPORT,ENG HOOD
8-97164-503-4
01
1
9707-
51
GROMMET; SUPPORT ROD
8-10046-775-0
01
1
9707-
142
CABLE; HOOD LOCK
8-97168-300-2
01
1
9707-9908
142
CABLE; HOOD LOCK
8-97229-157-0
01
1
9909-0009
142
CABLE; HOOD LOCK
8-97256-005-0
01
1
0010-0111
142
CABLE; HOOD LOCK
8-97313-471-0
01
1
0112-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
