Isuzu WW
▶
TRUCKS
▶
CXH
▶
10585 - CXH RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-32A - WATER PIPING; ENGINE
▶

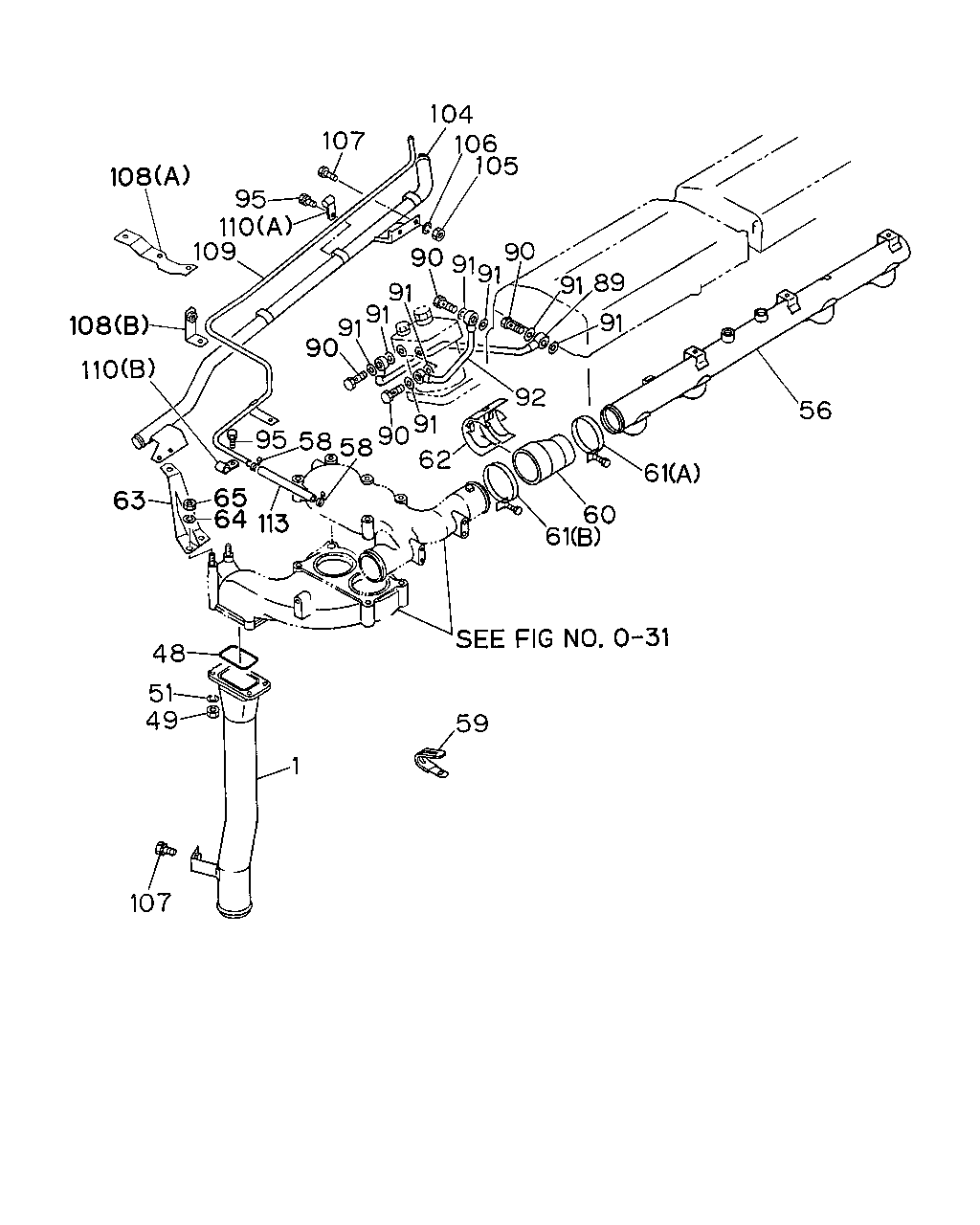

0-32A — WATER PIPING; ENGINE
(#426) — 46 parça
Tümü
A - 6RA1TC ENG
B - 6RB1TC ENG
C - 6RB1 TURBO ENG
108
107
104
95
109
110
106
108
105
110
90
91
91
90
91
91
91
90
91
89
91
63
95
58
58
90
91
92
62
56
61
60
61
113
65
64
48
51
49
107
59
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
PIPE; WATER PUMP,INL
1-13711-387-1
01
1
8712-
●
●
●
48
GASKET; PIPE TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-217-0
01
1
8712-
●
●
●
49
NUT; WATER PIPE
M8
9-09110-508-0
04
1
8712-
●
●
●
51
WASHER; LK,PIPE
ID=8.2
9-09150-508-0
04
1
8712-
●
●
●
56
PIPE; WATER OUTLET
CORROSION RESISTOR<W49>
1-13711-428-0
01
1
8712-9001
●
●
56
PIPE; WATER OUTLET
1-13711-421-0
01
1
9002-
●
56
PIPE; WATER OUTLET
EXC. CORROSION RESISTOR<W49>
1-13711-421-0
01
1
8712-9001
●
56
PIPE; WATER OUTLET
1-13711-365-0
01
1
8712-9001
●
56
PIPE; WATER OUTLET
1-13711-304-2
01
1
9002-9005
●
58
CLIP; RUBBER HOSE
5-09704-056-0
02
1
8712-9001
●
59
CLIP; HARNESS,WATER OUTLET PIPE
L=36
8-94224-891-1
01
1
8712-
●
●
60
HOSE; OUTLET PIPE TO HSG
1-09360-446-0
01
1
8712-9008
●
●
●
60
HOSE; OUTLET PIPE TO HSG
1-09360-895-0
01
1
9009-
●
●
61
CLIP; HOSE,OUTLET PIPE TO HSG
(A) ID=63
1-09704-067-0
01
1
8712-
●
●
●
61
CLIP; HOSE,OUTLET PIPE TO HSG
(B) ID=70
1-09704-078-0
01
1
8712-
●
●
●
62
PROTECTOR; HEAT,RUB HOSE,OUTLET PIPE
1-14181-156-1
01
1
8712-
●
●
●
63
BRACKET; WATER PIPE
1-13719-056-0
01
1
8712-
●
●
64
WASHER; LK
ID=8.2
9-09150-508-0
02
1
8712-
●
●
65
NUT
M8
9-09110-408-0
02
1
8712-
●
●
89
PIPE; WATER,AIR CMPR,IN
1-13721-256-0
01
1
8712-
●
●
●
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 FLANGE
1-09675-086-0
04
1
8712-
●
●
●
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
08
1
8712-9306
●
●
●
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
08
1
9307-
●
92
PIPE; WATER,AIR CMPR,OUT
1-13721-359-0
01
1
8712-
●
●
●
95
BOLT; CLIP
M6X14
9-01910-614-0
03
1
8712-9005
●
●
●
95
BOLT; CLIP
M6X14 W/LK WASHER
0-50040-614-0
03
1
9006-
●
●
95
BOLT; CLIP
M10X20 W/LK WASHER
9-01911-020-0
01
1
8712-9002
●
95
BOLT; CLIP
M10X20 W/LK WASHER
0-50041-020-0
01
1
9003-9306
●
104
PIPE; WATER CHARGE
1-13721-241-2
01
1
8712-9001
●
104
PIPE; WATER CHARGE
1-13721-301-1
01
1
8712-
●
●
105
NUT; PIPE
M8
9-09110-408-0
02
1
8712-9001
●
105
NUT; PIPE
M10
9-09110-410-0
02
1
8712-9001
●
105
NUT; PIPE
M10
9-09110-410-0
03
1
8712-
●
●
106
WASHER; LK
ID=8.2
9-09150-508-0
02
1
8712-9001
●
106
WASHER; LK
ID=10.2
9-09150-510-0
02
1
8712-9001
●
106
WASHER; LK
ID=10.2
9-09150-510-0
03
1
8712-
●
●
107
BOLT; WATER PIPE
M8X20 W/LK WASHER
9-01910-820-0
03
1
8712-9001
●
107
BOLT; WATER PIPE
M10X20 W/LK WASHER
9-01911-020-0
02
1
8712-9002
●
●
107
BOLT; WATER PIPE
M10X20 W/LK WASHER
0-50041-020-0
02
1
9003-
●
●
108
BRACKET; WATER CHARGE
(A)
1-13729-002-0
01
1
8712-9001
●
108
BRACKET; WATER CHARGE
(B)
1-13729-003-0
01
1
8712-
●
●
109
PIPE; AIR,LEAK,THERMOSTAT HSG
1-13721-291-0
01
1
8712-9001
●
109
PIPE; AIR,LEAK,THERMOSTAT HSG
1-13721-302-0
01
1
8712-
●
●
110
CLIP; AIR PIPE
(A)
9-09525-033-0
03
1
8712-
●
●
●
110
CLIP; AIR PIPE
(B)
9-09917-544-0
01
1
8712-
●
●
●
113
HOSE; RUBBER,AIR LEAK
L=180 SERVICED BY L=3000
0-03259-300-0
01
1
8712-9001
●
