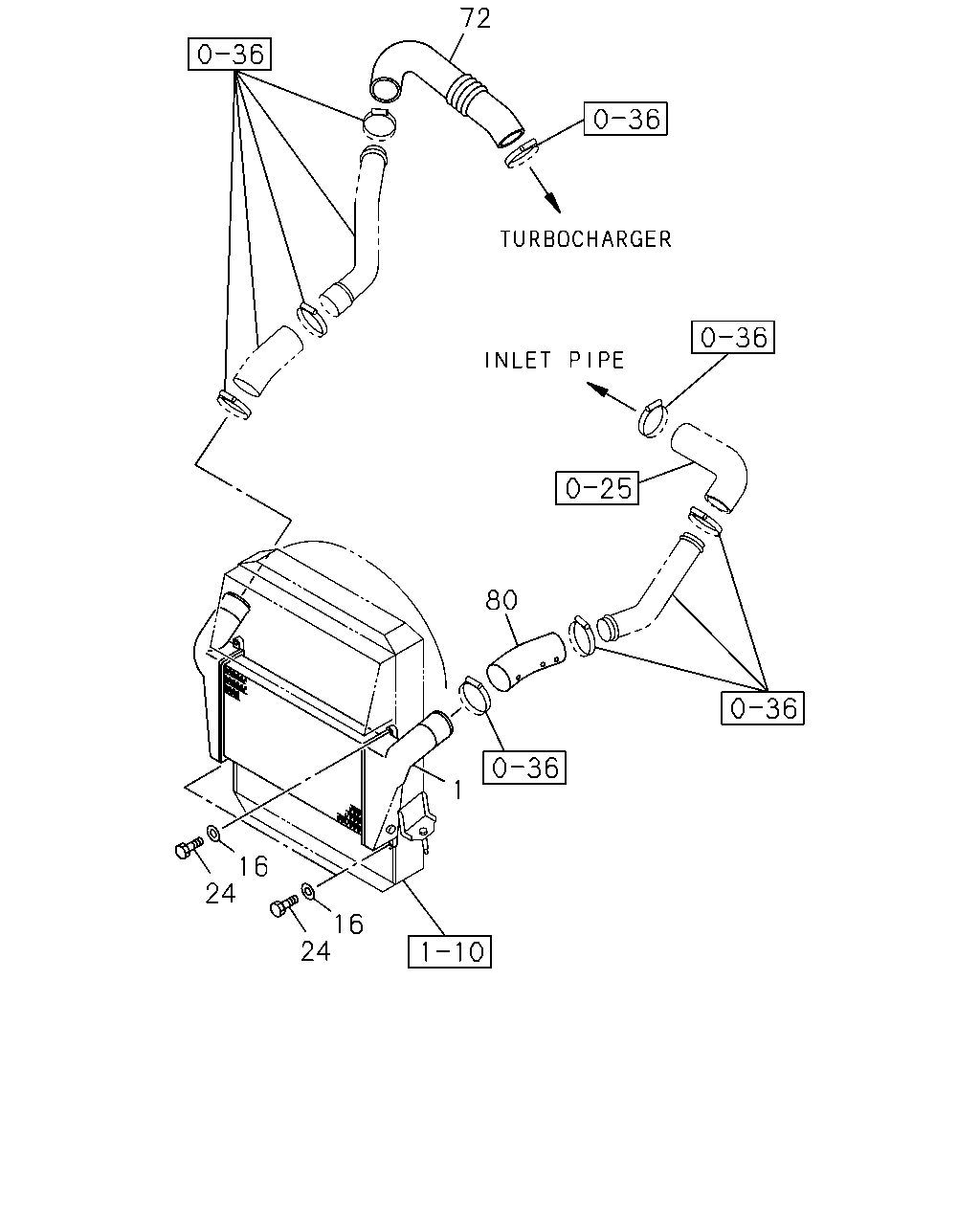

1-35 — CHARGE AIR COOLER (#42596) — 27 parça

72 80 1 16 24 16 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.374 COOLER; CHARGE AIR 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97218-394-4	01	1	0507-	●	●	●	●
1	03.374 COOLER; CHARGE AIR 4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97218-394-4	01	1	0507-	●	●	●	●
1	03.374 COOLER; CHARGE AIR	8-97218-394-4	01	1	0507-					●
1	03.374 COOLER; CHARGE AIR 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-362-1	01	1	0507-		●	●	●
1	03.374 COOLER; CHARGE AIR 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-362-1	01	1	0507-		●	●	●
1	03.374 COOLER; CHARGE AIR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97218-394-4	01	1	0211-0501	●	●	●	●
1	03.374 COOLER; CHARGE AIR CHARGE AIR COOLER<6PL>	8-97218-394-4	01	1	0211-0501					●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.417 ID=8.4 OD=16	0-91610-508-0	04	1	1104-	●	●	●	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.417 ID=8.4 OD=16	0-91610-508-0	04	1	1104-	●	●	●	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 03.417 ID=8.4 OD=16	0-91610-508-0	04	1	1104-					●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> 16.674 ID=8.4	9-09160-508-0	04	1	0507-1103	●	●	●	●	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.674 ID=8.4	9-09160-508-0	04	1	1104-		●	●	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 16.674 ID=8.4	9-09160-508-0	04	1	1104-		●	●	●
24	03.374 BOLT; COOLER TO RAD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> 01.531 M8X25 FLANGE	0-28080-825-0	04	1	0507-	●	●	●	●	●
24	03.374 BOLT; COOLER TO RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.531 M8X25 FLANGE	0-28080-825-0	04	1	0211-0501	●	●	●	●
24	03.374 BOLT; COOLER TO RAD CHARGE AIR COOLER<6PL> 01.531 M8X25 FLANGE	0-28080-825-0	04	1	0211-0501					●
72	01.540 HOSE; CONN,INL PIPE TO DUCT 4HK1-TCN ENG(RDQ)	8-97203-993-2	01	1	0507-	●
72	01.540 HOSE; CONN,INL PIPE TO DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97203-993-2	01	1	0507-		●	●	●
72	01.540 HOSE; CONN,INL PIPE TO DUCT	8-97203-993-2	01	1	0507-					●
72	01.540 HOSE; CONN,INL PIPE TO DUCT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97203-993-1	01	1	0211-0501	●	●	●	●
72	01.540 HOSE; CONN,INL PIPE TO DUCT CHARGE AIR COOLER<6PL>	8-97203-993-1	01	1	0211-0501					●
80	01.540 HOSE; CONN,CHARGE AIR COOLER TO 4HK1-TCN ENG(RDQ)	8-97233-792-1	01	1	0507-	●	●	●	●
80	01.540 HOSE; CONN,CHARGE AIR COOLER TO	8-97233-792-1	01	1	0507-					●
80	01.540 HOSE; CONN,CHARGE AIR COOLER TO 4HK1-TCS ENG(RJS)	8-98011-904-2	01	1	0507-0608		●	●	●
80	01.540 HOSE; CONN,CHARGE AIR COOLER TO 4HK1-TCS ENG(RJS)	8-98053-760-0	01	1	0609-		●	●	●
80	01.540 HOSE; CONN,CHARGE AIR COOLER TO 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97233-792-0	01	1	0211-0501	●	●	●	●
80	01.540 HOSE; CONN,CHARGE AIR COOLER TO CHARGE AIR COOLER<6PL>	8-97233-792-0	01	1	0211-0501					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
