◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50948 - NPR/NQR RHDEXC.EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-11 - RADIATOR HOSE AND SUB TANK ▶
1-11 — RADIATOR HOSE AND SUB TANK (#42593) — 308 parça
çizim 13069
128 56 56 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
55 01.173 HOSE; WATER,RAD OUTLET
4HK1-TCN ENG(RDQ) 		8-98019-472-0 01 1 0507- ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET 8-98019-472-0 01 1 0507- ●
55 01.173 HOSE; WATER,RAD OUTLET
4HK1-TCS ENG(RJS) 		8-97330-530-0 01 1 0507- ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97216-029-0 01 1 0211-0501 ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
CHARGE AIR COOLER<6PL> 		8-97216-029-0 01 1 0211-0501 ●
55 01.173 HOSE; WATER,RAD OUTLET
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97133-143-0 01 1 0211-0501 ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
EXC. CHARGE AIR COOLER<6PL> 		8-97133-143-0 01 1 0211-0501 ●
55 01.173 HOSE; WATER,RAD OUTLET
4HF1-S ENG(RLS) 		8-97124-743-0 01 1 0211-0501 ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97124-743-0 01 1 0211-0501 ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97124-743-0 01 1 0502- ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97124-743-0 01 1 0502- ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97124-743-0 01 1 0502- ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97177-372-0 01 1 0211-0501 ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET 8-97177-372-0 01 1 0211-0501 ●
55 01.173 HOSE; WATER,RAD OUTLET
4HG1-T ENG(RDP) 		8-97177-372-0 01 1 0502- ●
55 01.173 HOSE; WATER,RAD OUTLET 8-97177-372-0 01 1 0502- ●
56 01.166 CLIP; WATER HOSE,RAD
4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=40 		8-97245-216-0 02 1 0211-0501 ●
56 01.166 CLIP; WATER HOSE,RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=40 		8-97245-216-0 02 1 0211-0501 ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40 		8-97245-216-0 02 1 0211-0501 ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 02 1 0502-0506 ●
56 01.166 CLIP; WATER HOSE,RAD
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) ID=40 		8-97245-216-0 02 1 0502-0506 ●
56 01.166 CLIP; WATER HOSE,RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 02 1 0502-0506 ●
56 01.166 CLIP; WATER HOSE,RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 02 1 0502-0506 ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40 		8-97245-216-0 02 1 0502-0506 ●
56 01.166 CLIP; WATER HOSE,RAD
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) ID=40 		8-97245-216-0 02 1 0507- ●
56 01.166 CLIP; WATER HOSE,RAD
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) ID=40 		8-97245-216-0 02 1 0507- ●
56 01.166 CLIP; WATER HOSE,RAD
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 02 1 0507- ●
56 01.166 CLIP; WATER HOSE,RAD
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 02 1 0507- ●
56 01.166 CLIP; WATER HOSE,RAD
ID=40 		8-97245-216-0 02 1 0507- ● ●
128 01.159 HOSE; WATER,RAD INL
4HK1-TCN ENG(RDQ) 		8-97160-257-1 01 1 0507- ● ● ● ●
128 01.159 HOSE; WATER,RAD INL 8-97160-257-1 01 1 0507- ●
128 01.159 HOSE; WATER,RAD INL
4HK1-TCS ENG(RJS) 		8-97330-529-0 01 1 0507- ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97160-257-1 01 1 0211-0501 ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
CHARGE AIR COOLER<6PL> 		8-97160-257-1 01 1 0211-0501 ●
128 01.159 HOSE; WATER,RAD INL
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97133-142-0 01 1 0211-0501 ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
EXC. CHARGE AIR COOLER<6PL> 		8-97133-142-0 01 1 0211-0501 ●
128 01.159 HOSE; WATER,RAD INL
4HF1-S ENG(RLS) 		8-97147-472-0 01 1 0211-0501 ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97147-472-0 01 1 0211-0501 ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97147-472-0 01 1 0502- ● ●
128 01.159 HOSE; WATER,RAD INL
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97147-472-0 01 1 0502- ●
128 01.159 HOSE; WATER,RAD INL
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97147-472-0 01 1 0502- ●
128 01.159 HOSE; WATER,RAD INL
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97210-676-0 01 1 0211-0501 ● ● ●
128 01.159 HOSE; WATER,RAD INL 8-97210-676-0 01 1 0211-0501 ●
128 01.159 HOSE; WATER,RAD INL
4HG1-T ENG(RDP) 		8-97210-676-0 01 1 0502- ●
128 01.159 HOSE; WATER,RAD INL 8-97210-676-0 01 1 0502- ●

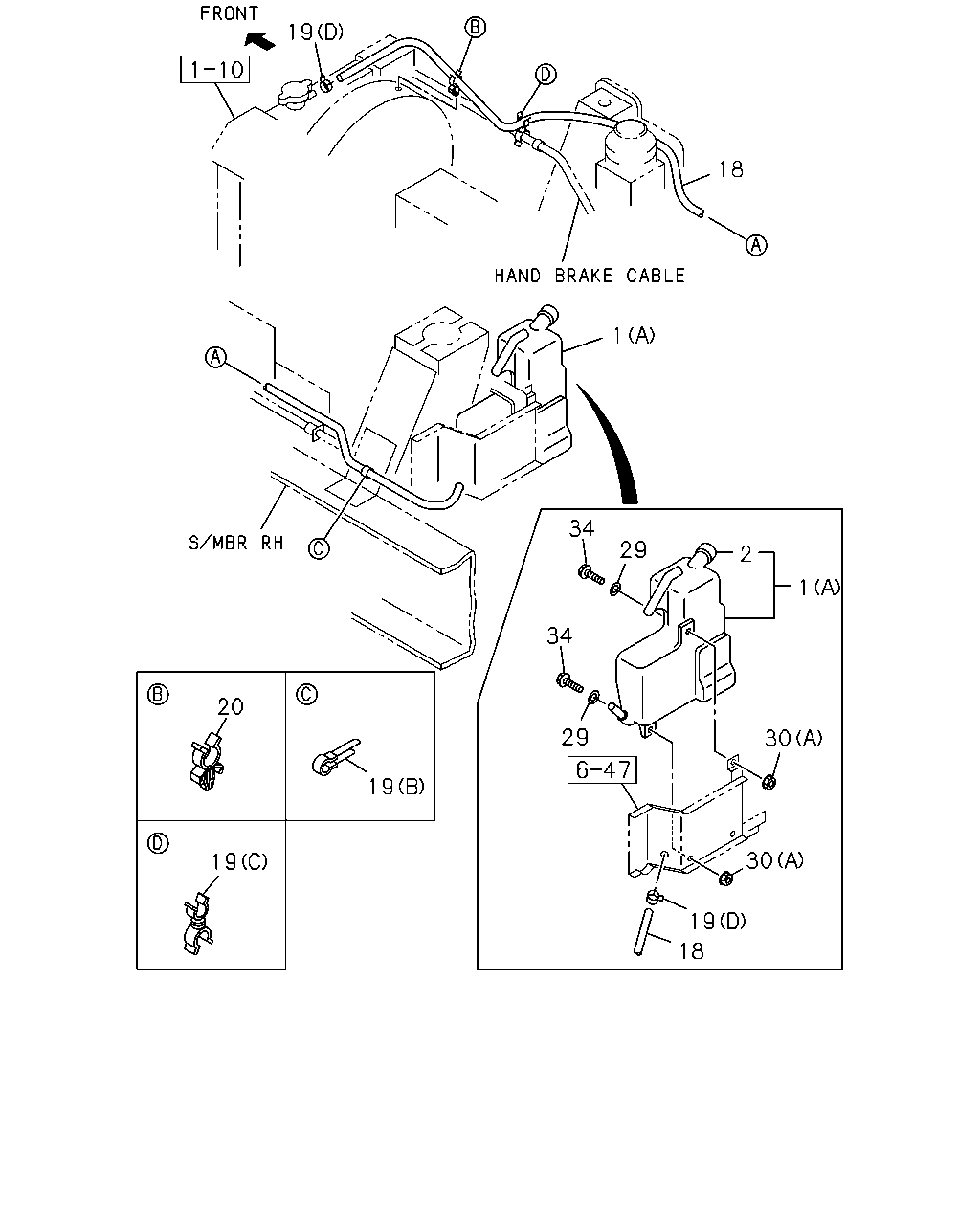

çizim 55644
19 18 1 34 29 2 1 34 20 29 30 19 30 19 19 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 TANK; SURGE,RAD
(B) 		8-94378-388-1 01 1 0507- ●
1 01.219 TANK; SURGE,RAD
4HF1-S ENG(RLS),4HE1 ENG(RLY) (A) 		8-97210-844-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) (A) 		8-97210-844-0 01 1 0211-0501 ● ● ●
1 01.219 TANK; SURGE,RAD
(A) 		8-97210-844-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0502-0506 ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0502-0506 ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0502-0506 ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0502-0506 ●
1 01.219 TANK; SURGE,RAD
(A) 		8-97210-844-0 01 1 0502-0506 ●
1 01.219 TANK; SURGE,RAD
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0507-1010 ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) (A) 		8-97210-844-0 01 1 0507-1010 ●
1 01.219 TANK; SURGE,RAD
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0507-1010 ●
1 01.219 TANK; SURGE,RAD
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0507-1010 ●
1 01.219 TANK; SURGE,RAD
(A) 		8-97210-844-0 01 1 0507-1010 ●
1 01.219 TANK; SURGE,RAD
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (A) 		8-98178-177-0 01 1 1011- ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) (A) 		8-98178-177-0 01 1 1011- ●
1 01.219 TANK; SURGE,RAD
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-98178-177-0 01 1 1011- ●
1 01.219 TANK; SURGE,RAD
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) (A) 		8-98178-177-0 01 1 1011- ●
1 01.219 TANK; SURGE,RAD
(A) 		8-98178-177-0 01 1 1011- ●
1 01.219 TANK; SURGE,RAD
(B) 		8-94378-388-1 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0507- ●
2 01.203 CAP; SURGE TANK
4HF1-S ENG(RLS),4HE1 ENG(RLY) 		8-97217-796-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 		8-97217-796-0 01 1 0211-0501 ● ● ●
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0502-0506 ●
2 01.203 CAP; SURGE TANK
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0502-0506 ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0502-0506 ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0502-0506 ●
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 0502-0506 ●
2 01.203 CAP; SURGE TANK
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0507-1010 ●
2 01.203 CAP; SURGE TANK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) 		8-97217-796-0 01 1 0507-1010 ●
2 01.203 CAP; SURGE TANK
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0507-1010 ●
2 01.203 CAP; SURGE TANK
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0507-1010 ●
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 0507-1010 ●
2 01.203 CAP; SURGE TANK
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 		8-98178-074-0 01 1 1011- ●
2 01.203 CAP; SURGE TANK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) 		8-98178-074-0 01 1 1011- ●
2 01.203 CAP; SURGE TANK
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-98178-074-0 01 1 1011- ●
2 01.203 CAP; SURGE TANK
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) 		8-98178-074-0 01 1 1011- ●
2 01.203 CAP; SURGE TANK 8-98178-074-0 01 1 1011- ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCN ENG(RDQ) L=1440 		8-98008-855-1 01 1 0507- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCS ENG(RJS) L=1520 		8-97376-968-1 01 1 0507- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1960 		8-98012-833-1 01 1 0507- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51) L=1595 		8-97148-533-2 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51) L=1595 		8-97148-533-2 01 1 0211-0501 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) L=1595 		8-97148-533-2 01 1 0502- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) L=1595 		8-97148-533-2 01 1 0502- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) L=1595 		8-97148-533-2 01 1 0502- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=1450 		8-97218-446-1 01 1 0211-0501 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> L=1550 		8-97129-560-2 01 1 0211-0501 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) TURBOCHARGER(K51) L=1455 		8-97148-535-2 01 1 0211-0501 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1455 		8-97148-535-2 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1-T ENG(RDP) L=1455 		8-97148-535-2 01 1 0502- ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1455 		8-97148-535-2 01 1 0502- ●
18 01.240 HOSE; RAD TO SURGE TANK
CHARGE AIR COOLER<6PL> L=1850 		8-97214-382-6 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 03 1 0507- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ) (B) ID=14 L=47 		5-09700-319-0 02 1 0507- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 02 1 0507- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
03.162 (A) L=140 		5-09707-031-1 02 1 0507- ●
19 01.240 CLIP; HOSE,SURGE TANK
03.164 (A) L=217 		8-94235-793-0 01 1 0507- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS),4HE1 ENG(RLY) (B) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) (B) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 0502- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 0502- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 0502- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 0502- ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 01 1 0502- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS),4HE1 ENG(RLY) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0502-0506 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0502-0506 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0502-0506 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0502-0506 ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0502-0506 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0507- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0507- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0507- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0507- ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0507- ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 0211-0501 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 0502-0506 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 0507-0911 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(D) ID=12 		8-98150-358-0 02 1 0912- ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
CHARGE AIR COOLER<6PL> (B) ID=14 L=47 		5-09700-319-0 02 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
CHARGE AIR COOLER<6PL> 03.164 (A) L=217 		8-94235-793-0 01 1 0211-0501 ●
20 01.166 CLIP; HOSE,RAD
4HK1-TCN ENG(RDQ) ID=10.8 		8-97354-231-0 01 1 0507- ● ● ● ●
20 01.166 CLIP; HOSE,RAD
ID=10.8 		8-97354-231-0 01 1 0507- ●
20 01.166 CLIP; HOSE,RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> ID=10.8 		8-97354-231-0 01 1 0211-0501 ● ● ● ●
20 01.166 CLIP; HOSE,RAD
CHARGE AIR COOLER<6PL> ID=10.8 		8-97354-231-0 01 1 0211-0501 ●
29 01.203 WASHER; PL,RESERVE TANK
4HF1-S ENG(RLS),4HE1 ENG(RLY) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0211-0501 ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0211-0501 ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0211-0501 ●
29 01.203 WASHER; PL,RESERVE TANK
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0502-0506 ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0502-0506 ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0502-0506 ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0502-0506 ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0502-0506 ●
29 01.203 WASHER; PL,RESERVE TANK
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0507-0605 ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0507-0605 ●
29 01.203 WASHER; PL,RESERVE TANK
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0507-0605 ●
29 01.203 WASHER; PL,RESERVE TANK
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0507-0605 ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0507-0605 ●
29 01.203 WASHER; PL,RESERVE TANK
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 0606- ●
29 01.203 WASHER; PL,RESERVE TANK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) 00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 0606- ●
29 01.203 WASHER; PL,RESERVE TANK
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 0606- ●
29 01.203 WASHER; PL,RESERVE TANK
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) 00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 0606- ●
29 01.203 WASHER; PL,RESERVE TANK
00.413 ID=6.4 OD=18 		0-91610-706-0 03 1 0606- ●
30 01.203 NUT
4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ● ● ●
30 01.203 NUT
04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ●
30 01.203 NUT
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0502-0506 ●
30 01.203 NUT
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0502-0506 ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0502-0506 ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0502-0506 ●
30 01.203 NUT
04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0502-0506 ●
30 01.203 NUT
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0507-0602 ●
30 01.203 NUT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0507-0602 ●
30 01.203 NUT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0507-0602 ●
30 01.203 NUT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0507-0602 ●
30 01.203 NUT
04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0507-0602 ●
30 01.203 NUT
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 0603- ●
30 01.203 NUT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) 01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 0603- ●
30 01.203 NUT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 0603- ●
30 01.203 NUT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) 01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 0603- ●
30 01.203 NUT
01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 0603- ●
30 01.203 NUT
CHARGE AIR COOLER<6PL> 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ●
34 01.203 BOLT; RESERVE TANK
4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0211-0501 ●
34 01.203 BOLT; RESERVE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0211-0501 ● ● ●
34 01.203 BOLT; RESERVE TANK
04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0211-0501 ●
34 01.203 BOLT; RESERVE TANK
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0502-0506 ●
34 01.203 BOLT; RESERVE TANK
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0502-0506 ●
34 01.203 BOLT; RESERVE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0502-0506 ●
34 01.203 BOLT; RESERVE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0502-0506 ●
34 01.203 BOLT; RESERVE TANK
04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0502-0506 ●
34 01.203 BOLT; RESERVE TANK
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0507-0512 ●
34 01.203 BOLT; RESERVE TANK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0507-0512 ●
34 01.203 BOLT; RESERVE TANK
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0507-0512 ●
34 01.203 BOLT; RESERVE TANK
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0507-0512 ●
34 01.203 BOLT; RESERVE TANK
04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0507-0512 ●
34 01.203 BOLT; RESERVE TANK
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 03.162 M6X20 FLANGE 		0-28650-620-0 03 1 0601- ●
34 01.203 BOLT; RESERVE TANK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) 03.162 M6X20 FLANGE 		0-28650-620-0 03 1 0601- ●
34 01.203 BOLT; RESERVE TANK
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.162 M6X20 FLANGE 		0-28650-620-0 03 1 0601- ●
34 01.203 BOLT; RESERVE TANK
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) 03.162 M6X20 FLANGE 		0-28650-620-0 03 1 0601- ●
34 01.203 BOLT; RESERVE TANK
03.162 M6X20 FLANGE 		0-28650-620-0 03 1 0601- ●

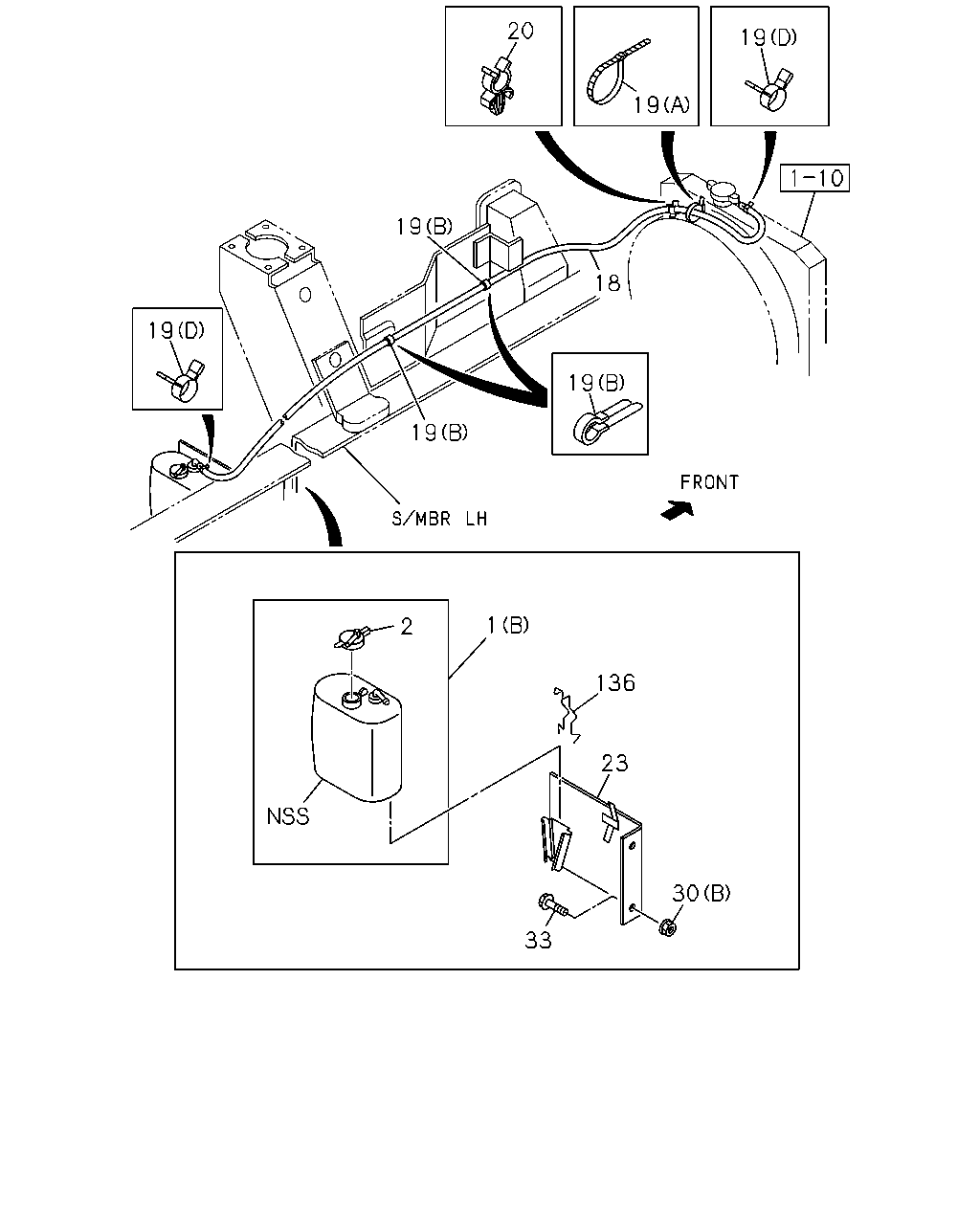

çizim 55715
20 19 19 19 18 19 19 19 1 2 136 23 30 33
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 TANK; SURGE,RAD
(B) 		8-94378-388-1 01 1 0507- ●
1 01.219 TANK; SURGE,RAD
4HF1-S ENG(RLS),4HE1 ENG(RLY) (A) 		8-97210-844-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) (A) 		8-97210-844-0 01 1 0211-0501 ● ● ●
1 01.219 TANK; SURGE,RAD
(A) 		8-97210-844-0 01 1 0211-0501 ●
1 01.219 TANK; SURGE,RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0502-0506 ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0502-0506 ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0502-0506 ●
1 01.219 TANK; SURGE,RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0502-0506 ●
1 01.219 TANK; SURGE,RAD
(A) 		8-97210-844-0 01 1 0502-0506 ●
1 01.219 TANK; SURGE,RAD
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0507-1010 ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) (A) 		8-97210-844-0 01 1 0507-1010 ●
1 01.219 TANK; SURGE,RAD
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0507-1010 ●
1 01.219 TANK; SURGE,RAD
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) (A) 		8-97210-844-0 01 1 0507-1010 ●
1 01.219 TANK; SURGE,RAD
(A) 		8-97210-844-0 01 1 0507-1010 ●
1 01.219 TANK; SURGE,RAD
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (A) 		8-98178-177-0 01 1 1011- ●
1 01.219 TANK; SURGE,RAD
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) (A) 		8-98178-177-0 01 1 1011- ●
1 01.219 TANK; SURGE,RAD
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-98178-177-0 01 1 1011- ●
1 01.219 TANK; SURGE,RAD
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) (A) 		8-98178-177-0 01 1 1011- ●
1 01.219 TANK; SURGE,RAD
(A) 		8-98178-177-0 01 1 1011- ●
1 01.219 TANK; SURGE,RAD
(B) 		8-94378-388-1 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0507- ●
2 01.203 CAP; SURGE TANK
4HF1-S ENG(RLS),4HE1 ENG(RLY) 		8-97217-796-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 		8-97217-796-0 01 1 0211-0501 ● ● ●
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 0211-0501 ●
2 01.203 CAP; SURGE TANK
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0502-0506 ●
2 01.203 CAP; SURGE TANK
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0502-0506 ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0502-0506 ●
2 01.203 CAP; SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0502-0506 ●
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 0502-0506 ●
2 01.203 CAP; SURGE TANK
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0507-1010 ●
2 01.203 CAP; SURGE TANK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) 		8-97217-796-0 01 1 0507-1010 ●
2 01.203 CAP; SURGE TANK
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0507-1010 ●
2 01.203 CAP; SURGE TANK
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) 		8-97217-796-0 01 1 0507-1010 ●
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 0507-1010 ●
2 01.203 CAP; SURGE TANK
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 		8-98178-074-0 01 1 1011- ●
2 01.203 CAP; SURGE TANK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) 		8-98178-074-0 01 1 1011- ●
2 01.203 CAP; SURGE TANK
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-98178-074-0 01 1 1011- ●
2 01.203 CAP; SURGE TANK
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) 		8-98178-074-0 01 1 1011- ●
2 01.203 CAP; SURGE TANK 8-98178-074-0 01 1 1011- ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCN ENG(RDQ) L=1440 		8-98008-855-1 01 1 0507- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HK1-TCS ENG(RJS) L=1520 		8-97376-968-1 01 1 0507- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1960 		8-98012-833-1 01 1 0507- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51) L=1595 		8-97148-533-2 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51) L=1595 		8-97148-533-2 01 1 0211-0501 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) L=1595 		8-97148-533-2 01 1 0502- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) L=1595 		8-97148-533-2 01 1 0502- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) L=1595 		8-97148-533-2 01 1 0502- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=1450 		8-97218-446-1 01 1 0211-0501 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> L=1550 		8-97129-560-2 01 1 0211-0501 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1 ENG(RJH) TURBOCHARGER(K51) L=1455 		8-97148-535-2 01 1 0211-0501 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1455 		8-97148-535-2 01 1 0211-0501 ●
18 01.240 HOSE; RAD TO SURGE TANK
4HG1-T ENG(RDP) L=1455 		8-97148-535-2 01 1 0502- ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1455 		8-97148-535-2 01 1 0502- ●
18 01.240 HOSE; RAD TO SURGE TANK
CHARGE AIR COOLER<6PL> L=1850 		8-97214-382-6 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 03 1 0507- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ) (B) ID=14 L=47 		5-09700-319-0 02 1 0507- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=14 L=47 		5-09700-319-0 02 1 0507- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
03.162 (A) L=140 		5-09707-031-1 02 1 0507- ●
19 01.240 CLIP; HOSE,SURGE TANK
03.164 (A) L=217 		8-94235-793-0 01 1 0507- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS),4HE1 ENG(RLY) (B) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) (B) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 0502- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 0502- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 0502- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 0502- ●
19 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 01 1 0502- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-S ENG(RLS),4HE1 ENG(RLY) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0502-0506 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0502-0506 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0502-0506 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0502-0506 ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0502-0506 ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0507- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0507- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0507- ●
19 01.240 CLIP; HOSE,SURGE TANK
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) 02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0507- ●
19 01.240 CLIP; HOSE,SURGE TANK
02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0507- ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 0211-0501 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 0502-0506 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 0507-0911 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(D) ID=12 		8-98150-358-0 02 1 0912- ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
CHARGE AIR COOLER<6PL> (B) ID=14 L=47 		5-09700-319-0 02 1 0211-0501 ●
19 01.240 CLIP; HOSE,SURGE TANK
CHARGE AIR COOLER<6PL> 03.164 (A) L=217 		8-94235-793-0 01 1 0211-0501 ●
20 01.166 CLIP; HOSE,RAD
4HK1-TCN ENG(RDQ) ID=10.8 		8-97354-231-0 01 1 0507- ● ● ● ●
20 01.166 CLIP; HOSE,RAD
ID=10.8 		8-97354-231-0 01 1 0507- ●
20 01.166 CLIP; HOSE,RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> ID=10.8 		8-97354-231-0 01 1 0211-0501 ● ● ● ●
20 01.166 CLIP; HOSE,RAD
CHARGE AIR COOLER<6PL> ID=10.8 		8-97354-231-0 01 1 0211-0501 ●
23 01.219 BRACKET; RESERVE TANK 8-97214-324-1 01 1 0507- ●
23 01.219 BRACKET; RESERVE TANK
CHARGE AIR COOLER<6PL> 		8-97214-324-1 01 1 0211-0501 ●
30 01.203 NUT
4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ● ● ●
30 01.203 NUT
04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0211-0501 ●
30 01.203 NUT
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0502-0506 ●
30 01.203 NUT
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0502-0506 ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0502-0506 ●
30 01.203 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0502-0506 ●
30 01.203 NUT
04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0502-0506 ●
30 01.203 NUT
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0507-0602 ●
30 01.203 NUT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0507-0602 ●
30 01.203 NUT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0507-0602 ●
30 01.203 NUT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0507-0602 ●
30 01.203 NUT
04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 0507-0602 ●
30 01.203 NUT
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 0603- ●
30 01.203 NUT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) 01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 0603- ●
30 01.203 NUT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 0603- ●
30 01.203 NUT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) 01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 0603- ●
30 01.203 NUT
01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 0603- ●
30 01.203 NUT
CHARGE AIR COOLER<6PL> 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ●
33 01.277 BOLT; BRKT
03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0507-0512 ●
33 01.277 BOLT; BRKT
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0601- ●
33 01.277 BOLT; BRKT
CHARGE AIR COOLER<6PL> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0211-0501 ●
136 01.219 STOPPER; SURGE TANK 8-97087-220-0 01 1 0507- ●
136 01.219 STOPPER; SURGE TANK 8-97087-220-0 01 1 0211-0501 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
