◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50948 - NPR/NQR RHDEXC.EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#42592) — 2076 parça

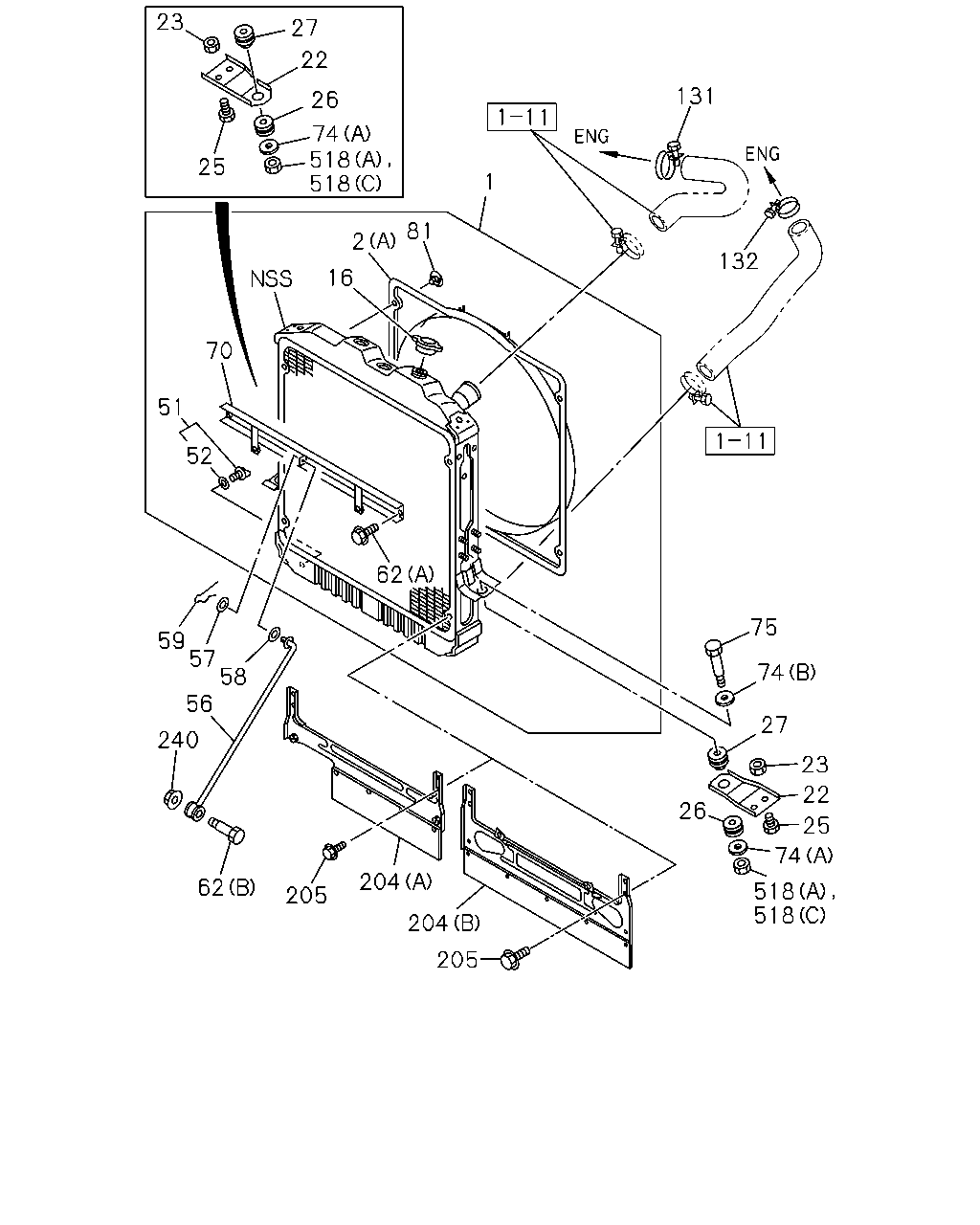

çizim 13066
23 27 22 131 26 74 518 518 25 1 81 2 132 16 70 51 52 62 75 59 57 58 56 74 27 240 23 22 26 25 74 204 62 518 518 205 204 205
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 RADIATOR ASM
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-236-1 01 1 0507- ● ● ● ●
1 01.219 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-236-1 01 1 0507- ●
1 01.219 RADIATOR ASM
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-237-1 01 1 0507- ● ● ● ●
1 01.219 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-237-1 01 1 0507- ●
1 01.219 RADIATOR ASM
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-241-0 01 1 0507- ● ● ●
1 01.219 RADIATOR ASM
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-918-0 01 1 0507- ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> 		8-97354-364-1 01 1 0211-0501 ● ● ● ●
1 01.219 RADIATOR ASM
CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> 		8-97354-364-1 01 1 0211-0501 ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97354-363-0 01 1 0211-0501 ● ● ● ●
1 01.219 RADIATOR ASM
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97354-363-0 01 1 0211-0501 ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97182-423-0 01 1 0211-0501 ● ● ● ●
1 01.219 RADIATOR ASM
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97182-423-0 01 1 0211-0501 ●
1 01.219 RADIATOR ASM
4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97146-211-1 01 1 0211-0501 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TURBOCHARGER(K51) 		8-97146-211-1 01 1 0211-0501 ● ● ●
1 01.219 RADIATOR ASM
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97146-211-1 01 1 0502-0506 ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97146-211-1 01 1 0502-0506 ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97146-211-1 01 1 0502-0506 ●
1 01.219 RADIATOR ASM
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97146-211-1 01 1 0507- ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97146-211-1 01 1 0507- ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97146-211-1 01 1 0507- ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) 		8-97177-193-1 01 1 0211-0305 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) 		8-97371-011-0 01 1 0306-0501 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1-T ENG(RDP) 		8-97371-011-0 01 1 0502-0506 ●
1 01.219 RADIATOR ASM 8-97371-011-0 01 1 0502-0506 ●
1 01.219 RADIATOR ASM
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97371-011-0 01 1 0507- ●
1 01.219 RADIATOR ASM 8-97371-011-0 01 1 0507- ●
2 01.277 GUIDE; FAN
4HK1-TCN ENG(RDQ) (B) 		8-97068-803-0 01 1 0507- ● ● ● ●
2 01.277 GUIDE; FAN
(B) 		8-97068-803-0 01 1 0507- ●
2 01.277 GUIDE; FAN
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97218-802-1 01 1 0507- ● ● ● ●
2 01.277 GUIDE; FAN
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97218-802-1 01 1 0507- ● ● ● ●
2 01.277 GUIDE; FAN
(A) 		8-97218-802-1 01 1 0507- ●
2 01.277 GUIDE; FAN
4HK1-TCS ENG(RJS) (B) 		8-97350-995-0 01 1 0507- ● ● ●
2 01.277 GUIDE; FAN
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97333-268-0 01 1 0507- ● ● ●
2 01.277 GUIDE; FAN
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97333-268-0 01 1 0507- ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97068-803-0 01 1 0211-0501 ● ● ● ●
2 01.277 GUIDE; FAN
CHARGE AIR COOLER<6PL> (B) 		8-97068-803-0 01 1 0211-0501 ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97218-802-1 01 1 0211-0501 ● ● ● ●
2 01.277 GUIDE; FAN
CHARGE AIR COOLER<6PL> (A) 		8-97218-802-1 01 1 0211-0501 ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97066-018-0 01 1 0211-0501 ● ● ● ●
2 01.277 GUIDE; FAN
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97066-018-0 01 1 0211-0501 ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) (A) 		8-97066-016-0 01 1 0211-0501 ● ● ● ● ●
2 01.277 GUIDE; FAN
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
(A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> (A) 		8-97066-016-0 01 1 0507- ● ● ● ● ●
16 01.203 CAP; RAD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> 		8-97239-187-0 01 1 0507- ● ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97239-187-0 01 1 0211-0501 ● ● ● ●
16 01.203 CAP; RAD
CHARGE AIR COOLER<6PL> 		8-97239-187-0 01 1 0211-0501 ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0211-0305 ● ● ● ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97177-872-0 01 1 0211-0305 ● ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0306-0501 ● ● ● ● ●
16 01.203 CAP; RAD
4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97177-872-0 01 1 0306-0501 ● ● ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TURBOCHARGER(K51) 		8-97177-872-0 01 1 0306-0501 ● ● ●
16 01.203 CAP; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97177-872-0 01 1 0502-0506 ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97177-872-0 01 1 0502-0506 ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97177-872-0 01 1 0502-0506 ●
16 01.203 CAP; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97177-872-0 01 1 0507- ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97177-872-0 01 1 0507- ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97177-872-0 01 1 0507- ●
16 01.203 CAP; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) 		8-97371-017-0 01 1 0306-0501 ● ● ● ●
16 01.203 CAP; RAD
4HG1-T ENG(RDP) 		8-97371-017-0 01 1 0502-0506 ●
16 01.203 CAP; RAD 8-97371-017-0 01 1 0502-0506 ●
16 01.203 CAP; RAD
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97371-017-0 01 1 0507- ●
16 01.203 CAP; RAD 8-97371-017-0 01 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97333-280-0 01 1 0507- ● ● ●
22 01.270 BRACKET; RAD MTG
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97333-281-0 01 1 0507- ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-94101-621-1 02 1 0211-0501 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-94101-621-1 02 1 0211-0501 ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94101-621-1 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0507- ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0211-0501 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0211-0501 ● ● ●
22 01.270 BRACKET; RAD MTG
FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0211-0501 ●
22 01.270 BRACKET; RAD MTG
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0507- ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG 8-97074-093-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0211-0501 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0211-0501 ● ● ●
22 01.270 BRACKET; RAD MTG
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0211-0501 ●
22 01.270 BRACKET; RAD MTG 8-94175-416-0 02 1 0211-0501 ●
22 01.270 BRACKET; RAD MTG
4HG1-T ENG(RDP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG 8-94175-416-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HK1-TCN ENG(RDQ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0507- ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG 8-94175-416-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0211-0501 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97096-452-0 02 1 0211-0501 ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0507- ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0507- ●
23 01.271 NUT; RAD MTG
07.874 M10 FLANGE 		5-09440-006-0 04 1 0211-0501 ● ● ● ● ● ●
23 01.271 NUT; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0502-0506 ●
23 01.271 NUT; RAD MTG
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0502-0506 ●
23 01.271 NUT; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0502-0506 ●
23 01.271 NUT; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0502-0506 ●
23 01.271 NUT; RAD MTG
07.874 M10 FLANGE 		5-09440-006-0 04 1 0502-0506 ●
23 01.271 NUT; RAD MTG
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0507- ●
23 01.271 NUT; RAD MTG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0507- ●
23 01.271 NUT; RAD MTG
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0507- ●
23 01.271 NUT; RAD MTG
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0507- ●
23 01.271 NUT; RAD MTG
07.874 M10 FLANGE 		5-09440-006-0 04 1 0507- ● ●
25 01.271 BOLT; BRKT
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.900 M8X12 FLANGE 		0-28080-812-0 08 1 0507- ● ● ●
25 01.271 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0211-0501 ● ● ● ● ● ●
25 01.271 BOLT; BRKT
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ●
25 01.271 BOLT; BRKT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ●
25 01.271 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ● ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
25 01.271 BOLT; BRKT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
25 01.271 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ●
26 01.270 BUFFER; RAD,LWR 8-94249-347-0 02 1 0211-0501 ● ● ● ● ● ●
26 01.270 BUFFER; RAD,LWR 8-94249-347-0 02 1 0502-0506 ● ● ● ● ●
26 01.270 BUFFER; RAD,LWR 8-94249-347-0 02 1 0507- ● ● ● ● ● ●
27 01.270 BUFFER; RAD,UPR 8-94249-346-0 02 1 0211-0501 ● ● ● ● ● ●
27 01.270 BUFFER; RAD,UPR 8-94249-346-0 02 1 0502-0506 ● ● ● ● ●
27 01.270 BUFFER; RAD,UPR 8-94249-346-0 02 1 0507- ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) W/GASKET 		1-09609-023-0 01 1 0507- ● ● ● ●
51 08.951 PLUG; DRAIN
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) W/GASKET 		1-09609-023-0 01 1 0507- ● ● ● ●
51 08.951 PLUG; DRAIN
W/GASKET 		1-09609-023-0 01 1 0507- ●
51 08.951 PLUG; DRAIN
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) W/GASKET 		8-97171-437-0 01 1 0507- ● ● ●
51 08.951 PLUG; DRAIN
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) W/GASKET 		8-97171-437-0 01 1 0507- ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET 		1-09609-023-0 01 1 0211-0501 ● ● ● ●
51 08.951 PLUG; DRAIN
CHARGE AIR COOLER<6PL> W/GASKET 		1-09609-023-0 01 1 0211-0501 ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0211-0501 ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 08.915 W/GASKET 		8-94321-236-0 01 1 0211-0501 ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1-S ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> 08.915 W/GASKET 		8-94321-236-0 01 1 0507- ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 0211-0501 ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 01.203 ID=10 		9-09720-557-0 01 1 0211-0501 ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.203 ID=10 		9-09720-557-0 01 1 0502-0506 ●
52 08.951 GASKET; DRAIN PLUG
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 01.203 ID=10 		9-09720-557-0 01 1 0502-0506 ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.203 ID=10 		9-09720-557-0 01 1 0502-0506 ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.203 ID=10 		9-09720-557-0 01 1 0502-0506 ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 0502-0506 ●
52 08.951 GASKET; DRAIN PLUG
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> 01.203 ID=10 		9-09720-557-0 01 1 0507- ● ● ● ● ●
56 01.270 STAY; RAD
4HK1-TCN ENG(RDQ) 		8-97073-424-2 01 1 0507- ● ● ● ●
56 01.270 STAY; RAD 8-97073-424-2 01 1 0507- ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-424-2 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
CHARGE AIR COOLER<6PL> 		8-97073-424-2 01 1 0211-0501 ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 		8-97330-456-0 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97330-456-0 01 1 0211-0501 ● ● ●
56 01.270 STAY; RAD
EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 		8-97330-456-0 01 1 0211-0501 ●
56 01.270 STAY; RAD 8-97330-456-0 01 1 0211-0501 ●
56 01.270 STAY; RAD
4HG1-T ENG(RDP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97330-456-0 01 1 0502- ●
56 01.270 STAY; RAD 8-97330-456-0 01 1 0502- ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97032-802-2 01 1 0211-0501 ● ● ●
56 01.270 STAY; RAD
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 0211-0501 ●
56 01.270 STAY; RAD
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> 		8-97032-802-2 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1-T ENG(RDP),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-802-2 01 1 0507- ●
56 01.270 STAY; RAD
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-802-2 01 1 0507- ● ●
56 01.270 STAY; RAD
4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97032-798-2 01 1 0211-0501 ● ● ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0507- ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0507- ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0507- ●
56 01.270 STAY; RAD
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-97350-324-0 01 1 0211-0501 ● ● ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97350-324-0 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0507- ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0507- ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0507- ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 0211-0501 ● ● ● ● ● ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 0502-0506 ● ● ● ● ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 0507-0605 ● ● ● ● ● ●
57 01.271 WASHER; PL,STAY
17.198 ID=10.5 		0-91610-510-0 01 1 0606- ● ● ● ● ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 0211-0501 ● ● ● ● ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 0502-0506 ● ● ● ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 0507- ● ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 0211-0501 ● ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 0502-0506 ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 0507-0610 ● ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
L=32.6 		8-97359-052-0 01 1 0611- ● ● ● ● ● ●
62 01.271 BOLT; STAY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0211-0501 ● ● ● ● ●
62 01.271 BOLT; STAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0211-0501 ● ● ● ● ●
62 01.271 BOLT; STAY
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0211-0501 ● ● ● ● ●
62 01.271 BOLT; STAY
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
4HG1 ENG(RJH),4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0507- ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 0211-0501 ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 0502-0506 ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 0507- ● ● ● ● ● ●
70 01.271 STAY; RAD
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97333-269-0 01 1 0507- ● ● ●
70 01.271 STAY; RAD
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97333-269-0 01 1 0507- ● ● ●
70 01.271 STAY; RAD
4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97047-899-0 01 1 0211-0501 ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TURBOCHARGER(K51) 		8-97047-899-0 01 1 0211-0501 ● ● ●
70 01.271 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97047-899-0 01 1 0502-0506 ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97047-899-0 01 1 0502-0506 ●
70 01.271 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97047-899-0 01 1 0502-0506 ●
70 01.271 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97047-899-0 01 1 0507- ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97047-899-0 01 1 0507- ●
70 01.271 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97047-899-0 01 1 0507- ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0211-0501 ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0211-0501 ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) 		8-97073-125-0 01 1 0211-0501 ● ● ● ●
70 01.271 STAY; RAD
4HG1-T ENG(RDP) 		8-97073-125-0 01 1 0502-0506 ●
70 01.271 STAY; RAD 8-97073-125-0 01 1 0502-0506 ●
70 01.271 STAY; RAD
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) 		8-97073-125-0 01 1 0507- ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
03.405 (A) ID=8.5 OD=36 		8-94221-082-0 02 1 0211-0501 ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
03.405 (A) ID=8.5 OD=36 		8-94221-082-0 02 1 0502-0506 ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
03.405 (A) ID=8.5 OD=36 		8-94221-082-0 02 1 0507-0610 ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
(A) ID=8.5 OD=36 		8-97359-049-1 02 1 0611- ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0211-0501 ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ●
74 01.270 WASHER; PL,CUSHION RUBBER
04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ● ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63 		8-94249-446-0 01 1 0211-0501 ● ● ● ● ● ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0502-0506 ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0502-0506 ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0502-0506 ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0502-0506 ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63 		8-94249-446-0 01 1 0502-0506 ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0507- ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0507- ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0507- ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0507- ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63 		8-94249-446-0 01 1 0507- ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 0211-0501 ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97088-810-0 04 1 0211-0501 ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97088-810-0 04 1 0502-0506 ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 		8-97088-810-0 04 1 0502-0506 ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97088-810-0 04 1 0502-0506 ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97088-810-0 04 1 0502-0506 ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 0502-0506 ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97088-810-0 04 1 0507- ● ● ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=40 		8-97245-216-0 01 1 0211-0501 ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=40 		8-97245-216-0 01 1 0211-0501 ● ● ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0211-0501 ● ●
131 01.166 CLIP; ENG SIDE TOP
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0507- ●
131 01.166 CLIP; ENG SIDE TOP
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) ID=40 		8-97245-216-0 01 1 0507- ●
131 01.166 CLIP; ENG SIDE TOP
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0507- ●
131 01.166 CLIP; ENG SIDE TOP
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0507- ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0507- ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=50 		8-97245-217-0 01 1 0211-0501 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=50 		8-97245-217-0 01 1 0211-0501 ● ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0211-0501 ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0507- ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) ID=50 		8-97245-217-0 01 1 0507- ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0507- ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0507- ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0507- ● ●
204 01.267 GUIDE ASM; AIR
4HK1-TCS ENG(RJS) (C) 		8-97332-962-1 01 1 0507- ● ● ●
204 01.267 GUIDE ASM; AIR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97038-895-1 01 1 0211-0501 ● ● ● ●
204 01.267 GUIDE ASM; AIR
AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97038-895-1 01 1 0211-0501 ●
204 01.267 GUIDE ASM; AIR
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97038-894-1 01 1 0211-0501 ● ● ● ● ●
204 01.267 GUIDE ASM; AIR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97376-880-0 01 1 0502- ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HK1-TCS ENG(RJS) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 0507-0512 ● ● ●
205 01.267 BOLT; AIR GUIDE
4HK1-TCS ENG(RJS) 03.671 M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ● ●
205 01.267 BOLT; AIR GUIDE
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0211-0501 ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0211-0501 ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0502-0512 ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE 		0-28050-612-0 04 1 0601- ● ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0211-0501 ● ● ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0502-0506 ● ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0507- ● ● ● ● ● ●
518 01.270 NUT
4HK1-TCS ENG(RJS) 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ● ●
518 01.270 NUT
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0603-0610 ● ● ●
518 01.270 NUT
01.062 (C) M8 FLANGE 		0-91180-108-0 02 1 0611- ● ● ● ● ● ●
518 01.270 NUT
4HK1-TCS ENG(RJS) 01.062 (C) M8 FLANGE 		0-91180-108-0 02 1 0611- ● ● ●
518 01.270 NUT
00.854 (A) M8 FLANGE 		5-09440-005-0 02 1 0211-0501 ● ● ● ● ● ●
518 01.270 NUT
00.854 (A) M8 FLANGE 		5-09440-005-0 02 1 0502-0506 ● ● ● ● ●
518 01.270 NUT
00.854 (A) M8 FLANGE 		5-09440-005-0 02 1 0507-0610 ● ● ● ● ● ●

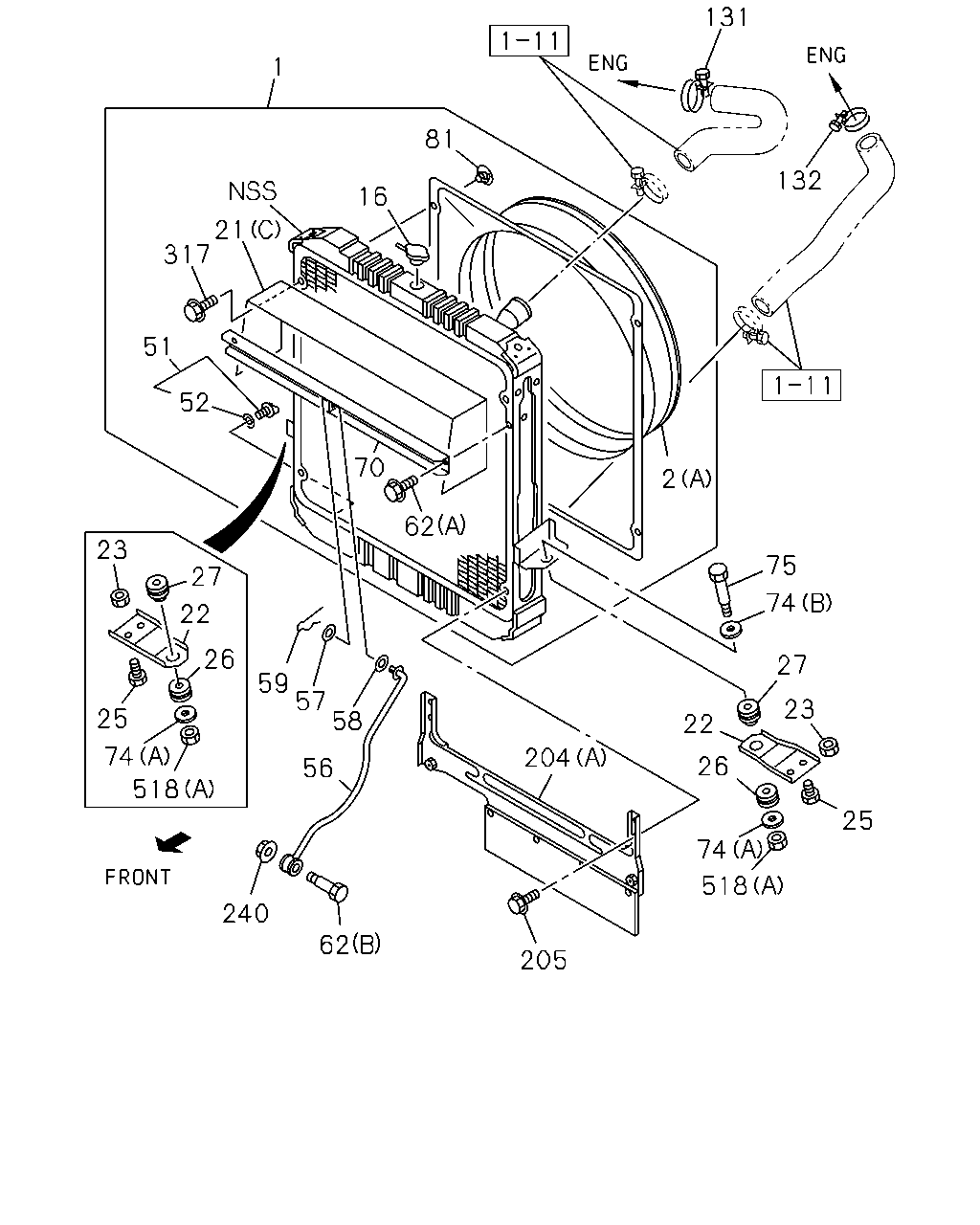

çizim 13071
131 1 81 132 16 21 317 51 52 70 2 62 23 75 27 74 22 26 27 59 57 58 23 25 22 204 74 26 56 518 25 74 518 240 62 205
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 RADIATOR ASM
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-236-1 01 1 0507- ● ● ● ●
1 01.219 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-236-1 01 1 0507- ●
1 01.219 RADIATOR ASM
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-237-1 01 1 0507- ● ● ● ●
1 01.219 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-237-1 01 1 0507- ●
1 01.219 RADIATOR ASM
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-241-0 01 1 0507- ● ● ●
1 01.219 RADIATOR ASM
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-918-0 01 1 0507- ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> 		8-97354-364-1 01 1 0211-0501 ● ● ● ●
1 01.219 RADIATOR ASM
CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> 		8-97354-364-1 01 1 0211-0501 ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97354-363-0 01 1 0211-0501 ● ● ● ●
1 01.219 RADIATOR ASM
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97354-363-0 01 1 0211-0501 ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97182-423-0 01 1 0211-0501 ● ● ● ●
1 01.219 RADIATOR ASM
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97182-423-0 01 1 0211-0501 ●
1 01.219 RADIATOR ASM
4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97146-211-1 01 1 0211-0501 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TURBOCHARGER(K51) 		8-97146-211-1 01 1 0211-0501 ● ● ●
1 01.219 RADIATOR ASM
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97146-211-1 01 1 0502-0506 ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97146-211-1 01 1 0502-0506 ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97146-211-1 01 1 0502-0506 ●
1 01.219 RADIATOR ASM
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97146-211-1 01 1 0507- ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97146-211-1 01 1 0507- ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97146-211-1 01 1 0507- ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) 		8-97177-193-1 01 1 0211-0305 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) 		8-97371-011-0 01 1 0306-0501 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1-T ENG(RDP) 		8-97371-011-0 01 1 0502-0506 ●
1 01.219 RADIATOR ASM 8-97371-011-0 01 1 0502-0506 ●
1 01.219 RADIATOR ASM
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97371-011-0 01 1 0507- ●
1 01.219 RADIATOR ASM 8-97371-011-0 01 1 0507- ●
2 01.277 GUIDE; FAN
4HK1-TCN ENG(RDQ) (B) 		8-97068-803-0 01 1 0507- ● ● ● ●
2 01.277 GUIDE; FAN
(B) 		8-97068-803-0 01 1 0507- ●
2 01.277 GUIDE; FAN
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97218-802-1 01 1 0507- ● ● ● ●
2 01.277 GUIDE; FAN
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97218-802-1 01 1 0507- ● ● ● ●
2 01.277 GUIDE; FAN
(A) 		8-97218-802-1 01 1 0507- ●
2 01.277 GUIDE; FAN
4HK1-TCS ENG(RJS) (B) 		8-97350-995-0 01 1 0507- ● ● ●
2 01.277 GUIDE; FAN
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97333-268-0 01 1 0507- ● ● ●
2 01.277 GUIDE; FAN
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97333-268-0 01 1 0507- ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97068-803-0 01 1 0211-0501 ● ● ● ●
2 01.277 GUIDE; FAN
CHARGE AIR COOLER<6PL> (B) 		8-97068-803-0 01 1 0211-0501 ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97218-802-1 01 1 0211-0501 ● ● ● ●
2 01.277 GUIDE; FAN
CHARGE AIR COOLER<6PL> (A) 		8-97218-802-1 01 1 0211-0501 ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97066-018-0 01 1 0211-0501 ● ● ● ●
2 01.277 GUIDE; FAN
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97066-018-0 01 1 0211-0501 ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) (A) 		8-97066-016-0 01 1 0211-0501 ● ● ● ● ●
2 01.277 GUIDE; FAN
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
(A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> (A) 		8-97066-016-0 01 1 0507- ● ● ● ● ●
16 01.203 CAP; RAD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> 		8-97239-187-0 01 1 0507- ● ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97239-187-0 01 1 0211-0501 ● ● ● ●
16 01.203 CAP; RAD
CHARGE AIR COOLER<6PL> 		8-97239-187-0 01 1 0211-0501 ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0211-0305 ● ● ● ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97177-872-0 01 1 0211-0305 ● ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0306-0501 ● ● ● ● ●
16 01.203 CAP; RAD
4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97177-872-0 01 1 0306-0501 ● ● ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TURBOCHARGER(K51) 		8-97177-872-0 01 1 0306-0501 ● ● ●
16 01.203 CAP; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97177-872-0 01 1 0502-0506 ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97177-872-0 01 1 0502-0506 ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97177-872-0 01 1 0502-0506 ●
16 01.203 CAP; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97177-872-0 01 1 0507- ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97177-872-0 01 1 0507- ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97177-872-0 01 1 0507- ●
16 01.203 CAP; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) 		8-97371-017-0 01 1 0306-0501 ● ● ● ●
16 01.203 CAP; RAD
4HG1-T ENG(RDP) 		8-97371-017-0 01 1 0502-0506 ●
16 01.203 CAP; RAD 8-97371-017-0 01 1 0502-0506 ●
16 01.203 CAP; RAD
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97371-017-0 01 1 0507- ●
16 01.203 CAP; RAD 8-97371-017-0 01 1 0507- ●
21 01.276 SEAL; RAD
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-97376-998-1 01 1 0507- ● ● ● ●
21 01.276 SEAL; RAD
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-97376-998-1 01 1 0507- ● ● ● ●
21 01.276 SEAL; RAD
(D) 		8-97376-998-1 01 1 0507- ●
21 01.276 SEAL; RAD
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.277 (D) 		8-97332-382-0 01 1 0507- ● ● ●
21 01.276 SEAL; RAD
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.277 (D) 		8-97332-382-0 01 1 0507- ● ● ●
21 01.276 SEAL; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D) 		8-97218-801-1 01 1 0211-0501 ● ● ● ●
21 01.276 SEAL; RAD
CHARGE AIR COOLER<6PL> (D) 		8-97218-801-1 01 1 0211-0501 ●
21 01.276 SEAL; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190 (C) 		8-97161-476-0 01 1 0211-0501 ● ● ● ●
21 01.276 SEAL; RAD
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190 (C) 		8-97161-476-0 01 1 0211-0501 ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 0211-0501 ● ● ● ●
21 01.276 SEAL; RAD
4HG1-T ENG(RDP) (A) L=240 		8-97190-922-0 01 1 0502-0506 ●
21 01.276 SEAL; RAD
(A) L=240 		8-97190-922-0 01 1 0502-0506 ●
21 01.276 SEAL; RAD
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=240 		8-97190-922-0 01 1 0507- ●
21 01.276 SEAL; RAD
(A) L=240 		8-97190-922-0 01 1 0507- ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 0211-0501 ● ● ● ●
21 01.276 SEAL; RAD
4HG1-T ENG(RDP) (B) L=205 		8-97190-923-0 01 1 0502-0506 ●
21 01.276 SEAL; RAD
(B) L=205 		8-97190-923-0 01 1 0502-0506 ●
21 01.276 SEAL; RAD
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=205 		8-97190-923-0 01 1 0507- ●
21 01.276 SEAL; RAD
(B) L=205 		8-97190-923-0 01 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97333-280-0 01 1 0507- ● ● ●
22 01.270 BRACKET; RAD MTG
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97333-281-0 01 1 0507- ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-94101-621-1 02 1 0211-0501 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-94101-621-1 02 1 0211-0501 ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94101-621-1 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0507- ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0211-0501 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0211-0501 ● ● ●
22 01.270 BRACKET; RAD MTG
FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0211-0501 ●
22 01.270 BRACKET; RAD MTG
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0507- ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG 8-97074-093-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0211-0501 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0211-0501 ● ● ●
22 01.270 BRACKET; RAD MTG
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0211-0501 ●
22 01.270 BRACKET; RAD MTG 8-94175-416-0 02 1 0211-0501 ●
22 01.270 BRACKET; RAD MTG
4HG1-T ENG(RDP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG 8-94175-416-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HK1-TCN ENG(RDQ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0507- ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG 8-94175-416-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0211-0501 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97096-452-0 02 1 0211-0501 ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0507- ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0507- ●
23 01.271 NUT; RAD MTG
07.874 M10 FLANGE 		5-09440-006-0 04 1 0211-0501 ● ● ● ● ● ●
23 01.271 NUT; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0502-0506 ●
23 01.271 NUT; RAD MTG
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0502-0506 ●
23 01.271 NUT; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0502-0506 ●
23 01.271 NUT; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0502-0506 ●
23 01.271 NUT; RAD MTG
07.874 M10 FLANGE 		5-09440-006-0 04 1 0502-0506 ●
23 01.271 NUT; RAD MTG
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0507- ●
23 01.271 NUT; RAD MTG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0507- ●
23 01.271 NUT; RAD MTG
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0507- ●
23 01.271 NUT; RAD MTG
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0507- ●
23 01.271 NUT; RAD MTG
07.874 M10 FLANGE 		5-09440-006-0 04 1 0507- ● ●
25 01.271 BOLT; BRKT
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.900 M8X12 FLANGE 		0-28080-812-0 08 1 0507- ● ● ●
25 01.271 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0211-0501 ● ● ● ● ● ●
25 01.271 BOLT; BRKT
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ●
25 01.271 BOLT; BRKT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ●
25 01.271 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ● ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
25 01.271 BOLT; BRKT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
25 01.271 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ●
26 01.270 BUFFER; RAD,LWR 8-94249-347-0 02 1 0211-0501 ● ● ● ● ● ●
26 01.270 BUFFER; RAD,LWR 8-94249-347-0 02 1 0502-0506 ● ● ● ● ●
26 01.270 BUFFER; RAD,LWR 8-94249-347-0 02 1 0507- ● ● ● ● ● ●
27 01.270 BUFFER; RAD,UPR 8-94249-346-0 02 1 0211-0501 ● ● ● ● ● ●
27 01.270 BUFFER; RAD,UPR 8-94249-346-0 02 1 0502-0506 ● ● ● ● ●
27 01.270 BUFFER; RAD,UPR 8-94249-346-0 02 1 0507- ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) W/GASKET 		1-09609-023-0 01 1 0507- ● ● ● ●
51 08.951 PLUG; DRAIN
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) W/GASKET 		1-09609-023-0 01 1 0507- ● ● ● ●
51 08.951 PLUG; DRAIN
W/GASKET 		1-09609-023-0 01 1 0507- ●
51 08.951 PLUG; DRAIN
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) W/GASKET 		8-97171-437-0 01 1 0507- ● ● ●
51 08.951 PLUG; DRAIN
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) W/GASKET 		8-97171-437-0 01 1 0507- ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET 		1-09609-023-0 01 1 0211-0501 ● ● ● ●
51 08.951 PLUG; DRAIN
CHARGE AIR COOLER<6PL> W/GASKET 		1-09609-023-0 01 1 0211-0501 ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0211-0501 ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 08.915 W/GASKET 		8-94321-236-0 01 1 0211-0501 ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1-S ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> 08.915 W/GASKET 		8-94321-236-0 01 1 0507- ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 0211-0501 ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 01.203 ID=10 		9-09720-557-0 01 1 0211-0501 ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.203 ID=10 		9-09720-557-0 01 1 0502-0506 ●
52 08.951 GASKET; DRAIN PLUG
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 01.203 ID=10 		9-09720-557-0 01 1 0502-0506 ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.203 ID=10 		9-09720-557-0 01 1 0502-0506 ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.203 ID=10 		9-09720-557-0 01 1 0502-0506 ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 0502-0506 ●
52 08.951 GASKET; DRAIN PLUG
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> 01.203 ID=10 		9-09720-557-0 01 1 0507- ● ● ● ● ●
56 01.270 STAY; RAD
4HK1-TCN ENG(RDQ) 		8-97073-424-2 01 1 0507- ● ● ● ●
56 01.270 STAY; RAD 8-97073-424-2 01 1 0507- ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-424-2 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
CHARGE AIR COOLER<6PL> 		8-97073-424-2 01 1 0211-0501 ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 		8-97330-456-0 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97330-456-0 01 1 0211-0501 ● ● ●
56 01.270 STAY; RAD
EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 		8-97330-456-0 01 1 0211-0501 ●
56 01.270 STAY; RAD 8-97330-456-0 01 1 0211-0501 ●
56 01.270 STAY; RAD
4HG1-T ENG(RDP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97330-456-0 01 1 0502- ●
56 01.270 STAY; RAD 8-97330-456-0 01 1 0502- ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97032-802-2 01 1 0211-0501 ● ● ●
56 01.270 STAY; RAD
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 0211-0501 ●
56 01.270 STAY; RAD
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> 		8-97032-802-2 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1-T ENG(RDP),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-802-2 01 1 0507- ●
56 01.270 STAY; RAD
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-802-2 01 1 0507- ● ●
56 01.270 STAY; RAD
4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97032-798-2 01 1 0211-0501 ● ● ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0507- ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0507- ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0507- ●
56 01.270 STAY; RAD
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-97350-324-0 01 1 0211-0501 ● ● ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97350-324-0 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0507- ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0507- ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0507- ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 0211-0501 ● ● ● ● ● ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 0502-0506 ● ● ● ● ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 0507-0605 ● ● ● ● ● ●
57 01.271 WASHER; PL,STAY
17.198 ID=10.5 		0-91610-510-0 01 1 0606- ● ● ● ● ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 0211-0501 ● ● ● ● ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 0502-0506 ● ● ● ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 0507- ● ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 0211-0501 ● ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 0502-0506 ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 0507-0610 ● ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
L=32.6 		8-97359-052-0 01 1 0611- ● ● ● ● ● ●
62 01.271 BOLT; STAY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0211-0501 ● ● ● ● ●
62 01.271 BOLT; STAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0211-0501 ● ● ● ● ●
62 01.271 BOLT; STAY
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0211-0501 ● ● ● ● ●
62 01.271 BOLT; STAY
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
4HG1 ENG(RJH),4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0507- ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 0211-0501 ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 0502-0506 ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 0507- ● ● ● ● ● ●
70 01.271 STAY; RAD
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97333-269-0 01 1 0507- ● ● ●
70 01.271 STAY; RAD
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97333-269-0 01 1 0507- ● ● ●
70 01.271 STAY; RAD
4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97047-899-0 01 1 0211-0501 ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TURBOCHARGER(K51) 		8-97047-899-0 01 1 0211-0501 ● ● ●
70 01.271 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97047-899-0 01 1 0502-0506 ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97047-899-0 01 1 0502-0506 ●
70 01.271 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97047-899-0 01 1 0502-0506 ●
70 01.271 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97047-899-0 01 1 0507- ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97047-899-0 01 1 0507- ●
70 01.271 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97047-899-0 01 1 0507- ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0211-0501 ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0211-0501 ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) 		8-97073-125-0 01 1 0211-0501 ● ● ● ●
70 01.271 STAY; RAD
4HG1-T ENG(RDP) 		8-97073-125-0 01 1 0502-0506 ●
70 01.271 STAY; RAD 8-97073-125-0 01 1 0502-0506 ●
70 01.271 STAY; RAD
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) 		8-97073-125-0 01 1 0507- ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
03.405 (A) ID=8.5 OD=36 		8-94221-082-0 02 1 0211-0501 ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
03.405 (A) ID=8.5 OD=36 		8-94221-082-0 02 1 0502-0506 ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
03.405 (A) ID=8.5 OD=36 		8-94221-082-0 02 1 0507-0610 ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
(A) ID=8.5 OD=36 		8-97359-049-1 02 1 0611- ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0211-0501 ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ●
74 01.270 WASHER; PL,CUSHION RUBBER
04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ● ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63 		8-94249-446-0 01 1 0211-0501 ● ● ● ● ● ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0502-0506 ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0502-0506 ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0502-0506 ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0502-0506 ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63 		8-94249-446-0 01 1 0502-0506 ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0507- ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0507- ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0507- ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0507- ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63 		8-94249-446-0 01 1 0507- ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 0211-0501 ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97088-810-0 04 1 0211-0501 ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97088-810-0 04 1 0502-0506 ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 		8-97088-810-0 04 1 0502-0506 ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97088-810-0 04 1 0502-0506 ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97088-810-0 04 1 0502-0506 ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 0502-0506 ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97088-810-0 04 1 0507- ● ● ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=40 		8-97245-216-0 01 1 0211-0501 ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=40 		8-97245-216-0 01 1 0211-0501 ● ● ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0211-0501 ● ●
131 01.166 CLIP; ENG SIDE TOP
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0507- ●
131 01.166 CLIP; ENG SIDE TOP
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) ID=40 		8-97245-216-0 01 1 0507- ●
131 01.166 CLIP; ENG SIDE TOP
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0507- ●
131 01.166 CLIP; ENG SIDE TOP
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0507- ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0507- ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=50 		8-97245-217-0 01 1 0211-0501 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=50 		8-97245-217-0 01 1 0211-0501 ● ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0211-0501 ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0507- ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) ID=50 		8-97245-217-0 01 1 0507- ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0507- ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0507- ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0507- ● ●
204 01.267 GUIDE ASM; AIR
4HK1-TCS ENG(RJS) (C) 		8-97332-962-1 01 1 0507- ● ● ●
204 01.267 GUIDE ASM; AIR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97038-895-1 01 1 0211-0501 ● ● ● ●
204 01.267 GUIDE ASM; AIR
AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97038-895-1 01 1 0211-0501 ●
204 01.267 GUIDE ASM; AIR
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97038-894-1 01 1 0211-0501 ● ● ● ● ●
204 01.267 GUIDE ASM; AIR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97376-880-0 01 1 0502- ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HK1-TCS ENG(RJS) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 0507-0512 ● ● ●
205 01.267 BOLT; AIR GUIDE
4HK1-TCS ENG(RJS) 03.671 M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ● ●
205 01.267 BOLT; AIR GUIDE
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0211-0501 ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0211-0501 ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0502-0512 ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE 		0-28050-612-0 04 1 0601- ● ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0211-0501 ● ● ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0502-0506 ● ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0507- ● ● ● ● ● ●
317 01.271 BOLT; SEAL
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0211-0501 ● ● ● ●
317 01.271 BOLT; SEAL
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0211-0501 ●
518 01.270 NUT
4HK1-TCS ENG(RJS) 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ● ●
518 01.270 NUT
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0603-0610 ● ● ●
518 01.270 NUT
01.062 (C) M8 FLANGE 		0-91180-108-0 02 1 0611- ● ● ● ● ● ●
518 01.270 NUT
4HK1-TCS ENG(RJS) 01.062 (C) M8 FLANGE 		0-91180-108-0 02 1 0611- ● ● ●
518 01.270 NUT
00.854 (A) M8 FLANGE 		5-09440-005-0 02 1 0211-0501 ● ● ● ● ● ●
518 01.270 NUT
00.854 (A) M8 FLANGE 		5-09440-005-0 02 1 0502-0506 ● ● ● ● ●
518 01.270 NUT
00.854 (A) M8 FLANGE 		5-09440-005-0 02 1 0507-0610 ● ● ● ● ● ●
çizim 13181
92 421 2 92 132 100 100 80 92 131 421 495 343 82 305 1 80 297 2 27 22 23 21 16 62 25 26 74 518 70 75 59 57 74 58 51 27 23 22 56 26 25 240 74 62 518
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 RADIATOR ASM
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-236-1 01 1 0507- ● ● ● ●
1 01.219 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-236-1 01 1 0507- ●
1 01.219 RADIATOR ASM
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-237-1 01 1 0507- ● ● ● ●
1 01.219 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-237-1 01 1 0507- ●
1 01.219 RADIATOR ASM
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-241-0 01 1 0507- ● ● ●
1 01.219 RADIATOR ASM
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-918-0 01 1 0507- ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> 		8-97354-364-1 01 1 0211-0501 ● ● ● ●
1 01.219 RADIATOR ASM
CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> 		8-97354-364-1 01 1 0211-0501 ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97354-363-0 01 1 0211-0501 ● ● ● ●
1 01.219 RADIATOR ASM
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97354-363-0 01 1 0211-0501 ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97182-423-0 01 1 0211-0501 ● ● ● ●
1 01.219 RADIATOR ASM
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97182-423-0 01 1 0211-0501 ●
1 01.219 RADIATOR ASM
4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97146-211-1 01 1 0211-0501 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TURBOCHARGER(K51) 		8-97146-211-1 01 1 0211-0501 ● ● ●
1 01.219 RADIATOR ASM
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97146-211-1 01 1 0502-0506 ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97146-211-1 01 1 0502-0506 ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97146-211-1 01 1 0502-0506 ●
1 01.219 RADIATOR ASM
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97146-211-1 01 1 0507- ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97146-211-1 01 1 0507- ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97146-211-1 01 1 0507- ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) 		8-97177-193-1 01 1 0211-0305 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) 		8-97371-011-0 01 1 0306-0501 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1-T ENG(RDP) 		8-97371-011-0 01 1 0502-0506 ●
1 01.219 RADIATOR ASM 8-97371-011-0 01 1 0502-0506 ●
1 01.219 RADIATOR ASM
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97371-011-0 01 1 0507- ●
1 01.219 RADIATOR ASM 8-97371-011-0 01 1 0507- ●
2 01.277 GUIDE; FAN
4HK1-TCN ENG(RDQ) (B) 		8-97068-803-0 01 1 0507- ● ● ● ●
2 01.277 GUIDE; FAN
(B) 		8-97068-803-0 01 1 0507- ●
2 01.277 GUIDE; FAN
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97218-802-1 01 1 0507- ● ● ● ●
2 01.277 GUIDE; FAN
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97218-802-1 01 1 0507- ● ● ● ●
2 01.277 GUIDE; FAN
(A) 		8-97218-802-1 01 1 0507- ●
2 01.277 GUIDE; FAN
4HK1-TCS ENG(RJS) (B) 		8-97350-995-0 01 1 0507- ● ● ●
2 01.277 GUIDE; FAN
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97333-268-0 01 1 0507- ● ● ●
2 01.277 GUIDE; FAN
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97333-268-0 01 1 0507- ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97068-803-0 01 1 0211-0501 ● ● ● ●
2 01.277 GUIDE; FAN
CHARGE AIR COOLER<6PL> (B) 		8-97068-803-0 01 1 0211-0501 ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97218-802-1 01 1 0211-0501 ● ● ● ●
2 01.277 GUIDE; FAN
CHARGE AIR COOLER<6PL> (A) 		8-97218-802-1 01 1 0211-0501 ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97066-018-0 01 1 0211-0501 ● ● ● ●
2 01.277 GUIDE; FAN
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97066-018-0 01 1 0211-0501 ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) (A) 		8-97066-016-0 01 1 0211-0501 ● ● ● ● ●
2 01.277 GUIDE; FAN
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
(A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> (A) 		8-97066-016-0 01 1 0507- ● ● ● ● ●
16 01.203 CAP; RAD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> 		8-97239-187-0 01 1 0507- ● ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97239-187-0 01 1 0211-0501 ● ● ● ●
16 01.203 CAP; RAD
CHARGE AIR COOLER<6PL> 		8-97239-187-0 01 1 0211-0501 ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0211-0305 ● ● ● ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97177-872-0 01 1 0211-0305 ● ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0306-0501 ● ● ● ● ●
16 01.203 CAP; RAD
4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97177-872-0 01 1 0306-0501 ● ● ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TURBOCHARGER(K51) 		8-97177-872-0 01 1 0306-0501 ● ● ●
16 01.203 CAP; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97177-872-0 01 1 0502-0506 ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97177-872-0 01 1 0502-0506 ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97177-872-0 01 1 0502-0506 ●
16 01.203 CAP; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97177-872-0 01 1 0507- ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97177-872-0 01 1 0507- ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97177-872-0 01 1 0507- ●
16 01.203 CAP; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) 		8-97371-017-0 01 1 0306-0501 ● ● ● ●
16 01.203 CAP; RAD
4HG1-T ENG(RDP) 		8-97371-017-0 01 1 0502-0506 ●
16 01.203 CAP; RAD 8-97371-017-0 01 1 0502-0506 ●
16 01.203 CAP; RAD
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97371-017-0 01 1 0507- ●
16 01.203 CAP; RAD 8-97371-017-0 01 1 0507- ●
21 01.276 SEAL; RAD
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-97376-998-1 01 1 0507- ● ● ● ●
21 01.276 SEAL; RAD
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-97376-998-1 01 1 0507- ● ● ● ●
21 01.276 SEAL; RAD
(D) 		8-97376-998-1 01 1 0507- ●
21 01.276 SEAL; RAD
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.277 (D) 		8-97332-382-0 01 1 0507- ● ● ●
21 01.276 SEAL; RAD
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.277 (D) 		8-97332-382-0 01 1 0507- ● ● ●
21 01.276 SEAL; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D) 		8-97218-801-1 01 1 0211-0501 ● ● ● ●
21 01.276 SEAL; RAD
CHARGE AIR COOLER<6PL> (D) 		8-97218-801-1 01 1 0211-0501 ●
21 01.276 SEAL; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190 (C) 		8-97161-476-0 01 1 0211-0501 ● ● ● ●
21 01.276 SEAL; RAD
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190 (C) 		8-97161-476-0 01 1 0211-0501 ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 0211-0501 ● ● ● ●
21 01.276 SEAL; RAD
4HG1-T ENG(RDP) (A) L=240 		8-97190-922-0 01 1 0502-0506 ●
21 01.276 SEAL; RAD
(A) L=240 		8-97190-922-0 01 1 0502-0506 ●
21 01.276 SEAL; RAD
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=240 		8-97190-922-0 01 1 0507- ●
21 01.276 SEAL; RAD
(A) L=240 		8-97190-922-0 01 1 0507- ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 0211-0501 ● ● ● ●
21 01.276 SEAL; RAD
4HG1-T ENG(RDP) (B) L=205 		8-97190-923-0 01 1 0502-0506 ●
21 01.276 SEAL; RAD
(B) L=205 		8-97190-923-0 01 1 0502-0506 ●
21 01.276 SEAL; RAD
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=205 		8-97190-923-0 01 1 0507- ●
21 01.276 SEAL; RAD
(B) L=205 		8-97190-923-0 01 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97333-280-0 01 1 0507- ● ● ●
22 01.270 BRACKET; RAD MTG
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97333-281-0 01 1 0507- ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-94101-621-1 02 1 0211-0501 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-94101-621-1 02 1 0211-0501 ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94101-621-1 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0507- ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0211-0501 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0211-0501 ● ● ●
22 01.270 BRACKET; RAD MTG
FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0211-0501 ●
22 01.270 BRACKET; RAD MTG
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0507- ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG 8-97074-093-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0211-0501 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0211-0501 ● ● ●
22 01.270 BRACKET; RAD MTG
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0211-0501 ●
22 01.270 BRACKET; RAD MTG 8-94175-416-0 02 1 0211-0501 ●
22 01.270 BRACKET; RAD MTG
4HG1-T ENG(RDP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG 8-94175-416-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HK1-TCN ENG(RDQ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0507- ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG 8-94175-416-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0211-0501 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97096-452-0 02 1 0211-0501 ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0507- ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0507- ●
23 01.271 NUT; RAD MTG
07.874 M10 FLANGE 		5-09440-006-0 04 1 0211-0501 ● ● ● ● ● ●
23 01.271 NUT; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0502-0506 ●
23 01.271 NUT; RAD MTG
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0502-0506 ●
23 01.271 NUT; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0502-0506 ●
23 01.271 NUT; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0502-0506 ●
23 01.271 NUT; RAD MTG
07.874 M10 FLANGE 		5-09440-006-0 04 1 0502-0506 ●
23 01.271 NUT; RAD MTG
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0507- ●
23 01.271 NUT; RAD MTG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0507- ●
23 01.271 NUT; RAD MTG
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0507- ●
23 01.271 NUT; RAD MTG
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0507- ●
23 01.271 NUT; RAD MTG
07.874 M10 FLANGE 		5-09440-006-0 04 1 0507- ● ●
25 01.271 BOLT; BRKT
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.900 M8X12 FLANGE 		0-28080-812-0 08 1 0507- ● ● ●
25 01.271 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0211-0501 ● ● ● ● ● ●
25 01.271 BOLT; BRKT
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ●
25 01.271 BOLT; BRKT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ●
25 01.271 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ● ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
25 01.271 BOLT; BRKT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
25 01.271 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ●
26 01.270 BUFFER; RAD,LWR 8-94249-347-0 02 1 0211-0501 ● ● ● ● ● ●
26 01.270 BUFFER; RAD,LWR 8-94249-347-0 02 1 0502-0506 ● ● ● ● ●
26 01.270 BUFFER; RAD,LWR 8-94249-347-0 02 1 0507- ● ● ● ● ● ●
27 01.270 BUFFER; RAD,UPR 8-94249-346-0 02 1 0211-0501 ● ● ● ● ● ●
27 01.270 BUFFER; RAD,UPR 8-94249-346-0 02 1 0502-0506 ● ● ● ● ●
27 01.270 BUFFER; RAD,UPR 8-94249-346-0 02 1 0507- ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) W/GASKET 		1-09609-023-0 01 1 0507- ● ● ● ●
51 08.951 PLUG; DRAIN
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) W/GASKET 		1-09609-023-0 01 1 0507- ● ● ● ●
51 08.951 PLUG; DRAIN
W/GASKET 		1-09609-023-0 01 1 0507- ●
51 08.951 PLUG; DRAIN
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) W/GASKET 		8-97171-437-0 01 1 0507- ● ● ●
51 08.951 PLUG; DRAIN
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) W/GASKET 		8-97171-437-0 01 1 0507- ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET 		1-09609-023-0 01 1 0211-0501 ● ● ● ●
51 08.951 PLUG; DRAIN
CHARGE AIR COOLER<6PL> W/GASKET 		1-09609-023-0 01 1 0211-0501 ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0211-0501 ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 08.915 W/GASKET 		8-94321-236-0 01 1 0211-0501 ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1-S ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> 08.915 W/GASKET 		8-94321-236-0 01 1 0507- ● ● ● ● ●
56 01.270 STAY; RAD
4HK1-TCN ENG(RDQ) 		8-97073-424-2 01 1 0507- ● ● ● ●
56 01.270 STAY; RAD 8-97073-424-2 01 1 0507- ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-424-2 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
CHARGE AIR COOLER<6PL> 		8-97073-424-2 01 1 0211-0501 ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 		8-97330-456-0 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97330-456-0 01 1 0211-0501 ● ● ●
56 01.270 STAY; RAD
EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 		8-97330-456-0 01 1 0211-0501 ●
56 01.270 STAY; RAD 8-97330-456-0 01 1 0211-0501 ●
56 01.270 STAY; RAD
4HG1-T ENG(RDP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97330-456-0 01 1 0502- ●
56 01.270 STAY; RAD 8-97330-456-0 01 1 0502- ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97032-802-2 01 1 0211-0501 ● ● ●
56 01.270 STAY; RAD
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 0211-0501 ●
56 01.270 STAY; RAD
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> 		8-97032-802-2 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1-T ENG(RDP),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-802-2 01 1 0507- ●
56 01.270 STAY; RAD
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-802-2 01 1 0507- ● ●
56 01.270 STAY; RAD
4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97032-798-2 01 1 0211-0501 ● ● ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0507- ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0507- ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0507- ●
56 01.270 STAY; RAD
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-97350-324-0 01 1 0211-0501 ● ● ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97350-324-0 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0507- ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0507- ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0507- ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 0211-0501 ● ● ● ● ● ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 0502-0506 ● ● ● ● ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 0507-0605 ● ● ● ● ● ●
57 01.271 WASHER; PL,STAY
17.198 ID=10.5 		0-91610-510-0 01 1 0606- ● ● ● ● ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 0211-0501 ● ● ● ● ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 0502-0506 ● ● ● ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 0507- ● ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 0211-0501 ● ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 0502-0506 ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 0507-0610 ● ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
L=32.6 		8-97359-052-0 01 1 0611- ● ● ● ● ● ●
62 01.271 BOLT; STAY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0211-0501 ● ● ● ● ●
62 01.271 BOLT; STAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0211-0501 ● ● ● ● ●
62 01.271 BOLT; STAY
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0211-0501 ● ● ● ● ●
62 01.271 BOLT; STAY
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
4HG1 ENG(RJH),4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0507- ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 0211-0501 ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 0502-0506 ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 0507- ● ● ● ● ● ●
70 01.271 STAY; RAD
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97333-269-0 01 1 0507- ● ● ●
70 01.271 STAY; RAD
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97333-269-0 01 1 0507- ● ● ●
70 01.271 STAY; RAD
4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97047-899-0 01 1 0211-0501 ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TURBOCHARGER(K51) 		8-97047-899-0 01 1 0211-0501 ● ● ●
70 01.271 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97047-899-0 01 1 0502-0506 ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97047-899-0 01 1 0502-0506 ●
70 01.271 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97047-899-0 01 1 0502-0506 ●
70 01.271 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97047-899-0 01 1 0507- ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97047-899-0 01 1 0507- ●
70 01.271 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97047-899-0 01 1 0507- ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0211-0501 ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0211-0501 ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) 		8-97073-125-0 01 1 0211-0501 ● ● ● ●
70 01.271 STAY; RAD
4HG1-T ENG(RDP) 		8-97073-125-0 01 1 0502-0506 ●
70 01.271 STAY; RAD 8-97073-125-0 01 1 0502-0506 ●
70 01.271 STAY; RAD
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) 		8-97073-125-0 01 1 0507- ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
03.405 (A) ID=8.5 OD=36 		8-94221-082-0 02 1 0211-0501 ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
03.405 (A) ID=8.5 OD=36 		8-94221-082-0 02 1 0502-0506 ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
03.405 (A) ID=8.5 OD=36 		8-94221-082-0 02 1 0507-0610 ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
(A) ID=8.5 OD=36 		8-97359-049-1 02 1 0611- ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0211-0501 ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ●
74 01.270 WASHER; PL,CUSHION RUBBER
04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ● ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63 		8-94249-446-0 01 1 0211-0501 ● ● ● ● ● ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0502-0506 ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0502-0506 ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0502-0506 ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0502-0506 ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63 		8-94249-446-0 01 1 0502-0506 ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0507- ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0507- ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0507- ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0507- ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63 		8-94249-446-0 01 1 0507- ● ●
80 01.277 BOLT; FAN GUIDE
4HK1-TCN ENG(RDQ) 01.252 (B) M8X30 W/LK&PL WASHER 		0-50140-830-0 03 1 0507-0512 ●
80 01.277 BOLT; FAN GUIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.252 (B) M8X30 W/LK&PL WASHER 		0-50140-830-0 03 1 0507-0512 ● ● ●
80 01.277 BOLT; FAN GUIDE
01.252 (B) M8X30 W/LK&PL WASHER 		0-50140-830-0 03 1 0507-0512 ●
80 01.277 BOLT; FAN GUIDE
4HK1-TCN ENG(RDQ) 01.252 (B) M8X30 W/LK&PL WASHER 		0-50640-830-0 03 1 0601-0806 ●
80 01.277 BOLT; FAN GUIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.252 (B) M8X30 W/LK&PL WASHER 		0-50640-830-0 03 1 0601-0806 ● ● ●
80 01.277 BOLT; FAN GUIDE
01.252 (B) M8X30 W/LK&PL WASHER 		0-50640-830-0 03 1 0601-0806 ●
80 01.277 BOLT; FAN GUIDE
4HK1-TCN ENG(RDQ) 03.403 (B) M8X30 FLANGE 		0-28650-830-0 03 1 0807- ●
80 01.277 BOLT; FAN GUIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.403 (B) M8X30 FLANGE 		0-28650-830-0 03 1 0807- ● ● ●
80 01.277 BOLT; FAN GUIDE
03.403 (B) M8X30 FLANGE 		0-28650-830-0 03 1 0807- ●
80 01.277 BOLT; FAN GUIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> 01.428 (A) M6X12 FLANGE 		0-28080-612-0 04 1 0507- ● ● ● ● ●
80 01.277 BOLT; FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.428 (A) M6X12 FLANGE 		0-28080-612-0 04 1 0211-0501 ● ● ● ●
80 01.277 BOLT; FAN GUIDE
CHARGE AIR COOLER<6PL> 01.428 (A) M6X12 FLANGE 		0-28080-612-0 04 1 0211-0501 ●
80 01.277 BOLT; FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.252 (B) M8X30 W/LK&PL WASHER 		0-50140-830-0 03 1 0211-0501 ● ● ● ●
80 01.277 BOLT; FAN GUIDE
CHARGE AIR COOLER<6PL> 01.252 (B) M8X30 W/LK&PL WASHER 		0-50140-830-0 03 1 0211-0501 ●
82 01.277 COVER; FAN,RAD
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97218-799-0 01 1 0507- ● ● ● ●
82 01.277 COVER; FAN,RAD
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97218-799-0 01 1 0507- ● ● ● ●
82 01.277 COVER; FAN,RAD 8-97218-799-0 01 1 0507- ●
82 01.277 COVER; FAN,RAD
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97332-330-0 01 1 0507- ● ● ●
82 01.277 COVER; FAN,RAD
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97332-330-0 01 1 0507- ● ● ●
82 01.277 COVER; FAN,RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97218-799-0 01 1 0211-0501 ● ● ● ●
82 01.277 COVER; FAN,RAD
CHARGE AIR COOLER<6PL> 		8-97218-799-0 01 1 0211-0501 ●
92 01.277 BRACKET; FAN GUIDE
4HK1-TCN ENG(RDQ) (B) 		8-97148-940-0 01 1 0507- ● ● ● ●
92 01.277 BRACKET; FAN GUIDE
(B) 		8-97148-940-0 01 1 0507- ●
92 01.277 BRACKET; FAN GUIDE
4HK1-TCN ENG(RDQ) (C) 		8-97148-941-1 01 1 0507- ● ● ● ●
92 01.277 BRACKET; FAN GUIDE
(C) 		8-97148-941-1 01 1 0507- ●
92 01.277 BRACKET; FAN GUIDE
4HK1-TCN ENG(RDQ) (A) 		8-97189-394-1 01 1 0507- ● ● ● ●
92 01.277 BRACKET; FAN GUIDE
(A) 		8-97189-394-1 01 1 0507- ●
92 01.277 BRACKET; FAN GUIDE
4HK1-TCS ENG(RJS) (A) 		8-97350-996-0 01 1 0507- ● ● ●
92 01.277 BRACKET; FAN GUIDE
4HK1-TCS ENG(RJS) (C) 		8-97350-997-0 01 1 0507- ● ● ●
92 01.277 BRACKET; FAN GUIDE
4HK1-TCS ENG(RJS) (B) 		8-97350-998-0 01 1 0507- ● ● ●
92 01.277 BRACKET; FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97148-940-0 01 1 0211-0501 ● ● ● ●
92 01.277 BRACKET; FAN GUIDE
CHARGE AIR COOLER<6PL> (B) 		8-97148-940-0 01 1 0211-0501 ●
92 01.277 BRACKET; FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) 		8-97148-941-1 01 1 0211-0501 ● ● ● ●
92 01.277 BRACKET; FAN GUIDE
CHARGE AIR COOLER<6PL> (C) 		8-97148-941-1 01 1 0211-0501 ●
92 01.277 BRACKET; FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97189-394-1 01 1 0211-0501 ● ● ● ●
92 01.277 BRACKET; FAN GUIDE
CHARGE AIR COOLER<6PL> (A) 		8-97189-394-1 01 1 0211-0501 ●
100 01.277 RUBBER; MTG
4HK1-TCN ENG(RDQ) 		1-09337-027-0 06 1 0507- ●
100 01.277 RUBBER; MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		1-09337-027-0 06 1 0507- ● ● ●
100 01.277 RUBBER; MTG 1-09337-027-0 06 1 0507- ●
100 01.277 RUBBER; MTG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-09337-027-0 06 1 0211-0501 ● ● ● ●
100 01.277 RUBBER; MTG
CHARGE AIR COOLER<6PL> 		1-09337-027-0 06 1 0211-0501 ●
131 01.166 CLIP; ENG SIDE TOP
4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=40 		8-97245-216-0 01 1 0211-0501 ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=40 		8-97245-216-0 01 1 0211-0501 ● ● ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0211-0501 ● ●
131 01.166 CLIP; ENG SIDE TOP
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0507- ●
131 01.166 CLIP; ENG SIDE TOP
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) ID=40 		8-97245-216-0 01 1 0507- ●
131 01.166 CLIP; ENG SIDE TOP
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0507- ●
131 01.166 CLIP; ENG SIDE TOP
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0507- ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0507- ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=50 		8-97245-217-0 01 1 0211-0501 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=50 		8-97245-217-0 01 1 0211-0501 ● ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0211-0501 ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0507- ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) ID=50 		8-97245-217-0 01 1 0507- ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0507- ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0507- ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0507- ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0211-0501 ● ● ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0502-0506 ● ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0507- ● ● ● ● ● ●
297 01.277 WASHER; PL,FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18 		9-09160-706-0 04 1 0211-0501 ● ● ● ●
297 01.277 WASHER; PL,FAN GUIDE
CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18 		9-09160-706-0 04 1 0211-0501 ●
305 01.277 CLIP; FAN COVER TO FAN GUIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> 		1-09470-009-0 12 1 0507- ● ● ● ● ●
305 01.277 CLIP; FAN COVER TO FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-09470-009-0 12 1 0211-0501 ● ● ● ●
305 01.277 CLIP; FAN COVER TO FAN GUIDE
CHARGE AIR COOLER<6PL> 		1-09470-009-0 12 1 0211-0501 ●
343 01.271 PLUG; WATER LEVEL
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) M18X12 		1-09604-081-0 01 1 0507- ● ● ● ●
343 01.271 PLUG; WATER LEVEL
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M18X12 		1-09604-081-0 01 1 0507- ● ● ● ●
343 01.271 PLUG; WATER LEVEL
M18X12 		1-09604-081-0 01 1 0507- ●
343 01.271 PLUG; WATER LEVEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M18X12 		1-09604-081-0 01 1 0211-0501 ● ● ● ●
343 01.271 PLUG; WATER LEVEL
CHARGE AIR COOLER<6PL> M18X12 		1-09604-081-0 01 1 0211-0501 ●
421 01.277 BOLT; BRKT FAN GUIDE
4HK1-TCN ENG(RDQ) 00.004 (A) M10X18 FLANGE 		0-28181-018-0 02 1 0507- ●
421 01.277 BOLT; BRKT FAN GUIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.004 (A) M10X18 FLANGE 		0-28181-018-0 02 1 0507- ● ● ●
421 01.277 BOLT; BRKT FAN GUIDE
00.004 (A) M10X18 FLANGE 		0-28181-018-0 02 1 0507- ●
421 01.277 BOLT; BRKT FAN GUIDE
4HK1-TCN ENG(RDQ) 01.540 (B) M10X20 FLANGE 		0-28181-020-0 02 1 0507-0512 ●
421 01.277 BOLT; BRKT FAN GUIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.540 (B) M10X20 FLANGE 		0-28181-020-0 02 1 0507-0512 ● ● ●
421 01.277 BOLT; BRKT FAN GUIDE
01.540 (B) M10X20 FLANGE 		0-28181-020-0 02 1 0507-0512 ●
421 01.277 BOLT; BRKT FAN GUIDE
4HK1-TCN ENG(RDQ) 03.417 (B) M10X20 FLANGE 		0-28151-020-0 02 1 0601- ●
421 01.277 BOLT; BRKT FAN GUIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 (B) M10X20 FLANGE 		0-28151-020-0 02 1 0601- ● ● ●
421 01.277 BOLT; BRKT FAN GUIDE
03.417 (B) M10X20 FLANGE 		0-28151-020-0 02 1 0601- ●
421 01.277 BOLT; BRKT FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.004 (A) M10X18 FLANGE 		0-28181-018-0 02 1 0211-0501 ● ● ● ●
421 01.277 BOLT; BRKT FAN GUIDE
CHARGE AIR COOLER<6PL> 00.004 (A) M10X18 FLANGE 		0-28181-018-0 02 1 0211-0501 ●
421 01.277 BOLT; BRKT FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.540 (B) M10X20 FLANGE 		0-28181-020-0 02 1 0211-0501 ● ● ● ●
421 01.277 BOLT; BRKT FAN GUIDE
CHARGE AIR COOLER<6PL> 01.540 (B) M10X20 FLANGE 		0-28181-020-0 02 1 0211-0501 ●
495 01.274 GASKET; SENSOR
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 		1-09623-185-0 01 1 0507- ● ● ● ●
495 01.274 GASKET; SENSOR
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 		1-09623-185-0 01 1 0507- ● ● ● ●
495 01.274 GASKET; SENSOR
01.097 		1-09623-185-0 01 1 0507- ●
495 01.274 GASKET; SENSOR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.097 		1-09623-185-0 01 1 0211-0501 ● ● ● ●
495 01.274 GASKET; SENSOR
CHARGE AIR COOLER<6PL> 01.097 		1-09623-185-0 01 1 0211-0501 ●
518 01.270 NUT
4HK1-TCS ENG(RJS) 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ● ●
518 01.270 NUT
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0603-0610 ● ● ●
518 01.270 NUT
01.062 (C) M8 FLANGE 		0-91180-108-0 02 1 0611- ● ● ● ● ● ●
518 01.270 NUT
4HK1-TCS ENG(RJS) 01.062 (C) M8 FLANGE 		0-91180-108-0 02 1 0611- ● ● ●
518 01.270 NUT
00.854 (A) M8 FLANGE 		5-09440-005-0 02 1 0211-0501 ● ● ● ● ● ●
518 01.270 NUT
00.854 (A) M8 FLANGE 		5-09440-005-0 02 1 0502-0506 ● ● ● ● ●
518 01.270 NUT
00.854 (A) M8 FLANGE 		5-09440-005-0 02 1 0507-0610 ● ● ● ● ● ●
çizim 13645
131 1 16 81 2 132 70 21 51 52 21 62 75 74 23 27 23 22 22 27 59 57 25 26 74 26 74 58 25 56 204 240 518 518 518 518 62 205 204 205
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 RADIATOR ASM
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-236-1 01 1 0507- ● ● ● ●
1 01.219 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-236-1 01 1 0507- ●
1 01.219 RADIATOR ASM
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-237-1 01 1 0507- ● ● ● ●
1 01.219 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-237-1 01 1 0507- ●
1 01.219 RADIATOR ASM
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-241-0 01 1 0507- ● ● ●
1 01.219 RADIATOR ASM
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-918-0 01 1 0507- ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> 		8-97354-364-1 01 1 0211-0501 ● ● ● ●
1 01.219 RADIATOR ASM
CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> 		8-97354-364-1 01 1 0211-0501 ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97354-363-0 01 1 0211-0501 ● ● ● ●
1 01.219 RADIATOR ASM
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97354-363-0 01 1 0211-0501 ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97182-423-0 01 1 0211-0501 ● ● ● ●
1 01.219 RADIATOR ASM
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97182-423-0 01 1 0211-0501 ●
1 01.219 RADIATOR ASM
4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97146-211-1 01 1 0211-0501 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TURBOCHARGER(K51) 		8-97146-211-1 01 1 0211-0501 ● ● ●
1 01.219 RADIATOR ASM
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97146-211-1 01 1 0502-0506 ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97146-211-1 01 1 0502-0506 ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97146-211-1 01 1 0502-0506 ●
1 01.219 RADIATOR ASM
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97146-211-1 01 1 0507- ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97146-211-1 01 1 0507- ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97146-211-1 01 1 0507- ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) 		8-97177-193-1 01 1 0211-0305 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) 		8-97371-011-0 01 1 0306-0501 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1-T ENG(RDP) 		8-97371-011-0 01 1 0502-0506 ●
1 01.219 RADIATOR ASM 8-97371-011-0 01 1 0502-0506 ●
1 01.219 RADIATOR ASM
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97371-011-0 01 1 0507- ●
1 01.219 RADIATOR ASM 8-97371-011-0 01 1 0507- ●
2 01.277 GUIDE; FAN
4HK1-TCN ENG(RDQ) (B) 		8-97068-803-0 01 1 0507- ● ● ● ●
2 01.277 GUIDE; FAN
(B) 		8-97068-803-0 01 1 0507- ●
2 01.277 GUIDE; FAN
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97218-802-1 01 1 0507- ● ● ● ●
2 01.277 GUIDE; FAN
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97218-802-1 01 1 0507- ● ● ● ●
2 01.277 GUIDE; FAN
(A) 		8-97218-802-1 01 1 0507- ●
2 01.277 GUIDE; FAN
4HK1-TCS ENG(RJS) (B) 		8-97350-995-0 01 1 0507- ● ● ●
2 01.277 GUIDE; FAN
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97333-268-0 01 1 0507- ● ● ●
2 01.277 GUIDE; FAN
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97333-268-0 01 1 0507- ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97068-803-0 01 1 0211-0501 ● ● ● ●
2 01.277 GUIDE; FAN
CHARGE AIR COOLER<6PL> (B) 		8-97068-803-0 01 1 0211-0501 ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97218-802-1 01 1 0211-0501 ● ● ● ●
2 01.277 GUIDE; FAN
CHARGE AIR COOLER<6PL> (A) 		8-97218-802-1 01 1 0211-0501 ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97066-018-0 01 1 0211-0501 ● ● ● ●
2 01.277 GUIDE; FAN
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97066-018-0 01 1 0211-0501 ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) (A) 		8-97066-016-0 01 1 0211-0501 ● ● ● ● ●
2 01.277 GUIDE; FAN
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
(A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> (A) 		8-97066-016-0 01 1 0507- ● ● ● ● ●
16 01.203 CAP; RAD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> 		8-97239-187-0 01 1 0507- ● ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97239-187-0 01 1 0211-0501 ● ● ● ●
16 01.203 CAP; RAD
CHARGE AIR COOLER<6PL> 		8-97239-187-0 01 1 0211-0501 ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0211-0305 ● ● ● ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97177-872-0 01 1 0211-0305 ● ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0306-0501 ● ● ● ● ●
16 01.203 CAP; RAD
4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97177-872-0 01 1 0306-0501 ● ● ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TURBOCHARGER(K51) 		8-97177-872-0 01 1 0306-0501 ● ● ●
16 01.203 CAP; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97177-872-0 01 1 0502-0506 ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97177-872-0 01 1 0502-0506 ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97177-872-0 01 1 0502-0506 ●
16 01.203 CAP; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97177-872-0 01 1 0507- ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97177-872-0 01 1 0507- ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97177-872-0 01 1 0507- ●
16 01.203 CAP; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) 		8-97371-017-0 01 1 0306-0501 ● ● ● ●
16 01.203 CAP; RAD
4HG1-T ENG(RDP) 		8-97371-017-0 01 1 0502-0506 ●
16 01.203 CAP; RAD 8-97371-017-0 01 1 0502-0506 ●
16 01.203 CAP; RAD
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97371-017-0 01 1 0507- ●
16 01.203 CAP; RAD 8-97371-017-0 01 1 0507- ●
21 01.276 SEAL; RAD
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-97376-998-1 01 1 0507- ● ● ● ●
21 01.276 SEAL; RAD
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-97376-998-1 01 1 0507- ● ● ● ●
21 01.276 SEAL; RAD
(D) 		8-97376-998-1 01 1 0507- ●
21 01.276 SEAL; RAD
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.277 (D) 		8-97332-382-0 01 1 0507- ● ● ●
21 01.276 SEAL; RAD
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.277 (D) 		8-97332-382-0 01 1 0507- ● ● ●
21 01.276 SEAL; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D) 		8-97218-801-1 01 1 0211-0501 ● ● ● ●
21 01.276 SEAL; RAD
CHARGE AIR COOLER<6PL> (D) 		8-97218-801-1 01 1 0211-0501 ●
21 01.276 SEAL; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190 (C) 		8-97161-476-0 01 1 0211-0501 ● ● ● ●
21 01.276 SEAL; RAD
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190 (C) 		8-97161-476-0 01 1 0211-0501 ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 0211-0501 ● ● ● ●
21 01.276 SEAL; RAD
4HG1-T ENG(RDP) (A) L=240 		8-97190-922-0 01 1 0502-0506 ●
21 01.276 SEAL; RAD
(A) L=240 		8-97190-922-0 01 1 0502-0506 ●
21 01.276 SEAL; RAD
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=240 		8-97190-922-0 01 1 0507- ●
21 01.276 SEAL; RAD
(A) L=240 		8-97190-922-0 01 1 0507- ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 0211-0501 ● ● ● ●
21 01.276 SEAL; RAD
4HG1-T ENG(RDP) (B) L=205 		8-97190-923-0 01 1 0502-0506 ●
21 01.276 SEAL; RAD
(B) L=205 		8-97190-923-0 01 1 0502-0506 ●
21 01.276 SEAL; RAD
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=205 		8-97190-923-0 01 1 0507- ●
21 01.276 SEAL; RAD
(B) L=205 		8-97190-923-0 01 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97333-280-0 01 1 0507- ● ● ●
22 01.270 BRACKET; RAD MTG
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97333-281-0 01 1 0507- ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-94101-621-1 02 1 0211-0501 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-94101-621-1 02 1 0211-0501 ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94101-621-1 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0507- ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0211-0501 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0211-0501 ● ● ●
22 01.270 BRACKET; RAD MTG
FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0211-0501 ●
22 01.270 BRACKET; RAD MTG
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0507- ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG 8-97074-093-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0211-0501 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0211-0501 ● ● ●
22 01.270 BRACKET; RAD MTG
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0211-0501 ●
22 01.270 BRACKET; RAD MTG 8-94175-416-0 02 1 0211-0501 ●
22 01.270 BRACKET; RAD MTG
4HG1-T ENG(RDP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG 8-94175-416-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HK1-TCN ENG(RDQ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0507- ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG 8-94175-416-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0211-0501 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97096-452-0 02 1 0211-0501 ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0507- ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0507- ●
23 01.271 NUT; RAD MTG
07.874 M10 FLANGE 		5-09440-006-0 04 1 0211-0501 ● ● ● ● ● ●
23 01.271 NUT; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0502-0506 ●
23 01.271 NUT; RAD MTG
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0502-0506 ●
23 01.271 NUT; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0502-0506 ●
23 01.271 NUT; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0502-0506 ●
23 01.271 NUT; RAD MTG
07.874 M10 FLANGE 		5-09440-006-0 04 1 0502-0506 ●
23 01.271 NUT; RAD MTG
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0507- ●
23 01.271 NUT; RAD MTG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0507- ●
23 01.271 NUT; RAD MTG
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0507- ●
23 01.271 NUT; RAD MTG
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0507- ●
23 01.271 NUT; RAD MTG
07.874 M10 FLANGE 		5-09440-006-0 04 1 0507- ● ●
25 01.271 BOLT; BRKT
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.900 M8X12 FLANGE 		0-28080-812-0 08 1 0507- ● ● ●
25 01.271 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0211-0501 ● ● ● ● ● ●
25 01.271 BOLT; BRKT
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ●
25 01.271 BOLT; BRKT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ●
25 01.271 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ● ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
25 01.271 BOLT; BRKT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
25 01.271 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ●
26 01.270 BUFFER; RAD,LWR 8-94249-347-0 02 1 0211-0501 ● ● ● ● ● ●
26 01.270 BUFFER; RAD,LWR 8-94249-347-0 02 1 0502-0506 ● ● ● ● ●
26 01.270 BUFFER; RAD,LWR 8-94249-347-0 02 1 0507- ● ● ● ● ● ●
27 01.270 BUFFER; RAD,UPR 8-94249-346-0 02 1 0211-0501 ● ● ● ● ● ●
27 01.270 BUFFER; RAD,UPR 8-94249-346-0 02 1 0502-0506 ● ● ● ● ●
27 01.270 BUFFER; RAD,UPR 8-94249-346-0 02 1 0507- ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) W/GASKET 		1-09609-023-0 01 1 0507- ● ● ● ●
51 08.951 PLUG; DRAIN
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) W/GASKET 		1-09609-023-0 01 1 0507- ● ● ● ●
51 08.951 PLUG; DRAIN
W/GASKET 		1-09609-023-0 01 1 0507- ●
51 08.951 PLUG; DRAIN
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) W/GASKET 		8-97171-437-0 01 1 0507- ● ● ●
51 08.951 PLUG; DRAIN
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) W/GASKET 		8-97171-437-0 01 1 0507- ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET 		1-09609-023-0 01 1 0211-0501 ● ● ● ●
51 08.951 PLUG; DRAIN
CHARGE AIR COOLER<6PL> W/GASKET 		1-09609-023-0 01 1 0211-0501 ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0211-0501 ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 08.915 W/GASKET 		8-94321-236-0 01 1 0211-0501 ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1-S ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> 08.915 W/GASKET 		8-94321-236-0 01 1 0507- ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 0211-0501 ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 01.203 ID=10 		9-09720-557-0 01 1 0211-0501 ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.203 ID=10 		9-09720-557-0 01 1 0502-0506 ●
52 08.951 GASKET; DRAIN PLUG
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 01.203 ID=10 		9-09720-557-0 01 1 0502-0506 ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.203 ID=10 		9-09720-557-0 01 1 0502-0506 ●
52 08.951 GASKET; DRAIN PLUG
4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.203 ID=10 		9-09720-557-0 01 1 0502-0506 ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 0502-0506 ●
52 08.951 GASKET; DRAIN PLUG
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> 01.203 ID=10 		9-09720-557-0 01 1 0507- ● ● ● ● ●
56 01.270 STAY; RAD
4HK1-TCN ENG(RDQ) 		8-97073-424-2 01 1 0507- ● ● ● ●
56 01.270 STAY; RAD 8-97073-424-2 01 1 0507- ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-424-2 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
CHARGE AIR COOLER<6PL> 		8-97073-424-2 01 1 0211-0501 ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 		8-97330-456-0 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97330-456-0 01 1 0211-0501 ● ● ●
56 01.270 STAY; RAD
EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 		8-97330-456-0 01 1 0211-0501 ●
56 01.270 STAY; RAD 8-97330-456-0 01 1 0211-0501 ●
56 01.270 STAY; RAD
4HG1-T ENG(RDP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97330-456-0 01 1 0502- ●
56 01.270 STAY; RAD 8-97330-456-0 01 1 0502- ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97032-802-2 01 1 0211-0501 ● ● ●
56 01.270 STAY; RAD
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 0211-0501 ●
56 01.270 STAY; RAD
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> 		8-97032-802-2 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1-T ENG(RDP),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-802-2 01 1 0507- ●
56 01.270 STAY; RAD
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-802-2 01 1 0507- ● ●
56 01.270 STAY; RAD
4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97032-798-2 01 1 0211-0501 ● ● ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0507- ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0507- ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0507- ●
56 01.270 STAY; RAD
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-97350-324-0 01 1 0211-0501 ● ● ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97350-324-0 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0507- ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0507- ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0507- ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 0211-0501 ● ● ● ● ● ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 0502-0506 ● ● ● ● ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 0507-0605 ● ● ● ● ● ●
57 01.271 WASHER; PL,STAY
17.198 ID=10.5 		0-91610-510-0 01 1 0606- ● ● ● ● ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 0211-0501 ● ● ● ● ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 0502-0506 ● ● ● ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 0507- ● ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 0211-0501 ● ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 0502-0506 ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 0507-0610 ● ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
L=32.6 		8-97359-052-0 01 1 0611- ● ● ● ● ● ●
62 01.271 BOLT; STAY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0211-0501 ● ● ● ● ●
62 01.271 BOLT; STAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0211-0501 ● ● ● ● ●
62 01.271 BOLT; STAY
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0211-0501 ● ● ● ● ●
62 01.271 BOLT; STAY
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
4HG1 ENG(RJH),4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0507- ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 0211-0501 ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 0502-0506 ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 0507- ● ● ● ● ● ●
70 01.271 STAY; RAD
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97333-269-0 01 1 0507- ● ● ●
70 01.271 STAY; RAD
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97333-269-0 01 1 0507- ● ● ●
70 01.271 STAY; RAD
4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97047-899-0 01 1 0211-0501 ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TURBOCHARGER(K51) 		8-97047-899-0 01 1 0211-0501 ● ● ●
70 01.271 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97047-899-0 01 1 0502-0506 ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97047-899-0 01 1 0502-0506 ●
70 01.271 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97047-899-0 01 1 0502-0506 ●
70 01.271 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97047-899-0 01 1 0507- ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97047-899-0 01 1 0507- ●
70 01.271 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97047-899-0 01 1 0507- ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0211-0501 ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0211-0501 ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) 		8-97073-125-0 01 1 0211-0501 ● ● ● ●
70 01.271 STAY; RAD
4HG1-T ENG(RDP) 		8-97073-125-0 01 1 0502-0506 ●
70 01.271 STAY; RAD 8-97073-125-0 01 1 0502-0506 ●
70 01.271 STAY; RAD
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) 		8-97073-125-0 01 1 0507- ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
03.405 (A) ID=8.5 OD=36 		8-94221-082-0 02 1 0211-0501 ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
03.405 (A) ID=8.5 OD=36 		8-94221-082-0 02 1 0502-0506 ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
03.405 (A) ID=8.5 OD=36 		8-94221-082-0 02 1 0507-0610 ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
(A) ID=8.5 OD=36 		8-97359-049-1 02 1 0611- ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0211-0501 ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ●
74 01.270 WASHER; PL,CUSHION RUBBER
04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ● ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63 		8-94249-446-0 01 1 0211-0501 ● ● ● ● ● ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0502-0506 ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0502-0506 ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0502-0506 ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0502-0506 ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63 		8-94249-446-0 01 1 0502-0506 ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0507- ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0507- ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0507- ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0507- ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63 		8-94249-446-0 01 1 0507- ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97088-810-0 04 1 0211-0501 ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97088-810-0 04 1 0211-0501 ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97088-810-0 04 1 0502-0506 ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 		8-97088-810-0 04 1 0502-0506 ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97088-810-0 04 1 0502-0506 ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97088-810-0 04 1 0502-0506 ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 0502-0506 ●
81 01.277 SCREW; FAN GUIDE,RAD
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97088-810-0 04 1 0507- ● ● ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=40 		8-97245-216-0 01 1 0211-0501 ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=40 		8-97245-216-0 01 1 0211-0501 ● ● ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0211-0501 ● ●
131 01.166 CLIP; ENG SIDE TOP
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0507- ●
131 01.166 CLIP; ENG SIDE TOP
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) ID=40 		8-97245-216-0 01 1 0507- ●
131 01.166 CLIP; ENG SIDE TOP
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0507- ●
131 01.166 CLIP; ENG SIDE TOP
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0507- ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0507- ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=50 		8-97245-217-0 01 1 0211-0501 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=50 		8-97245-217-0 01 1 0211-0501 ● ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0211-0501 ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0507- ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) ID=50 		8-97245-217-0 01 1 0507- ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0507- ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0507- ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0507- ● ●
204 01.267 GUIDE ASM; AIR
4HK1-TCS ENG(RJS) (C) 		8-97332-962-1 01 1 0507- ● ● ●
204 01.267 GUIDE ASM; AIR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97038-895-1 01 1 0211-0501 ● ● ● ●
204 01.267 GUIDE ASM; AIR
AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97038-895-1 01 1 0211-0501 ●
204 01.267 GUIDE ASM; AIR
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97038-894-1 01 1 0211-0501 ● ● ● ● ●
204 01.267 GUIDE ASM; AIR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97376-880-0 01 1 0502- ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HK1-TCS ENG(RJS) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 0507-0512 ● ● ●
205 01.267 BOLT; AIR GUIDE
4HK1-TCS ENG(RJS) 03.671 M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ● ●
205 01.267 BOLT; AIR GUIDE
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0211-0501 ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0211-0501 ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0502-0512 ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE 		0-28050-612-0 04 1 0601- ● ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0211-0501 ● ● ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0502-0506 ● ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0507- ● ● ● ● ● ●
518 01.270 NUT
4HK1-TCS ENG(RJS) 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ● ●
518 01.270 NUT
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0603-0610 ● ● ●
518 01.270 NUT
01.062 (C) M8 FLANGE 		0-91180-108-0 02 1 0611- ● ● ● ● ● ●
518 01.270 NUT
4HK1-TCS ENG(RJS) 01.062 (C) M8 FLANGE 		0-91180-108-0 02 1 0611- ● ● ●
518 01.270 NUT
00.854 (A) M8 FLANGE 		5-09440-005-0 02 1 0211-0501 ● ● ● ● ● ●
518 01.270 NUT
00.854 (A) M8 FLANGE 		5-09440-005-0 02 1 0502-0506 ● ● ● ● ●
518 01.270 NUT
00.854 (A) M8 FLANGE 		5-09440-005-0 02 1 0507-0610 ● ● ● ● ● ●
çizim 13660
92 421 2 92 132 100 100 80 92 131 421 495 343 1 305 297 80 2 16 21 27 22 23 62 25 26 74 518 518 82 70 75 59 57 74 58 51 27 23 22 56 26 25 240 74 62 518 518
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 RADIATOR ASM
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-236-1 01 1 0507- ● ● ● ●
1 01.219 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-236-1 01 1 0507- ●
1 01.219 RADIATOR ASM
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-237-1 01 1 0507- ● ● ● ●
1 01.219 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-237-1 01 1 0507- ●
1 01.219 RADIATOR ASM
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-241-0 01 1 0507- ● ● ●
1 01.219 RADIATOR ASM
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-918-0 01 1 0507- ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> 		8-97354-364-1 01 1 0211-0501 ● ● ● ●
1 01.219 RADIATOR ASM
CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> 		8-97354-364-1 01 1 0211-0501 ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97354-363-0 01 1 0211-0501 ● ● ● ●
1 01.219 RADIATOR ASM
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97354-363-0 01 1 0211-0501 ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97182-423-0 01 1 0211-0501 ● ● ● ●
1 01.219 RADIATOR ASM
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97182-423-0 01 1 0211-0501 ●
1 01.219 RADIATOR ASM
4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97146-211-1 01 1 0211-0501 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TURBOCHARGER(K51) 		8-97146-211-1 01 1 0211-0501 ● ● ●
1 01.219 RADIATOR ASM
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97146-211-1 01 1 0502-0506 ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97146-211-1 01 1 0502-0506 ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97146-211-1 01 1 0502-0506 ●
1 01.219 RADIATOR ASM
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97146-211-1 01 1 0507- ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97146-211-1 01 1 0507- ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97146-211-1 01 1 0507- ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) 		8-97177-193-1 01 1 0211-0305 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) 		8-97371-011-0 01 1 0306-0501 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1-T ENG(RDP) 		8-97371-011-0 01 1 0502-0506 ●
1 01.219 RADIATOR ASM 8-97371-011-0 01 1 0502-0506 ●
1 01.219 RADIATOR ASM
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97371-011-0 01 1 0507- ●
1 01.219 RADIATOR ASM 8-97371-011-0 01 1 0507- ●
2 01.277 GUIDE; FAN
4HK1-TCN ENG(RDQ) (B) 		8-97068-803-0 01 1 0507- ● ● ● ●
2 01.277 GUIDE; FAN
(B) 		8-97068-803-0 01 1 0507- ●
2 01.277 GUIDE; FAN
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97218-802-1 01 1 0507- ● ● ● ●
2 01.277 GUIDE; FAN
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97218-802-1 01 1 0507- ● ● ● ●
2 01.277 GUIDE; FAN
(A) 		8-97218-802-1 01 1 0507- ●
2 01.277 GUIDE; FAN
4HK1-TCS ENG(RJS) (B) 		8-97350-995-0 01 1 0507- ● ● ●
2 01.277 GUIDE; FAN
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97333-268-0 01 1 0507- ● ● ●
2 01.277 GUIDE; FAN
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97333-268-0 01 1 0507- ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97068-803-0 01 1 0211-0501 ● ● ● ●
2 01.277 GUIDE; FAN
CHARGE AIR COOLER<6PL> (B) 		8-97068-803-0 01 1 0211-0501 ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97218-802-1 01 1 0211-0501 ● ● ● ●
2 01.277 GUIDE; FAN
CHARGE AIR COOLER<6PL> (A) 		8-97218-802-1 01 1 0211-0501 ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97066-018-0 01 1 0211-0501 ● ● ● ●
2 01.277 GUIDE; FAN
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97066-018-0 01 1 0211-0501 ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) (A) 		8-97066-016-0 01 1 0211-0501 ● ● ● ● ●
2 01.277 GUIDE; FAN
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
(A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> (A) 		8-97066-016-0 01 1 0507- ● ● ● ● ●
16 01.203 CAP; RAD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> 		8-97239-187-0 01 1 0507- ● ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97239-187-0 01 1 0211-0501 ● ● ● ●
16 01.203 CAP; RAD
CHARGE AIR COOLER<6PL> 		8-97239-187-0 01 1 0211-0501 ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0211-0305 ● ● ● ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97177-872-0 01 1 0211-0305 ● ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0306-0501 ● ● ● ● ●
16 01.203 CAP; RAD
4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97177-872-0 01 1 0306-0501 ● ● ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TURBOCHARGER(K51) 		8-97177-872-0 01 1 0306-0501 ● ● ●
16 01.203 CAP; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97177-872-0 01 1 0502-0506 ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97177-872-0 01 1 0502-0506 ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97177-872-0 01 1 0502-0506 ●
16 01.203 CAP; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97177-872-0 01 1 0507- ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97177-872-0 01 1 0507- ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97177-872-0 01 1 0507- ●
16 01.203 CAP; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) 		8-97371-017-0 01 1 0306-0501 ● ● ● ●
16 01.203 CAP; RAD
4HG1-T ENG(RDP) 		8-97371-017-0 01 1 0502-0506 ●
16 01.203 CAP; RAD 8-97371-017-0 01 1 0502-0506 ●
16 01.203 CAP; RAD
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97371-017-0 01 1 0507- ●
16 01.203 CAP; RAD 8-97371-017-0 01 1 0507- ●
21 01.276 SEAL; RAD
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-97376-998-1 01 1 0507- ● ● ● ●
21 01.276 SEAL; RAD
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-97376-998-1 01 1 0507- ● ● ● ●
21 01.276 SEAL; RAD
(D) 		8-97376-998-1 01 1 0507- ●
21 01.276 SEAL; RAD
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.277 (D) 		8-97332-382-0 01 1 0507- ● ● ●
21 01.276 SEAL; RAD
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.277 (D) 		8-97332-382-0 01 1 0507- ● ● ●
21 01.276 SEAL; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D) 		8-97218-801-1 01 1 0211-0501 ● ● ● ●
21 01.276 SEAL; RAD
CHARGE AIR COOLER<6PL> (D) 		8-97218-801-1 01 1 0211-0501 ●
21 01.276 SEAL; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190 (C) 		8-97161-476-0 01 1 0211-0501 ● ● ● ●
21 01.276 SEAL; RAD
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190 (C) 		8-97161-476-0 01 1 0211-0501 ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 0211-0501 ● ● ● ●
21 01.276 SEAL; RAD
4HG1-T ENG(RDP) (A) L=240 		8-97190-922-0 01 1 0502-0506 ●
21 01.276 SEAL; RAD
(A) L=240 		8-97190-922-0 01 1 0502-0506 ●
21 01.276 SEAL; RAD
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=240 		8-97190-922-0 01 1 0507- ●
21 01.276 SEAL; RAD
(A) L=240 		8-97190-922-0 01 1 0507- ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 0211-0501 ● ● ● ●
21 01.276 SEAL; RAD
4HG1-T ENG(RDP) (B) L=205 		8-97190-923-0 01 1 0502-0506 ●
21 01.276 SEAL; RAD
(B) L=205 		8-97190-923-0 01 1 0502-0506 ●
21 01.276 SEAL; RAD
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=205 		8-97190-923-0 01 1 0507- ●
21 01.276 SEAL; RAD
(B) L=205 		8-97190-923-0 01 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97333-280-0 01 1 0507- ● ● ●
22 01.270 BRACKET; RAD MTG
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97333-281-0 01 1 0507- ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-94101-621-1 02 1 0211-0501 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-94101-621-1 02 1 0211-0501 ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94101-621-1 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0507- ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0211-0501 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0211-0501 ● ● ●
22 01.270 BRACKET; RAD MTG
FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0211-0501 ●
22 01.270 BRACKET; RAD MTG
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0507- ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG 8-97074-093-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0211-0501 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0211-0501 ● ● ●
22 01.270 BRACKET; RAD MTG
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0211-0501 ●
22 01.270 BRACKET; RAD MTG 8-94175-416-0 02 1 0211-0501 ●
22 01.270 BRACKET; RAD MTG
4HG1-T ENG(RDP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG 8-94175-416-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HK1-TCN ENG(RDQ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0507- ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG 8-94175-416-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0211-0501 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97096-452-0 02 1 0211-0501 ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0507- ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0507- ●
23 01.271 NUT; RAD MTG
07.874 M10 FLANGE 		5-09440-006-0 04 1 0211-0501 ● ● ● ● ● ●
23 01.271 NUT; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0502-0506 ●
23 01.271 NUT; RAD MTG
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0502-0506 ●
23 01.271 NUT; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0502-0506 ●
23 01.271 NUT; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0502-0506 ●
23 01.271 NUT; RAD MTG
07.874 M10 FLANGE 		5-09440-006-0 04 1 0502-0506 ●
23 01.271 NUT; RAD MTG
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0507- ●
23 01.271 NUT; RAD MTG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0507- ●
23 01.271 NUT; RAD MTG
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0507- ●
23 01.271 NUT; RAD MTG
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0507- ●
23 01.271 NUT; RAD MTG
07.874 M10 FLANGE 		5-09440-006-0 04 1 0507- ● ●
25 01.271 BOLT; BRKT
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.900 M8X12 FLANGE 		0-28080-812-0 08 1 0507- ● ● ●
25 01.271 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0211-0501 ● ● ● ● ● ●
25 01.271 BOLT; BRKT
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ●
25 01.271 BOLT; BRKT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ●
25 01.271 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ● ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
25 01.271 BOLT; BRKT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
25 01.271 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ●
26 01.270 BUFFER; RAD,LWR 8-94249-347-0 02 1 0211-0501 ● ● ● ● ● ●
26 01.270 BUFFER; RAD,LWR 8-94249-347-0 02 1 0502-0506 ● ● ● ● ●
26 01.270 BUFFER; RAD,LWR 8-94249-347-0 02 1 0507- ● ● ● ● ● ●
27 01.270 BUFFER; RAD,UPR 8-94249-346-0 02 1 0211-0501 ● ● ● ● ● ●
27 01.270 BUFFER; RAD,UPR 8-94249-346-0 02 1 0502-0506 ● ● ● ● ●
27 01.270 BUFFER; RAD,UPR 8-94249-346-0 02 1 0507- ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) W/GASKET 		1-09609-023-0 01 1 0507- ● ● ● ●
51 08.951 PLUG; DRAIN
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) W/GASKET 		1-09609-023-0 01 1 0507- ● ● ● ●
51 08.951 PLUG; DRAIN
W/GASKET 		1-09609-023-0 01 1 0507- ●
51 08.951 PLUG; DRAIN
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) W/GASKET 		8-97171-437-0 01 1 0507- ● ● ●
51 08.951 PLUG; DRAIN
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) W/GASKET 		8-97171-437-0 01 1 0507- ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET 		1-09609-023-0 01 1 0211-0501 ● ● ● ●
51 08.951 PLUG; DRAIN
CHARGE AIR COOLER<6PL> W/GASKET 		1-09609-023-0 01 1 0211-0501 ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0211-0501 ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 08.915 W/GASKET 		8-94321-236-0 01 1 0211-0501 ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1-S ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> 08.915 W/GASKET 		8-94321-236-0 01 1 0507- ● ● ● ● ●
56 01.270 STAY; RAD
4HK1-TCN ENG(RDQ) 		8-97073-424-2 01 1 0507- ● ● ● ●
56 01.270 STAY; RAD 8-97073-424-2 01 1 0507- ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-424-2 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
CHARGE AIR COOLER<6PL> 		8-97073-424-2 01 1 0211-0501 ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 		8-97330-456-0 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97330-456-0 01 1 0211-0501 ● ● ●
56 01.270 STAY; RAD
EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 		8-97330-456-0 01 1 0211-0501 ●
56 01.270 STAY; RAD 8-97330-456-0 01 1 0211-0501 ●
56 01.270 STAY; RAD
4HG1-T ENG(RDP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97330-456-0 01 1 0502- ●
56 01.270 STAY; RAD 8-97330-456-0 01 1 0502- ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97032-802-2 01 1 0211-0501 ● ● ●
56 01.270 STAY; RAD
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 0211-0501 ●
56 01.270 STAY; RAD
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> 		8-97032-802-2 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1-T ENG(RDP),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-802-2 01 1 0507- ●
56 01.270 STAY; RAD
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-802-2 01 1 0507- ● ●
56 01.270 STAY; RAD
4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97032-798-2 01 1 0211-0501 ● ● ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0507- ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0507- ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0507- ●
56 01.270 STAY; RAD
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-97350-324-0 01 1 0211-0501 ● ● ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97350-324-0 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0507- ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0507- ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0507- ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 0211-0501 ● ● ● ● ● ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 0502-0506 ● ● ● ● ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 0507-0605 ● ● ● ● ● ●
57 01.271 WASHER; PL,STAY
17.198 ID=10.5 		0-91610-510-0 01 1 0606- ● ● ● ● ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 0211-0501 ● ● ● ● ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 0502-0506 ● ● ● ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 0507- ● ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 0211-0501 ● ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 0502-0506 ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 0507-0610 ● ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
L=32.6 		8-97359-052-0 01 1 0611- ● ● ● ● ● ●
62 01.271 BOLT; STAY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0211-0501 ● ● ● ● ●
62 01.271 BOLT; STAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0211-0501 ● ● ● ● ●
62 01.271 BOLT; STAY
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0211-0501 ● ● ● ● ●
62 01.271 BOLT; STAY
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
4HG1 ENG(RJH),4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0507- ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 0211-0501 ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 0502-0506 ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 0507- ● ● ● ● ● ●
70 01.271 STAY; RAD
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97333-269-0 01 1 0507- ● ● ●
70 01.271 STAY; RAD
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97333-269-0 01 1 0507- ● ● ●
70 01.271 STAY; RAD
4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97047-899-0 01 1 0211-0501 ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TURBOCHARGER(K51) 		8-97047-899-0 01 1 0211-0501 ● ● ●
70 01.271 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97047-899-0 01 1 0502-0506 ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97047-899-0 01 1 0502-0506 ●
70 01.271 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97047-899-0 01 1 0502-0506 ●
70 01.271 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97047-899-0 01 1 0507- ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97047-899-0 01 1 0507- ●
70 01.271 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97047-899-0 01 1 0507- ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0211-0501 ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0211-0501 ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) 		8-97073-125-0 01 1 0211-0501 ● ● ● ●
70 01.271 STAY; RAD
4HG1-T ENG(RDP) 		8-97073-125-0 01 1 0502-0506 ●
70 01.271 STAY; RAD 8-97073-125-0 01 1 0502-0506 ●
70 01.271 STAY; RAD
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) 		8-97073-125-0 01 1 0507- ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
03.405 (A) ID=8.5 OD=36 		8-94221-082-0 02 1 0211-0501 ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
03.405 (A) ID=8.5 OD=36 		8-94221-082-0 02 1 0502-0506 ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
03.405 (A) ID=8.5 OD=36 		8-94221-082-0 02 1 0507-0610 ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
(A) ID=8.5 OD=36 		8-97359-049-1 02 1 0611- ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0211-0501 ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ●
74 01.270 WASHER; PL,CUSHION RUBBER
04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ● ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63 		8-94249-446-0 01 1 0211-0501 ● ● ● ● ● ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0502-0506 ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0502-0506 ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0502-0506 ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0502-0506 ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63 		8-94249-446-0 01 1 0502-0506 ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0507- ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0507- ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0507- ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 01.274 M8X63 		8-94249-446-0 01 1 0507- ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63 		8-94249-446-0 01 1 0507- ● ●
80 01.277 BOLT; FAN GUIDE
4HK1-TCN ENG(RDQ) 01.252 (B) M8X30 W/LK&PL WASHER 		0-50140-830-0 03 1 0507-0512 ●
80 01.277 BOLT; FAN GUIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.252 (B) M8X30 W/LK&PL WASHER 		0-50140-830-0 03 1 0507-0512 ● ● ●
80 01.277 BOLT; FAN GUIDE
01.252 (B) M8X30 W/LK&PL WASHER 		0-50140-830-0 03 1 0507-0512 ●
80 01.277 BOLT; FAN GUIDE
4HK1-TCN ENG(RDQ) 01.252 (B) M8X30 W/LK&PL WASHER 		0-50640-830-0 03 1 0601-0806 ●
80 01.277 BOLT; FAN GUIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.252 (B) M8X30 W/LK&PL WASHER 		0-50640-830-0 03 1 0601-0806 ● ● ●
80 01.277 BOLT; FAN GUIDE
01.252 (B) M8X30 W/LK&PL WASHER 		0-50640-830-0 03 1 0601-0806 ●
80 01.277 BOLT; FAN GUIDE
4HK1-TCN ENG(RDQ) 03.403 (B) M8X30 FLANGE 		0-28650-830-0 03 1 0807- ●
80 01.277 BOLT; FAN GUIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.403 (B) M8X30 FLANGE 		0-28650-830-0 03 1 0807- ● ● ●
80 01.277 BOLT; FAN GUIDE
03.403 (B) M8X30 FLANGE 		0-28650-830-0 03 1 0807- ●
80 01.277 BOLT; FAN GUIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> 01.428 (A) M6X12 FLANGE 		0-28080-612-0 04 1 0507- ● ● ● ● ●
80 01.277 BOLT; FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.428 (A) M6X12 FLANGE 		0-28080-612-0 04 1 0211-0501 ● ● ● ●
80 01.277 BOLT; FAN GUIDE
CHARGE AIR COOLER<6PL> 01.428 (A) M6X12 FLANGE 		0-28080-612-0 04 1 0211-0501 ●
80 01.277 BOLT; FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.252 (B) M8X30 W/LK&PL WASHER 		0-50140-830-0 03 1 0211-0501 ● ● ● ●
80 01.277 BOLT; FAN GUIDE
CHARGE AIR COOLER<6PL> 01.252 (B) M8X30 W/LK&PL WASHER 		0-50140-830-0 03 1 0211-0501 ●
82 01.277 COVER; FAN,RAD
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97218-799-0 01 1 0507- ● ● ● ●
82 01.277 COVER; FAN,RAD
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97218-799-0 01 1 0507- ● ● ● ●
82 01.277 COVER; FAN,RAD 8-97218-799-0 01 1 0507- ●
82 01.277 COVER; FAN,RAD
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97332-330-0 01 1 0507- ● ● ●
82 01.277 COVER; FAN,RAD
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97332-330-0 01 1 0507- ● ● ●
82 01.277 COVER; FAN,RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97218-799-0 01 1 0211-0501 ● ● ● ●
82 01.277 COVER; FAN,RAD
CHARGE AIR COOLER<6PL> 		8-97218-799-0 01 1 0211-0501 ●
92 01.277 BRACKET; FAN GUIDE
4HK1-TCN ENG(RDQ) (B) 		8-97148-940-0 01 1 0507- ● ● ● ●
92 01.277 BRACKET; FAN GUIDE
(B) 		8-97148-940-0 01 1 0507- ●
92 01.277 BRACKET; FAN GUIDE
4HK1-TCN ENG(RDQ) (C) 		8-97148-941-1 01 1 0507- ● ● ● ●
92 01.277 BRACKET; FAN GUIDE
(C) 		8-97148-941-1 01 1 0507- ●
92 01.277 BRACKET; FAN GUIDE
4HK1-TCN ENG(RDQ) (A) 		8-97189-394-1 01 1 0507- ● ● ● ●
92 01.277 BRACKET; FAN GUIDE
(A) 		8-97189-394-1 01 1 0507- ●
92 01.277 BRACKET; FAN GUIDE
4HK1-TCS ENG(RJS) (A) 		8-97350-996-0 01 1 0507- ● ● ●
92 01.277 BRACKET; FAN GUIDE
4HK1-TCS ENG(RJS) (C) 		8-97350-997-0 01 1 0507- ● ● ●
92 01.277 BRACKET; FAN GUIDE
4HK1-TCS ENG(RJS) (B) 		8-97350-998-0 01 1 0507- ● ● ●
92 01.277 BRACKET; FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97148-940-0 01 1 0211-0501 ● ● ● ●
92 01.277 BRACKET; FAN GUIDE
CHARGE AIR COOLER<6PL> (B) 		8-97148-940-0 01 1 0211-0501 ●
92 01.277 BRACKET; FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) 		8-97148-941-1 01 1 0211-0501 ● ● ● ●
92 01.277 BRACKET; FAN GUIDE
CHARGE AIR COOLER<6PL> (C) 		8-97148-941-1 01 1 0211-0501 ●
92 01.277 BRACKET; FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97189-394-1 01 1 0211-0501 ● ● ● ●
92 01.277 BRACKET; FAN GUIDE
CHARGE AIR COOLER<6PL> (A) 		8-97189-394-1 01 1 0211-0501 ●
100 01.277 RUBBER; MTG
4HK1-TCN ENG(RDQ) 		1-09337-027-0 06 1 0507- ●
100 01.277 RUBBER; MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		1-09337-027-0 06 1 0507- ● ● ●
100 01.277 RUBBER; MTG 1-09337-027-0 06 1 0507- ●
100 01.277 RUBBER; MTG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-09337-027-0 06 1 0211-0501 ● ● ● ●
100 01.277 RUBBER; MTG
CHARGE AIR COOLER<6PL> 		1-09337-027-0 06 1 0211-0501 ●
131 01.166 CLIP; ENG SIDE TOP
4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=40 		8-97245-216-0 01 1 0211-0501 ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=40 		8-97245-216-0 01 1 0211-0501 ● ● ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0211-0501 ● ●
131 01.166 CLIP; ENG SIDE TOP
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0507- ●
131 01.166 CLIP; ENG SIDE TOP
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) ID=40 		8-97245-216-0 01 1 0507- ●
131 01.166 CLIP; ENG SIDE TOP
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0507- ●
131 01.166 CLIP; ENG SIDE TOP
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0507- ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0507- ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=50 		8-97245-217-0 01 1 0211-0501 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=50 		8-97245-217-0 01 1 0211-0501 ● ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0211-0501 ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0507- ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) ID=50 		8-97245-217-0 01 1 0507- ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0507- ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0507- ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0507- ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0211-0501 ● ● ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0502-0506 ● ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0507- ● ● ● ● ● ●
297 01.277 WASHER; PL,FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18 		9-09160-706-0 04 1 0211-0501 ● ● ● ●
297 01.277 WASHER; PL,FAN GUIDE
CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18 		9-09160-706-0 04 1 0211-0501 ●
305 01.277 CLIP; FAN COVER TO FAN GUIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> 		1-09470-009-0 12 1 0507- ● ● ● ● ●
305 01.277 CLIP; FAN COVER TO FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-09470-009-0 12 1 0211-0501 ● ● ● ●
305 01.277 CLIP; FAN COVER TO FAN GUIDE
CHARGE AIR COOLER<6PL> 		1-09470-009-0 12 1 0211-0501 ●
343 01.271 PLUG; WATER LEVEL
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) M18X12 		1-09604-081-0 01 1 0507- ● ● ● ●
343 01.271 PLUG; WATER LEVEL
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M18X12 		1-09604-081-0 01 1 0507- ● ● ● ●
343 01.271 PLUG; WATER LEVEL
M18X12 		1-09604-081-0 01 1 0507- ●
343 01.271 PLUG; WATER LEVEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M18X12 		1-09604-081-0 01 1 0211-0501 ● ● ● ●
343 01.271 PLUG; WATER LEVEL
CHARGE AIR COOLER<6PL> M18X12 		1-09604-081-0 01 1 0211-0501 ●
421 01.277 BOLT; BRKT FAN GUIDE
4HK1-TCN ENG(RDQ) 00.004 (A) M10X18 FLANGE 		0-28181-018-0 02 1 0507- ●
421 01.277 BOLT; BRKT FAN GUIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.004 (A) M10X18 FLANGE 		0-28181-018-0 02 1 0507- ● ● ●
421 01.277 BOLT; BRKT FAN GUIDE
00.004 (A) M10X18 FLANGE 		0-28181-018-0 02 1 0507- ●
421 01.277 BOLT; BRKT FAN GUIDE
4HK1-TCN ENG(RDQ) 01.540 (B) M10X20 FLANGE 		0-28181-020-0 02 1 0507-0512 ●
421 01.277 BOLT; BRKT FAN GUIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.540 (B) M10X20 FLANGE 		0-28181-020-0 02 1 0507-0512 ● ● ●
421 01.277 BOLT; BRKT FAN GUIDE
01.540 (B) M10X20 FLANGE 		0-28181-020-0 02 1 0507-0512 ●
421 01.277 BOLT; BRKT FAN GUIDE
4HK1-TCN ENG(RDQ) 03.417 (B) M10X20 FLANGE 		0-28151-020-0 02 1 0601- ●
421 01.277 BOLT; BRKT FAN GUIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 (B) M10X20 FLANGE 		0-28151-020-0 02 1 0601- ● ● ●
421 01.277 BOLT; BRKT FAN GUIDE
03.417 (B) M10X20 FLANGE 		0-28151-020-0 02 1 0601- ●
421 01.277 BOLT; BRKT FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.004 (A) M10X18 FLANGE 		0-28181-018-0 02 1 0211-0501 ● ● ● ●
421 01.277 BOLT; BRKT FAN GUIDE
CHARGE AIR COOLER<6PL> 00.004 (A) M10X18 FLANGE 		0-28181-018-0 02 1 0211-0501 ●
421 01.277 BOLT; BRKT FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.540 (B) M10X20 FLANGE 		0-28181-020-0 02 1 0211-0501 ● ● ● ●
421 01.277 BOLT; BRKT FAN GUIDE
CHARGE AIR COOLER<6PL> 01.540 (B) M10X20 FLANGE 		0-28181-020-0 02 1 0211-0501 ●
495 01.274 GASKET; SENSOR
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 		1-09623-185-0 01 1 0507- ● ● ● ●
495 01.274 GASKET; SENSOR
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 		1-09623-185-0 01 1 0507- ● ● ● ●
495 01.274 GASKET; SENSOR
01.097 		1-09623-185-0 01 1 0507- ●
495 01.274 GASKET; SENSOR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.097 		1-09623-185-0 01 1 0211-0501 ● ● ● ●
495 01.274 GASKET; SENSOR
CHARGE AIR COOLER<6PL> 01.097 		1-09623-185-0 01 1 0211-0501 ●
518 01.270 NUT
4HK1-TCS ENG(RJS) 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ● ●
518 01.270 NUT
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0603-0610 ● ● ●
518 01.270 NUT
01.062 (C) M8 FLANGE 		0-91180-108-0 02 1 0611- ● ● ● ● ● ●
518 01.270 NUT
4HK1-TCS ENG(RJS) 01.062 (C) M8 FLANGE 		0-91180-108-0 02 1 0611- ● ● ●
518 01.270 NUT
00.854 (A) M8 FLANGE 		5-09440-005-0 02 1 0211-0501 ● ● ● ● ● ●
518 01.270 NUT
00.854 (A) M8 FLANGE 		5-09440-005-0 02 1 0502-0506 ● ● ● ● ●
518 01.270 NUT
00.854 (A) M8 FLANGE 		5-09440-005-0 02 1 0507-0610 ● ● ● ● ● ●
çizim 13661
131 421 92 2 132 92 100 100 80 92 1 421 82 305 427 80 2 16 21 70 62 116 22 25 518 518 59 57 74 27 22 58 518 518 56 240 51 26 542 506 62 91 205 482 204 542
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 RADIATOR ASM
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-236-1 01 1 0507- ● ● ● ●
1 01.219 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-236-1 01 1 0507- ●
1 01.219 RADIATOR ASM
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-237-1 01 1 0507- ● ● ● ●
1 01.219 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-237-1 01 1 0507- ●
1 01.219 RADIATOR ASM
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-241-0 01 1 0507- ● ● ●
1 01.219 RADIATOR ASM
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-918-0 01 1 0507- ● ● ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> 		8-97354-364-1 01 1 0211-0501 ● ● ● ●
1 01.219 RADIATOR ASM
CHARGE AIR COOLER<6PL> EXC. FLOOR REMOTE SHIFT<M11> 		8-97354-364-1 01 1 0211-0501 ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97354-363-0 01 1 0211-0501 ● ● ● ●
1 01.219 RADIATOR ASM
FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97354-363-0 01 1 0211-0501 ●
1 01.219 RADIATOR ASM
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97182-423-0 01 1 0211-0501 ● ● ● ●
1 01.219 RADIATOR ASM
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97182-423-0 01 1 0211-0501 ●
1 01.219 RADIATOR ASM
4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97146-211-1 01 1 0211-0501 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TURBOCHARGER(K51) 		8-97146-211-1 01 1 0211-0501 ● ● ●
1 01.219 RADIATOR ASM
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97146-211-1 01 1 0502-0506 ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97146-211-1 01 1 0502-0506 ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97146-211-1 01 1 0502-0506 ●
1 01.219 RADIATOR ASM
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97146-211-1 01 1 0507- ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97146-211-1 01 1 0507- ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97146-211-1 01 1 0507- ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) 		8-97177-193-1 01 1 0211-0305 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) 		8-97371-011-0 01 1 0306-0501 ● ● ● ●
1 01.219 RADIATOR ASM
4HG1-T ENG(RDP) 		8-97371-011-0 01 1 0502-0506 ●
1 01.219 RADIATOR ASM 8-97371-011-0 01 1 0502-0506 ●
1 01.219 RADIATOR ASM
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97371-011-0 01 1 0507- ●
1 01.219 RADIATOR ASM 8-97371-011-0 01 1 0507- ●
2 01.277 GUIDE; FAN
4HK1-TCN ENG(RDQ) (B) 		8-97068-803-0 01 1 0507- ● ● ● ●
2 01.277 GUIDE; FAN
(B) 		8-97068-803-0 01 1 0507- ●
2 01.277 GUIDE; FAN
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97218-802-1 01 1 0507- ● ● ● ●
2 01.277 GUIDE; FAN
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97218-802-1 01 1 0507- ● ● ● ●
2 01.277 GUIDE; FAN
(A) 		8-97218-802-1 01 1 0507- ●
2 01.277 GUIDE; FAN
4HK1-TCS ENG(RJS) (B) 		8-97350-995-0 01 1 0507- ● ● ●
2 01.277 GUIDE; FAN
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97333-268-0 01 1 0507- ● ● ●
2 01.277 GUIDE; FAN
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97333-268-0 01 1 0507- ● ● ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97068-803-0 01 1 0211-0501 ● ● ● ●
2 01.277 GUIDE; FAN
CHARGE AIR COOLER<6PL> (B) 		8-97068-803-0 01 1 0211-0501 ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97218-802-1 01 1 0211-0501 ● ● ● ●
2 01.277 GUIDE; FAN
CHARGE AIR COOLER<6PL> (A) 		8-97218-802-1 01 1 0211-0501 ●
2 01.277 GUIDE; FAN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97066-018-0 01 1 0211-0501 ● ● ● ●
2 01.277 GUIDE; FAN
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97066-018-0 01 1 0211-0501 ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) (A) 		8-97066-016-0 01 1 0211-0501 ● ● ● ● ●
2 01.277 GUIDE; FAN
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
(A) 		8-97066-016-0 01 1 0502-0506 ●
2 01.277 GUIDE; FAN
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> (A) 		8-97066-016-0 01 1 0507- ● ● ● ● ●
16 01.203 CAP; RAD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> 		8-97239-187-0 01 1 0507- ● ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97239-187-0 01 1 0211-0501 ● ● ● ●
16 01.203 CAP; RAD
CHARGE AIR COOLER<6PL> 		8-97239-187-0 01 1 0211-0501 ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0211-0305 ● ● ● ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97177-872-0 01 1 0211-0305 ● ● ● ● ●
16 01.203 CAP; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97177-872-0 01 1 0306-0501 ● ● ● ● ●
16 01.203 CAP; RAD
4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97177-872-0 01 1 0306-0501 ● ● ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TURBOCHARGER(K51) 		8-97177-872-0 01 1 0306-0501 ● ● ●
16 01.203 CAP; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97177-872-0 01 1 0502-0506 ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97177-872-0 01 1 0502-0506 ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97177-872-0 01 1 0502-0506 ●
16 01.203 CAP; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97177-872-0 01 1 0507- ● ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97177-872-0 01 1 0507- ●
16 01.203 CAP; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97177-872-0 01 1 0507- ●
16 01.203 CAP; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) 		8-97371-017-0 01 1 0306-0501 ● ● ● ●
16 01.203 CAP; RAD
4HG1-T ENG(RDP) 		8-97371-017-0 01 1 0502-0506 ●
16 01.203 CAP; RAD 8-97371-017-0 01 1 0502-0506 ●
16 01.203 CAP; RAD
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97371-017-0 01 1 0507- ●
16 01.203 CAP; RAD 8-97371-017-0 01 1 0507- ●
21 01.276 SEAL; RAD
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-97376-998-1 01 1 0507- ● ● ● ●
21 01.276 SEAL; RAD
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-97376-998-1 01 1 0507- ● ● ● ●
21 01.276 SEAL; RAD
(D) 		8-97376-998-1 01 1 0507- ●
21 01.276 SEAL; RAD
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.277 (D) 		8-97332-382-0 01 1 0507- ● ● ●
21 01.276 SEAL; RAD
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.277 (D) 		8-97332-382-0 01 1 0507- ● ● ●
21 01.276 SEAL; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D) 		8-97218-801-1 01 1 0211-0501 ● ● ● ●
21 01.276 SEAL; RAD
CHARGE AIR COOLER<6PL> (D) 		8-97218-801-1 01 1 0211-0501 ●
21 01.276 SEAL; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190 (C) 		8-97161-476-0 01 1 0211-0501 ● ● ● ●
21 01.276 SEAL; RAD
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 09.190 (C) 		8-97161-476-0 01 1 0211-0501 ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) (A) L=240 		8-97190-922-0 01 1 0211-0501 ● ● ● ●
21 01.276 SEAL; RAD
4HG1-T ENG(RDP) (A) L=240 		8-97190-922-0 01 1 0502-0506 ●
21 01.276 SEAL; RAD
(A) L=240 		8-97190-922-0 01 1 0502-0506 ●
21 01.276 SEAL; RAD
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=240 		8-97190-922-0 01 1 0507- ●
21 01.276 SEAL; RAD
(A) L=240 		8-97190-922-0 01 1 0507- ●
21 01.276 SEAL; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) (B) L=205 		8-97190-923-0 01 1 0211-0501 ● ● ● ●
21 01.276 SEAL; RAD
4HG1-T ENG(RDP) (B) L=205 		8-97190-923-0 01 1 0502-0506 ●
21 01.276 SEAL; RAD
(B) L=205 		8-97190-923-0 01 1 0502-0506 ●
21 01.276 SEAL; RAD
4HG1-T ENG(RDP) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=205 		8-97190-923-0 01 1 0507- ●
21 01.276 SEAL; RAD
(B) L=205 		8-97190-923-0 01 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97333-280-0 01 1 0507- ● ● ●
22 01.270 BRACKET; RAD MTG
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97333-281-0 01 1 0507- ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-94101-621-1 02 1 0211-0501 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-94101-621-1 02 1 0211-0501 ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-94101-621-1 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0507- ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94101-621-1 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0211-0501 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0211-0501 ● ● ●
22 01.270 BRACKET; RAD MTG
FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0211-0501 ●
22 01.270 BRACKET; RAD MTG
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0507- ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-97074-093-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG 8-97074-093-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0211-0501 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0211-0501 ● ● ●
22 01.270 BRACKET; RAD MTG
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0211-0501 ●
22 01.270 BRACKET; RAD MTG 8-94175-416-0 02 1 0211-0501 ●
22 01.270 BRACKET; RAD MTG
4HG1-T ENG(RDP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG 8-94175-416-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HK1-TCN ENG(RDQ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0507- ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94175-416-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG 8-94175-416-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0211-0501 ● ● ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97096-452-0 02 1 0211-0501 ● ● ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0502-0506 ●
22 01.270 BRACKET; RAD MTG
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0507- ● ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0507- ●
22 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97096-452-0 02 1 0507- ●
25 01.271 BOLT; BRKT
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.900 M8X12 FLANGE 		0-28080-812-0 08 1 0507- ● ● ●
25 01.271 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0211-0501 ● ● ● ● ● ●
25 01.271 BOLT; BRKT
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0502-0506 ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ●
25 01.271 BOLT; BRKT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ●
25 01.271 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ● ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
25 01.271 BOLT; BRKT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
25 01.271 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
25 01.271 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ●
26 01.270 BUFFER; RAD,LWR 8-94249-347-0 02 1 0211-0501 ● ● ● ● ● ●
26 01.270 BUFFER; RAD,LWR 8-94249-347-0 02 1 0502-0506 ● ● ● ● ●
26 01.270 BUFFER; RAD,LWR 8-94249-347-0 02 1 0507- ● ● ● ● ● ●
27 01.270 BUFFER; RAD,UPR 8-94249-346-0 02 1 0211-0501 ● ● ● ● ● ●
27 01.270 BUFFER; RAD,UPR 8-94249-346-0 02 1 0502-0506 ● ● ● ● ●
27 01.270 BUFFER; RAD,UPR 8-94249-346-0 02 1 0507- ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) W/GASKET 		1-09609-023-0 01 1 0507- ● ● ● ●
51 08.951 PLUG; DRAIN
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) W/GASKET 		1-09609-023-0 01 1 0507- ● ● ● ●
51 08.951 PLUG; DRAIN
W/GASKET 		1-09609-023-0 01 1 0507- ●
51 08.951 PLUG; DRAIN
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) W/GASKET 		8-97171-437-0 01 1 0507- ● ● ●
51 08.951 PLUG; DRAIN
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) W/GASKET 		8-97171-437-0 01 1 0507- ● ● ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET 		1-09609-023-0 01 1 0211-0501 ● ● ● ●
51 08.951 PLUG; DRAIN
CHARGE AIR COOLER<6PL> W/GASKET 		1-09609-023-0 01 1 0211-0501 ●
51 08.951 PLUG; DRAIN
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0211-0501 ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 08.915 W/GASKET 		8-94321-236-0 01 1 0211-0501 ● ● ● ● ●
51 08.951 PLUG; DRAIN
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
4HG1 ENG(RJH),4HF1-S ENG(RLS) 08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0502-0506 ●
51 08.951 PLUG; DRAIN
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> 08.915 W/GASKET 		8-94321-236-0 01 1 0507- ● ● ● ● ●
56 01.270 STAY; RAD
4HK1-TCN ENG(RDQ) 		8-97073-424-2 01 1 0507- ● ● ● ●
56 01.270 STAY; RAD 8-97073-424-2 01 1 0507- ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-424-2 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
CHARGE AIR COOLER<6PL> 		8-97073-424-2 01 1 0211-0501 ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 		8-97330-456-0 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97330-456-0 01 1 0211-0501 ● ● ●
56 01.270 STAY; RAD
EXC. CHARGE AIR COOLER<6PL>,FRAME STRAIGHT TYPE<7KJ> 		8-97330-456-0 01 1 0211-0501 ●
56 01.270 STAY; RAD 8-97330-456-0 01 1 0211-0501 ●
56 01.270 STAY; RAD
4HG1-T ENG(RDP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97330-456-0 01 1 0502- ●
56 01.270 STAY; RAD 8-97330-456-0 01 1 0502- ●
56 01.270 STAY; RAD
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) TURBOCHARGER(K51) FRAME STRAIGHT TYPE<7KJ> 		8-97032-802-2 01 1 0211-0501 ● ● ●
56 01.270 STAY; RAD
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97032-802-2 01 1 0211-0501 ●
56 01.270 STAY; RAD
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> 		8-97032-802-2 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1-T ENG(RDP),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-802-2 01 1 0507- ●
56 01.270 STAY; RAD
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-802-2 01 1 0507- ● ●
56 01.270 STAY; RAD
4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51) 		8-97032-798-2 01 1 0211-0501 ● ● ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0507- ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0507- ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97032-798-2 01 1 0507- ●
56 01.270 STAY; RAD
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0211-0501 ● ● ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 		8-97350-324-0 01 1 0211-0501 ● ● ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97350-324-0 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0502-0506 ●
56 01.270 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0507- ● ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0507- ●
56 01.270 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-324-0 01 1 0507- ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 0211-0501 ● ● ● ● ● ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 0502-0506 ● ● ● ● ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 0507-0605 ● ● ● ● ● ●
57 01.271 WASHER; PL,STAY
17.198 ID=10.5 		0-91610-510-0 01 1 0606- ● ● ● ● ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 0211-0501 ● ● ● ● ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 0502-0506 ● ● ● ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 0507- ● ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 0211-0501 ● ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 0502-0506 ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 0507-0610 ● ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
L=32.6 		8-97359-052-0 01 1 0611- ● ● ● ● ● ●
62 01.271 BOLT; STAY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0211-0501 ● ● ● ● ●
62 01.271 BOLT; STAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0211-0501 ● ● ● ● ●
62 01.271 BOLT; STAY
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0211-0501 ● ● ● ● ●
62 01.271 BOLT; STAY
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
4HG1 ENG(RJH),4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0506 ●
62 01.271 BOLT; STAY
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0507- ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 0211-0501 ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 0502-0506 ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 0507- ● ● ● ● ● ●
70 01.271 STAY; RAD
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97333-269-0 01 1 0507- ● ● ●
70 01.271 STAY; RAD
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97333-269-0 01 1 0507- ● ● ●
70 01.271 STAY; RAD
4HF1-S ENG(RLS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97047-899-0 01 1 0211-0501 ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TURBOCHARGER(K51) 		8-97047-899-0 01 1 0211-0501 ● ● ●
70 01.271 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97047-899-0 01 1 0502-0506 ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97047-899-0 01 1 0502-0506 ●
70 01.271 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97047-899-0 01 1 0502-0506 ●
70 01.271 STAY; RAD
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97047-899-0 01 1 0507- ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97047-899-0 01 1 0507- ●
70 01.271 STAY; RAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97047-899-0 01 1 0507- ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0211-0501 ● ● ● ● ●
70 01.271 STAY; RAD
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97073-125-0 01 1 0211-0501 ● ● ● ● ●
70 01.271 STAY; RAD
4HG1 ENG(RJH) M/T MYY6P(RSJ),M/T MYY5T(RSM) TURBOCHARGER(K51) 		8-97073-125-0 01 1 0211-0501 ● ● ● ●
70 01.271 STAY; RAD
4HG1-T ENG(RDP) 		8-97073-125-0 01 1 0502-0506 ●
70 01.271 STAY; RAD 8-97073-125-0 01 1 0502-0506 ●
70 01.271 STAY; RAD
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) 		8-97073-125-0 01 1 0507- ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
03.405 (A) ID=8.5 OD=36 		8-94221-082-0 02 1 0211-0501 ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
03.405 (A) ID=8.5 OD=36 		8-94221-082-0 02 1 0502-0506 ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
03.405 (A) ID=8.5 OD=36 		8-94221-082-0 02 1 0507-0610 ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
(A) ID=8.5 OD=36 		8-97359-049-1 02 1 0611- ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0211-0501 ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0502-0506 ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ●
74 01.270 WASHER; PL,CUSHION RUBBER
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HF1-S ENG(RLS) 04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ●
74 01.270 WASHER; PL,CUSHION RUBBER
04.792 (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0507- ● ●
80 01.277 BOLT; FAN GUIDE
4HK1-TCN ENG(RDQ) 01.252 (B) M8X30 W/LK&PL WASHER 		0-50140-830-0 03 1 0507-0512 ●
80 01.277 BOLT; FAN GUIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.252 (B) M8X30 W/LK&PL WASHER 		0-50140-830-0 03 1 0507-0512 ● ● ●
80 01.277 BOLT; FAN GUIDE
01.252 (B) M8X30 W/LK&PL WASHER 		0-50140-830-0 03 1 0507-0512 ●
80 01.277 BOLT; FAN GUIDE
4HK1-TCN ENG(RDQ) 01.252 (B) M8X30 W/LK&PL WASHER 		0-50640-830-0 03 1 0601-0806 ●
80 01.277 BOLT; FAN GUIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.252 (B) M8X30 W/LK&PL WASHER 		0-50640-830-0 03 1 0601-0806 ● ● ●
80 01.277 BOLT; FAN GUIDE
01.252 (B) M8X30 W/LK&PL WASHER 		0-50640-830-0 03 1 0601-0806 ●
80 01.277 BOLT; FAN GUIDE
4HK1-TCN ENG(RDQ) 03.403 (B) M8X30 FLANGE 		0-28650-830-0 03 1 0807- ●
80 01.277 BOLT; FAN GUIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.403 (B) M8X30 FLANGE 		0-28650-830-0 03 1 0807- ● ● ●
80 01.277 BOLT; FAN GUIDE
03.403 (B) M8X30 FLANGE 		0-28650-830-0 03 1 0807- ●
80 01.277 BOLT; FAN GUIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> 01.428 (A) M6X12 FLANGE 		0-28080-612-0 04 1 0507- ● ● ● ● ●
80 01.277 BOLT; FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.428 (A) M6X12 FLANGE 		0-28080-612-0 04 1 0211-0501 ● ● ● ●
80 01.277 BOLT; FAN GUIDE
CHARGE AIR COOLER<6PL> 01.428 (A) M6X12 FLANGE 		0-28080-612-0 04 1 0211-0501 ●
80 01.277 BOLT; FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.252 (B) M8X30 W/LK&PL WASHER 		0-50140-830-0 03 1 0211-0501 ● ● ● ●
80 01.277 BOLT; FAN GUIDE
CHARGE AIR COOLER<6PL> 01.252 (B) M8X30 W/LK&PL WASHER 		0-50140-830-0 03 1 0211-0501 ●
82 01.277 COVER; FAN,RAD
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97218-799-0 01 1 0507- ● ● ● ●
82 01.277 COVER; FAN,RAD
4HK1-TCN ENG(RDQ) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97218-799-0 01 1 0507- ● ● ● ●
82 01.277 COVER; FAN,RAD 8-97218-799-0 01 1 0507- ●
82 01.277 COVER; FAN,RAD
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97332-330-0 01 1 0507- ● ● ●
82 01.277 COVER; FAN,RAD
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97332-330-0 01 1 0507- ● ● ●
82 01.277 COVER; FAN,RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97218-799-0 01 1 0211-0501 ● ● ● ●
82 01.277 COVER; FAN,RAD
CHARGE AIR COOLER<6PL> 		8-97218-799-0 01 1 0211-0501 ●
91 01.277 WASHER; PL
4HK1-TCS ENG(RJS) 02.587 ID=6.4 OD=18 		9-09160-706-0 04 1 0507-0605 ● ● ●
91 01.277 WASHER; PL
4HK1-TCS ENG(RJS) 00.413 ID=6.4 OD=18 		0-91610-706-0 04 1 0606- ● ● ●
92 01.277 BRACKET; FAN GUIDE
4HK1-TCN ENG(RDQ) (B) 		8-97148-940-0 01 1 0507- ● ● ● ●
92 01.277 BRACKET; FAN GUIDE
(B) 		8-97148-940-0 01 1 0507- ●
92 01.277 BRACKET; FAN GUIDE
4HK1-TCN ENG(RDQ) (C) 		8-97148-941-1 01 1 0507- ● ● ● ●
92 01.277 BRACKET; FAN GUIDE
(C) 		8-97148-941-1 01 1 0507- ●
92 01.277 BRACKET; FAN GUIDE
4HK1-TCN ENG(RDQ) (A) 		8-97189-394-1 01 1 0507- ● ● ● ●
92 01.277 BRACKET; FAN GUIDE
(A) 		8-97189-394-1 01 1 0507- ●
92 01.277 BRACKET; FAN GUIDE
4HK1-TCS ENG(RJS) (A) 		8-97350-996-0 01 1 0507- ● ● ●
92 01.277 BRACKET; FAN GUIDE
4HK1-TCS ENG(RJS) (C) 		8-97350-997-0 01 1 0507- ● ● ●
92 01.277 BRACKET; FAN GUIDE
4HK1-TCS ENG(RJS) (B) 		8-97350-998-0 01 1 0507- ● ● ●
92 01.277 BRACKET; FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) 		8-97148-940-0 01 1 0211-0501 ● ● ● ●
92 01.277 BRACKET; FAN GUIDE
CHARGE AIR COOLER<6PL> (B) 		8-97148-940-0 01 1 0211-0501 ●
92 01.277 BRACKET; FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) 		8-97148-941-1 01 1 0211-0501 ● ● ● ●
92 01.277 BRACKET; FAN GUIDE
CHARGE AIR COOLER<6PL> (C) 		8-97148-941-1 01 1 0211-0501 ●
92 01.277 BRACKET; FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97189-394-1 01 1 0211-0501 ● ● ● ●
92 01.277 BRACKET; FAN GUIDE
CHARGE AIR COOLER<6PL> (A) 		8-97189-394-1 01 1 0211-0501 ●
100 01.277 RUBBER; MTG
4HK1-TCN ENG(RDQ) 		1-09337-027-0 06 1 0507- ●
100 01.277 RUBBER; MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		1-09337-027-0 06 1 0507- ● ● ●
100 01.277 RUBBER; MTG 1-09337-027-0 06 1 0507- ●
100 01.277 RUBBER; MTG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-09337-027-0 06 1 0211-0501 ● ● ● ●
100 01.277 RUBBER; MTG
CHARGE AIR COOLER<6PL> 		1-09337-027-0 06 1 0211-0501 ●
116 01.270 WASHER; PL,BRKT
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.674 ID=8.4 		9-09160-508-0 08 1 0507- ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=40 		8-97245-216-0 01 1 0211-0501 ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=40 		8-97245-216-0 01 1 0211-0501 ● ● ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0211-0501 ● ●
131 01.166 CLIP; ENG SIDE TOP
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
4HG1 ENG(RJH),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0502-0506 ●
131 01.166 CLIP; ENG SIDE TOP
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0507- ●
131 01.166 CLIP; ENG SIDE TOP
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) ID=40 		8-97245-216-0 01 1 0507- ●
131 01.166 CLIP; ENG SIDE TOP
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0507- ●
131 01.166 CLIP; ENG SIDE TOP
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) ID=40 		8-97245-216-0 01 1 0507- ●
131 01.166 CLIP; ENG SIDE TOP
ID=40 		8-97245-216-0 01 1 0507- ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=50 		8-97245-217-0 01 1 0211-0501 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) ID=50 		8-97245-217-0 01 1 0211-0501 ● ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0211-0501 ● ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1 ENG(RJH),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0502-0506 ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HK1-TCN ENG(RDQ),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0507- ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ), 4HF1-SENG(RLS) ID=50 		8-97245-217-0 01 1 0507- ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0507- ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-S ENG(RLS) ID=50 		8-97245-217-0 01 1 0507- ●
132 01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50 		8-97245-217-0 01 1 0507- ● ●
204 01.267 GUIDE ASM; AIR
4HK1-TCS ENG(RJS) (C) 		8-97332-962-1 01 1 0507- ● ● ●
204 01.267 GUIDE ASM; AIR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97038-895-1 01 1 0211-0501 ● ● ● ●
204 01.267 GUIDE ASM; AIR
AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97038-895-1 01 1 0211-0501 ●
204 01.267 GUIDE ASM; AIR
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97038-894-1 01 1 0211-0501 ● ● ● ● ●
204 01.267 GUIDE ASM; AIR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97376-880-0 01 1 0502- ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HK1-TCS ENG(RJS) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 0507-0512 ● ● ●
205 01.267 BOLT; AIR GUIDE
4HK1-TCS ENG(RJS) 03.671 M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ● ●
205 01.267 BOLT; AIR GUIDE
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0211-0501 ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0211-0501 ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0502-0512 ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE 		0-28050-612-0 04 1 0601- ● ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0211-0501 ● ● ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0502-0506 ● ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0507- ● ● ● ● ● ●
305 01.277 CLIP; FAN COVER TO FAN GUIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> 		1-09470-009-0 12 1 0507- ● ● ● ● ●
305 01.277 CLIP; FAN COVER TO FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		1-09470-009-0 12 1 0211-0501 ● ● ● ●
305 01.277 CLIP; FAN COVER TO FAN GUIDE
CHARGE AIR COOLER<6PL> 		1-09470-009-0 12 1 0211-0501 ●
421 01.277 BOLT; BRKT FAN GUIDE
4HK1-TCN ENG(RDQ) 00.004 (A) M10X18 FLANGE 		0-28181-018-0 02 1 0507- ●
421 01.277 BOLT; BRKT FAN GUIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.004 (A) M10X18 FLANGE 		0-28181-018-0 02 1 0507- ● ● ●
421 01.277 BOLT; BRKT FAN GUIDE
00.004 (A) M10X18 FLANGE 		0-28181-018-0 02 1 0507- ●
421 01.277 BOLT; BRKT FAN GUIDE
4HK1-TCN ENG(RDQ) 01.540 (B) M10X20 FLANGE 		0-28181-020-0 02 1 0507-0512 ●
421 01.277 BOLT; BRKT FAN GUIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.540 (B) M10X20 FLANGE 		0-28181-020-0 02 1 0507-0512 ● ● ●
421 01.277 BOLT; BRKT FAN GUIDE
01.540 (B) M10X20 FLANGE 		0-28181-020-0 02 1 0507-0512 ●
421 01.277 BOLT; BRKT FAN GUIDE
4HK1-TCN ENG(RDQ) 03.417 (B) M10X20 FLANGE 		0-28151-020-0 02 1 0601- ●
421 01.277 BOLT; BRKT FAN GUIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 (B) M10X20 FLANGE 		0-28151-020-0 02 1 0601- ● ● ●
421 01.277 BOLT; BRKT FAN GUIDE
03.417 (B) M10X20 FLANGE 		0-28151-020-0 02 1 0601- ●
421 01.277 BOLT; BRKT FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.004 (A) M10X18 FLANGE 		0-28181-018-0 02 1 0211-0501 ● ● ● ●
421 01.277 BOLT; BRKT FAN GUIDE
CHARGE AIR COOLER<6PL> 00.004 (A) M10X18 FLANGE 		0-28181-018-0 02 1 0211-0501 ●
421 01.277 BOLT; BRKT FAN GUIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.540 (B) M10X20 FLANGE 		0-28181-020-0 02 1 0211-0501 ● ● ● ●
421 01.277 BOLT; BRKT FAN GUIDE
CHARGE AIR COOLER<6PL> 01.540 (B) M10X20 FLANGE 		0-28181-020-0 02 1 0211-0501 ●
427 01.240 CLIP; FAN GUIDE
4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.277 		1-09470-009-0 01 1 0507- ● ● ●
427 01.240 CLIP; FAN GUIDE
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.277 		1-09470-009-0 01 1 0507- ● ● ●
482 01.277 NUT; AIR GUIDE
4HK1-TCS ENG(RJS) 04.594 M6 FLANGE 		0-91150-106-0 04 1 0507-0602 ● ● ●
482 01.277 NUT; AIR GUIDE
4HK1-TCS ENG(RJS) 01.062 M6 FLANGE 		0-91180-106-0 04 1 0603- ● ● ●
506 01.277 PLATE; RAD
4HK1-TCS ENG(RJS) 		8-97330-527-1 02 1 0507- ● ● ●
518 01.270 NUT
4HK1-TCS ENG(RJS) 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ● ●
518 01.270 NUT
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0603-0610 ● ● ●
518 01.270 NUT
01.062 (C) M8 FLANGE 		0-91180-108-0 02 1 0611- ● ● ● ● ● ●
518 01.270 NUT
4HK1-TCS ENG(RJS) 01.062 (C) M8 FLANGE 		0-91180-108-0 02 1 0611- ● ● ●
518 01.270 NUT
00.854 (A) M8 FLANGE 		5-09440-005-0 02 1 0211-0501 ● ● ● ● ● ●
518 01.270 NUT
00.854 (A) M8 FLANGE 		5-09440-005-0 02 1 0502-0506 ● ● ● ● ●
518 01.270 NUT
00.854 (A) M8 FLANGE 		5-09440-005-0 02 1 0507-0610 ● ● ● ● ● ●
542 01.277 BRACKET; AIR GUIDE
4HK1-TCS ENG(RJS) 		8-97332-963-0 01 1 0507- ● ● ●
542 01.277 BRACKET; AIR GUIDE
4HK1-TCS ENG(RJS) 		8-97332-964-0 01 1 0507- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
