Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#42591) — 550 parça

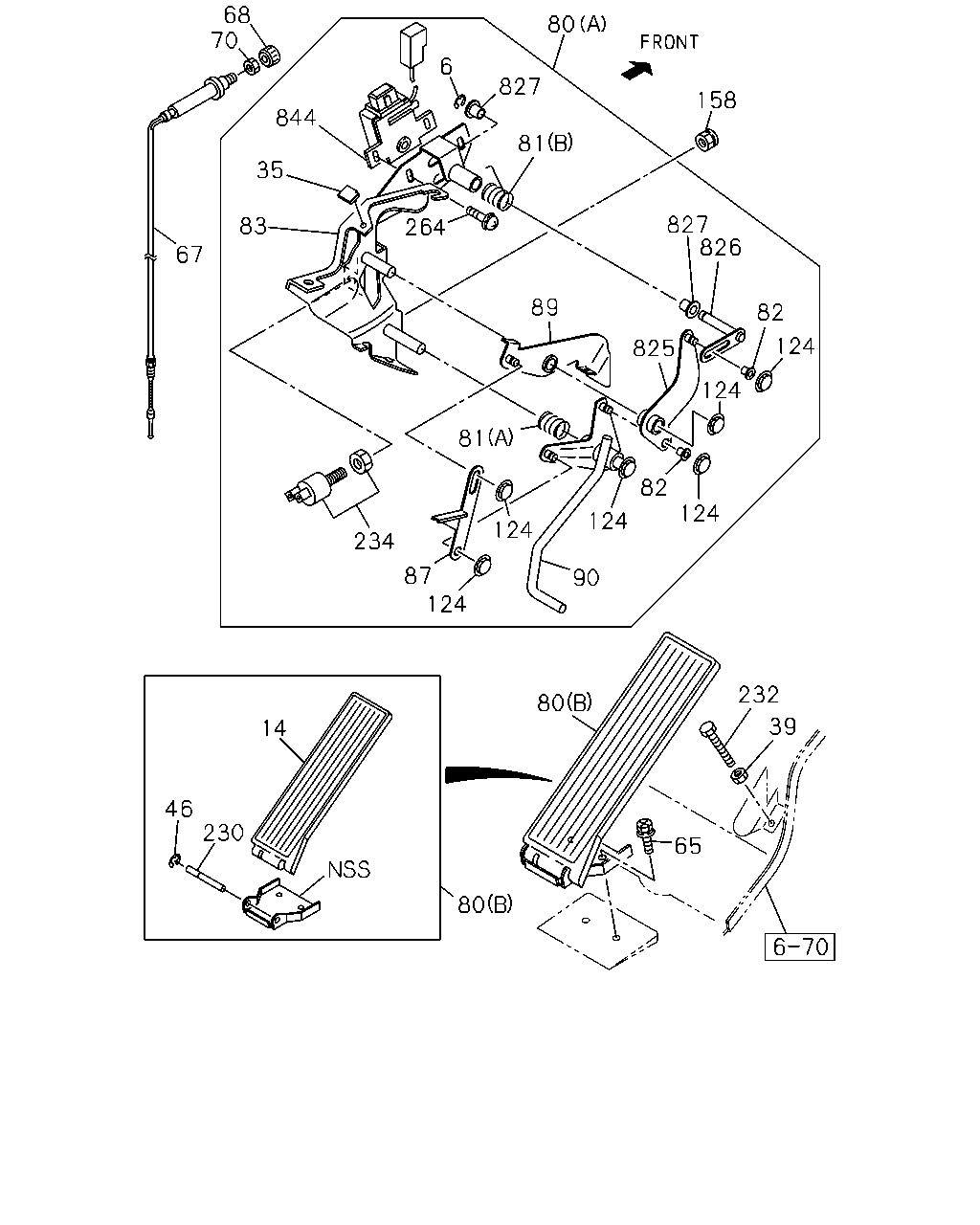

68 70 80 6 827 158 844 81 35 827 826 83 264 67 89 82 124 825 124 81 82 124 124 124 234 87 124 90 232 80 39 14 46 230 65 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	03.880 RING; SNAP,LINK TO LINK 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 04.040 ID=6	9-09185-406-0	01	1	0211-0501	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0211-0501	●	●	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0502-0506	●	●	●	●		●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0507-	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY)	8-97302-305-0	01	1	0211-0501	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97302-305-0	01	1	0502-	●	●	●	●		●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0211-0501	●	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0502-0506	●	●	●	●		●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0507-0512	●	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0601-	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0211-0501	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0502-0506	●	●	●	●		●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0507-0604	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0211-0501	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0502-0506	●	●	●	●		●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0507-	●	●	●	●	●	●
67	03.480 CABLE ASM; IDLE CONT 4HF1-S ENG(RLS),4HE1 ENG(RLY) L=439	8-97853-058-1	01	1	0211-0501			●
67	03.480 CABLE ASM; IDLE CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) L=439	8-97853-058-1	01	1	0211-0501	●	●		●
67	03.480 CABLE ASM; IDLE CONT L=439	8-97853-058-1	01	1	0211-0501					●	●
67	03.480 CABLE ASM; IDLE CONT 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) L=439	8-97853-058-1	01	1	0502-			●
67	03.480 CABLE ASM; IDLE CONT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) L=439	8-97853-058-1	01	1	0502-	●
67	03.480 CABLE ASM; IDLE CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) L=439	8-97853-058-1	01	1	0502-		●
67	03.480 CABLE ASM; IDLE CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) L=439	8-97853-058-1	01	1	0502-				●
67	03.480 CABLE ASM; IDLE CONT L=439	8-97853-058-1	01	1	0502-						●
68	03.480 KNOB; IDLE CONT 4HF1-S ENG(RLS),4HE1 ENG(RLY)	8-97853-765-1	01	1	0211-0501			●
68	03.480 KNOB; IDLE CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY)	8-97853-765-1	01	1	0211-0501	●	●		●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	0211-0501					●	●
68	03.480 KNOB; IDLE CONT 4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97853-765-1	01	1	0502-			●
68	03.480 KNOB; IDLE CONT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS)	8-97853-765-1	01	1	0502-	●
68	03.480 KNOB; IDLE CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97853-765-1	01	1	0502-		●
68	03.480 KNOB; IDLE CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS)	8-97853-765-1	01	1	0502-				●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	0502-						●
70	03.483 NUT; CONT CABLE 4HF1-S ENG(RLS),4HE1 ENG(RLY) M18	8-97853-233-0	01	1	0211-0501			●
70	03.483 NUT; CONT CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M18	8-97853-233-0	01	1	0211-0501	●	●		●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	0211-0501					●	●
70	03.483 NUT; CONT CABLE 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M18	8-97853-233-0	01	1	0502-			●
70	03.483 NUT; CONT CABLE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) M18	8-97853-233-0	01	1	0502-	●
70	03.483 NUT; CONT CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M18	8-97853-233-0	01	1	0502-		●
70	03.483 NUT; CONT CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) M18	8-97853-233-0	01	1	0502-				●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	0502-						●
80	03.452 LINK ASM; ENG CONT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C)	8-97997-556-8	01	1	0507-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM) (A)	8-97853-057-9	01	1	0211-0501			●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) (A)	8-97853-057-9	01	1	0211-0501	●	●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM) (A)	8-97853-057-9	01	1	0211-0501				●
80	03.452 LINK ASM; ENG CONT M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) (A)	8-97853-057-9	01	1	0211-0501					●
80	03.452 LINK ASM; ENG CONT (A)	8-97853-057-9	01	1	0211-0501						●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) (A)	8-97853-057-9	01	1	0502-	●	●	●	●		●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0211-0501	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0502-0506	●	●	●	●		●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0507-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (A)	8-97892-381-2	01	1	0211-0501	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) (A)	8-97853-205-1	01	1	0211-0501	●	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) (A)	8-97853-205-1	01	1	0502-	●	●	●	●		●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B)	8-97857-168-0	01	1	0211-0501	●	●
82	03.463 BUSHING; ENG CONT LVR 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ)	8-97044-236-0	02	1	0211-0501	●	●
83	03.452 BRACKET; CONT LINK 4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM)	8-97853-201-4	01	1	0211-0501			●
83	03.452 BRACKET; CONT LINK 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97853-201-4	01	1	0211-0501	●	●
83	03.452 BRACKET; CONT LINK 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM)	8-97853-201-4	01	1	0211-0501				●
83	03.452 BRACKET; CONT LINK M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97853-201-4	01	1	0211-0501					●
83	03.452 BRACKET; CONT LINK	8-97853-201-4	01	1	0211-0501						●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97853-201-4	01	1	0502-	●	●	●	●		●
83	03.452 BRACKET; CONT LINK 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ)	8-97853-369-5	01	1	0211-0501	●	●
87	03.454 LINK; ENG CONT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97581-415-6	01	1	0507-	●	●	●	●	●	●
87	03.454 LINK; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY)	8-97853-204-1	01	1	0211-0501	●	●	●	●	●	●
87	03.454 LINK; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97853-204-1	01	1	0502-	●	●	●	●		●
89	03.454 LEVER; RELAY 4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM)	8-97868-042-0	01	1	0211-0501			●
89	03.454 LEVER; RELAY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97868-042-0	01	1	0211-0501	●	●
89	03.454 LEVER; RELAY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM)	8-97868-042-0	01	1	0211-0501				●
89	03.454 LEVER; RELAY M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97868-042-0	01	1	0211-0501					●
89	03.454 LEVER; RELAY	8-97868-042-0	01	1	0211-0501						●
89	03.454 LEVER; RELAY 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97868-042-0	01	1	0502-	●	●	●	●		●
89	03.454 LEVER; RELAY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ)	8-97868-043-0	01	1	0211-0501	●	●
90	03.454 LEVER; RELAY,ENG CONT 4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM)	8-97868-039-0	01	1	0211-0501			●
90	03.454 LEVER; RELAY,ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97868-039-0	01	1	0211-0501	●	●
90	03.454 LEVER; RELAY,ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM)	8-97868-039-0	01	1	0211-0501				●
90	03.454 LEVER; RELAY,ENG CONT M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97868-039-0	01	1	0211-0501					●
90	03.454 LEVER; RELAY,ENG CONT	8-97868-039-0	01	1	0211-0501						●
90	03.454 LEVER; RELAY,ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97868-039-0	01	1	0502-	●	●	●	●		●
90	03.454 LEVER; RELAY,ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ)	8-97868-041-0	01	1	0211-0501	●	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) ID=4.9 PUSH NUT	8-94279-042-0	04	1	0211-0501	●	●
124	03.463 NUT; LEVER 4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0211-0501			●
124	03.463 NUT; LEVER 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0211-0501	●	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0211-0501				●
124	03.463 NUT; LEVER M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0211-0501					●
124	03.463 NUT; LEVER ID=4.9 PUSH NUT	8-94279-042-0	02	1	0211-0501						●
124	03.463 NUT; LEVER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0502-	●	●	●	●		●
124	03.463 NUT; LEVER 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	0211-0501	●	●	●	●	●	●
124	03.463 NUT; LEVER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	0502-	●	●	●	●		●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0211-0501	●	●	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0502-0506	●	●	●	●		●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0507-	●	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0211-0501	●	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0502-0506	●	●	●	●		●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0507-	●	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	0211-0404	●	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM) M8X45	8-97378-461-0	01	1	0405-0501			●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) M8X45	8-97378-461-0	01	1	0405-0501	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM) M8X45	8-97378-461-0	01	1	0405-0501				●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) M8X45	8-97378-461-0	01	1	0405-0501					●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0405-0501						●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0502-0506	●	●	●	●		●
232	03.459 BOLT; STOPPER,ACCEL PEDAL FLOOR REMOTE SHIFT<M11> M8X45	8-97378-461-0	01	1	0507-	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0507-					●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) M8X45	8-97584-796-0	01	1	0405-0501	●	●
234	03.452 SWITCH; ACCEL 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ)	8-97855-058-0	01	1	0211-0501	●	●
264	03.425 SCREW; ACCEL SW 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 03.320 M4X10 W/LK&PL WASHER	9-03920-410-0	02	1	0211-0501	●	●
825	03.454 LEVER; RELAY,TPS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ)	8-97868-044-0	01	1	0211-0501	●	●
826	03.454 LEVER ASM; TPS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ)	8-97853-371-2	01	1	0211-0501	●	●
827	03.463 BUSHING; LEVER,TPS 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 16.585 OD=9.9	8-94279-701-3	02	1	0211-0501	●	●
844	03.452 SWITCH; THROTTLE VLV 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ)	8-97112-742-0	01	1	0211-0501	●	●

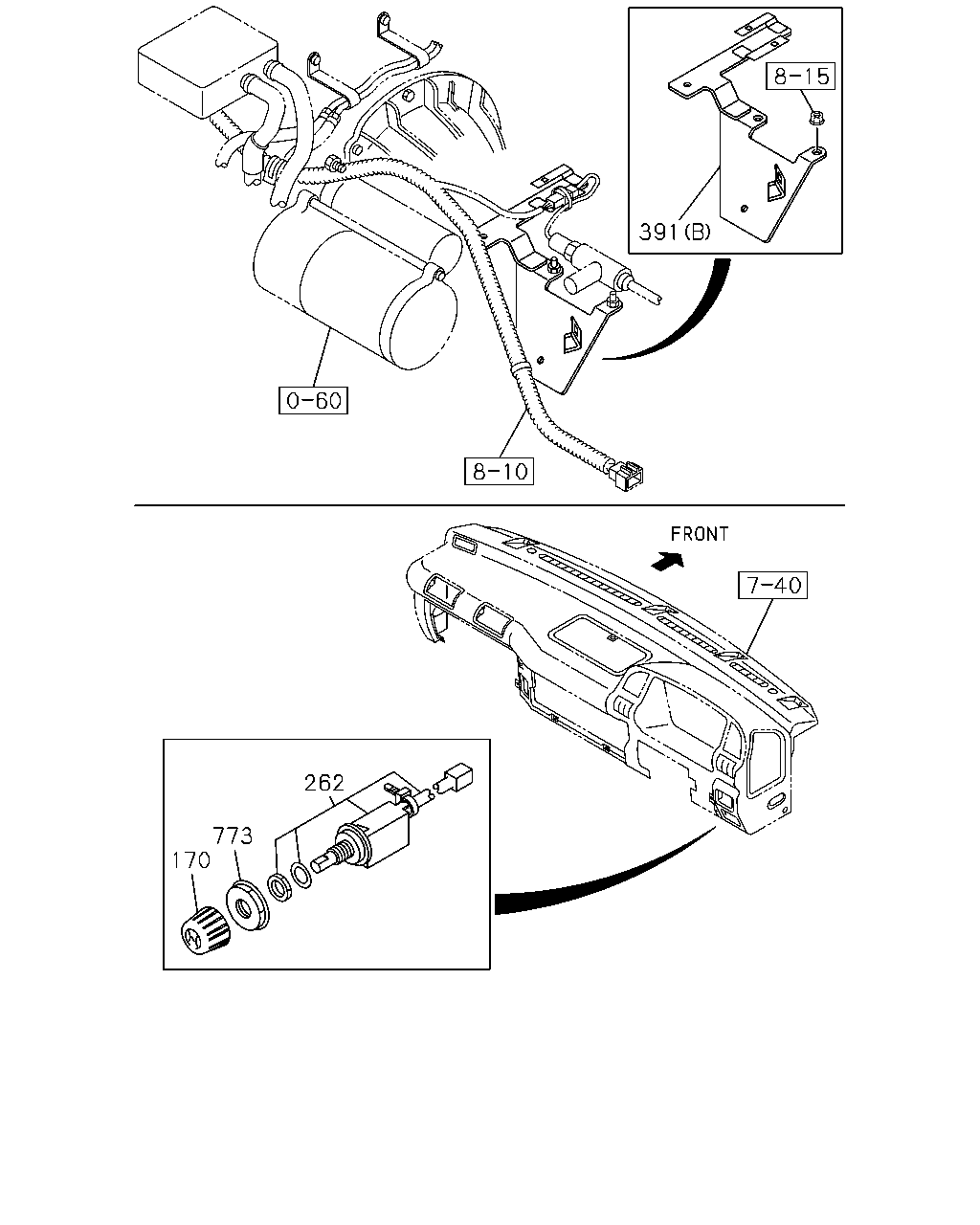

391 262 773 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
170	03.480 KNOB 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97310-165-0	01	1	0507-	●	●	●	●	●	●
262	03.452 SWITCH; ACCEL,IDLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97215-119-1	01	1	0507-	●	●	●	●	●	●
391	03.452 BRACKET; ENG CONT 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	0211-0501			●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	0211-0501	●	●		●
391	03.452 BRACKET; ENG CONT EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	0211-0501					●
391	03.452 BRACKET; ENG CONT (A)	8-97172-882-0	01	1	0211-0501						●
391	03.452 BRACKET; ENG CONT 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97172-882-0	01	1	0502-			●
391	03.452 BRACKET; ENG CONT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (A)	8-97172-882-0	01	1	0502-	●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97172-882-0	01	1	0502-		●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97172-882-0	01	1	0502-				●
391	03.452 BRACKET; ENG CONT (A)	8-97172-882-0	01	1	0502-						●
391	03.452 BRACKET; ENG CONT 4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (B)	8-97357-141-0	01	1	0211-0501			●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (B)	8-97357-141-0	01	1	0211-0501	●	●		●
391	03.452 BRACKET; ENG CONT FLOOR REMOTE SHIFT<M11> (B)	8-97357-141-0	01	1	0211-0501					●
391	03.452 BRACKET; ENG CONT (B)	8-97357-141-0	01	1	0211-0501						●
391	03.452 BRACKET; ENG CONT 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (B)	8-97357-141-0	01	1	0502-0506			●
391	03.452 BRACKET; ENG CONT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (B)	8-97357-141-0	01	1	0502-0506	●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (B)	8-97357-141-0	01	1	0502-0506		●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B)	8-97357-141-0	01	1	0502-0506				●
391	03.452 BRACKET; ENG CONT (B)	8-97357-141-0	01	1	0502-0506						●
391	03.452 BRACKET; ENG CONT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97357-141-0	01	1	0507-	●	●	●	●	●	●
773	03.452 HOLDER; ACCEL PEDAL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97352-127-0	01	1	0507-	●	●	●	●	●	●

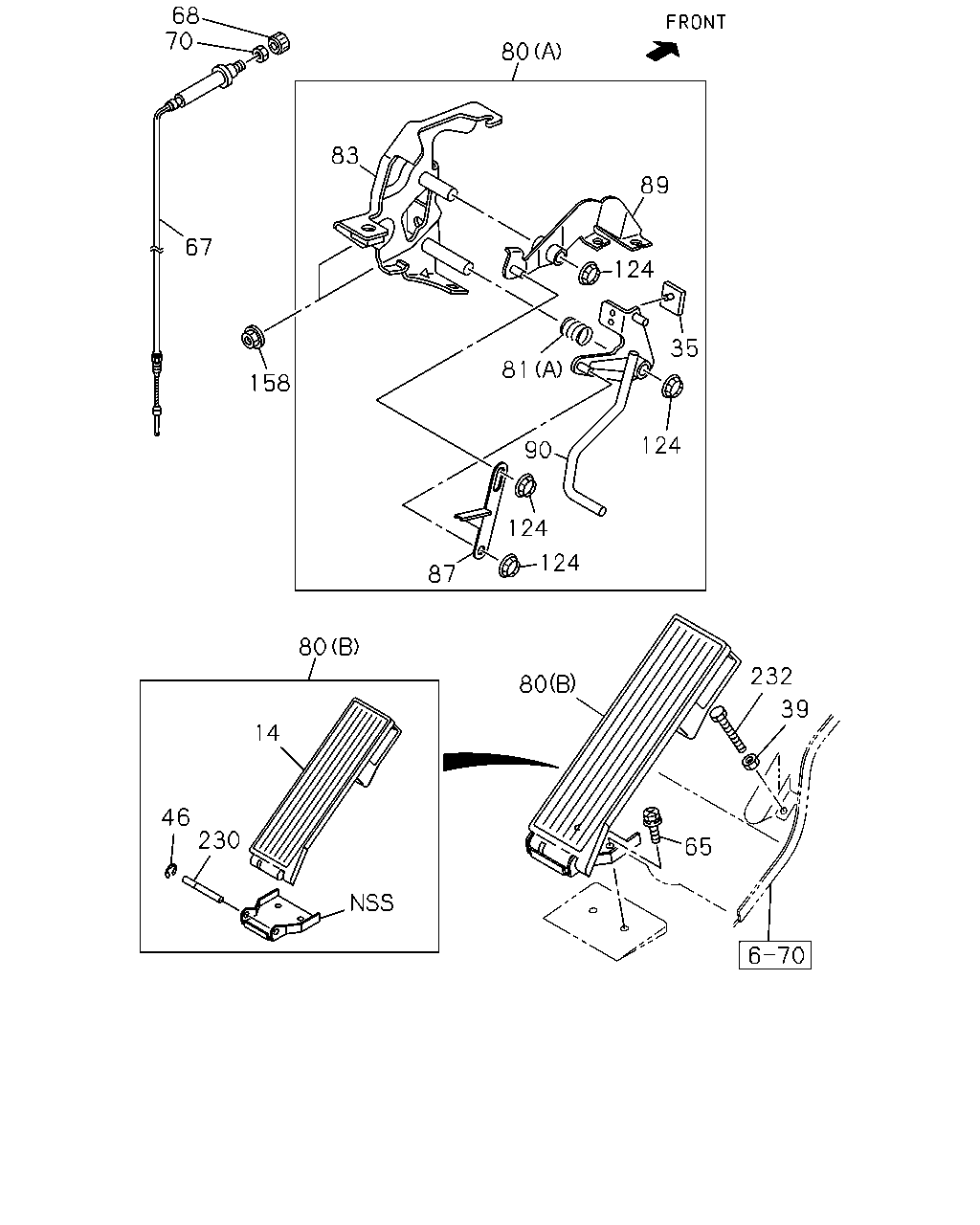

68 70 80 83 89 67 124 35 81 158 124 90 124 124 87 80 232 80 39 14 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0211-0501	●	●	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0502-0506	●	●	●	●		●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0507-	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY)	8-97302-305-0	01	1	0211-0501	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97302-305-0	01	1	0502-	●	●	●	●		●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0211-0501	●	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0502-0506	●	●	●	●		●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0507-0512	●	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0601-	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0211-0501	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0502-0506	●	●	●	●		●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0507-0604	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0211-0501	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0502-0506	●	●	●	●		●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0507-	●	●	●	●	●	●
67	03.480 CABLE ASM; IDLE CONT 4HF1-S ENG(RLS),4HE1 ENG(RLY) L=439	8-97853-058-1	01	1	0211-0501			●
67	03.480 CABLE ASM; IDLE CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) L=439	8-97853-058-1	01	1	0211-0501	●	●		●
67	03.480 CABLE ASM; IDLE CONT L=439	8-97853-058-1	01	1	0211-0501					●	●
67	03.480 CABLE ASM; IDLE CONT 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) L=439	8-97853-058-1	01	1	0502-			●
67	03.480 CABLE ASM; IDLE CONT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) L=439	8-97853-058-1	01	1	0502-	●
67	03.480 CABLE ASM; IDLE CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) L=439	8-97853-058-1	01	1	0502-		●
67	03.480 CABLE ASM; IDLE CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) L=439	8-97853-058-1	01	1	0502-				●
67	03.480 CABLE ASM; IDLE CONT L=439	8-97853-058-1	01	1	0502-						●
68	03.480 KNOB; IDLE CONT 4HF1-S ENG(RLS),4HE1 ENG(RLY)	8-97853-765-1	01	1	0211-0501			●
68	03.480 KNOB; IDLE CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY)	8-97853-765-1	01	1	0211-0501	●	●		●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	0211-0501					●	●
68	03.480 KNOB; IDLE CONT 4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97853-765-1	01	1	0502-			●
68	03.480 KNOB; IDLE CONT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS)	8-97853-765-1	01	1	0502-	●
68	03.480 KNOB; IDLE CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97853-765-1	01	1	0502-		●
68	03.480 KNOB; IDLE CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS)	8-97853-765-1	01	1	0502-				●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	0502-						●
70	03.483 NUT; CONT CABLE 4HF1-S ENG(RLS),4HE1 ENG(RLY) M18	8-97853-233-0	01	1	0211-0501			●
70	03.483 NUT; CONT CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M18	8-97853-233-0	01	1	0211-0501	●	●		●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	0211-0501					●	●
70	03.483 NUT; CONT CABLE 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M18	8-97853-233-0	01	1	0502-			●
70	03.483 NUT; CONT CABLE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) M18	8-97853-233-0	01	1	0502-	●
70	03.483 NUT; CONT CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M18	8-97853-233-0	01	1	0502-		●
70	03.483 NUT; CONT CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) M18	8-97853-233-0	01	1	0502-				●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	0502-						●
80	03.452 LINK ASM; ENG CONT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C)	8-97997-556-8	01	1	0507-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM) (A)	8-97853-057-9	01	1	0211-0501			●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) (A)	8-97853-057-9	01	1	0211-0501	●	●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM) (A)	8-97853-057-9	01	1	0211-0501				●
80	03.452 LINK ASM; ENG CONT M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) (A)	8-97853-057-9	01	1	0211-0501					●
80	03.452 LINK ASM; ENG CONT (A)	8-97853-057-9	01	1	0211-0501						●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) (A)	8-97853-057-9	01	1	0502-	●	●	●	●		●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0211-0501	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0502-0506	●	●	●	●		●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0507-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (A)	8-97892-381-2	01	1	0211-0501	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) (A)	8-97853-205-1	01	1	0211-0501	●	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) (A)	8-97853-205-1	01	1	0502-	●	●	●	●		●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B)	8-97857-168-0	01	1	0211-0501	●	●
83	03.452 BRACKET; CONT LINK 4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM)	8-97853-201-4	01	1	0211-0501			●
83	03.452 BRACKET; CONT LINK 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97853-201-4	01	1	0211-0501	●	●
83	03.452 BRACKET; CONT LINK 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM)	8-97853-201-4	01	1	0211-0501				●
83	03.452 BRACKET; CONT LINK M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97853-201-4	01	1	0211-0501					●
83	03.452 BRACKET; CONT LINK	8-97853-201-4	01	1	0211-0501						●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97853-201-4	01	1	0502-	●	●	●	●		●
83	03.452 BRACKET; CONT LINK 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ)	8-97853-369-5	01	1	0211-0501	●	●
87	03.454 LINK; ENG CONT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97581-415-6	01	1	0507-	●	●	●	●	●	●
87	03.454 LINK; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY)	8-97853-204-1	01	1	0211-0501	●	●	●	●	●	●
87	03.454 LINK; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97853-204-1	01	1	0502-	●	●	●	●		●
89	03.454 LEVER; RELAY 4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM)	8-97868-042-0	01	1	0211-0501			●
89	03.454 LEVER; RELAY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97868-042-0	01	1	0211-0501	●	●
89	03.454 LEVER; RELAY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM)	8-97868-042-0	01	1	0211-0501				●
89	03.454 LEVER; RELAY M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97868-042-0	01	1	0211-0501					●
89	03.454 LEVER; RELAY	8-97868-042-0	01	1	0211-0501						●
89	03.454 LEVER; RELAY 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97868-042-0	01	1	0502-	●	●	●	●		●
89	03.454 LEVER; RELAY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ)	8-97868-043-0	01	1	0211-0501	●	●
90	03.454 LEVER; RELAY,ENG CONT 4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM)	8-97868-039-0	01	1	0211-0501			●
90	03.454 LEVER; RELAY,ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97868-039-0	01	1	0211-0501	●	●
90	03.454 LEVER; RELAY,ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM)	8-97868-039-0	01	1	0211-0501				●
90	03.454 LEVER; RELAY,ENG CONT M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97868-039-0	01	1	0211-0501					●
90	03.454 LEVER; RELAY,ENG CONT	8-97868-039-0	01	1	0211-0501						●
90	03.454 LEVER; RELAY,ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97868-039-0	01	1	0502-	●	●	●	●		●
90	03.454 LEVER; RELAY,ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ)	8-97868-041-0	01	1	0211-0501	●	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) ID=4.9 PUSH NUT	8-94279-042-0	04	1	0211-0501	●	●
124	03.463 NUT; LEVER 4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0211-0501			●
124	03.463 NUT; LEVER 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0211-0501	●	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0211-0501				●
124	03.463 NUT; LEVER M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0211-0501					●
124	03.463 NUT; LEVER ID=4.9 PUSH NUT	8-94279-042-0	02	1	0211-0501						●
124	03.463 NUT; LEVER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0502-	●	●	●	●		●
124	03.463 NUT; LEVER 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	0211-0501	●	●	●	●	●	●
124	03.463 NUT; LEVER 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	02	1	0502-	●	●	●	●		●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0211-0501	●	●	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0502-0506	●	●	●	●		●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0507-	●	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0211-0501	●	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0502-0506	●	●	●	●		●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0507-	●	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	0211-0404	●	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM) M8X45	8-97378-461-0	01	1	0405-0501			●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) M8X45	8-97378-461-0	01	1	0405-0501	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM) M8X45	8-97378-461-0	01	1	0405-0501				●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) M8X45	8-97378-461-0	01	1	0405-0501					●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0405-0501						●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0502-0506	●	●	●	●		●
232	03.459 BOLT; STOPPER,ACCEL PEDAL FLOOR REMOTE SHIFT<M11> M8X45	8-97378-461-0	01	1	0507-	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0507-					●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) M8X45	8-97584-796-0	01	1	0405-0501	●	●

80 243 528 528 158 87 80 232 80 39 14 46 230 333 65 6 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	03.880 RING; SNAP,LINK TO LINK 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 04.040 ID=6	9-09185-406-0	01	1	0211-0501	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0211-0501	●	●	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0502-0506	●	●	●	●		●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0507-	●	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0211-0501	●	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0502-0506	●	●	●	●		●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0507-0512	●	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0601-	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0211-0501	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0502-0506	●	●	●	●		●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0507-0604	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0211-0501	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0502-0506	●	●	●	●		●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0507-	●	●	●	●	●	●
70	03.483 NUT; CONT CABLE 4HF1-S ENG(RLS),4HE1 ENG(RLY) M18	8-97853-233-0	01	1	0211-0501			●
70	03.483 NUT; CONT CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M18	8-97853-233-0	01	1	0211-0501	●	●		●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	0211-0501					●	●
70	03.483 NUT; CONT CABLE 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M18	8-97853-233-0	01	1	0502-			●
70	03.483 NUT; CONT CABLE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) M18	8-97853-233-0	01	1	0502-	●
70	03.483 NUT; CONT CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M18	8-97853-233-0	01	1	0502-		●
70	03.483 NUT; CONT CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) M18	8-97853-233-0	01	1	0502-				●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	0502-						●
80	03.452 LINK ASM; ENG CONT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C)	8-97997-556-8	01	1	0507-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM) (A)	8-97853-057-9	01	1	0211-0501			●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) (A)	8-97853-057-9	01	1	0211-0501	●	●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM) (A)	8-97853-057-9	01	1	0211-0501				●
80	03.452 LINK ASM; ENG CONT M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) (A)	8-97853-057-9	01	1	0211-0501					●
80	03.452 LINK ASM; ENG CONT (A)	8-97853-057-9	01	1	0211-0501						●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) (A)	8-97853-057-9	01	1	0502-	●	●	●	●		●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0211-0501	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0502-0506	●	●	●	●		●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0507-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (A)	8-97892-381-2	01	1	0211-0501	●	●
87	03.454 LINK; ENG CONT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97581-415-6	01	1	0507-	●	●	●	●	●	●
87	03.454 LINK; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY)	8-97853-204-1	01	1	0211-0501	●	●	●	●	●	●
87	03.454 LINK; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM)	8-97853-204-1	01	1	0502-	●	●	●	●		●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0211-0501	●	●	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0502-0506	●	●	●	●		●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0507-	●	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0211-0501	●	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0502-0506	●	●	●	●		●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0507-	●	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	0211-0404	●	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM) M8X45	8-97378-461-0	01	1	0405-0501			●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) M8X45	8-97378-461-0	01	1	0405-0501	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY5T(RSM) M8X45	8-97378-461-0	01	1	0405-0501				●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) M8X45	8-97378-461-0	01	1	0405-0501					●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0405-0501						●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0502-0506	●	●	●	●		●
232	03.459 BOLT; STOPPER,ACCEL PEDAL FLOOR REMOTE SHIFT<M11> M8X45	8-97378-461-0	01	1	0507-	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0507-					●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) M8X45	8-97584-796-0	01	1	0405-0501	●	●
243	03.425 SENSOR; ACCEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97602-416-0	01	1	0507-0910	●	●	●	●	●	●
243	03.425 SENSOR; ACCEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98131-263-0	01	1	0911-	●	●	●	●	●	●
333	03.671 GROMMET; HOLE,CABLE 4HK1-TCN ENG(RDQ) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0507-			●
333	03.671 GROMMET; HOLE,CABLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0507-	●	●		●
333	03.671 GROMMET; HOLE,CABLE 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0507-					●
528	03.463 NUT; ACCEL SENSOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 12.183 M5	8-94169-022-0	02	1	0507-	●	●	●	●	●	●

54 99 54 100 101 99 108 101 104 391 729 218 110 54 99 54 114 99 108 729 101 101 104 100 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0211-0501			●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0211-0501	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (B) L=293	8-97115-730-0	01	1	0211-0501				●
54	03.430 CABLE; ENG CONT EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0211-0501					●
54	03.430 CABLE; ENG CONT (B) L=293	8-97115-730-0	01	1	0211-0501						●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) (B) L=293	8-97115-730-0	01	1	0502-0506	●		●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) L=293	8-97115-730-0	01	1	0502-0506		●		●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) (B) L=293	8-97115-730-0	01	1	0507-			●
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HF1-S ENG(RLS) (B) L=293	8-97115-730-0	01	1	0507-	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) L=293	8-97115-730-0	01	1	0507-		●		●
54	03.430 CABLE; ENG CONT (B) L=293	8-97115-730-0	01	1	0507-						●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2913	8-97167-698-2	01	1	0211-0501			●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2913	8-97167-698-2	01	1	0211-0501	●	●		●
54	03.430 CABLE; ENG CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2913	8-97167-698-2	01	1	0211-0501					●
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A) L=2913	8-97167-698-2	01	1	0502-0506	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A) L=2913	8-97167-698-2	01	1	0502-0506		●		●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A) L=2913	8-97167-698-2	01	1	0507-			●
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A) L=2913	8-97167-698-2	01	1	0507-	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A) L=2913	8-97167-698-2	01	1	0507-		●		●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2795	8-97205-846-2	01	1	0211-0501	●	●	●
54	03.430 CABLE; ENG CONT 4HF1-N ENG(RJZ) (A) L=2795	8-97205-846-2	01	1	0502-0506			●
54	03.430 CABLE; ENG CONT 4HF1-N ENG(RJZ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2795	8-97205-846-2	01	1	0502-0506	●	●
54	03.430 CABLE; ENG CONT 4HF1-N ENG(RJZ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2795	8-97205-846-2	01	1	0507-	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	0211-0501	●	●	●	●
54	03.430 CABLE; ENG CONT CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	0211-0501					●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=3078	8-97148-584-3	01	1	0211-0501	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2898	8-97167-702-1	01	1	0211-0501	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) (A) L=2898	8-97167-702-1	01	1	0211-0501	●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2898	8-97167-702-1	01	1	0502-			●
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2898	8-97167-702-1	01	1	0502-	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2898	8-97167-702-1	01	1	0502-		●		●
54	03.430 CABLE; ENG CONT (A) L=2898	8-97167-702-1	01	1	0502-						●
54	03.430 CABLE; ENG CONT CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=3078	8-97225-573-1	01	1	0211-0501					●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-871-3	01	1	0211-0501	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B)	8-97118-729-0	01	1	0211-0501	●	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HF1-S ENG(RLS) (B)	8-97118-729-0	01	1	0502-0506			●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1-T ENG(RDP),4HF1-S ENG(RLS) (B)	8-97118-729-0	01	1	0502-0506	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B)	8-97118-729-0	01	1	0502-0506		●		●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF (B)	8-97118-729-0	01	1	0502-0506						●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> (B)	8-97118-729-0	01	1	0507-			●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1-T ENG(RDP),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> (B)	8-97118-729-0	01	1	0507-	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> (B)	8-97118-729-0	01	1	0507-		●		●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF (B)	8-97118-729-0	01	1	0507-						●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF CHARGE AIR COOLER<6PL> (A)	8-97225-505-0	01	1	0211-0501					●
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97167-870-2	01	1	0211-0501	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT CHARGE AIR COOLER<6PL> (A)	8-97167-870-2	01	1	0211-0501					●
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B)	8-97118-737-0	01	1	0211-0501	●	●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT 4HF1-S ENG(RLS) (B)	8-97118-737-0	01	1	0502-0506			●
100	03.463 SHAFT ASM; ENG CONT 4HG1-T ENG(RDP),4HF1-S ENG(RLS) (B)	8-97118-737-0	01	1	0502-0506	●
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B)	8-97118-737-0	01	1	0502-0506		●		●
100	03.463 SHAFT ASM; ENG CONT (B)	8-97118-737-0	01	1	0502-0506						●
100	03.463 SHAFT ASM; ENG CONT 4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> (B)	8-97118-737-0	01	1	0507-			●
100	03.463 SHAFT ASM; ENG CONT 4HG1-T ENG(RDP),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> (B)	8-97118-737-0	01	1	0507-	●
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> (B)	8-97118-737-0	01	1	0507-		●		●
100	03.463 SHAFT ASM; ENG CONT (B)	8-97118-737-0	01	1	0507-						●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	0211-0501	●	●	●	●	●	●
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.276	8-94142-117-0	02	1	0211-0501	●	●	●	●	●
101	03.463 WASHER; ENG CONT 4HF1-S ENG(RLS) 01.276	8-94142-117-0	02	1	0502-0506			●
101	03.463 WASHER; ENG CONT 4HG1-T ENG(RDP),4HF1-S ENG(RLS) 01.276	8-94142-117-0	02	1	0502-0506	●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.276	8-94142-117-0	02	1	0502-0506		●		●
101	03.463 WASHER; ENG CONT 01.276	8-94142-117-0	02	1	0502-0506						●
101	03.463 WASHER; ENG CONT 4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> 01.276	8-94142-117-0	02	1	0507-			●
101	03.463 WASHER; ENG CONT 4HG1-T ENG(RDP),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> 01.276	8-94142-117-0	02	1	0507-	●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> 01.276	8-94142-117-0	02	1	0507-		●		●
101	03.463 WASHER; ENG CONT 01.276	8-94142-117-0	02	1	0507-						●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●	●	●	●
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●	●	●
104	03.463 NUT; ENG CONT 4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0506			●
104	03.463 NUT; ENG CONT 4HG1-T ENG(RDP),4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0506	●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0506		●		●
104	03.463 NUT; ENG CONT 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0506						●
104	03.463 NUT; ENG CONT 4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602			●
104	03.463 NUT; ENG CONT 4HG1-T ENG(RDP),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602	●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602		●		●
104	03.463 NUT; ENG CONT 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602						●
104	03.463 NUT; ENG CONT 4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-			●
104	03.463 NUT; ENG CONT 4HG1-T ENG(RDP),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●		●
104	03.463 NUT; ENG CONT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-						●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97120-004-0	01	1	0211-0501	●	●	●	●	●	●
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97120-004-0	01	1	0211-0501	●	●	●	●	●
108	03.463 BUSHING; ENG CONT 4HF1-S ENG(RLS)	8-97120-004-0	01	1	0502-0506			●
108	03.463 BUSHING; ENG CONT 4HG1-T ENG(RDP),4HF1-S ENG(RLS)	8-97120-004-0	01	1	0502-0506	●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS)	8-97120-004-0	01	1	0502-0506		●		●
108	03.463 BUSHING; ENG CONT	8-97120-004-0	01	1	0502-0506						●
108	03.463 BUSHING; ENG CONT 4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97120-004-0	01	1	0507-			●
108	03.463 BUSHING; ENG CONT 4HG1-T ENG(RDP),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97120-004-0	01	1	0507-	●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97120-004-0	01	1	0507-		●		●
108	03.463 BUSHING; ENG CONT	8-97120-004-0	01	1	0507-						●
110	03.463 BOLT; BRKT TO HANGER 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0211-0501			●
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0211-0501	●	●
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0211-0501				●
110	03.463 BOLT; BRKT TO HANGER EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0211-0501					●
110	03.463 BOLT; BRKT TO HANGER 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0211-0501						●
110	03.463 BOLT; BRKT TO HANGER 4HF1-S ENG(RLS) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0502-0506	●		●
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0502-0506		●		●
110	03.463 BOLT; BRKT TO HANGER 4HF1-S ENG(RLS) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0507-0512			●
110	03.463 BOLT; BRKT TO HANGER 4HG1-T ENG(RDP),4HF1-S ENG(RLS) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0507-0512	●
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0507-0512		●		●
110	03.463 BOLT; BRKT TO HANGER 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0507-0512						●
110	03.463 BOLT; BRKT TO HANGER 4HF1-S ENG(RLS) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0601-			●
110	03.463 BOLT; BRKT TO HANGER 4HG1-T ENG(RDP),4HF1-S ENG(RLS) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0601-	●
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0601-		●		●
110	03.463 BOLT; BRKT TO HANGER 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0601-						●
110	03.463 BOLT; BRKT TO HANGER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-0501	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-0501					●
114	03.483 CLIP; HARNESS CONNECTOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 ID=7-10	8-94472-578-0	01	1	0211-0501	●	●	●	●
114	03.483 CLIP; HARNESS CONNECTOR CHARGE AIR COOLER<6PL> 02.559 ID=7-10	8-94472-578-0	01	1	0211-0501					●
218	03.452 NUT; BRKT 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501			●
218	03.452 NUT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●		●
218	03.452 NUT; BRKT EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501					●
218	03.452 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501						●
218	03.452 NUT; BRKT 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602			●
218	03.452 NUT; BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●
218	03.452 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602		●
218	03.452 NUT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602				●
218	03.452 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602						●
218	03.452 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●		●
391	03.452 BRACKET; ENG CONT 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	0211-0501			●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	0211-0501	●	●		●
391	03.452 BRACKET; ENG CONT EXC. CHARGE AIR COOLER<6PL> (A)	8-97172-882-0	01	1	0211-0501					●
391	03.452 BRACKET; ENG CONT (A)	8-97172-882-0	01	1	0211-0501						●
391	03.452 BRACKET; ENG CONT 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97172-882-0	01	1	0502-			●
391	03.452 BRACKET; ENG CONT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (A)	8-97172-882-0	01	1	0502-	●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97172-882-0	01	1	0502-		●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97172-882-0	01	1	0502-				●
391	03.452 BRACKET; ENG CONT (A)	8-97172-882-0	01	1	0502-						●
391	03.452 BRACKET; ENG CONT 4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (B)	8-97357-141-0	01	1	0211-0501			●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (B)	8-97357-141-0	01	1	0211-0501	●	●		●
391	03.452 BRACKET; ENG CONT FLOOR REMOTE SHIFT<M11> (B)	8-97357-141-0	01	1	0211-0501					●
391	03.452 BRACKET; ENG CONT (B)	8-97357-141-0	01	1	0211-0501						●
391	03.452 BRACKET; ENG CONT 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (B)	8-97357-141-0	01	1	0502-0506			●
391	03.452 BRACKET; ENG CONT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (B)	8-97357-141-0	01	1	0502-0506	●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (B)	8-97357-141-0	01	1	0502-0506		●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B)	8-97357-141-0	01	1	0502-0506				●
391	03.452 BRACKET; ENG CONT (B)	8-97357-141-0	01	1	0502-0506						●
391	03.452 BRACKET; ENG CONT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97357-141-0	01	1	0507-	●	●	●	●	●	●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	0211-0501	●	●	●	●	●	●
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97118-760-0	01	1	0211-0501	●	●	●	●	●
729	03.451 COLLAR; JOINT 4HF1-S ENG(RLS)	8-97118-760-0	01	1	0502-0506			●
729	03.451 COLLAR; JOINT 4HG1-T ENG(RDP),4HF1-S ENG(RLS)	8-97118-760-0	01	1	0502-0506	●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH),4HF1-S ENG(RLS)	8-97118-760-0	01	1	0502-0506		●		●
729	03.451 COLLAR; JOINT	8-97118-760-0	01	1	0502-0506						●
729	03.451 COLLAR; JOINT 4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97118-760-0	01	1	0507-			●
729	03.451 COLLAR; JOINT 4HG1-T ENG(RDP),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97118-760-0	01	1	0507-	●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97118-760-0	01	1	0507-		●		●
729	03.451 COLLAR; JOINT	8-97118-760-0	01	1	0507-						●

389 395 316 389 662 54 60 320 389 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0211-0501			●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0211-0501	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (B) L=293	8-97115-730-0	01	1	0211-0501				●
54	03.430 CABLE; ENG CONT EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0211-0501					●
54	03.430 CABLE; ENG CONT (B) L=293	8-97115-730-0	01	1	0211-0501						●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) (B) L=293	8-97115-730-0	01	1	0502-0506	●		●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) L=293	8-97115-730-0	01	1	0502-0506		●		●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) (B) L=293	8-97115-730-0	01	1	0507-			●
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HF1-S ENG(RLS) (B) L=293	8-97115-730-0	01	1	0507-	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) L=293	8-97115-730-0	01	1	0507-		●		●
54	03.430 CABLE; ENG CONT (B) L=293	8-97115-730-0	01	1	0507-						●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2913	8-97167-698-2	01	1	0211-0501			●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2913	8-97167-698-2	01	1	0211-0501	●	●		●
54	03.430 CABLE; ENG CONT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=2913	8-97167-698-2	01	1	0211-0501					●
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A) L=2913	8-97167-698-2	01	1	0502-0506	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A) L=2913	8-97167-698-2	01	1	0502-0506		●		●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A) L=2913	8-97167-698-2	01	1	0507-			●
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A) L=2913	8-97167-698-2	01	1	0507-	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A) L=2913	8-97167-698-2	01	1	0507-		●		●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2795	8-97205-846-2	01	1	0211-0501	●	●	●
54	03.430 CABLE; ENG CONT 4HF1-N ENG(RJZ) (A) L=2795	8-97205-846-2	01	1	0502-0506			●
54	03.430 CABLE; ENG CONT 4HF1-N ENG(RJZ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2795	8-97205-846-2	01	1	0502-0506	●	●
54	03.430 CABLE; ENG CONT 4HF1-N ENG(RJZ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2795	8-97205-846-2	01	1	0507-	●	●	●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	0211-0501	●	●	●	●
54	03.430 CABLE; ENG CONT CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	0211-0501					●
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=3078	8-97148-584-3	01	1	0211-0501	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2898	8-97167-702-1	01	1	0211-0501	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) (A) L=2898	8-97167-702-1	01	1	0211-0501	●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2898	8-97167-702-1	01	1	0502-			●
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2898	8-97167-702-1	01	1	0502-	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2898	8-97167-702-1	01	1	0502-		●		●
54	03.430 CABLE; ENG CONT (A) L=2898	8-97167-702-1	01	1	0502-						●
54	03.430 CABLE; ENG CONT CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=3078	8-97225-573-1	01	1	0211-0501					●
60	08.155 BOLT; CABLE 4HF1-S ENG(RLS),4HE1 ENG(RLY) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0501			●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●	●		●
60	08.155 BOLT; CABLE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0501					●	●
60	08.155 BOLT; CABLE 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512			●
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512		●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512				●
60	08.155 BOLT; CABLE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512						●
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●		●
60	08.155 BOLT; CABLE 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28480-825-0	01	1	0211-0501			●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28480-825-0	01	1	0211-0501	●	●		●
60	08.155 BOLT; CABLE EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28480-825-0	01	1	0211-0501					●
60	08.155 BOLT; CABLE M8X25 FLANGE	0-28480-825-0	01	1	0211-0501						●
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28480-825-0	01	1	0502-0512	●	●	●	●		●
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28450-825-0	01	1	0601-	●	●	●	●		●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●	●	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●	●	●
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0506	●	●		●
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0506	●	●		●
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●	●	●
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●	●	●
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●
316	03.425 CLIP; LAMP BRKT 16.065 ID=9	5-09707-027-0	01	1	0211-0501	●	●	●	●	●	●
316	03.425 CLIP; LAMP BRKT 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 16.065 ID=9	5-09707-027-0	01	1	0502-			●
316	03.425 CLIP; LAMP BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 16.065 ID=9	5-09707-027-0	01	1	0502-	●
316	03.425 CLIP; LAMP BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 16.065 ID=9	5-09707-027-0	01	1	0502-		●
316	03.425 CLIP; LAMP BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 16.065 ID=9	5-09707-027-0	01	1	0502-				●
316	03.425 CLIP; LAMP BRKT 16.065 ID=9	5-09707-027-0	01	1	0502-						●
320	03.483 CLIP; FRAME 4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	0211-0501			●
320	03.483 CLIP; FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	0211-0501	●	●		●
320	03.483 CLIP; FRAME FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	0211-0501					●
320	03.483 CLIP; FRAME 4HG1-T ENG(RDP),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	0502-0506	●
320	03.483 CLIP; FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	0502-0506		●		●
320	03.483 CLIP; FRAME 4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	0507-			●
320	03.483 CLIP; FRAME 4HG1-T ENG(RDP),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	0507-	●
320	03.483 CLIP; FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	0507-		●		●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-0501			●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-0501	●	●		●
389	03.483 NUT; ACCEL CONT CABLE FIX 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-0501					●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0502-0602			●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1-T ENG(RDP),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0502-0602	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0502-0602		●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0502-0602				●
389	03.483 NUT; ACCEL CONT CABLE FIX 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0502-0602						●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●	●		●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1-S ENG(RLS),4HE1 ENG(RLY) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	0211-0501			●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	0211-0501	●	●		●
389	03.483 NUT; ACCEL CONT CABLE FIX 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	0211-0501					●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1-S ENG(RLS) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	0502-0805			●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1-T ENG(RDP),4HF1-S ENG(RLS) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	0502-0805	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	0502-0805		●		●
389	03.483 NUT; ACCEL CONT CABLE FIX 07.833 (B) M8 W/LK WASHER	8-94327-073-0	02	1	0502-0805						●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1-S ENG(RLS) 03.417 (B) M8 W/LK WASHER	8-97581-234-0	02	1	0806-			●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1-T ENG(RDP),4HF1-S ENG(RLS) 03.417 (B) M8 W/LK WASHER	8-97581-234-0	02	1	0806-	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.417 (B) M8 W/LK WASHER	8-97581-234-0	02	1	0806-		●		●
389	03.483 NUT; ACCEL CONT CABLE FIX 03.417 (B) M8 W/LK WASHER	8-97581-234-0	02	1	0806-						●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0211-0501	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0211-0501	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0502-0506	●	●		●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0502-0506	●	●		●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0507-0805	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 07.833 (B) M8 W/LK WASHER	8-94327-073-0	01	1	0507-0805	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.417 (B) M8 W/LK WASHER	8-97581-234-0	01	1	0806-	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. HEATER & DEFROSTER(C41) 03.417 (B) M8 W/LK WASHER	8-97581-234-0	01	1	0806-	●	●	●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1-S ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41) FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0211-0501			●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41) FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0211-0501	●	●		●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0211-0501					●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HG1-T ENG(RDP),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0502-0506	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0502-0506		●		●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0507-			●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HG1-T ENG(RDP),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0507-	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0507-		●		●
662	03.430 CLIP; ACCEL CONT CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> EXC. FRAME STRAIGHT TYPE<7KJ> 03.634 ID=6 & 6	1-09709-217-0	01	1	0211-0501	●	●	●	●	●	●
662	03.430 CLIP; ACCEL CONT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. FRAME STRAIGHT TYPE<7KJ> 03.634 ID=6 & 6	1-09709-217-0	01	1	0502-	●	●	●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
