Sayfa 0-42B - Isuzu EPC

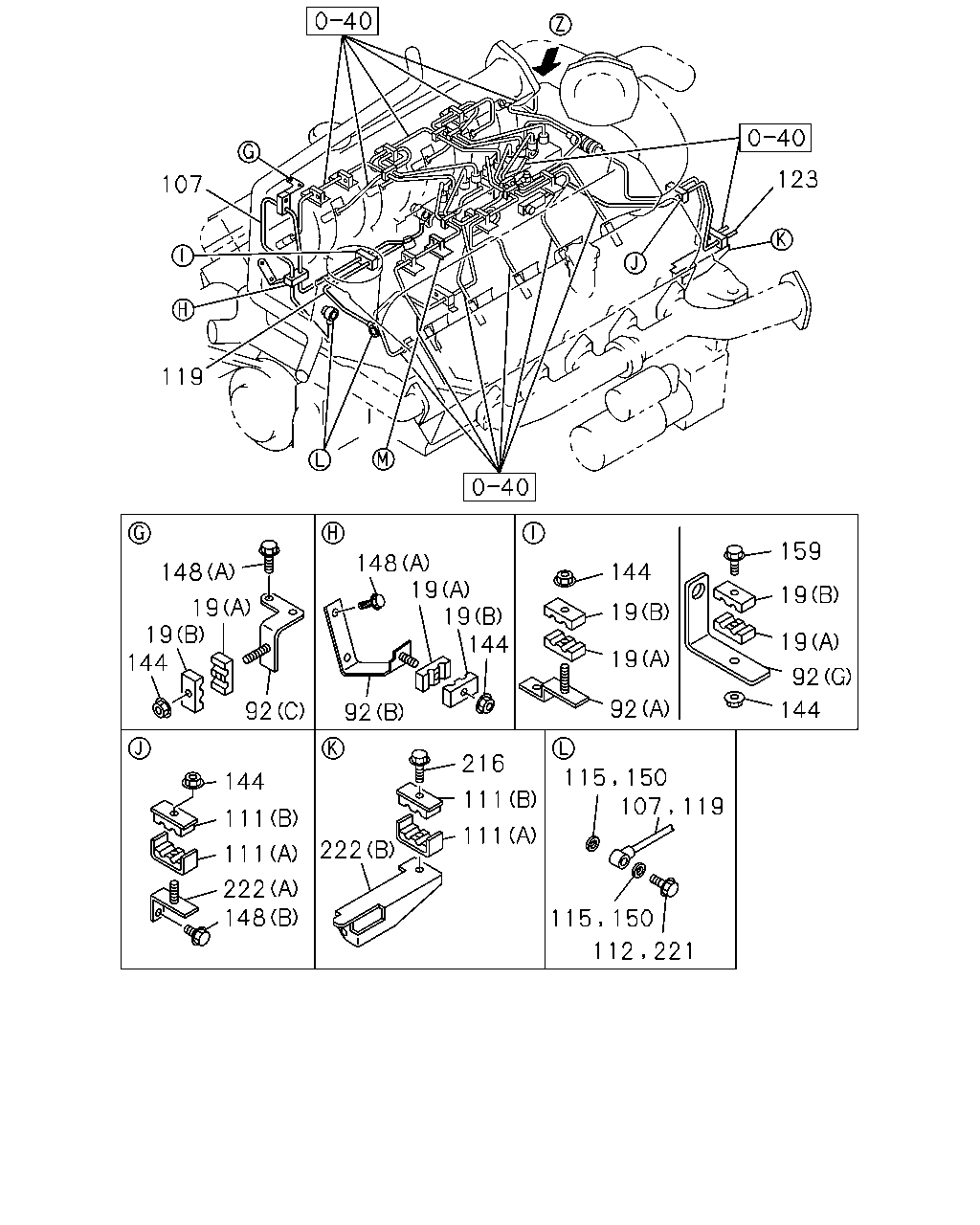

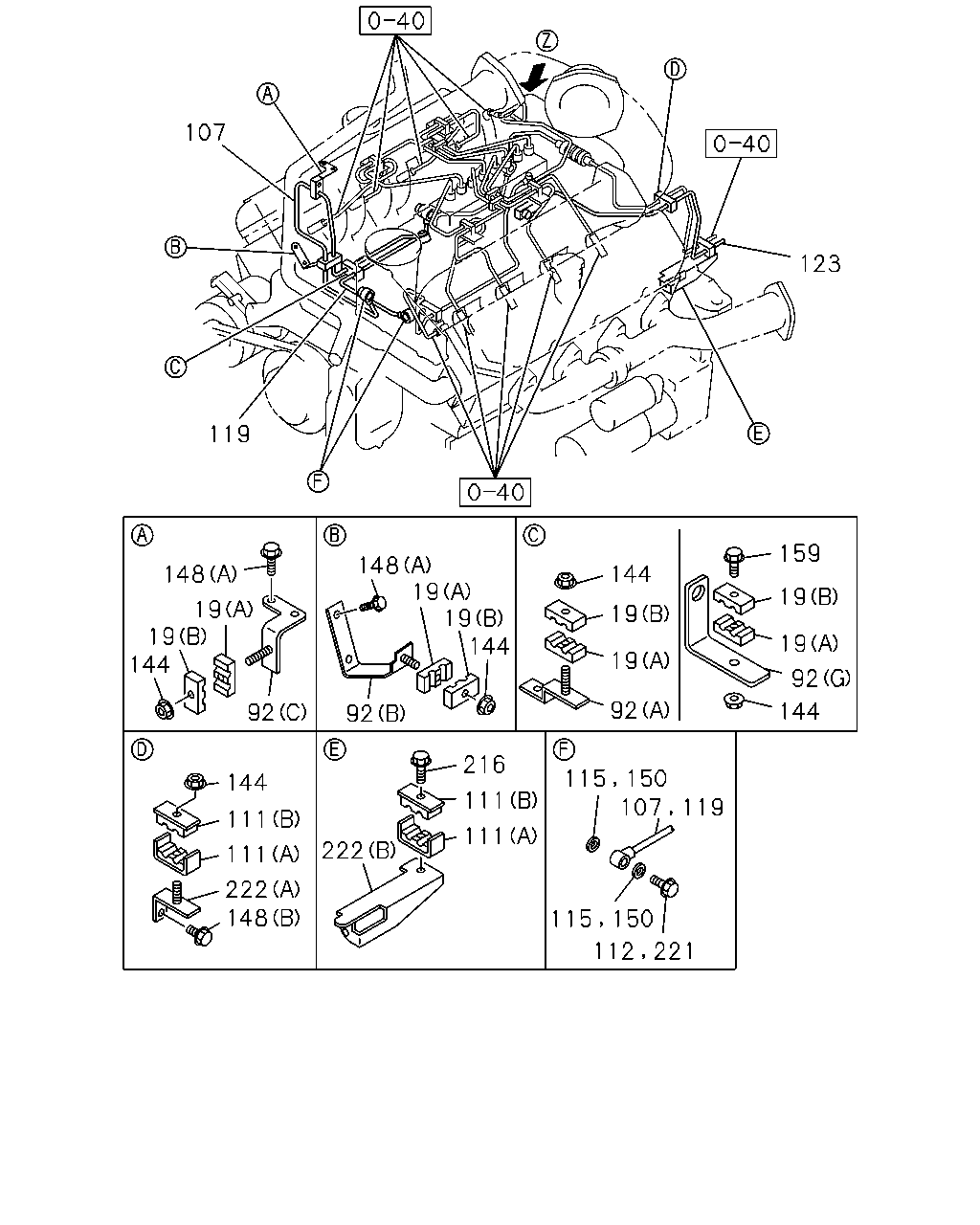

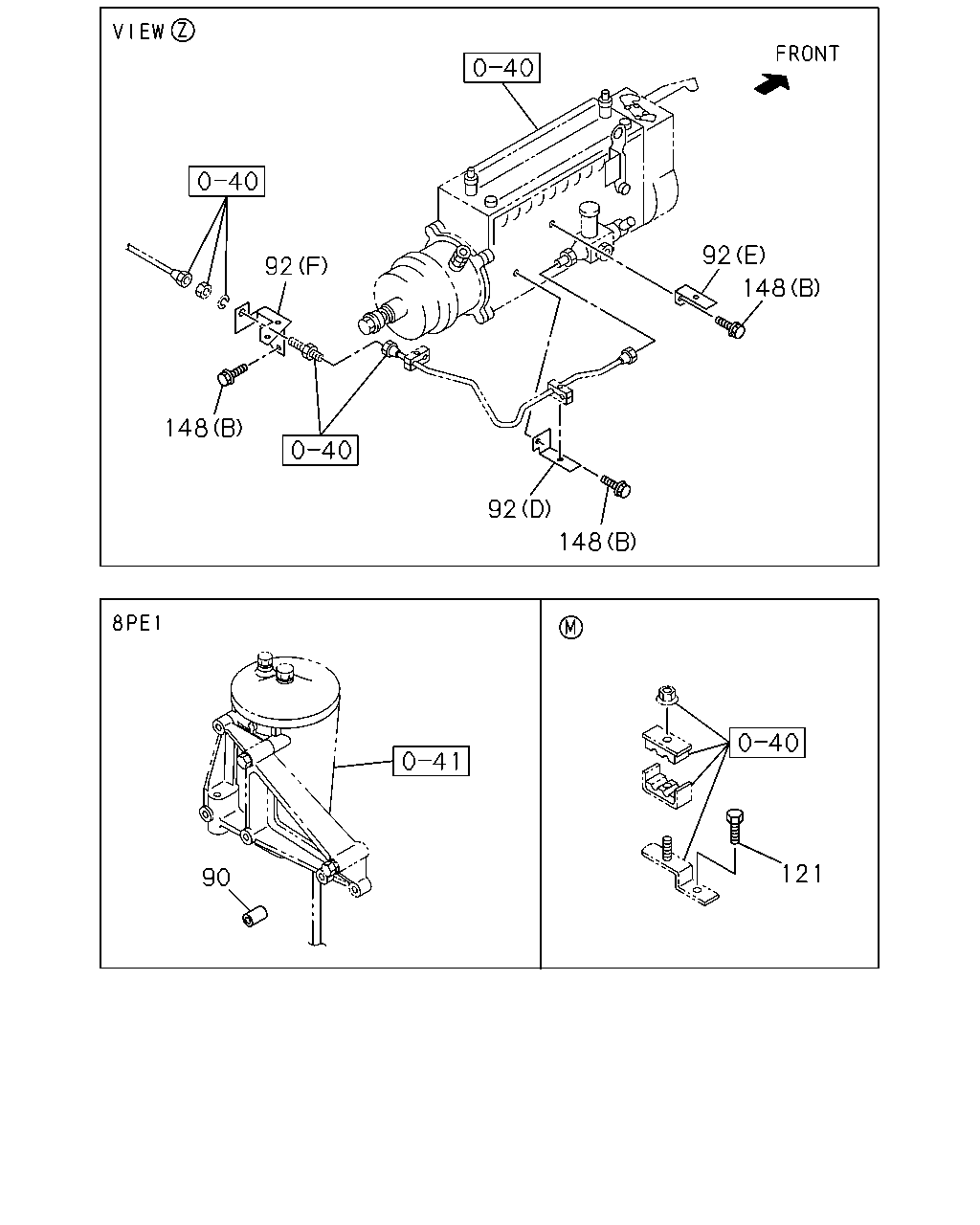

0-42B — FUEL PUMP AND PIPE (#4257) — 257 parça

123 107 119 159 148 19 19 144 148 144 19 19 19 144 19 19 19 92 92 144 92 92 216 107 144 111 119 111 111 222 111 222 148 115 150 115 150 112 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
19	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	9603-9904	●	●
19	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	9905-	●	●	●	●
19	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-1	03	1	9603-9904	●	●
19	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-2	03	1	9905-	●	●	●	●
92	BRACKET; FUEL PIPE (A)	1-15419-463-0	01	1	9603-9904	●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-463-0	01	1	9905-9910	●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-623-0	01	1	9911-	●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (G)	1-15419-465-0	01	1	9905-9905	●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> (G)	1-15419-465-0	01	1	9906-	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9603-9904	●	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9905-	●	●	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9603-9612	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9701-9904	●
92	BRACKET; FUEL PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	1-15419-462-0	01	1	9701-9904		●
92	BRACKET; FUEL PIPE RFD GOVERNOR(SD5) (B)	1-15419-462-0	01	1	9905-	●	●		●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9703-9904	●	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9905-	●	●	●	●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9703-9904		●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9905-		●	●	●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9703-9904		●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9905-		●	●	●
92	BRACKET; FUEL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	1-15419-384-1	01	1	9603-9904		●
92	BRACKET; FUEL PIPE (B)	1-15419-384-1	01	1	9905-			●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> (G)	1-15419-466-0	01	1	9603-9904		●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> (G)	1-15419-466-0	01	1	9905-0003		●		●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> (B)	1-15419-466-0	01	1	0004-		●		●
92	BRACKET; FUEL PIPE INJ PUMP Q SET SPECIAL +5%Q(T1A) (B)	1-15419-466-0	01	1	0004-			●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-363-1	01	1	9603-9904		●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-363-1	01	1	9905-9910		●		●
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9905-9910			●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-622-0	01	1	9911-0005		●		●
92	BRACKET; FUEL PIPE (A)	1-15419-622-0	01	1	9911-0005			●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-622-0	01	1	0006-		●		●
92	BRACKET; FUEL PIPE EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) (A)	1-15419-622-0	01	1	0006-			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15416-009-0	01	1	9603-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-726-1	01	1	9603-9904		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-726-2	01	1	9905-		●	●	●
111	CLIP; FUEL PIPE (A)	1-09701-193-1	02	1	9603-9904	●	●
111	CLIP; FUEL PIPE (A)	1-09701-193-1	02	1	9905-	●	●	●	●
111	CLIP; FUEL PIPE (B)	1-09701-194-0	02	1	9603-9904	●	●
111	CLIP; FUEL PIPE (B)	1-09701-194-1	02	1	9905-	●	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9603-9609	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9610-9904	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9905-	●	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-9706	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9707-9904	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP GOVERNOR CONTROL<W69>	1-15416-007-0	01	1	9905-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-643-0	01	1	9603-9904	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. GOVERNOR CONTROL<W69>	1-15415-643-0	01	1	9905-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP GOVERNOR CONTROL<W69>	1-15416-008-0	01	1	9603-9904		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP GOVERNOR CONTROL<W69>	1-15416-008-0	01	1	9905-		●		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP INJ PUMP Q SET SPECIAL +5%Q(T1A)	1-15416-008-0	01	1	9905-			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. GOVERNOR CONTROL<W69>	1-15415-641-0	01	1	9603-9904		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. GOVERNOR CONTROL<W69>	1-15415-641-0	01	1	9905-0005		●		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-641-0	01	1	9905-0005			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. GOVERNOR CONTROL<W69>	1-15415-641-1	01	1	0006-		●		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	1-15415-641-1	01	1	0006-			●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ENGINE REAR PTO(SV1)	1-15415-723-1	01	1	9603-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. ENGINE REAR PTO(SV1)	1-15415-660-1	01	1	9603-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ENGINE REAR PTO(SV1)	1-15415-722-1	01	1	9603-9904		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ENGINE REAR PTO(SV1)	1-15415-722-1	01	1	9905-		●	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. ENGINE REAR PTO(SV1)	1-15415-659-1	01	1	9603-9904		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. ENGINE REAR PTO(SV1)	1-15415-659-1	01	1	9905-		●	●	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	04	1	9603-9904	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9905-9905	●	●	●	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0006-	●	●	●	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	03	1	9905-	●	●	●	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	03	1	9603-9904		●
144	NUT; CLIP EXC. GOVERNOR CONTROL<W69> M6 FLANGE	0-91150-106-0	01	1	9603-9707		●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9905-0005	●	●	●	●
144	NUT; CLIP EXC. GOVERNOR CONTROL<W69> M6 FLANGE	0-91150-106-0	01	1	9708-9904		●
148	BOLT; BRKT (A) M10X20 FLANGE	0-28181-020-0	02	1	9603-9604	●	●
148	BOLT; BRKT EXC. ENGINE REAR PTO(SV1),GOVERNOR CONTROL<W69> (A) M10X20 FLANGE	0-28181-020-0	02	1	9605-9904	●	●
148	BOLT; BRKT EXC. MIXER TRUCK<RA2>,GOVERNOR CONTROL<W69> (A) M10X20 FLANGE	0-28181-020-0	02	1	9905-	●	●		●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	01	1	9603-9702	●	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	04	1	9703-	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9603-9904	●	●
148	BOLT; BRKT EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X16 FLANGE	0-28181-016-0	02	1	9603-9904		●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9905-	●	●	●	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9905-			●
148	BOLT; BRKT ENGINE REAR PTO(SV1) (A) M10X25 FLANGE	0-28181-025-0	02	1	9604-9904	●	●
148	BOLT; BRKT GOVERNOR CONTROL<W69> (A) M10X25 FLANGE	0-28181-025-0	02	1	9604-9904		●
148	BOLT; BRKT ENGINE REAR PTO(SV1) (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-	●	●		●
148	BOLT; BRKT GOVERNOR CONTROL<W69> (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-	●	●		●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9703-9904		●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9905-		●	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-9904	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●	●	●
159	BOLT; CLIP GOVERNOR CONTROL<W69> M6X30 FLANGE	0-28080-630-0	01	1	9603-9904		●
159	BOLT; CLIP GOVERNOR CONTROL<W69> M6X30 FLANGE	0-28080-630-0	01	1	9905-0003	●	●		●
159	BOLT; CLIP GOVERNOR CONTROL<W69> M6X30 FLANGE	0-28080-630-0	01	1	0004-	●	●		●
159	BOLT; CLIP LONG CHASSIS(CXZ5MF) INJ PUMP Q SET SPECIAL +5%Q(T1A) ENGINE OIL TEMPERATURE GAUGE<UG3> M6X30 FLANGE	0-28080-630-0	01	1	0004-			●
216	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	9603-9904	●	●
216	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	9905-	●	●	●	●
221	BOLT; FUEL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9603-9904	●	●
221	BOLT; FUEL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9905-	●	●	●	●
222	BRACKET; CLIP (A)	1-15419-383-1	01	1	9603-9904	●	●
222	BRACKET; CLIP (A)	1-15419-383-1	01	1	9905-	●	●	●	●
222	BRACKET; CLIP ENGINE REAR PTO(SV1) (B)	1-13319-027-0	01	1	9603-9904	●	●
222	BRACKET; CLIP ENGINE REAR PTO(SV1) (B)	1-13319-027-0	01	1	9905-	●	●	●	●
222	BRACKET; CLIP EXC. ENGINE REAR PTO(SV1) (B)	1-15419-402-1	01	1	9603-9904	●	●
222	BRACKET; CLIP EXC. ENGINE REAR PTO(SV1) (B)	1-15419-402-1	01	1	9905-0003	●	●	●	●
222	BRACKET; CLIP (B)	1-15419-402-1	01	1	0004-	●	●	●	●

107 123 119 159 148 19 19 144 148 144 19 19 19 144 19 19 19 92 92 144 92 92 216 107 144 111 119 111 111 222 111 222 148 115 150 115 150 112 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
19	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	9603-9904	●	●
19	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	9905-	●	●	●	●
19	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-1	03	1	9603-9904	●	●
19	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-2	03	1	9905-	●	●	●	●
92	BRACKET; FUEL PIPE (A)	1-15419-463-0	01	1	9603-9904	●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-463-0	01	1	9905-9910	●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-623-0	01	1	9911-	●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (G)	1-15419-465-0	01	1	9905-9905	●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> (G)	1-15419-465-0	01	1	9906-	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9603-9904	●	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9905-	●	●	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9603-9612	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9701-9904	●
92	BRACKET; FUEL PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	1-15419-462-0	01	1	9701-9904		●
92	BRACKET; FUEL PIPE RFD GOVERNOR(SD5) (B)	1-15419-462-0	01	1	9905-	●	●		●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9703-9904	●	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9905-	●	●	●	●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9703-9904		●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9905-		●	●	●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9703-9904		●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9905-		●	●	●
92	BRACKET; FUEL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	1-15419-384-1	01	1	9603-9904		●
92	BRACKET; FUEL PIPE (B)	1-15419-384-1	01	1	9905-			●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> (G)	1-15419-466-0	01	1	9603-9904		●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> (G)	1-15419-466-0	01	1	9905-0003		●		●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> (B)	1-15419-466-0	01	1	0004-		●		●
92	BRACKET; FUEL PIPE INJ PUMP Q SET SPECIAL +5%Q(T1A) (B)	1-15419-466-0	01	1	0004-			●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-363-1	01	1	9603-9904		●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-363-1	01	1	9905-9910		●		●
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9905-9910			●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-622-0	01	1	9911-0005		●		●
92	BRACKET; FUEL PIPE (A)	1-15419-622-0	01	1	9911-0005			●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-622-0	01	1	0006-		●		●
92	BRACKET; FUEL PIPE EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) (A)	1-15419-622-0	01	1	0006-			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15416-009-0	01	1	9603-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-726-1	01	1	9603-9904		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-726-2	01	1	9905-		●	●	●
111	CLIP; FUEL PIPE (A)	1-09701-193-1	02	1	9603-9904	●	●
111	CLIP; FUEL PIPE (A)	1-09701-193-1	02	1	9905-	●	●	●	●
111	CLIP; FUEL PIPE (B)	1-09701-194-0	02	1	9603-9904	●	●
111	CLIP; FUEL PIPE (B)	1-09701-194-1	02	1	9905-	●	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9603-9609	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9610-9904	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9905-	●	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-9706	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9707-9904	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP GOVERNOR CONTROL<W69>	1-15416-007-0	01	1	9905-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-643-0	01	1	9603-9904	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. GOVERNOR CONTROL<W69>	1-15415-643-0	01	1	9905-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP GOVERNOR CONTROL<W69>	1-15416-008-0	01	1	9603-9904		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP GOVERNOR CONTROL<W69>	1-15416-008-0	01	1	9905-		●		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP INJ PUMP Q SET SPECIAL +5%Q(T1A)	1-15416-008-0	01	1	9905-			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. GOVERNOR CONTROL<W69>	1-15415-641-0	01	1	9603-9904		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. GOVERNOR CONTROL<W69>	1-15415-641-0	01	1	9905-0005		●		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-641-0	01	1	9905-0005			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. GOVERNOR CONTROL<W69>	1-15415-641-1	01	1	0006-		●		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	1-15415-641-1	01	1	0006-			●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ENGINE REAR PTO(SV1)	1-15415-723-1	01	1	9603-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. ENGINE REAR PTO(SV1)	1-15415-660-1	01	1	9603-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ENGINE REAR PTO(SV1)	1-15415-722-1	01	1	9603-9904		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ENGINE REAR PTO(SV1)	1-15415-722-1	01	1	9905-		●	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. ENGINE REAR PTO(SV1)	1-15415-659-1	01	1	9603-9904		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. ENGINE REAR PTO(SV1)	1-15415-659-1	01	1	9905-		●	●	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	04	1	9603-9904	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9905-9905	●	●	●	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0006-	●	●	●	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	03	1	9905-	●	●	●	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	03	1	9603-9904		●
144	NUT; CLIP EXC. GOVERNOR CONTROL<W69> M6 FLANGE	0-91150-106-0	01	1	9603-9707		●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9905-0005	●	●	●	●
144	NUT; CLIP EXC. GOVERNOR CONTROL<W69> M6 FLANGE	0-91150-106-0	01	1	9708-9904		●
148	BOLT; BRKT (A) M10X20 FLANGE	0-28181-020-0	02	1	9603-9604	●	●
148	BOLT; BRKT EXC. ENGINE REAR PTO(SV1),GOVERNOR CONTROL<W69> (A) M10X20 FLANGE	0-28181-020-0	02	1	9605-9904	●	●
148	BOLT; BRKT EXC. MIXER TRUCK<RA2>,GOVERNOR CONTROL<W69> (A) M10X20 FLANGE	0-28181-020-0	02	1	9905-	●	●		●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	01	1	9603-9702	●	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	04	1	9703-	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9603-9904	●	●
148	BOLT; BRKT EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X16 FLANGE	0-28181-016-0	02	1	9603-9904		●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9905-	●	●	●	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9905-			●
148	BOLT; BRKT ENGINE REAR PTO(SV1) (A) M10X25 FLANGE	0-28181-025-0	02	1	9604-9904	●	●
148	BOLT; BRKT GOVERNOR CONTROL<W69> (A) M10X25 FLANGE	0-28181-025-0	02	1	9604-9904		●
148	BOLT; BRKT ENGINE REAR PTO(SV1) (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-	●	●		●
148	BOLT; BRKT GOVERNOR CONTROL<W69> (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-	●	●		●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9703-9904		●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9905-		●	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-9904	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●	●	●
159	BOLT; CLIP GOVERNOR CONTROL<W69> M6X30 FLANGE	0-28080-630-0	01	1	9603-9904		●
159	BOLT; CLIP GOVERNOR CONTROL<W69> M6X30 FLANGE	0-28080-630-0	01	1	9905-0003	●	●		●
159	BOLT; CLIP GOVERNOR CONTROL<W69> M6X30 FLANGE	0-28080-630-0	01	1	0004-	●	●		●
159	BOLT; CLIP LONG CHASSIS(CXZ5MF) INJ PUMP Q SET SPECIAL +5%Q(T1A) ENGINE OIL TEMPERATURE GAUGE<UG3> M6X30 FLANGE	0-28080-630-0	01	1	0004-			●
216	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	9603-9904	●	●
216	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	9905-	●	●	●	●
221	BOLT; FUEL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9603-9904	●	●
221	BOLT; FUEL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9905-	●	●	●	●
222	BRACKET; CLIP (A)	1-15419-383-1	01	1	9603-9904	●	●
222	BRACKET; CLIP (A)	1-15419-383-1	01	1	9905-	●	●	●	●
222	BRACKET; CLIP ENGINE REAR PTO(SV1) (B)	1-13319-027-0	01	1	9603-9904	●	●
222	BRACKET; CLIP ENGINE REAR PTO(SV1) (B)	1-13319-027-0	01	1	9905-	●	●	●	●
222	BRACKET; CLIP EXC. ENGINE REAR PTO(SV1) (B)	1-15419-402-1	01	1	9603-9904	●	●
222	BRACKET; CLIP EXC. ENGINE REAR PTO(SV1) (B)	1-15419-402-1	01	1	9905-0003	●	●	●	●
222	BRACKET; CLIP (B)	1-15419-402-1	01	1	0004-	●	●	●	●

92 92 148 148 92 148 121 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
90	TUBE; DIST	1-13219-121-0	01	1	9603-	●
92	BRACKET; FUEL PIPE (A)	1-15419-463-0	01	1	9603-9904	●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-463-0	01	1	9905-9910	●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-623-0	01	1	9911-	●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (G)	1-15419-465-0	01	1	9905-9905	●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> (G)	1-15419-465-0	01	1	9906-	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9603-9904	●	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9905-	●	●	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9603-9612	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9701-9904	●
92	BRACKET; FUEL PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	1-15419-462-0	01	1	9701-9904		●
92	BRACKET; FUEL PIPE RFD GOVERNOR(SD5) (B)	1-15419-462-0	01	1	9905-	●	●		●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9703-9904	●	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9905-	●	●	●	●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9703-9904		●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9905-		●	●	●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9703-9904		●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9905-		●	●	●
92	BRACKET; FUEL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	1-15419-384-1	01	1	9603-9904		●
92	BRACKET; FUEL PIPE (B)	1-15419-384-1	01	1	9905-			●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> (G)	1-15419-466-0	01	1	9603-9904		●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> (G)	1-15419-466-0	01	1	9905-0003		●		●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> (B)	1-15419-466-0	01	1	0004-		●		●
92	BRACKET; FUEL PIPE INJ PUMP Q SET SPECIAL +5%Q(T1A) (B)	1-15419-466-0	01	1	0004-			●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-363-1	01	1	9603-9904		●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-363-1	01	1	9905-9910		●		●
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9905-9910			●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-622-0	01	1	9911-0005		●		●
92	BRACKET; FUEL PIPE (A)	1-15419-622-0	01	1	9911-0005			●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-622-0	01	1	0006-		●		●
92	BRACKET; FUEL PIPE EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) (A)	1-15419-622-0	01	1	0006-			●
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	9603-9706		●
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	9707-9904		●
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	9905-		●	●	●
148	BOLT; BRKT (A) M10X20 FLANGE	0-28181-020-0	02	1	9603-9604	●	●
148	BOLT; BRKT EXC. ENGINE REAR PTO(SV1),GOVERNOR CONTROL<W69> (A) M10X20 FLANGE	0-28181-020-0	02	1	9605-9904	●	●
148	BOLT; BRKT EXC. MIXER TRUCK<RA2>,GOVERNOR CONTROL<W69> (A) M10X20 FLANGE	0-28181-020-0	02	1	9905-	●	●		●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	01	1	9603-9702	●	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	04	1	9703-	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9603-9904	●	●
148	BOLT; BRKT EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X16 FLANGE	0-28181-016-0	02	1	9603-9904		●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9905-	●	●	●	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9905-			●
148	BOLT; BRKT ENGINE REAR PTO(SV1) (A) M10X25 FLANGE	0-28181-025-0	02	1	9604-9904	●	●
148	BOLT; BRKT GOVERNOR CONTROL<W69> (A) M10X25 FLANGE	0-28181-025-0	02	1	9604-9904		●
148	BOLT; BRKT ENGINE REAR PTO(SV1) (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-	●	●		●
148	BOLT; BRKT GOVERNOR CONTROL<W69> (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-	●	●		●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9703-9904		●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9905-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
