0-80B — INJECTION PUMP (#42567) — 151 parça

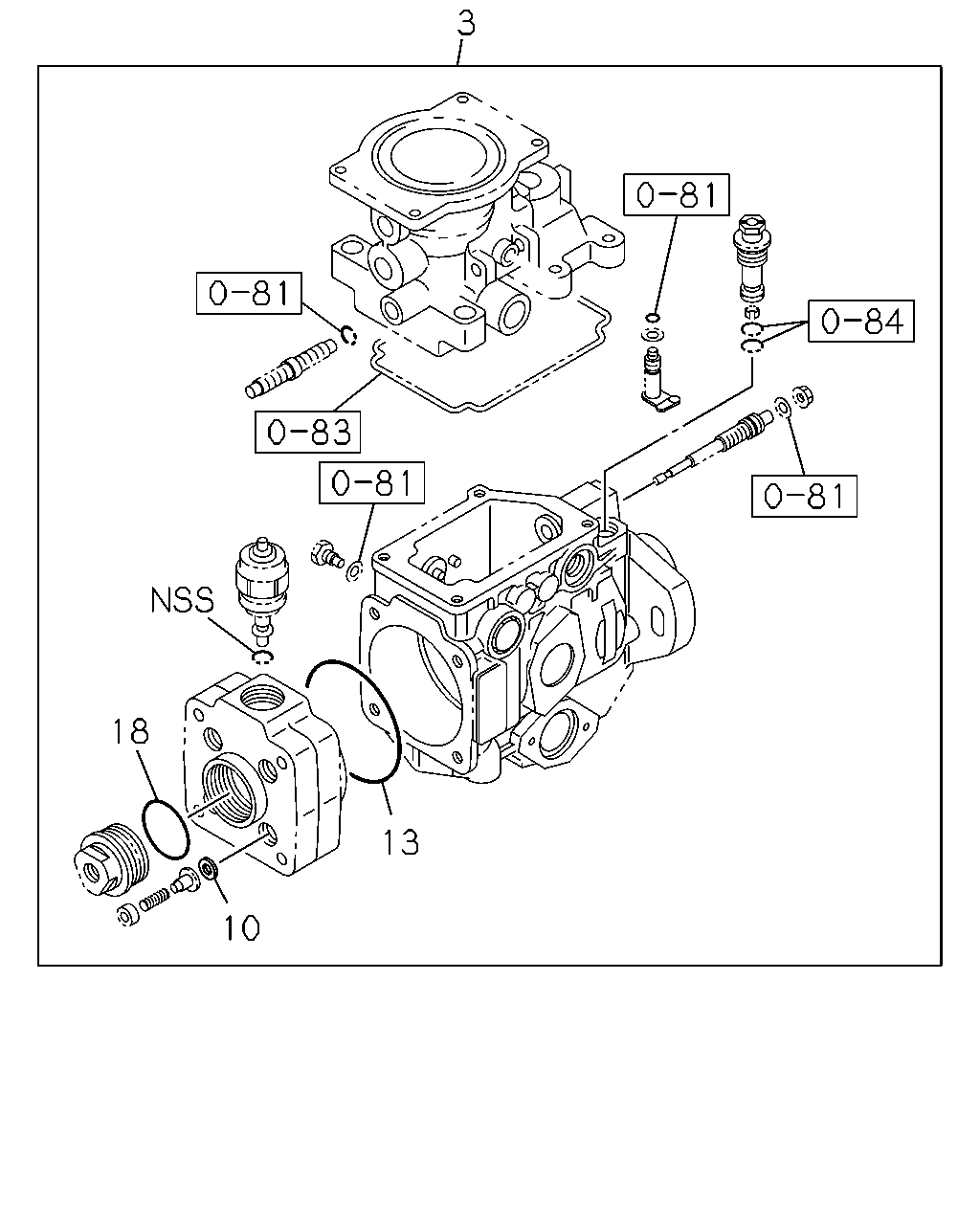

3 18 13 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	03.304 REPAIR KIT; FUEL INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94228-545-0	01	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94247-716-0	04	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-527-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-637-0	01	1	-

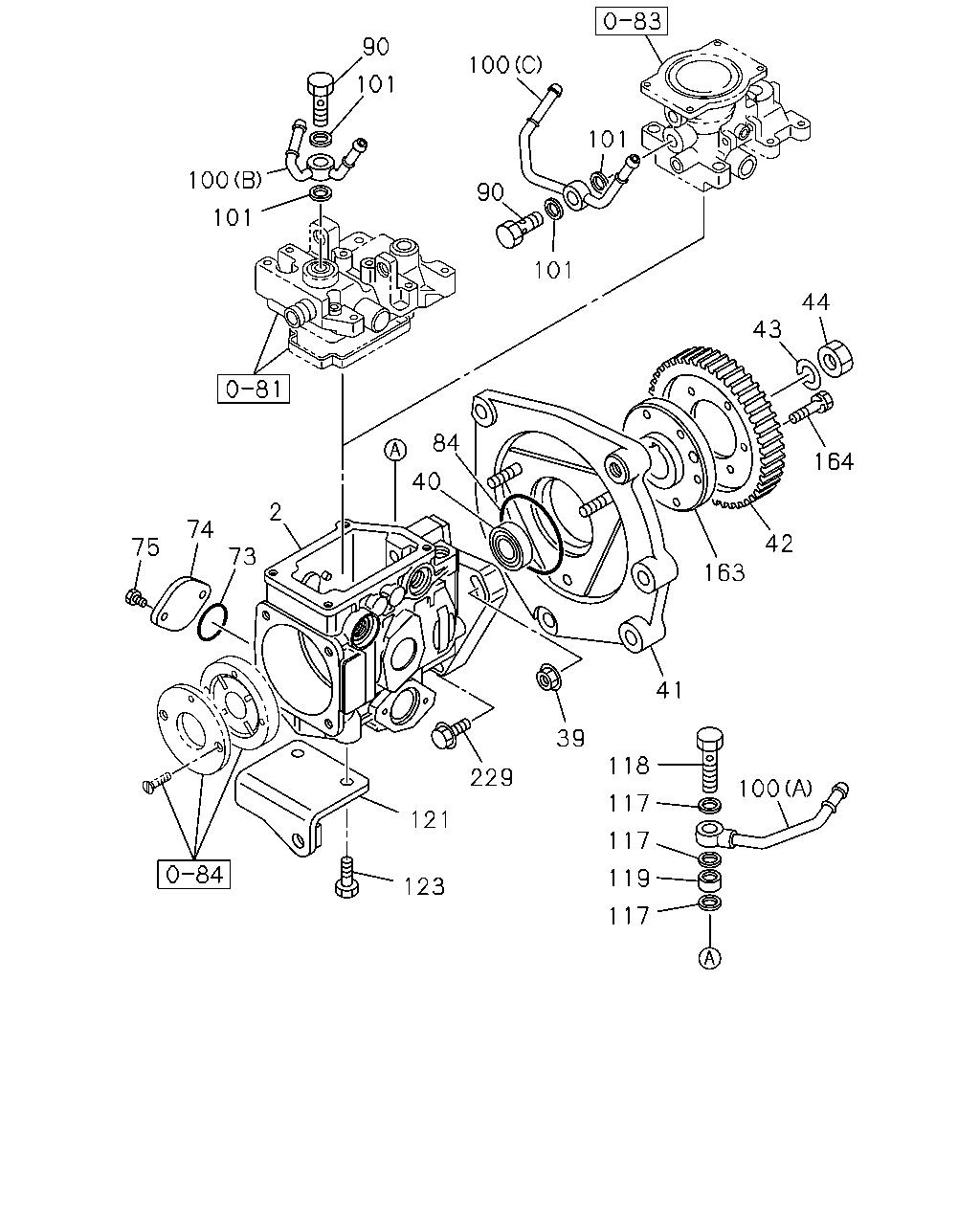

90 100 101 101 100 90 101 101 44 43 84 164 40 2 74 42 75 73 163 41 39 118 229 100 117 121 117 119 123 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: A = 8-97223-104-1, 97223104, C = 8-97324-405-1, 97324405	8-97332-323-0	01	1	-
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: B = 8-97223-105-1, 97223105	8-97332-325-0	01	1	-
39	03.340 NUT; MTG BRKT FIX ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97119-344-0	02	1	-
40	03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97147-034-0	01	1	-
41	03.306 BRACKET; INJ PUMP HSG ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97117-806-1	01	1	-
42	03.330 GEAR; DRIVE,INJ PUMP 03.340, Z=70 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97089-848-4	01	1	-
43	03.340 WASHER; LK,DRIVE GEAR,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94226-554-0	01	1	-
44	03.330 NUT; DRIVE GEAR FIX,INJ PUMP 03.340, M14 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94226-565-0	01	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-491-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97125-525-0	01	1	-
75	03.330 SCREW; COVER TO HSG ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94313-276-0	02	1	-
84	03.306 GASKET; BRKT TO HSG ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94247-722-0	01	1	-
90	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97144-333-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (B) ASM PART: A = 8-97223-104-1, 97223104, C = 8-97324-405-1, 97324405	8-97168-225-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (A) ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97227-582-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (C) ASM PART: B = 8-97223-105-1, 97223105	8-97227-583-0	01	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97249-545-0	02	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97249-545-0	03	1	-
118	03.162 BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97202-330-0	01	1	-
119	03.162 SPACER; FUEL INL,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-662-0	01	1	-
121	03.306 BRACKET; INJ PUMP HSG ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97168-222-0	01	1	-
123	03.306 BOLT; BRKT TO HSG ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97168-227-0	02	1	-
163	03.330 COUPLING; INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97118-337-0	01	1	-
164	03.306 BOLT; GEAR TO COUPLING 01.531, M6X20 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	9-01910-620-0	06	1	-
229	03.330 BOLT; BRKT ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97049-904-0	01	1	-

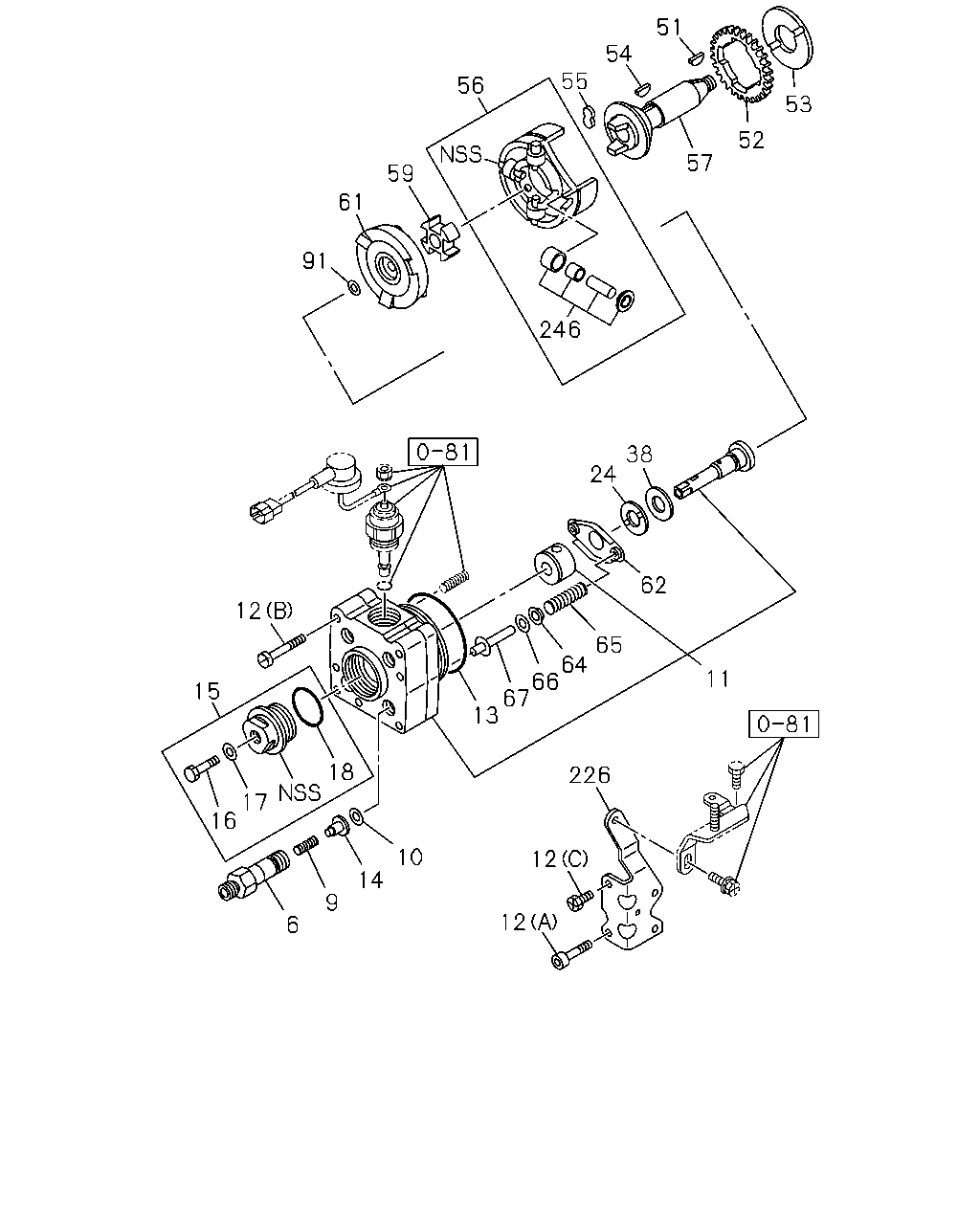

51 54 55 56 53 52 57 59 61 91 246 38 24 62 12 65 64 66 67 13 11 15 18 226 17 16 10 12 14 9 12 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	03.306 HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94367-330-0	04	1	-
9	03.302 SPRING; DELIVERY VLV ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94174-803-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94247-716-0	04	1	-
11	03.330 HEAD ASM; DISTR,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97125-529-0	01	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP (A) ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94242-278-0	01	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP (B) ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94257-670-0	03	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP 03.308, (C) ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94313-264-0	01	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-527-0	01	1	-
14	03.302 VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94174-802-0	04	1	-
15	03.330 PLUG ASM; DISTR,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97160-592-0	01	1	-
16	03.330 BOLT; DISTR PLUG,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94174-818-0	01	1	-
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94433-808-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-637-0	01	1	-
24	03.318 WASHER; PLUNGER,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-515-0	01	1	-
38	03.318 SHIM; PLUNGER BARREL,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-514-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP 03.330 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	5-83539-024-0	01	1	-
52	03.340 GEAR; GOV DRIVE,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-483-0	01	1	-
53	03.330 WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-484-0	01	1	-
54	03.340 KEY; FEED PUMP,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-481-0	01	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94169-528-0	02	1	-
56	03.340 ROLLER ASM; TIMER,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97168-215-0	01	1	-
57	03.340 SHAFT; DRIVE,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94433-759-0	01	1	-
59	03.340 DISC; DRIVE,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94433-761-0	01	1	-
61	03.300 CAM; DISC,PLUNGER,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97168-216-0	01	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-516-1	01	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-517-0	02	1	-
65	03.308 SPRING KIT; PLUNGER,INJ PUMP ASM PART: B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94433-816-0	01	1	-
65	03.308 SPRING KIT; PLUNGER,INJ PUMP ASM PART: A = 8-97223-104-1, 97223104	8-97332-324-0	01	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.50 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-518-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.80 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-519-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.00 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-520-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.20 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-521-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.50 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-522-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.80 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-523-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=2.00 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-524-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.90 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94433-204-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.10 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94433-205-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.30 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94433-206-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.40 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94433-207-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.60 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94433-208-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.70 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94433-209-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97146-139-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97146-140-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97146-141-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.90 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97146-142-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.10 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97189-360-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.20 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97189-361-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.30 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97189-362-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.40 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97189-363-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.50 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97189-364-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.60 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97189-365-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.70 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97189-366-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.80 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97189-367-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.90 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97189-368-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.00 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97189-369-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.10 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97189-370-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.20 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97189-371-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.30 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97189-372-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.40 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97189-373-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.20 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97189-374-0	AR	1	-
67	03.330 PIN; GUIDE,PLUNGER SPRING ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97185-285-0	02	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.74 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94111-658-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.76 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94111-659-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.78 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94111-660-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.80 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94111-661-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.82 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94111-662-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.84 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94111-663-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.86 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94111-664-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.88 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94111-665-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.90 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-528-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.92 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-529-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.94 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-530-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.96 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-531-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.98 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-532-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.00 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-533-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.02 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-534-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.04 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-535-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.06 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-536-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.08 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-537-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.10 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-538-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.12 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-539-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.14 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-540-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.16 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-541-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.18 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-542-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.20 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-543-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.22 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-544-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.24 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-545-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.26 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-546-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.28 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-547-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.30 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-548-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.32 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-549-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.34 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-550-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.36 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-551-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.38 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-552-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.40 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-553-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.42 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-554-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.44 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-555-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.46 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-556-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.48 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-557-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.50 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-558-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.52 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-559-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.54 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-560-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.56 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-561-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.58 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-562-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.60 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-563-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.62 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-564-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.64 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-565-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.66 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-566-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.68 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-567-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.70 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-568-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.72 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-569-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.74 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-570-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.76 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-571-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.78 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-572-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.80 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-573-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.82 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-574-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.84 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-575-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.86 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-576-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.88 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-577-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.90 ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-94227-578-0	AR	1	-
226	03.330 BRACKET; DISTR HEAD ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97168-221-0	01	1	-
246	03.300 ROLLER KIT; INJ PUMP ASM PART: A = 8-97223-104-1, 97223104, B = 8-97223-105-1, 97223105, C = 8-97324-405-1, 97324405	8-97163-172-0	01	1	-
