0-60 — ENGINE ELECTRICAL CONTROL PARTS (#42562) — 315 parça

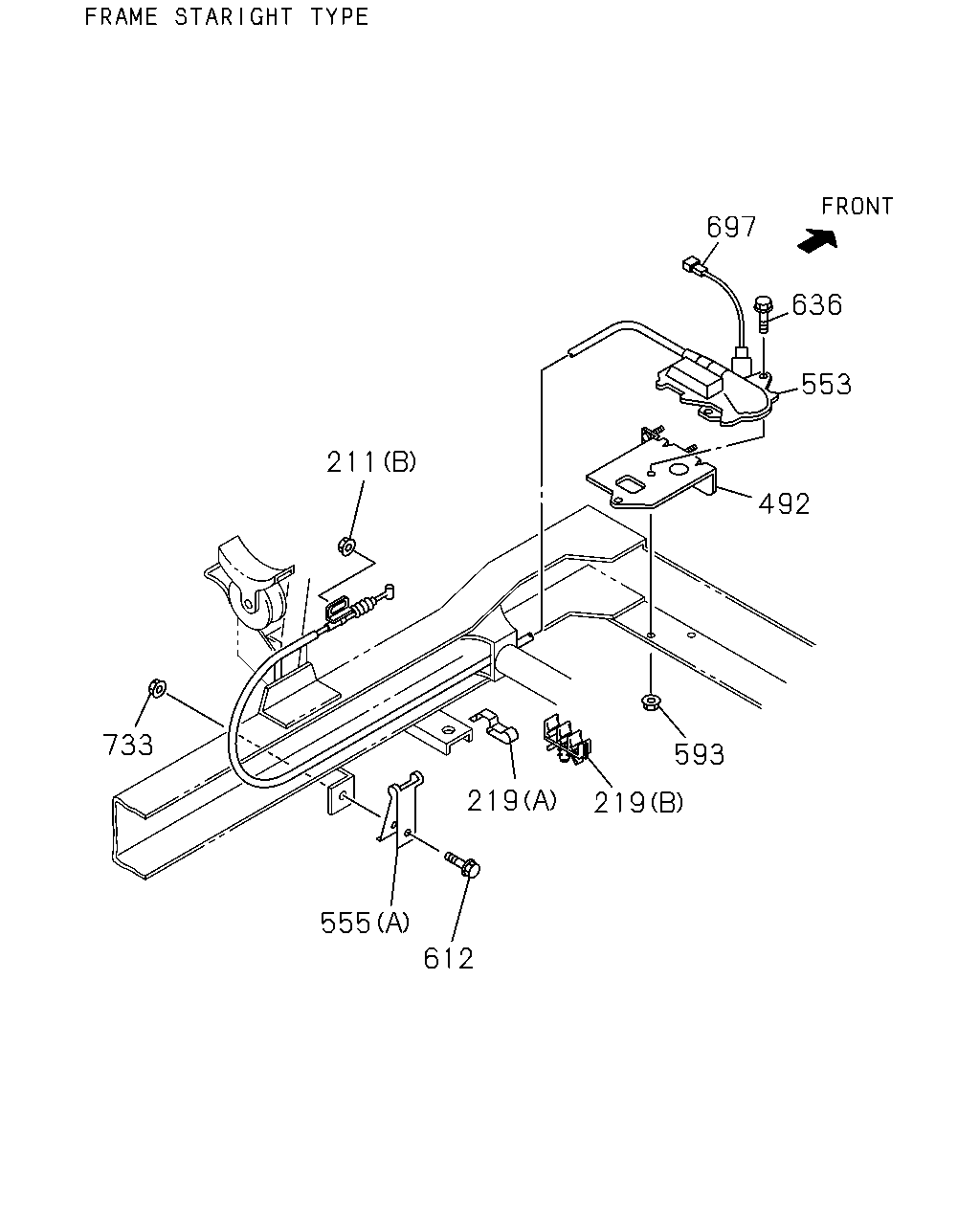

697 636 553 211 492 733 593 219 219 555 612

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0211-0501	●	●
211	02.343 NUT; CABLE FIX EXC. ENGINE POWER N-SPEC(7QV) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0211-0501			●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0502-0602	●		●	●
211	02.343 NUT; CABLE FIX 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0603-	●		●	●
211	02.343 NUT; CABLE FIX CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0211-0309		●
211	02.343 NUT; CABLE FIX CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0310-0501		●
219	03.483 CLIP; ENG STOP CABLE 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	0211-0501	●	●
219	03.483 CLIP; ENG STOP CABLE EXC. ENGINE POWER N-SPEC(7QV) 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	0211-0501			●
219	03.483 CLIP; ENG STOP CABLE 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	0502-	●		●	●
219	03.483 CLIP; ENG STOP CABLE FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0211-0501	●	●
219	03.483 CLIP; ENG STOP CABLE FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 03.162 (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0211-0501			●
219	03.483 CLIP; ENG STOP CABLE FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0502-	●		●	●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (A) T=9 & 10.5	8-97041-091-0	01	1	0211-0501	●	●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.115 (A) T=9 & 10.5	8-97041-091-0	01	1	0211-0501			●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (A) T=9 & 10.5	8-97041-091-0	01	1	0502-	●		●	●
219	03.483 CLIP; ENG STOP CABLE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	0211-0501		●
492	03.483 BRACKET; ENG STOPPER FRAME STRAIGHT TYPE<7KJ>	8-97127-037-0	01	1	0211-0501	●	●
492	03.483 BRACKET; ENG STOPPER FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV)	8-97127-037-0	01	1	0211-0501			●
492	03.483 BRACKET; ENG STOPPER FRAME STRAIGHT TYPE<7KJ>	8-97127-037-0	01	1	0502-	●		●	●
492	03.483 BRACKET; ENG STOPPER EXC. FRAME STRAIGHT TYPE<7KJ> 03.485	8-97113-497-1	01	1	0211-0501	●	●
492	03.483 BRACKET; ENG STOPPER EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.485	8-97113-497-1	01	1	0211-0501			●
492	03.483 BRACKET; ENG STOPPER EXC. FRAME STRAIGHT TYPE<7KJ> 03.485	8-97113-497-1	01	1	0502-0808	●		●	●
492	03.483 BRACKET; ENG STOPPER EXC. FRAME STRAIGHT TYPE<7KJ> 03.485	8-97113-497-1	01	1	0809-	●		●	●
492	03.483 BRACKET; ENG STOPPER PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 03.485	8-97113-497-1	01	1	0809-					●	●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97255-069-0	01	1	0211-0501	●	●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV)	8-97255-069-0	01	1	0211-0501			●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ>	8-97255-069-0	01	1	0502-0502	●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ>	8-97255-069-1	01	1	0502-0506	●		●	●
553	03.485 MOTOR ASM; ENG STOP VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ>	8-97255-069-1	01	1	0507-	●		●	●
553	03.485 MOTOR ASM; ENG STOP EXC. FRAME STRAIGHT TYPE<7KJ>	8-97255-068-0	01	1	0211-0501	●	●
553	03.485 MOTOR ASM; ENG STOP EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV)	8-97255-068-0	01	1	0211-0501			●
553	03.485 MOTOR ASM; ENG STOP EXC. FRAME STRAIGHT TYPE<7KJ>	8-97255-068-1	01	1	0502-0506	●		●	●
553	03.485 MOTOR ASM; ENG STOP VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97255-068-1	01	1	0507-	●			●
553	03.485 MOTOR ASM; ENG STOP EXC. FRAME STRAIGHT TYPE<7KJ>	8-97255-068-1	01	1	0507-			●
553	03.485 MOTOR ASM; ENG STOP CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97255-071-0	01	1	0211-0501		●
555	03.485 BRACKET; ENG STOP (A)	8-97119-039-2	01	1	0211-0501	●	●
555	03.485 BRACKET; ENG STOP EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97119-039-2	01	1	0211-0501			●
555	03.485 BRACKET; ENG STOP (A)	8-97119-039-2	01	1	0502-	●		●	●
555	03.485 BRACKET; ENG STOP CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B)	8-97188-280-0	01	1	0211-0309		●
555	03.485 BRACKET; ENG STOP CHARGE AIR COOLER<6PL> (B)	8-97188-280-0	01	1	0310-0501		●
593	02.483 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501	●	●
593	02.483 NUT; BRKT EXC. ENGINE POWER N-SPEC(7QV) 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501			●
593	02.483 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602	●		●	●		●
593	02.483 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0808	●		●	●		●
593	02.483 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0809-	●		●	●
593	02.483 NUT; BRKT PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0809-					●	●
612	02.510 BOLT; BRKT 16.585 M8X20	1-09981-468-0	01	1	0211-0501	●	●
612	02.510 BOLT; BRKT EXC. ENGINE POWER N-SPEC(7QV) 16.585 M8X20	1-09981-468-0	01	1	0211-0501			●
612	02.510 BOLT; BRKT 16.585 M8X20	1-09981-468-0	01	1	0502-	●		●	●
636	02.510 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501	●	●
636	02.510 BOLT; BRKT EXC. ENGINE POWER N-SPEC(7QV) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501			●
636	02.510 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512	●		●	●
636	02.510 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●		●	●
697	03.726 HARNESS; CABLE FRAME STRAIGHT TYPE<7KJ>	8-97126-038-0	01	1	0211-0501	●	●
697	03.726 HARNESS; CABLE FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV)	8-97126-038-0	01	1	0211-0501			●
697	03.726 HARNESS; CABLE FRAME STRAIGHT TYPE<7KJ>	8-97126-038-0	01	1	0502-	●		●	●
733	02.343 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●
733	02.343 NUT; BRKT EXC. ENGINE POWER N-SPEC(7QV) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501			●
733	02.343 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●		●	●
733	02.343 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●		●	●

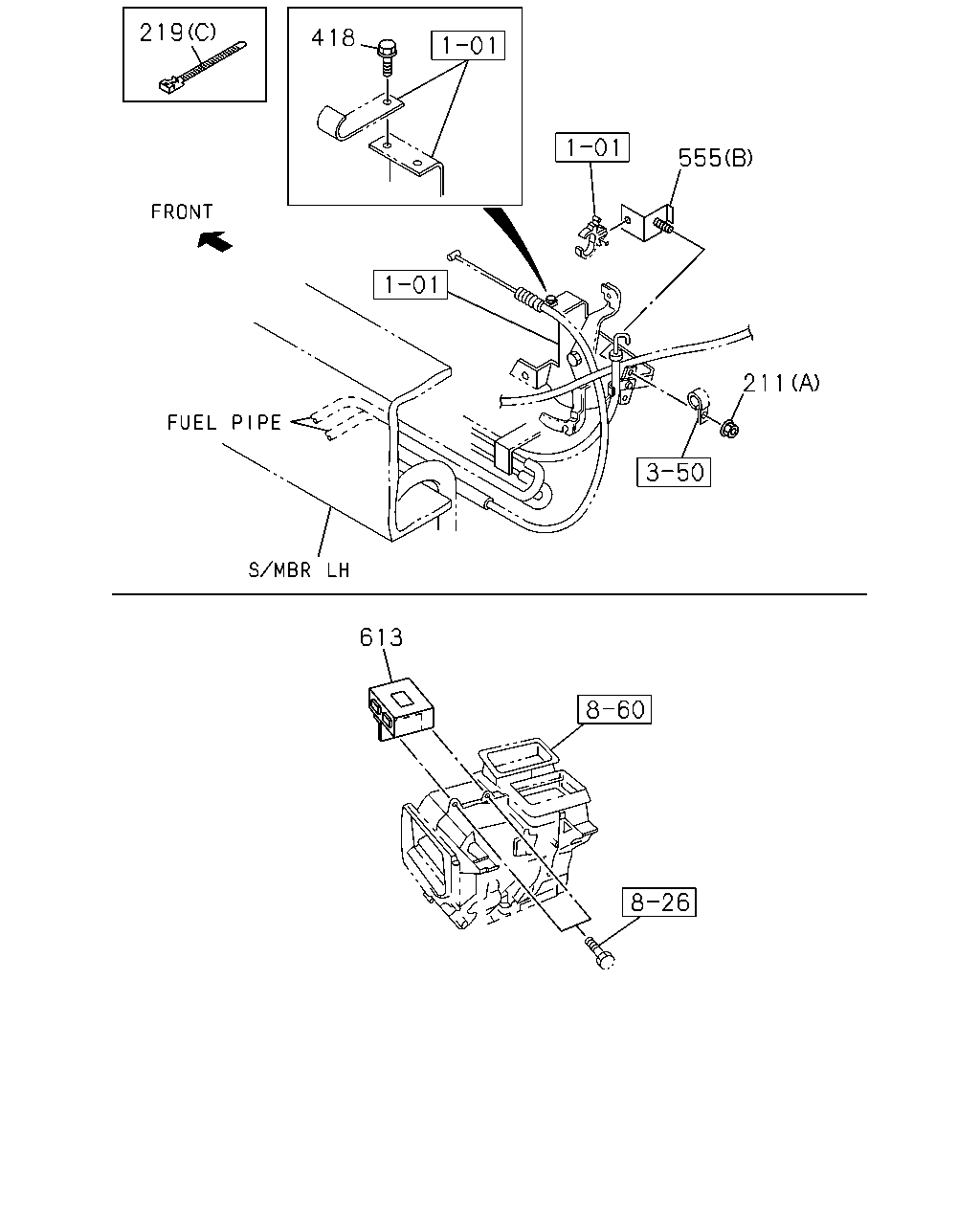

219 418 555 211 613

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	G
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0211-0501	●	●
211	02.343 NUT; CABLE FIX EXC. ENGINE POWER N-SPEC(7QV) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0211-0501			●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0502-0602	●		●	●
211	02.343 NUT; CABLE FIX 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0603-	●		●	●
211	02.343 NUT; CABLE FIX CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0211-0309		●
211	02.343 NUT; CABLE FIX CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0310-0501		●
219	03.483 CLIP; ENG STOP CABLE 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	0211-0501	●	●
219	03.483 CLIP; ENG STOP CABLE EXC. ENGINE POWER N-SPEC(7QV) 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	0211-0501			●
219	03.483 CLIP; ENG STOP CABLE 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	0502-	●		●	●
219	03.483 CLIP; ENG STOP CABLE FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0211-0501	●	●
219	03.483 CLIP; ENG STOP CABLE FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 03.162 (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0211-0501			●
219	03.483 CLIP; ENG STOP CABLE FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0502-	●		●	●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (A) T=9 & 10.5	8-97041-091-0	01	1	0211-0501	●	●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.115 (A) T=9 & 10.5	8-97041-091-0	01	1	0211-0501			●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (A) T=9 & 10.5	8-97041-091-0	01	1	0502-	●		●	●
219	03.483 CLIP; ENG STOP CABLE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	0211-0501		●
418	02.559 BOLT; CLIP CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0211-0309		●
418	02.559 BOLT; CLIP CHARGE AIR COOLER<6PL> M8X25 FLANGE	0-28680-825-0	01	1	0310-0501		●
555	03.485 BRACKET; ENG STOP (A)	8-97119-039-2	01	1	0211-0501	●	●
555	03.485 BRACKET; ENG STOP EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97119-039-2	01	1	0211-0501			●
555	03.485 BRACKET; ENG STOP (A)	8-97119-039-2	01	1	0502-	●		●	●
555	03.485 BRACKET; ENG STOP CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B)	8-97188-280-0	01	1	0211-0309		●
555	03.485 BRACKET; ENG STOP CHARGE AIR COOLER<6PL> (B)	8-97188-280-0	01	1	0310-0501		●
613	03.670 CONTROL UNIT; ENG DUAL RR TIRE(NPC***) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98000-597-6	01	1	0507-					●
613	03.670 CONTROL UNIT; ENG DUAL RR TIRE(NPC***) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-595-3	01	1	0507-0606					●
613	03.670 CONTROL UNIT; ENG EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-595-6	01	1	0607-					●
613	03.670 CONTROL UNIT; ENG DUAL RR TIRE(NPC***) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98000-596-1	01	1	0507-						●
613	03.670 CONTROL UNIT; ENG KD PREPARATORY PACK<6HF>	8-98000-594-2	01	1	0507-0508					●	●
613	03.670 CONTROL UNIT; ENG DUAL RR TIRE(NPC***) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-594-2	01	1	0507-0508						●
613	03.670 CONTROL UNIT; ENG DUAL RR TIRE(NPC***) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-594-6	01	1	0509-						●
613	03.670 CONTROL UNIT; ENG HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-594-6	01	1	0509-						●
613	03.670 CONTROL UNIT; ENG TURBOCHARGER(K51)	8-97187-466-5	01	1	0211-0501	●
613	03.670 CONTROL UNIT; ENG	8-97187-466-7	01	1	0502-				●
613	03.670 CONTROL UNIT; ENG CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2)	8-97223-183-1	01	1	0211-0501		●
613	03.670 CONTROL UNIT; ENG EURO2 SPECIFICATION(NT2) CHARGE AIR COOLER<6PL>	8-97223-182-1	01	1	0211-0501		●

636 553 492 211 593 219 733 555 612

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0211-0501	●	●
211	02.343 NUT; CABLE FIX EXC. ENGINE POWER N-SPEC(7QV) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0211-0501			●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0502-0602	●		●	●
211	02.343 NUT; CABLE FIX 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0603-	●		●	●
211	02.343 NUT; CABLE FIX CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0211-0309		●
211	02.343 NUT; CABLE FIX CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0310-0501		●
219	03.483 CLIP; ENG STOP CABLE 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	0211-0501	●	●
219	03.483 CLIP; ENG STOP CABLE EXC. ENGINE POWER N-SPEC(7QV) 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	0211-0501			●
219	03.483 CLIP; ENG STOP CABLE 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	0502-	●		●	●
219	03.483 CLIP; ENG STOP CABLE FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0211-0501	●	●
219	03.483 CLIP; ENG STOP CABLE FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 03.162 (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0211-0501			●
219	03.483 CLIP; ENG STOP CABLE FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0502-	●		●	●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (A) T=9 & 10.5	8-97041-091-0	01	1	0211-0501	●	●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.115 (A) T=9 & 10.5	8-97041-091-0	01	1	0211-0501			●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (A) T=9 & 10.5	8-97041-091-0	01	1	0502-	●		●	●
219	03.483 CLIP; ENG STOP CABLE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140	5-09707-031-1	01	1	0211-0501		●
492	03.483 BRACKET; ENG STOPPER FRAME STRAIGHT TYPE<7KJ>	8-97127-037-0	01	1	0211-0501	●	●
492	03.483 BRACKET; ENG STOPPER FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV)	8-97127-037-0	01	1	0211-0501			●
492	03.483 BRACKET; ENG STOPPER FRAME STRAIGHT TYPE<7KJ>	8-97127-037-0	01	1	0502-	●		●	●
492	03.483 BRACKET; ENG STOPPER EXC. FRAME STRAIGHT TYPE<7KJ> 03.485	8-97113-497-1	01	1	0211-0501	●	●
492	03.483 BRACKET; ENG STOPPER EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 03.485	8-97113-497-1	01	1	0211-0501			●
492	03.483 BRACKET; ENG STOPPER EXC. FRAME STRAIGHT TYPE<7KJ> 03.485	8-97113-497-1	01	1	0502-0808	●		●	●
492	03.483 BRACKET; ENG STOPPER EXC. FRAME STRAIGHT TYPE<7KJ> 03.485	8-97113-497-1	01	1	0809-	●		●	●
492	03.483 BRACKET; ENG STOPPER PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 03.485	8-97113-497-1	01	1	0809-					●	●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97255-069-0	01	1	0211-0501	●	●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV)	8-97255-069-0	01	1	0211-0501			●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ>	8-97255-069-0	01	1	0502-0502	●
553	03.485 MOTOR ASM; ENG STOP FRAME STRAIGHT TYPE<7KJ>	8-97255-069-1	01	1	0502-0506	●		●	●
553	03.485 MOTOR ASM; ENG STOP VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ>	8-97255-069-1	01	1	0507-	●		●	●
553	03.485 MOTOR ASM; ENG STOP EXC. FRAME STRAIGHT TYPE<7KJ>	8-97255-068-0	01	1	0211-0501	●	●
553	03.485 MOTOR ASM; ENG STOP EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV)	8-97255-068-0	01	1	0211-0501			●
553	03.485 MOTOR ASM; ENG STOP EXC. FRAME STRAIGHT TYPE<7KJ>	8-97255-068-1	01	1	0502-0506	●		●	●
553	03.485 MOTOR ASM; ENG STOP VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97255-068-1	01	1	0507-	●			●
553	03.485 MOTOR ASM; ENG STOP EXC. FRAME STRAIGHT TYPE<7KJ>	8-97255-068-1	01	1	0507-			●
553	03.485 MOTOR ASM; ENG STOP CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ>	8-97255-071-0	01	1	0211-0501		●
555	03.485 BRACKET; ENG STOP (A)	8-97119-039-2	01	1	0211-0501	●	●
555	03.485 BRACKET; ENG STOP EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97119-039-2	01	1	0211-0501			●
555	03.485 BRACKET; ENG STOP (A)	8-97119-039-2	01	1	0502-	●		●	●
555	03.485 BRACKET; ENG STOP CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B)	8-97188-280-0	01	1	0211-0309		●
555	03.485 BRACKET; ENG STOP CHARGE AIR COOLER<6PL> (B)	8-97188-280-0	01	1	0310-0501		●
593	02.483 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501	●	●
593	02.483 NUT; BRKT EXC. ENGINE POWER N-SPEC(7QV) 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501			●
593	02.483 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602	●		●	●		●
593	02.483 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0808	●		●	●		●
593	02.483 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0809-	●		●	●
593	02.483 NUT; BRKT PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0809-					●	●
612	02.510 BOLT; BRKT 16.585 M8X20	1-09981-468-0	01	1	0211-0501	●	●
612	02.510 BOLT; BRKT EXC. ENGINE POWER N-SPEC(7QV) 16.585 M8X20	1-09981-468-0	01	1	0211-0501			●
612	02.510 BOLT; BRKT 16.585 M8X20	1-09981-468-0	01	1	0502-	●		●	●
636	02.510 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501	●	●
636	02.510 BOLT; BRKT EXC. ENGINE POWER N-SPEC(7QV) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501			●
636	02.510 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512	●		●	●
636	02.510 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●		●	●
733	02.343 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●
733	02.343 NUT; BRKT EXC. ENGINE POWER N-SPEC(7QV) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501			●
733	02.343 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●		●	●
733	02.343 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●		●	●

613 606 748 154 782 796 611 820

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E	G
154	02.510 NUT; BRKT FIX 10.147 M6 W/DISHED WASHER	8-94423-325-0	04	1	0507-0611				●	●
154	02.510 NUT; BRKT FIX 04.115 M6 W/DISHED WASHER	8-98029-921-0	04	1	0612-				●	●
606	03.680 BRACKET; CONT UNIT	8-97369-871-1	01	1	0507-				●	●
611	01.150 BRACKET; SENSOR	8-97368-621-0	01	1	0507-				●	●
613	03.670 CONTROL UNIT; ENG DUAL RR TIRE(NPC***) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98000-597-6	01	1	0507-				●
613	03.670 CONTROL UNIT; ENG DUAL RR TIRE(NPC***) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-595-3	01	1	0507-0606				●
613	03.670 CONTROL UNIT; ENG EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-595-6	01	1	0607-				●
613	03.670 CONTROL UNIT; ENG DUAL RR TIRE(NPC***) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98000-596-1	01	1	0507-					●
613	03.670 CONTROL UNIT; ENG KD PREPARATORY PACK<6HF>	8-98000-594-2	01	1	0507-0508				●	●
613	03.670 CONTROL UNIT; ENG DUAL RR TIRE(NPC***) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-594-2	01	1	0507-0508					●
613	03.670 CONTROL UNIT; ENG DUAL RR TIRE(NPC***) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-594-6	01	1	0509-					●
613	03.670 CONTROL UNIT; ENG HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-594-6	01	1	0509-					●
613	03.670 CONTROL UNIT; ENG TURBOCHARGER(K51)	8-97187-466-5	01	1	0211-0501	●
613	03.670 CONTROL UNIT; ENG	8-97187-466-7	01	1	0502-			●
613	03.670 CONTROL UNIT; ENG CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2)	8-97223-183-1	01	1	0211-0501		●
613	03.670 CONTROL UNIT; ENG EURO2 SPECIFICATION(NT2) CHARGE AIR COOLER<6PL>	8-97223-182-1	01	1	0211-0501		●
748	02.500 BOLT; CONT UNIT 09.190 M6X30 FLANGE	0-28680-630-0	06	1	0507-0508				●	●
748	02.500 BOLT; CONT UNIT 10.450 M6X10	9-03800-610-0	03	1	0507-0604				●	●
748	02.500 BOLT; CONT UNIT M6X10	0-35050-610-0	03	1	0605-				●	●
782	02.510 BOLT; SENSOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0507-0512				●	●
782	02.510 BOLT; SENSOR 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-				●	●
796	01.150 SENSOR; MAP	8-09373-269-1	01	1	0507-0810				●	●
796	01.150 SENSOR; MAP	8-28139-775-0	01	1	0811-				●	●
820	01.150 SENSOR; INTAKE AIR TEMP	8-12146-830-0	01	1	0507-				●	●

46 10 10 645 46 578 578

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
10	02.100 RELAY; STARTER 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0507-					●		●
10	02.100 RELAY; STARTER 24V 50A	8-97264-947-0	01	1	0211-0501	●	●	●
10	02.100 RELAY; STARTER 24V 50A	8-97264-947-0	01	1	0502-0506	●		●	●		●
10	02.100 RELAY; STARTER 24V 50A	8-97264-947-0	01	1	0507-	●		●	●	●	●	●
46	02.510 RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	0211-0501	●	●	●
46	02.510 RELAY; GLOW PLUG FAST GLOW SYSTEM<KM6> 24V 50A	8-97173-947-0	01	1	0502-0506	●		●	●		●
46	02.510 RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	0507-	●		●
578	02.510 RELAY; CHARGE WARNING	8-97063-440-2	01	1	0211-0501	●	●	●
578	02.510 RELAY; CHARGE WARNING 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0502-0506	●		●	●		●
578	02.510 RELAY; CHARGE WARNING 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0507-	●		●	●	●	●	●
645	02.510 RELAY; ENG CONT 24V 30A MITSUBA	8-97238-540-0	01	1	0507-1402					●		●
645	02.510 RELAY; ENG CONT 02.485 24V 30A MITSUBA	8-98259-779-0	01	1	1403-					●		●

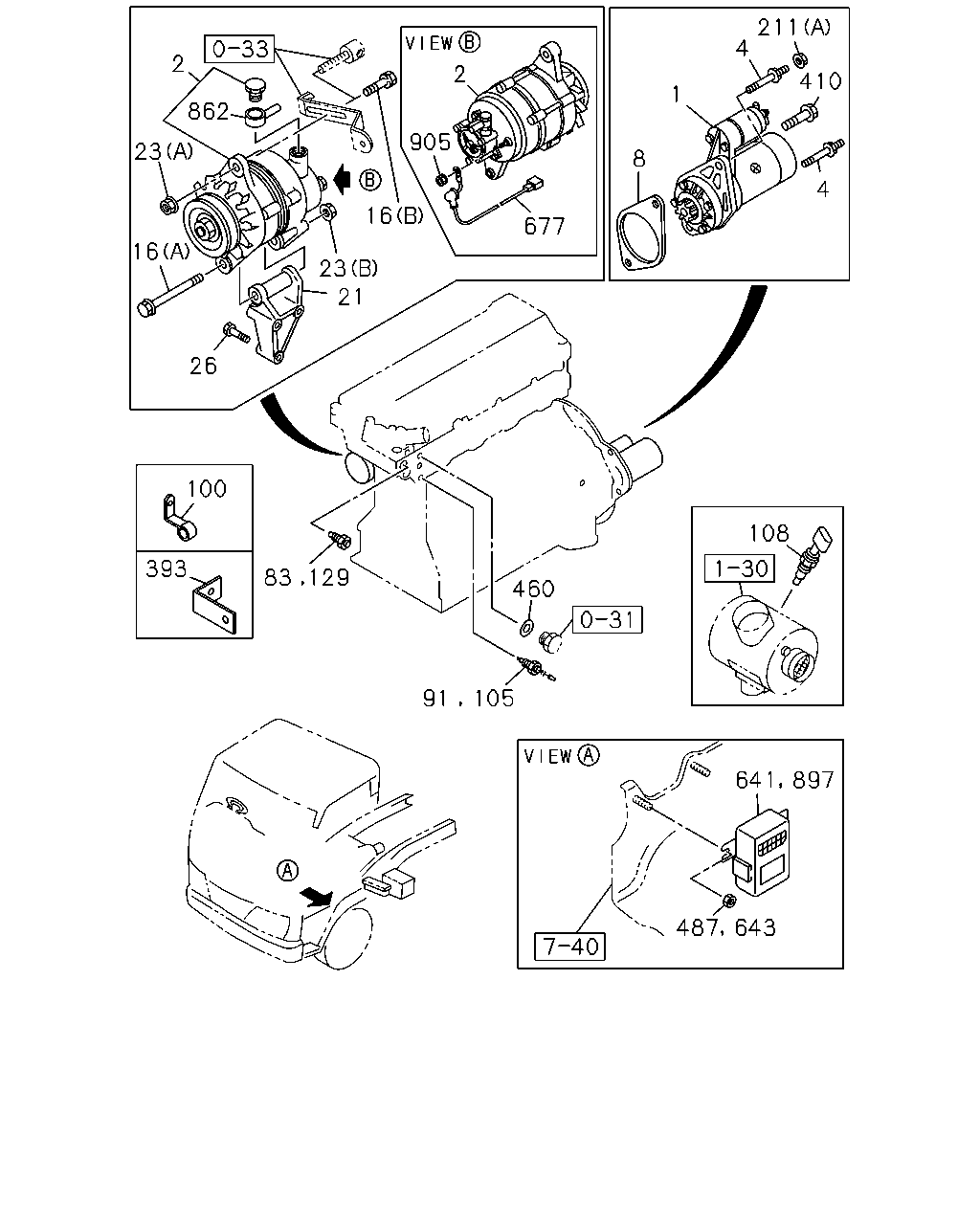

211 4 2 410 2 1 862 905 23 8 4 16 677 16 23 21 26 100 108 393 460 91 105 487 643 83 129 641 897

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97323-935-2	01	1	0211-0501	●	●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97323-935-4	01	1	0502-0506	●		●	●		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97323-935-4	01	1	0507-1207	●		●	●		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-97323-935-4	01	1	0507-1207					●		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-98222-019-0	01	1	1208-1311	●		●	●		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-98222-019-0	01	1	1208-1311					●		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-98245-259-1	01	1	1312-	●		●	●		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-98245-259-1	01	1	1312-					●		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI	8-97172-211-2	01	1	0211-0501	●	●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI	8-97172-211-2	01	1	0502-1006	●		●	●		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI	8-98055-279-1	01	1	1007-1207	●		●	●		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI	8-98222-018-2	01	1	1208-	●		●	●		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A	8-97300-353-0	01	1	0211-0304	●		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A HITACHI	8-97351-573-0	01	1	0305-0305	●		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) EXC. IDENTIFICATION LABEL FOR KD<6UT> 24V 60A HITACHI	8-97351-573-0	01	1	0306-0308	●		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A HITACHI	8-97351-573-0	01	1	0309-0501	●		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A HITACHI	8-97351-573-0	01	1	0502-0506	●		●	●		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A HITACHI	8-97351-573-0	01	1	0507-	●		●	●	●	●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) IDENTIFICATION LABEL FOR KD<6UT> 24V 60A	8-97300-353-0	01	1	0306-0308	●		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A	8-97186-551-1	01	1	0211-0304	●		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI	8-97351-572-0	01	1	0305-0305	●	●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2), IDENTIFICATION LABEL FOR KD<6UT> 24V 50A HITACHI	8-97351-572-0	01	1	0306-0308	●	●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI	8-97351-572-0	01	1	0309-0501	●	●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI	8-97351-572-0	01	1	0502-0506	●		●	●		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI	8-97351-572-1	01	1	0507-	●		●	●	●	●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> EXC. GENERATOR 24V60A(KG2) 24V 50A	8-97186-551-1	01	1	0306-0308	●		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A	8-97250-258-2	01	1	0211-0501		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A	8-97170-163-2	01	1	0211-0304		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> EXC. GENERATOR 24V60A(KG2) 24V 50A	8-97170-163-2	01	1	0306-0308		●
4	02.042 BOLT; STARTER M10X15,M14X75 L=103	8-97212-602-0	02	1	0211-0501	●	●	●
4	02.042 BOLT; STARTER M10X15,M14X75 L=103	8-97212-602-0	02	1	0502-0506	●		●	●		●
4	02.042 BOLT; STARTER M10X15,M14X75 L=103	8-97212-602-0	02	1	0507-	●		●	●	●	●	●
8	02.042 SPACER; STARTER M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97350-947-0	01	1	0507-					●
16	02.277 BOLT; GEN (A) M10X133	8-97146-998-0	01	1	0211-0501	●	●	●
16	02.277 BOLT; GEN (A) M10X133	8-97146-998-0	01	1	0502-0506	●		●	●		●
16	02.277 BOLT; GEN (A) M10X133	8-97146-998-0	01	1	0507-	●		●	●	●	●	●
16	02.277 BOLT; GEN EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER	8-97011-792-4	01	1	0211-0501	●	●	●
16	02.277 BOLT; GEN EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER	8-97011-792-4	01	1	0502-0506	●		●	●		●
16	02.277 BOLT; GEN EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER	8-97011-792-4	01	1	0507-	●		●	●	●	●	●
21	02.277 BRACKET; GEN	8-97075-884-2	01	1	0211-0501	●	●	●
21	02.277 BRACKET; GEN	8-97075-884-2	01	1	0502-0506	●		●	●		●
21	02.277 BRACKET; GEN	8-97075-884-2	01	1	0507-	●		●	●	●	●	●
23	02.277 NUT; GEN 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●
23	02.277 NUT; GEN 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0502-0506	●		●	●		●
23	02.277 NUT; GEN 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0507-0602	●		●	●	●	●	●
23	02.277 NUT; GEN 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●		●	●	●	●	●
23	02.277 NUT; GEN 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	0211-0501	●	●	●
23	02.277 NUT; GEN 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	0502-0506	●		●	●		●
23	02.277 NUT; GEN 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	0507-0602	●		●	●	●	●	●
23	02.277 NUT; GEN 04.085 (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●		●	●	●	●	●
26	02.277 BOLT; GEN BRKT 08.900 M10X50 FLANGE	0-28181-050-0	01	1	0211-0501	●	●	●
26	02.277 BOLT; GEN BRKT 08.900 M10X50 FLANGE	0-28181-050-0	01	1	0502-0506	●		●	●		●
26	02.277 BOLT; GEN BRKT 08.900 M10X50 FLANGE	0-28181-050-0	01	1	0507-0512	●		●	●	●	●	●
26	02.277 BOLT; GEN BRKT 02.042 M10X50 FLANGE	0-28151-050-0	01	1	0601-	●		●	●	●	●	●
26	02.277 BOLT; GEN BRKT 03.890 M10X70 FLANGE	0-28181-070-0	02	1	0211-0501	●	●	●
26	02.277 BOLT; GEN BRKT 03.890 M10X70 FLANGE	0-28181-070-0	02	1	0502-0506	●		●	●		●
26	02.277 BOLT; GEN BRKT 03.890 M10X70 FLANGE	0-28181-070-0	02	1	0507-0512	●		●	●	●	●	●
26	02.277 BOLT; GEN BRKT M10X70 FLANGE	0-28151-070-0	02	1	0601-	●		●	●	●	●	●
83	01.150 THERMOMETER UNIT EXC. TURBOCHARGER(K51) DENSO	8-94235-691-0	01	1	0211-0501	●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	0211-0501			●
83	01.150 THERMOMETER UNIT EXC. CHARGE AIR COOLER<6PL> DENSO	8-94235-691-0	01	1	0211-0501		●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	0502-	●		●			●
83	01.150 THERMOMETER UNIT EXC. TURBOCHARGER(K51) YAZAKI	8-94237-861-0	01	1	0211-0501	●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	0211-0501			●
83	01.150 THERMOMETER UNIT EXC. CHARGE AIR COOLER<6PL> YAZAKI	8-94237-861-0	01	1	0211-0501		●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	0502-	●		●			●
91	01.150 SWITCH; THERMO HTR CHARGE AIR COOLER<6PL> 03.883	8-97038-625-0	01	1	0211-0402		●
100	02.559 CLIP; HARNESS ID=11 L=20	9-09525-035-0	01	1	0507-0606					●		●
100	02.559 CLIP; HARNESS ID=11 L=20	0-95235-035-0	01	1	0607-					●		●
105	01.150 SWITCH; THERMO,QOS EXC. TURBOCHARGER(K51)	8-94121-152-1	01	1	0211-0501	●
105	01.150 SWITCH; THERMO,QOS	8-94121-152-1	01	1	0211-0501			●
105	01.150 SWITCH; THERMO,QOS EXC. CHARGE AIR COOLER<6PL>	8-94121-152-1	01	1	0211-0501		●
105	01.150 SWITCH; THERMO,QOS	8-94121-152-1	01	1	0502-	●		●			●
108	01.150 SWITCH; THERMO CHARGE AIR COOLER<6PL>	8-97189-295-0	01	1	0211-0501		●
129	01.150 SENSOR; GLOW PLUG,THERMO TURBOCHARGER(K51) HITACHI	8-97167-008-0	01	1	0211-0501	●
129	01.150 SENSOR; GLOW PLUG,THERMO CHARGE AIR COOLER<6PL> HITACHI	8-97167-008-0	01	1	0211-0501		●
129	01.150 SENSOR; GLOW PLUG,THERMO HITACHI	8-97167-008-0	01	1	0502-0506				●
129	01.150 SENSOR; GLOW PLUG,THERMO HITACHI	8-97167-008-0	01	1	0507-				●	●		●
129	01.150 SENSOR; GLOW PLUG,THERMO TURBOCHARGER(K51) TRANSTRON	8-97170-327-0	01	1	0211-0501	●
129	01.150 SENSOR; GLOW PLUG,THERMO CHARGE AIR COOLER<6PL> TRANSTRON	8-97170-327-0	01	1	0211-0501		●
129	01.150 SENSOR; GLOW PLUG,THERMO TRANSTRON	8-97170-327-0	01	1	0502-0506				●
129	01.150 SENSOR; GLOW PLUG,THERMO TRANSTRON	8-97170-327-0	01	1	0507-1007				●	●		●
129	01.150 SENSOR; GLOW PLUG,THERMO NIPPON THERMOSTAT	8-98023-717-0	01	1	1008-				●	●		●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0211-0501	●	●
211	02.343 NUT; CABLE FIX EXC. ENGINE POWER N-SPEC(7QV) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0211-0501			●
211	02.343 NUT; CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0502-0602	●		●	●
211	02.343 NUT; CABLE FIX 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0603-	●		●	●
211	02.343 NUT; CABLE FIX CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0211-0309		●
211	02.343 NUT; CABLE FIX CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0310-0501		●
393	02.343 BRACKET; HARNESS TO BODY DBL CAB(NP*W) EXH SYSTEM CHROME SINGLE VERTICAL TA IL PIPE<NC4>	8-97255-925-0	01	1	0507-					●
410	02.343 BOLT; BRKT,GRAND A/T 4 SPEED-AISIN(RNJ) 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	0211-0501		●
460	02.363 GASKET; PLUG TURBOCHARGER(K51) 04.868 ID=16.2	1-09630-086-0	01	1	0211-0501	●
460	02.363 GASKET; PLUG 04.868 ID=16.2	1-09630-086-0	01	1	0211-0501		●
460	02.363 GASKET; PLUG 04.868 ID=16.2	1-09630-086-0	01	1	0502-0506				●
460	02.363 GASKET; PLUG 04.868 ID=16.2	1-09630-086-0	01	1	0507-				●	●		●
487	02.343 NUT 04.594 M6 FLANGE	0-91150-106-0	02	1	0507-0602					●		●
487	02.343 NUT 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-					●		●
641	02.510 TIMER; QOS EXC. TURBOCHARGER(K51)	8-97215-648-0	01	1	0211-0301	●
641	02.510 TIMER; QOS	8-97215-648-0	01	1	0211-0301			●
641	02.510 TIMER; QOS EXC. CHARGE AIR COOLER<6PL>	8-97215-648-0	01	1	0211-0301		●
641	02.510 TIMER; QOS EXC. TURBOCHARGER(K51)	8-97361-318-0	01	1	0302-0501	●
641	02.510 TIMER; QOS	8-97361-318-0	01	1	0302-0501			●
641	02.510 TIMER; QOS EXC. CHARGE AIR COOLER<6PL>	8-97361-318-0	01	1	0302-0501		●
641	02.510 TIMER; QOS FAST GLOW SYSTEM<KM6>	8-97361-318-3	01	1	0502-	●		●			●
643	02.510 NUT; TIMER,QOS EXC. TURBOCHARGER(K51) 04.594 M6 FLANGE	0-91150-106-0	02	1	0211-0501	●
643	02.510 NUT; TIMER,QOS 04.594 M6 FLANGE	0-91150-106-0	02	1	0211-0501			●
643	02.510 NUT; TIMER,QOS EXC. CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE	0-91150-106-0	02	1	0211-0501		●
643	02.510 NUT; TIMER,QOS FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE	0-91150-106-0	02	1	0502-0602	●		●			●
643	02.510 NUT; TIMER,QOS FAST GLOW SYSTEM<KM6> 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-	●		●			●
677	02.277 HARNESS; GEN	8-97367-772-0	01	1	0507-					●		●
677	02.277 HARNESS; GEN EXC. GENERATOR 24V60A(KG2)	8-97367-772-0	01	1	0305-0305		●
677	02.277 HARNESS; GEN EXC. GENERATOR 24V60A(KG2), IDENTIFICATION LABEL FOR KD<6UT>	8-97367-772-0	01	1	0306-0308		●
677	02.277 HARNESS; GEN EXC. GENERATOR 24V60A(KG2)	8-97367-772-0	01	1	0309-0501		●
862	02.313 CONNECTOR; GEN	8-97351-627-0	01	1	0507-					●		●
862	02.313 CONNECTOR; GEN	8-97351-626-0	01	1	0305-0305	●		●
862	02.313 CONNECTOR; GEN EXC. GENERATOR 24V60A(KG2)	8-97351-626-0	01	1	0305-0305		●
862	02.313 CONNECTOR; GEN EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-97351-626-0	01	1	0306-0308	●		●
862	02.313 CONNECTOR; GEN EXC. GENERATOR 24V60A(KG2), IDENTIFICATION LABEL FOR KD<6UT>	8-97351-626-0	01	1	0306-0308		●
862	02.313 CONNECTOR; GEN	8-97351-626-0	01	1	0309-0501	●		●
862	02.313 CONNECTOR; GEN EXC. GENERATOR 24V60A(KG2)	8-97351-626-0	01	1	0309-0501		●
862	02.313 CONNECTOR; GEN	8-97351-626-0	01	1	0502-	●		●	●		●
897	02.510 DRM	8-98013-144-8	01	1	0507-1401					●		●
897	02.510 DRM	8-98260-912-1	01	1	1402-					●		●
905	02.559 NUT; HARNESS 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0507-					●		●
905	02.559 NUT; HARNESS EXC. GENERATOR 24V60A(KG2) 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0305-0305		●
905	02.559 NUT; HARNESS EXC. GENERATOR 24V60A(KG2), IDENTIFICATION LABEL FOR KD<6UT> 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0306-0308		●
905	02.559 NUT; HARNESS EXC. GENERATOR 24V60A(KG2) 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0309-0501		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
