Sayfa 0-57 - Isuzu EPC

0-57 — EMISSION PIPING (#42561) — 393 parça

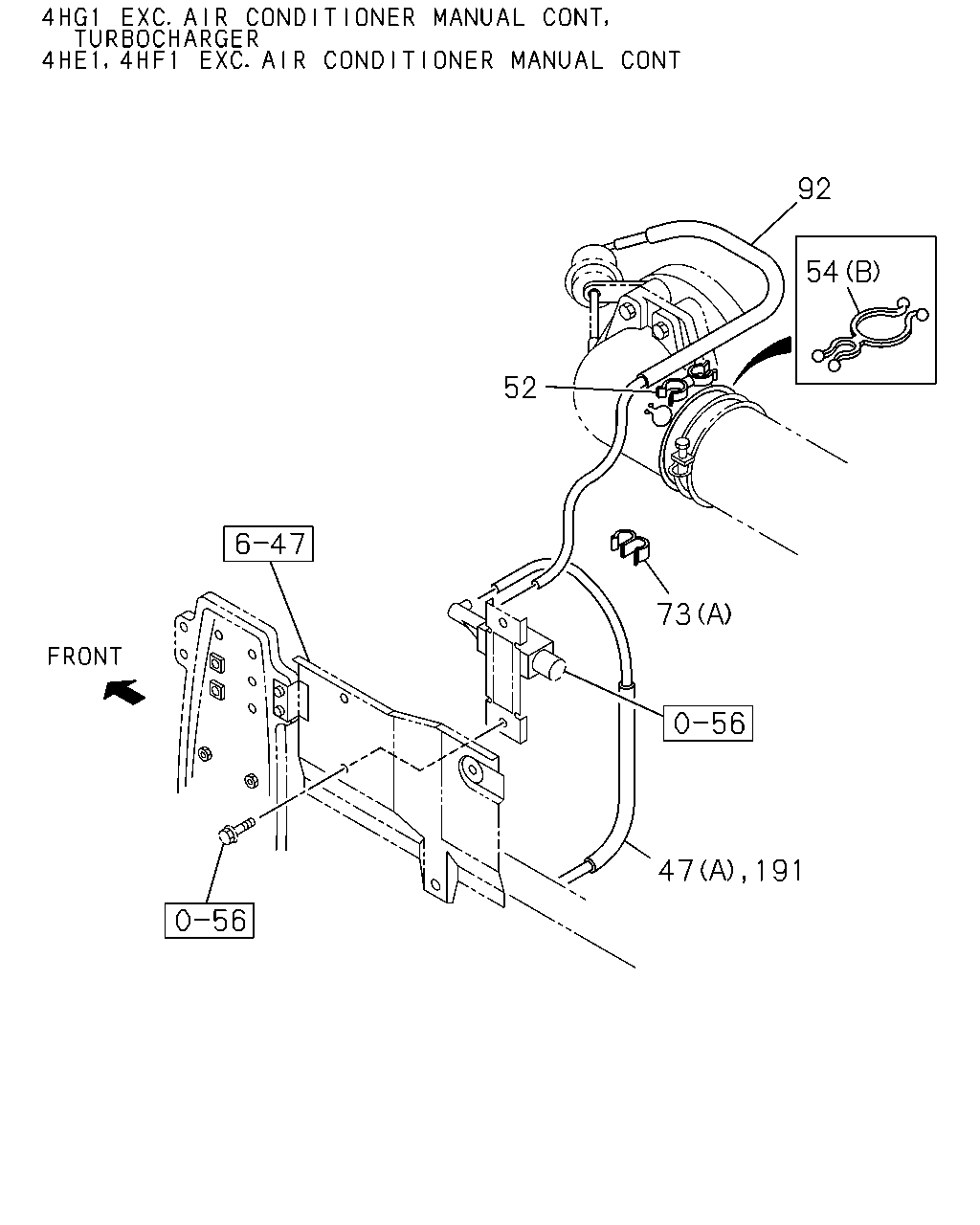

92 54 52 73 47 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 08.962 (B) L=200 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501	●	●
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=200 SERVICED BY L=3000	0-04730-300-0	01	1	0502-	●	●
47	03.675 HOSE; VAC,VSV EXC. TURBOCHARGER(K51) (A) L=310	8-97037-962-2	01	1	0211-0501	●	●
47	03.675 HOSE; VAC,VSV EXHAUST BRAKE<NF8> (A) L=310	8-97037-962-2	01	1	0502-	●	●	●
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) ENGINE POWER N-SPEC(7QV) 08.962 (B) L=360 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501		●
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=360 SERVICED BY L=3000	0-04730-300-0	01	1	0502-			●
52	03.680 CLIP; VSV HOSE EXC. TURBOCHARGER(K51) ID=7.5 & 7.5	8-97019-084-0	01	1	0211-0501	●	●
52	03.680 CLIP; VSV HOSE EXHAUST BRAKE<NF8> ID=7.5 & 7.5	8-97019-084-0	01	1	0502-	●	●	●
54	03.680 CLIP; 3 HOSE (C) L=350	8-97373-487-0	01	1	0507-				●	●
54	03.680 CLIP; 3 HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	02	1	0211-0501						●
54	03.680 CLIP; 3 HOSE EXC. CHARGE AIR COOLER<6PL> 03.407 (B)	8-94360-297-0	01	1	0211-0501						●
73	03.680 CLIP; VAC HOSE EXC. TURBOCHARGER(K51) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0211-0501	●
73	03.680 CLIP; VAC HOSE 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0211-0501		●
73	03.680 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0211-0501						●
73	03.680 CLIP; VAC HOSE EXC. AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	0211-0501						●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0502-	●	●	●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 03.162 (B) L=140	5-09707-031-1	03	1	0211-0501						●
73	03.680 CLIP; VAC HOSE HEATER & DEFROSTER(C41) CHARGE AIR COOLER<6PL> 02.559 (B) L=250	5-09707-030-1	02	1	0211-0501						●
92	03.675 HOSE; VAC,THROTTLE BODY EXC. TURBOCHARGER(K51)	8-97106-645-3	01	1	0211-0501	●	●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8>	8-97106-645-3	01	1	0502-	●	●	●
92	03.675 HOSE; VAC,THROTTLE BODY EXC. CHARGE AIR COOLER<6PL> L=415	8-97083-184-1	01	1	0211-0501						●
191	03.675 HOSE; RUBBER,3 WAY TO PIPE EXC. CHARGE AIR COOLER<6PL> L=310	8-97037-962-2	01	1	0211-0501						●

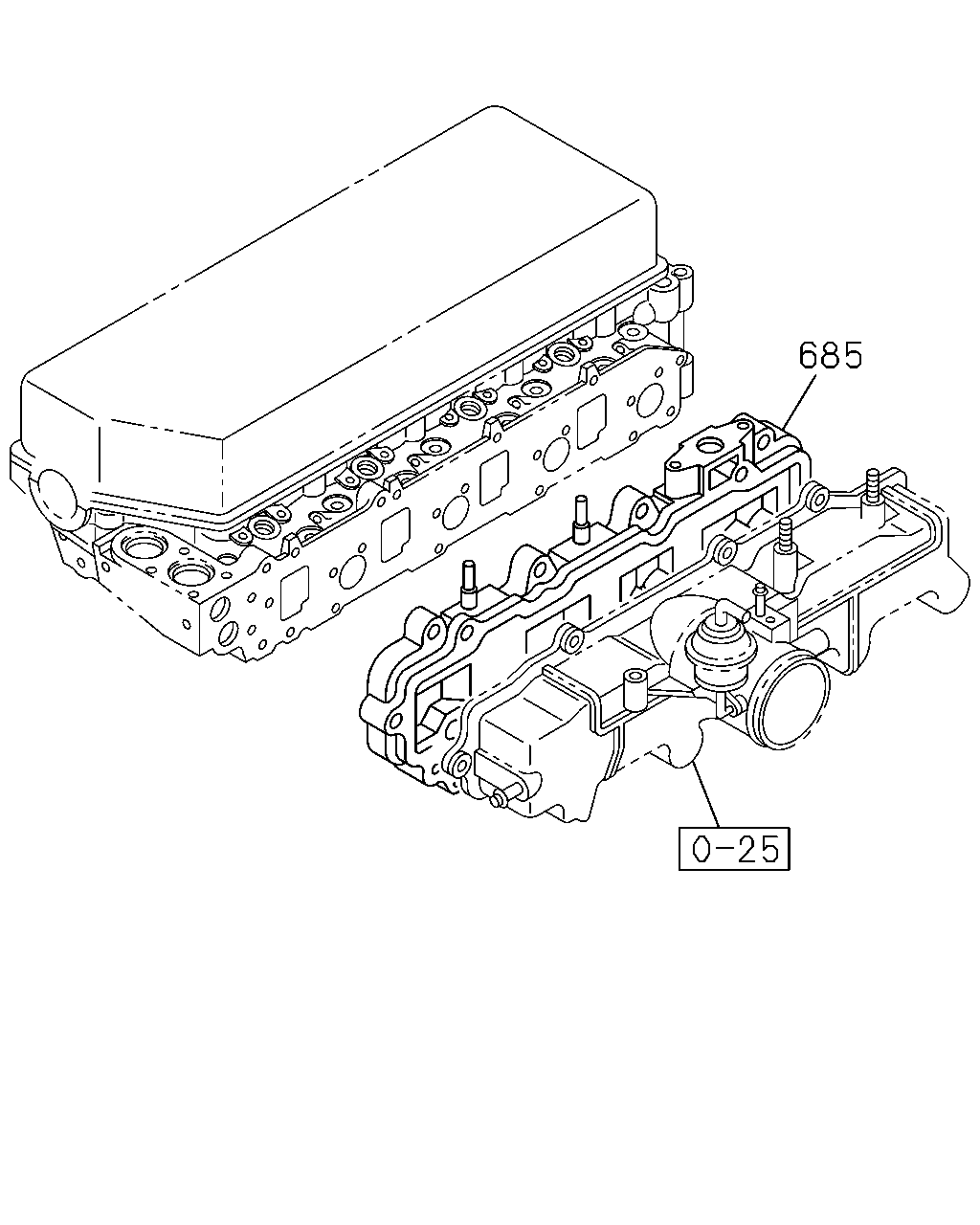

685

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	G
685	03.680 CASE; INLET,EGR	8-97146-872-1	01	1	0211-0501	●
685	03.680 CASE; INLET,EGR	8-97146-872-1	01	1	0502-				●
685	03.680 CASE; INLET,EGR EXC. TURBOCHARGER(K51)	8-97146-873-1	01	1	0211-0501	●
685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	0211-0501		●
685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	0502-	●	●	●

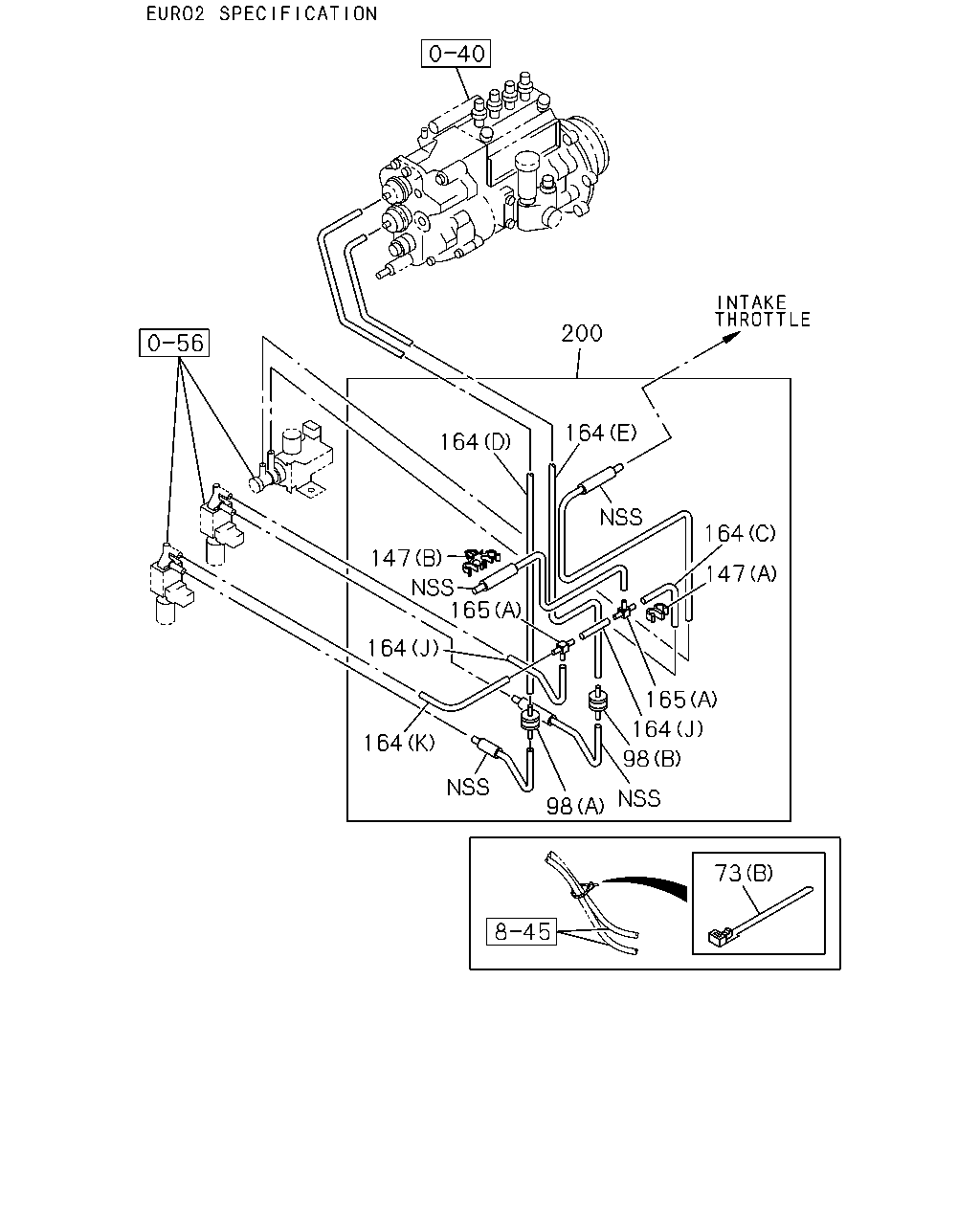

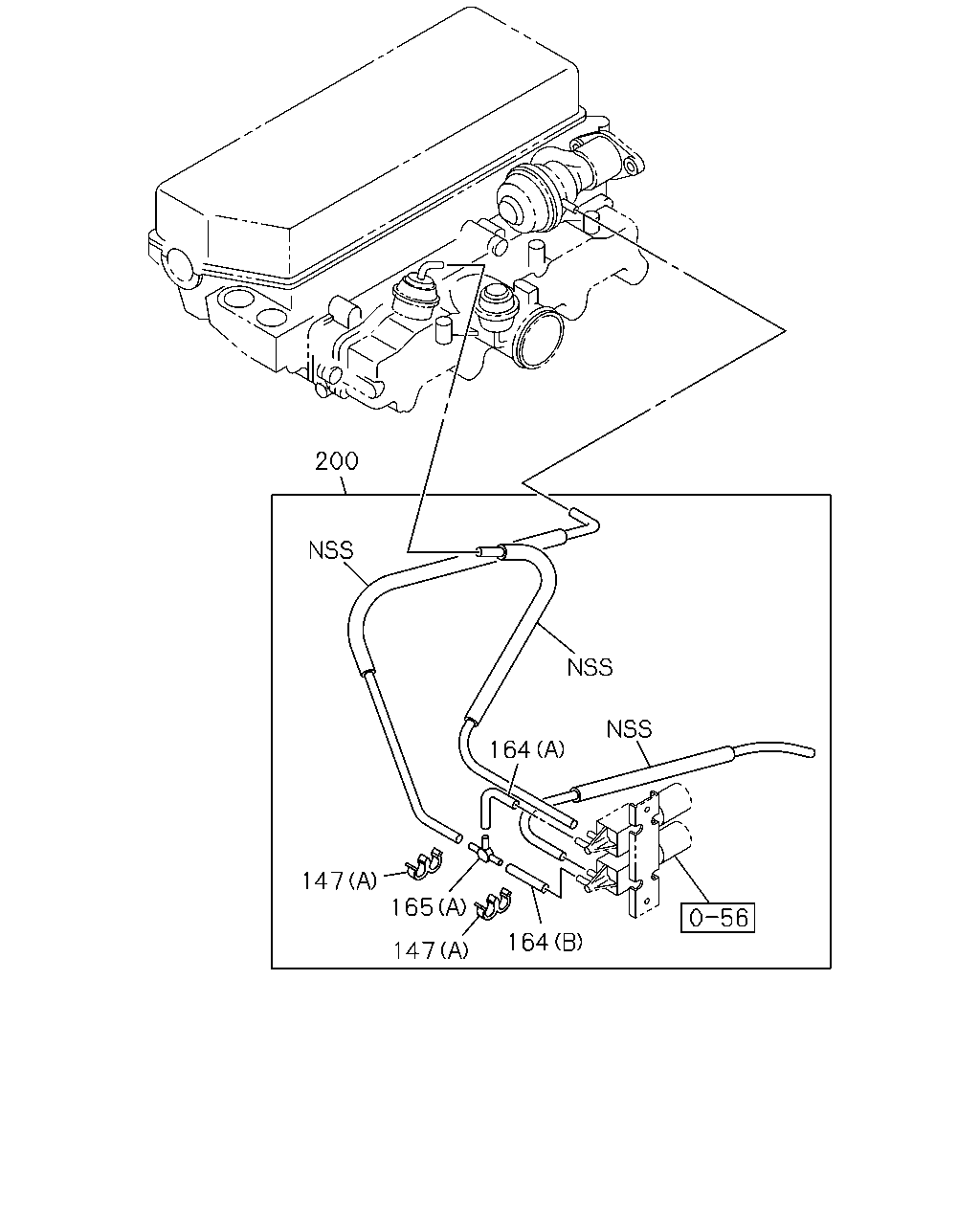

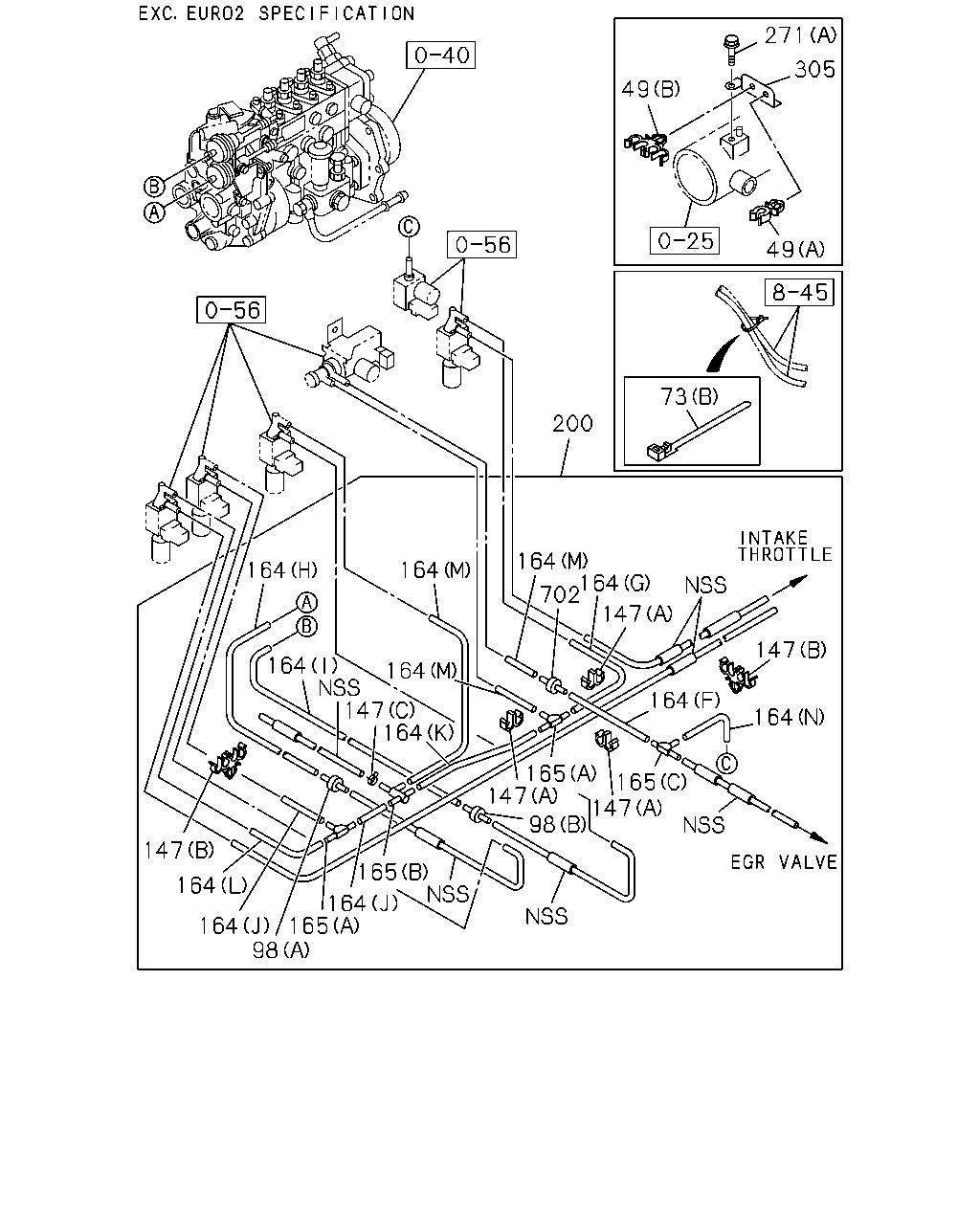

271 305 49 49 73 200 164 164 702 164 164 147 147 164 147 164 164 164 164 165 147 165 147 98 147 165 164 164 164 165 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
49	03.680 CLIP; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 03.162 (A)	8-94253-984-0	01	1	0211-0501						●
49	03.680 CLIP; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) (B) 4XID=6.7	8-94315-422-0	01	1	0211-0501						●
73	03.680 CLIP; VAC HOSE EXC. TURBOCHARGER(K51) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0211-0501	●
73	03.680 CLIP; VAC HOSE 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0211-0501		●
73	03.680 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0211-0501						●
73	03.680 CLIP; VAC HOSE EXC. AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	0211-0501						●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0502-	●	●	●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 03.162 (B) L=140	5-09707-031-1	03	1	0211-0501						●
73	03.680 CLIP; VAC HOSE HEATER & DEFROSTER(C41) CHARGE AIR COOLER<6PL> 02.559 (B) L=250	5-09707-030-1	02	1	0211-0501						●
98	03.670 VALVE; DELAY CHARGE AIR COOLER<6PL> (A)	8-94110-978-0	01	1	0211-0501						●
98	03.670 VALVE; DELAY CHARGE AIR COOLER<6PL> 03.415 (B) PINK	8-94145-108-0	01	1	0211-0501						●
147	03.680 CLIP; RUBBER HOSE TURBOCHARGER(K51) 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	0211-0501	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	0211-0501						●
147	03.680 CLIP; RUBBER HOSE 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	0502-							●
147	03.680 CLIP; RUBBER HOSE TURBOCHARGER(K51) 02.251 (A) 4XID=6.8	8-94132-799-0	01	1	0211-0501	●
147	03.680 CLIP; RUBBER HOSE 02.251 (A) 4XID=6.8	8-94132-799-0	01	1	0502-							●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0211-0501						●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) (B) 4XID=6.7	8-94315-422-0	01	1	0211-0501						●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) (C) ID=7	8-94208-596-0	01	1	0211-0501						●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) (B) 4XID=6.7	8-94315-422-0	02	1	0211-0501						●
164	03.675 HOSE; RUBBER TURBOCHARGER(K51) 08.962 (A) L=65 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501	●
164	03.675 HOSE; RUBBER 08.962 (A) L=65 SERVICED BY L=3000	0-04730-300-0	01	1	0502-							●
164	03.675 HOSE; RUBBER TURBOCHARGER(K51) 08.962 (B) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501	●
164	03.675 HOSE; RUBBER 08.962 (B) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	0502-							●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (J) L=30 SERVICED BY L=3000	0-04730-300-0	02	1	0211-0501						●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (K) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501						●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) 08.962 (C) L=70 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501						●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) 08.962 (D) L=230 SERVICED BY L=3000	0-04731-300-0	01	1	0211-0501						●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) 08.962 (E) L=260 SERVICED BY L=3000	0-04732-300-0	01	1	0211-0501						●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 08.962 (L) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501						●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 08.962 (M) L=50 SERVICED BY L=3000	0-04730-300-0	03	1	0211-0501						●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 08.962 (N) L=60 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501						●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 08.962 (F) L=80 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501						●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 08.962 (G) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501						●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 08.962 (H) L=250 SERVICED BY L=3000	0-04731-300-0	01	1	0211-0501						●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 08.962 (I) L=280 SERVICED BY L=3000	0-04732-300-0	01	1	0211-0501						●
165	03.680 JOINT; HOSE TURBOCHARGER(K51) (A) 3WAY	8-94208-695-0	01	1	0211-0501	●
165	03.680 JOINT; HOSE (A) 3WAY	8-94208-695-0	01	1	0502-							●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> (A) 3WAY	8-94208-695-0	02	1	0211-0501						●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 03.670 (B) 4WAY	8-94100-256-0	01	1	0211-0501						●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 03.145 (C) 3WAY	8-94237-690-0	01	1	0211-0501						●
200	03.675 HOSE; VAC TURBOCHARGER(K51)	8-97207-666-2	01	1	0211-0501	●
200	03.675 HOSE; VAC	8-97207-666-2	01	1	0502-							●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2)	8-97182-890-4	01	1	0211-0501						●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2)	8-97182-709-6	01	1	0211-0501						●
271	03.675 BOLT; BRKT 00.685 (B) M12X45 FLANGE	0-28181-245-0	01	1	0507-0512				●	●
271	03.675 BOLT; BRKT 00.685 (B) M12X45 FLANGE	0-28151-245-0	01	1	0601-				●	●
271	03.675 BOLT; BRKT 00.002 (B) M8X25 FLANGE	0-28690-825-0	01	1	0507-0512				●	●
271	03.675 BOLT; BRKT 02.277 (B) M8X25 FLANGE	0-28660-825-0	01	1	0601-				●	●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 02.500 (A) M6X10 FLANGE	0-28080-610-0	01	1	0211-0501						●
305	03.675 BRACKET; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2)	8-97182-758-0	01	1	0211-0501						●
702	03.670 VALVE; DERIVERY CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2)	8-97145-713-0	01	1	0211-0501						●

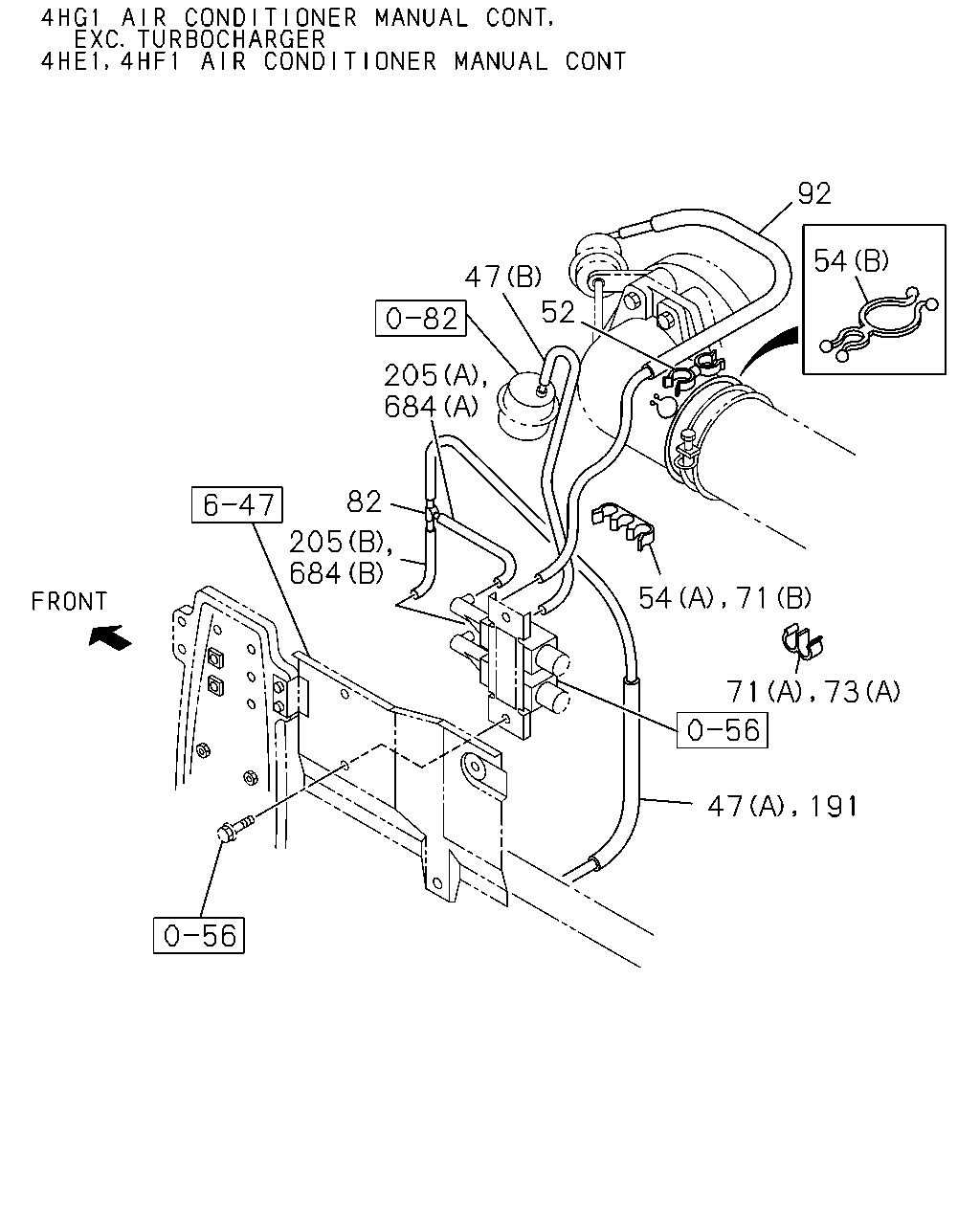

92 54 47 52 205 684 82 205 684 54 71 71 73 47 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 08.962 (B) L=200 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501	●	●
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=200 SERVICED BY L=3000	0-04730-300-0	01	1	0502-	●	●
47	03.675 HOSE; VAC,VSV EXC. TURBOCHARGER(K51) (A) L=310	8-97037-962-2	01	1	0211-0501	●	●
47	03.675 HOSE; VAC,VSV EXHAUST BRAKE<NF8> (A) L=310	8-97037-962-2	01	1	0502-	●	●	●
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) ENGINE POWER N-SPEC(7QV) 08.962 (B) L=360 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501		●
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=360 SERVICED BY L=3000	0-04730-300-0	01	1	0502-			●
52	03.680 CLIP; VSV HOSE EXC. TURBOCHARGER(K51) ID=7.5 & 7.5	8-97019-084-0	01	1	0211-0501	●	●
52	03.680 CLIP; VSV HOSE EXHAUST BRAKE<NF8> ID=7.5 & 7.5	8-97019-084-0	01	1	0502-	●	●	●
54	03.680 CLIP; 3 HOSE (C) L=350	8-97373-487-0	01	1	0507-				●	●
54	03.680 CLIP; 3 HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	02	1	0211-0501						●
54	03.680 CLIP; 3 HOSE EXC. CHARGE AIR COOLER<6PL> 03.407 (B)	8-94360-297-0	01	1	0211-0501						●
71	03.680 CLIP; RUBBER HOSE 03.886 (C) ID=7.2	8-94163-380-0	01	1	0507-				●	●
71	03.680 CLIP; RUBBER HOSE 03.162 (D) ID=13.2 & 7.5	8-94315-426-0	01	1	0507-				●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0211-0501	●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0502-	●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (B) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	0211-0501	●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (B) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	0502-	●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) ENGINE POWER N-SPEC(7QV) (B) ID=6.8 & 6.8 & 6.8	8-94208-734-0	02	1	0211-0501		●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (B) ID=6.8 & 6.8 & 6.8	8-94208-734-0	02	1	0502-			●
73	03.680 CLIP; VAC HOSE EXC. TURBOCHARGER(K51) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0211-0501	●
73	03.680 CLIP; VAC HOSE 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0211-0501		●
73	03.680 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0211-0501						●
73	03.680 CLIP; VAC HOSE EXC. AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	0211-0501						●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0502-	●	●	●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 03.162 (B) L=140	5-09707-031-1	03	1	0211-0501						●
73	03.680 CLIP; VAC HOSE HEATER & DEFROSTER(C41) CHARGE AIR COOLER<6PL> 02.559 (B) L=250	5-09707-030-1	02	1	0211-0501						●
82	03.680 JOINT; 3 WAY AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER(K51) 3WAY	8-94208-695-0	01	1	0211-0501	●	●
82	03.680 JOINT; 3 WAY AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 3WAY	8-94208-695-0	01	1	0211-0501						●
82	03.680 JOINT; 3 WAY AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 3WAY	8-94208-695-0	01	1	0502-	●	●	●
92	03.675 HOSE; VAC,THROTTLE BODY EXC. TURBOCHARGER(K51)	8-97106-645-3	01	1	0211-0501	●	●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8>	8-97106-645-3	01	1	0502-	●	●	●
92	03.675 HOSE; VAC,THROTTLE BODY EXC. CHARGE AIR COOLER<6PL> L=415	8-97083-184-1	01	1	0211-0501						●
191	03.675 HOSE; RUBBER,3 WAY TO PIPE EXC. CHARGE AIR COOLER<6PL> L=310	8-97037-962-2	01	1	0211-0501						●
205	03.675 HOSE; VSV TO 3 WAY CONN AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501						●
205	03.675 HOSE; VSV TO 3 WAY CONN AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501						●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER(K51) 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501	●	●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	0502-	●	●	●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER(K51) 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501	●	●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	0502-	●	●	●

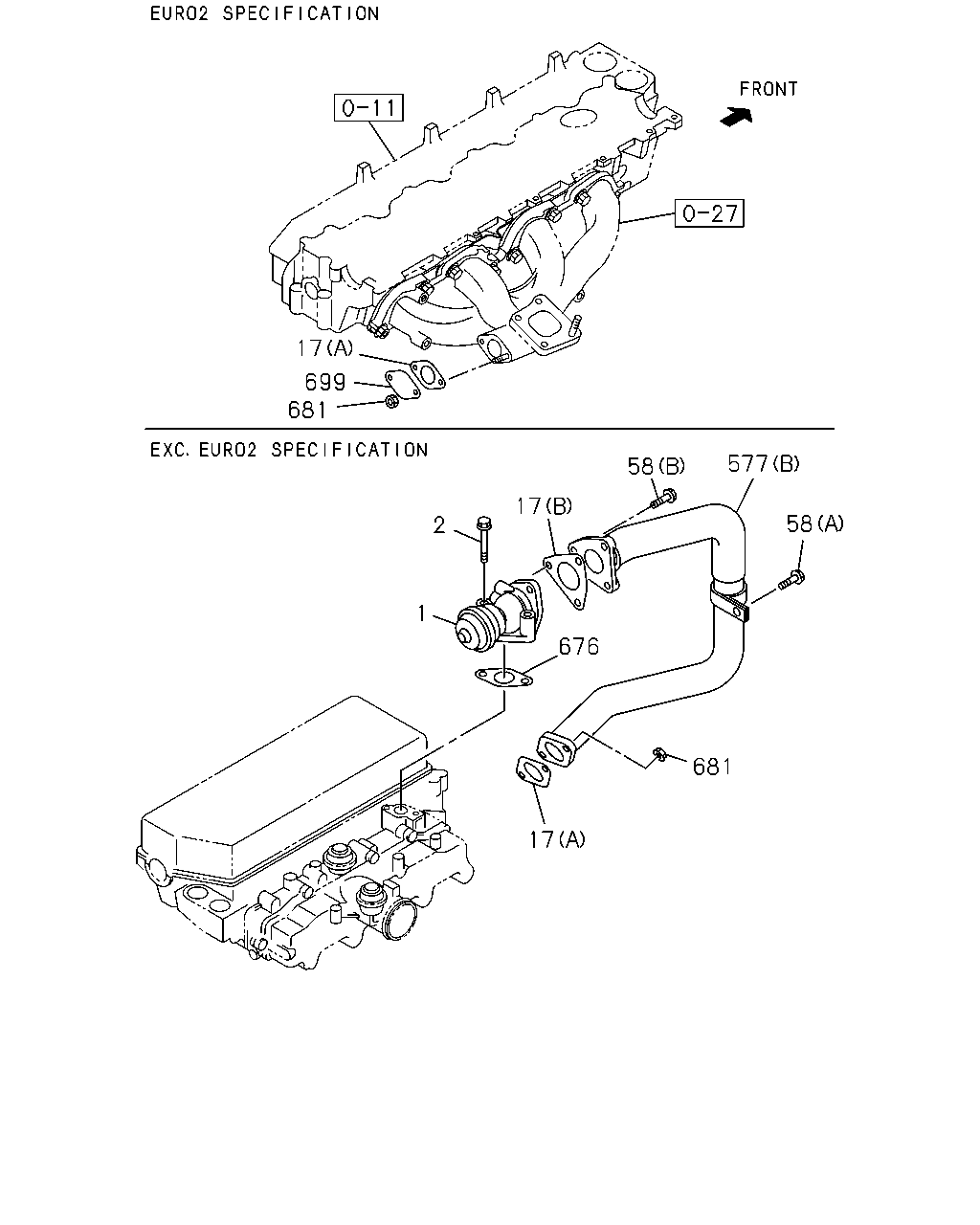

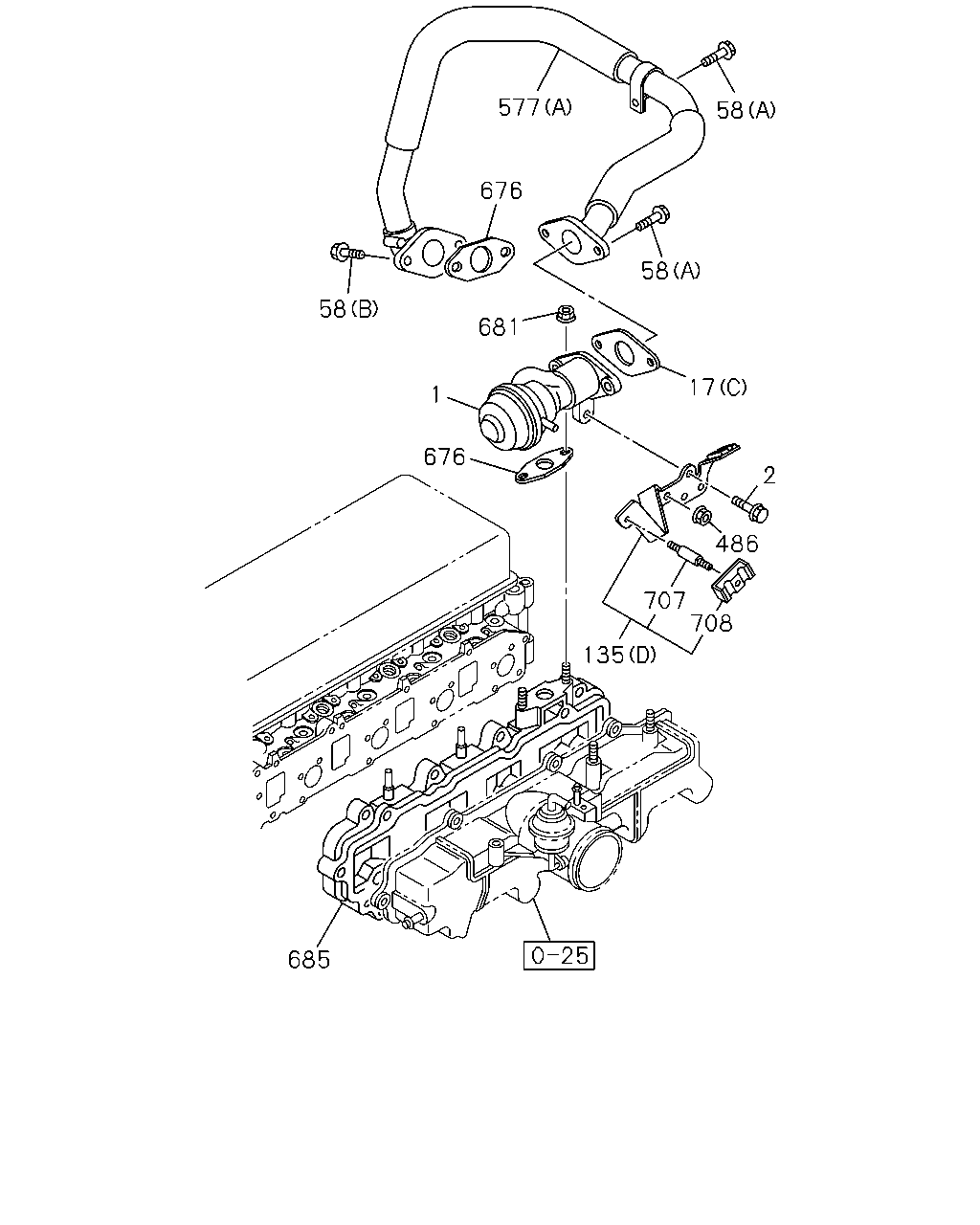

577 58 676 58 58 681 17 1 676 2 486 707 708 135 685

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.670 VALVE; EGR	8-97379-625-6	01	1	0507-				●	●
1	03.670 VALVE; EGR	8-97115-533-3	01	1	0211-0501	●
1	03.670 VALVE; EGR	8-97115-533-3	01	1	0502-							●
1	03.670 VALVE; EGR CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2)	8-97135-088-4	01	1	0211-0501						●
2	03.670 BOLT; EGR VLV 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512				●	●
2	03.670 BOLT; EGR VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-				●	●
2	03.670 BOLT; EGR VLV 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0211-0501	●
2	03.670 BOLT; EGR VLV 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0502-0512							●
2	03.670 BOLT; EGR VLV 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-							●
2	03.670 BOLT; EGR VLV CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 09.171 M8X80 FLANGE	0-28080-880-0	02	1	0211-0501						●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-97213-386-0	01	1	0507-				●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F)	8-97367-062-0	01	1	0507-1005				●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F)	8-98036-507-0	01	1	1006-				●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (G)	8-97367-918-0	01	1	0507-				●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97375-980-1	01	1	0507-				●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97113-023-0	01	1	0211-0501	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97113-023-0	01	1	0502-							●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A)	8-94340-670-0	01	1	0211-0501						●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) (B)	8-97166-993-0	01	1	0211-0501						●
58	03.417 BOLT; PIPE 01.540 (C) M8X45 FLANGE	0-28080-845-0	02	1	0507-0512				●	●
58	03.417 BOLT; PIPE 09.173 (C) M8X45 FLANGE	0-28050-845-0	02	1	0601-				●	●
58	03.417 BOLT; PIPE 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0507-0508				●	●
58	03.417 BOLT; PIPE 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0509-0512				●	●
58	03.417 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-				●	●
58	03.417 BOLT; PIPE 02.664 (A) M8X20 FLANGE	0-28680-820-0	03	1	0211-0501	●
58	03.417 BOLT; PIPE 02.664 (A) M8X20 FLANGE	0-28680-820-0	03	1	0502-0512							●
58	03.417 BOLT; PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-							●
58	03.417 BOLT; PIPE 03.670 (B) M8X23 FLANGE	8-94103-629-2	02	1	0211-0408	●
58	03.417 BOLT; PIPE TURBOCHARGER(K51) (B) M8X23 FLANGE	8-97378-077-0	02	1	0409-0501	●
58	03.417 BOLT; PIPE (B) M8X23 FLANGE	8-97378-077-0	02	1	0502-							●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0211-0501						●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0211-0501						●
135	03.680 BRACKET; EGR (A)	8-97310-498-2	01	1	0507-				●	●
135	03.680 BRACKET; EGR (C)	8-97375-952-0	01	1	0507-				●	●
135	03.680 BRACKET; EGR (B)	8-97376-723-0	01	1	0507-				●	●
135	03.680 BRACKET; EGR (D)	8-97221-358-1	01	1	0211-0501	●
135	03.680 BRACKET; EGR (D)	8-97221-358-1	01	1	0502-							●
486	03.671 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●
486	03.671 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602							●
486	03.671 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-							●
577	03.675 PIPE; AIR,EGR (C)	8-98032-795-1	01	1	0602-				●	●
577	03.675 PIPE; AIR,EGR (C)	8-97310-501-3	01	1	0507-0601				●	●
577	03.675 PIPE; AIR,EGR (D)	8-97329-211-2	01	1	0507-				●	●
577	03.675 PIPE; AIR,EGR (A)	8-97200-643-2	01	1	0211-0501	●
577	03.675 PIPE; AIR,EGR (A)	8-97200-643-2	01	1	0502-							●
577	03.675 PIPE; AIR,EGR CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) (B)	8-97148-952-3	01	1	0211-0501						●
676	03.417 GASKET; PIPE	8-97146-683-0	02	1	0211-0501	●
676	03.417 GASKET; PIPE	8-97146-683-0	02	1	0502-							●
676	03.417 GASKET; PIPE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2), ENGINEPOWER N-SPEC(7QV)	8-97190-508-0	01	1	0211-0501						●
676	03.417 GASKET; PIPE CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. EURO2 SPECIFICATION(NT2)	8-97170-683-0	01	1	0211-0501						●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	0507-0602				●	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-				●	●
681	03.671 NUT; EGR PIPE 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●
681	03.671 NUT; EGR PIPE 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602							●
681	03.671 NUT; EGR PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-							●
681	03.671 NUT; EGR PIPE CHARGE AIR COOLER<6PL> 03.613 M8 FLANGE	8-97061-401-1	02	1	0211-0501						●
685	03.680 CASE; INLET,EGR	8-97146-872-1	01	1	0211-0501	●
685	03.680 CASE; INLET,EGR	8-97146-872-1	01	1	0502-							●
685	03.680 CASE; INLET,EGR EXC. TURBOCHARGER(K51)	8-97146-873-1	01	1	0211-0501	●
685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	0211-0501		●
685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	0502-	●	●	●
707	03.162 STUD; CLIP,INJ PIPE M6X25 L=36	8-97214-234-0	01	1	0211-0501	●
707	03.162 STUD; CLIP,INJ PIPE M6X25 L=36	8-97214-234-1	01	1	0502-							●
708	03.162 CLIP; PIPE,INJ	8-97213-481-0	01	1	0211-0501	●
708	03.162 CLIP; PIPE,INJ	8-97213-481-0	01	1	0502-							●

200 164 164 164 147 147 165 164 165 164 164 98 98 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	F	G
73	03.680 CLIP; VAC HOSE EXC. TURBOCHARGER(K51) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0211-0501	●
73	03.680 CLIP; VAC HOSE 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0211-0501		●
73	03.680 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0211-0501				●
73	03.680 CLIP; VAC HOSE EXC. AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	0211-0501				●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0502-	●	●	●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 03.162 (B) L=140	5-09707-031-1	03	1	0211-0501				●
73	03.680 CLIP; VAC HOSE HEATER & DEFROSTER(C41) CHARGE AIR COOLER<6PL> 02.559 (B) L=250	5-09707-030-1	02	1	0211-0501				●
98	03.670 VALVE; DELAY CHARGE AIR COOLER<6PL> (A)	8-94110-978-0	01	1	0211-0501				●
98	03.670 VALVE; DELAY CHARGE AIR COOLER<6PL> 03.415 (B) PINK	8-94145-108-0	01	1	0211-0501				●
147	03.680 CLIP; RUBBER HOSE TURBOCHARGER(K51) 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	0211-0501	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	0211-0501				●
147	03.680 CLIP; RUBBER HOSE 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	0502-					●
147	03.680 CLIP; RUBBER HOSE TURBOCHARGER(K51) 02.251 (A) 4XID=6.8	8-94132-799-0	01	1	0211-0501	●
147	03.680 CLIP; RUBBER HOSE 02.251 (A) 4XID=6.8	8-94132-799-0	01	1	0502-					●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0211-0501				●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) (B) 4XID=6.7	8-94315-422-0	01	1	0211-0501				●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) (C) ID=7	8-94208-596-0	01	1	0211-0501				●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) (B) 4XID=6.7	8-94315-422-0	02	1	0211-0501				●
164	03.675 HOSE; RUBBER TURBOCHARGER(K51) 08.962 (A) L=65 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501	●
164	03.675 HOSE; RUBBER 08.962 (A) L=65 SERVICED BY L=3000	0-04730-300-0	01	1	0502-					●
164	03.675 HOSE; RUBBER TURBOCHARGER(K51) 08.962 (B) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501	●
164	03.675 HOSE; RUBBER 08.962 (B) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	0502-					●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (J) L=30 SERVICED BY L=3000	0-04730-300-0	02	1	0211-0501				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (K) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) 08.962 (C) L=70 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) 08.962 (D) L=230 SERVICED BY L=3000	0-04731-300-0	01	1	0211-0501				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) 08.962 (E) L=260 SERVICED BY L=3000	0-04732-300-0	01	1	0211-0501				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 08.962 (L) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 08.962 (M) L=50 SERVICED BY L=3000	0-04730-300-0	03	1	0211-0501				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 08.962 (N) L=60 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 08.962 (F) L=80 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 08.962 (G) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 08.962 (H) L=250 SERVICED BY L=3000	0-04731-300-0	01	1	0211-0501				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 08.962 (I) L=280 SERVICED BY L=3000	0-04732-300-0	01	1	0211-0501				●
165	03.680 JOINT; HOSE TURBOCHARGER(K51) (A) 3WAY	8-94208-695-0	01	1	0211-0501	●
165	03.680 JOINT; HOSE (A) 3WAY	8-94208-695-0	01	1	0502-					●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> (A) 3WAY	8-94208-695-0	02	1	0211-0501				●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 03.670 (B) 4WAY	8-94100-256-0	01	1	0211-0501				●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 03.145 (C) 3WAY	8-94237-690-0	01	1	0211-0501				●
200	03.675 HOSE; VAC TURBOCHARGER(K51)	8-97207-666-2	01	1	0211-0501	●
200	03.675 HOSE; VAC	8-97207-666-2	01	1	0502-					●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2)	8-97182-890-4	01	1	0211-0501				●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2)	8-97182-709-6	01	1	0211-0501				●

200 164 147 165 164 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	F	G
147	03.680 CLIP; RUBBER HOSE TURBOCHARGER(K51) 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	0211-0501	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	0211-0501		●
147	03.680 CLIP; RUBBER HOSE 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	0502-			●
147	03.680 CLIP; RUBBER HOSE TURBOCHARGER(K51) 02.251 (A) 4XID=6.8	8-94132-799-0	01	1	0211-0501	●
147	03.680 CLIP; RUBBER HOSE 02.251 (A) 4XID=6.8	8-94132-799-0	01	1	0502-			●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0211-0501		●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) (B) 4XID=6.7	8-94315-422-0	01	1	0211-0501		●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) (C) ID=7	8-94208-596-0	01	1	0211-0501		●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) (B) 4XID=6.7	8-94315-422-0	02	1	0211-0501		●
164	03.675 HOSE; RUBBER TURBOCHARGER(K51) 08.962 (A) L=65 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501	●
164	03.675 HOSE; RUBBER 08.962 (A) L=65 SERVICED BY L=3000	0-04730-300-0	01	1	0502-			●
164	03.675 HOSE; RUBBER TURBOCHARGER(K51) 08.962 (B) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501	●
164	03.675 HOSE; RUBBER 08.962 (B) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	0502-			●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (J) L=30 SERVICED BY L=3000	0-04730-300-0	02	1	0211-0501		●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (K) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501		●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) 08.962 (C) L=70 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501		●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) 08.962 (D) L=230 SERVICED BY L=3000	0-04731-300-0	01	1	0211-0501		●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) 08.962 (E) L=260 SERVICED BY L=3000	0-04732-300-0	01	1	0211-0501		●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 08.962 (L) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501		●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 08.962 (M) L=50 SERVICED BY L=3000	0-04730-300-0	03	1	0211-0501		●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 08.962 (N) L=60 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501		●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 08.962 (F) L=80 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501		●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 08.962 (G) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501		●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 08.962 (H) L=250 SERVICED BY L=3000	0-04731-300-0	01	1	0211-0501		●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 08.962 (I) L=280 SERVICED BY L=3000	0-04732-300-0	01	1	0211-0501		●
165	03.680 JOINT; HOSE TURBOCHARGER(K51) (A) 3WAY	8-94208-695-0	01	1	0211-0501	●
165	03.680 JOINT; HOSE (A) 3WAY	8-94208-695-0	01	1	0502-			●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> (A) 3WAY	8-94208-695-0	02	1	0211-0501		●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 03.670 (B) 4WAY	8-94100-256-0	01	1	0211-0501		●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 03.145 (C) 3WAY	8-94237-690-0	01	1	0211-0501		●
200	03.675 HOSE; VAC TURBOCHARGER(K51)	8-97207-666-2	01	1	0211-0501	●
200	03.675 HOSE; VAC	8-97207-666-2	01	1	0502-			●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2)	8-97182-890-4	01	1	0211-0501		●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2)	8-97182-709-6	01	1	0211-0501		●

17 699 681 577 58 17 58 2 1 676 681 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	D	E	F	G
1	03.670 VALVE; EGR	8-97379-625-6	01	1	0507-		●	●
1	03.670 VALVE; EGR	8-97115-533-3	01	1	0211-0501	●
1	03.670 VALVE; EGR	8-97115-533-3	01	1	0502-					●
1	03.670 VALVE; EGR CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2)	8-97135-088-4	01	1	0211-0501				●
2	03.670 BOLT; EGR VLV 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512		●	●
2	03.670 BOLT; EGR VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●	●
2	03.670 BOLT; EGR VLV 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0211-0501	●
2	03.670 BOLT; EGR VLV 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0502-0512					●
2	03.670 BOLT; EGR VLV 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-					●
2	03.670 BOLT; EGR VLV CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 09.171 M8X80 FLANGE	0-28080-880-0	02	1	0211-0501				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-97213-386-0	01	1	0507-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F)	8-97367-062-0	01	1	0507-1005		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F)	8-98036-507-0	01	1	1006-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (G)	8-97367-918-0	01	1	0507-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97375-980-1	01	1	0507-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97113-023-0	01	1	0211-0501	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97113-023-0	01	1	0502-					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A)	8-94340-670-0	01	1	0211-0501				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) (B)	8-97166-993-0	01	1	0211-0501				●
58	03.417 BOLT; PIPE 01.540 (C) M8X45 FLANGE	0-28080-845-0	02	1	0507-0512		●	●
58	03.417 BOLT; PIPE 09.173 (C) M8X45 FLANGE	0-28050-845-0	02	1	0601-		●	●
58	03.417 BOLT; PIPE 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0507-0508		●	●
58	03.417 BOLT; PIPE 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0509-0512		●	●
58	03.417 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-		●	●
58	03.417 BOLT; PIPE 02.664 (A) M8X20 FLANGE	0-28680-820-0	03	1	0211-0501	●
58	03.417 BOLT; PIPE 02.664 (A) M8X20 FLANGE	0-28680-820-0	03	1	0502-0512					●
58	03.417 BOLT; PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-					●
58	03.417 BOLT; PIPE 03.670 (B) M8X23 FLANGE	8-94103-629-2	02	1	0211-0408	●
58	03.417 BOLT; PIPE TURBOCHARGER(K51) (B) M8X23 FLANGE	8-97378-077-0	02	1	0409-0501	●
58	03.417 BOLT; PIPE (B) M8X23 FLANGE	8-97378-077-0	02	1	0502-					●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0211-0501				●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0211-0501				●
577	03.675 PIPE; AIR,EGR (C)	8-98032-795-1	01	1	0602-		●	●
577	03.675 PIPE; AIR,EGR (C)	8-97310-501-3	01	1	0507-0601		●	●
577	03.675 PIPE; AIR,EGR (D)	8-97329-211-2	01	1	0507-		●	●
577	03.675 PIPE; AIR,EGR (A)	8-97200-643-2	01	1	0211-0501	●
577	03.675 PIPE; AIR,EGR (A)	8-97200-643-2	01	1	0502-					●
577	03.675 PIPE; AIR,EGR CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) (B)	8-97148-952-3	01	1	0211-0501				●
676	03.417 GASKET; PIPE	8-97146-683-0	02	1	0211-0501	●
676	03.417 GASKET; PIPE	8-97146-683-0	02	1	0502-					●
676	03.417 GASKET; PIPE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2), ENGINEPOWER N-SPEC(7QV)	8-97190-508-0	01	1	0211-0501				●
676	03.417 GASKET; PIPE CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. EURO2 SPECIFICATION(NT2)	8-97170-683-0	01	1	0211-0501				●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	0507-0602		●	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-		●	●
681	03.671 NUT; EGR PIPE 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●
681	03.671 NUT; EGR PIPE 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602					●
681	03.671 NUT; EGR PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-					●
681	03.671 NUT; EGR PIPE CHARGE AIR COOLER<6PL> 03.613 M8 FLANGE	8-97061-401-1	02	1	0211-0501				●
699	03.680 PLATE; BOSS,EXH MANIFOLD CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2)	8-97136-006-0	01	1	0211-0501				●

12 2 1 16 4 5 58 1 17 58 472 577 135 17 58 270 271 270 135 704 17 17 577 472 135 709 765 681

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	D	E	F	G
1	03.670 VALVE; EGR	8-97379-625-6	01	1	0507-		●	●
1	03.670 VALVE; EGR	8-97115-533-3	01	1	0211-0501	●
1	03.670 VALVE; EGR	8-97115-533-3	01	1	0502-					●
1	03.670 VALVE; EGR CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2)	8-97135-088-4	01	1	0211-0501				●
2	03.670 BOLT; EGR VLV 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512		●	●
2	03.670 BOLT; EGR VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●	●
2	03.670 BOLT; EGR VLV 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0211-0501	●
2	03.670 BOLT; EGR VLV 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0502-0512					●
2	03.670 BOLT; EGR VLV 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-					●
2	03.670 BOLT; EGR VLV CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 09.171 M8X80 FLANGE	0-28080-880-0	02	1	0211-0501				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0507-		●	●
5	03.670 ADAPTER ASM 00.269	8-97377-804-0	01	1	0507-		●	●
12	03.671 NUT; EGR VLV 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●
12	03.671 NUT; EGR VLV 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
16	03.275 STUD; EGR VLV 01.428 M8X20 L=32	9-04110-820-0	02	1	0507-0604		●	●
16	03.275 STUD; EGR VLV 02.510 M8X20 L=32	0-41010-820-0	02	1	0605-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-97213-386-0	01	1	0507-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F)	8-97367-062-0	01	1	0507-1005		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F)	8-98036-507-0	01	1	1006-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (G)	8-97367-918-0	01	1	0507-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97375-980-1	01	1	0507-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97113-023-0	01	1	0211-0501	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97113-023-0	01	1	0502-					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A)	8-94340-670-0	01	1	0211-0501				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) (B)	8-97166-993-0	01	1	0211-0501				●
58	03.417 BOLT; PIPE 01.540 (C) M8X45 FLANGE	0-28080-845-0	02	1	0507-0512		●	●
58	03.417 BOLT; PIPE 09.173 (C) M8X45 FLANGE	0-28050-845-0	02	1	0601-		●	●
58	03.417 BOLT; PIPE 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0507-0508		●	●
58	03.417 BOLT; PIPE 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0509-0512		●	●
58	03.417 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-		●	●
58	03.417 BOLT; PIPE 02.664 (A) M8X20 FLANGE	0-28680-820-0	03	1	0211-0501	●
58	03.417 BOLT; PIPE 02.664 (A) M8X20 FLANGE	0-28680-820-0	03	1	0502-0512					●
58	03.417 BOLT; PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-					●
58	03.417 BOLT; PIPE 03.670 (B) M8X23 FLANGE	8-94103-629-2	02	1	0211-0408	●
58	03.417 BOLT; PIPE TURBOCHARGER(K51) (B) M8X23 FLANGE	8-97378-077-0	02	1	0409-0501	●
58	03.417 BOLT; PIPE (B) M8X23 FLANGE	8-97378-077-0	02	1	0502-					●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0211-0501				●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0211-0501				●
135	03.680 BRACKET; EGR (A)	8-97310-498-2	01	1	0507-		●	●
135	03.680 BRACKET; EGR (C)	8-97375-952-0	01	1	0507-		●	●
135	03.680 BRACKET; EGR (B)	8-97376-723-0	01	1	0507-		●	●
135	03.680 BRACKET; EGR (D)	8-97221-358-1	01	1	0211-0501	●
135	03.680 BRACKET; EGR (D)	8-97221-358-1	01	1	0502-					●
270	03.680 BOLT 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0507-0512		●	●
270	03.680 BOLT 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0601-		●	●
271	03.675 BOLT; BRKT 00.685 (B) M12X45 FLANGE	0-28181-245-0	01	1	0507-0512		●	●
271	03.675 BOLT; BRKT 00.685 (B) M12X45 FLANGE	0-28151-245-0	01	1	0601-		●	●
271	03.675 BOLT; BRKT 00.002 (B) M8X25 FLANGE	0-28690-825-0	01	1	0507-0512		●	●
271	03.675 BOLT; BRKT 02.277 (B) M8X25 FLANGE	0-28660-825-0	01	1	0601-		●	●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 02.500 (A) M6X10 FLANGE	0-28080-610-0	01	1	0211-0501				●
472	03.671 BOLT; BRKT 00.685 (A) M12X30 FLANGE	0-28181-230-0	03	1	0507-0512		●	●
472	03.671 BOLT; BRKT (A) M12X30 FLANGE	0-28151-230-0	03	1	0601-		●	●
472	03.671 BOLT; BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512		●	●
472	03.671 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●	●
577	03.675 PIPE; AIR,EGR (C)	8-98032-795-1	01	1	0602-		●	●
577	03.675 PIPE; AIR,EGR (C)	8-97310-501-3	01	1	0507-0601		●	●
577	03.675 PIPE; AIR,EGR (D)	8-97329-211-2	01	1	0507-		●	●
577	03.675 PIPE; AIR,EGR (A)	8-97200-643-2	01	1	0211-0501	●
577	03.675 PIPE; AIR,EGR (A)	8-97200-643-2	01	1	0502-					●
577	03.675 PIPE; AIR,EGR CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) (B)	8-97148-952-3	01	1	0211-0501				●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	0507-0602		●	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-		●	●
681	03.671 NUT; EGR PIPE 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●
681	03.671 NUT; EGR PIPE 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602					●
681	03.671 NUT; EGR PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-					●
681	03.671 NUT; EGR PIPE CHARGE AIR COOLER<6PL> 03.613 M8 FLANGE	8-97061-401-1	02	1	0211-0501				●
704	03.337 COOLER ASM; EGR	8-97310-496-1	01	1	0507-		●	●
709	03.670 BOLT; EGR COOLER 03.417 M8X23 FLANGE	8-97378-077-0	03	1	0507-		●	●
765	03.670 SPACER; EGR PIPE 03.613	8-94225-562-0	02	1	0507-		●	●

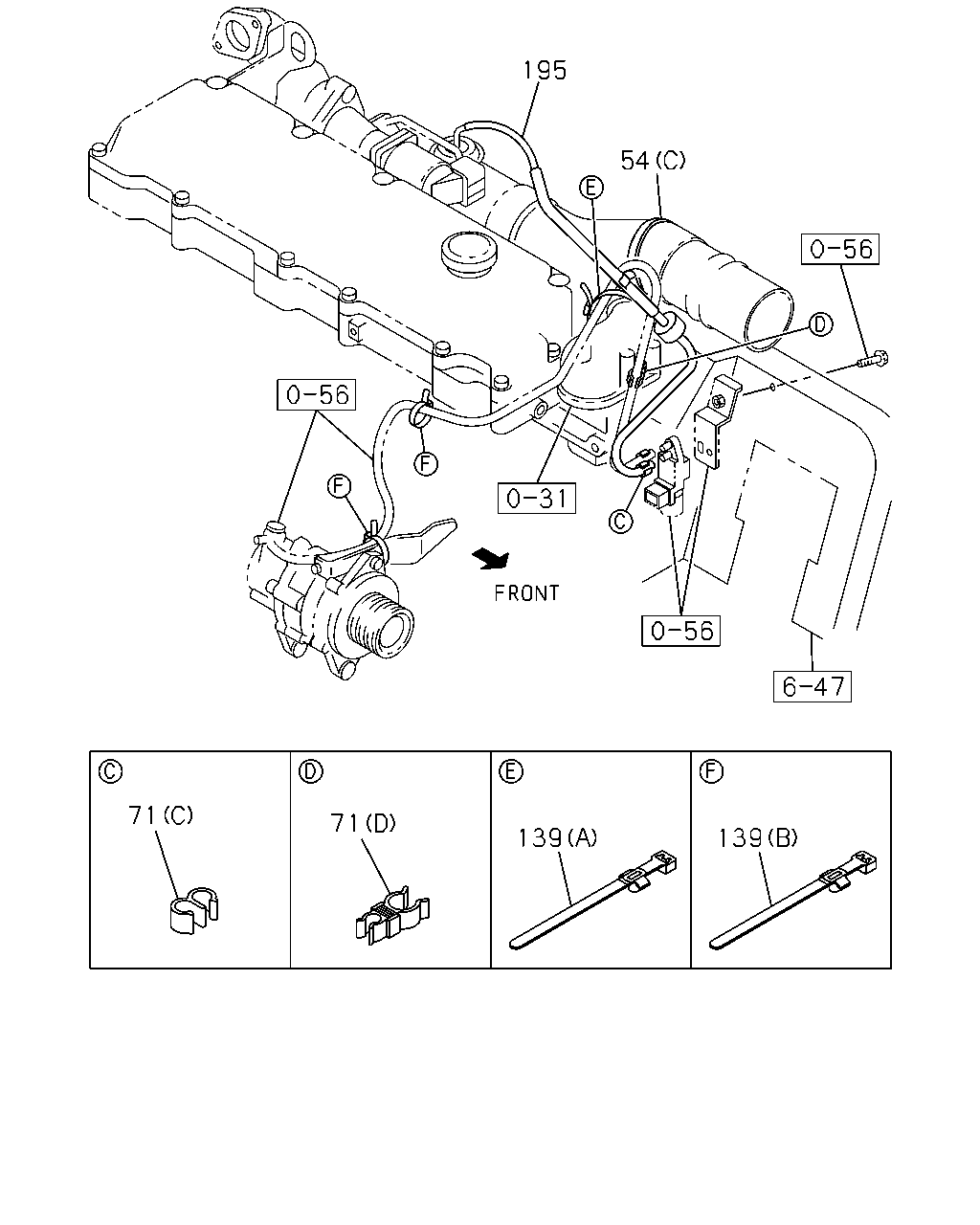

195 54 71 71 139 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
54	03.680 CLIP; 3 HOSE (C) L=350	8-97373-487-0	01	1	0507-				●	●
54	03.680 CLIP; 3 HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	02	1	0211-0501						●
54	03.680 CLIP; 3 HOSE EXC. CHARGE AIR COOLER<6PL> 03.407 (B)	8-94360-297-0	01	1	0211-0501						●
71	03.680 CLIP; RUBBER HOSE 03.886 (C) ID=7.2	8-94163-380-0	01	1	0507-				●	●
71	03.680 CLIP; RUBBER HOSE 03.162 (D) ID=13.2 & 7.5	8-94315-426-0	01	1	0507-				●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0211-0501	●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0502-	●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (B) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	0211-0501	●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (B) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	0502-	●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) ENGINE POWER N-SPEC(7QV) (B) ID=6.8 & 6.8 & 6.8	8-94208-734-0	02	1	0211-0501		●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (B) ID=6.8 & 6.8 & 6.8	8-94208-734-0	02	1	0502-			●
139	02.559 CLIP; HARNESS (A) L=250	5-09707-030-1	01	1	0507-				●	●
139	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140	5-09707-031-1	01	1	0507-				●	●
139	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140	5-09707-031-1	01	1	0507-				●	●
195	03.675 HOSE; VAC 03.670	8-97373-527-0	01	1	0507-				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
