Isuzu WW
▶
TRUCKS
▶
NPR
▶
50948 - NPR/NQR RHDEXC.EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-56 - EMISSION SYSTEM
▶
0-56 — EMISSION SYSTEM
(#42560) — 100 parça
Tümü
A - 4HE1 ENG
B - 4HG1 ENG
C - 4HF1-N ENG
D - 4HF1-S ENG
E - 4HG1-T ENG
F - 4HK1-TCN ENG
G - 4HK1-TCS ENG
◀
[056A] EXC.CHARGE AIR COOLER(NO.1) (24 parça)
[056A] EXC.CHARGE AIR COOLER(NO.2) (25 parça)
[056A] EXC.CHARGE AIR COOLER(NO.3) (24 parça)
[056A] CHARGE AIR COOLER(NO.1) (19 parça)
[056A] CHARGE AIR COOLER(NO.2) (8 parça)
▶

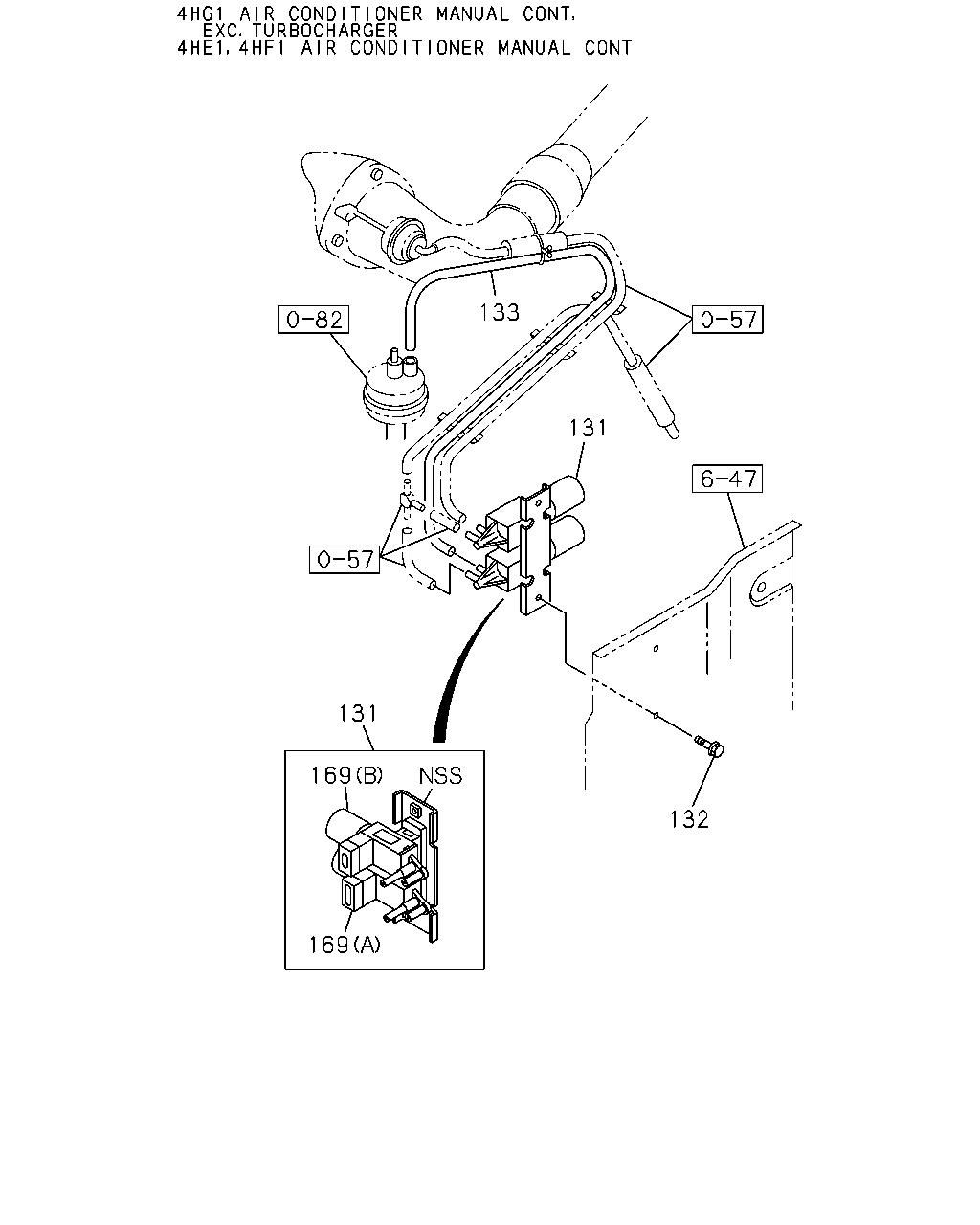

131
169
131
132
132
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
131
03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL>
8-97030-324-1
01
1
0211-0501
●
131
03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>
8-97030-324-1
01
1
0502-
●
●
●
131
03.670 VALVE; VAC SWITCHING
VOLTAGE 24V<7AE>
8-97030-324-1
01
1
0502-
●
131
03.670 VALVE; VAC SWITCHING
EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR COOLER<6PL>
8-97116-759-0
01
1
0211-0501
●
131
03.670 VALVE; VAC SWITCHING
EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97116-759-0
01
1
0502-
●
●
●
131
03.670 VALVE; VAC SWITCHING
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2)
8-97184-200-2
01
1
0211-0501
●
132
03.680 BOLT; VSV BRKT
EXHAUST BRAKE<NF8> 04.930 M6X20 FLANGE
0-28680-620-0
02
1
0502-0507
●
●
●
132
03.680 BOLT; VSV BRKT
EXHAUST BRAKE<NF8> 02.334 M6X25 FLANGE
0-28680-625-0
02
1
0508-0512
●
●
●
132
03.680 BOLT; VSV BRKT
VOLTAGE 24V<7AE> 02.334 M6X25 FLANGE
0-28680-625-0
02
1
0508-0512
●
132
03.680 BOLT; VSV BRKT
EXHAUST BRAKE<NF8> 00.685 M6X25 FLANGE
0-28650-625-0
02
1
0601-
●
●
●
132
03.680 BOLT; VSV BRKT
VOLTAGE 24V<7AE> 00.685 M6X25 FLANGE
0-28650-625-0
02
1
0601-
●
132
03.680 BOLT; VSV BRKT
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE
0-28680-620-0
02
1
0306-0501
●
●
132
03.680 BOLT; VSV BRKT
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE
0-28080-612-0
02
1
0211-0305
●
●
●
132
03.680 BOLT; VSV BRKT
TURBOCHARGER(K51) 01.428 M6X12 FLANGE
0-28080-612-0
02
1
0211-0305
●
132
03.680 BOLT; VSV BRKT
TURBOCHARGER(K51) 01.428 M6X12 FLANGE
0-28080-612-0
02
1
0306-0312
●
132
03.680 BOLT; VSV BRKT
TURBOCHARGER(K51) 01.428 M6X12 FLANGE
0-28080-612-0
02
1
0401-0501
●
●
132
03.680 BOLT; VSV BRKT
01.428 M6X12 FLANGE
0-28080-612-0
02
1
0502-0507
●
169
03.670 VALVE; VAC SWITCHING
(B)
8-97021-705-1
01
1
0211-0501
●
●
169
03.670 VALVE; VAC SWITCHING
EXC. CHARGE AIR COOLER<6PL> (B)
8-97021-705-1
01
1
0211-0501
●
169
03.670 VALVE; VAC SWITCHING
EXHAUST BRAKE<NF8> (B)
8-97021-705-1
01
1
0502-
●
●
●
169
03.670 VALVE; VAC SWITCHING
VOLTAGE 24V<7AE> (B)
8-97021-705-1
01
1
0502-
●
169
03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A)
8-97012-878-0
01
1
0211-0501
●
169
03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (A)
8-97012-878-0
01
1
0502-
●
●
●
169
03.670 VALVE; VAC SWITCHING
VOLTAGE 24V<7AE> (A)
8-97012-878-0
01
1
0502-
●

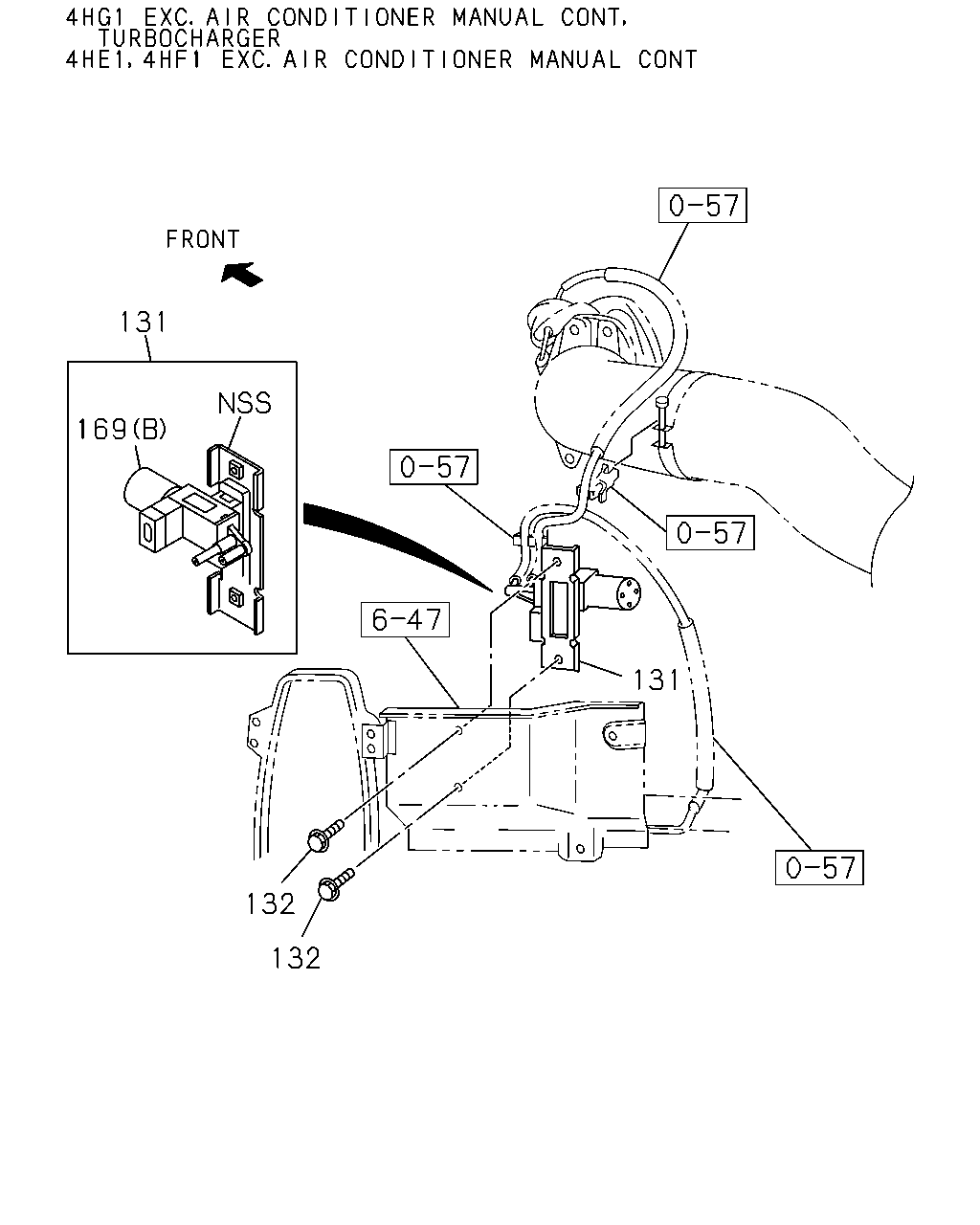

133
131
131
169
132
169
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
131
03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL>
8-97030-324-1
01
1
0211-0501
●
131
03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>
8-97030-324-1
01
1
0502-
●
●
●
131
03.670 VALVE; VAC SWITCHING
VOLTAGE 24V<7AE>
8-97030-324-1
01
1
0502-
●
131
03.670 VALVE; VAC SWITCHING
EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR COOLER<6PL>
8-97116-759-0
01
1
0211-0501
●
131
03.670 VALVE; VAC SWITCHING
EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97116-759-0
01
1
0502-
●
●
●
131
03.670 VALVE; VAC SWITCHING
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2)
8-97184-200-2
01
1
0211-0501
●
132
03.680 BOLT; VSV BRKT
EXHAUST BRAKE<NF8> 04.930 M6X20 FLANGE
0-28680-620-0
02
1
0502-0507
●
●
●
132
03.680 BOLT; VSV BRKT
EXHAUST BRAKE<NF8> 02.334 M6X25 FLANGE
0-28680-625-0
02
1
0508-0512
●
●
●
132
03.680 BOLT; VSV BRKT
VOLTAGE 24V<7AE> 02.334 M6X25 FLANGE
0-28680-625-0
02
1
0508-0512
●
132
03.680 BOLT; VSV BRKT
EXHAUST BRAKE<NF8> 00.685 M6X25 FLANGE
0-28650-625-0
02
1
0601-
●
●
●
132
03.680 BOLT; VSV BRKT
VOLTAGE 24V<7AE> 00.685 M6X25 FLANGE
0-28650-625-0
02
1
0601-
●
132
03.680 BOLT; VSV BRKT
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE
0-28680-620-0
02
1
0306-0501
●
●
132
03.680 BOLT; VSV BRKT
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE
0-28080-612-0
02
1
0211-0305
●
●
●
132
03.680 BOLT; VSV BRKT
TURBOCHARGER(K51) 01.428 M6X12 FLANGE
0-28080-612-0
02
1
0211-0305
●
132
03.680 BOLT; VSV BRKT
TURBOCHARGER(K51) 01.428 M6X12 FLANGE
0-28080-612-0
02
1
0306-0312
●
132
03.680 BOLT; VSV BRKT
TURBOCHARGER(K51) 01.428 M6X12 FLANGE
0-28080-612-0
02
1
0401-0501
●
●
132
03.680 BOLT; VSV BRKT
01.428 M6X12 FLANGE
0-28080-612-0
02
1
0502-0507
●
133
03.675 HOSE; RUBBER,VSV TO INJ PUMP
AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.962 L=490 SERVICED BY L=3000
0-04730-300-0
01
1
0211-0501
●
169
03.670 VALVE; VAC SWITCHING
(B)
8-97021-705-1
01
1
0211-0501
●
●
169
03.670 VALVE; VAC SWITCHING
EXC. CHARGE AIR COOLER<6PL> (B)
8-97021-705-1
01
1
0211-0501
●
169
03.670 VALVE; VAC SWITCHING
EXHAUST BRAKE<NF8> (B)
8-97021-705-1
01
1
0502-
●
●
●
169
03.670 VALVE; VAC SWITCHING
VOLTAGE 24V<7AE> (B)
8-97021-705-1
01
1
0502-
●
169
03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A)
8-97012-878-0
01
1
0211-0501
●
169
03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (A)
8-97012-878-0
01
1
0502-
●
●
●
169
03.670 VALVE; VAC SWITCHING
VOLTAGE 24V<7AE> (A)
8-97012-878-0
01
1
0502-
●
131
131
169
132
169
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
131
03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL>
8-97030-324-1
01
1
0211-0501
●
131
03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>
8-97030-324-1
01
1
0502-
●
●
●
131
03.670 VALVE; VAC SWITCHING
VOLTAGE 24V<7AE>
8-97030-324-1
01
1
0502-
●
131
03.670 VALVE; VAC SWITCHING
EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR COOLER<6PL>
8-97116-759-0
01
1
0211-0501
●
131
03.670 VALVE; VAC SWITCHING
EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97116-759-0
01
1
0502-
●
●
●
131
03.670 VALVE; VAC SWITCHING
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2)
8-97184-200-2
01
1
0211-0501
●
132
03.680 BOLT; VSV BRKT
EXHAUST BRAKE<NF8> 04.930 M6X20 FLANGE
0-28680-620-0
02
1
0502-0507
●
●
●
132
03.680 BOLT; VSV BRKT
EXHAUST BRAKE<NF8> 02.334 M6X25 FLANGE
0-28680-625-0
02
1
0508-0512
●
●
●
132
03.680 BOLT; VSV BRKT
VOLTAGE 24V<7AE> 02.334 M6X25 FLANGE
0-28680-625-0
02
1
0508-0512
●
132
03.680 BOLT; VSV BRKT
EXHAUST BRAKE<NF8> 00.685 M6X25 FLANGE
0-28650-625-0
02
1
0601-
●
●
●
132
03.680 BOLT; VSV BRKT
VOLTAGE 24V<7AE> 00.685 M6X25 FLANGE
0-28650-625-0
02
1
0601-
●
132
03.680 BOLT; VSV BRKT
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE
0-28680-620-0
02
1
0306-0501
●
●
132
03.680 BOLT; VSV BRKT
EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE
0-28080-612-0
02
1
0211-0305
●
●
●
132
03.680 BOLT; VSV BRKT
TURBOCHARGER(K51) 01.428 M6X12 FLANGE
0-28080-612-0
02
1
0211-0305
●
132
03.680 BOLT; VSV BRKT
TURBOCHARGER(K51) 01.428 M6X12 FLANGE
0-28080-612-0
02
1
0306-0312
●
132
03.680 BOLT; VSV BRKT
TURBOCHARGER(K51) 01.428 M6X12 FLANGE
0-28080-612-0
02
1
0401-0501
●
●
132
03.680 BOLT; VSV BRKT
01.428 M6X12 FLANGE
0-28080-612-0
02
1
0502-0507
●
169
03.670 VALVE; VAC SWITCHING
(B)
8-97021-705-1
01
1
0211-0501
●
●
169
03.670 VALVE; VAC SWITCHING
EXC. CHARGE AIR COOLER<6PL> (B)
8-97021-705-1
01
1
0211-0501
●
169
03.670 VALVE; VAC SWITCHING
EXHAUST BRAKE<NF8> (B)
8-97021-705-1
01
1
0502-
●
●
●
169
03.670 VALVE; VAC SWITCHING
VOLTAGE 24V<7AE> (B)
8-97021-705-1
01
1
0502-
●
169
03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A)
8-97012-878-0
01
1
0211-0501
●
169
03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (A)
8-97012-878-0
01
1
0502-
●
●
●
169
03.670 VALVE; VAC SWITCHING
VOLTAGE 24V<7AE> (A)
8-97012-878-0
01
1
0502-
●

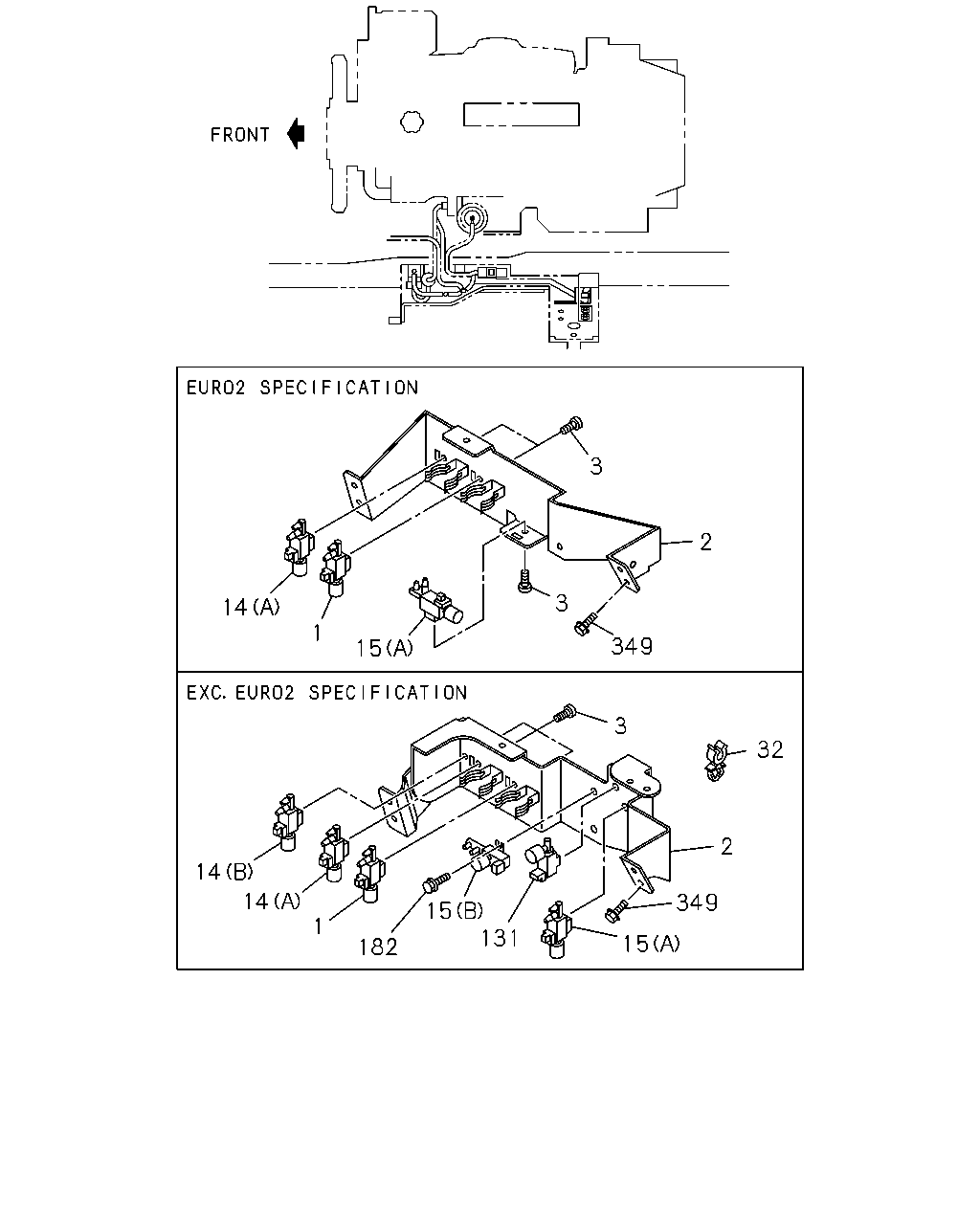

3
2
3
14
1
349
15
3
32
2
14
14
349
15
131
1
15
182
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
1
03.670 VALVE; VAC SW,EGR
CHARGE AIR COOLER<6PL>
8-97023-544-2
01
1
0211-0501
●
2
03.671 BRACKET; VSV
8-97373-616-1
01
1
0507-
●
●
2
03.671 BRACKET; VSV
CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2)
8-97192-228-0
01
1
0211-0501
●
2
03.671 BRACKET; VSV
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2)
8-97305-209-1
01
1
0211-0501
●
3
03.670 BOLT; VSV
CHARGE AIR COOLER<6PL> 09.655 M5X8 W/LK WASHER
9-03910-508-0
03
1
0211-0501
●
3
03.670 BOLT; VSV
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 09.655 M5X8 W/LK WASHER
9-03910-508-0
02
1
0211-0501
●
14
03.670 VALVE; VAC SW
CHARGE AIR COOLER<6PL> (A)
8-97023-543-2
01
1
0211-0501
●
14
03.670 VALVE; VAC SW
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) (B)
8-97023-544-2
01
1
0211-0501
●
15
03.670 VALVE; VAC SW
CHARGE AIR COOLER<6PL> (A)
8-97023-543-2
01
1
0211-0501
●
15
03.670 VALVE; VAC SW
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) (B)
8-97184-183-0
01
1
0211-0501
●
32
03.680 CLIP; EGR HOSE
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 03.162
8-94253-984-0
01
1
0211-0501
●
131
03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL>
8-97030-324-1
01
1
0211-0501
●
131
03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>
8-97030-324-1
01
1
0502-
●
●
●
131
03.670 VALVE; VAC SWITCHING
VOLTAGE 24V<7AE>
8-97030-324-1
01
1
0502-
●
131
03.670 VALVE; VAC SWITCHING
EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR COOLER<6PL>
8-97116-759-0
01
1
0211-0501
●
131
03.670 VALVE; VAC SWITCHING
EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97116-759-0
01
1
0502-
●
●
●
131
03.670 VALVE; VAC SWITCHING
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2)
8-97184-200-2
01
1
0211-0501
●
182
03.670 BOLT; VLV
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 08.900 M8X12 FLANGE
0-28080-812-0
02
1
0211-0501
●
349
03.671 BOLT; CASE
CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE
0-28080-816-0
02
1
0211-0501
●

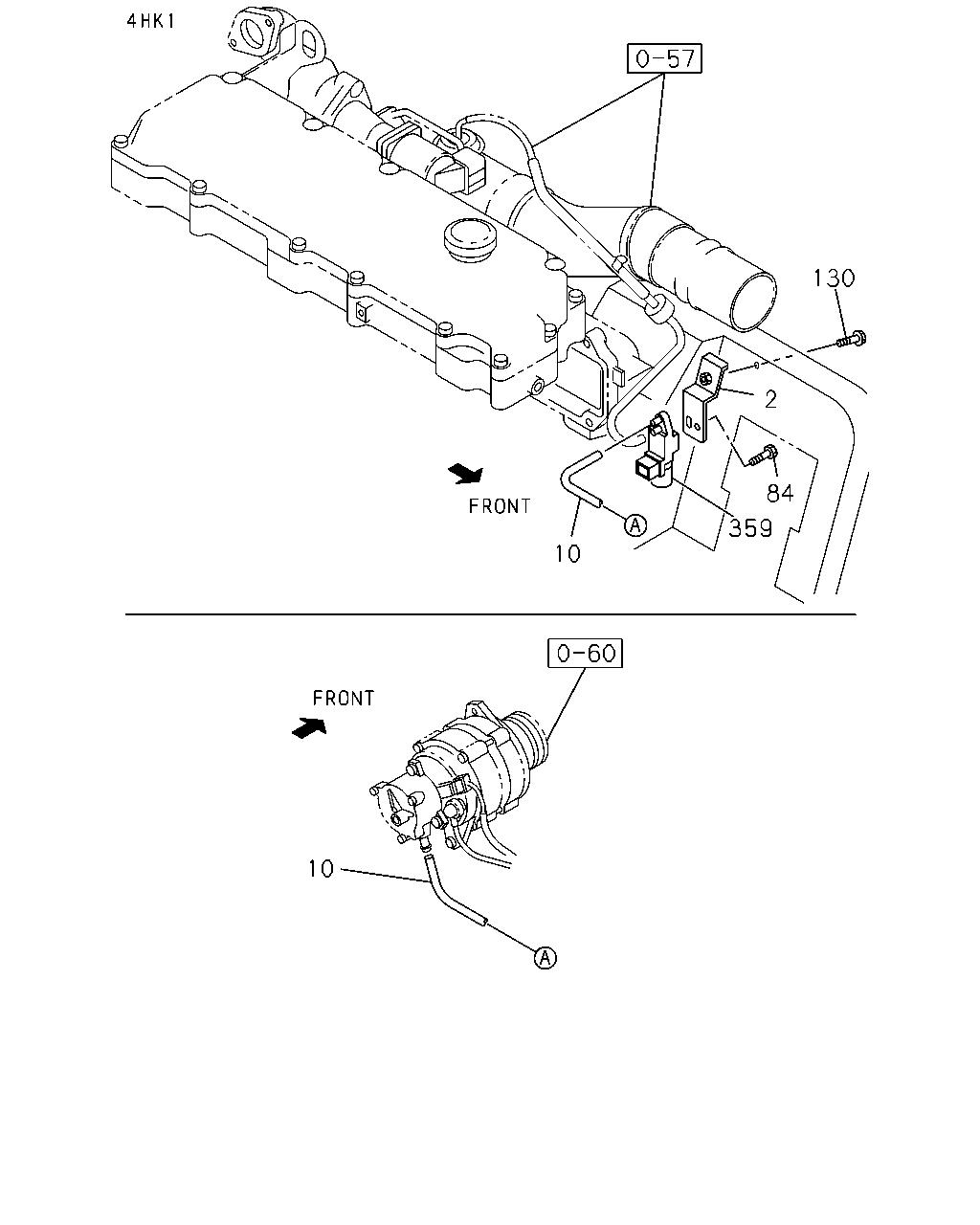

130
2
84
359
10
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
2
03.671 BRACKET; VSV
8-97373-616-1
01
1
0507-
●
●
2
03.671 BRACKET; VSV
CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2)
8-97192-228-0
01
1
0211-0501
●
2
03.671 BRACKET; VSV
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2)
8-97305-209-1
01
1
0211-0501
●
10
03.675 HOSE; RUBBER,PUMP TO VSV
8-97374-116-0
01
1
0507-
●
●
84
03.671 BOLT; VSV
09.655 M5X8 W/LK WASHER
9-03910-508-0
01
1
0507-0604
●
●
84
03.671 BOLT; VSV
M5X8 W/LK WASHER
0-36220-508-0
01
1
0605-
●
●
130
03.671 BOLT; VSV BRKT
03.470 M6X22 W/LK&PL WASHER
8-97892-370-0
01
1
0507-
●
●
359
03.670 VALVE; VAC SWITCHING,I/THROTTLE
8-97037-165-2
01
1
0507-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
