0-52 — OIL AND VACUUM PIPING; ENGINE (#42559) — 209 parça
çizim 52050
89 86 89 340 202 202 202 65 202 202 65 202 83 83 202 65 27 202 65 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
27 01.531 BOLT; OIL PIPE FIX
08.900 (B) M8X12 FLANGE 		0-28080-812-0 02 1 0507-0512 ● ●
27 01.531 BOLT; OIL PIPE FIX
02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ● ●
27 01.531 BOLT; OIL PIPE FIX
01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 0507-0512 ● ●
27 01.531 BOLT; OIL PIPE FIX
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
27 01.531 BOLT; OIL PIPE FIX
01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0501 ● ● ●
27 01.531 BOLT; OIL PIPE FIX
01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0501 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0502-0506 ● ● ● ●
27 01.531 BOLT; OIL PIPE FIX
01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0507-0512 ● ● ● ● ● ●
27 01.531 BOLT; OIL PIPE FIX
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ● ● ●
27 01.531 BOLT; OIL PIPE FIX
EXC. CHARGE AIR COOLER<6PL> 03.415 (A) M8X35 FLANGE 		0-28080-835-0 01 1 0211-0501 ●
65 01.531 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		1-09675-078-0 01 1 0211-0501 ● ● ●
65 01.531 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		1-09675-078-0 01 1 0502-0506 ● ● ● ●
65 01.531 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		1-09675-078-0 01 1 0507-0805 ● ● ● ● ● ●
65 01.531 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		8-97372-239-0 01 1 0806- ● ● ● ● ● ●
65 01.531 BOLT; JOINT,OIL PIPE
03.162 (B) M14X27 FLANGE 		1-09675-086-0 01 1 0211-0501 ● ● ●
65 01.531 BOLT; JOINT,OIL PIPE
03.162 (B) M14X27 FLANGE 		1-09675-086-0 01 1 0502-0506 ● ● ● ●
65 01.531 BOLT; JOINT,OIL PIPE
03.162 (B) M14X27 FLANGE 		1-09675-086-0 01 1 0507- ● ● ● ● ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
(A) 		8-97228-670-0 01 1 0211-0306 ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-97228-671-0 01 1 0211-0306 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-97228-671-0 01 1 0307-0501 ● ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-97228-671-0 01 1 0502-0506 ● ● ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-97228-671-0 01 1 0507- ● ● ● ● ● ●
86 01.519 PIPE; OIL,VAC PUMP RETURN
01.430 		8-94455-311-1 01 1 0211-0501 ● ● ●
86 01.519 PIPE; OIL,VAC PUMP RETURN
01.430 		8-94455-311-1 01 1 0502-0506 ● ● ● ●
86 01.519 PIPE; OIL,VAC PUMP RETURN
01.430 		8-94455-311-1 01 1 0507- ● ● ● ● ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0211-0501 ● ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0211-0501 ● ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0502-0506 ● ● ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0502-0506 ● ● ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0507- ● ● ● ● ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0507- ● ● ● ● ● ●
202 01.531 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0211-0501 ● ● ●
202 01.531 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0502-0506 ● ● ● ●
202 01.531 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0507- ● ● ● ● ● ●
202 01.531 GASKET; OIL PIPE
03.163 (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0211-0501 ● ● ●
202 01.531 GASKET; OIL PIPE
03.163 (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0502-0506 ● ● ● ●
202 01.531 GASKET; OIL PIPE
03.163 (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0507-1312 ● ● ● ● ● ●
202 01.531 GASKET; OIL PIPE
(B) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ● ● ● ● ●
340 03.280 HOSE; VAC PUMP,RETURN
04.681 		8-94339-073-3 01 1 0211-0501 ● ● ●
340 03.280 HOSE; VAC PUMP,RETURN
04.681 		8-94339-073-3 01 1 0502-0506 ● ● ● ●
340 03.280 HOSE; VAC PUMP,RETURN
04.681 		8-94339-073-3 01 1 0507- ● ● ● ● ● ●

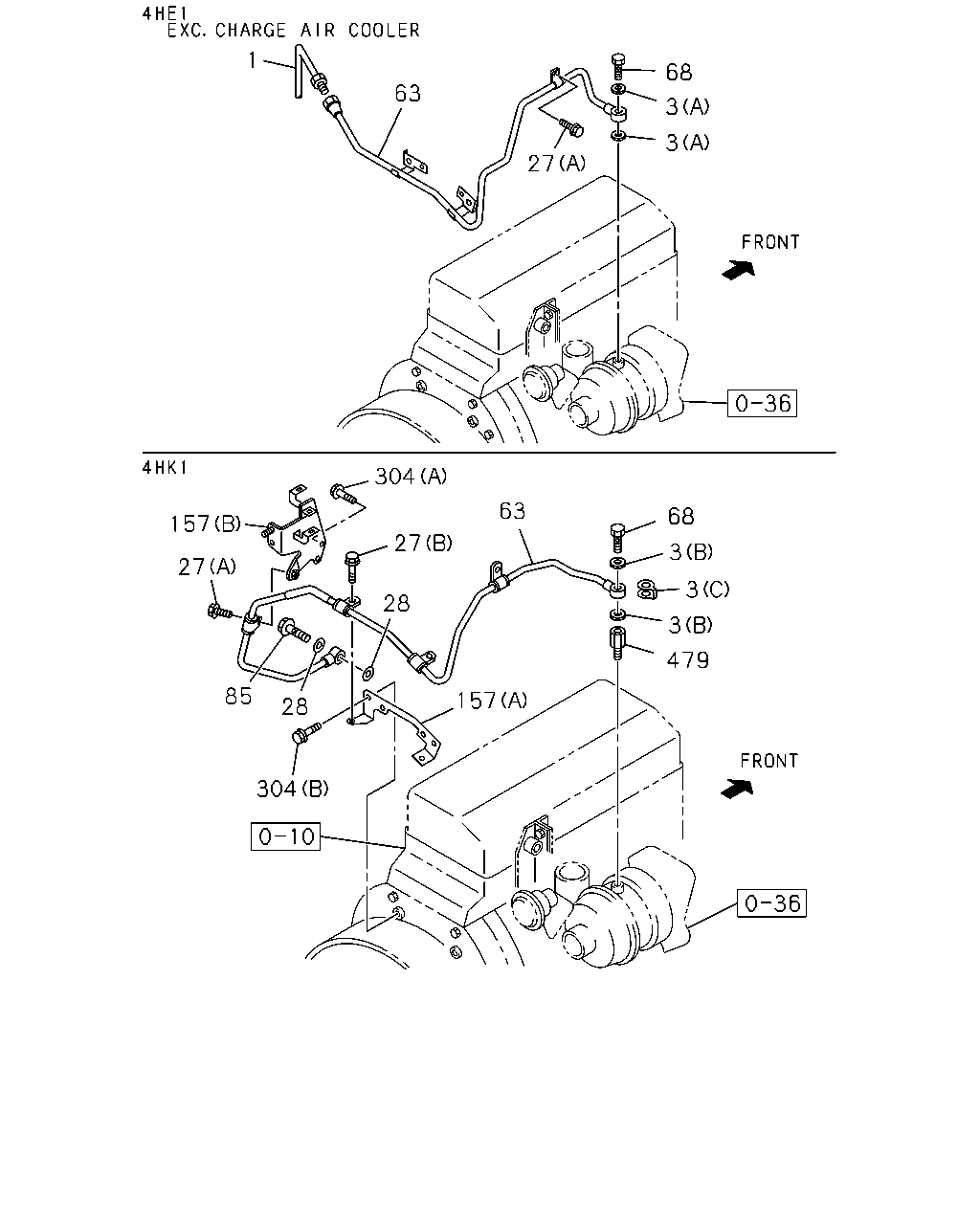

çizim 52052
1 68 63 3 3 27 304 63 68 157 27 3 27 3 28 3 479 85 157 28 304
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97200-615-2 01 1 0211-0501 ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97200-615-4 01 1 0502- ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
EXC. TURBOCHARGER(K51) 		8-97093-547-1 01 1 0211-0501 ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
EXC. ENGINE POWER N-SPEC(7QV) 		8-97093-547-1 01 1 0211-0501 ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97093-547-1 01 1 0502-0506 ● ● ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97093-547-1 01 1 0507- ● ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
CHARGE AIR COOLER<6PL> 		8-97314-008-0 01 1 0211-0501 ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
EXC. CHARGE AIR COOLER<6PL> 		8-97074-790-2 01 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0507- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 08.955 (B) ID=12.2 		9-09571-412-0 02 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2 		9-09571-412-0 02 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2 		9-09571-412-0 02 1 0502-0506 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2 		9-09571-412-0 02 1 0507-1101 ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.6 		8-97331-137-1 01 1 1102- ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER(K51) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0502- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0502- ●
27 01.531 BOLT; OIL PIPE FIX
08.900 (B) M8X12 FLANGE 		0-28080-812-0 02 1 0507-0512 ● ●
27 01.531 BOLT; OIL PIPE FIX
02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ● ●
27 01.531 BOLT; OIL PIPE FIX
01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 0507-0512 ● ●
27 01.531 BOLT; OIL PIPE FIX
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
27 01.531 BOLT; OIL PIPE FIX
01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0501 ● ● ●
27 01.531 BOLT; OIL PIPE FIX
01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0501 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0502-0506 ● ● ● ●
27 01.531 BOLT; OIL PIPE FIX
01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0507-0512 ● ● ● ● ● ●
27 01.531 BOLT; OIL PIPE FIX
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ● ● ●
27 01.531 BOLT; OIL PIPE FIX
EXC. CHARGE AIR COOLER<6PL> 03.415 (A) M8X35 FLANGE 		0-28080-835-0 01 1 0211-0501 ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 02 1 0507- ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97385-207-0 01 1 0507- ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97349-474-0 01 1 0211-0311 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97372-936-0 01 1 0312-0501 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97372-936-2 01 1 0502- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> 		8-97214-394-0 01 1 0211-0501 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97229-042-0 01 1 0211-0501 ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
TURBOCHARGER(K51) M12X28 FLANGE 		8-97166-518-0 01 1 0211-0501 ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
CHARGE AIR COOLER<6PL> M12X28 FLANGE 		8-97166-518-0 01 1 0211-0501 ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
EXC. CHARGE AIR COOLER<6PL> M10X26 		8-97081-817-0 01 1 0211-0501 ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
M12X28 FLANGE 		8-97166-518-0 01 1 0502-0506 ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
M12X28 FLANGE 		8-97166-518-1 01 1 0507- ● ● ●
85 01.531 BOLT; EYE,OIL PIPE FIX
03.330 M10X28 FLANGE 		8-97149-995-0 01 1 0507-0710 ● ●
85 01.531 BOLT; EYE,OIL PIPE FIX
M10X28 		8-98037-823-0 01 1 0711- ● ●
157 01.519 BRACKET; OIL PIPE
(B) 		8-97354-805-1 01 1 0507- ● ●
157 01.519 BRACKET; OIL PIPE
(A) 		8-97376-118-0 01 1 0507- ● ●
157 01.519 BRACKET; OIL PIPE
TURBOCHARGER(K51) (C) 		8-97181-586-0 01 1 0211-0501 ●
157 01.519 BRACKET; OIL PIPE
CHARGE AIR COOLER<6PL> (C) 		8-97181-586-0 01 1 0211-0501 ●
157 01.519 BRACKET; OIL PIPE
(C) 		8-97181-586-0 01 1 0502- ●
304 01.540 BOLT; BRKT,OIL PIPE
01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 0507-0512 ● ●
304 01.540 BOLT; BRKT,OIL PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
304 01.540 BOLT; BRKT,OIL PIPE
03.604 (B) M10X16 FLANGE 		0-28181-016-0 02 1 0507-0512 ● ●
304 01.540 BOLT; BRKT,OIL PIPE
00.029 (B) M10X16 FLANGE 		0-28151-016-0 02 1 0601- ● ●
304 01.540 BOLT; BRKT,OIL PIPE
CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0501 ●
479 01.531 ADAPTER
TURBOCHARGER(K51) 01.800 		8-94436-891-0 01 1 0211-0501 ●
479 01.531 ADAPTER
CHARGE AIR COOLER<6PL> 01.800 		8-94436-891-0 01 1 0211-0501 ●
479 01.531 ADAPTER
01.800 		8-94436-891-0 01 1 0502-0506 ●
479 01.531 ADAPTER
01.800 		8-94436-891-0 01 1 0507- ● ● ●

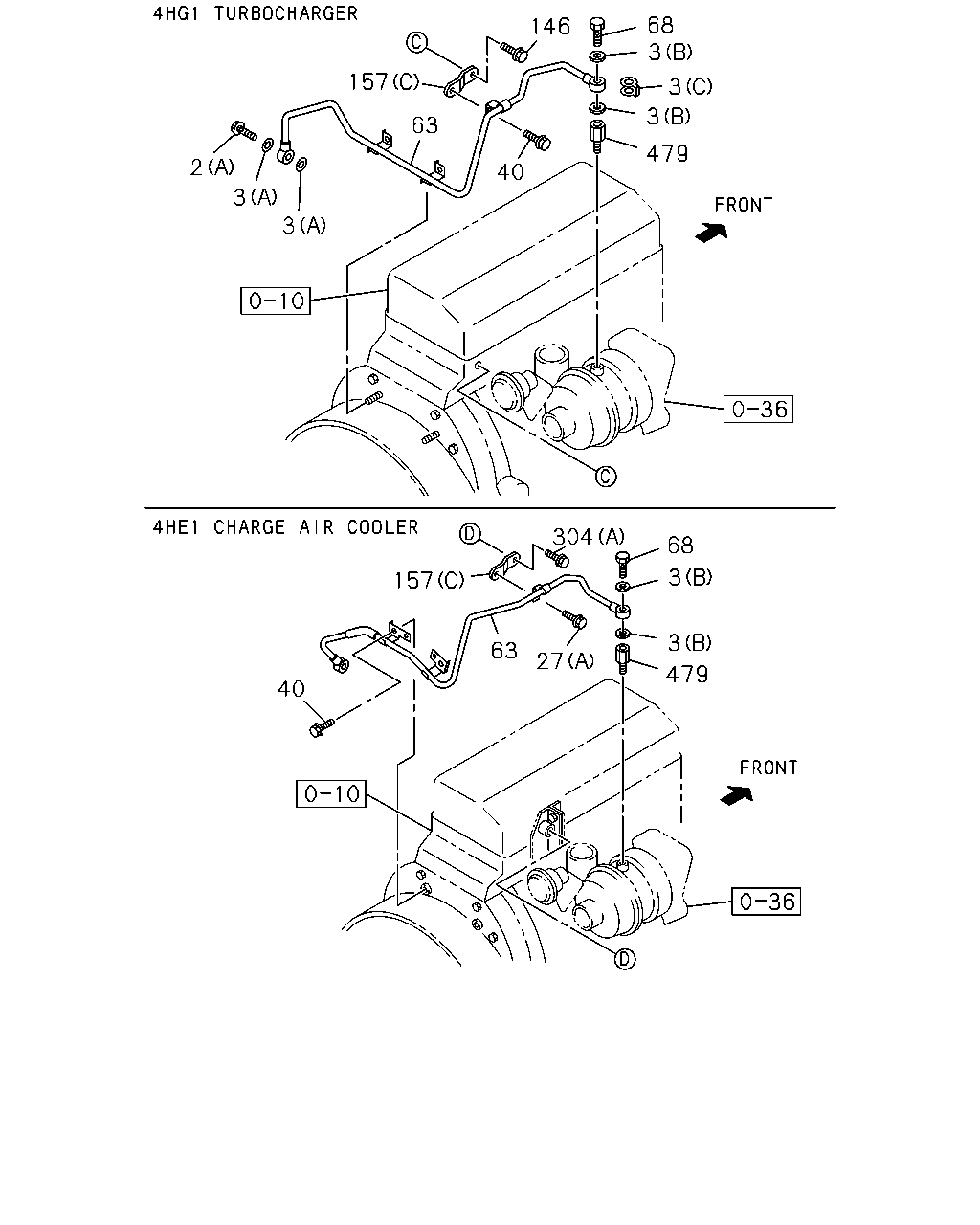

çizim 55666
68 3 146 157 3 3 63 479 2 40 3 3 304 68 3 157 3 63 27 479 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 01.531 BOLT; EYE,OIL PIPE
TURBOCHARGER(K51) (A) M10X40 FLANGE 		8-97182-847-0 01 1 0211-0501 ●
2 01.531 BOLT; EYE,OIL PIPE
CHARGE AIR COOLER<6PL> (A) M10X40 FLANGE 		8-97182-847-0 01 1 0211-0501 ●
2 01.531 BOLT; EYE,OIL PIPE
(A) M10X40 FLANGE 		8-97182-847-0 01 1 0502- ●
2 01.531 BOLT; EYE,OIL PIPE
TURBOCHARGER(K51) 03.280 (B) M10X24 		9-09906-205-1 01 1 0211-0501 ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (B) M10X24 		9-09906-205-1 01 1 0211-0501 ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (B) M10X24 		9-09906-205-1 01 1 0502- ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. TURBOCHARGER(K51) (A),(B) M10X21 FLANGE 		1-09675-077-0 02 1 0211-0501 ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. ENGINE POWER N-SPEC(7QV) (A),(B) M10X21 FLANGE 		1-09675-077-0 02 1 0211-0501 ●
2 01.531 BOLT; EYE,OIL PIPE
(A),(B) M10X21 FLANGE 		1-09675-077-0 02 1 0502-0805 ● ●
2 01.531 BOLT; EYE,OIL PIPE
03.162 (A),(B) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ● ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. CHARGE AIR COOLER<6PL> (A) M10X36 		1-09675-183-0 01 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0507- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 08.955 (B) ID=12.2 		9-09571-412-0 02 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2 		9-09571-412-0 02 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2 		9-09571-412-0 02 1 0502-0506 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2 		9-09571-412-0 02 1 0507-1101 ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.6 		8-97331-137-1 01 1 1102- ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER(K51) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0502- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0502- ●
27 01.531 BOLT; OIL PIPE FIX
08.900 (B) M8X12 FLANGE 		0-28080-812-0 02 1 0507-0512 ● ●
27 01.531 BOLT; OIL PIPE FIX
02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ● ●
27 01.531 BOLT; OIL PIPE FIX
01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 0507-0512 ● ●
27 01.531 BOLT; OIL PIPE FIX
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
27 01.531 BOLT; OIL PIPE FIX
01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0501 ● ● ●
27 01.531 BOLT; OIL PIPE FIX
01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0501 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0502-0506 ● ● ● ●
27 01.531 BOLT; OIL PIPE FIX
01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0507-0512 ● ● ● ● ● ●
27 01.531 BOLT; OIL PIPE FIX
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ● ● ●
27 01.531 BOLT; OIL PIPE FIX
EXC. CHARGE AIR COOLER<6PL> 03.415 (A) M8X35 FLANGE 		0-28080-835-0 01 1 0211-0501 ●
40 01.531 BOLT; OIL PIPE
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0211-0306 ●
40 01.531 BOLT; OIL PIPE
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0307-0501 ●
40 01.531 BOLT; OIL PIPE
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0502-0512 ●
40 01.531 BOLT; OIL PIPE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
40 01.531 BOLT; OIL PIPE
CHARGE AIR COOLER<6PL> 03.604 M10X16 FLANGE 		0-28181-016-0 02 1 0211-0501 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97385-207-0 01 1 0507- ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97349-474-0 01 1 0211-0311 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97372-936-0 01 1 0312-0501 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97372-936-2 01 1 0502- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> 		8-97214-394-0 01 1 0211-0501 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97229-042-0 01 1 0211-0501 ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
TURBOCHARGER(K51) M12X28 FLANGE 		8-97166-518-0 01 1 0211-0501 ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
CHARGE AIR COOLER<6PL> M12X28 FLANGE 		8-97166-518-0 01 1 0211-0501 ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
EXC. CHARGE AIR COOLER<6PL> M10X26 		8-97081-817-0 01 1 0211-0501 ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
M12X28 FLANGE 		8-97166-518-0 01 1 0502-0506 ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
M12X28 FLANGE 		8-97166-518-1 01 1 0507- ● ● ●
146 01.531 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0211-0306 ●
146 01.531 BOLT; BRKT
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0307-0501 ●
146 01.531 BOLT; BRKT
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0502-0512 ●
146 01.531 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
157 01.519 BRACKET; OIL PIPE
(B) 		8-97354-805-1 01 1 0507- ● ●
157 01.519 BRACKET; OIL PIPE
(A) 		8-97376-118-0 01 1 0507- ● ●
157 01.519 BRACKET; OIL PIPE
TURBOCHARGER(K51) (C) 		8-97181-586-0 01 1 0211-0501 ●
157 01.519 BRACKET; OIL PIPE
CHARGE AIR COOLER<6PL> (C) 		8-97181-586-0 01 1 0211-0501 ●
157 01.519 BRACKET; OIL PIPE
(C) 		8-97181-586-0 01 1 0502- ●
304 01.540 BOLT; BRKT,OIL PIPE
01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 0507-0512 ● ●
304 01.540 BOLT; BRKT,OIL PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
304 01.540 BOLT; BRKT,OIL PIPE
03.604 (B) M10X16 FLANGE 		0-28181-016-0 02 1 0507-0512 ● ●
304 01.540 BOLT; BRKT,OIL PIPE
00.029 (B) M10X16 FLANGE 		0-28151-016-0 02 1 0601- ● ●
304 01.540 BOLT; BRKT,OIL PIPE
CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0501 ●
479 01.531 ADAPTER
TURBOCHARGER(K51) 01.800 		8-94436-891-0 01 1 0211-0501 ●
479 01.531 ADAPTER
CHARGE AIR COOLER<6PL> 01.800 		8-94436-891-0 01 1 0211-0501 ●
479 01.531 ADAPTER
01.800 		8-94436-891-0 01 1 0502-0506 ●
479 01.531 ADAPTER
01.800 		8-94436-891-0 01 1 0507- ● ● ●

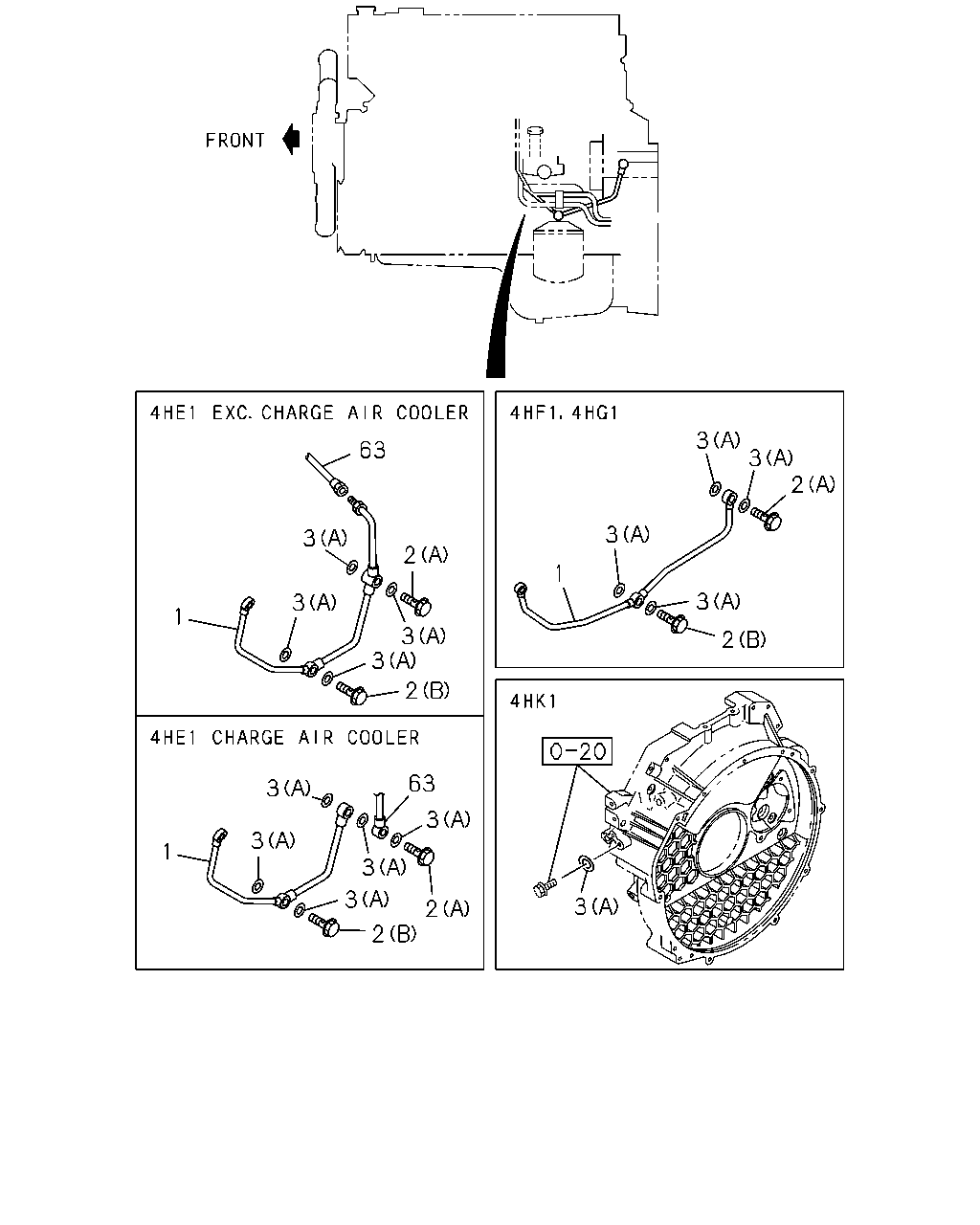

çizim 55693
3 3 63 2 3 3 2 1 3 3 1 3 3 2 2 63 3 3 3 1 3 3 3 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97200-615-2 01 1 0211-0501 ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97200-615-4 01 1 0502- ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
EXC. TURBOCHARGER(K51) 		8-97093-547-1 01 1 0211-0501 ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
EXC. ENGINE POWER N-SPEC(7QV) 		8-97093-547-1 01 1 0211-0501 ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97093-547-1 01 1 0502-0506 ● ● ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97093-547-1 01 1 0507- ● ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
CHARGE AIR COOLER<6PL> 		8-97314-008-0 01 1 0211-0501 ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
EXC. CHARGE AIR COOLER<6PL> 		8-97074-790-2 01 1 0211-0501 ●
2 01.531 BOLT; EYE,OIL PIPE
TURBOCHARGER(K51) (A) M10X40 FLANGE 		8-97182-847-0 01 1 0211-0501 ●
2 01.531 BOLT; EYE,OIL PIPE
CHARGE AIR COOLER<6PL> (A) M10X40 FLANGE 		8-97182-847-0 01 1 0211-0501 ●
2 01.531 BOLT; EYE,OIL PIPE
(A) M10X40 FLANGE 		8-97182-847-0 01 1 0502- ●
2 01.531 BOLT; EYE,OIL PIPE
TURBOCHARGER(K51) 03.280 (B) M10X24 		9-09906-205-1 01 1 0211-0501 ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (B) M10X24 		9-09906-205-1 01 1 0211-0501 ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (B) M10X24 		9-09906-205-1 01 1 0502- ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. TURBOCHARGER(K51) (A),(B) M10X21 FLANGE 		1-09675-077-0 02 1 0211-0501 ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. ENGINE POWER N-SPEC(7QV) (A),(B) M10X21 FLANGE 		1-09675-077-0 02 1 0211-0501 ●
2 01.531 BOLT; EYE,OIL PIPE
(A),(B) M10X21 FLANGE 		1-09675-077-0 02 1 0502-0805 ● ●
2 01.531 BOLT; EYE,OIL PIPE
03.162 (A),(B) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ● ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. CHARGE AIR COOLER<6PL> (A) M10X36 		1-09675-183-0 01 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0507- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 08.955 (B) ID=12.2 		9-09571-412-0 02 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2 		9-09571-412-0 02 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2 		9-09571-412-0 02 1 0502-0506 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2 		9-09571-412-0 02 1 0507-1101 ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.6 		8-97331-137-1 01 1 1102- ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER(K51) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0502- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0502- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97385-207-0 01 1 0507- ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97349-474-0 01 1 0211-0311 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97372-936-0 01 1 0312-0501 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97372-936-2 01 1 0502- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> 		8-97214-394-0 01 1 0211-0501 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97229-042-0 01 1 0211-0501 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
