Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#42554) — 1459 parça

19 18 113 17 16 68 107 68 194 36 63 62 31 66 66 2 161 1 158 80 2 78 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT .	8-97306-044-9	01	1	0507-	●	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), TURBOCHARGER(K51)	8-97212-102-0	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-102-0	01	1	0502-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),TURBOCHARGER(K51)	8-97212-101-0	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97212-101-0	01	1	0502-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97215-704-2	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97215-704-2	01	1	0502-				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97178-485-5	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97178-485-5	01	1	0502-				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97324-405-1	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97324-405-1	01	1	0502-0507						●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV)	8-97203-381-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97203-381-0	01	1	0502-0507					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), SINGAPORE EQUIPMENT(S9Y),ENGINE POWER N -SPEC(7QV)	8-97203-380-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97203-380-0	01	1	0502-					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97223-104-1	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97223-104-1	01	1	0502-						●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),SINGAPORE EQUIPMENT(S9Y),ENGINE PO WER N-SPEC(7QV)	8-97203-383-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97203-383-0	01	1	0502-					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV)	8-97223-105-1	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97223-105-1	01	1	0502-						●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . SINGAPORE EQUIPMENT(S9Y) EXC. ENGINE POWER N-SPEC(7QV)	8-97203-384-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) ENGINE POWER N-SPEC(7QV)	8-97212-189-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) EXC. ENGINE POWER N-SPEC(7QV)	8-97212-185-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2), ENGINEPOWER N-SPEC(7QV)	8-97212-186-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. EURO2 SPECIFICATION(NT2)	8-97212-188-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. CHARGE AIR COOLER<6PL>	8-97212-104-0	01	1	0211-0501							●
2	03.330 BOLT; INJ PUMP 08.900 (H) M10X50 FLANGE	0-28181-050-0	01	1	0507-0512	●	●
2	03.330 BOLT; INJ PUMP 02.042 (H) M10X50 FLANGE	0-28151-050-0	01	1	0601-	●	●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0211-0501			●
2	03.330 BOLT; INJ PUMP EXC. ENGINE POWER N-SPEC(7QV) 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0211-0501					●
2	03.330 BOLT; INJ PUMP EXC. CHARGE AIR COOLER<6PL> 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0211-0501							●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0502-			●	●	●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	0211-0501			●
2	03.330 BOLT; INJ PUMP EXC. ENGINE POWER N-SPEC(7QV) 03.162 (E) M14X30	8-97203-957-0	01	1	0211-0501					●
2	03.330 BOLT; INJ PUMP EXC. CHARGE AIR COOLER<6PL> 03.162 (E) M14X30	8-97203-957-0	01	1	0211-0501							●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	0502-			●	●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0211-0501			●		●
2	03.330 BOLT; INJ PUMP EXC. CHARGE AIR COOLER<6PL> (A) M12X90 FLANGE	0-28181-290-0	01	1	0211-0501							●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0502-0506			●	●	●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0507-0512	●	●	●	●	●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0601-	●	●	●	●	●	●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0211-0501			●		●		●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0502-0512			●	●	●	●
2	03.330 BOLT; INJ PUMP 02.277 (C) M10X70 FLANGE	0-28151-070-0	01	1	0601-			●	●	●	●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0211-0501			●		●		●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0502-0506			●	●	●	●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0507-0512	●	●	●	●	●	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0601-	●	●	●	●	●	●
2	03.330 BOLT; INJ PUMP ENGINE POWER N-SPEC(7QV) 03.417 (F) M10X25 FLANGE	0-28081-025-0	01	1	0211-0501					●
2	03.330 BOLT; INJ PUMP 03.417 (F) M10X25 FLANGE	0-28081-025-0	01	1	0502-0512						●
2	03.330 BOLT; INJ PUMP 09.171 (F) M10X25 FLANGE	0-28051-025-0	01	1	0601-						●
2	03.330 BOLT; INJ PUMP CHARGE AIR COOLER<6PL> (G) M12X110	0-28186-211-0	01	1	0211-0501							●
2	03.330 BOLT; INJ PUMP CHARGE AIR COOLER<6PL> 03.162 (D) M14X27 FLANGE	1-09675-086-0	01	1	0211-0501							●
16	03.330 PIPE; INJ NO.1	8-97371-831-1	01	1	0507-	●	●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	0211-0501			●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	0502-				●
16	03.330 PIPE; INJ NO.1 EXC. TURBOCHARGER(K51)	8-97123-374-0	01	1	0211-0501			●
16	03.330 PIPE; INJ NO.1 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-374-0	01	1	0211-0501					●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	0502-			●		●
16	03.330 PIPE; INJ NO.1 ENGINE POWER N-SPEC(7QV)	8-97134-166-1	01	1	0211-0501					●
16	03.330 PIPE; INJ NO.1	8-97134-166-1	01	1	0502-						●
16	03.330 PIPE; INJ NO.1 CHARGE AIR COOLER<6PL>	8-97148-963-4	01	1	0211-0501							●
16	03.330 PIPE; INJ NO.1 EXC. CHARGE AIR COOLER<6PL>	8-97065-932-3	01	1	0211-0501							●
17	03.330 PIPE; INJ NO.2	8-97373-417-1	01	1	0507-	●	●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	0211-0501			●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	0502-				●
17	03.330 PIPE; INJ NO.2 EXC. TURBOCHARGER(K51)	8-97123-375-0	01	1	0211-0501			●
17	03.330 PIPE; INJ NO.2 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-375-0	01	1	0211-0501					●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	0502-			●		●
17	03.330 PIPE; INJ NO.2 ENGINE POWER N-SPEC(7QV)	8-97134-167-1	01	1	0211-0501					●
17	03.330 PIPE; INJ NO.2	8-97134-167-1	01	1	0502-						●
17	03.330 PIPE; INJ NO.2 CHARGE AIR COOLER<6PL>	8-97148-964-3	01	1	0211-0501							●
17	03.330 PIPE; INJ NO.2 EXC. CHARGE AIR COOLER<6PL>	8-97065-933-3	01	1	0211-0501							●
18	03.330 PIPE; INJ NO.3	8-97371-833-1	01	1	0507-	●	●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	0211-0501			●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	0502-				●
18	03.330 PIPE; INJ NO.3 EXC. TURBOCHARGER(K51)	8-97123-376-0	01	1	0211-0501			●
18	03.330 PIPE; INJ NO.3 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-376-0	01	1	0211-0501					●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	0502-			●		●
18	03.330 PIPE; INJ NO.3 ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-168-0	01	1	0211-0501					●
18	03.330 PIPE; INJ NO.3 EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-168-0	01	1	0502-1405						●
18	03.330 PIPE; INJ NO.3 EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-168-0	01	1	1406-						●
18	03.330 PIPE; INJ NO.3 HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV)	8-97223-106-0	01	1	0211-0501					●
18	03.330 PIPE; INJ NO.3 HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97223-106-0	01	1	0502-						●
18	03.330 PIPE; INJ NO.3 CHARGE AIR COOLER<6PL>	8-97148-965-4	01	1	0211-0501							●
18	03.330 PIPE; INJ NO.3 EXC. CHARGE AIR COOLER<6PL>	8-97065-934-3	01	1	0211-0501							●
19	03.330 PIPE; INJ NO.4	8-97371-834-1	01	1	0507-	●	●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	0211-0501			●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	0502-				●
19	03.330 PIPE; INJ NO.4 EXC. TURBOCHARGER(K51)	8-97123-377-1	01	1	0211-0501			●
19	03.330 PIPE; INJ NO.4 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-377-1	01	1	0211-0501					●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	0502-			●		●
19	03.330 PIPE; INJ NO.4 ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-169-0	01	1	0211-0501					●
19	03.330 PIPE; INJ NO.4 EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-169-0	01	1	0502-1405						●
19	03.330 PIPE; INJ NO.4 EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-169-0	01	1	1406-						●
19	03.330 PIPE; INJ NO.4 HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV)	8-97223-107-0	01	1	0211-0501					●
19	03.330 PIPE; INJ NO.4 HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97223-107-0	01	1	0502-						●
19	03.330 PIPE; INJ NO.4 CHARGE AIR COOLER<6PL>	8-97148-966-3	01	1	0211-0501							●
19	03.330 PIPE; INJ NO.4 EXC. CHARGE AIR COOLER<6PL>	8-97065-935-3	01	1	0211-0501							●
31	03.332 NOZZLE ASM; INJ (C)	8-97602-485-6	04	1	0507-	●	●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0211-0501			●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0502-				●
31	03.332 NOZZLE ASM; INJ EXC. TURBOCHARGER(K51) (A)	8-97119-811-0	04	1	0211-0501			●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0502-			●
31	03.332 NOZZLE ASM; INJ ENGINE POWER N-SPEC(7QV) (A)	8-97174-112-0	04	1	0211-0501					●
31	03.332 NOZZLE ASM; INJ (A)	8-97174-112-0	04	1	0502-						●
31	03.332 NOZZLE ASM; INJ EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97119-812-0	04	1	0211-0501					●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-812-0	04	1	0502-					●
31	03.332 NOZZLE ASM; INJ CHARGE AIR COOLER<6PL> (A)	8-97148-960-1	04	1	0211-0501							●
31	03.332 NOZZLE ASM; INJ EXC. CHARGE AIR COOLER<6PL> (B)	8-97115-503-2	04	1	0211-0501							●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.162 ID=8.3	8-97600-925-0	04	1	0507-0908	●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.3 OD=15.0	8-98065-992-0	04	1	0909-	●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6	8-94395-214-0	04	1	0211-0501			●		●		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6	8-94395-214-0	04	1	0502-1312			●	●	●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6	8-98246-930-0	04	1	1401-			●	●	●	●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0211-0501			●		●		●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0502-0602			●	●	●	●
62	03.332 NUT; NOZZLE HOLDER 01.062 M8 FLANGE	0-91180-108-0	08	1	0603-			●	●	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	0507-	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF TURBOCHARGER(K51)	8-97148-969-2	01	1	0211-0501			●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF CHARGE AIR COOLER<6PL>	8-97148-969-2	01	1	0211-0501							●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0502-				●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF EXC. TURBOCHARGER(K51)	8-97118-895-0	01	1	0211-0501			●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF EXC. ENGINE POWER N-SPEC(7QV)	8-97118-895-0	01	1	0211-0501					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97118-895-0	01	1	0211-0501					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF EXC. CHARGE AIR COOLER<6PL>	8-97118-895-0	01	1	0211-0501							●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0502-			●		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97118-895-0	01	1	0502-						●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV)	8-97145-004-0	01	1	0211-0501					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97145-004-0	01	1	0502-						●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.609 (D) ID=23.3	8-94173-412-0	04	1	0507-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=9.2 T=8.1	8-97601-447-2	04	1	0507-0909	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=9.2 T=8.1	8-98079-248-0	04	1	0910-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) TURBOCHARGER(K51) 07.003 (A)	8-97171-332-0	04	1	0211-0501			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 07.003 (A)	8-97171-332-0	04	1	0211-0501							●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 07.003 (A)	8-97171-332-0	04	1	0502-				●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0211-0501			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0211-0501					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0502-			●		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-94326-439-0	04	1	0211-0501			●		●		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-94326-439-0	04	1	0502-			●	●	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL> (A)	8-97171-922-0	04	1	0211-0501							●
68	03.162 CLIP; INJ PIPE (A) ID=7 & 7 L=22	8-97330-118-3	04	1	0507-	●	●
68	03.162 CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-119-3	04	1	0507-	●	●
68	03.162 CLIP; INJ PIPE (C)	1-09701-091-0	01	1	0211-0501			●
68	03.162 CLIP; INJ PIPE (C)	1-09701-091-0	01	1	0502-				●
68	03.162 CLIP; INJ PIPE ENGINE POWER N-SPEC(7QV) (D)	8-97213-049-0	04	1	0211-0501					●
68	03.162 CLIP; INJ PIPE (D)	8-97213-049-0	04	1	0502-						●
68	03.162 CLIP; INJ PIPE CHARGE AIR COOLER<6PL> (D)	8-97213-049-0	06	1	0211-0501							●
78	03.330 BOLT; BRKT TO C/BL TURBOCHARGER(K51) 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0211-0501			●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0211-0501							●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0502-0512				●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	01	1	0601-				●
78	03.330 BOLT; BRKT TO C/BL EXC. TURBOCHARGER(K51) 04.785 M10X20 FLANGE	0-28781-020-0	02	1	0211-0501			●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	02	1	0211-0501					●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	02	1	0502-0512			●		●	●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	02	1	0601-			●		●	●
80	03.306 BRACKET; PUMP	8-97601-699-0	01	1	0507-	●	●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0211-0501			●
80	03.306 BRACKET; PUMP EXC. ENGINE POWER N-SPEC(7QV)	8-97136-677-0	01	1	0211-0501					●
80	03.306 BRACKET; PUMP EXC. CHARGE AIR COOLER<6PL>	8-97136-677-0	01	1	0211-0501							●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0502-			●	●	●
80	03.306 BRACKET; PUMP ENGINE POWER N-SPEC(7QV)	8-97119-363-1	01	1	0211-0501					●
80	03.306 BRACKET; PUMP	8-97119-363-1	01	1	0502-						●
80	03.306 BRACKET; PUMP CHARGE AIR COOLER<6PL>	8-97148-958-1	01	1	0211-0501							●
107	03.162 NUT; INJ PIPE CLIP ENGINE POWER N-SPEC(7QV) 03.671 M5 FLANGE	8-94178-699-0	02	1	0211-0501					●
107	03.162 NUT; INJ PIPE CLIP 03.671 M5 FLANGE	8-94178-699-0	02	1	0502-						●
107	03.162 NUT; INJ PIPE CLIP CHARGE AIR COOLER<6PL> 03.671 M5 FLANGE	8-94178-699-0	03	1	0211-0501							●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0211-0501			●
113	03.162 CLIP; INJ PIPE EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97213-050-0	04	1	0211-0501					●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0502-			●	●	●
113	03.162 CLIP; INJ PIPE (B)	8-97213-481-0	01	1	0211-0501			●
113	03.162 CLIP; INJ PIPE (B)	8-97213-481-0	01	1	0502-				●
113	03.162 CLIP; INJ PIPE ENGINE POWER N-SPEC(7QV) (A)	8-97213-050-0	02	1	0211-0501					●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	02	1	0502-						●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	05	1	0211-0501							●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501			●		●		●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0506			●	●	●	●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602	●	●	●	●	●	●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-	●	●	●	●	●	●
158	03.330 NUT; INJ PUMP CHARGE AIR COOLER<6PL> 00.685 M12 FLANGE	0-91250-112-0	01	1	0211-0501							●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	0211-0212			●		●		●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0301-0501			●		●		●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0502-0506			●	●	●	●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0507-0910	●	●	●	●	●	●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	0911-	●	●	●	●	●	●
194	03.162 STUD; INJ PIPE ENGINE POWER N-SPEC(7QV)	8-97176-071-0	02	1	0211-0501					●
194	03.162 STUD; INJ PIPE	8-97176-071-0	02	1	0502-0610						●
194	03.162 STUD; INJ PIPE	8-98048-396-0	02	1	0611-						●

19 113 18 17 16 68 122 68 107 36 62 63 31 66 66 2 364 61 393 158 15 1 2 2 84 80 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT .	8-97306-044-9	01	1	0507-	●	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), TURBOCHARGER(K51)	8-97212-102-0	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-102-0	01	1	0502-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),TURBOCHARGER(K51)	8-97212-101-0	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97212-101-0	01	1	0502-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97215-704-2	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97215-704-2	01	1	0502-				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97178-485-5	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97178-485-5	01	1	0502-				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97324-405-1	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97324-405-1	01	1	0502-0507						●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV)	8-97203-381-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97203-381-0	01	1	0502-0507					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), SINGAPORE EQUIPMENT(S9Y),ENGINE POWER N -SPEC(7QV)	8-97203-380-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97203-380-0	01	1	0502-					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97223-104-1	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97223-104-1	01	1	0502-						●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),SINGAPORE EQUIPMENT(S9Y),ENGINE PO WER N-SPEC(7QV)	8-97203-383-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97203-383-0	01	1	0502-					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV)	8-97223-105-1	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97223-105-1	01	1	0502-						●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . SINGAPORE EQUIPMENT(S9Y) EXC. ENGINE POWER N-SPEC(7QV)	8-97203-384-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) ENGINE POWER N-SPEC(7QV)	8-97212-189-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) EXC. ENGINE POWER N-SPEC(7QV)	8-97212-185-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2), ENGINEPOWER N-SPEC(7QV)	8-97212-186-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. EURO2 SPECIFICATION(NT2)	8-97212-188-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. CHARGE AIR COOLER<6PL>	8-97212-104-0	01	1	0211-0501							●
2	03.330 BOLT; INJ PUMP 08.900 (H) M10X50 FLANGE	0-28181-050-0	01	1	0507-0512	●	●
2	03.330 BOLT; INJ PUMP 02.042 (H) M10X50 FLANGE	0-28151-050-0	01	1	0601-	●	●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0211-0501			●
2	03.330 BOLT; INJ PUMP EXC. ENGINE POWER N-SPEC(7QV) 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0211-0501					●
2	03.330 BOLT; INJ PUMP EXC. CHARGE AIR COOLER<6PL> 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0211-0501							●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0502-			●	●	●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	0211-0501			●
2	03.330 BOLT; INJ PUMP EXC. ENGINE POWER N-SPEC(7QV) 03.162 (E) M14X30	8-97203-957-0	01	1	0211-0501					●
2	03.330 BOLT; INJ PUMP EXC. CHARGE AIR COOLER<6PL> 03.162 (E) M14X30	8-97203-957-0	01	1	0211-0501							●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	0502-			●	●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0211-0501			●		●
2	03.330 BOLT; INJ PUMP EXC. CHARGE AIR COOLER<6PL> (A) M12X90 FLANGE	0-28181-290-0	01	1	0211-0501							●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0502-0506			●	●	●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0507-0512	●	●	●	●	●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0601-	●	●	●	●	●	●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0211-0501			●		●		●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0502-0512			●	●	●	●
2	03.330 BOLT; INJ PUMP 02.277 (C) M10X70 FLANGE	0-28151-070-0	01	1	0601-			●	●	●	●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0211-0501			●		●		●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0502-0506			●	●	●	●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0507-0512	●	●	●	●	●	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0601-	●	●	●	●	●	●
2	03.330 BOLT; INJ PUMP ENGINE POWER N-SPEC(7QV) 03.417 (F) M10X25 FLANGE	0-28081-025-0	01	1	0211-0501					●
2	03.330 BOLT; INJ PUMP 03.417 (F) M10X25 FLANGE	0-28081-025-0	01	1	0502-0512						●
2	03.330 BOLT; INJ PUMP 09.171 (F) M10X25 FLANGE	0-28051-025-0	01	1	0601-						●
2	03.330 BOLT; INJ PUMP CHARGE AIR COOLER<6PL> (G) M12X110	0-28186-211-0	01	1	0211-0501							●
2	03.330 BOLT; INJ PUMP CHARGE AIR COOLER<6PL> 03.162 (D) M14X27 FLANGE	1-09675-086-0	01	1	0211-0501							●
15	03.340 COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV)	8-97218-999-0	01	1	0211-0211							●
15	03.340 COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. ENGINE POWER N-SPEC(7QV)	8-97219-000-0	01	1	0211-0211							●
15	03.340 COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97367-625-0	01	1	0212-0501							●
16	03.330 PIPE; INJ NO.1	8-97371-831-1	01	1	0507-	●	●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	0211-0501			●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	0502-				●
16	03.330 PIPE; INJ NO.1 EXC. TURBOCHARGER(K51)	8-97123-374-0	01	1	0211-0501			●
16	03.330 PIPE; INJ NO.1 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-374-0	01	1	0211-0501					●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	0502-			●		●
16	03.330 PIPE; INJ NO.1 ENGINE POWER N-SPEC(7QV)	8-97134-166-1	01	1	0211-0501					●
16	03.330 PIPE; INJ NO.1	8-97134-166-1	01	1	0502-						●
16	03.330 PIPE; INJ NO.1 CHARGE AIR COOLER<6PL>	8-97148-963-4	01	1	0211-0501							●
16	03.330 PIPE; INJ NO.1 EXC. CHARGE AIR COOLER<6PL>	8-97065-932-3	01	1	0211-0501							●
17	03.330 PIPE; INJ NO.2	8-97373-417-1	01	1	0507-	●	●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	0211-0501			●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	0502-				●
17	03.330 PIPE; INJ NO.2 EXC. TURBOCHARGER(K51)	8-97123-375-0	01	1	0211-0501			●
17	03.330 PIPE; INJ NO.2 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-375-0	01	1	0211-0501					●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	0502-			●		●
17	03.330 PIPE; INJ NO.2 ENGINE POWER N-SPEC(7QV)	8-97134-167-1	01	1	0211-0501					●
17	03.330 PIPE; INJ NO.2	8-97134-167-1	01	1	0502-						●
17	03.330 PIPE; INJ NO.2 CHARGE AIR COOLER<6PL>	8-97148-964-3	01	1	0211-0501							●
17	03.330 PIPE; INJ NO.2 EXC. CHARGE AIR COOLER<6PL>	8-97065-933-3	01	1	0211-0501							●
18	03.330 PIPE; INJ NO.3	8-97371-833-1	01	1	0507-	●	●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	0211-0501			●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	0502-				●
18	03.330 PIPE; INJ NO.3 EXC. TURBOCHARGER(K51)	8-97123-376-0	01	1	0211-0501			●
18	03.330 PIPE; INJ NO.3 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-376-0	01	1	0211-0501					●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	0502-			●		●
18	03.330 PIPE; INJ NO.3 ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-168-0	01	1	0211-0501					●
18	03.330 PIPE; INJ NO.3 EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-168-0	01	1	0502-1405						●
18	03.330 PIPE; INJ NO.3 EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-168-0	01	1	1406-						●
18	03.330 PIPE; INJ NO.3 HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV)	8-97223-106-0	01	1	0211-0501					●
18	03.330 PIPE; INJ NO.3 HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97223-106-0	01	1	0502-						●
18	03.330 PIPE; INJ NO.3 CHARGE AIR COOLER<6PL>	8-97148-965-4	01	1	0211-0501							●
18	03.330 PIPE; INJ NO.3 EXC. CHARGE AIR COOLER<6PL>	8-97065-934-3	01	1	0211-0501							●
19	03.330 PIPE; INJ NO.4	8-97371-834-1	01	1	0507-	●	●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	0211-0501			●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	0502-				●
19	03.330 PIPE; INJ NO.4 EXC. TURBOCHARGER(K51)	8-97123-377-1	01	1	0211-0501			●
19	03.330 PIPE; INJ NO.4 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-377-1	01	1	0211-0501					●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	0502-			●		●
19	03.330 PIPE; INJ NO.4 ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-169-0	01	1	0211-0501					●
19	03.330 PIPE; INJ NO.4 EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-169-0	01	1	0502-1405						●
19	03.330 PIPE; INJ NO.4 EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-169-0	01	1	1406-						●
19	03.330 PIPE; INJ NO.4 HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV)	8-97223-107-0	01	1	0211-0501					●
19	03.330 PIPE; INJ NO.4 HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97223-107-0	01	1	0502-						●
19	03.330 PIPE; INJ NO.4 CHARGE AIR COOLER<6PL>	8-97148-966-3	01	1	0211-0501							●
19	03.330 PIPE; INJ NO.4 EXC. CHARGE AIR COOLER<6PL>	8-97065-935-3	01	1	0211-0501							●
31	03.332 NOZZLE ASM; INJ (C)	8-97602-485-6	04	1	0507-	●	●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0211-0501			●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0502-				●
31	03.332 NOZZLE ASM; INJ EXC. TURBOCHARGER(K51) (A)	8-97119-811-0	04	1	0211-0501			●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0502-			●
31	03.332 NOZZLE ASM; INJ ENGINE POWER N-SPEC(7QV) (A)	8-97174-112-0	04	1	0211-0501					●
31	03.332 NOZZLE ASM; INJ (A)	8-97174-112-0	04	1	0502-						●
31	03.332 NOZZLE ASM; INJ EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97119-812-0	04	1	0211-0501					●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-812-0	04	1	0502-					●
31	03.332 NOZZLE ASM; INJ CHARGE AIR COOLER<6PL> (A)	8-97148-960-1	04	1	0211-0501							●
31	03.332 NOZZLE ASM; INJ EXC. CHARGE AIR COOLER<6PL> (B)	8-97115-503-2	04	1	0211-0501							●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.162 ID=8.3	8-97600-925-0	04	1	0507-0908	●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.3 OD=15.0	8-98065-992-0	04	1	0909-	●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6	8-94395-214-0	04	1	0211-0501			●		●		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6	8-94395-214-0	04	1	0502-1312			●	●	●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6	8-98246-930-0	04	1	1401-			●	●	●	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER M8X54	8-98008-895-0	04	1	0507-	●	●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0211-0501			●		●		●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0502-0602			●	●	●	●
62	03.332 NUT; NOZZLE HOLDER 01.062 M8 FLANGE	0-91180-108-0	08	1	0603-			●	●	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	0507-	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF TURBOCHARGER(K51)	8-97148-969-2	01	1	0211-0501			●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF CHARGE AIR COOLER<6PL>	8-97148-969-2	01	1	0211-0501							●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0502-				●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF EXC. TURBOCHARGER(K51)	8-97118-895-0	01	1	0211-0501			●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF EXC. ENGINE POWER N-SPEC(7QV)	8-97118-895-0	01	1	0211-0501					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97118-895-0	01	1	0211-0501					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF EXC. CHARGE AIR COOLER<6PL>	8-97118-895-0	01	1	0211-0501							●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0502-			●		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97118-895-0	01	1	0502-						●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV)	8-97145-004-0	01	1	0211-0501					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97145-004-0	01	1	0502-						●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.609 (D) ID=23.3	8-94173-412-0	04	1	0507-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=9.2 T=8.1	8-97601-447-2	04	1	0507-0909	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=9.2 T=8.1	8-98079-248-0	04	1	0910-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) TURBOCHARGER(K51) 07.003 (A)	8-97171-332-0	04	1	0211-0501			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 07.003 (A)	8-97171-332-0	04	1	0211-0501							●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 07.003 (A)	8-97171-332-0	04	1	0502-				●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0211-0501			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0211-0501					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0502-			●		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-94326-439-0	04	1	0211-0501			●		●		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-94326-439-0	04	1	0502-			●	●	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL> (A)	8-97171-922-0	04	1	0211-0501							●
68	03.162 CLIP; INJ PIPE (A) ID=7 & 7 L=22	8-97330-118-3	04	1	0507-	●	●
68	03.162 CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-119-3	04	1	0507-	●	●
68	03.162 CLIP; INJ PIPE (C)	1-09701-091-0	01	1	0211-0501			●
68	03.162 CLIP; INJ PIPE (C)	1-09701-091-0	01	1	0502-				●

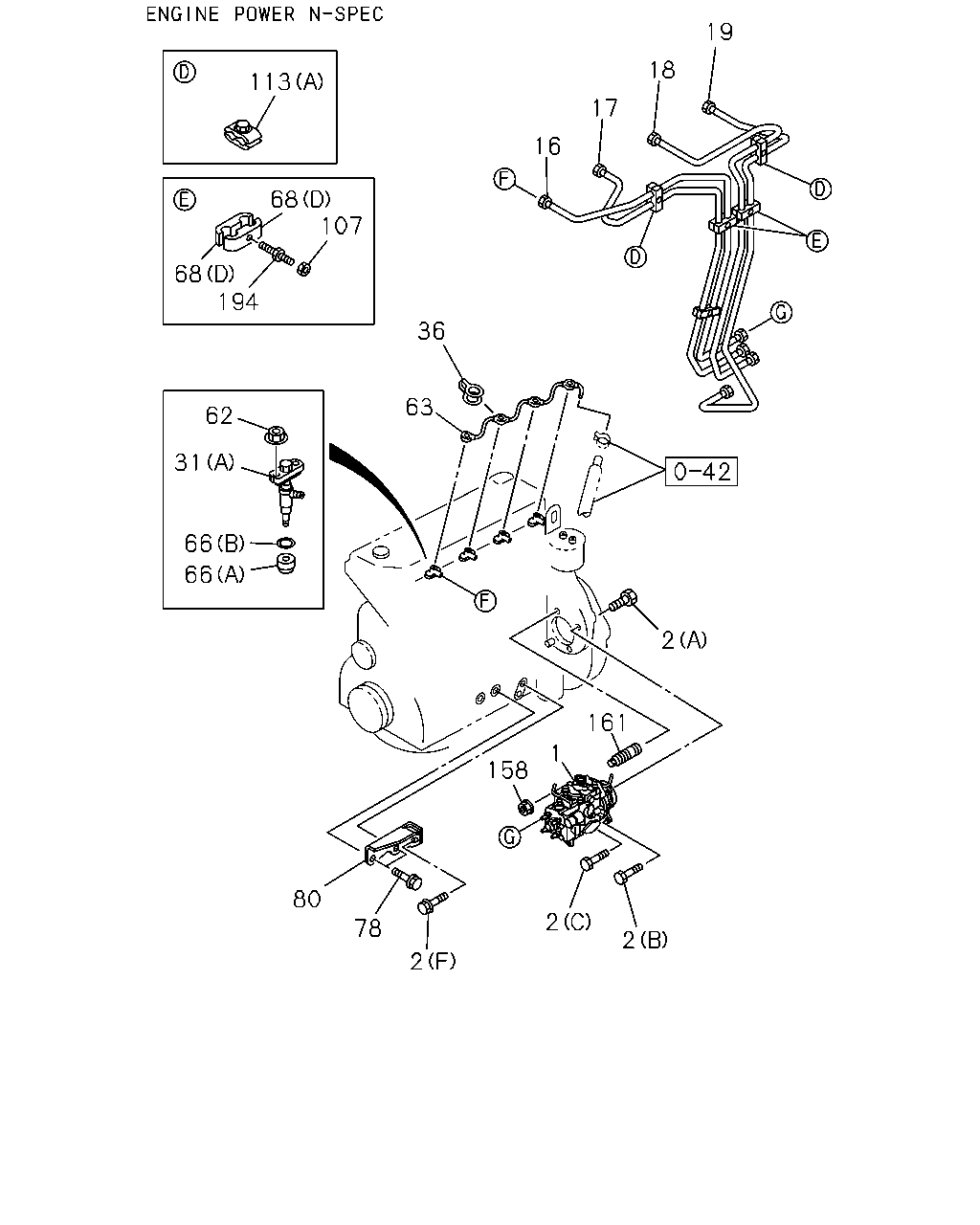

68	03.162 CLIP; INJ PIPE ENGINE POWER N-SPEC(7QV) (D)	8-97213-049-0	04	1	0211-0501					●
68	03.162 CLIP; INJ PIPE (D)	8-97213-049-0	04	1	0502-						●

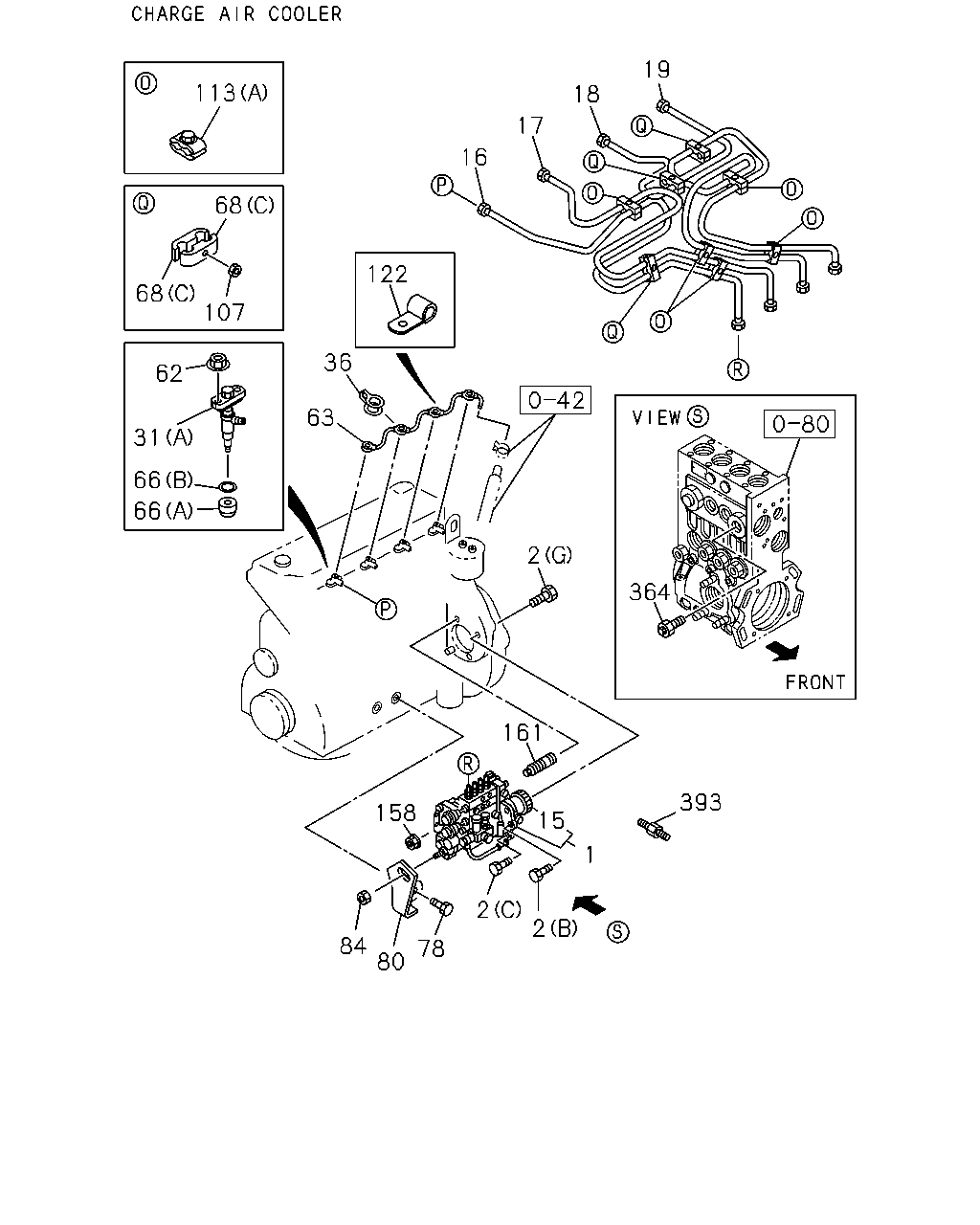

68	03.162 CLIP; INJ PIPE CHARGE AIR COOLER<6PL> (D)	8-97213-049-0	06	1	0211-0501							●

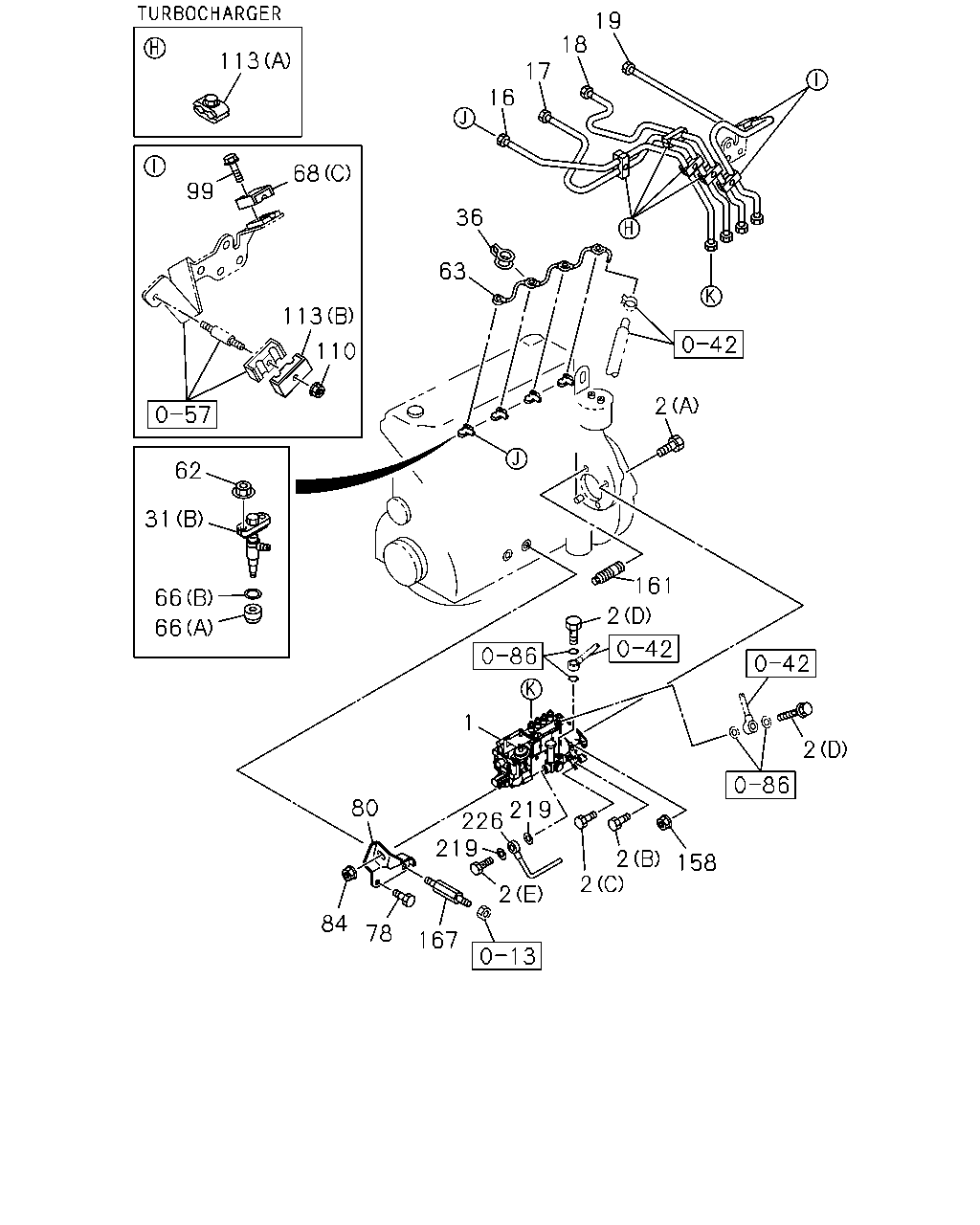

78	03.330 BOLT; BRKT TO C/BL TURBOCHARGER(K51) 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0211-0501			●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0211-0501							●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0502-0512				●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	01	1	0601-				●

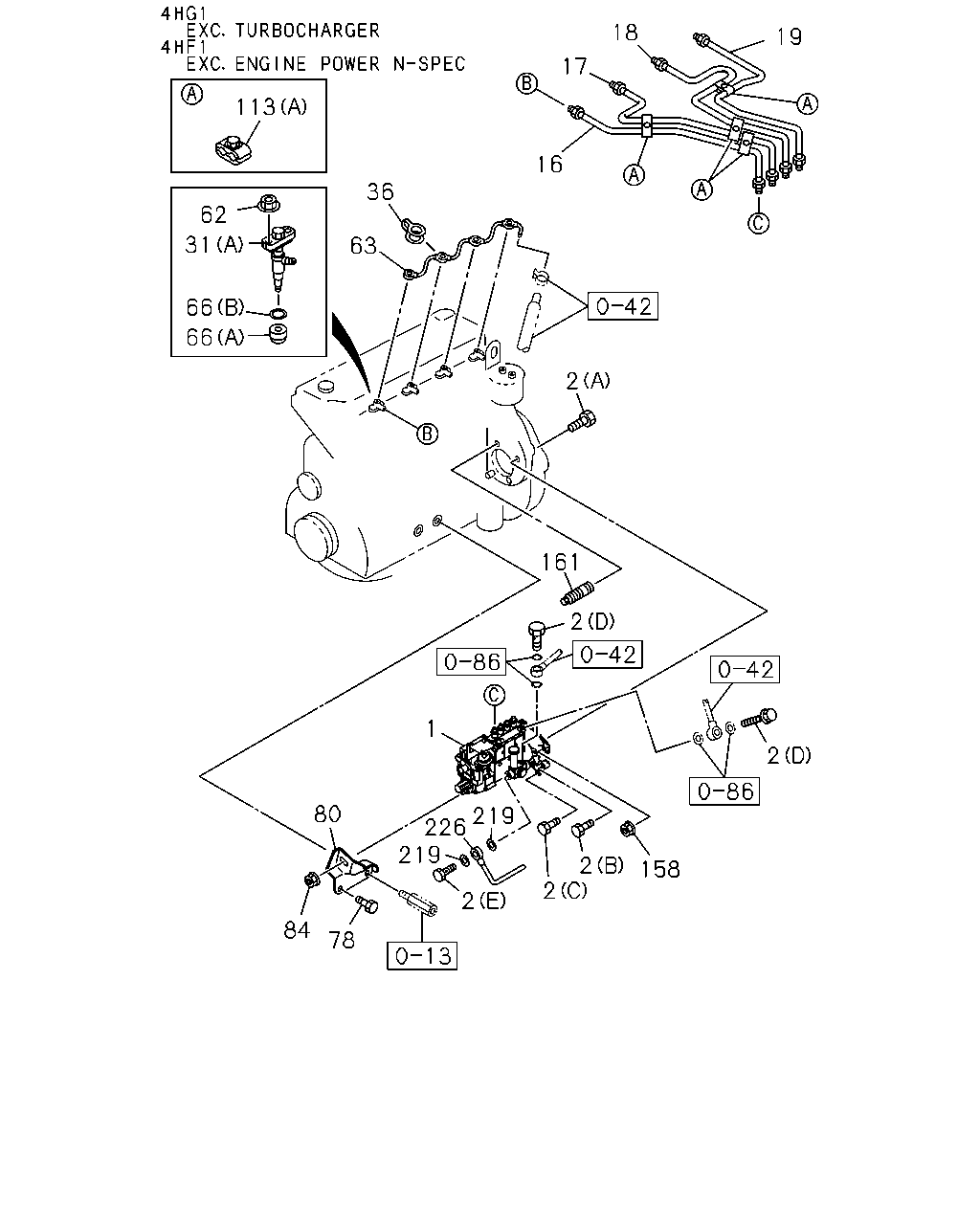

78	03.330 BOLT; BRKT TO C/BL EXC. TURBOCHARGER(K51) 04.785 M10X20 FLANGE	0-28781-020-0	02	1	0211-0501			●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	02	1	0211-0501					●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	02	1	0502-0512			●		●	●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	02	1	0601-			●		●	●
80	03.306 BRACKET; PUMP	8-97601-699-0	01	1	0507-	●	●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0211-0501			●
80	03.306 BRACKET; PUMP EXC. ENGINE POWER N-SPEC(7QV)	8-97136-677-0	01	1	0211-0501					●

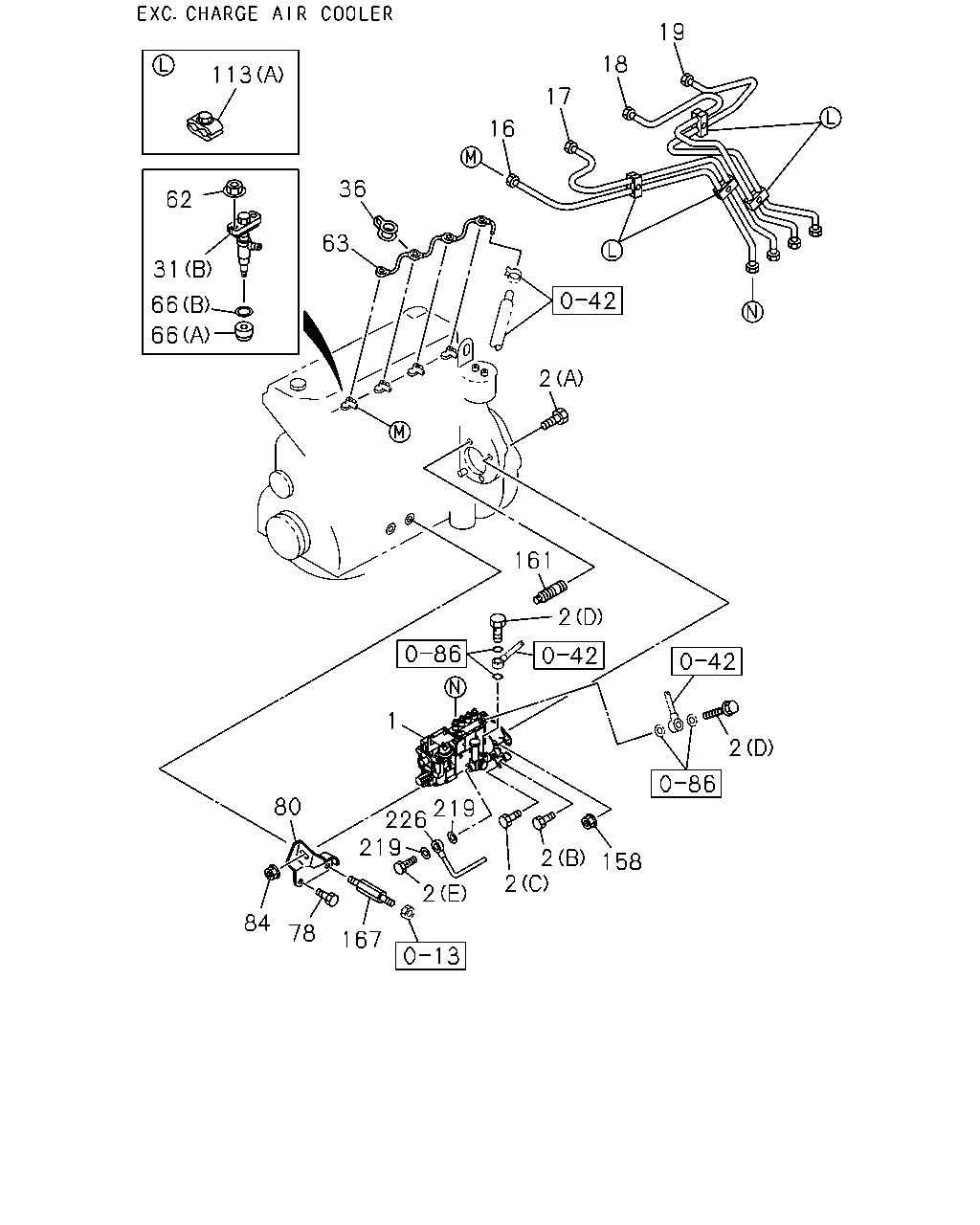

80	03.306 BRACKET; PUMP EXC. CHARGE AIR COOLER<6PL>	8-97136-677-0	01	1	0211-0501							●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0502-			●	●	●
80	03.306 BRACKET; PUMP ENGINE POWER N-SPEC(7QV)	8-97119-363-1	01	1	0211-0501					●
80	03.306 BRACKET; PUMP	8-97119-363-1	01	1	0502-						●
80	03.306 BRACKET; PUMP CHARGE AIR COOLER<6PL>	8-97148-958-1	01	1	0211-0501							●
84	03.330 NUT; BRKT TO BRKT 08.917 M10 FLANGE	0-91150-210-0	01	1	0211-0501			●
84	03.330 NUT; BRKT TO BRKT EXC. ENGINE POWER N-SPEC(7QV) 08.917 M10 FLANGE	0-91150-210-0	01	1	0211-0501					●
84	03.330 NUT; BRKT TO BRKT EXC. CHARGE AIR COOLER<6PL> 08.917 M10 FLANGE	0-91150-210-0	01	1	0211-0501							●
84	03.330 NUT; BRKT TO BRKT 08.917 M10 FLANGE	0-91150-210-0	01	1	0502-0602			●	●	●
84	03.330 NUT; BRKT TO BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	0603-			●	●	●
84	03.330 NUT; BRKT TO BRKT CHARGE AIR COOLER<6PL> 07.243 M12 FLANGE	0-91150-212-0	01	1	0211-0501							●
107	03.162 NUT; INJ PIPE CLIP ENGINE POWER N-SPEC(7QV) 03.671 M5 FLANGE	8-94178-699-0	02	1	0211-0501					●
107	03.162 NUT; INJ PIPE CLIP 03.671 M5 FLANGE	8-94178-699-0	02	1	0502-						●
107	03.162 NUT; INJ PIPE CLIP CHARGE AIR COOLER<6PL> 03.671 M5 FLANGE	8-94178-699-0	03	1	0211-0501							●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0211-0501			●
113	03.162 CLIP; INJ PIPE EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97213-050-0	04	1	0211-0501					●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0502-			●	●	●
113	03.162 CLIP; INJ PIPE (B)	8-97213-481-0	01	1	0211-0501			●
113	03.162 CLIP; INJ PIPE (B)	8-97213-481-0	01	1	0502-				●
113	03.162 CLIP; INJ PIPE ENGINE POWER N-SPEC(7QV) (A)	8-97213-050-0	02	1	0211-0501					●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	02	1	0502-						●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	05	1	0211-0501							●
122	03.162 CLIP; LEAK OFF PIPE CHARGE AIR COOLER<6PL>	9-09524-662-0	01	1	0211-0501							●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501			●		●		●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0506			●	●	●	●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602	●	●	●	●	●	●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-	●	●	●	●	●	●
158	03.330 NUT; INJ PUMP CHARGE AIR COOLER<6PL> 00.685 M12 FLANGE	0-91250-112-0	01	1	0211-0501							●
364	03.900 VALVE; OVER FLOW,INJ PUMP CHARGE AIR COOLER<6PL> 03.318	1-15619-321-0	01	1	0212-0501							●
393	03.340 STUD; COVER CHARGE AIR COOLER<6PL> 03.335	8-97212-809-0	02	1	0304-0403							●

63 124 36 31 154 61 94 66 66 377 71 404 1 282 199 199 377 216 281 337 71 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G

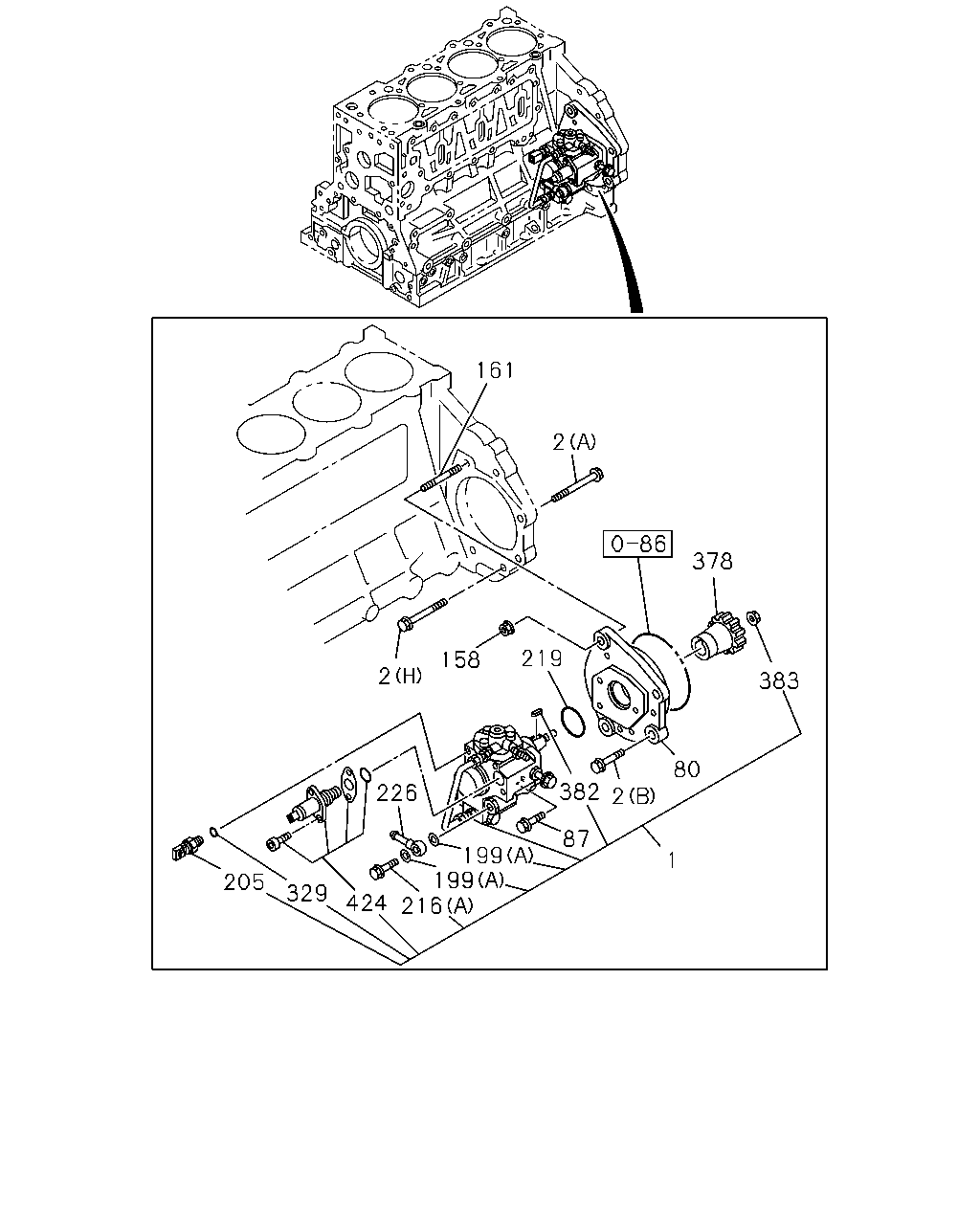

1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT .	8-97306-044-9	01	1	0507-	●	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), TURBOCHARGER(K51)	8-97212-102-0	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-102-0	01	1	0502-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),TURBOCHARGER(K51)	8-97212-101-0	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97212-101-0	01	1	0502-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97215-704-2	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97215-704-2	01	1	0502-				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97178-485-5	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97178-485-5	01	1	0502-				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97324-405-1	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97324-405-1	01	1	0502-0507						●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV)	8-97203-381-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97203-381-0	01	1	0502-0507					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), SINGAPORE EQUIPMENT(S9Y),ENGINE POWER N -SPEC(7QV)	8-97203-380-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97203-380-0	01	1	0502-					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97223-104-1	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97223-104-1	01	1	0502-						●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),SINGAPORE EQUIPMENT(S9Y),ENGINE PO WER N-SPEC(7QV)	8-97203-383-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97203-383-0	01	1	0502-					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV)	8-97223-105-1	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97223-105-1	01	1	0502-						●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . SINGAPORE EQUIPMENT(S9Y) EXC. ENGINE POWER N-SPEC(7QV)	8-97203-384-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) ENGINE POWER N-SPEC(7QV)	8-97212-189-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) EXC. ENGINE POWER N-SPEC(7QV)	8-97212-185-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2), ENGINEPOWER N-SPEC(7QV)	8-97212-186-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. EURO2 SPECIFICATION(NT2)	8-97212-188-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. CHARGE AIR COOLER<6PL>	8-97212-104-0	01	1	0211-0501							●

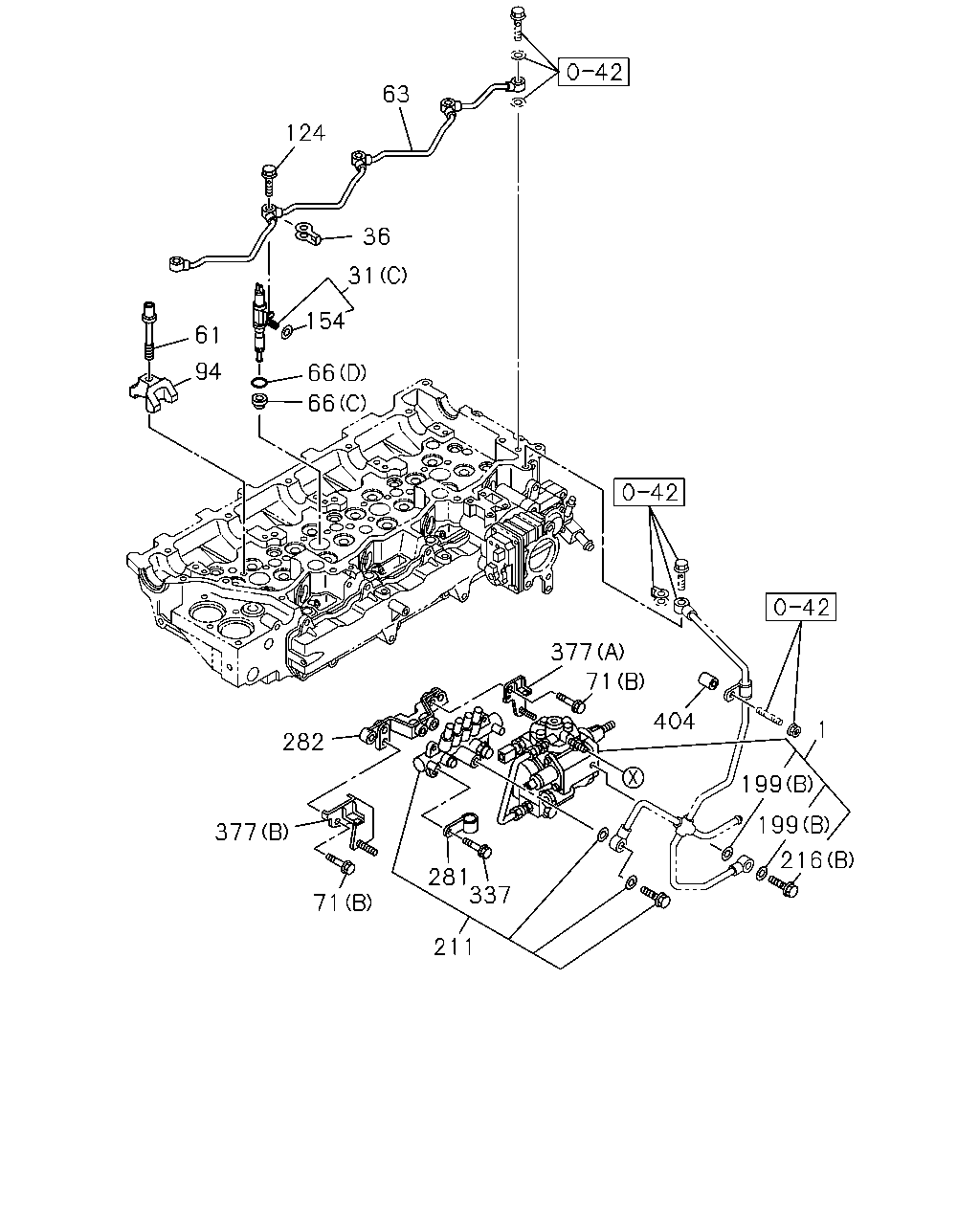

31	03.332 NOZZLE ASM; INJ (C)	8-97602-485-6	04	1	0507-	●	●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0211-0501			●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0502-				●
31	03.332 NOZZLE ASM; INJ EXC. TURBOCHARGER(K51) (A)	8-97119-811-0	04	1	0211-0501			●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0502-			●
31	03.332 NOZZLE ASM; INJ ENGINE POWER N-SPEC(7QV) (A)	8-97174-112-0	04	1	0211-0501					●
31	03.332 NOZZLE ASM; INJ (A)	8-97174-112-0	04	1	0502-						●
31	03.332 NOZZLE ASM; INJ EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97119-812-0	04	1	0211-0501					●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-812-0	04	1	0502-					●
31	03.332 NOZZLE ASM; INJ CHARGE AIR COOLER<6PL> (A)	8-97148-960-1	04	1	0211-0501							●
31	03.332 NOZZLE ASM; INJ EXC. CHARGE AIR COOLER<6PL> (B)	8-97115-503-2	04	1	0211-0501							●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.162 ID=8.3	8-97600-925-0	04	1	0507-0908	●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.3 OD=15.0	8-98065-992-0	04	1	0909-	●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6	8-94395-214-0	04	1	0211-0501			●		●		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6	8-94395-214-0	04	1	0502-1312			●	●	●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6	8-98246-930-0	04	1	1401-			●	●	●	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER M8X54	8-98008-895-0	04	1	0507-	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	0507-	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF TURBOCHARGER(K51)	8-97148-969-2	01	1	0211-0501			●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF CHARGE AIR COOLER<6PL>	8-97148-969-2	01	1	0211-0501							●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0502-				●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF EXC. TURBOCHARGER(K51)	8-97118-895-0	01	1	0211-0501			●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF EXC. ENGINE POWER N-SPEC(7QV)	8-97118-895-0	01	1	0211-0501					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97118-895-0	01	1	0211-0501					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF EXC. CHARGE AIR COOLER<6PL>	8-97118-895-0	01	1	0211-0501							●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0502-			●		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97118-895-0	01	1	0502-						●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV)	8-97145-004-0	01	1	0211-0501					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97145-004-0	01	1	0502-						●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.609 (D) ID=23.3	8-94173-412-0	04	1	0507-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=9.2 T=8.1	8-97601-447-2	04	1	0507-0909	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=9.2 T=8.1	8-98079-248-0	04	1	0910-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) TURBOCHARGER(K51) 07.003 (A)	8-97171-332-0	04	1	0211-0501			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 07.003 (A)	8-97171-332-0	04	1	0211-0501							●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 07.003 (A)	8-97171-332-0	04	1	0502-				●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0211-0501			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0211-0501					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0502-			●		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-94326-439-0	04	1	0211-0501			●		●		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-94326-439-0	04	1	0502-			●	●	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL> (A)	8-97171-922-0	04	1	0211-0501							●
71	03.162 BOLT; BRKT 02.500 (B) M6X10 FLANGE	0-28080-610-0	02	1	0507-0512	●	●
71	03.162 BOLT; BRKT 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0601-	●	●
71	03.162 BOLT; BRKT 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0507-0512	●	●
71	03.162 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
71	03.162 BOLT; BRKT 01.271 (C) M8X40 FLANGE	0-28080-840-0	01	1	0507-0512	●	●
71	03.162 BOLT; BRKT 02.277 (C) M8X40 FLANGE	0-28050-840-0	01	1	0601-	●	●
71	03.162 BOLT; BRKT 01.780 (D) M8X50 FLANGE	0-28080-850-0	01	1	0507-0512	●	●
71	03.162 BOLT; BRKT 00.386 (D) M8X50 FLANGE	0-28050-850-0	01	1	0601-	●	●
94	03.330 BRACKET; INJ NOZZLE	8-97306-074-1	04	1	0507-0606	●	●
94	03.330 BRACKET; INJ NOZZLE	8-98028-999-1	04	1	0607-	●	●
124	03.162 BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	04	1	0507-	●	●
154	03.332 GASKET; CONNECTOR 06.609 ID=11.0	9-09561-111-0	04	1	0507-1106	●	●
154	03.332 GASKET; CONNECTOR ID=11.0 ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	0-95690-111-0	04	1	1107-	●	●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	04	1	0507-	●	●
199	03.332 GASKET; EYE BOLT (A)	1-15619-507-0	02	1	0507-	●	●

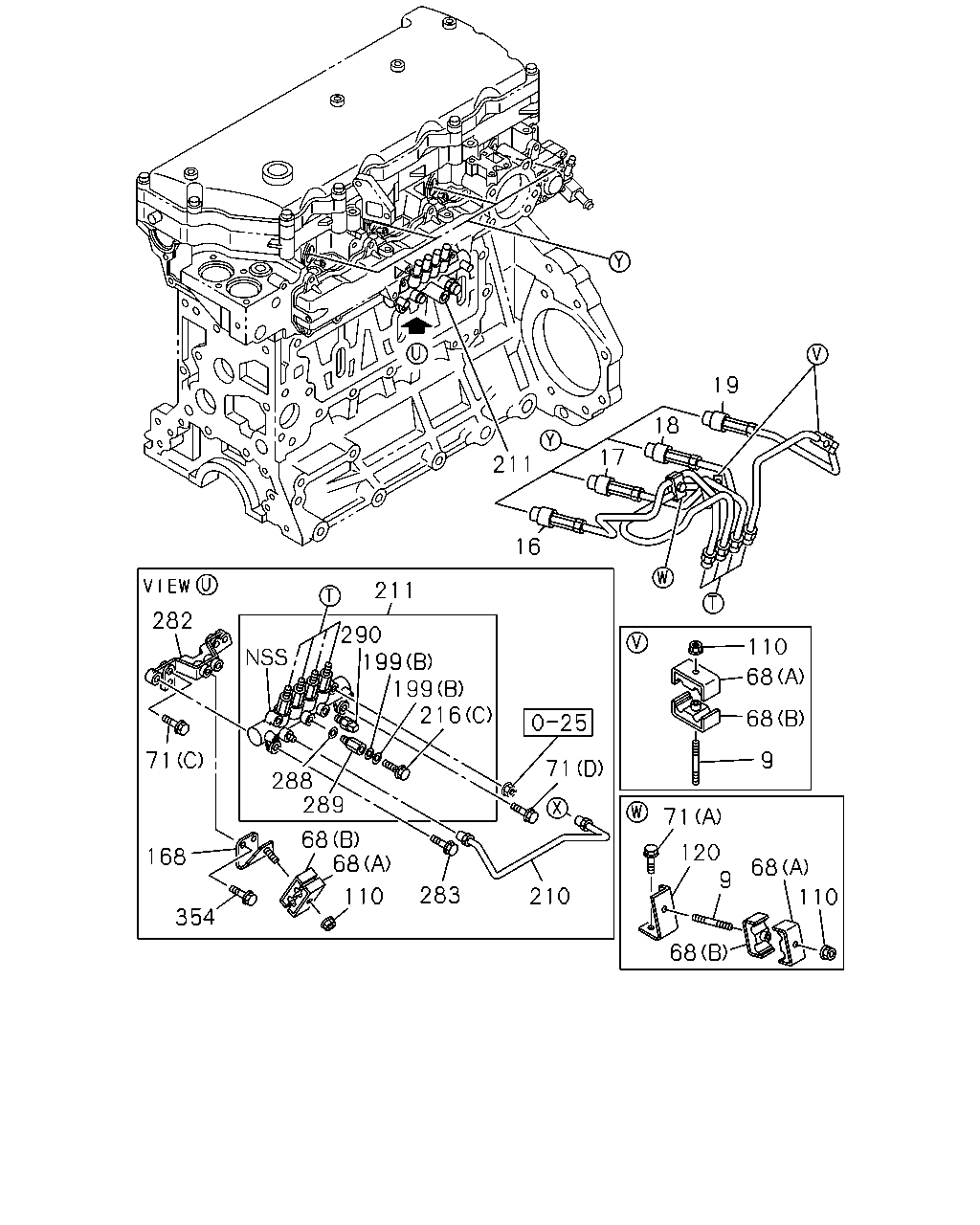

211	03.331 RAIL ASM; COMMON	8-97306-063-4	01	1	0507-	●	●
216	03.162 BOLT; EYE (C)	8-97602-173-0	01	1	0507-	●	●
216	03.162 BOLT; EYE (A)	5-15759-003-0	01	1	0507-	●	●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	0507-	●	●
281	03.162 CLIP 02.343 ID=16 H=24 L=20	9-09527-015-0	01	1	0507-0606	●	●
281	03.162 CLIP ID=16 H=24 L=20	0-95207-315-0	01	1	0607-	●	●
282	03.163 BRACKET; COMMON RAIL	8-97324-194-0	01	1	0507-1005	●	●
282	03.163 BRACKET; COMMON RAIL	8-98157-115-0	01	1	1006-	●	●
337	03.163 BOLT; CLIP 02.500 M6X10 FLANGE	0-28080-610-0	01	1	0507-0512	●	●
337	03.163 BOLT; CLIP 03.671 M6X10 FLANGE	0-28050-610-0	01	1	0601-	●	●
377	03.332 BRACKET; HARNESS (A)	8-97374-283-1	01	1	0507-	●	●
377	03.332 BRACKET; HARNESS (B)	8-98001-141-0	01	1	0507-	●	●
404	03.330 SPACER; FUEL LEAK OFF L=24.5	1-33659-186-1	01	1	0507-	●	●

31 31 32 32 34 34 58 58 45 138 140 43 140 44 43 146 46 140 44 43 47 272 33 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
31	03.332 NOZZLE ASM; INJ (C)	8-97602-485-6	04	1	0507-	●	●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0211-0501			●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0502-				●
31	03.332 NOZZLE ASM; INJ EXC. TURBOCHARGER(K51) (A)	8-97119-811-0	04	1	0211-0501			●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0502-			●
31	03.332 NOZZLE ASM; INJ ENGINE POWER N-SPEC(7QV) (A)	8-97174-112-0	04	1	0211-0501					●
31	03.332 NOZZLE ASM; INJ (A)	8-97174-112-0	04	1	0502-						●
31	03.332 NOZZLE ASM; INJ EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97119-812-0	04	1	0211-0501					●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-812-0	04	1	0502-					●
31	03.332 NOZZLE ASM; INJ CHARGE AIR COOLER<6PL> (A)	8-97148-960-1	04	1	0211-0501							●
31	03.332 NOZZLE ASM; INJ EXC. CHARGE AIR COOLER<6PL> (B)	8-97115-503-2	04	1	0211-0501							●
32	03.332 HOLDER ASM; NOZZLE (B)	8-97078-783-1	04	1	0211-0501			●
32	03.332 HOLDER ASM; NOZZLE (B)	8-97078-783-1	04	1	0502-				●
32	03.332 HOLDER ASM; NOZZLE EXC. TURBOCHARGER(K51) (A)	8-94311-966-2	04	1	0211-0501			●
32	03.332 HOLDER ASM; NOZZLE (A)	8-94311-966-2	04	1	0211-0501					●
32	03.332 HOLDER ASM; NOZZLE CHARGE AIR COOLER<6PL> (A)	8-94311-966-2	04	1	0211-0501							●
32	03.332 HOLDER ASM; NOZZLE (A)	8-94311-966-2	04	1	0502-			●		●	●
32	03.332 HOLDER ASM; NOZZLE EXC. CHARGE AIR COOLER<6PL> (B)	8-97352-048-0	04	1	0211-0501							●
33	03.332 NOZZLE; INJ EXC. TURBOCHARGER(K51)	8-97119-809-0	04	1	0211-0501			●
33	03.332 NOZZLE; INJ	8-97119-809-0	04	1	0502-			●
33	03.332 NOZZLE; INJ ENGINE POWER N-SPEC(7QV)	8-97174-114-0	04	1	0211-0501					●
33	03.332 NOZZLE; INJ	8-97174-114-0	04	1	0502-						●
33	03.332 NOZZLE; INJ EXC. ENGINE POWER N-SPEC(7QV)	8-97119-810-0	04	1	0211-0501					●
33	03.332 NOZZLE; INJ	8-97119-810-0	04	1	0502-					●
33	03.332 NOZZLE; INJ CHARGE AIR COOLER<6PL>	8-97148-961-1	04	1	0211-0501							●
34	03.330 BOLT; EYE,NOZZLE HOLDER TURBOCHARGER(K51) 03.162 M8X18 EYE-BOLT	1-09675-037-1	04	1	0211-0501			●
34	03.330 BOLT; EYE,NOZZLE HOLDER EXC. CHARGE AIR COOLER<6PL> 03.162 M8X18 EYE-BOLT	1-09675-037-1	04	1	0211-0501							●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.162 M8X18 EYE-BOLT	1-09675-037-1	04	1	0502-				●
34	03.330 BOLT; EYE,NOZZLE HOLDER EXC. TURBOCHARGER(K51)	1-15339-009-0	04	1	0211-0501			●
34	03.330 BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	0211-0501					●
34	03.330 BOLT; EYE,NOZZLE HOLDER CHARGE AIR COOLER<6PL>	1-15339-009-0	04	1	0211-0501							●
34	03.330 BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	0502-			●		●	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER TURBOCHARGER(K51)	1-15349-041-0	04	1	0211-0501			●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER EXC. CHARGE AIR COOLER<6PL>	1-15349-041-0	04	1	0211-0501							●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-041-0	04	1	0502-				●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER EXC. TURBOCHARGER(K51)	8-94174-184-0	04	1	0211-0501			●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	0211-0501					●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER CHARGE AIR COOLER<6PL>	8-94174-184-0	04	1	0211-0501							●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	0502-			●		●	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B)	8-97223-339-0	04	1	0211-0501			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B)	8-97223-339-0	04	1	0502-				●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE TURBOCHARGER(K51) (C)	8-97349-452-0	04	1	0211-0501			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE EXC. CHARGE AIR COOLER<6PL> (C)	8-97349-452-0	04	1	0211-0501							●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C)	8-97349-452-0	04	1	0502-				●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE EXC. TURBOCHARGER(K51) (A)	8-94329-555-0	04	1	0211-0501			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-94329-555-0	04	1	0211-0501					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE CHARGE AIR COOLER<6PL> (A)	8-94329-555-0	04	1	0211-0501							●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-94329-555-0	04	1	0502-			●		●	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE EXC. CHARGE AIR COOLER<6PL> (B)	8-97361-697-0	04	1	0211-0501							●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER TURBOCHARGER(K51)	1-15343-003-0	04	1	0211-0501			●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER EXC. CHARGE AIR COOLER<6PL>	1-15343-003-0	04	1	0211-0501							●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	1-15343-003-0	04	1	0502-				●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER EXC. TURBOCHARGER(K51)	8-94174-141-0	04	1	0211-0501			●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	0211-0501					●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER CHARGE AIR COOLER<6PL>	8-94174-141-0	04	1	0211-0501							●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	0502-			●		●	●
45	03.330 ROD; PUSH,NOZZLE HOLDER TURBOCHARGER(K51)	1-15341-008-0	04	1	0211-0501			●
45	03.330 ROD; PUSH,NOZZLE HOLDER EXC. CHARGE AIR COOLER<6PL>	1-15341-008-0	04	1	0211-0501							●
45	03.330 ROD; PUSH,NOZZLE HOLDER	1-15341-008-0	04	1	0502-				●
46	03.330 PIN; NOZZLE SET,NOZZLE HOLDER EXC. TURBOCHARGER(K51)	8-94174-139-0	08	1	0211-0501			●
46	03.330 PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	0211-0501					●
46	03.330 PIN; NOZZLE SET,NOZZLE HOLDER CHARGE AIR COOLER<6PL>	8-94174-139-0	08	1	0211-0501							●
46	03.330 PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	0502-			●		●	●
47	03.332 SPACER; NOZZLE SPRING,NOZZLE HOL TURBOCHARGER(K51)	8-97223-340-0	04	1	0211-0501			●
47	03.332 SPACER; NOZZLE SPRING,NOZZLE HOL EXC. CHARGE AIR COOLER<6PL>	8-97223-340-0	04	1	0211-0501							●
47	03.332 SPACER; NOZZLE SPRING,NOZZLE HOL	8-97223-340-0	04	1	0502-				●
58	03.332 FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	0211-0501			●		●		●
58	03.332 FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	0502-			●	●	●	●
138	03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER TURBOCHARGER(K51)	1-15343-004-0	04	1	0211-0501			●
138	03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER EXC. CHARGE AIR COOLER<6PL>	1-15343-004-0	04	1	0211-0501							●
138	03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-004-0	04	1	0502-				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE TURBOCHARGER(K51) (B) T=1.20	1-15349-004-0	04	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. CHARGE AIR COOLER<6PL> (B) T=1.20	1-15349-004-0	04	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=1.20	1-15349-004-0	04	1	0502-				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE TURBOCHARGER(K51) (B) T=0.40	1-15349-042-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. CHARGE AIR COOLER<6PL> (B) T=0.40	1-15349-042-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.40	1-15349-042-0	AR	1	0502-				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE TURBOCHARGER(K51) (B) T=0.50	1-15349-043-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. CHARGE AIR COOLER<6PL> (B) T=0.50	1-15349-043-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.50	1-15349-043-0	AR	1	0502-				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE TURBOCHARGER(K51) (B) T=0.52	1-15349-044-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. CHARGE AIR COOLER<6PL> (B) T=0.52	1-15349-044-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.52	1-15349-044-0	AR	1	0502-				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE TURBOCHARGER(K51) (B) T=0.54	1-15349-045-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. CHARGE AIR COOLER<6PL> (B) T=0.54	1-15349-045-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.54	1-15349-045-0	AR	1	0502-				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE TURBOCHARGER(K51) (B) T=0.56	1-15349-046-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. CHARGE AIR COOLER<6PL> (B) T=0.56	1-15349-046-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.56	1-15349-046-0	AR	1	0502-				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE TURBOCHARGER(K51) (B) T=0.58	1-15349-047-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. CHARGE AIR COOLER<6PL> (B) T=0.58	1-15349-047-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.58	1-15349-047-0	AR	1	0502-				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE TURBOCHARGER(K51) (B) T=0.60	1-15349-048-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. CHARGE AIR COOLER<6PL> (B) T=0.60	1-15349-048-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.60	1-15349-048-0	AR	1	0502-				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE TURBOCHARGER(K51) (B) T=0.70	1-15349-049-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. CHARGE AIR COOLER<6PL> (B) T=0.70	1-15349-049-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.70	1-15349-049-0	AR	1	0502-				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE TURBOCHARGER(K51) (A) T=0.10	8-97116-029-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. CHARGE AIR COOLER<6PL> (A) T=0.10	8-97116-029-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.10	8-97116-029-0	AR	1	0502-				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE TURBOCHARGER(K51) (A) T=0.20	8-97116-032-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. CHARGE AIR COOLER<6PL> (A) T=0.20	8-97116-032-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.20	8-97116-032-0	AR	1	0502-				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE TURBOCHARGER(K51) (A) T=0.30	8-97116-033-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. CHARGE AIR COOLER<6PL> (A) T=0.30	8-97116-033-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.30	8-97116-033-0	AR	1	0502-				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE TURBOCHARGER(K51) (A) T=0.40	8-97116-034-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. CHARGE AIR COOLER<6PL> (A) T=0.40	8-97116-034-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.40	8-97116-034-0	AR	1	0502-				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE TURBOCHARGER(K51) (A) T=0.50	8-97116-035-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. CHARGE AIR COOLER<6PL> (A) T=0.50	8-97116-035-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.50	8-97116-035-0	AR	1	0502-				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE TURBOCHARGER(K51) (A) T=0.51	8-97116-036-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. CHARGE AIR COOLER<6PL> (A) T=0.51	8-97116-036-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.51	8-97116-036-0	AR	1	0502-				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE TURBOCHARGER(K51) (A) T=0.52	8-97116-037-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. CHARGE AIR COOLER<6PL> (A) T=0.52	8-97116-037-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.52	8-97116-037-0	AR	1	0502-				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE TURBOCHARGER(K51) (A) T=0.53	8-97116-038-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. CHARGE AIR COOLER<6PL> (A) T=0.53	8-97116-038-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.53	8-97116-038-0	AR	1	0502-				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE TURBOCHARGER(K51) (A) T=0.54	8-97116-039-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. CHARGE AIR COOLER<6PL> (A) T=0.54	8-97116-039-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.54	8-97116-039-0	AR	1	0502-				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE TURBOCHARGER(K51) (A) T=0.55	8-97116-040-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. CHARGE AIR COOLER<6PL> (A) T=0.55	8-97116-040-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.55	8-97116-040-0	AR	1	0502-				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE TURBOCHARGER(K51) (A) T=0.56	8-97116-041-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. CHARGE AIR COOLER<6PL> (A) T=0.56	8-97116-041-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.56	8-97116-041-0	AR	1	0502-				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE TURBOCHARGER(K51) (A) T=0.57	8-97116-042-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. CHARGE AIR COOLER<6PL> (A) T=0.57	8-97116-042-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.57	8-97116-042-0	AR	1	0502-				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE TURBOCHARGER(K51) (A) T=0.58	8-97116-043-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. CHARGE AIR COOLER<6PL> (A) T=0.58	8-97116-043-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.58	8-97116-043-0	AR	1	0502-				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE TURBOCHARGER(K51) (A) T=0.59	8-97116-044-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. CHARGE AIR COOLER<6PL> (A) T=0.59	8-97116-044-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.59	8-97116-044-0	AR	1	0502-				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. TURBOCHARGER(K51) 03.332 (A) T=0.10	8-97027-432-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.10	8-97027-432-0	AR	1	0211-0501					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE CHARGE AIR COOLER<6PL> 03.332 (A) T=0.10	8-97027-432-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.10	8-97027-432-0	AR	1	0502-			●		●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. TURBOCHARGER(K51) 03.332 (A) T=0.20	8-97027-433-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.20	8-97027-433-0	AR	1	0211-0501					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE CHARGE AIR COOLER<6PL> 03.332 (A) T=0.20	8-97027-433-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.20	8-97027-433-0	AR	1	0502-			●		●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. TURBOCHARGER(K51) 03.332 (A) T=0.30	8-97027-434-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.30	8-97027-434-0	AR	1	0211-0501					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE CHARGE AIR COOLER<6PL> 03.332 (A) T=0.30	8-97027-434-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.30	8-97027-434-0	AR	1	0502-			●		●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. TURBOCHARGER(K51) 03.332 (A) T=0.40	8-97027-435-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.40	8-97027-435-0	AR	1	0211-0501					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE CHARGE AIR COOLER<6PL> 03.332 (A) T=0.40	8-97027-435-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.40	8-97027-435-0	AR	1	0502-			●		●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. TURBOCHARGER(K51) 03.332 (A) T=0.50	8-97027-436-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.50	8-97027-436-0	AR	1	0211-0501					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE CHARGE AIR COOLER<6PL> 03.332 (A) T=0.50	8-97027-436-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.50	8-97027-436-0	AR	1	0502-			●		●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. TURBOCHARGER(K51) 03.332 (A) T=0.52	8-97027-437-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.52	8-97027-437-0	AR	1	0211-0501					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE CHARGE AIR COOLER<6PL> 03.332 (A) T=0.52	8-97027-437-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.52	8-97027-437-0	AR	1	0502-			●		●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. TURBOCHARGER(K51) 03.332 (A) T=0.54	8-97027-438-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.54	8-97027-438-0	AR	1	0211-0501					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE CHARGE AIR COOLER<6PL> 03.332 (A) T=0.54	8-97027-438-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.54	8-97027-438-0	AR	1	0502-			●		●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. TURBOCHARGER(K51) 03.332 (A) T=0.56	8-97027-439-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.56	8-97027-439-0	AR	1	0211-0501					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE CHARGE AIR COOLER<6PL> 03.332 (A) T=0.56	8-97027-439-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.56	8-97027-439-0	AR	1	0502-			●		●	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE EXC. TURBOCHARGER(K51) 03.332 (A) T=0.58	8-97027-440-0	AR	1	0211-0501			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.58	8-97027-440-0	AR	1	0211-0501					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE CHARGE AIR COOLER<6PL> 03.332 (A) T=0.58	8-97027-440-0	AR	1	0211-0501							●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.58	8-97027-440-0	AR	1	0502-			●		●	●
146	03.332 SPACER; NOZZLE EXC. TURBOCHARGER(K51)	8-94344-439-0	04	1	0211-0501			●
146	03.332 SPACER; NOZZLE	8-94344-439-0	04	1	0211-0501					●
146	03.332 SPACER; NOZZLE CHARGE AIR COOLER<6PL>	8-94344-439-0	04	1	0211-0501							●
146	03.332 SPACER; NOZZLE	8-94344-439-0	04	1	0502-			●		●	●
272	03.332 NOZZLE KIT; INJ	8-97352-267-0	04	1	0211-0501			●
272	03.332 NOZZLE KIT; INJ	8-97352-267-0	04	1	0502-				●
272	03.332 NOZZLE KIT; INJ EXC. CHARGE AIR COOLER<6PL>	8-97371-583-0	04	1	0211-0501							●

19 18 17 211 16 211 282 290 199 199 216 110 68 68 71 9 71 288 289 71 68 68 120 9 168 68 283 110 210 110 354 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
9	03.340 STUD; CLIP 03.275 M6X30 L=38	9-04110-630-0	03	1	0507-0604	●	●
9	03.340 STUD; CLIP 00.413 M6X30 L=38	0-41010-630-0	03	1	0605-	●	●
16	03.330 PIPE; INJ NO.1	8-97371-831-1	01	1	0507-	●	●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	0211-0501			●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	0502-				●
16	03.330 PIPE; INJ NO.1 EXC. TURBOCHARGER(K51)	8-97123-374-0	01	1	0211-0501			●
16	03.330 PIPE; INJ NO.1 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-374-0	01	1	0211-0501					●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	0502-			●		●
16	03.330 PIPE; INJ NO.1 ENGINE POWER N-SPEC(7QV)	8-97134-166-1	01	1	0211-0501					●
16	03.330 PIPE; INJ NO.1	8-97134-166-1	01	1	0502-						●
16	03.330 PIPE; INJ NO.1 CHARGE AIR COOLER<6PL>	8-97148-963-4	01	1	0211-0501							●
16	03.330 PIPE; INJ NO.1 EXC. CHARGE AIR COOLER<6PL>	8-97065-932-3	01	1	0211-0501							●
17	03.330 PIPE; INJ NO.2	8-97373-417-1	01	1	0507-	●	●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	0211-0501			●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	0502-				●
17	03.330 PIPE; INJ NO.2 EXC. TURBOCHARGER(K51)	8-97123-375-0	01	1	0211-0501			●
17	03.330 PIPE; INJ NO.2 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-375-0	01	1	0211-0501					●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	0502-			●		●
17	03.330 PIPE; INJ NO.2 ENGINE POWER N-SPEC(7QV)	8-97134-167-1	01	1	0211-0501					●
17	03.330 PIPE; INJ NO.2	8-97134-167-1	01	1	0502-						●
17	03.330 PIPE; INJ NO.2 CHARGE AIR COOLER<6PL>	8-97148-964-3	01	1	0211-0501							●
17	03.330 PIPE; INJ NO.2 EXC. CHARGE AIR COOLER<6PL>	8-97065-933-3	01	1	0211-0501							●
18	03.330 PIPE; INJ NO.3	8-97371-833-1	01	1	0507-	●	●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	0211-0501			●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	0502-				●
18	03.330 PIPE; INJ NO.3 EXC. TURBOCHARGER(K51)	8-97123-376-0	01	1	0211-0501			●
18	03.330 PIPE; INJ NO.3 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-376-0	01	1	0211-0501					●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	0502-			●		●
18	03.330 PIPE; INJ NO.3 ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-168-0	01	1	0211-0501					●
18	03.330 PIPE; INJ NO.3 EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-168-0	01	1	0502-1405						●
18	03.330 PIPE; INJ NO.3 EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-168-0	01	1	1406-						●
18	03.330 PIPE; INJ NO.3 HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV)	8-97223-106-0	01	1	0211-0501					●
18	03.330 PIPE; INJ NO.3 HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97223-106-0	01	1	0502-						●
18	03.330 PIPE; INJ NO.3 CHARGE AIR COOLER<6PL>	8-97148-965-4	01	1	0211-0501							●
18	03.330 PIPE; INJ NO.3 EXC. CHARGE AIR COOLER<6PL>	8-97065-934-3	01	1	0211-0501							●
19	03.330 PIPE; INJ NO.4	8-97371-834-1	01	1	0507-	●	●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	0211-0501			●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	0502-				●
19	03.330 PIPE; INJ NO.4 EXC. TURBOCHARGER(K51)	8-97123-377-1	01	1	0211-0501			●
19	03.330 PIPE; INJ NO.4 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-377-1	01	1	0211-0501					●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	0502-			●		●
19	03.330 PIPE; INJ NO.4 ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-169-0	01	1	0211-0501					●
19	03.330 PIPE; INJ NO.4 EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-169-0	01	1	0502-1405						●
19	03.330 PIPE; INJ NO.4 EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-169-0	01	1	1406-						●
19	03.330 PIPE; INJ NO.4 HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV)	8-97223-107-0	01	1	0211-0501					●
19	03.330 PIPE; INJ NO.4 HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97223-107-0	01	1	0502-						●
19	03.330 PIPE; INJ NO.4 CHARGE AIR COOLER<6PL>	8-97148-966-3	01	1	0211-0501							●
19	03.330 PIPE; INJ NO.4 EXC. CHARGE AIR COOLER<6PL>	8-97065-935-3	01	1	0211-0501							●
68	03.162 CLIP; INJ PIPE (A) ID=7 & 7 L=22	8-97330-118-3	04	1	0507-	●	●
68	03.162 CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-119-3	04	1	0507-	●	●
68	03.162 CLIP; INJ PIPE (C)	1-09701-091-0	01	1	0211-0501			●
68	03.162 CLIP; INJ PIPE (C)	1-09701-091-0	01	1	0502-				●
68	03.162 CLIP; INJ PIPE ENGINE POWER N-SPEC(7QV) (D)	8-97213-049-0	04	1	0211-0501					●
68	03.162 CLIP; INJ PIPE (D)	8-97213-049-0	04	1	0502-						●
68	03.162 CLIP; INJ PIPE CHARGE AIR COOLER<6PL> (D)	8-97213-049-0	06	1	0211-0501							●
71	03.162 BOLT; BRKT 02.500 (B) M6X10 FLANGE	0-28080-610-0	02	1	0507-0512	●	●
71	03.162 BOLT; BRKT 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0601-	●	●
71	03.162 BOLT; BRKT 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0507-0512	●	●
71	03.162 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
71	03.162 BOLT; BRKT 01.271 (C) M8X40 FLANGE	0-28080-840-0	01	1	0507-0512	●	●
71	03.162 BOLT; BRKT 02.277 (C) M8X40 FLANGE	0-28050-840-0	01	1	0601-	●	●
71	03.162 BOLT; BRKT 01.780 (D) M8X50 FLANGE	0-28080-850-0	01	1	0507-0512	●	●
71	03.162 BOLT; BRKT 00.386 (D) M8X50 FLANGE	0-28050-850-0	01	1	0601-	●	●
110	03.330 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	04	1	0507-0602	●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	04	1	0603-	●	●
110	03.330 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0501			●
110	03.330 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602				●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-				●
120	03.330 BRACKET; INJ PIPE	8-97306-084-2	01	1	0507-	●	●
168	03.890 BRACKET; FUEL PIPE	8-97324-195-0	01	1	0507-	●	●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	04	1	0507-	●	●
199	03.332 GASKET; EYE BOLT (A)	1-15619-507-0	02	1	0507-	●	●
210	03.330 PIPE; INJ,C/R	8-97312-509-3	01	1	0507-	●	●
211	03.331 RAIL ASM; COMMON	8-97306-063-4	01	1	0507-	●	●
216	03.162 BOLT; EYE (C)	8-97602-173-0	01	1	0507-	●	●
216	03.162 BOLT; EYE (A)	5-15759-003-0	01	1	0507-	●	●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	0507-	●	●
282	03.163 BRACKET; COMMON RAIL	8-97324-194-0	01	1	0507-1005	●	●
282	03.163 BRACKET; COMMON RAIL	8-98157-115-0	01	1	1006-	●	●
283	03.330 BOLT; COMMON RAIL 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0507-0512	●	●
283	03.330 BOLT; COMMON RAIL 03.275 M8X25 FLANGE	0-28050-825-0	01	1	0601-	●	●
288	03.331 GASKET ID=11 OD=16.3	1-15641-046-0	01	1	0507-	●	●
289	03.331 LIMITER; FUEL PRESS	8-97318-691-0	01	1	0507-	●	●
290	03.331 SENSOR; PRESS	8-97318-684-0	01	1	0507-1102	●	●
290	03.331 SENSOR; PRESS	8-98119-790-0	01	1	1103-	●	●
354	03.163 BOLT; FUEL PIPE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0507-0512	●	●
354	03.163 BOLT; FUEL PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●

19 18 113 17 16 36 62 63 31 66 66 2 161 2 1 2 219 226 219 80 2 2 158 2 84 78 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT .	8-97306-044-9	01	1	0507-	●	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), TURBOCHARGER(K51)	8-97212-102-0	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-102-0	01	1	0502-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),TURBOCHARGER(K51)	8-97212-101-0	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97212-101-0	01	1	0502-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97215-704-2	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97215-704-2	01	1	0502-				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97178-485-5	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97178-485-5	01	1	0502-				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97324-405-1	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97324-405-1	01	1	0502-0507						●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV)	8-97203-381-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97203-381-0	01	1	0502-0507					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), SINGAPORE EQUIPMENT(S9Y),ENGINE POWER N -SPEC(7QV)	8-97203-380-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97203-380-0	01	1	0502-					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97223-104-1	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97223-104-1	01	1	0502-						●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),SINGAPORE EQUIPMENT(S9Y),ENGINE PO WER N-SPEC(7QV)	8-97203-383-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97203-383-0	01	1	0502-					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV)	8-97223-105-1	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97223-105-1	01	1	0502-						●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . SINGAPORE EQUIPMENT(S9Y) EXC. ENGINE POWER N-SPEC(7QV)	8-97203-384-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) ENGINE POWER N-SPEC(7QV)	8-97212-189-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) EXC. ENGINE POWER N-SPEC(7QV)	8-97212-185-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2), ENGINEPOWER N-SPEC(7QV)	8-97212-186-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. EURO2 SPECIFICATION(NT2)	8-97212-188-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. CHARGE AIR COOLER<6PL>	8-97212-104-0	01	1	0211-0501							●
2	03.330 BOLT; INJ PUMP 08.900 (H) M10X50 FLANGE	0-28181-050-0	01	1	0507-0512	●	●
2	03.330 BOLT; INJ PUMP 02.042 (H) M10X50 FLANGE	0-28151-050-0	01	1	0601-	●	●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0211-0501			●
2	03.330 BOLT; INJ PUMP EXC. ENGINE POWER N-SPEC(7QV) 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0211-0501					●
2	03.330 BOLT; INJ PUMP EXC. CHARGE AIR COOLER<6PL> 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0211-0501							●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0502-			●	●	●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	0211-0501			●
2	03.330 BOLT; INJ PUMP EXC. ENGINE POWER N-SPEC(7QV) 03.162 (E) M14X30	8-97203-957-0	01	1	0211-0501					●
2	03.330 BOLT; INJ PUMP EXC. CHARGE AIR COOLER<6PL> 03.162 (E) M14X30	8-97203-957-0	01	1	0211-0501							●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	0502-			●	●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0211-0501			●		●
2	03.330 BOLT; INJ PUMP EXC. CHARGE AIR COOLER<6PL> (A) M12X90 FLANGE	0-28181-290-0	01	1	0211-0501							●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0502-0506			●	●	●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0507-0512	●	●	●	●	●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0601-	●	●	●	●	●	●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0211-0501			●		●		●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0502-0512			●	●	●	●
2	03.330 BOLT; INJ PUMP 02.277 (C) M10X70 FLANGE	0-28151-070-0	01	1	0601-			●	●	●	●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0211-0501			●		●		●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0502-0506			●	●	●	●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0507-0512	●	●	●	●	●	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0601-	●	●	●	●	●	●
2	03.330 BOLT; INJ PUMP ENGINE POWER N-SPEC(7QV) 03.417 (F) M10X25 FLANGE	0-28081-025-0	01	1	0211-0501					●
2	03.330 BOLT; INJ PUMP 03.417 (F) M10X25 FLANGE	0-28081-025-0	01	1	0502-0512						●
2	03.330 BOLT; INJ PUMP 09.171 (F) M10X25 FLANGE	0-28051-025-0	01	1	0601-						●
2	03.330 BOLT; INJ PUMP CHARGE AIR COOLER<6PL> (G) M12X110	0-28186-211-0	01	1	0211-0501							●
2	03.330 BOLT; INJ PUMP CHARGE AIR COOLER<6PL> 03.162 (D) M14X27 FLANGE	1-09675-086-0	01	1	0211-0501							●
16	03.330 PIPE; INJ NO.1	8-97371-831-1	01	1	0507-	●	●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	0211-0501			●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	0502-				●
16	03.330 PIPE; INJ NO.1 EXC. TURBOCHARGER(K51)	8-97123-374-0	01	1	0211-0501			●
16	03.330 PIPE; INJ NO.1 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-374-0	01	1	0211-0501					●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	0502-			●		●
16	03.330 PIPE; INJ NO.1 ENGINE POWER N-SPEC(7QV)	8-97134-166-1	01	1	0211-0501					●
16	03.330 PIPE; INJ NO.1	8-97134-166-1	01	1	0502-						●
16	03.330 PIPE; INJ NO.1 CHARGE AIR COOLER<6PL>	8-97148-963-4	01	1	0211-0501							●
16	03.330 PIPE; INJ NO.1 EXC. CHARGE AIR COOLER<6PL>	8-97065-932-3	01	1	0211-0501							●
17	03.330 PIPE; INJ NO.2	8-97373-417-1	01	1	0507-	●	●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	0211-0501			●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	0502-				●
17	03.330 PIPE; INJ NO.2 EXC. TURBOCHARGER(K51)	8-97123-375-0	01	1	0211-0501			●
17	03.330 PIPE; INJ NO.2 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-375-0	01	1	0211-0501					●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	0502-			●		●
17	03.330 PIPE; INJ NO.2 ENGINE POWER N-SPEC(7QV)	8-97134-167-1	01	1	0211-0501					●
17	03.330 PIPE; INJ NO.2	8-97134-167-1	01	1	0502-						●
17	03.330 PIPE; INJ NO.2 CHARGE AIR COOLER<6PL>	8-97148-964-3	01	1	0211-0501							●
17	03.330 PIPE; INJ NO.2 EXC. CHARGE AIR COOLER<6PL>	8-97065-933-3	01	1	0211-0501							●
18	03.330 PIPE; INJ NO.3	8-97371-833-1	01	1	0507-	●	●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	0211-0501			●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	0502-				●
18	03.330 PIPE; INJ NO.3 EXC. TURBOCHARGER(K51)	8-97123-376-0	01	1	0211-0501			●
18	03.330 PIPE; INJ NO.3 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-376-0	01	1	0211-0501					●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	0502-			●		●
18	03.330 PIPE; INJ NO.3 ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-168-0	01	1	0211-0501					●
18	03.330 PIPE; INJ NO.3 EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-168-0	01	1	0502-1405						●
18	03.330 PIPE; INJ NO.3 EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-168-0	01	1	1406-						●
18	03.330 PIPE; INJ NO.3 HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV)	8-97223-106-0	01	1	0211-0501					●
18	03.330 PIPE; INJ NO.3 HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97223-106-0	01	1	0502-						●
18	03.330 PIPE; INJ NO.3 CHARGE AIR COOLER<6PL>	8-97148-965-4	01	1	0211-0501							●
18	03.330 PIPE; INJ NO.3 EXC. CHARGE AIR COOLER<6PL>	8-97065-934-3	01	1	0211-0501							●
19	03.330 PIPE; INJ NO.4	8-97371-834-1	01	1	0507-	●	●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	0211-0501			●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	0502-				●
19	03.330 PIPE; INJ NO.4 EXC. TURBOCHARGER(K51)	8-97123-377-1	01	1	0211-0501			●
19	03.330 PIPE; INJ NO.4 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-377-1	01	1	0211-0501					●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	0502-			●		●
19	03.330 PIPE; INJ NO.4 ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-169-0	01	1	0211-0501					●
19	03.330 PIPE; INJ NO.4 EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-169-0	01	1	0502-1405						●
19	03.330 PIPE; INJ NO.4 EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-169-0	01	1	1406-						●
19	03.330 PIPE; INJ NO.4 HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV)	8-97223-107-0	01	1	0211-0501					●
19	03.330 PIPE; INJ NO.4 HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97223-107-0	01	1	0502-						●
19	03.330 PIPE; INJ NO.4 CHARGE AIR COOLER<6PL>	8-97148-966-3	01	1	0211-0501							●
19	03.330 PIPE; INJ NO.4 EXC. CHARGE AIR COOLER<6PL>	8-97065-935-3	01	1	0211-0501							●
31	03.332 NOZZLE ASM; INJ (C)	8-97602-485-6	04	1	0507-	●	●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0211-0501			●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0502-				●
31	03.332 NOZZLE ASM; INJ EXC. TURBOCHARGER(K51) (A)	8-97119-811-0	04	1	0211-0501			●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0502-			●
31	03.332 NOZZLE ASM; INJ ENGINE POWER N-SPEC(7QV) (A)	8-97174-112-0	04	1	0211-0501					●
31	03.332 NOZZLE ASM; INJ (A)	8-97174-112-0	04	1	0502-						●
31	03.332 NOZZLE ASM; INJ EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97119-812-0	04	1	0211-0501					●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-812-0	04	1	0502-					●
31	03.332 NOZZLE ASM; INJ CHARGE AIR COOLER<6PL> (A)	8-97148-960-1	04	1	0211-0501							●
31	03.332 NOZZLE ASM; INJ EXC. CHARGE AIR COOLER<6PL> (B)	8-97115-503-2	04	1	0211-0501							●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.162 ID=8.3	8-97600-925-0	04	1	0507-0908	●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.3 OD=15.0	8-98065-992-0	04	1	0909-	●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6	8-94395-214-0	04	1	0211-0501			●		●		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6	8-94395-214-0	04	1	0502-1312			●	●	●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6	8-98246-930-0	04	1	1401-			●	●	●	●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0211-0501			●		●		●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0502-0602			●	●	●	●
62	03.332 NUT; NOZZLE HOLDER 01.062 M8 FLANGE	0-91180-108-0	08	1	0603-			●	●	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	0507-	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF TURBOCHARGER(K51)	8-97148-969-2	01	1	0211-0501			●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF CHARGE AIR COOLER<6PL>	8-97148-969-2	01	1	0211-0501							●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0502-				●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF EXC. TURBOCHARGER(K51)	8-97118-895-0	01	1	0211-0501			●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF EXC. ENGINE POWER N-SPEC(7QV)	8-97118-895-0	01	1	0211-0501					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97118-895-0	01	1	0211-0501					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF EXC. CHARGE AIR COOLER<6PL>	8-97118-895-0	01	1	0211-0501							●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0502-			●		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97118-895-0	01	1	0502-						●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV)	8-97145-004-0	01	1	0211-0501					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97145-004-0	01	1	0502-						●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.609 (D) ID=23.3	8-94173-412-0	04	1	0507-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=9.2 T=8.1	8-97601-447-2	04	1	0507-0909	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=9.2 T=8.1	8-98079-248-0	04	1	0910-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) TURBOCHARGER(K51) 07.003 (A)	8-97171-332-0	04	1	0211-0501			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 07.003 (A)	8-97171-332-0	04	1	0211-0501							●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 07.003 (A)	8-97171-332-0	04	1	0502-				●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0211-0501			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0211-0501					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0502-			●		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-94326-439-0	04	1	0211-0501			●		●		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-94326-439-0	04	1	0502-			●	●	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL> (A)	8-97171-922-0	04	1	0211-0501							●
78	03.330 BOLT; BRKT TO C/BL TURBOCHARGER(K51) 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0211-0501			●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0211-0501							●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0502-0512				●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	01	1	0601-				●
78	03.330 BOLT; BRKT TO C/BL EXC. TURBOCHARGER(K51) 04.785 M10X20 FLANGE	0-28781-020-0	02	1	0211-0501			●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	02	1	0211-0501					●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	02	1	0502-0512			●		●	●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	02	1	0601-			●		●	●
80	03.306 BRACKET; PUMP	8-97601-699-0	01	1	0507-	●	●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0211-0501			●
80	03.306 BRACKET; PUMP EXC. ENGINE POWER N-SPEC(7QV)	8-97136-677-0	01	1	0211-0501					●
80	03.306 BRACKET; PUMP EXC. CHARGE AIR COOLER<6PL>	8-97136-677-0	01	1	0211-0501							●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0502-			●	●	●
80	03.306 BRACKET; PUMP ENGINE POWER N-SPEC(7QV)	8-97119-363-1	01	1	0211-0501					●
80	03.306 BRACKET; PUMP	8-97119-363-1	01	1	0502-						●
80	03.306 BRACKET; PUMP CHARGE AIR COOLER<6PL>	8-97148-958-1	01	1	0211-0501							●
84	03.330 NUT; BRKT TO BRKT 08.917 M10 FLANGE	0-91150-210-0	01	1	0211-0501			●
84	03.330 NUT; BRKT TO BRKT EXC. ENGINE POWER N-SPEC(7QV) 08.917 M10 FLANGE	0-91150-210-0	01	1	0211-0501					●
84	03.330 NUT; BRKT TO BRKT EXC. CHARGE AIR COOLER<6PL> 08.917 M10 FLANGE	0-91150-210-0	01	1	0211-0501							●
84	03.330 NUT; BRKT TO BRKT 08.917 M10 FLANGE	0-91150-210-0	01	1	0502-0602			●	●	●
84	03.330 NUT; BRKT TO BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	0603-			●	●	●
84	03.330 NUT; BRKT TO BRKT CHARGE AIR COOLER<6PL> 07.243 M12 FLANGE	0-91150-212-0	01	1	0211-0501							●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0211-0501			●
113	03.162 CLIP; INJ PIPE EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97213-050-0	04	1	0211-0501					●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0502-			●	●	●
113	03.162 CLIP; INJ PIPE (B)	8-97213-481-0	01	1	0211-0501			●
113	03.162 CLIP; INJ PIPE (B)	8-97213-481-0	01	1	0502-				●
113	03.162 CLIP; INJ PIPE ENGINE POWER N-SPEC(7QV) (A)	8-97213-050-0	02	1	0211-0501					●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	02	1	0502-						●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	05	1	0211-0501							●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501			●		●		●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0506			●	●	●	●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602	●	●	●	●	●	●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-	●	●	●	●	●	●
158	03.330 NUT; INJ PUMP CHARGE AIR COOLER<6PL> 00.685 M12 FLANGE	0-91250-112-0	01	1	0211-0501							●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	0211-0212			●		●		●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0301-0501			●		●		●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0502-0506			●	●	●	●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0507-0910	●	●	●	●	●	●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	0911-	●	●	●	●	●	●
167	03.330 SPACER; GUIDE TUBE TURBOCHARGER(K51)	8-97065-515-2	01	1	0211-0501			●
167	03.330 SPACER; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL>	8-97065-515-2	01	1	0211-0501							●
167	03.330 SPACER; GUIDE TUBE	8-97065-515-2	01	1	0502-				●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.616 ID=52	1-09623-300-0	01	1	0507-0603	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	8-98031-844-0	01	1	0604-	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-085-0	02	1	0211-0501			●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV) 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0501					●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0501							●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0502-1312			●	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●	●	●
226	03.163 PIPE; FUEL	8-97320-019-0	01	1	0507-0808	●	●
226	03.163 PIPE; FUEL	8-98126-433-0	01	1	0809-	●	●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	0211-0501			●
226	03.163 PIPE; FUEL EXC. ENGINE POWER N-SPEC(7QV)	8-97203-567-0	01	1	0211-0501					●
226	03.163 PIPE; FUEL EXC. CHARGE AIR COOLER<6PL>	8-97203-567-0	01	1	0211-0501							●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	0502-			●	●	●

161 2 378 219 158 2 383 80 382 226 2 87 199 199 216 1 205 329 424

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT .	8-97306-044-9	01	1	0507-	●	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), TURBOCHARGER(K51)	8-97212-102-0	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-102-0	01	1	0502-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),TURBOCHARGER(K51)	8-97212-101-0	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97212-101-0	01	1	0502-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97215-704-2	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97215-704-2	01	1	0502-				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97178-485-5	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97178-485-5	01	1	0502-				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97324-405-1	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97324-405-1	01	1	0502-0507						●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV)	8-97203-381-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97203-381-0	01	1	0502-0507					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), SINGAPORE EQUIPMENT(S9Y),ENGINE POWER N -SPEC(7QV)	8-97203-380-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97203-380-0	01	1	0502-					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97223-104-1	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97223-104-1	01	1	0502-						●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),SINGAPORE EQUIPMENT(S9Y),ENGINE PO WER N-SPEC(7QV)	8-97203-383-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97203-383-0	01	1	0502-					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV)	8-97223-105-1	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97223-105-1	01	1	0502-						●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . SINGAPORE EQUIPMENT(S9Y) EXC. ENGINE POWER N-SPEC(7QV)	8-97203-384-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) ENGINE POWER N-SPEC(7QV)	8-97212-189-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) EXC. ENGINE POWER N-SPEC(7QV)	8-97212-185-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2), ENGINEPOWER N-SPEC(7QV)	8-97212-186-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. EURO2 SPECIFICATION(NT2)	8-97212-188-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. CHARGE AIR COOLER<6PL>	8-97212-104-0	01	1	0211-0501							●
2	03.330 BOLT; INJ PUMP 08.900 (H) M10X50 FLANGE	0-28181-050-0	01	1	0507-0512	●	●
2	03.330 BOLT; INJ PUMP 02.042 (H) M10X50 FLANGE	0-28151-050-0	01	1	0601-	●	●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0211-0501			●
2	03.330 BOLT; INJ PUMP EXC. ENGINE POWER N-SPEC(7QV) 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0211-0501					●
2	03.330 BOLT; INJ PUMP EXC. CHARGE AIR COOLER<6PL> 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0211-0501							●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0502-			●	●	●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	0211-0501			●
2	03.330 BOLT; INJ PUMP EXC. ENGINE POWER N-SPEC(7QV) 03.162 (E) M14X30	8-97203-957-0	01	1	0211-0501					●
2	03.330 BOLT; INJ PUMP EXC. CHARGE AIR COOLER<6PL> 03.162 (E) M14X30	8-97203-957-0	01	1	0211-0501							●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	0502-			●	●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0211-0501			●		●
2	03.330 BOLT; INJ PUMP EXC. CHARGE AIR COOLER<6PL> (A) M12X90 FLANGE	0-28181-290-0	01	1	0211-0501							●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0502-0506			●	●	●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0507-0512	●	●	●	●	●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0601-	●	●	●	●	●	●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0211-0501			●		●		●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0502-0512			●	●	●	●
2	03.330 BOLT; INJ PUMP 02.277 (C) M10X70 FLANGE	0-28151-070-0	01	1	0601-			●	●	●	●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0211-0501			●		●		●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0502-0506			●	●	●	●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0507-0512	●	●	●	●	●	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0601-	●	●	●	●	●	●
2	03.330 BOLT; INJ PUMP ENGINE POWER N-SPEC(7QV) 03.417 (F) M10X25 FLANGE	0-28081-025-0	01	1	0211-0501					●
2	03.330 BOLT; INJ PUMP 03.417 (F) M10X25 FLANGE	0-28081-025-0	01	1	0502-0512						●
2	03.330 BOLT; INJ PUMP 09.171 (F) M10X25 FLANGE	0-28051-025-0	01	1	0601-						●
2	03.330 BOLT; INJ PUMP CHARGE AIR COOLER<6PL> (G) M12X110	0-28186-211-0	01	1	0211-0501							●
2	03.330 BOLT; INJ PUMP CHARGE AIR COOLER<6PL> 03.162 (D) M14X27 FLANGE	1-09675-086-0	01	1	0211-0501							●
80	03.306 BRACKET; PUMP	8-97601-699-0	01	1	0507-	●	●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0211-0501			●
80	03.306 BRACKET; PUMP EXC. ENGINE POWER N-SPEC(7QV)	8-97136-677-0	01	1	0211-0501					●
80	03.306 BRACKET; PUMP EXC. CHARGE AIR COOLER<6PL>	8-97136-677-0	01	1	0211-0501							●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0502-			●	●	●
80	03.306 BRACKET; PUMP ENGINE POWER N-SPEC(7QV)	8-97119-363-1	01	1	0211-0501					●
80	03.306 BRACKET; PUMP	8-97119-363-1	01	1	0502-						●
80	03.306 BRACKET; PUMP CHARGE AIR COOLER<6PL>	8-97148-958-1	01	1	0211-0501							●
87	03.330 BOLT; PUMP 04.686 M8X30 FLANGE	0-28680-830-0	03	1	0507-0512	●	●
87	03.330 BOLT; PUMP 03.403 M8X30 FLANGE	0-28650-830-0	03	1	0601-	●	●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501			●		●		●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0506			●	●	●	●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602	●	●	●	●	●	●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-	●	●	●	●	●	●
158	03.330 NUT; INJ PUMP CHARGE AIR COOLER<6PL> 00.685 M12 FLANGE	0-91250-112-0	01	1	0211-0501							●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	0211-0212			●		●		●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0301-0501			●		●		●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0502-0506			●	●	●	●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0507-0910	●	●	●	●	●	●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	0911-	●	●	●	●	●	●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	04	1	0507-	●	●
199	03.332 GASKET; EYE BOLT (A)	1-15619-507-0	02	1	0507-	●	●
205	03.320 SENSOR; FUEL TEMP 03.162	8-97216-283-0	01	1	0507-0605	●	●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	0606-	●	●
216	03.162 BOLT; EYE (C)	8-97602-173-0	01	1	0507-	●	●
216	03.162 BOLT; EYE (A)	5-15759-003-0	01	1	0507-	●	●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	0507-	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.616 ID=52	1-09623-300-0	01	1	0507-0603	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	8-98031-844-0	01	1	0604-	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-085-0	02	1	0211-0501			●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV) 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0501					●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0501							●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0502-1312			●	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●	●	●
226	03.163 PIPE; FUEL	8-97320-019-0	01	1	0507-0808	●	●
226	03.163 PIPE; FUEL	8-98126-433-0	01	1	0809-	●	●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	0211-0501			●
226	03.163 PIPE; FUEL EXC. ENGINE POWER N-SPEC(7QV)	8-97203-567-0	01	1	0211-0501					●
226	03.163 PIPE; FUEL EXC. CHARGE AIR COOLER<6PL>	8-97203-567-0	01	1	0211-0501							●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	0502-			●	●	●
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	0507-	●	●
378	03.330 GEAR; PUMP Z=35	8-97601-698-1	01	1	0507-	●	●
382	03.162 KEY; DRIVE SHAFT	8-97375-384-0	01	1	0507-	●	●
383	03.162 NUT; DRIVE SHAFT 03.616	8-97141-469-0	01	1	0507-	●	●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98043-687-0	01	1	0507-	●	●

19 18 113 17 16 68 99 36 63 113 110 2 62 31 161 66 2 66 1 2 219 226 219 80 2 2 158 2 84 78 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT .	8-97306-044-9	01	1	0507-	●	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), TURBOCHARGER(K51)	8-97212-102-0	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-102-0	01	1	0502-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),TURBOCHARGER(K51)	8-97212-101-0	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97212-101-0	01	1	0502-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97215-704-2	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97215-704-2	01	1	0502-				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97178-485-5	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97178-485-5	01	1	0502-				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97324-405-1	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97324-405-1	01	1	0502-0507						●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV)	8-97203-381-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97203-381-0	01	1	0502-0507					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), SINGAPORE EQUIPMENT(S9Y),ENGINE POWER N -SPEC(7QV)	8-97203-380-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97203-380-0	01	1	0502-					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97223-104-1	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97223-104-1	01	1	0502-						●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),SINGAPORE EQUIPMENT(S9Y),ENGINE PO WER N-SPEC(7QV)	8-97203-383-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97203-383-0	01	1	0502-					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV)	8-97223-105-1	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97223-105-1	01	1	0502-						●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . SINGAPORE EQUIPMENT(S9Y) EXC. ENGINE POWER N-SPEC(7QV)	8-97203-384-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) ENGINE POWER N-SPEC(7QV)	8-97212-189-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) EXC. ENGINE POWER N-SPEC(7QV)	8-97212-185-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2), ENGINEPOWER N-SPEC(7QV)	8-97212-186-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. EURO2 SPECIFICATION(NT2)	8-97212-188-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. CHARGE AIR COOLER<6PL>	8-97212-104-0	01	1	0211-0501							●
2	03.330 BOLT; INJ PUMP 08.900 (H) M10X50 FLANGE	0-28181-050-0	01	1	0507-0512	●	●
2	03.330 BOLT; INJ PUMP 02.042 (H) M10X50 FLANGE	0-28151-050-0	01	1	0601-	●	●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0211-0501			●
2	03.330 BOLT; INJ PUMP EXC. ENGINE POWER N-SPEC(7QV) 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0211-0501					●
2	03.330 BOLT; INJ PUMP EXC. CHARGE AIR COOLER<6PL> 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0211-0501							●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0502-			●	●	●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	0211-0501			●
2	03.330 BOLT; INJ PUMP EXC. ENGINE POWER N-SPEC(7QV) 03.162 (E) M14X30	8-97203-957-0	01	1	0211-0501					●
2	03.330 BOLT; INJ PUMP EXC. CHARGE AIR COOLER<6PL> 03.162 (E) M14X30	8-97203-957-0	01	1	0211-0501							●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	0502-			●	●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0211-0501			●		●
2	03.330 BOLT; INJ PUMP EXC. CHARGE AIR COOLER<6PL> (A) M12X90 FLANGE	0-28181-290-0	01	1	0211-0501							●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0502-0506			●	●	●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0507-0512	●	●	●	●	●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0601-	●	●	●	●	●	●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0211-0501			●		●		●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0502-0512			●	●	●	●
2	03.330 BOLT; INJ PUMP 02.277 (C) M10X70 FLANGE	0-28151-070-0	01	1	0601-			●	●	●	●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0211-0501			●		●		●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0502-0506			●	●	●	●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0507-0512	●	●	●	●	●	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0601-	●	●	●	●	●	●
2	03.330 BOLT; INJ PUMP ENGINE POWER N-SPEC(7QV) 03.417 (F) M10X25 FLANGE	0-28081-025-0	01	1	0211-0501					●
2	03.330 BOLT; INJ PUMP 03.417 (F) M10X25 FLANGE	0-28081-025-0	01	1	0502-0512						●
2	03.330 BOLT; INJ PUMP 09.171 (F) M10X25 FLANGE	0-28051-025-0	01	1	0601-						●
2	03.330 BOLT; INJ PUMP CHARGE AIR COOLER<6PL> (G) M12X110	0-28186-211-0	01	1	0211-0501							●
2	03.330 BOLT; INJ PUMP CHARGE AIR COOLER<6PL> 03.162 (D) M14X27 FLANGE	1-09675-086-0	01	1	0211-0501							●
16	03.330 PIPE; INJ NO.1	8-97371-831-1	01	1	0507-	●	●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	0211-0501			●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	0502-				●
16	03.330 PIPE; INJ NO.1 EXC. TURBOCHARGER(K51)	8-97123-374-0	01	1	0211-0501			●
16	03.330 PIPE; INJ NO.1 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-374-0	01	1	0211-0501					●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	0502-			●		●
16	03.330 PIPE; INJ NO.1 ENGINE POWER N-SPEC(7QV)	8-97134-166-1	01	1	0211-0501					●
16	03.330 PIPE; INJ NO.1	8-97134-166-1	01	1	0502-						●
16	03.330 PIPE; INJ NO.1 CHARGE AIR COOLER<6PL>	8-97148-963-4	01	1	0211-0501							●
16	03.330 PIPE; INJ NO.1 EXC. CHARGE AIR COOLER<6PL>	8-97065-932-3	01	1	0211-0501							●
17	03.330 PIPE; INJ NO.2	8-97373-417-1	01	1	0507-	●	●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	0211-0501			●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	0502-				●
17	03.330 PIPE; INJ NO.2 EXC. TURBOCHARGER(K51)	8-97123-375-0	01	1	0211-0501			●
17	03.330 PIPE; INJ NO.2 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-375-0	01	1	0211-0501					●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	0502-			●		●
17	03.330 PIPE; INJ NO.2 ENGINE POWER N-SPEC(7QV)	8-97134-167-1	01	1	0211-0501					●
17	03.330 PIPE; INJ NO.2	8-97134-167-1	01	1	0502-						●
17	03.330 PIPE; INJ NO.2 CHARGE AIR COOLER<6PL>	8-97148-964-3	01	1	0211-0501							●
17	03.330 PIPE; INJ NO.2 EXC. CHARGE AIR COOLER<6PL>	8-97065-933-3	01	1	0211-0501							●
18	03.330 PIPE; INJ NO.3	8-97371-833-1	01	1	0507-	●	●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	0211-0501			●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	0502-				●
18	03.330 PIPE; INJ NO.3 EXC. TURBOCHARGER(K51)	8-97123-376-0	01	1	0211-0501			●
18	03.330 PIPE; INJ NO.3 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-376-0	01	1	0211-0501					●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	0502-			●		●
18	03.330 PIPE; INJ NO.3 ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-168-0	01	1	0211-0501					●
18	03.330 PIPE; INJ NO.3 EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-168-0	01	1	0502-1405						●
18	03.330 PIPE; INJ NO.3 EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-168-0	01	1	1406-						●
18	03.330 PIPE; INJ NO.3 HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV)	8-97223-106-0	01	1	0211-0501					●
18	03.330 PIPE; INJ NO.3 HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97223-106-0	01	1	0502-						●
18	03.330 PIPE; INJ NO.3 CHARGE AIR COOLER<6PL>	8-97148-965-4	01	1	0211-0501							●
18	03.330 PIPE; INJ NO.3 EXC. CHARGE AIR COOLER<6PL>	8-97065-934-3	01	1	0211-0501							●
19	03.330 PIPE; INJ NO.4	8-97371-834-1	01	1	0507-	●	●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	0211-0501			●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	0502-				●
19	03.330 PIPE; INJ NO.4 EXC. TURBOCHARGER(K51)	8-97123-377-1	01	1	0211-0501			●
19	03.330 PIPE; INJ NO.4 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-377-1	01	1	0211-0501					●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	0502-			●		●
19	03.330 PIPE; INJ NO.4 ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-169-0	01	1	0211-0501					●
19	03.330 PIPE; INJ NO.4 EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-169-0	01	1	0502-1405						●
19	03.330 PIPE; INJ NO.4 EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-169-0	01	1	1406-						●
19	03.330 PIPE; INJ NO.4 HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV)	8-97223-107-0	01	1	0211-0501					●
19	03.330 PIPE; INJ NO.4 HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97223-107-0	01	1	0502-						●
19	03.330 PIPE; INJ NO.4 CHARGE AIR COOLER<6PL>	8-97148-966-3	01	1	0211-0501							●
19	03.330 PIPE; INJ NO.4 EXC. CHARGE AIR COOLER<6PL>	8-97065-935-3	01	1	0211-0501							●
31	03.332 NOZZLE ASM; INJ (C)	8-97602-485-6	04	1	0507-	●	●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0211-0501			●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0502-				●
31	03.332 NOZZLE ASM; INJ EXC. TURBOCHARGER(K51) (A)	8-97119-811-0	04	1	0211-0501			●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0502-			●
31	03.332 NOZZLE ASM; INJ ENGINE POWER N-SPEC(7QV) (A)	8-97174-112-0	04	1	0211-0501					●
31	03.332 NOZZLE ASM; INJ (A)	8-97174-112-0	04	1	0502-						●
31	03.332 NOZZLE ASM; INJ EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97119-812-0	04	1	0211-0501					●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-812-0	04	1	0502-					●
31	03.332 NOZZLE ASM; INJ CHARGE AIR COOLER<6PL> (A)	8-97148-960-1	04	1	0211-0501							●
31	03.332 NOZZLE ASM; INJ EXC. CHARGE AIR COOLER<6PL> (B)	8-97115-503-2	04	1	0211-0501							●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.162 ID=8.3	8-97600-925-0	04	1	0507-0908	●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.3 OD=15.0	8-98065-992-0	04	1	0909-	●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6	8-94395-214-0	04	1	0211-0501			●		●		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6	8-94395-214-0	04	1	0502-1312			●	●	●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6	8-98246-930-0	04	1	1401-			●	●	●	●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0211-0501			●		●		●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0502-0602			●	●	●	●
62	03.332 NUT; NOZZLE HOLDER 01.062 M8 FLANGE	0-91180-108-0	08	1	0603-			●	●	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	0507-	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF TURBOCHARGER(K51)	8-97148-969-2	01	1	0211-0501			●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF CHARGE AIR COOLER<6PL>	8-97148-969-2	01	1	0211-0501							●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0502-				●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF EXC. TURBOCHARGER(K51)	8-97118-895-0	01	1	0211-0501			●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF EXC. ENGINE POWER N-SPEC(7QV)	8-97118-895-0	01	1	0211-0501					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97118-895-0	01	1	0211-0501					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF EXC. CHARGE AIR COOLER<6PL>	8-97118-895-0	01	1	0211-0501							●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0502-			●		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97118-895-0	01	1	0502-						●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV)	8-97145-004-0	01	1	0211-0501					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97145-004-0	01	1	0502-						●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.609 (D) ID=23.3	8-94173-412-0	04	1	0507-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=9.2 T=8.1	8-97601-447-2	04	1	0507-0909	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=9.2 T=8.1	8-98079-248-0	04	1	0910-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) TURBOCHARGER(K51) 07.003 (A)	8-97171-332-0	04	1	0211-0501			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 07.003 (A)	8-97171-332-0	04	1	0211-0501							●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 07.003 (A)	8-97171-332-0	04	1	0502-				●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0211-0501			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0211-0501					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0502-			●		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-94326-439-0	04	1	0211-0501			●		●		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-94326-439-0	04	1	0502-			●	●	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL> (A)	8-97171-922-0	04	1	0211-0501							●
68	03.162 CLIP; INJ PIPE (A) ID=7 & 7 L=22	8-97330-118-3	04	1	0507-	●	●
68	03.162 CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-119-3	04	1	0507-	●	●
68	03.162 CLIP; INJ PIPE (C)	1-09701-091-0	01	1	0211-0501			●
68	03.162 CLIP; INJ PIPE (C)	1-09701-091-0	01	1	0502-				●
68	03.162 CLIP; INJ PIPE ENGINE POWER N-SPEC(7QV) (D)	8-97213-049-0	04	1	0211-0501					●
68	03.162 CLIP; INJ PIPE (D)	8-97213-049-0	04	1	0502-						●
68	03.162 CLIP; INJ PIPE CHARGE AIR COOLER<6PL> (D)	8-97213-049-0	06	1	0211-0501							●
78	03.330 BOLT; BRKT TO C/BL TURBOCHARGER(K51) 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0211-0501			●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0211-0501							●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0502-0512				●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	01	1	0601-				●
78	03.330 BOLT; BRKT TO C/BL EXC. TURBOCHARGER(K51) 04.785 M10X20 FLANGE	0-28781-020-0	02	1	0211-0501			●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	02	1	0211-0501					●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	02	1	0502-0512			●		●	●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	02	1	0601-			●		●	●
80	03.306 BRACKET; PUMP	8-97601-699-0	01	1	0507-	●	●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0211-0501			●
80	03.306 BRACKET; PUMP EXC. ENGINE POWER N-SPEC(7QV)	8-97136-677-0	01	1	0211-0501					●
80	03.306 BRACKET; PUMP EXC. CHARGE AIR COOLER<6PL>	8-97136-677-0	01	1	0211-0501							●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0502-			●	●	●
80	03.306 BRACKET; PUMP ENGINE POWER N-SPEC(7QV)	8-97119-363-1	01	1	0211-0501					●
80	03.306 BRACKET; PUMP	8-97119-363-1	01	1	0502-						●
80	03.306 BRACKET; PUMP CHARGE AIR COOLER<6PL>	8-97148-958-1	01	1	0211-0501							●
84	03.330 NUT; BRKT TO BRKT 08.917 M10 FLANGE	0-91150-210-0	01	1	0211-0501			●
84	03.330 NUT; BRKT TO BRKT EXC. ENGINE POWER N-SPEC(7QV) 08.917 M10 FLANGE	0-91150-210-0	01	1	0211-0501					●
84	03.330 NUT; BRKT TO BRKT EXC. CHARGE AIR COOLER<6PL> 08.917 M10 FLANGE	0-91150-210-0	01	1	0211-0501							●
84	03.330 NUT; BRKT TO BRKT 08.917 M10 FLANGE	0-91150-210-0	01	1	0502-0602			●	●	●
84	03.330 NUT; BRKT TO BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	0603-			●	●	●
84	03.330 NUT; BRKT TO BRKT CHARGE AIR COOLER<6PL> 07.243 M12 FLANGE	0-91150-212-0	01	1	0211-0501							●
99	03.330 BOLT; CLIP,INJ,PIPE 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0211-0501			●
99	03.330 BOLT; CLIP,INJ,PIPE 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0502-0512				●
99	03.330 BOLT; CLIP,INJ,PIPE 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0601-				●
110	03.330 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	04	1	0507-0602	●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	04	1	0603-	●	●
110	03.330 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0501			●
110	03.330 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602				●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-				●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0211-0501			●
113	03.162 CLIP; INJ PIPE EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97213-050-0	04	1	0211-0501					●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0502-			●	●	●
113	03.162 CLIP; INJ PIPE (B)	8-97213-481-0	01	1	0211-0501			●
113	03.162 CLIP; INJ PIPE (B)	8-97213-481-0	01	1	0502-				●
113	03.162 CLIP; INJ PIPE ENGINE POWER N-SPEC(7QV) (A)	8-97213-050-0	02	1	0211-0501					●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	02	1	0502-						●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	05	1	0211-0501							●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501			●		●		●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0506			●	●	●	●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602	●	●	●	●	●	●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-	●	●	●	●	●	●
158	03.330 NUT; INJ PUMP CHARGE AIR COOLER<6PL> 00.685 M12 FLANGE	0-91250-112-0	01	1	0211-0501							●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	0211-0212			●		●		●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0301-0501			●		●		●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0502-0506			●	●	●	●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0507-0910	●	●	●	●	●	●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	0911-	●	●	●	●	●	●
167	03.330 SPACER; GUIDE TUBE TURBOCHARGER(K51)	8-97065-515-2	01	1	0211-0501			●
167	03.330 SPACER; GUIDE TUBE EXC. CHARGE AIR COOLER<6PL>	8-97065-515-2	01	1	0211-0501							●
167	03.330 SPACER; GUIDE TUBE	8-97065-515-2	01	1	0502-				●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.616 ID=52	1-09623-300-0	01	1	0507-0603	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	8-98031-844-0	01	1	0604-	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-085-0	02	1	0211-0501			●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV) 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0501					●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0501							●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0502-1312			●	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●	●	●
226	03.163 PIPE; FUEL	8-97320-019-0	01	1	0507-0808	●	●
226	03.163 PIPE; FUEL	8-98126-433-0	01	1	0809-	●	●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	0211-0501			●
226	03.163 PIPE; FUEL EXC. ENGINE POWER N-SPEC(7QV)	8-97203-567-0	01	1	0211-0501					●
226	03.163 PIPE; FUEL EXC. CHARGE AIR COOLER<6PL>	8-97203-567-0	01	1	0211-0501							●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	0502-			●	●	●

18 19 17 113 16 36 62 31 63 66 66 2 161 2 1 2 219 226 219 80 2 2 158 2 84 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT .	8-97306-044-9	01	1	0507-	●	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), TURBOCHARGER(K51)	8-97212-102-0	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97212-102-0	01	1	0502-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),TURBOCHARGER(K51)	8-97212-101-0	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97212-101-0	01	1	0502-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97215-704-2	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97215-704-2	01	1	0502-				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . TURBOCHARGER(K51) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97178-485-5	01	1	0211-0501			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97178-485-5	01	1	0502-				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97324-405-1	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97324-405-1	01	1	0502-0507						●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV)	8-97203-381-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97203-381-0	01	1	0502-0507					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2), SINGAPORE EQUIPMENT(S9Y),ENGINE POWER N -SPEC(7QV)	8-97203-380-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97203-380-0	01	1	0502-					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97223-104-1	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97223-104-1	01	1	0502-						●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60),SINGAPORE EQUIPMENT(S9Y),ENGINE PO WER N-SPEC(7QV)	8-97203-383-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97203-383-0	01	1	0502-					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV)	8-97223-105-1	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97223-105-1	01	1	0502-						●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . SINGAPORE EQUIPMENT(S9Y) EXC. ENGINE POWER N-SPEC(7QV)	8-97203-384-0	01	1	0211-0501					●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) ENGINE POWER N-SPEC(7QV)	8-97212-189-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2) EXC. ENGINE POWER N-SPEC(7QV)	8-97212-185-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2), ENGINEPOWER N-SPEC(7QV)	8-97212-186-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. EURO2 SPECIFICATION(NT2)	8-97212-188-1	01	1	0211-0501							●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT . EXC. CHARGE AIR COOLER<6PL>	8-97212-104-0	01	1	0211-0501							●
2	03.330 BOLT; INJ PUMP 08.900 (H) M10X50 FLANGE	0-28181-050-0	01	1	0507-0512	●	●
2	03.330 BOLT; INJ PUMP 02.042 (H) M10X50 FLANGE	0-28151-050-0	01	1	0601-	●	●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0211-0501			●
2	03.330 BOLT; INJ PUMP EXC. ENGINE POWER N-SPEC(7QV) 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0211-0501					●
2	03.330 BOLT; INJ PUMP EXC. CHARGE AIR COOLER<6PL> 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0211-0501							●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0502-			●	●	●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	0211-0501			●
2	03.330 BOLT; INJ PUMP EXC. ENGINE POWER N-SPEC(7QV) 03.162 (E) M14X30	8-97203-957-0	01	1	0211-0501					●
2	03.330 BOLT; INJ PUMP EXC. CHARGE AIR COOLER<6PL> 03.162 (E) M14X30	8-97203-957-0	01	1	0211-0501							●
2	03.330 BOLT; INJ PUMP 03.162 (E) M14X30	8-97203-957-0	01	1	0502-			●	●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0211-0501			●		●
2	03.330 BOLT; INJ PUMP EXC. CHARGE AIR COOLER<6PL> (A) M12X90 FLANGE	0-28181-290-0	01	1	0211-0501							●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0502-0506			●	●	●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0507-0512	●	●	●	●	●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0601-	●	●	●	●	●	●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0211-0501			●		●		●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0502-0512			●	●	●	●
2	03.330 BOLT; INJ PUMP 02.277 (C) M10X70 FLANGE	0-28151-070-0	01	1	0601-			●	●	●	●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0211-0501			●		●		●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0502-0506			●	●	●	●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0507-0512	●	●	●	●	●	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0601-	●	●	●	●	●	●
2	03.330 BOLT; INJ PUMP ENGINE POWER N-SPEC(7QV) 03.417 (F) M10X25 FLANGE	0-28081-025-0	01	1	0211-0501					●
2	03.330 BOLT; INJ PUMP 03.417 (F) M10X25 FLANGE	0-28081-025-0	01	1	0502-0512						●
2	03.330 BOLT; INJ PUMP 09.171 (F) M10X25 FLANGE	0-28051-025-0	01	1	0601-						●
2	03.330 BOLT; INJ PUMP CHARGE AIR COOLER<6PL> (G) M12X110	0-28186-211-0	01	1	0211-0501							●
2	03.330 BOLT; INJ PUMP CHARGE AIR COOLER<6PL> 03.162 (D) M14X27 FLANGE	1-09675-086-0	01	1	0211-0501							●
16	03.330 PIPE; INJ NO.1	8-97371-831-1	01	1	0507-	●	●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	0211-0501			●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	0502-				●
16	03.330 PIPE; INJ NO.1 EXC. TURBOCHARGER(K51)	8-97123-374-0	01	1	0211-0501			●
16	03.330 PIPE; INJ NO.1 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-374-0	01	1	0211-0501					●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	0502-			●		●
16	03.330 PIPE; INJ NO.1 ENGINE POWER N-SPEC(7QV)	8-97134-166-1	01	1	0211-0501					●
16	03.330 PIPE; INJ NO.1	8-97134-166-1	01	1	0502-						●
16	03.330 PIPE; INJ NO.1 CHARGE AIR COOLER<6PL>	8-97148-963-4	01	1	0211-0501							●
16	03.330 PIPE; INJ NO.1 EXC. CHARGE AIR COOLER<6PL>	8-97065-932-3	01	1	0211-0501							●
17	03.330 PIPE; INJ NO.2	8-97373-417-1	01	1	0507-	●	●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	0211-0501			●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	0502-				●
17	03.330 PIPE; INJ NO.2 EXC. TURBOCHARGER(K51)	8-97123-375-0	01	1	0211-0501			●
17	03.330 PIPE; INJ NO.2 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-375-0	01	1	0211-0501					●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	0502-			●		●
17	03.330 PIPE; INJ NO.2 ENGINE POWER N-SPEC(7QV)	8-97134-167-1	01	1	0211-0501					●
17	03.330 PIPE; INJ NO.2	8-97134-167-1	01	1	0502-						●
17	03.330 PIPE; INJ NO.2 CHARGE AIR COOLER<6PL>	8-97148-964-3	01	1	0211-0501							●
17	03.330 PIPE; INJ NO.2 EXC. CHARGE AIR COOLER<6PL>	8-97065-933-3	01	1	0211-0501							●
18	03.330 PIPE; INJ NO.3	8-97371-833-1	01	1	0507-	●	●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	0211-0501			●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	0502-				●
18	03.330 PIPE; INJ NO.3 EXC. TURBOCHARGER(K51)	8-97123-376-0	01	1	0211-0501			●
18	03.330 PIPE; INJ NO.3 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-376-0	01	1	0211-0501					●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	0502-			●		●
18	03.330 PIPE; INJ NO.3 ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-168-0	01	1	0211-0501					●
18	03.330 PIPE; INJ NO.3 EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-168-0	01	1	0502-1405						●
18	03.330 PIPE; INJ NO.3 EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-168-0	01	1	1406-						●
18	03.330 PIPE; INJ NO.3 HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV)	8-97223-106-0	01	1	0211-0501					●
18	03.330 PIPE; INJ NO.3 HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97223-106-0	01	1	0502-						●
18	03.330 PIPE; INJ NO.3 CHARGE AIR COOLER<6PL>	8-97148-965-4	01	1	0211-0501							●
18	03.330 PIPE; INJ NO.3 EXC. CHARGE AIR COOLER<6PL>	8-97065-934-3	01	1	0211-0501							●
19	03.330 PIPE; INJ NO.4	8-97371-834-1	01	1	0507-	●	●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	0211-0501			●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	0502-				●
19	03.330 PIPE; INJ NO.4 EXC. TURBOCHARGER(K51)	8-97123-377-1	01	1	0211-0501			●
19	03.330 PIPE; INJ NO.4 EXC. ENGINE POWER N-SPEC(7QV)	8-97123-377-1	01	1	0211-0501					●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	0502-			●		●
19	03.330 PIPE; INJ NO.4 ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-169-0	01	1	0211-0501					●
19	03.330 PIPE; INJ NO.4 EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-169-0	01	1	0502-1405						●
19	03.330 PIPE; INJ NO.4 EXC. AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR(EE2)	8-97134-169-0	01	1	1406-						●
19	03.330 PIPE; INJ NO.4 HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV)	8-97223-107-0	01	1	0211-0501					●
19	03.330 PIPE; INJ NO.4 HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97223-107-0	01	1	0502-						●
19	03.330 PIPE; INJ NO.4 CHARGE AIR COOLER<6PL>	8-97148-966-3	01	1	0211-0501							●
19	03.330 PIPE; INJ NO.4 EXC. CHARGE AIR COOLER<6PL>	8-97065-935-3	01	1	0211-0501							●
31	03.332 NOZZLE ASM; INJ (C)	8-97602-485-6	04	1	0507-	●	●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0211-0501			●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0502-				●
31	03.332 NOZZLE ASM; INJ EXC. TURBOCHARGER(K51) (A)	8-97119-811-0	04	1	0211-0501			●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0502-			●
31	03.332 NOZZLE ASM; INJ ENGINE POWER N-SPEC(7QV) (A)	8-97174-112-0	04	1	0211-0501					●
31	03.332 NOZZLE ASM; INJ (A)	8-97174-112-0	04	1	0502-						●
31	03.332 NOZZLE ASM; INJ EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97119-812-0	04	1	0211-0501					●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-812-0	04	1	0502-					●
31	03.332 NOZZLE ASM; INJ CHARGE AIR COOLER<6PL> (A)	8-97148-960-1	04	1	0211-0501							●
31	03.332 NOZZLE ASM; INJ EXC. CHARGE AIR COOLER<6PL> (B)	8-97115-503-2	04	1	0211-0501							●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.162 ID=8.3	8-97600-925-0	04	1	0507-0908	●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.3 OD=15.0	8-98065-992-0	04	1	0909-	●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6	8-94395-214-0	04	1	0211-0501			●		●		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6	8-94395-214-0	04	1	0502-1312			●	●	●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=8.6	8-98246-930-0	04	1	1401-			●	●	●	●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0211-0501			●		●		●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0502-0602			●	●	●	●
62	03.332 NUT; NOZZLE HOLDER 01.062 M8 FLANGE	0-91180-108-0	08	1	0603-			●	●	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	0507-	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF TURBOCHARGER(K51)	8-97148-969-2	01	1	0211-0501			●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF CHARGE AIR COOLER<6PL>	8-97148-969-2	01	1	0211-0501							●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0502-				●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF EXC. TURBOCHARGER(K51)	8-97118-895-0	01	1	0211-0501			●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF EXC. ENGINE POWER N-SPEC(7QV)	8-97118-895-0	01	1	0211-0501					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97118-895-0	01	1	0211-0501					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF EXC. CHARGE AIR COOLER<6PL>	8-97118-895-0	01	1	0211-0501							●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0502-			●		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97118-895-0	01	1	0502-						●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV)	8-97145-004-0	01	1	0211-0501					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97145-004-0	01	1	0502-						●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.609 (D) ID=23.3	8-94173-412-0	04	1	0507-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=9.2 T=8.1	8-97601-447-2	04	1	0507-0909	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C) ID=9.2 T=8.1	8-98079-248-0	04	1	0910-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) TURBOCHARGER(K51) 07.003 (A)	8-97171-332-0	04	1	0211-0501			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> 07.003 (A)	8-97171-332-0	04	1	0211-0501							●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 07.003 (A)	8-97171-332-0	04	1	0502-				●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0211-0501			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0211-0501					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0502-			●		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-94326-439-0	04	1	0211-0501			●		●		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-94326-439-0	04	1	0502-			●	●	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL> (A)	8-97171-922-0	04	1	0211-0501							●
78	03.330 BOLT; BRKT TO C/BL TURBOCHARGER(K51) 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0211-0501			●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0211-0501							●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0502-0512				●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	01	1	0601-				●
78	03.330 BOLT; BRKT TO C/BL EXC. TURBOCHARGER(K51) 04.785 M10X20 FLANGE	0-28781-020-0	02	1	0211-0501			●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	02	1	0211-0501					●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	02	1	0502-0512			●		●	●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	02	1	0601-			●		●	●
80	03.306 BRACKET; PUMP	8-97601-699-0	01	1	0507-	●	●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0211-0501			●
80	03.306 BRACKET; PUMP EXC. ENGINE POWER N-SPEC(7QV)	8-97136-677-0	01	1	0211-0501					●
80	03.306 BRACKET; PUMP EXC. CHARGE AIR COOLER<6PL>	8-97136-677-0	01	1	0211-0501							●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0502-			●	●	●
80	03.306 BRACKET; PUMP ENGINE POWER N-SPEC(7QV)	8-97119-363-1	01	1	0211-0501					●
80	03.306 BRACKET; PUMP	8-97119-363-1	01	1	0502-						●
80	03.306 BRACKET; PUMP CHARGE AIR COOLER<6PL>	8-97148-958-1	01	1	0211-0501							●
84	03.330 NUT; BRKT TO BRKT 08.917 M10 FLANGE	0-91150-210-0	01	1	0211-0501			●
84	03.330 NUT; BRKT TO BRKT EXC. ENGINE POWER N-SPEC(7QV) 08.917 M10 FLANGE	0-91150-210-0	01	1	0211-0501					●
84	03.330 NUT; BRKT TO BRKT EXC. CHARGE AIR COOLER<6PL> 08.917 M10 FLANGE	0-91150-210-0	01	1	0211-0501							●
84	03.330 NUT; BRKT TO BRKT 08.917 M10 FLANGE	0-91150-210-0	01	1	0502-0602			●	●	●
84	03.330 NUT; BRKT TO BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	0603-			●	●	●
84	03.330 NUT; BRKT TO BRKT CHARGE AIR COOLER<6PL> 07.243 M12 FLANGE	0-91150-212-0	01	1	0211-0501							●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0211-0501			●
113	03.162 CLIP; INJ PIPE EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97213-050-0	04	1	0211-0501					●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0502-			●	●	●
113	03.162 CLIP; INJ PIPE (B)	8-97213-481-0	01	1	0211-0501			●
113	03.162 CLIP; INJ PIPE (B)	8-97213-481-0	01	1	0502-				●
113	03.162 CLIP; INJ PIPE ENGINE POWER N-SPEC(7QV) (A)	8-97213-050-0	02	1	0211-0501					●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	02	1	0502-						●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	05	1	0211-0501							●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501			●		●		●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0506			●	●	●	●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602	●	●	●	●	●	●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-	●	●	●	●	●	●
158	03.330 NUT; INJ PUMP CHARGE AIR COOLER<6PL> 00.685 M12 FLANGE	0-91250-112-0	01	1	0211-0501							●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	0211-0212			●		●		●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0301-0501			●		●		●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0502-0506			●	●	●	●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0507-0910	●	●	●	●	●	●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	0911-	●	●	●	●	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.616 ID=52	1-09623-300-0	01	1	0507-0603	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	8-98031-844-0	01	1	0604-	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-085-0	02	1	0211-0501			●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV) 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0501					●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0501							●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0502-1312			●	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●	●	●
226	03.163 PIPE; FUEL	8-97320-019-0	01	1	0507-0808	●	●
226	03.163 PIPE; FUEL	8-98126-433-0	01	1	0809-	●	●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	0211-0501			●
226	03.163 PIPE; FUEL EXC. ENGINE POWER N-SPEC(7QV)	8-97203-567-0	01	1	0211-0501					●
226	03.163 PIPE; FUEL EXC. CHARGE AIR COOLER<6PL>	8-97203-567-0	01	1	0211-0501							●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	0502-			●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
