Sayfa 0-36 - Isuzu EPC

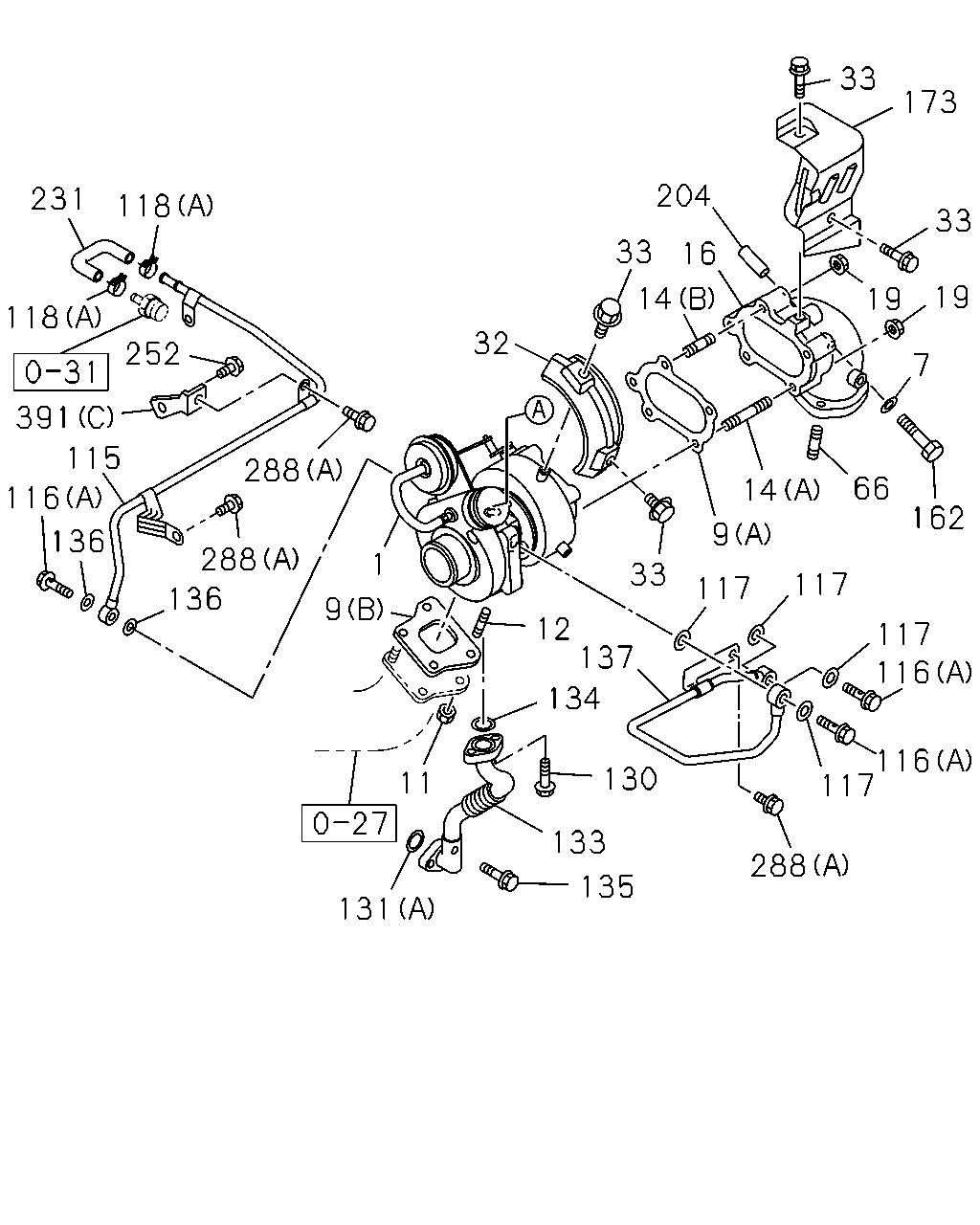

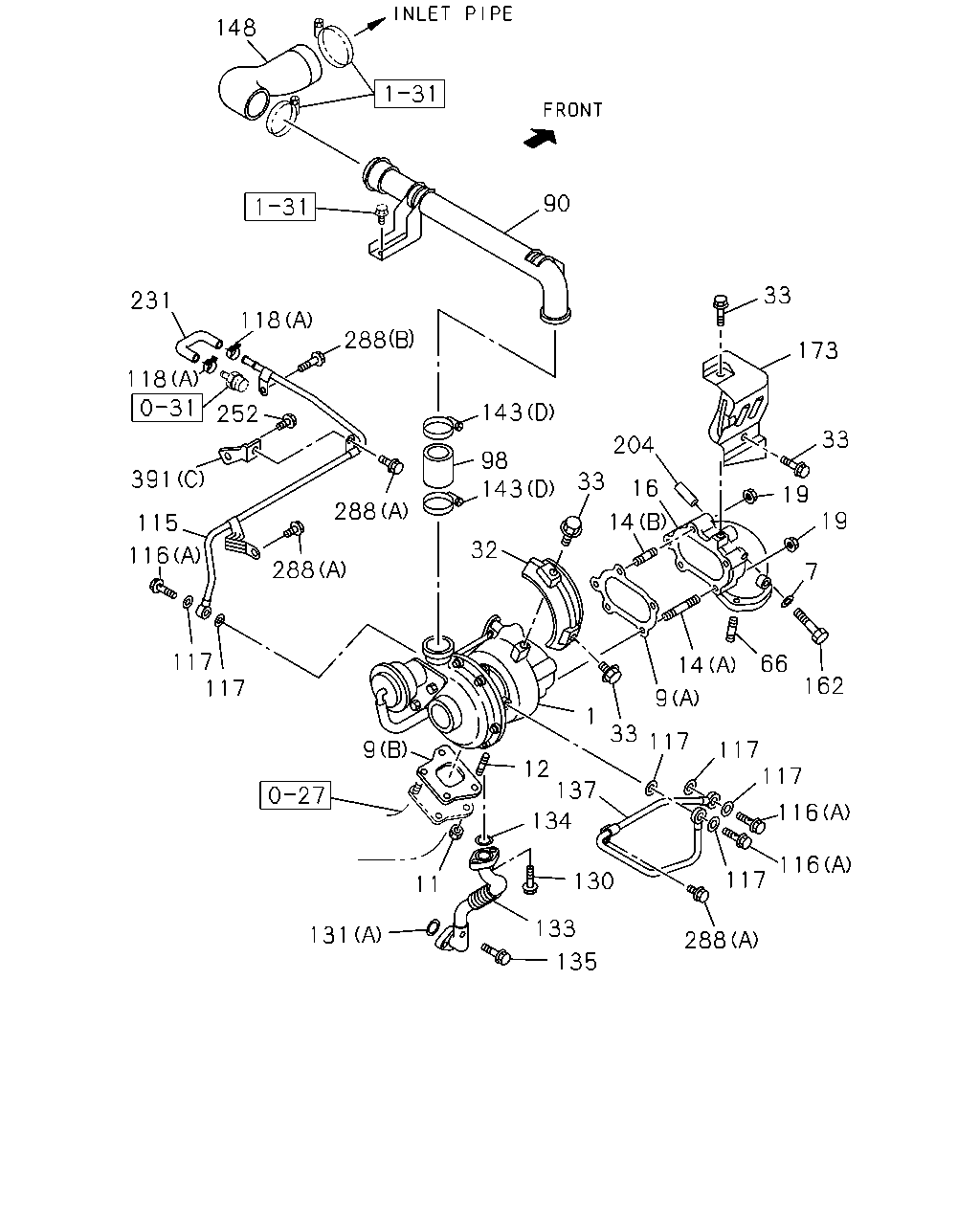

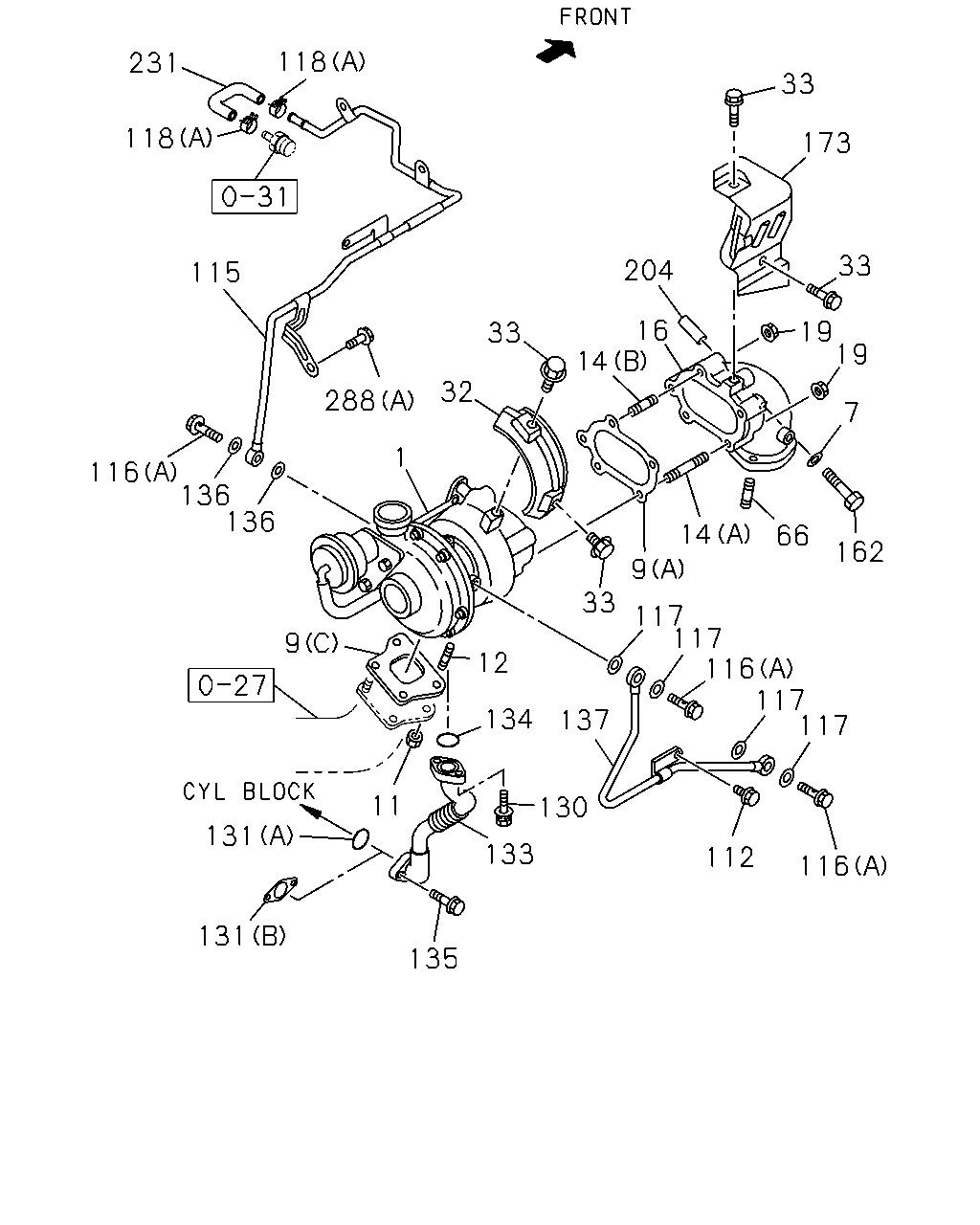

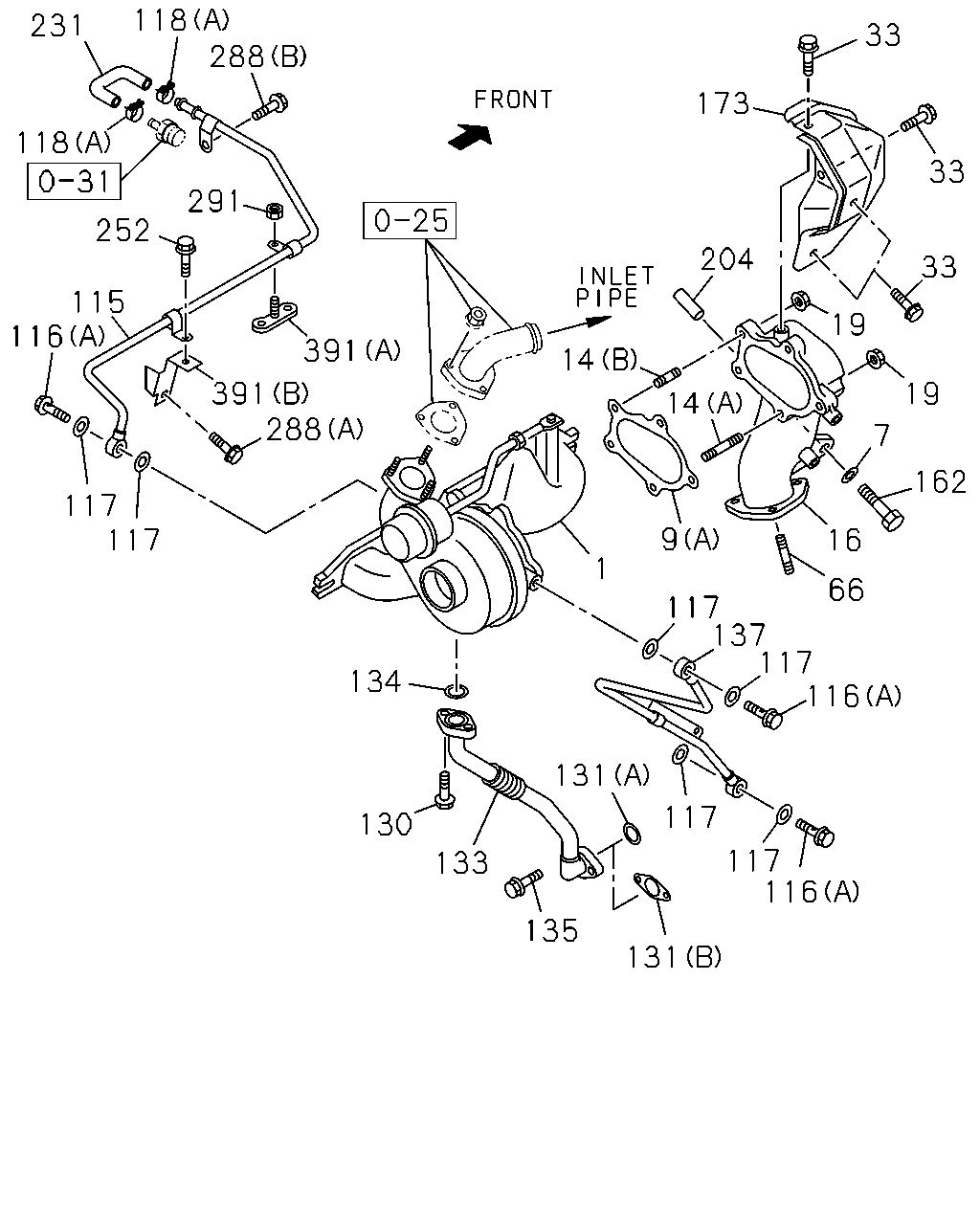

0-36 — TURBOCHARGER SYSTEM (#42552) — 756 parça

33 173 204 231 118 33 33 16 19 14 19 118 32 252 7 391 115 288 66 14 116 162 9 136 288 1 33 117 117 136 9 12 137 117 116 134 116 117 130 11 133 288 135 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	0507-	●	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-0	01	1	0211-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	0502-				●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97208-966-3	01	1	0211-0501					●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL>	8-97103-857-0	01	1	0211-0501					●
7	03.613 WASHER; PL,BRKT TURBOCHARGER(K51) ID=8 OD=18 T=3	8-94174-537-0	01	1	0211-0501			●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0211-0501					●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0502-0506				●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0507-	●	●		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C)	8-97374-412-0	01	1	0507-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0211-0501			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0211-0501					●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0502-0506				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0507-	●	●		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97063-602-0	01	1	0211-0307					●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97326-466-0	01	1	0308-0312					●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97374-412-0	01	1	0401-0501					●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0507-	●	●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0211-0501					●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0507-	●	●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0211-0501					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER(K51) (A) M8X94 L=108	8-97019-477-0	02	1	0211-0501			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0211-0501					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0502-0506				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0507-	●	●		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER(K51) (B) M8X49 L=63	8-97019-478-0	03	1	0211-0501			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0211-0501					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0502-0506				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0507-	●	●		●
16	03.609 ADAPTER; EXH PIPE	8-97178-487-3	01	1	0502-				●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-2	01	1	0710-	●	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0507-0709	●	●
16	03.609 ADAPTER; EXH PIPE	8-97178-488-1	01	1	0211-0501			●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0211-0501					●
19	03.342 NUT; EXH PIPE,TURBOCHARGER TURBOCHARGER(K51) 03.604 M8 FLANGE	8-94170-486-0	05	1	0211-0501			●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0211-0501					●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0502-0506				●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0507-	●	●		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0507-	●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0211-0501					●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0507-	●	●
33	03.342 BOLT; HEAT PROTECTOR TURBOCHARGER(K51) 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0211-0501			●
33	03.342 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0211-0501					●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0502-				●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0211-0501					●
33	03.342 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	02	1	0211-0501					●
66	03.342 STUD; EXH PIPE TURBOCHARGER(K51) 03.275 M10X25 L=40	9-04411-025-0	03	1	0211-0501			●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0211-0501					●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0502-0506				●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0507-0604	●	●		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0605-0709	●	●		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0710-0710				●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0710-	●	●		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97372-533-0	01	1	0507-0902	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98137-574-0	01	1	0903-	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97210-077-2	01	1	0211-0501			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97210-077-2	01	1	0502-				●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97229-039-0	01	1	0211-0501					●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL>	8-97229-038-0	01	1	0211-0501					●
116	03.342 BOLT; WATER PIPE 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512	●	●
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
116	03.342 BOLT; WATER PIPE TURBOCHARGER(K51) (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0211-0501			●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0211-0501					●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0502-0506				●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0507-	●	●		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0903-	●	●		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0507-0902	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0903-1312	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	0211-0501			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	0211-0501					●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	0502-0902				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0903-1312				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0211-0501					●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20	1-09707-084-1	04	1	0507-1102	●	●
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	04	1	1103-	●	●
118	03.342 CLIP; WATER HOSE TURBOCHARGER(K51) 03.162 (A) ID=15.5	8-94221-519-0	02	1	0211-0501			●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0211-0501					●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0502-0506				●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0507-	●	●		●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D TURBOCHARGER(K51) 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0211-0501			●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0211-0501					●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0502-0506				●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0507-0512	●	●		●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0601-	●	●		●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). 01.550 (A) ID=27.7	9-09565-228-0	01	1	0211-0211			●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 (A) ID=27.7	9-09565-228-0	01	1	0211-0211					●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). (A) ID=27.7	9-09566-228-0	01	1	0212-0501			●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0212-0501					●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0502-0506				●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0507-1006	●	●		●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30	8-94394-671-0	01	1	1007-	●	●		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-2	01	1	0507-1006	●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-658-0	01	1	1007-	●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97178-508-1	01	1	0211-0501			●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97178-508-2	01	1	0502-1006				●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-659-0	01	1	1007-				●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97148-925-1	01	1	0211-0501					●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL>	8-97039-763-1	01	1	0211-0501					●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). ID=22.8	1-09623-462-0	01	1	0211-0501			●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0211-0501					●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0502-0506				●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0507-	●	●		●
135	01.531 BOLT; OIL PIPE TO C/BL TURBOCHARGER(K51) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0211-0501			●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0211-0501					●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0502-0506				●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0507-0512	●	●		●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0601-	●	●		●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0507-1312	●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0501					●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97357-769-0	01	1	0507-	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	0211-0501			●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	0502-				●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL>	8-97355-911-0	01	1	0211-0212					●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL>	8-97357-769-0	01	1	0301-0501					●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. CHARGE AIR COOLER<6PL>	8-97229-034-0	01	1	0211-0501					●
162	03.613 BOLT; ADAPTER TURBOCHARGER(K51) M8X57	5-09000-275-0	01	1	0211-0501			●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0211-0501					●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0502-0506				●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0507-	●	●		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0507-1204	●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE 03.602	8-98176-248-0	01	1	1205-	●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97178-497-2	01	1	0211-0501			●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97178-497-2	01	1	0502-				●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0211-0501					●
204	03.342 COLLAR; PIPE ADAPTER TURBOCHARGER(K51)	8-97214-384-1	01	1	0211-0501			●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0211-0501					●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0502-0506				●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0507-0709	●	●		●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0710-0710				●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0710-	●	●		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TURBOCHARGER(K51)	8-97209-950-0	01	1	0211-0501			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0211-0501					●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0502-0506				●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0507-	●	●		●
252	03.417 BOLT; BRKT 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0211-0501			●
252	03.417 BOLT; BRKT 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512				●
252	03.417 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-				●
252	03.417 BOLT; BRKT M12X19	8-97079-809-0	01	1	0211-0501					●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	04	1	0507-0512	●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	04	1	0601-	●	●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0211-0501			●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0211-0501			●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0211-0501					●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	0211-0501			●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	0211-0501					●
288	03.342 BOLT; WATER PIPE CLIP 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	0502-0512				●
288	03.342 BOLT; WATER PIPE CLIP 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0601-				●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0211-0501					●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0211-0501					●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-0512				●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-				●
391	03.342 BRACKET; WATER PIPE (A)	8-97210-078-0	01	1	0211-0501			●
391	03.342 BRACKET; WATER PIPE (A)	8-97210-078-0	01	1	0502-				●
391	03.342 BRACKET; WATER PIPE (B)	8-97221-061-0	01	1	0211-0501			●
391	03.342 BRACKET; WATER PIPE (B)	8-97221-061-0	01	1	0502-				●
391	03.342 BRACKET; WATER PIPE (C)	8-97068-554-0	01	1	0211-0501					●

148 90 33 231 118 288 173 118 252 143 33 204 98 143 391 33 16 19 288 19 14 115 32 116 288 7 117 117 66 14 162 9 1 33 117 9 117 117 12 137 116 134 116 117 130 11 133 131 288 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	0507-	●	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-0	01	1	0211-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	0502-				●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97208-966-3	01	1	0211-0501					●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL>	8-97103-857-0	01	1	0211-0501					●
7	03.613 WASHER; PL,BRKT TURBOCHARGER(K51) ID=8 OD=18 T=3	8-94174-537-0	01	1	0211-0501			●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0211-0501					●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0502-0506				●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0507-	●	●		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C)	8-97374-412-0	01	1	0507-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0211-0501			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0211-0501					●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0502-0506				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0507-	●	●		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97063-602-0	01	1	0211-0307					●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97326-466-0	01	1	0308-0312					●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97374-412-0	01	1	0401-0501					●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0507-	●	●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0211-0501					●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0507-	●	●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0211-0501					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER(K51) (A) M8X94 L=108	8-97019-477-0	02	1	0211-0501			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0211-0501					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0502-0506				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0507-	●	●		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER(K51) (B) M8X49 L=63	8-97019-478-0	03	1	0211-0501			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0211-0501					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0502-0506				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0507-	●	●		●
16	03.609 ADAPTER; EXH PIPE	8-97178-487-3	01	1	0502-				●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-2	01	1	0710-	●	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0507-0709	●	●
16	03.609 ADAPTER; EXH PIPE	8-97178-488-1	01	1	0211-0501			●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0211-0501					●
19	03.342 NUT; EXH PIPE,TURBOCHARGER TURBOCHARGER(K51) 03.604 M8 FLANGE	8-94170-486-0	05	1	0211-0501			●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0211-0501					●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0502-0506				●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0507-	●	●		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0507-	●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0211-0501					●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0507-	●	●
33	03.342 BOLT; HEAT PROTECTOR TURBOCHARGER(K51) 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0211-0501			●
33	03.342 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0211-0501					●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0502-				●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0211-0501					●
33	03.342 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	02	1	0211-0501					●
66	03.342 STUD; EXH PIPE TURBOCHARGER(K51) 03.275 M10X25 L=40	9-04411-025-0	03	1	0211-0501			●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0211-0501					●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0502-0506				●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0507-0604	●	●		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0605-0709	●	●		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0710-0710				●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0710-	●	●		●
90	03.407 PIPE; INL,TURBOCHARGER TO MANIF SGL CAB(NP*S) EXC. CHARGE AIR COOLER<6PL>	8-97173-981-0	01	1	0211-0501					●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-97221-536-2	01	1	0507-	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-97380-256-2	01	1	0507-0608		●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-98053-759-0	01	1	0609-		●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL>	8-97221-536-1	01	1	0211-0501					●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET SGL CAB(NP*S) EXC. CHARGE AIR COOLER<6PL>	8-97041-096-0	01	1	0211-0501					●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97372-533-0	01	1	0507-0902	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98137-574-0	01	1	0903-	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97210-077-2	01	1	0211-0501			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97210-077-2	01	1	0502-				●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97229-039-0	01	1	0211-0501					●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL>	8-97229-038-0	01	1	0211-0501					●

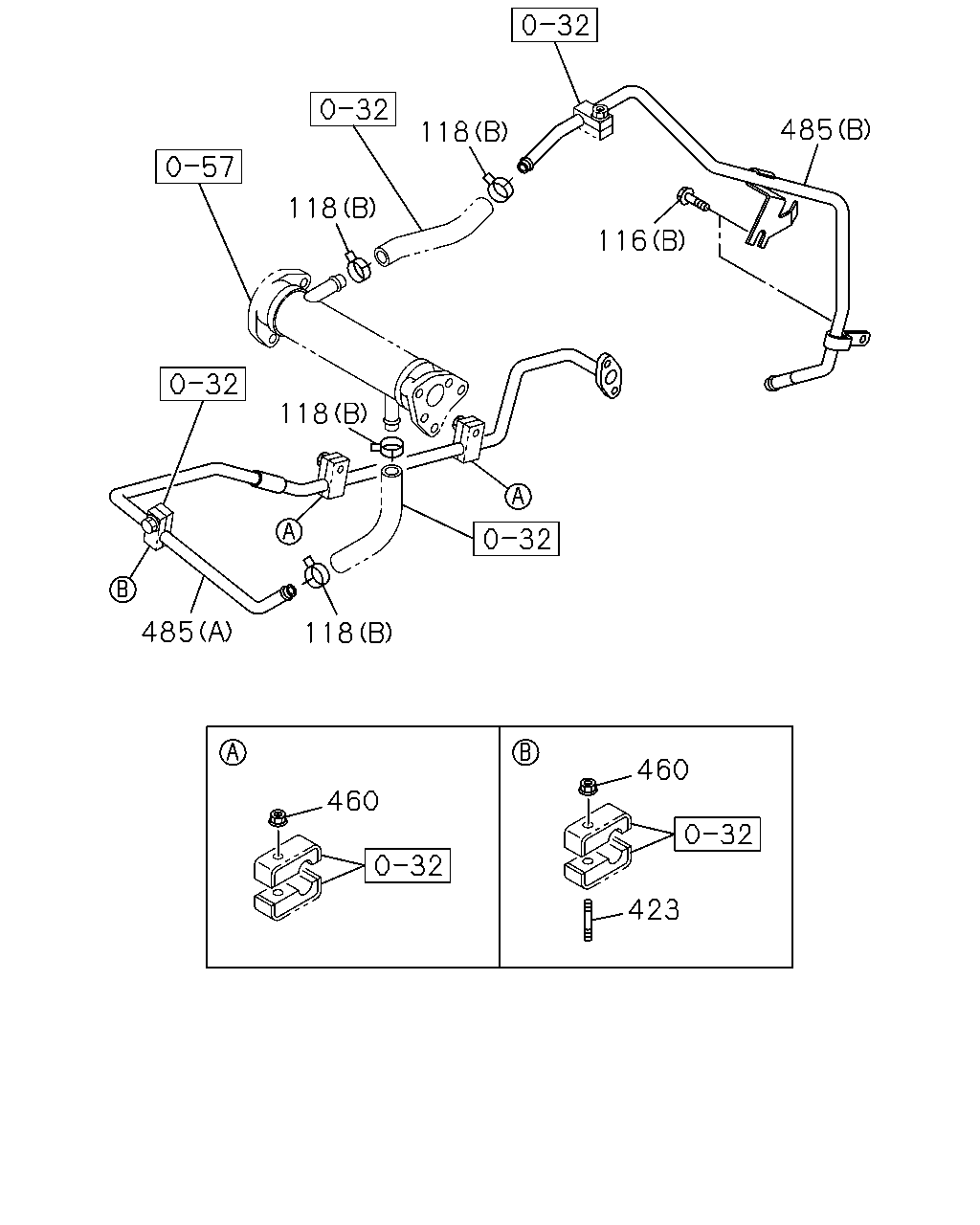

116	03.342 BOLT; WATER PIPE 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512	●	●
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
116	03.342 BOLT; WATER PIPE TURBOCHARGER(K51) (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0211-0501			●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0211-0501					●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0502-0506				●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0507-	●	●		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0903-	●	●		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0507-0902	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0903-1312	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	0211-0501			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	0211-0501					●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	0502-0902				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0903-1312				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0211-0501					●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20	1-09707-084-1	04	1	0507-1102	●	●
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	04	1	1103-	●	●
118	03.342 CLIP; WATER HOSE TURBOCHARGER(K51) 03.162 (A) ID=15.5	8-94221-519-0	02	1	0211-0501			●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0211-0501					●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0502-0506				●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0507-	●	●		●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D TURBOCHARGER(K51) 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0211-0501			●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0211-0501					●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0502-0506				●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0507-0512	●	●		●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0601-	●	●		●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). 01.550 (A) ID=27.7	9-09565-228-0	01	1	0211-0211			●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 (A) ID=27.7	9-09565-228-0	01	1	0211-0211					●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). (A) ID=27.7	9-09566-228-0	01	1	0212-0501			●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0212-0501					●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0502-0506				●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0507-1006	●	●		●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30	8-94394-671-0	01	1	1007-	●	●		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-2	01	1	0507-1006	●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-658-0	01	1	1007-	●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97178-508-1	01	1	0211-0501			●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97178-508-2	01	1	0502-1006				●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-659-0	01	1	1007-				●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97148-925-1	01	1	0211-0501					●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL>	8-97039-763-1	01	1	0211-0501					●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). ID=22.8	1-09623-462-0	01	1	0211-0501			●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0211-0501					●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0502-0506				●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0507-	●	●		●
135	01.531 BOLT; OIL PIPE TO C/BL TURBOCHARGER(K51) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0211-0501			●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0211-0501					●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0502-0506				●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0507-0512	●	●		●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0601-	●	●		●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97357-769-0	01	1	0507-	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	0211-0501			●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	0502-				●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL>	8-97355-911-0	01	1	0211-0212					●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL>	8-97357-769-0	01	1	0301-0501					●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. CHARGE AIR COOLER<6PL>	8-97229-034-0	01	1	0211-0501					●

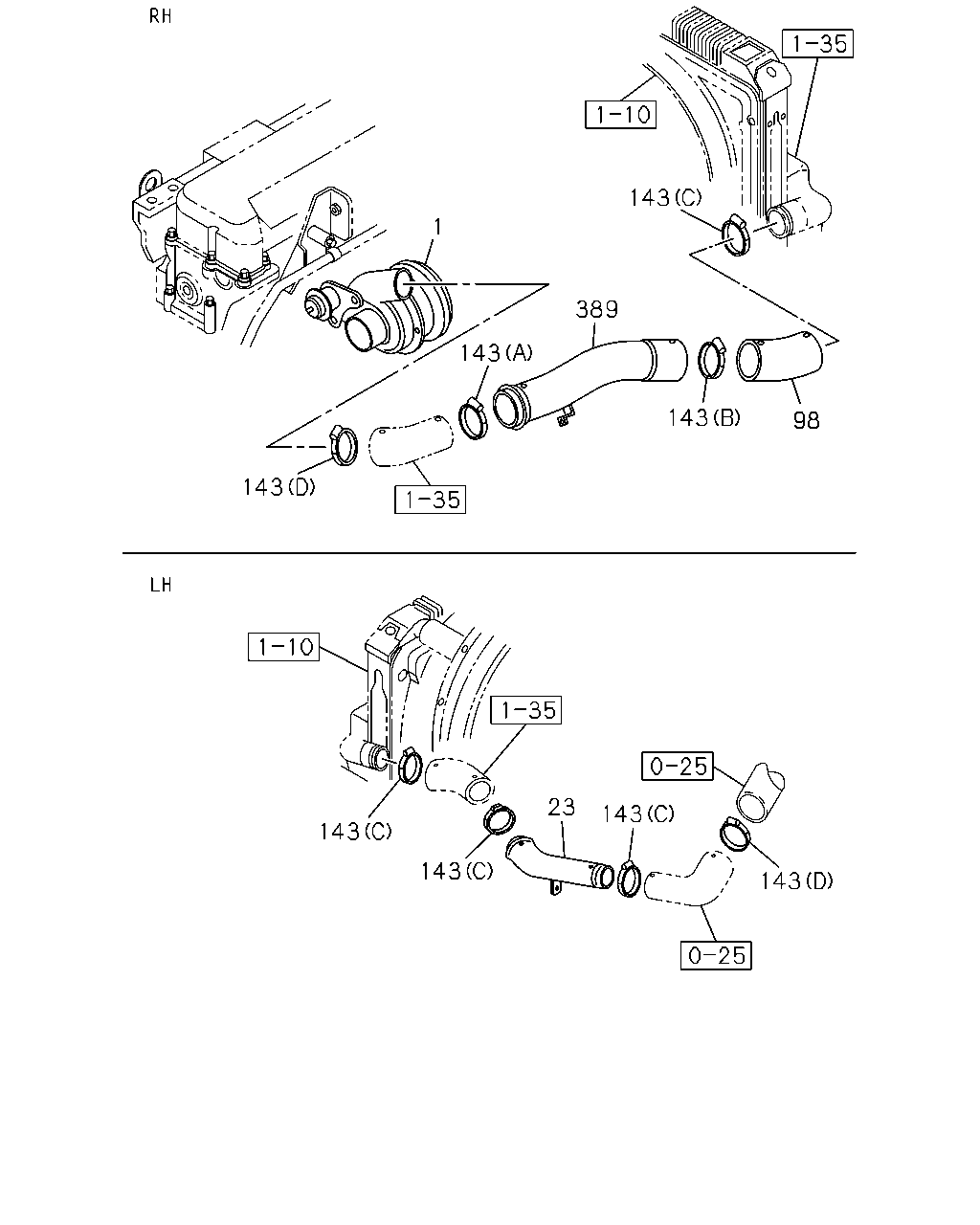

143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1002-			●	●	●	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE&SGL CAB&MIDDLE(NPC5SF) DUAL RR TIRE&SGL CAB&LONG(NPC5SK) DUAL RR TIRE&SGL CAB&EX LONG(NPC5SN) DUAL RR TIRE&DBL CAB&MIDDLE(NPC5WF) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE(NPC***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1002-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=77-99	1-09707-141-0	01	1	1002-			●	●	●	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE&SGL CAB&MIDDLE(NPC5SF) DUAL RR TIRE&SGL CAB&LONG(NPC5SK) DUAL RR TIRE&SGL CAB&EX LONG(NPC5SN) DUAL RR TIRE&DBL CAB&MIDDLE(NPC5WF) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=77-99	1-09707-141-0	01	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE(NPC***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=77-99	1-09707-141-0	01	1	1002-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	02	1	1002-			●	●	●	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE&SGL CAB&MIDDLE(NPC5SF) DUAL RR TIRE&SGL CAB&LONG(NPC5SK) DUAL RR TIRE&SGL CAB&EX LONG(NPC5SN) DUAL RR TIRE&DBL CAB&MIDDLE(NPC5WF) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	02	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE(NPC***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	02	1	1002-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	04	1	1002-			●	●	●	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE&SGL CAB&MIDDLE(NPC5SF) DUAL RR TIRE&SGL CAB&LONG(NPC5SK) DUAL RR TIRE&SGL CAB&EX LONG(NPC5SN) DUAL RR TIRE&DBL CAB&MIDDLE(NPC5WF) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	04	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE(NPC***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	04	1	1002-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0507-0810	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=75-95	8-98133-357-0	01	1	0811-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=75-95	8-98133-357-0	01	1	1002-			●	●	●	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE&SGL CAB&MIDDLE(NPC5SF) DUAL RR TIRE&SGL CAB&LONG(NPC5SK) DUAL RR TIRE&SGL CAB&EX LONG(NPC5SN) DUAL RR TIRE&DBL CAB&MIDDLE(NPC5WF) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=75-95	8-98133-357-0	01	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE(NPC***) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=75-95	8-98133-357-0	01	1	1002-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0507-0810	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	04	1	0811-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	04	1	1002-			●	●	●	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE&SGL CAB&MIDDLE(NPC5SF) DUAL RR TIRE&SGL CAB&LONG(NPC5SK) DUAL RR TIRE&SGL CAB&EX LONG(NPC5SN) DUAL RR TIRE&DBL CAB&MIDDLE(NPC5WF) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	04	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE(NPC***) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	04	1	1002-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (B) ID=58-76	1-09707-203-0	01	1	0507-0811	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=55-75	8-98133-349-0	01	1	0812-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1002-			●	●	●	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE&SGL CAB&MIDDLE(NPC5SF) DUAL RR TIRE&SGL CAB&LONG(NPC5SK) DUAL RR TIRE&SGL CAB&EX LONG(NPC5SN) DUAL RR TIRE&DBL CAB&MIDDLE(NPC5WF) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE(NPC***) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1002-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0507-0810	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=45-65	8-98133-348-0	02	1	0811-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	02	1	1002-			●	●	●	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE&SGL CAB&MIDDLE(NPC5SF) DUAL RR TIRE&SGL CAB&LONG(NPC5SK) DUAL RR TIRE&SGL CAB&EX LONG(NPC5SN) DUAL RR TIRE&DBL CAB&MIDDLE(NPC5WF) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	02	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE(NPC***) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	02	1	1002-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (D) ID=50-69	1-09707-135-0	02	1	0211-0303					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=77-95	1-09707-114-0	01	1	0304-0307					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=77-95	1-09707-198-0	01	1	0308-0501					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (B) ID=58-79	1-09707-136-0	01	1	0211-0303					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79	8-94126-771-0	01	1	0304-0307					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-85	1-09707-202-0	04	1	0308-0501					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-89	1-09707-137-0	04	1	0211-0303					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-85	8-94320-428-0	04	1	0304-0307					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> 01.159 (B) ID=58-76	1-09707-203-0	01	1	0308-0501					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=77-99	1-09707-141-0	01	1	0211-0303					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) EXC. CHARGE AIR COOLER<6PL> (D) ID=50-69	8-94316-991-0	02	1	0211-0303					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) (D) ID=50-69	8-94316-991-0	02	1	0304-0307					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) CHARGE AIR COOLER<6PL> (D) ID=50-69	8-94316-991-0	02	1	0304-0307					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) (D) ID=50-65	1-09707-204-0	02	1	0308-0501					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) CHARGE AIR COOLER<6PL> (D) ID=50-65	1-09707-204-0	02	1	0308-0501					●
148	03.417 HOSE; TURBOCHARGER,INL SGL CAB(NP*S) EXC. CHARGE AIR COOLER<6PL>	8-97182-220-0	01	1	0211-0501					●
162	03.613 BOLT; ADAPTER TURBOCHARGER(K51) M8X57	5-09000-275-0	01	1	0211-0501			●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0211-0501					●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0502-0506				●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0507-	●	●		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0507-1204	●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE 03.602	8-98176-248-0	01	1	1205-	●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97178-497-2	01	1	0211-0501			●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97178-497-2	01	1	0502-				●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0211-0501					●
204	03.342 COLLAR; PIPE ADAPTER TURBOCHARGER(K51)	8-97214-384-1	01	1	0211-0501			●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0211-0501					●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0502-0506				●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0507-0709	●	●		●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0710-0710				●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0710-	●	●		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TURBOCHARGER(K51)	8-97209-950-0	01	1	0211-0501			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0211-0501					●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0502-0506				●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0507-	●	●		●
252	03.417 BOLT; BRKT 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0211-0501			●
252	03.417 BOLT; BRKT 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512				●
252	03.417 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-				●
252	03.417 BOLT; BRKT M12X19	8-97079-809-0	01	1	0211-0501					●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	04	1	0507-0512	●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	04	1	0601-	●	●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0211-0501			●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0211-0501			●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0211-0501					●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	0211-0501			●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	0211-0501					●
288	03.342 BOLT; WATER PIPE CLIP 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	0502-0512				●
288	03.342 BOLT; WATER PIPE CLIP 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0601-				●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0211-0501					●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0211-0501					●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-0512				●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-				●
391	03.342 BRACKET; WATER PIPE (A)	8-97210-078-0	01	1	0211-0501			●
391	03.342 BRACKET; WATER PIPE (A)	8-97210-078-0	01	1	0502-				●
391	03.342 BRACKET; WATER PIPE (B)	8-97221-061-0	01	1	0211-0501			●
391	03.342 BRACKET; WATER PIPE (B)	8-97221-061-0	01	1	0502-				●
391	03.342 BRACKET; WATER PIPE (C)	8-97068-554-0	01	1	0211-0501					●

118 288 231 33 173 118 33 291 252 204 33 115 116 19 391 14 391 288 19 14 7 162 117 117 9 16 1 66 117 137 117 116 134 131 117 130 117 116 133 135 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	0507-	●	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-0	01	1	0211-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	0502-				●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97208-966-3	01	1	0211-0501					●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL>	8-97103-857-0	01	1	0211-0501					●
7	03.613 WASHER; PL,BRKT TURBOCHARGER(K51) ID=8 OD=18 T=3	8-94174-537-0	01	1	0211-0501			●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0211-0501					●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0502-0506				●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0507-	●	●		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C)	8-97374-412-0	01	1	0507-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0211-0501			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0211-0501					●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0502-0506				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0507-	●	●		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97063-602-0	01	1	0211-0307					●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97326-466-0	01	1	0308-0312					●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97374-412-0	01	1	0401-0501					●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0507-	●	●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0211-0501					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER(K51) (A) M8X94 L=108	8-97019-477-0	02	1	0211-0501			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0211-0501					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0502-0506				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0507-	●	●		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER(K51) (B) M8X49 L=63	8-97019-478-0	03	1	0211-0501			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0211-0501					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0502-0506				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0507-	●	●		●
16	03.609 ADAPTER; EXH PIPE	8-97178-487-3	01	1	0502-				●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-2	01	1	0710-	●	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0507-0709	●	●
16	03.609 ADAPTER; EXH PIPE	8-97178-488-1	01	1	0211-0501			●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0211-0501					●
19	03.342 NUT; EXH PIPE,TURBOCHARGER TURBOCHARGER(K51) 03.604 M8 FLANGE	8-94170-486-0	05	1	0211-0501			●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0211-0501					●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0502-0506				●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0507-	●	●		●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0507-	●	●
33	03.342 BOLT; HEAT PROTECTOR TURBOCHARGER(K51) 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0211-0501			●
33	03.342 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0211-0501					●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0502-				●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0211-0501					●
33	03.342 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	02	1	0211-0501					●
66	03.342 STUD; EXH PIPE TURBOCHARGER(K51) 03.275 M10X25 L=40	9-04411-025-0	03	1	0211-0501			●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0211-0501					●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0502-0506				●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0507-0604	●	●		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0605-0709	●	●		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0710-0710				●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0710-	●	●		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97372-533-0	01	1	0507-0902	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98137-574-0	01	1	0903-	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97210-077-2	01	1	0211-0501			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97210-077-2	01	1	0502-				●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97229-039-0	01	1	0211-0501					●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL>	8-97229-038-0	01	1	0211-0501					●
116	03.342 BOLT; WATER PIPE 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512	●	●
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
116	03.342 BOLT; WATER PIPE TURBOCHARGER(K51) (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0211-0501			●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0211-0501					●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0502-0506				●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0507-	●	●		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0903-	●	●		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0507-0902	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0903-1312	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	0211-0501			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	0211-0501					●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	0502-0902				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0903-1312				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0211-0501					●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20	1-09707-084-1	04	1	0507-1102	●	●
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	04	1	1103-	●	●
118	03.342 CLIP; WATER HOSE TURBOCHARGER(K51) 03.162 (A) ID=15.5	8-94221-519-0	02	1	0211-0501			●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0211-0501					●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0502-0506				●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0507-	●	●		●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D TURBOCHARGER(K51) 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0211-0501			●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0211-0501					●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0502-0506				●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0507-0512	●	●		●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0601-	●	●		●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). 01.550 (A) ID=27.7	9-09565-228-0	01	1	0211-0211			●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 (A) ID=27.7	9-09565-228-0	01	1	0211-0211					●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). (A) ID=27.7	9-09566-228-0	01	1	0212-0501			●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0212-0501					●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0502-0506				●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0507-1006	●	●		●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30	8-94394-671-0	01	1	1007-	●	●		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-2	01	1	0507-1006	●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-658-0	01	1	1007-	●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97178-508-1	01	1	0211-0501			●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97178-508-2	01	1	0502-1006				●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-659-0	01	1	1007-				●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97148-925-1	01	1	0211-0501					●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL>	8-97039-763-1	01	1	0211-0501					●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). ID=22.8	1-09623-462-0	01	1	0211-0501			●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0211-0501					●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0502-0506				●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0507-	●	●		●
135	01.531 BOLT; OIL PIPE TO C/BL TURBOCHARGER(K51) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0211-0501			●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0211-0501					●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0502-0506				●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0507-0512	●	●		●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0601-	●	●		●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97357-769-0	01	1	0507-	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	0211-0501			●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	0502-				●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL>	8-97355-911-0	01	1	0211-0212					●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL>	8-97357-769-0	01	1	0301-0501					●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. CHARGE AIR COOLER<6PL>	8-97229-034-0	01	1	0211-0501					●
162	03.613 BOLT; ADAPTER TURBOCHARGER(K51) M8X57	5-09000-275-0	01	1	0211-0501			●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0211-0501					●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0502-0506				●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0507-	●	●		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0507-1204	●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE 03.602	8-98176-248-0	01	1	1205-	●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97178-497-2	01	1	0211-0501			●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97178-497-2	01	1	0502-				●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0211-0501					●
204	03.342 COLLAR; PIPE ADAPTER TURBOCHARGER(K51)	8-97214-384-1	01	1	0211-0501			●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0211-0501					●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0502-0506				●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0507-0709	●	●		●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0710-0710				●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0710-	●	●		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TURBOCHARGER(K51)	8-97209-950-0	01	1	0211-0501			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0211-0501					●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0502-0506				●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0507-	●	●		●
252	03.417 BOLT; BRKT 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0211-0501			●
252	03.417 BOLT; BRKT 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512				●
252	03.417 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-				●
252	03.417 BOLT; BRKT M12X19	8-97079-809-0	01	1	0211-0501					●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	04	1	0507-0512	●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	04	1	0601-	●	●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0211-0501			●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0211-0501			●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0211-0501					●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	0211-0501			●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	0211-0501					●
288	03.342 BOLT; WATER PIPE CLIP 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	0502-0512				●
288	03.342 BOLT; WATER PIPE CLIP 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0601-				●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0211-0501					●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0211-0501					●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-0512				●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-				●
291	03.374 NUT; PIPE TO BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501			●
291	03.374 NUT; PIPE TO BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602				●
291	03.374 NUT; PIPE TO BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-				●
391	03.342 BRACKET; WATER PIPE (A)	8-97210-078-0	01	1	0211-0501			●
391	03.342 BRACKET; WATER PIPE (A)	8-97210-078-0	01	1	0502-				●
391	03.342 BRACKET; WATER PIPE (B)	8-97221-061-0	01	1	0211-0501			●
391	03.342 BRACKET; WATER PIPE (B)	8-97221-061-0	01	1	0502-				●
391	03.342 BRACKET; WATER PIPE (C)	8-97068-554-0	01	1	0211-0501					●

118 231 33 118 173 33 204 115 16 14 19 19 33 32 288 7 1 116 136 136 14 66 162 9 33 117 117 116 117 117 9 12 134 137 11 130 131 133 112 116 131 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	0507-	●	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-0	01	1	0211-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	0502-				●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97208-966-3	01	1	0211-0501					●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL>	8-97103-857-0	01	1	0211-0501					●
7	03.613 WASHER; PL,BRKT TURBOCHARGER(K51) ID=8 OD=18 T=3	8-94174-537-0	01	1	0211-0501			●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0211-0501					●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0502-0506				●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0507-	●	●		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (C)	8-97374-412-0	01	1	0507-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0211-0501			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0211-0501					●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0502-0506				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)	8-97039-777-1	01	1	0507-	●	●		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97063-602-0	01	1	0211-0307					●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97326-466-0	01	1	0308-0312					●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B)	8-97374-412-0	01	1	0401-0501					●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0507-	●	●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0211-0501					●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0507-	●	●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0211-0501					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER(K51) (A) M8X94 L=108	8-97019-477-0	02	1	0211-0501			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0211-0501					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0502-0506				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0507-	●	●		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER(K51) (B) M8X49 L=63	8-97019-478-0	03	1	0211-0501			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0211-0501					●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0502-0506				●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0507-	●	●		●
16	03.609 ADAPTER; EXH PIPE	8-97178-487-3	01	1	0502-				●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-2	01	1	0710-	●	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0507-0709	●	●
16	03.609 ADAPTER; EXH PIPE	8-97178-488-1	01	1	0211-0501			●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0211-0501					●
19	03.342 NUT; EXH PIPE,TURBOCHARGER TURBOCHARGER(K51) 03.604 M8 FLANGE	8-94170-486-0	05	1	0211-0501			●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0211-0501					●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0502-0506				●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0507-	●	●		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0507-	●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0211-0501					●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0507-	●	●
33	03.342 BOLT; HEAT PROTECTOR TURBOCHARGER(K51) 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0211-0501			●
33	03.342 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0211-0501					●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0502-				●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0211-0501					●
33	03.342 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	02	1	0211-0501					●
66	03.342 STUD; EXH PIPE TURBOCHARGER(K51) 03.275 M10X25 L=40	9-04411-025-0	03	1	0211-0501			●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0211-0501					●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0502-0506				●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0507-0604	●	●		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0605-0709	●	●		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0710-0710				●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0710-	●	●		●
112	03.417 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512	●	●
112	03.417 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97372-533-0	01	1	0507-0902	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98137-574-0	01	1	0903-	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97210-077-2	01	1	0211-0501			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97210-077-2	01	1	0502-				●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97229-039-0	01	1	0211-0501					●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL>	8-97229-038-0	01	1	0211-0501					●
116	03.342 BOLT; WATER PIPE 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512	●	●
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
116	03.342 BOLT; WATER PIPE TURBOCHARGER(K51) (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0211-0501			●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0211-0501					●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0502-0506				●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0507-	●	●		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0903-	●	●		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0507-0902	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0903-1312	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	0211-0501			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	0211-0501					●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	0502-0902				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0903-1312				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	0211-0501					●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20	1-09707-084-1	04	1	0507-1102	●	●
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	04	1	1103-	●	●
118	03.342 CLIP; WATER HOSE TURBOCHARGER(K51) 03.162 (A) ID=15.5	8-94221-519-0	02	1	0211-0501			●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0211-0501					●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0502-0506				●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0507-	●	●		●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D TURBOCHARGER(K51) 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0211-0501			●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0211-0501					●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0502-0506				●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0507-0512	●	●		●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0601-	●	●		●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). 01.550 (A) ID=27.7	9-09565-228-0	01	1	0211-0211			●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 (A) ID=27.7	9-09565-228-0	01	1	0211-0211					●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). (A) ID=27.7	9-09566-228-0	01	1	0212-0501			●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0212-0501					●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0502-0506				●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0507-1006	●	●		●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30	8-94394-671-0	01	1	1007-	●	●		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-2	01	1	0507-1006	●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-658-0	01	1	1007-	●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97178-508-1	01	1	0211-0501			●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97178-508-2	01	1	0502-1006				●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-659-0	01	1	1007-				●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97148-925-1	01	1	0211-0501					●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL>	8-97039-763-1	01	1	0211-0501					●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). ID=22.8	1-09623-462-0	01	1	0211-0501			●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0211-0501					●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0502-0506				●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0507-	●	●		●
135	01.531 BOLT; OIL PIPE TO C/BL TURBOCHARGER(K51) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0211-0501			●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0211-0501					●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0502-0506				●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0507-0512	●	●		●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0601-	●	●		●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0507-1312	●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0501					●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97357-769-0	01	1	0507-	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	0211-0501			●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	0502-				●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL>	8-97355-911-0	01	1	0211-0212					●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL>	8-97357-769-0	01	1	0301-0501					●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. CHARGE AIR COOLER<6PL>	8-97229-034-0	01	1	0211-0501					●
162	03.613 BOLT; ADAPTER TURBOCHARGER(K51) M8X57	5-09000-275-0	01	1	0211-0501			●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0211-0501					●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0502-0506				●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0507-	●	●		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0507-1204	●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE 03.602	8-98176-248-0	01	1	1205-	●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97178-497-2	01	1	0211-0501			●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97178-497-2	01	1	0502-				●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0211-0501					●
204	03.342 COLLAR; PIPE ADAPTER TURBOCHARGER(K51)	8-97214-384-1	01	1	0211-0501			●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0211-0501					●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0502-0506				●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0507-0709	●	●		●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0710-0710				●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0710-	●	●		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TURBOCHARGER(K51)	8-97209-950-0	01	1	0211-0501			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0211-0501					●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0502-0506				●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0507-	●	●		●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	04	1	0507-0512	●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	04	1	0601-	●	●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0211-0501			●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0211-0501			●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0211-0501					●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	0211-0501			●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	0211-0501					●
288	03.342 BOLT; WATER PIPE CLIP 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	0502-0512				●
288	03.342 BOLT; WATER PIPE CLIP 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0601-				●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0211-0501					●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0211-0501					●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-0512				●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-				●

143 1 389 143 143 98 143 23 143 143 143 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	0507-	●	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-0	01	1	0211-0501			●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	0502-				●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97208-966-3	01	1	0211-0501					●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL>	8-97103-857-0	01	1	0211-0501					●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-98000-539-1	01	1	0507-	●	●
23	03.417 PIPE; INTAKE,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97189-601-1	01	1	0211-0501					●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-97221-536-2	01	1	0507-	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-97380-256-2	01	1	0507-0608		●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-98053-759-0	01	1	0609-		●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL>	8-97221-536-1	01	1	0211-0501					●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET SGL CAB(NP*S) EXC. CHARGE AIR COOLER<6PL>	8-97041-096-0	01	1	0211-0501					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1002-			●	●	●	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE&SGL CAB&MIDDLE(NPC5SF) DUAL RR TIRE&SGL CAB&LONG(NPC5SK) DUAL RR TIRE&SGL CAB&EX LONG(NPC5SN) DUAL RR TIRE&DBL CAB&MIDDLE(NPC5WF) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE(NPC***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79	1-09707-136-0	01	1	1002-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=77-99	1-09707-141-0	01	1	1002-			●	●	●	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE&SGL CAB&MIDDLE(NPC5SF) DUAL RR TIRE&SGL CAB&LONG(NPC5SK) DUAL RR TIRE&SGL CAB&EX LONG(NPC5SN) DUAL RR TIRE&DBL CAB&MIDDLE(NPC5WF) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=77-99	1-09707-141-0	01	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE(NPC***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=77-99	1-09707-141-0	01	1	1002-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	02	1	1002-			●	●	●	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE&SGL CAB&MIDDLE(NPC5SF) DUAL RR TIRE&SGL CAB&LONG(NPC5SK) DUAL RR TIRE&SGL CAB&EX LONG(NPC5SN) DUAL RR TIRE&DBL CAB&MIDDLE(NPC5WF) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	02	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE(NPC***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	02	1	1002-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	04	1	1002-			●	●	●	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE&SGL CAB&MIDDLE(NPC5SF) DUAL RR TIRE&SGL CAB&LONG(NPC5SK) DUAL RR TIRE&SGL CAB&EX LONG(NPC5SN) DUAL RR TIRE&DBL CAB&MIDDLE(NPC5WF) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	04	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE(NPC***) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	04	1	1002-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=77-95	1-09707-198-0	01	1	0507-0810	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=75-95	8-98133-357-0	01	1	0811-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=75-95	8-98133-357-0	01	1	1002-			●	●	●	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE&SGL CAB&MIDDLE(NPC5SF) DUAL RR TIRE&SGL CAB&LONG(NPC5SK) DUAL RR TIRE&SGL CAB&EX LONG(NPC5SN) DUAL RR TIRE&DBL CAB&MIDDLE(NPC5WF) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=75-95	8-98133-357-0	01	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE(NPC***) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=75-95	8-98133-357-0	01	1	1002-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	04	1	0507-0810	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	04	1	0811-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	04	1	1002-			●	●	●	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE&SGL CAB&MIDDLE(NPC5SF) DUAL RR TIRE&SGL CAB&LONG(NPC5SK) DUAL RR TIRE&SGL CAB&EX LONG(NPC5SN) DUAL RR TIRE&DBL CAB&MIDDLE(NPC5WF) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	04	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE(NPC***) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	04	1	1002-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (B) ID=58-76	1-09707-203-0	01	1	0507-0811	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=55-75	8-98133-349-0	01	1	0812-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1002-			●	●	●	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE&SGL CAB&MIDDLE(NPC5SF) DUAL RR TIRE&SGL CAB&LONG(NPC5SK) DUAL RR TIRE&SGL CAB&EX LONG(NPC5SN) DUAL RR TIRE&DBL CAB&MIDDLE(NPC5WF) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE(NPC***) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75	8-98133-349-0	01	1	1002-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	02	1	0507-0810	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=45-65	8-98133-348-0	02	1	0811-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	02	1	1002-			●	●	●	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE&SGL CAB&MIDDLE(NPC5SF) DUAL RR TIRE&SGL CAB&LONG(NPC5SK) DUAL RR TIRE&SGL CAB&EX LONG(NPC5SN) DUAL RR TIRE&DBL CAB&MIDDLE(NPC5WF) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	02	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DUAL RR TIRE(NPC***) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	02	1	1002-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (D) ID=50-69	1-09707-135-0	02	1	0211-0303					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=77-95	1-09707-114-0	01	1	0304-0307					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=77-95	1-09707-198-0	01	1	0308-0501					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (B) ID=58-79	1-09707-136-0	01	1	0211-0303					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> 03.417 (B) ID=58-79	8-94126-771-0	01	1	0304-0307					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-85	1-09707-202-0	04	1	0308-0501					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-89	1-09707-137-0	04	1	0211-0303					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-85	8-94320-428-0	04	1	0304-0307					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> 01.159 (B) ID=58-76	1-09707-203-0	01	1	0308-0501					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=77-99	1-09707-141-0	01	1	0211-0303					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) EXC. CHARGE AIR COOLER<6PL> (D) ID=50-69	8-94316-991-0	02	1	0211-0303					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) (D) ID=50-69	8-94316-991-0	02	1	0304-0307					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) CHARGE AIR COOLER<6PL> (D) ID=50-69	8-94316-991-0	02	1	0304-0307					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) (D) ID=50-65	1-09707-204-0	02	1	0308-0501					●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) CHARGE AIR COOLER<6PL> (D) ID=50-65	1-09707-204-0	02	1	0308-0501					●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-97204-013-2	01	1	0507-	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-97371-959-0	01	1	0507-		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CHARGE AIR COOLER<6PL>	8-97204-013-2	01	1	0211-0501					●

485 118 118 116 118 485 118 460 460 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
116	03.342 BOLT; WATER PIPE 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512	●	●
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
116	03.342 BOLT; WATER PIPE TURBOCHARGER(K51) (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0211-0501			●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0211-0501					●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0502-0506				●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0507-	●	●		●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20	1-09707-084-1	04	1	0507-1102	●	●
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	04	1	1103-	●	●
118	03.342 CLIP; WATER HOSE TURBOCHARGER(K51) 03.162 (A) ID=15.5	8-94221-519-0	02	1	0211-0501			●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0211-0501					●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0502-0506				●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0507-	●	●		●
423	03.373 STUD; WATER PIPE 01.428 M8X20 L=32	9-04110-820-0	01	1	0507-0604	●	●
423	03.373 STUD; WATER PIPE 02.510 M8X20 L=32	0-41010-820-0	01	1	0605-	●	●
460	03.374 NUT; PIPE 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●
460	03.374 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
485	01.097 PIPE; WATER EGR (A)	8-97375-669-0	01	1	0507-	●	●
485	01.097 PIPE; WATER EGR (B)	8-98010-003-0	01	1	0507-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
