◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41B - FUEL FILTER AND BRACKET ▶
0-41B — FUEL FILTER AND BRACKET (#4255) — 60 parça

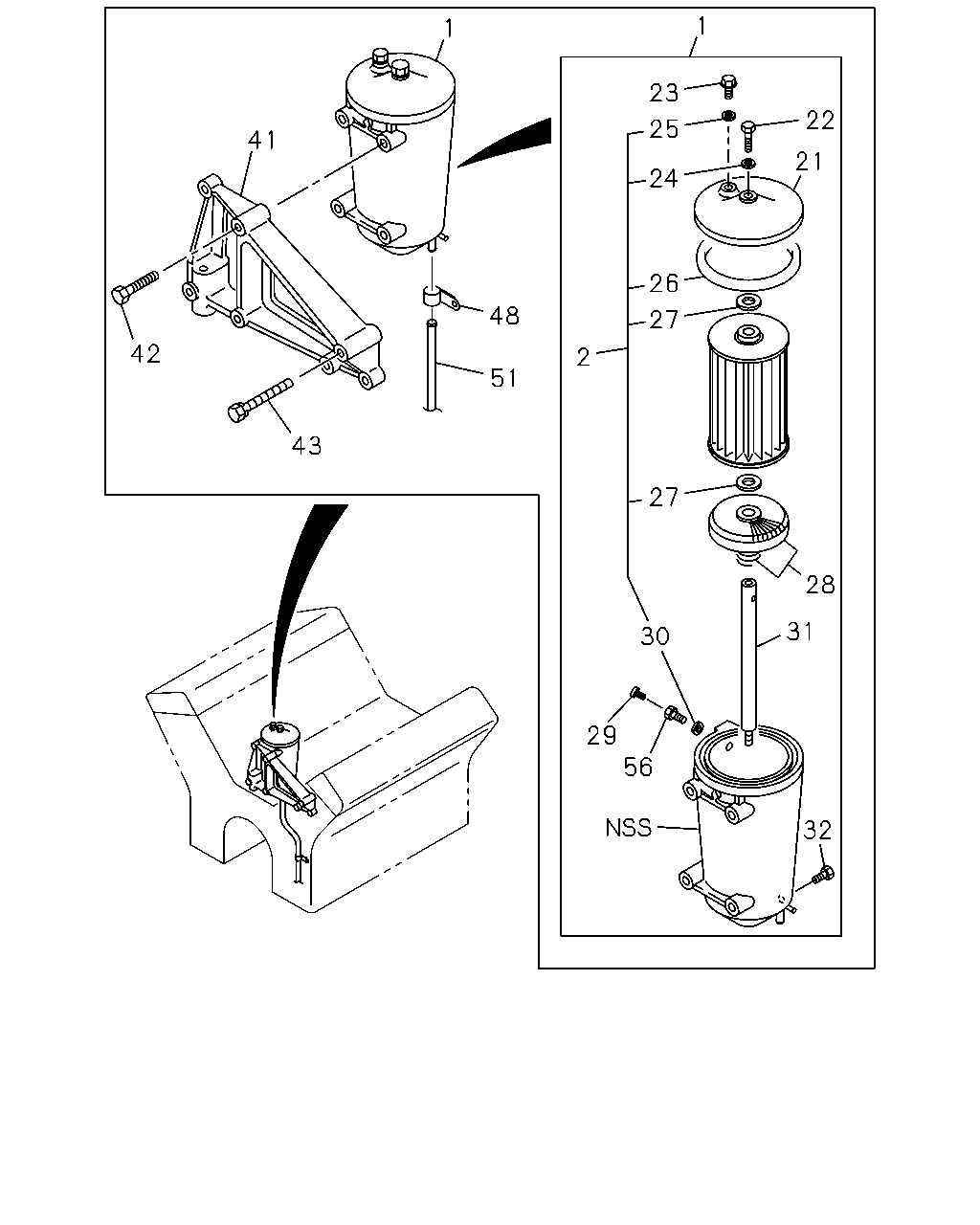

çizim 43606
1 1 23 22 25 41 21 24 26 48 27 42 2 51 43 27 28 31 30 29 56 32
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 FILTER ASM; FUEL 1-13200-820-1 01 1 9603-9904 ● ●
1 FILTER ASM; FUEL 1-13200-820-2 01 1 9905- ● ● ● ●
2 ELEMENT KIT; FUEL FILTER 1-87810-976-0 01 1 9603-9706 ● ●
2 ELEMENT KIT; FUEL FILTER 1-87810-976-0 01 1 9707-9904 ● ●
2 ELEMENT KIT; FUEL FILTER 1-87810-976-0 01 1 9905- ● ● ● ●
21 COVER; UPR,FUEL FILTER 1-13212-049-1 01 1 9603-9706 ● ●
21 COVER; UPR,FUEL FILTER 1-13212-049-1 01 1 9707-9904 ● ●
21 COVER; UPR,FUEL FILTER 1-13212-049-1 01 1 9905- ● ● ● ●
22 BOLT; CENTER TUBE,COVER 1-13219-045-0 01 1 9603-9706 ● ●
22 BOLT; CENTER TUBE,COVER 1-13219-045-0 01 1 9707-9904 ● ●
22 BOLT; CENTER TUBE,COVER 1-13219-045-0 01 1 9905- ● ● ● ●
23 PLUG; COVER 1-13219-074-0 01 1 9603-9706 ● ●
23 PLUG; COVER 1-13219-074-0 01 1 9707-9904 ● ●
23 PLUG; COVER 1-13219-074-0 01 1 9905- ● ● ● ●
24 GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2 		1-09630-083-0 01 1 9603-9706 ● ●
24 GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2 		1-09630-083-0 01 1 9707-9904 ● ●
24 GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2 		1-09630-083-0 01 1 9905- ● ● ● ●
25 GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2 		1-09630-083-0 01 1 9603-9706 ● ●
25 GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2 		1-09630-083-0 01 1 9707-9904 ● ●
25 GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2 		1-09630-083-0 01 1 9905- ● ● ● ●
26 GASKET; COVER TO BODY 9-09720-797-0 01 1 9603-9706 ● ●
26 GASKET; COVER TO BODY 9-09720-797-0 01 1 9707-9904 ● ●
26 GASKET; COVER TO BODY 9-09720-797-0 01 1 9905- ● ● ● ●
27 GASKET; ELEMENT 1-09630-007-0 02 1 9603-9706 ● ●
27 GASKET; ELEMENT 1-09630-007-0 02 1 9707-9904 ● ●
27 GASKET; ELEMENT 1-09630-007-0 02 1 9905- ● ● ● ●
28 STRAINER; WATER,FUEL FILTER 1-13251-001-0 01 1 9603-9706 ● ●
28 STRAINER; WATER,FUEL FILTER 1-13251-001-0 01 1 9707-9904 ● ●
28 STRAINER; WATER,FUEL FILTER 1-13251-001-0 01 1 9905- ● ● ● ●
29 VALVE; OVERFLOW 1-13260-065-0 01 1 9603-9904 ● ●
29 VALVE; OVERFLOW 1-13260-065-0 01 1 9905- ● ● ● ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9603-9904 ● ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9905- ● ● ● ●
31 TUBE; CENTER BOLT 1-13231-026-0 01 1 9603-9706 ● ●
31 TUBE; CENTER BOLT 1-13231-026-0 01 1 9707-9904 ● ●
31 TUBE; CENTER BOLT 1-13231-026-0 01 1 9905- ● ● ● ●
32 BOLT; DRAIN,FUEL FILTER 1-13219-030-0 01 1 9603-9706 ● ●
32 BOLT; DRAIN,FUEL FILTER 1-13219-030-0 01 1 9707-9904 ● ●
32 BOLT; DRAIN,FUEL FILTER 1-13219-030-0 01 1 9905- ● ● ● ●
41 BRACKET; FUEL FILTER 1-19755-117-2 01 1 9603- ●
41 BRACKET; FUEL FILTER 1-19755-090-0 01 1 9603-9904 ●
41 BRACKET; FUEL FILTER 1-19755-090-0 01 1 9905- ● ● ●
42 BOLT; FUEL FILTER
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 9603- ●
42 BOLT; FUEL FILTER
M10X28 		0-28081-028-0 01 1 9603-9904 ●
42 BOLT; FUEL FILTER
M10X28 		0-28081-028-0 01 1 9905- ● ● ●
42 BOLT; FUEL FILTER
M10X60 FLANGE 		0-28081-060-0 03 1 9603-9904 ●
42 BOLT; FUEL FILTER
M10X60 FLANGE 		0-28081-060-0 03 1 9905- ● ● ●
43 BOLT; BRKT
M10X90 FLANGE 		0-28181-090-0 01 1 9603- ●
43 BOLT; BRKT
M10X145 		1-09020-078-1 01 1 9603- ●
43 BOLT; BRKT
M10X40 FLANGE 		0-28181-040-0 02 1 9603-9904 ● ●
43 BOLT; BRKT
M10X40 FLANGE 		0-28181-040-0 02 1 9905- ● ● ● ●
43 BOLT; BRKT
M10X75 FLANGE 		8-94399-669-1 02 1 9603-9904 ●
43 BOLT; BRKT
M10X75 FLANGE 		8-94399-669-1 02 1 9905- ● ● ●
48 CLIP; VINYL PIPE 9-09915-274-1 01 1 9603-9904 ● ●
48 CLIP; VINYL PIPE 9-09915-274-1 01 1 9905- ● ● ● ●
51 PIPE; VINYL
L=750 SERVICED BY L=10000 		9-09914-909-0 01 1 9603-9706 ● ●
51 PIPE; VINYL
L=750 SERVICED BY L=10000 		9-09914-909-0 01 1 9707-9904 ● ●
51 PIPE; VINYL
L=750 SERVICED BY L=10000 		9-09914-909-0 01 1 9905- ● ● ● ●
56 PLUG; FUEL FILTER
M14X9 		9-99202-314-0 01 1 9603-9904 ● ●
56 PLUG; FUEL FILTER
M14X9 		9-99202-314-0 01 1 9905- ● ● ● ●
