◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50948 - NPR/NQR RHDEXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-32 - WATER PIPING; ENGINE ▶
0-32 — WATER PIPING; ENGINE (#42549) — 22 parça

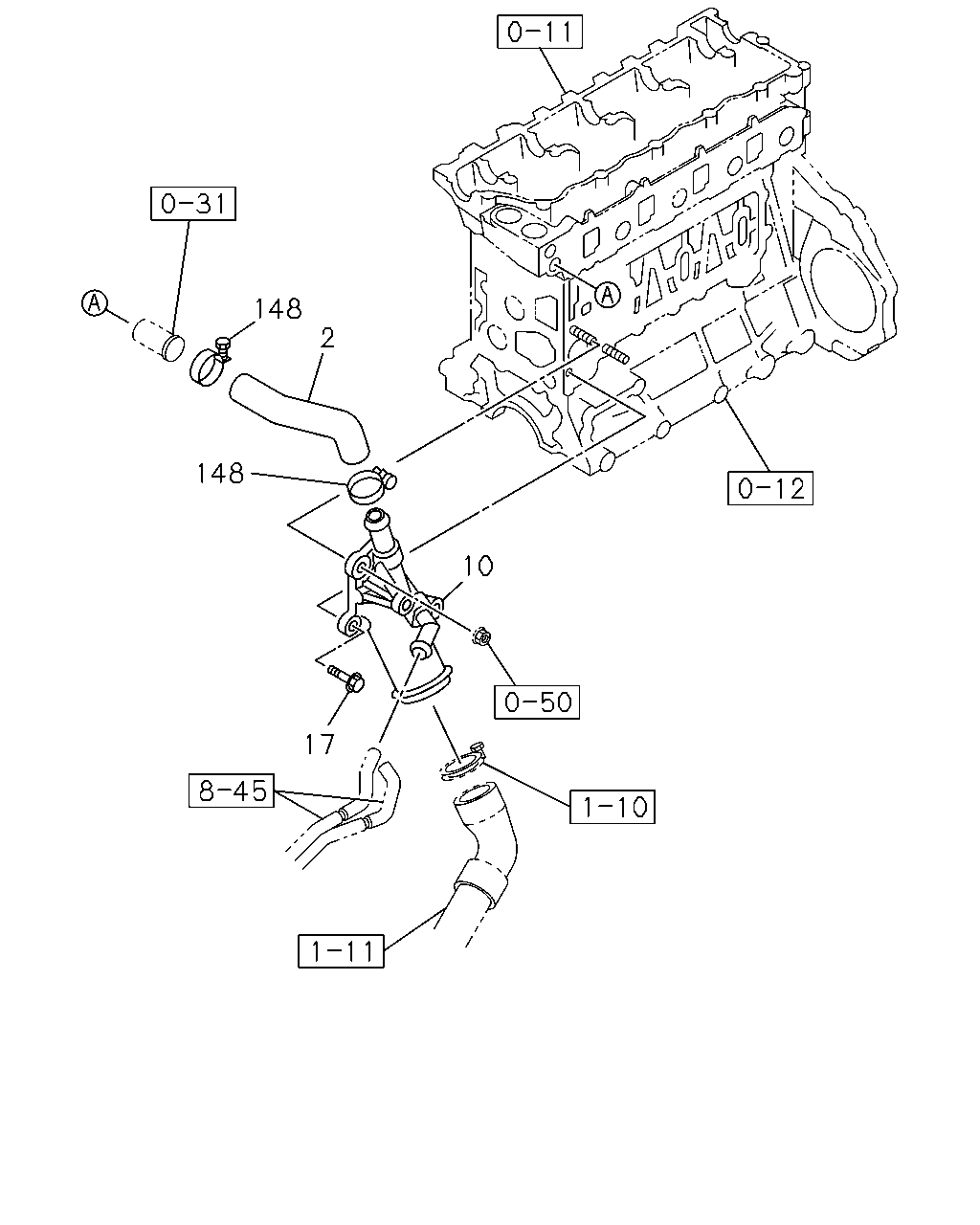

çizim 12765
148 2 148 10 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 01.097 HOSE; WATER,BY-PASS 8-97209-949-1 01 1 0507- ● ●
2 01.097 HOSE; WATER,BY-PASS 8-97209-948-0 01 1 0211-0501 ● ●
2 01.097 HOSE; WATER,BY-PASS 8-97209-948-0 01 1 0502- ● ● ● ●
2 01.097 HOSE; WATER,BY-PASS 8-97209-949-0 01 1 0211-0501 ●
10 01.153 PIPE; SUCTION
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98212-009-0 01 1 1203- ● ● ● ●
10 01.153 PIPE; SUCTION 8-97371-775-1 01 1 0507-1010 ● ●
10 01.153 PIPE; SUCTION 8-98166-991-0 01 1 1011- ● ●
10 01.153 PIPE; SUCTION 8-97216-157-1 01 1 0211-0501 ● ● ●
10 01.153 PIPE; SUCTION 8-97216-157-1 01 1 0502-1010 ● ● ● ●
10 01.153 PIPE; SUCTION 8-98166-992-0 01 1 1011-1202 ● ● ● ●
10 01.153 PIPE; SUCTION
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98166-992-0 01 1 1203- ● ● ● ●
17 01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE 		8-94458-473-1 01 1 0211-0501 ● ● ●
17 01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE 		8-94458-473-1 01 1 0502-0506 ● ● ● ●
17 01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE 		8-94458-473-1 01 1 0507- ● ● ● ● ● ●
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 0211-0501 ● ● ●
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 0502-0506 ● ● ● ●
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 0507- ● ● ● ● ● ●

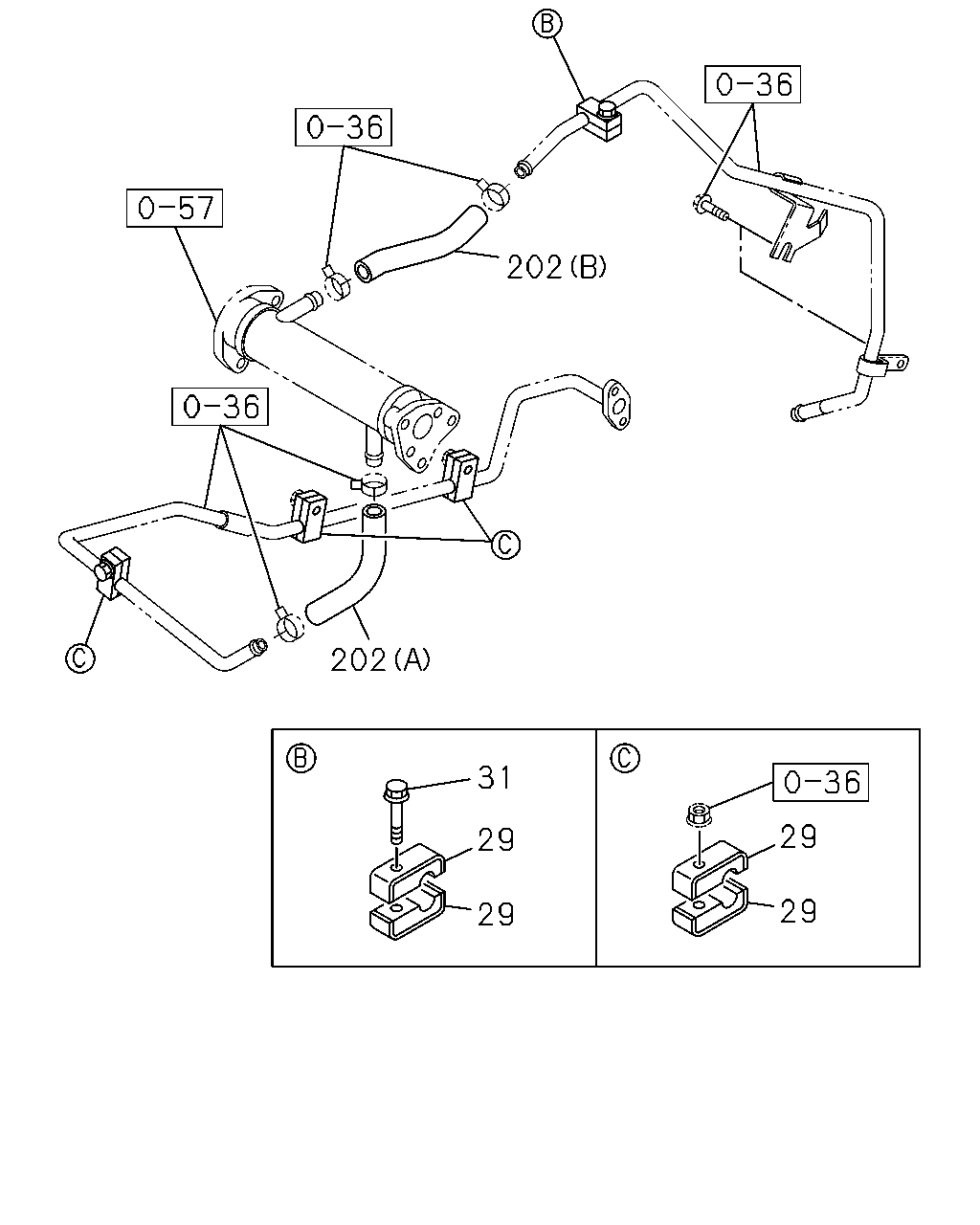

çizim 13658
202 202 31 29 29 29 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
29 01.166 CLIP; PIPE
ID=17 L=17 		1-09701-284-0 08 1 0507- ● ●
31 01.159 BOLT; CLIP
01.271 M8X40 FLANGE 		0-28080-840-0 03 1 0507-0512 ● ●
31 01.159 BOLT; CLIP
02.277 M8X40 FLANGE 		0-28050-840-0 03 1 0601- ● ●
202 01.240 HOSE; RUBBER,EGR COOLER
01.540 (A) L=200 SERVICED BY L=3000 		0-03566-300-0 01 1 0507- ● ●
202 01.240 HOSE; RUBBER,EGR COOLER
01.540 (B) 		8-97138-881-0 01 1 0507- ● ●
