◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50948 - NPR/NQR RHDEXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#42548) — 57 parça

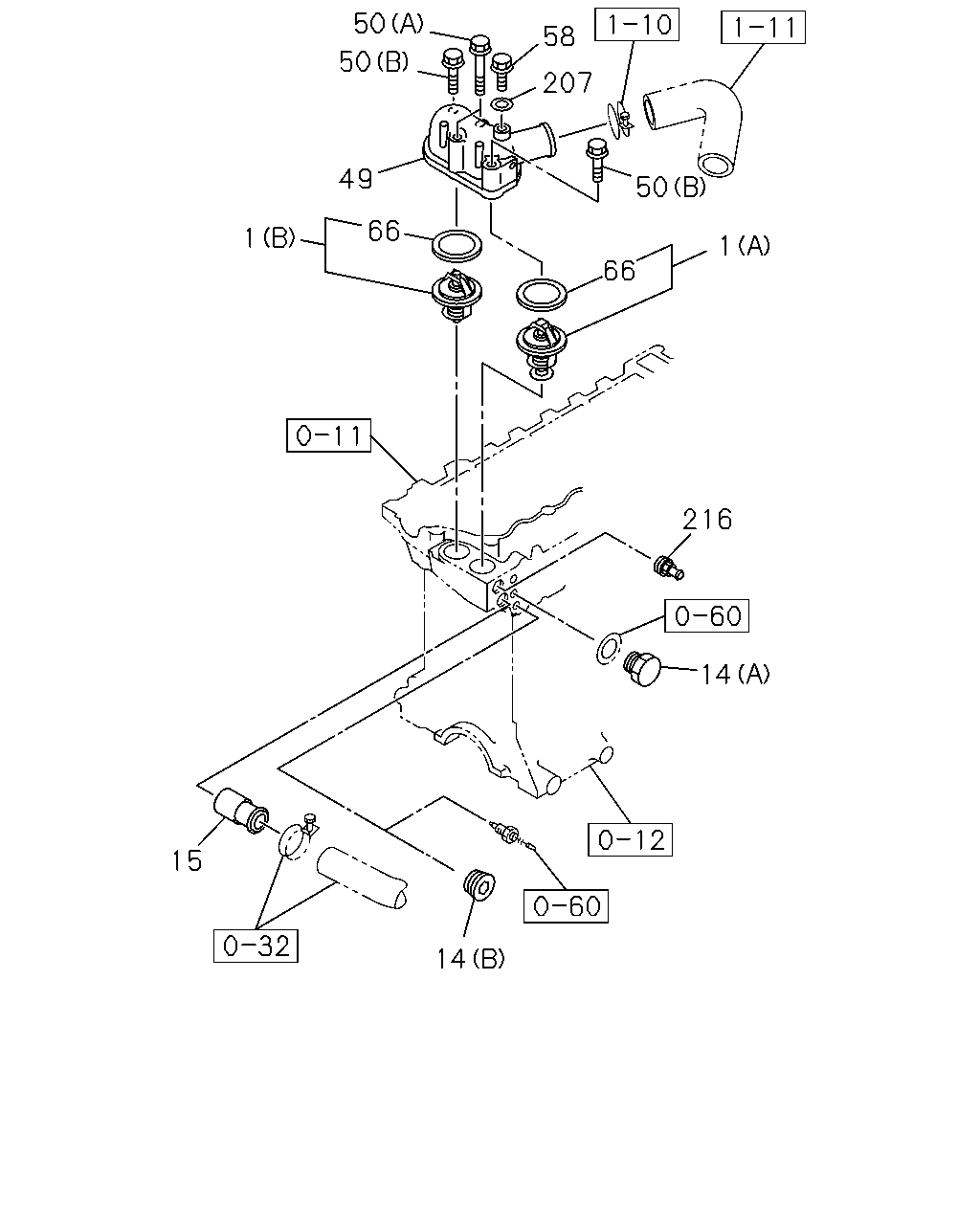

çizim 53226
50 58 50 207 49 50 66 1 1 66 216 14 15 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97300-790-3 01 1 0507- ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97300-789-2 01 1 0211-0501 ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97300-789-3 01 1 0502- ● ● ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97300-787-2 01 1 0211-0501 ● ●
1 01.246 THERMOSTAT
(B) 85 CELSIUS 		8-97300-787-2 01 1 0211-0501 ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97300-787-2 01 1 0502-0506 ● ● ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97300-787-3 01 1 0507- ● ● ● ●
1 01.246 THERMOSTAT
(B) 85 CELSIUS 		8-97300-787-3 01 1 0507- ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97300-792-1 01 1 0211-0501 ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97300-792-2 01 1 0502- ● ● ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97300-790-1 01 1 0211-0501 ●
14 01.252 PLUG; SW
TURBOCHARGER(K51) 01.073 (B) PT3/8 		5-09605-005-0 01 1 0211-0501 ●
14 01.252 PLUG; SW
A/T 4 SPEED-AISIN(RNJ) 01.073 (B) PT3/8 		5-09605-005-0 01 1 0211-0501 ●
14 01.252 PLUG; SW
01.073 (B) PT3/8 		5-09605-005-0 01 1 0502-0506 ●
14 01.252 PLUG; SW
01.073 (B) PT3/8 		5-09605-005-0 01 1 0507- ● ● ●
14 01.252 PLUG; SW
TURBOCHARGER(K51) 04.520 (A) M16X8 PLUG 		9-09661-005-0 01 1 0211-0501 ●
14 01.252 PLUG; SW
04.520 (A) M16X8 PLUG 		9-09661-005-0 01 1 0211-0501 ●
14 01.252 PLUG; SW
04.520 (A) M16X8 PLUG 		9-09661-005-0 01 1 0502-0506 ●
14 01.252 PLUG; SW
04.520 (A) M16X8 PLUG 		9-09661-005-0 01 1 0507- ● ● ●
15 01.251 PIPE; BYPASS
01.153 		8-94342-574-0 01 1 0211-0501 ● ● ●
15 01.251 PIPE; BYPASS
01.153 		8-94342-574-0 01 1 0502-0506 ● ● ● ●
15 01.251 PIPE; BYPASS
01.153 		8-94342-574-0 01 1 0507- ● ● ● ● ● ●
49 01.153 PIPE; WATER OUTLET 8-97329-914-0 01 1 0507- ● ●
49 01.153 PIPE; WATER OUTLET 8-97200-620-0 01 1 0211-0407 ● ● ●
49 01.153 PIPE; WATER OUTLET 8-97372-769-0 01 1 0408-0501 ● ● ●
49 01.153 PIPE; WATER OUTLET 8-97372-769-1 01 1 0502- ● ● ● ●
50 01.252 BOLT; OUTLET PIPE
02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ● ● ●
50 01.252 BOLT; OUTLET PIPE
02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0502-0506 ● ● ● ●
50 01.252 BOLT; OUTLET PIPE
02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512 ● ● ● ● ● ●
50 01.252 BOLT; OUTLET PIPE
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ● ● ● ●
50 01.252 BOLT; OUTLET PIPE
01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 0211-0501 ● ● ●
50 01.252 BOLT; OUTLET PIPE
01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 0502-0506 ● ● ● ●
50 01.252 BOLT; OUTLET PIPE
01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 0507- ● ● ● ● ● ●
58 00.073 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 0211-0501 ● ● ●
58 00.073 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 0502-0506 ● ● ● ●
58 00.073 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 0507- ● ● ● ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0507-1501 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 0211-0501 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 0211-0501 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> ID=49.5 OD=56.5 		8-97300-793-0 01 1 0211-0501 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL> ID=49.5 OD=56.5 		8-97300-793-0 01 1 0211-0501 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 0502-1007 ● ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1008-1501 ● ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1008-1501 ● ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1502- ● ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1502- ● ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL> ID=49.5 OD=56.5 		8-97300-793-0 02 1 0211-0501 ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0211-0501 ● ● ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0502-0506 ● ● ● ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0507- ● ● ● ● ● ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET
TURBOCHARGER(K51) 		8-97041-589-3 01 1 0211-0212 ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET 8-97041-589-3 01 1 0211-0212 ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET
TURBOCHARGER(K51) 		8-97358-699-0 01 1 0301-0501 ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET 8-97358-699-0 01 1 0301-0501 ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET 8-97358-699-0 01 1 0502-0506 ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET 8-97358-699-0 01 1 0507- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
