Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#42544) — 525 parça

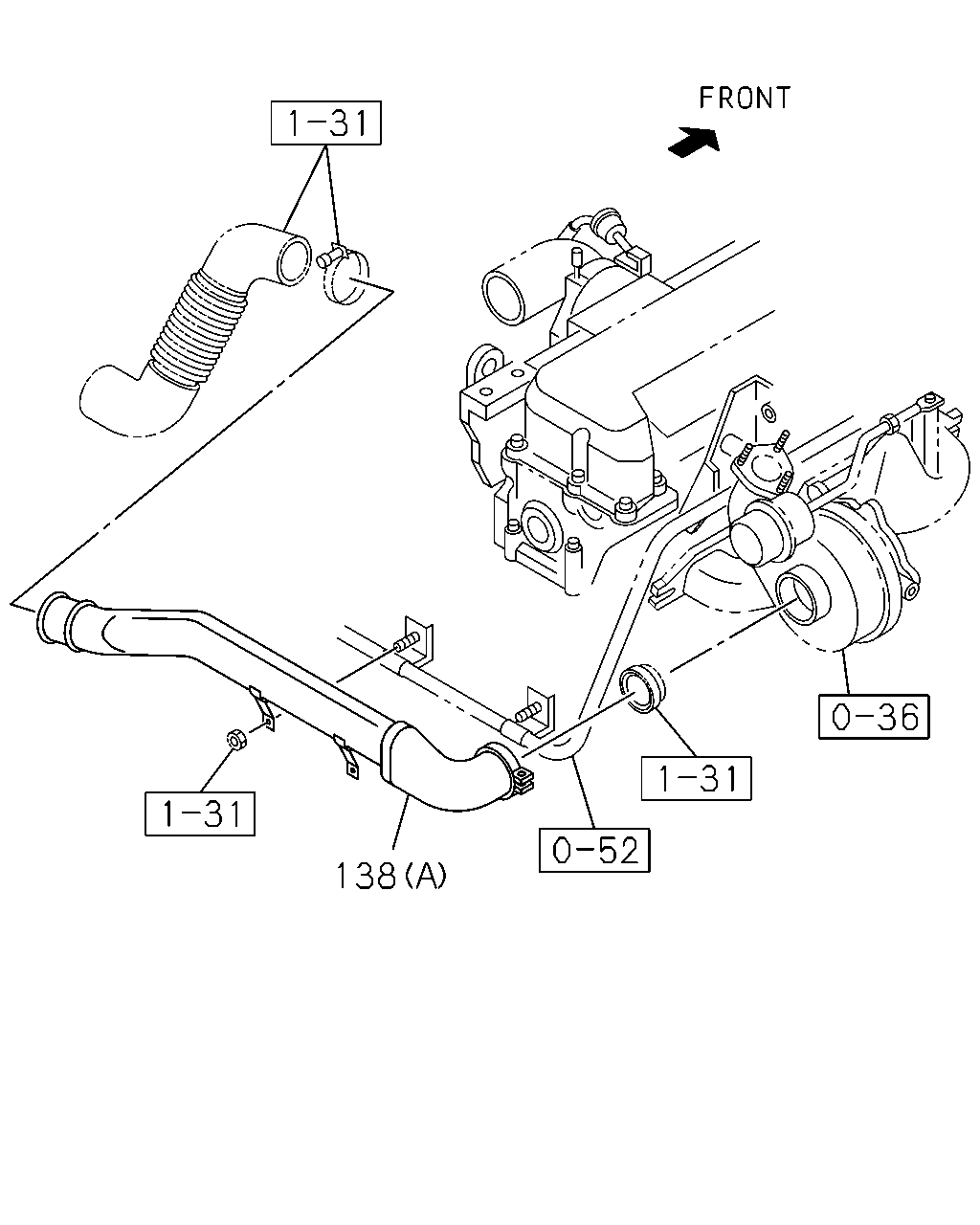

138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
138	03.265 PIPE; INL (C)	8-98001-263-0	01	1	0507-	●	●
138	03.265 PIPE; INL TURBOCHARGER(K51) (A)	8-97178-748-2	01	1	0211-0501			●
138	03.265 PIPE; INL (A)	8-97178-748-3	01	1	0502-0504				●
138	03.265 PIPE; INL SGL CAB&MIDDLE(NP**SF) (A)	8-97178-748-3	01	1	0505-	●	●		●	●	●
138	03.265 PIPE; INL (B)	8-97180-566-1	01	1	0211-0501			●
138	03.265 PIPE; INL (B)	8-97180-566-2	01	1	0502-1405				●
138	03.265 PIPE; INL EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97214-593-0	01	1	0211-0501							●
138	03.265 PIPE; INL HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (A)	8-97214-594-0	01	1	0211-0501							●

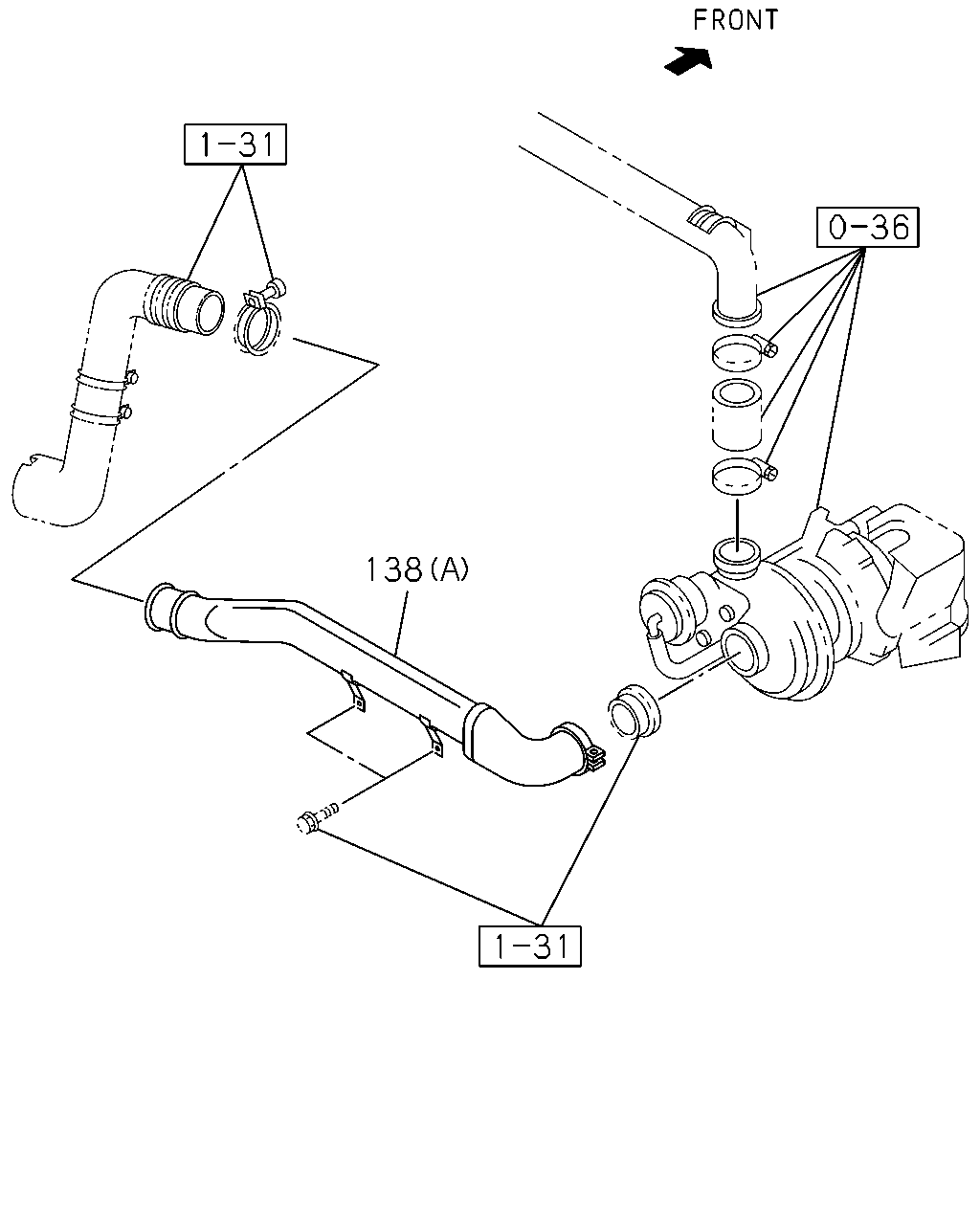

138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
138	03.265 PIPE; INL (C)	8-98001-263-0	01	1	0507-	●	●
138	03.265 PIPE; INL TURBOCHARGER(K51) (A)	8-97178-748-2	01	1	0211-0501			●
138	03.265 PIPE; INL (A)	8-97178-748-3	01	1	0502-0504				●
138	03.265 PIPE; INL SGL CAB&MIDDLE(NP**SF) (A)	8-97178-748-3	01	1	0505-	●	●		●	●	●
138	03.265 PIPE; INL (B)	8-97180-566-1	01	1	0211-0501			●
138	03.265 PIPE; INL (B)	8-97180-566-2	01	1	0502-1405				●
138	03.265 PIPE; INL EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97214-593-0	01	1	0211-0501							●
138	03.265 PIPE; INL HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (A)	8-97214-594-0	01	1	0211-0501							●

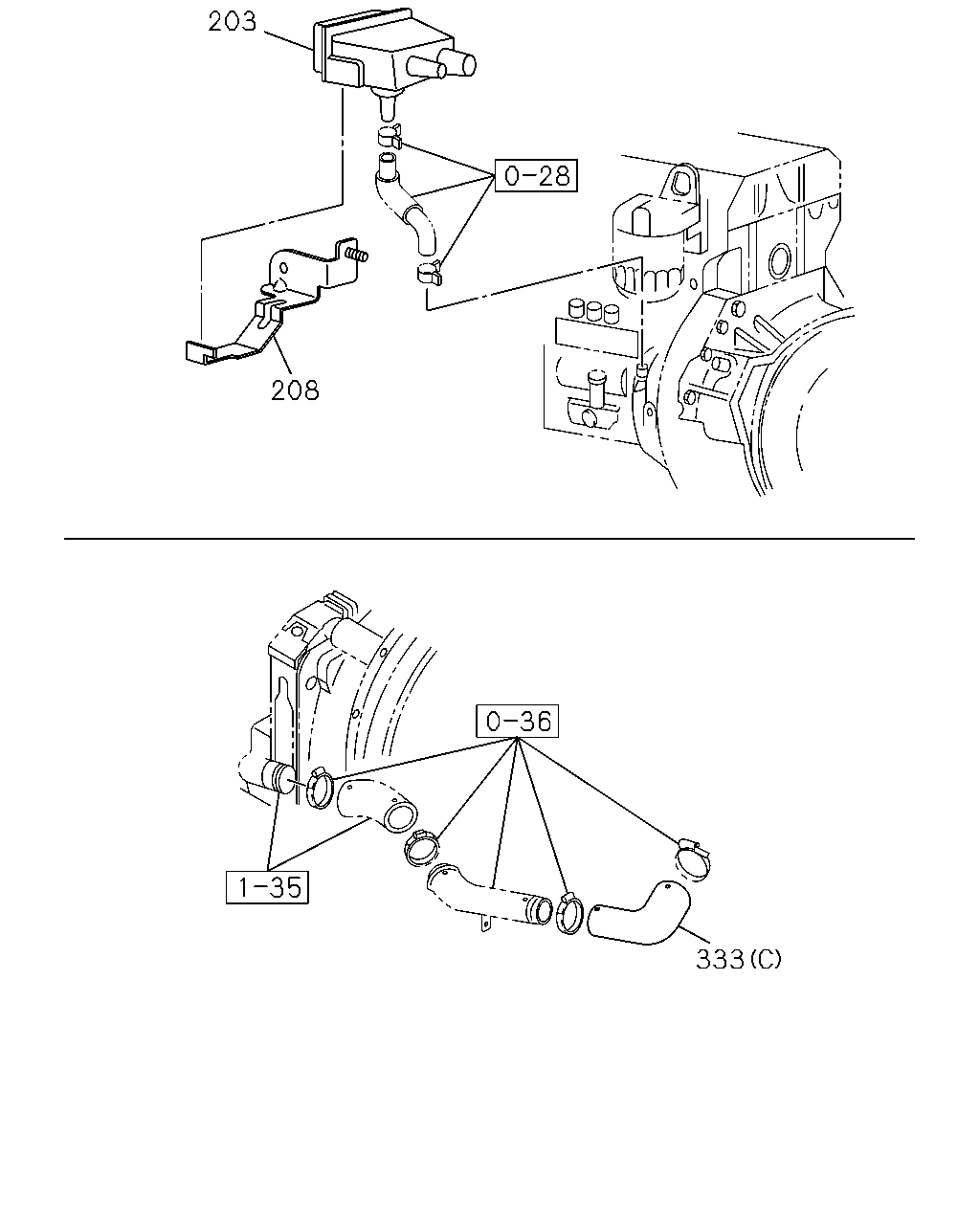

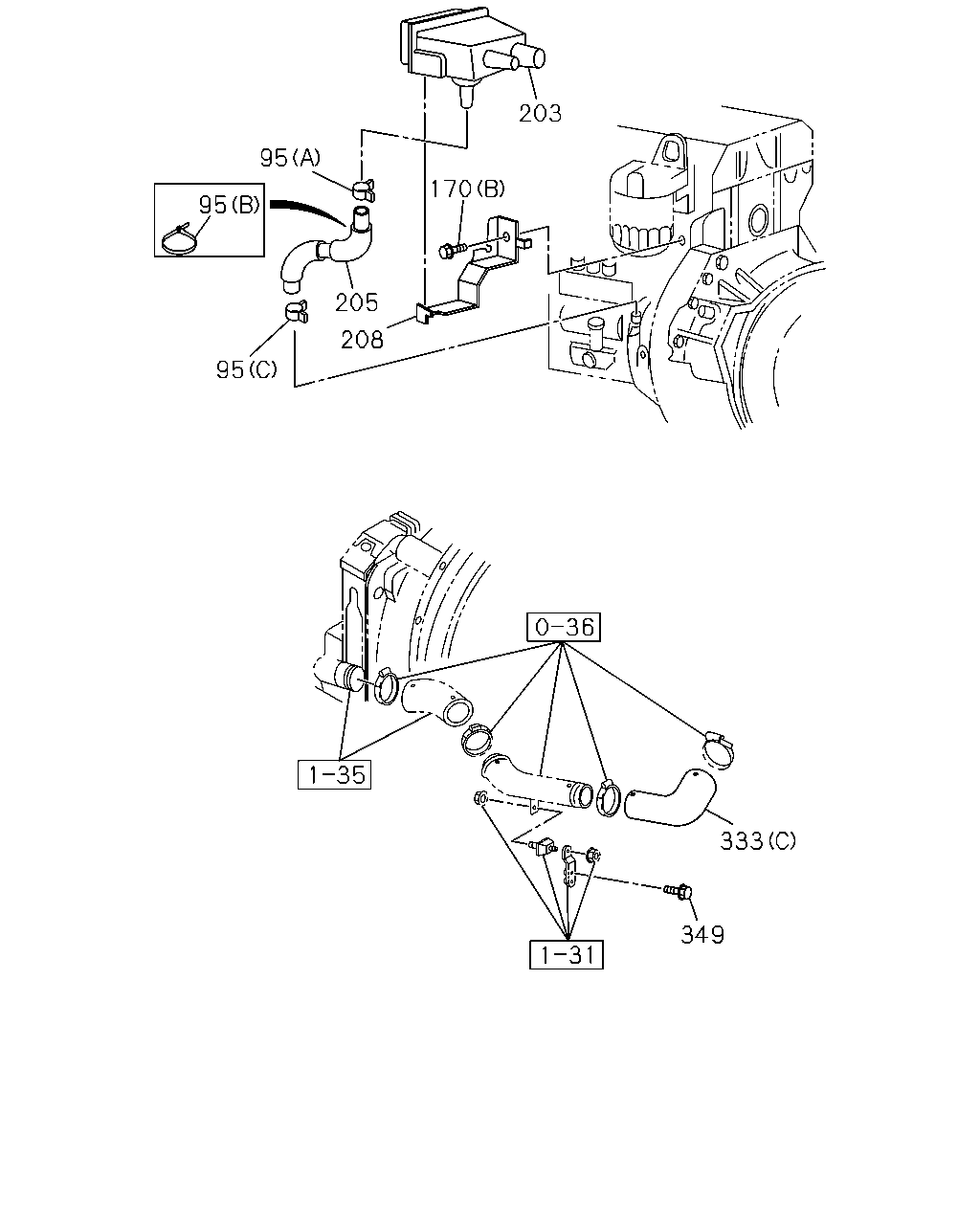

203 208 333

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	G
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	0507-	●	●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	0211-0501					●
208	01.750 BRACKET; CATCH TANK,OIL	8-97375-702-0	01	1	0507-	●	●
208	01.750 BRACKET; CATCH TANK,OIL CHARGE AIR COOLER<6PL>	8-97166-887-0	01	1	0211-0501					●
208	01.750 BRACKET; CATCH TANK,OIL EXC. CHARGE AIR COOLER<6PL>	8-97094-449-0	01	1	0211-0501					●
333	03.278 HOSE; RUBBER,INL PIPE (C)	8-97189-631-1	01	1	0507-0608	●	●
333	03.278 HOSE; RUBBER,INL PIPE (C)	8-98053-755-0	01	1	0609-	●	●
333	03.278 HOSE; RUBBER,INL PIPE (A)	8-97201-103-1	01	1	0211-0501			●
333	03.278 HOSE; RUBBER,INL PIPE (A)	8-97201-103-2	01	1	0502-1405				●
333	03.278 HOSE; RUBBER,INL PIPE (D)	8-98219-796-0	01	1	1406-				●
333	03.278 HOSE; RUBBER,INL PIPE (B)	8-97202-285-3	01	1	0211-0308			●
333	03.278 HOSE; RUBBER,INL PIPE (B)	8-97369-717-0	01	1	0309-0501			●
333	03.278 HOSE; RUBBER,INL PIPE (B)	8-97369-717-3	01	1	0502-1405				●
333	03.278 HOSE; RUBBER,INL PIPE CHARGE AIR COOLER<6PL> (C)	8-97189-631-0	01	1	0211-0501					●

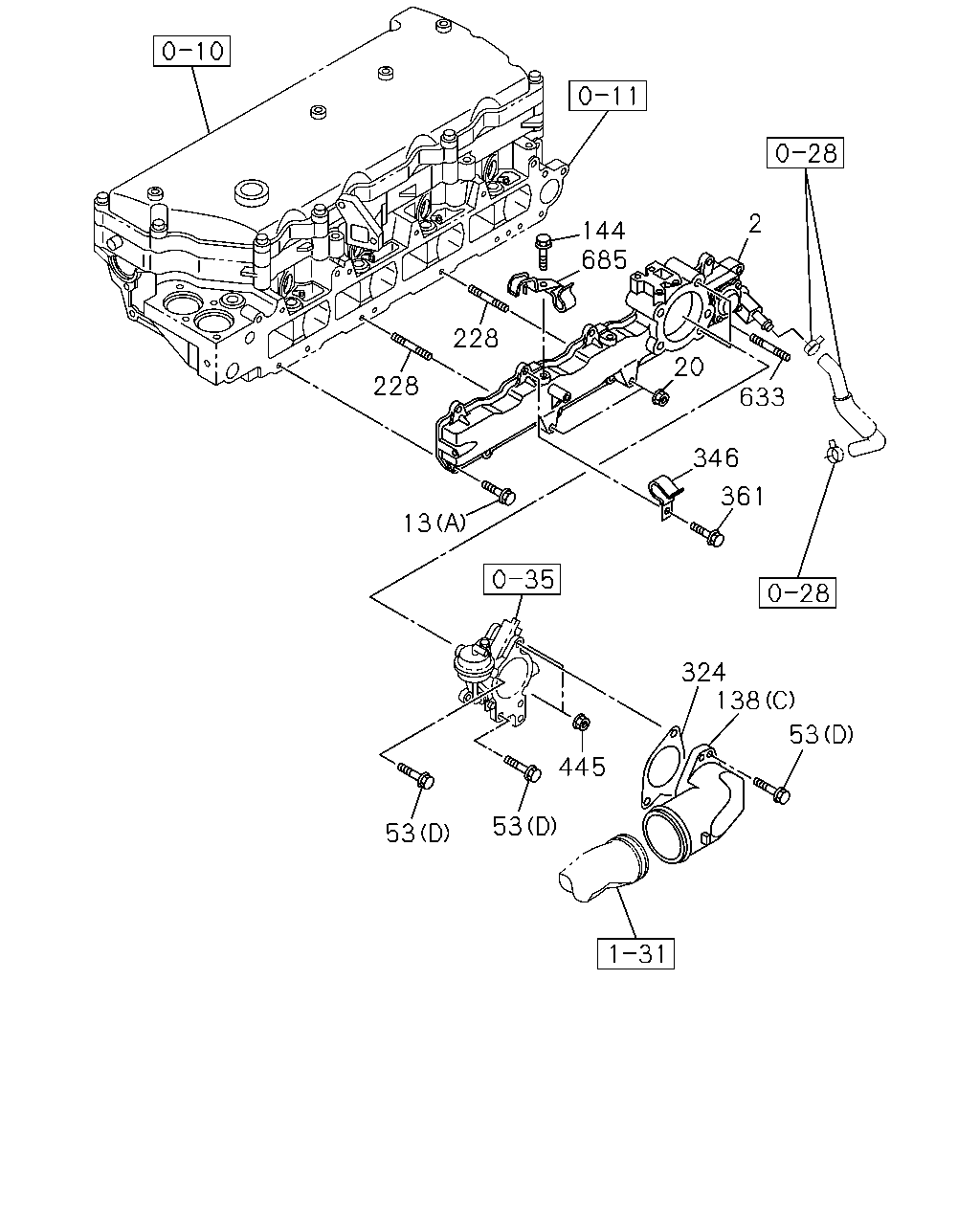

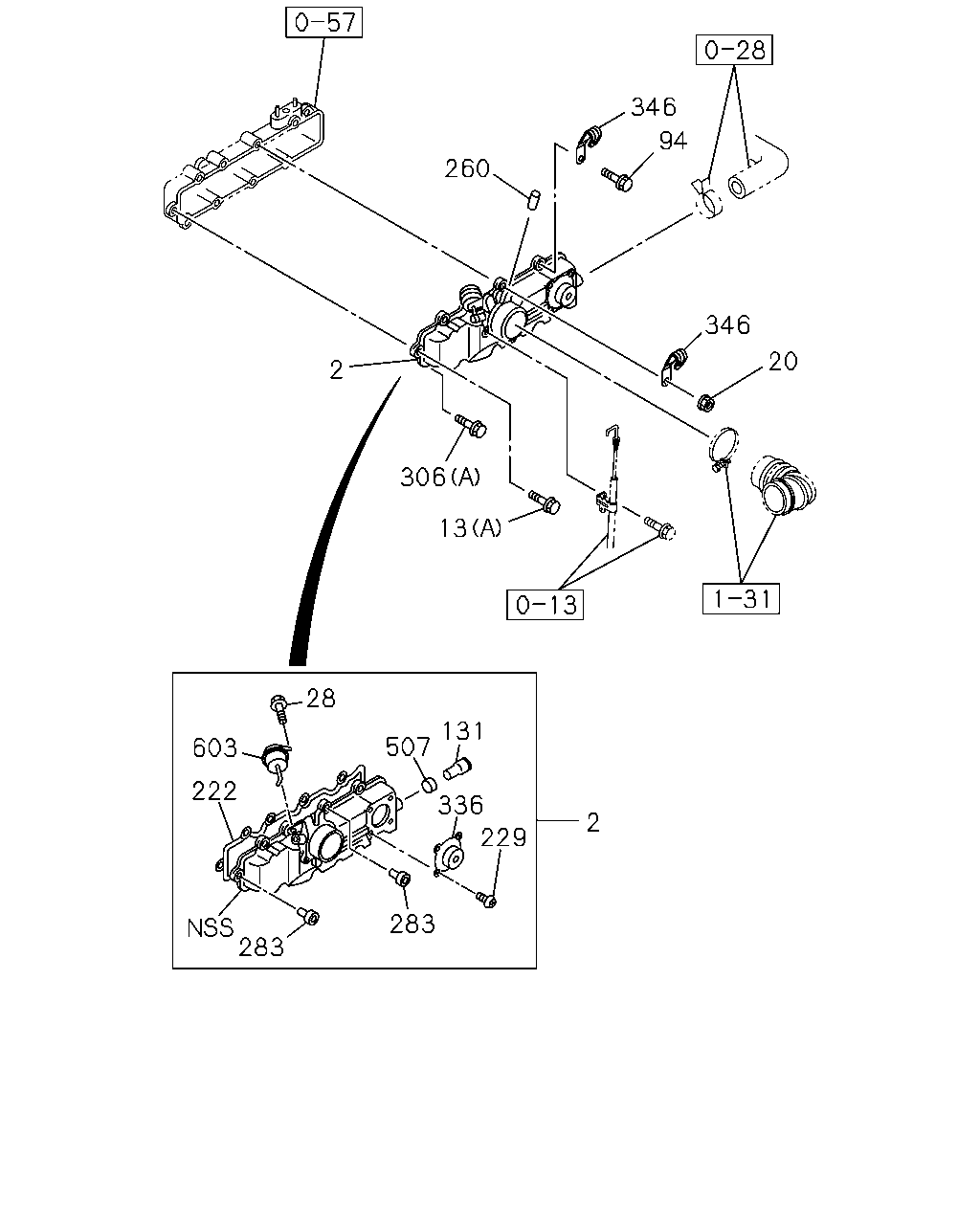

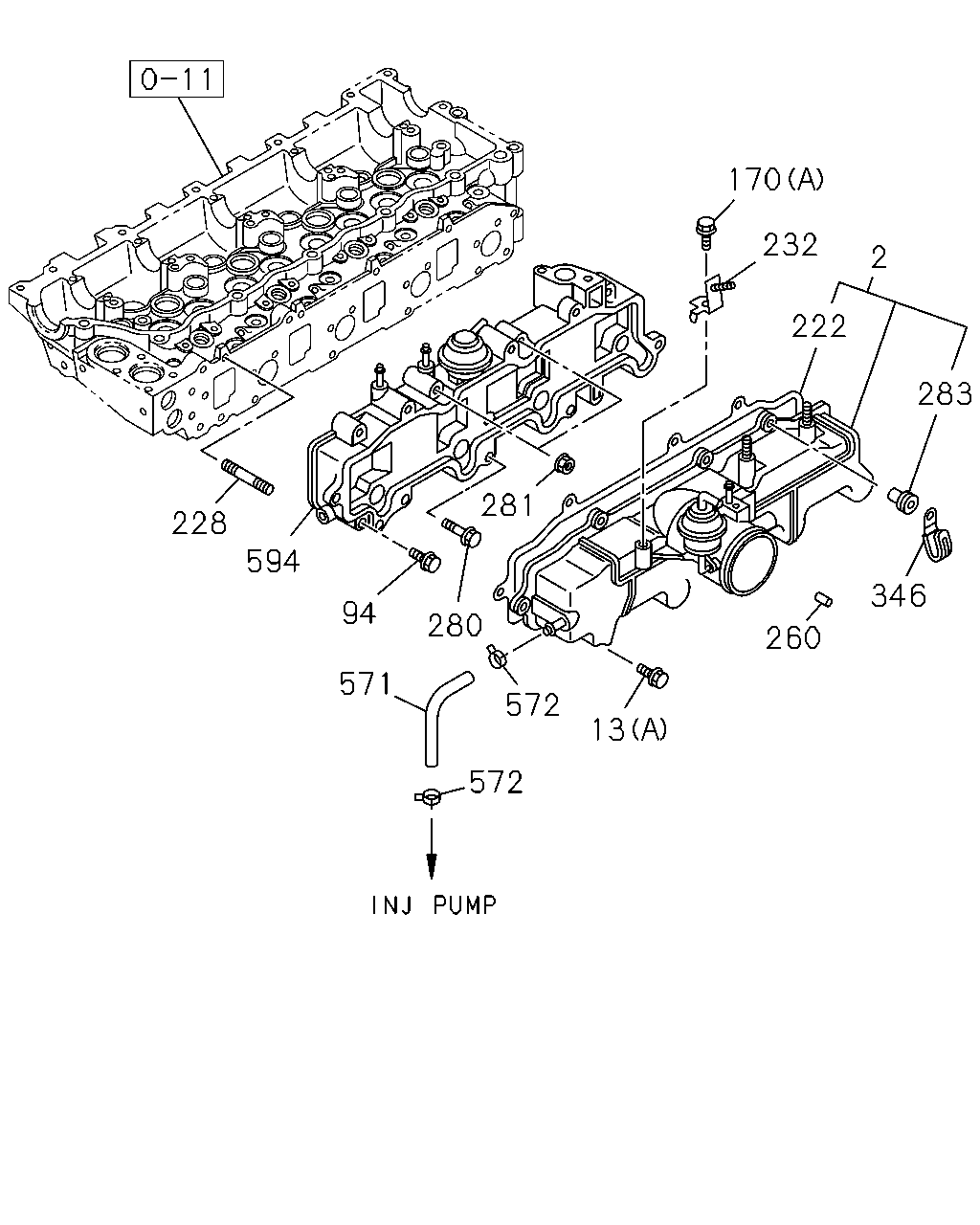

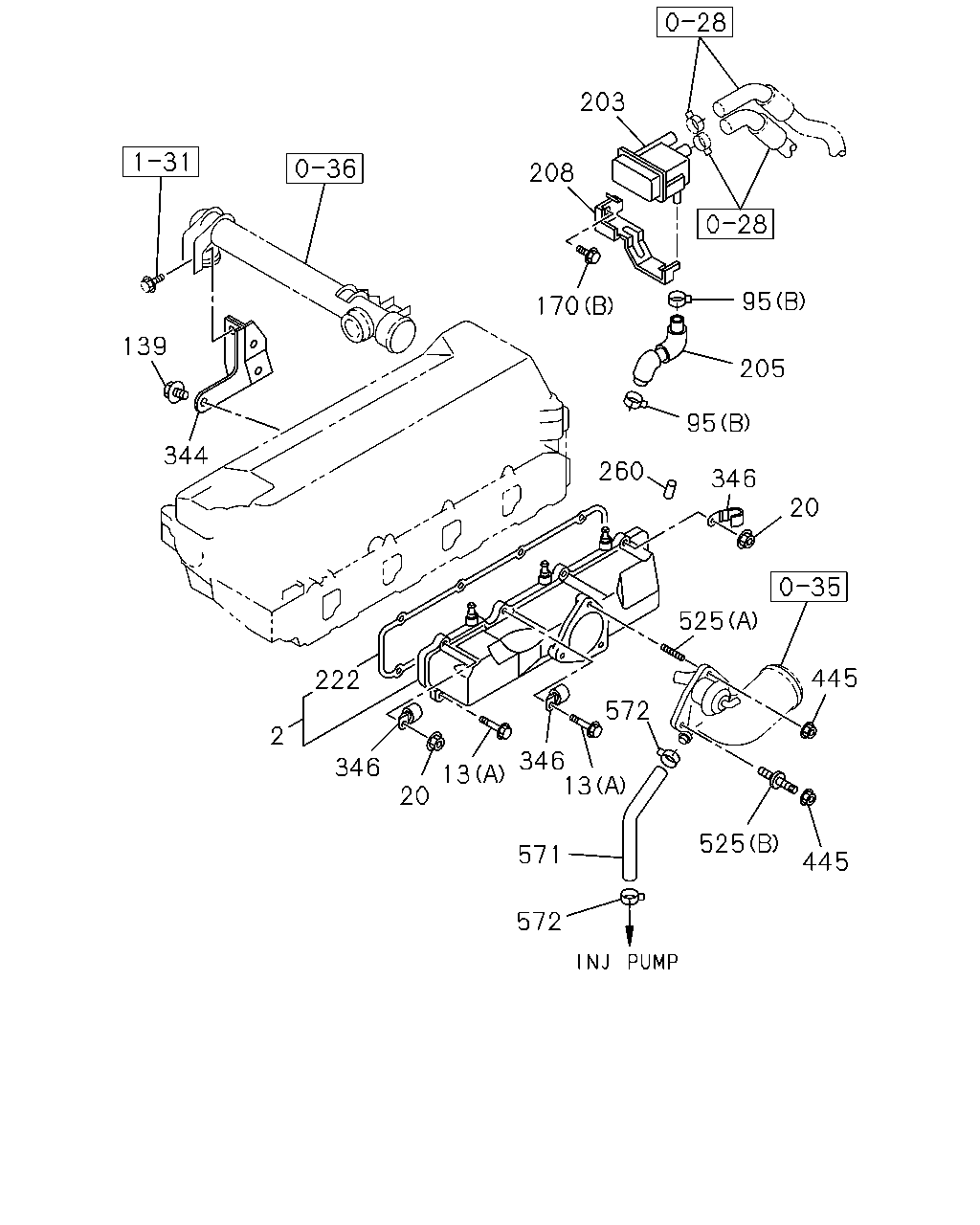

203 208 95 170 139 20 95 344 260 346 20 525 445 222 572 2 346 13 346 13 20 525 571 445 572

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	03.407 COVER; INL	8-97310-495-0	01	1	0507-	●	●
2	03.407 COVER; INL	8-97212-454-2	01	1	0211-0501			●
2	03.407 COVER; INL	8-97212-454-3	01	1	0502-				●
2	03.407 COVER; INL EXC. TURBOCHARGER(K51)	8-97146-864-2	01	1	0211-0501			●
2	03.407 COVER; INL	8-97146-864-2	01	1	0211-0501						●
2	03.407 COVER; INL	8-97146-864-2	01	1	0502-1310			●		●	●
2	03.407 COVER; INL	8-98245-382-0	01	1	1311-			●		●	●
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97219-653-1	01	1	0211-0501							●
2	03.407 COVER; INL EXC. CHARGE AIR COOLER<6PL>	8-97074-680-1	01	1	0211-0501							●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	09	1	0507-0512	●	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	09	1	0601-	●	●
13	03.275 BOLT; INL MANIF TURBOCHARGER(K51) (A) M8X30 FLANGE	0-28080-830-0	07	1	0211-0501			●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> (A) M8X30 FLANGE	0-28080-830-0	07	1	0211-0501							●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	07	1	0502-0512				●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	0601-				●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-97118-455-0	01	1	0211-0501			●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-97118-455-0	01	1	0502-0701				●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	0702-				●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER(K51) (A) M8X30 FLANGE	0-28080-830-0	08	1	0211-0501			●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	0211-0501						●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	0502-0512			●		●	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	0601-			●		●	●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> (A) M8X30 FLANGE	0-28080-830-0	06	1	0211-0501							●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501			●			●
20	03.275 NUT; INL MANIF EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501							●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0506			●	●	●	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●	●	●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●	●	●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-114-0	01	1	0211-0307			●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-198-0	01	1	0308-0501			●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-198-0	01	1	0502-0810				●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-114-0	01	1	0811-1405				●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	02	1	0211-0307			●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-65	1-09707-204-0	02	1	0308-0501			●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-65	1-09707-204-0	02	1	0502-0810				●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	02	1	0811-				●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	8-94320-428-0	01	1	0211-0307			●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	1-09707-202-0	01	1	0308-0501			●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	1-09707-202-0	01	1	0502-0810				●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	8-94320-428-0	01	1	0811-1405				●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.162 (B) L=140	5-09707-031-1	01	1	0211-0501							●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.163 (A) ID=11	8-94238-570-0	01	1	0211-0501							●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 01.097 (C) ID=11	8-94238-925-0	01	1	0211-0501							●
95	03.278 CLIP; RUBBER HOSE EXC. CHARGE AIR COOLER<6PL> 01.219 (B) ID=13	8-94238-571-0	02	1	0211-0501							●
139	03.162 BOLT; BRKT FIX EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-0501							●
170	03.162 BOLT; BRKT 02.483 (B) M12X20 FLANGE	0-28181-220-0	01	1	0211-0501							●
170	03.162 BOLT; BRKT CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0211-0501							●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	0507-	●	●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	0211-0501							●
208	01.750 BRACKET; CATCH TANK,OIL	8-97375-702-0	01	1	0507-	●	●
208	01.750 BRACKET; CATCH TANK,OIL CHARGE AIR COOLER<6PL>	8-97166-887-0	01	1	0211-0501							●
208	01.750 BRACKET; CATCH TANK,OIL EXC. CHARGE AIR COOLER<6PL>	8-97094-449-0	01	1	0211-0501							●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97084-938-2	01	1	0211-0501			●			●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97084-938-2	01	1	0502-1302			●	●	●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97084-938-2	01	1	1303-			●		●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. VEHICLE CATEGORY NQR<7NQ>	8-97084-938-2	01	1	1303-				●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL>	8-97219-649-0	01	1	0211-0501							●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL>	8-97074-682-0	01	1	0211-0501							●
260	03.278 CAP; RUBBER EXC. TURBOCHARGER(K51) 01.780 ID=4	8-94217-809-0	01	1	0211-0501			●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0211-0501						●	●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0502-			●		●	●
344	03.407 BRACKET; INL PIPE EXC. CHARGE AIR COOLER<6PL>	8-97289-654-0	01	1	0211-0501							●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0211-0501			●			●
346	02.559 CLIP; ENG HARNESS EXC. CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0211-0501							●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0502-0801			●	●	●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	0802-			●	●	●	●
346	02.559 CLIP; ENG HARNESS ENGINE POWER N-SPEC(7QV) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0211-0501						●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0502-0506					●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0507-0801	●	●			●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-	●	●			●
346	02.559 CLIP; ENG HARNESS CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	0211-0501							●
445	03.275 NUT; THROTTLE BODY TO MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●
445	03.275 NUT; THROTTLE BODY TO MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
445	03.275 NUT; THROTTLE BODY TO MANIF EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501							●
525	03.275 STUD; CONT VLV EXC. CHARGE AIR COOLER<6PL> 01.428 (A) M8X20 L=38	8-97021-431-0	02	1	0211-0501							●
525	03.275 STUD; CONT VLV EXC. CHARGE AIR COOLER<6PL> 03.270 (B)	8-97033-689-0	01	1	0211-0501							●
571	03.265 HOSE; AIR BOOST 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	0211-0501			●
571	03.265 HOSE; AIR BOOST 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	0502-				●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> 08.962 L=350 SERVICED BY L=3000	0-01254-300-0	01	1	0211-0501							●
571	03.265 HOSE; AIR BOOST EXC. CHARGE AIR COOLER<6PL> 08.962 L=230 SERVICED BY L=3000	0-01254-300-0	01	1	0211-0501							●
572	03.407 CLIP; BOOST HOSE 03.145 ID=8	8-94107-762-0	02	1	0211-0501			●
572	03.407 CLIP; BOOST HOSE 03.145 ID=8	8-94107-762-0	02	1	0502-				●
572	03.407 CLIP; BOOST HOSE 03.163 ID=11	8-94238-570-0	02	1	0211-0501							●

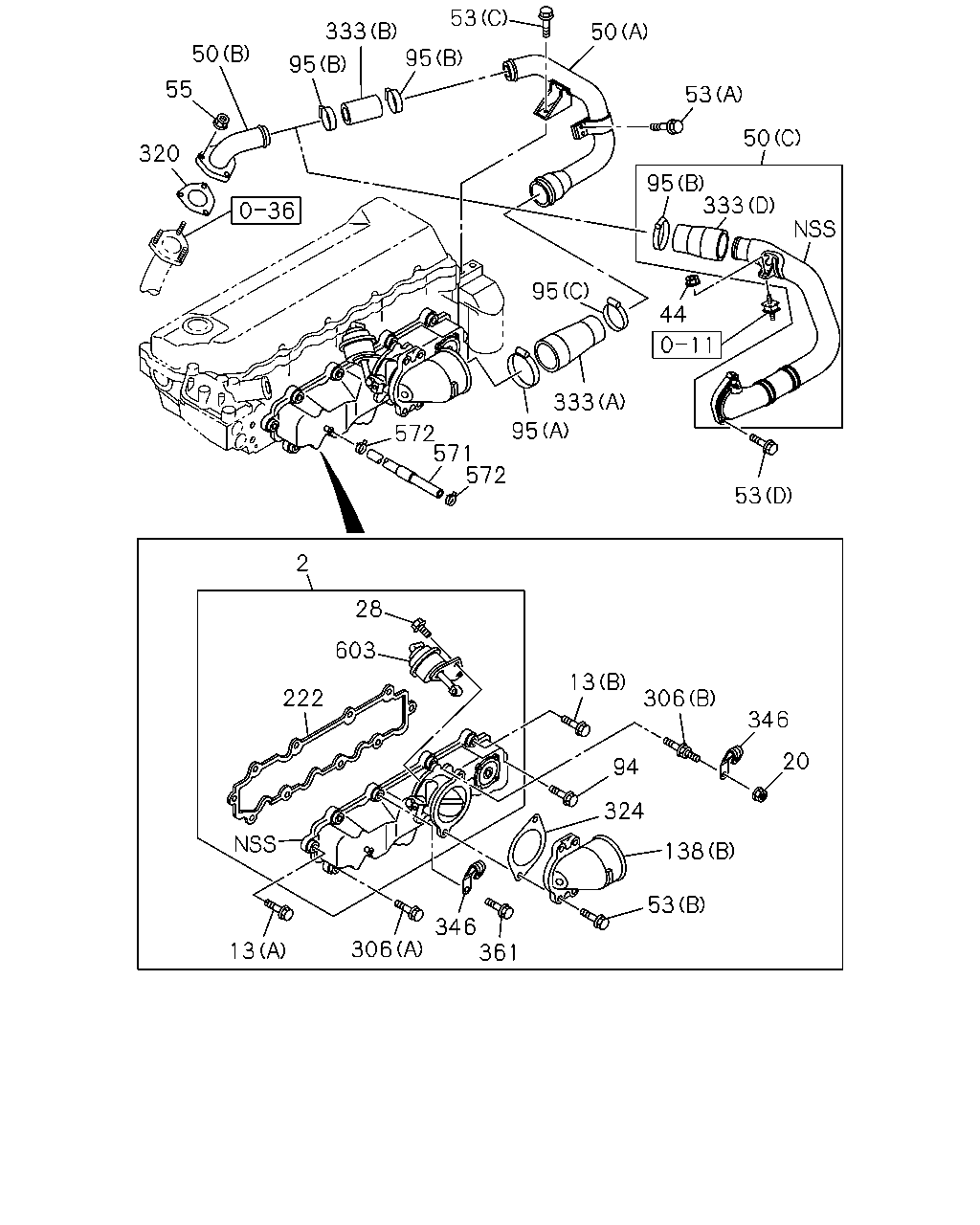

333 95 95 53 50 53 50 95 333 44 95 333 95 50 55 320 53 572 571 572 2 28 603 222 13 306 346 20 138 324 94 53 361 346 306 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	03.407 COVER; INL	8-97310-495-0	01	1	0507-	●	●
2	03.407 COVER; INL	8-97212-454-2	01	1	0211-0501			●
2	03.407 COVER; INL	8-97212-454-3	01	1	0502-				●
2	03.407 COVER; INL EXC. TURBOCHARGER(K51)	8-97146-864-2	01	1	0211-0501			●
2	03.407 COVER; INL	8-97146-864-2	01	1	0211-0501						●
2	03.407 COVER; INL	8-97146-864-2	01	1	0502-1310			●		●	●
2	03.407 COVER; INL	8-98245-382-0	01	1	1311-			●		●	●
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97219-653-1	01	1	0211-0501							●
2	03.407 COVER; INL EXC. CHARGE AIR COOLER<6PL>	8-97074-680-1	01	1	0211-0501							●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	09	1	0507-0512	●	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	09	1	0601-	●	●
13	03.275 BOLT; INL MANIF TURBOCHARGER(K51) (A) M8X30 FLANGE	0-28080-830-0	07	1	0211-0501			●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> (A) M8X30 FLANGE	0-28080-830-0	07	1	0211-0501							●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	07	1	0502-0512				●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	0601-				●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-97118-455-0	01	1	0211-0501			●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-97118-455-0	01	1	0502-0701				●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	0702-				●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER(K51) (A) M8X30 FLANGE	0-28080-830-0	08	1	0211-0501			●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	0211-0501						●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	0502-0512			●		●	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	0601-			●		●	●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> (A) M8X30 FLANGE	0-28080-830-0	06	1	0211-0501							●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501			●			●
20	03.275 NUT; INL MANIF EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501							●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0506			●	●	●	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●	●	●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●	●	●
28	03.278 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0501			●			●
28	03.278 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0502-0512			●	●	●	●
28	03.278 BOLT; CHAMBER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0601-1302			●	●	●	●
28	03.278 BOLT; CHAMBER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1303-			●		●	●
28	03.278 BOLT; CHAMBER EXC. VEHICLE CATEGORY NQR<7NQ> 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1303-				●
44	03.407 NUT; PIPE BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1406-				●
50	03.265 PIPE; INL (A)	8-97178-735-4	01	1	0211-0501			●
50	03.265 PIPE; INL (A)	8-97178-735-5	01	1	0502-1405				●
50	03.265 PIPE; INL (C)	8-98254-369-0	01	1	1406-				●
50	03.265 PIPE; INL (B)	8-97202-327-2	01	1	0211-0501			●
50	03.265 PIPE; INL (B)	8-97202-327-2	01	1	0502-				●
53	03.602 BOLT; INL PIPE 07.010 (D) M8X20 FLANGE	0-28080-820-0	01	1	0507-0512	●	●
53	03.602 BOLT; INL PIPE 04.338 (D) M8X20 FLANGE	0-28050-820-0	01	1	0601-	●	●
53	03.602 BOLT; INL PIPE 04.686 (D) M8X30 FLANGE	0-28680-830-0	04	1	0507-0512	●	●
53	03.602 BOLT; INL PIPE 03.403 (D) M8X30 FLANGE	0-28650-830-0	04	1	0601-	●	●
53	03.602 BOLT; INL PIPE 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501			●
53	03.602 BOLT; INL PIPE 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0502-0512				●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-1405				●
53	03.602 BOLT; INL PIPE 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1406-				●
53	03.602 BOLT; INL PIPE 04.686 (B) M8X30 FLANGE	0-28680-830-0	02	1	0211-0501			●
53	03.602 BOLT; INL PIPE 04.686 (B) M8X30 FLANGE	0-28680-830-0	02	1	0502-0512				●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-1405				●
53	03.602 BOLT; INL PIPE 03.405 (C) M10X25 FLANGE	0-28681-025-0	02	1	0211-0501			●
53	03.602 BOLT; INL PIPE 03.405 (C) M10X25 FLANGE	0-28681-025-0	02	1	0502-0512				●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	0601-1405				●
55	03.407 NUT; INL PIPE 01.062 M6 FLANGE	0-91150-206-0	03	1	0211-0501			●
55	03.407 NUT; INL PIPE 01.062 M6 FLANGE	0-91150-206-0	03	1	0502-0602				●
55	03.407 NUT; INL PIPE 01.540 M6 FLANGE	0-91180-206-0	03	1	0603-				●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	01	1	0211-0501			●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	01	1	0502-0512				●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	01	1	0601-				●
94	02.559 BOLT EXC. TURBOCHARGER(K51) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0211-0501			●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0211-0501						●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0502-0512			●		●	●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	02	1	0601-			●		●	●
94	02.559 BOLT CHARGE AIR COOLER<6PL> 01.540 M8X45 FLANGE	0-28080-845-0	04	1	0211-0501							●
94	02.559 BOLT CHARGE AIR COOLER<6PL> 01.780 M8X50 FLANGE	0-28080-850-0	02	1	0211-0501							●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-114-0	01	1	0211-0307			●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-198-0	01	1	0308-0501			●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-198-0	01	1	0502-0810				●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-114-0	01	1	0811-1405				●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	02	1	0211-0307			●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-65	1-09707-204-0	02	1	0308-0501			●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-65	1-09707-204-0	02	1	0502-0810				●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	02	1	0811-				●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	8-94320-428-0	01	1	0211-0307			●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	1-09707-202-0	01	1	0308-0501			●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	1-09707-202-0	01	1	0502-0810				●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	8-94320-428-0	01	1	0811-1405				●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.162 (B) L=140	5-09707-031-1	01	1	0211-0501							●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.163 (A) ID=11	8-94238-570-0	01	1	0211-0501							●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 01.097 (C) ID=11	8-94238-925-0	01	1	0211-0501							●
95	03.278 CLIP; RUBBER HOSE EXC. CHARGE AIR COOLER<6PL> 01.219 (B) ID=13	8-94238-571-0	02	1	0211-0501							●
138	03.265 PIPE; INL (C)	8-98001-263-0	01	1	0507-	●	●
138	03.265 PIPE; INL TURBOCHARGER(K51) (A)	8-97178-748-2	01	1	0211-0501			●
138	03.265 PIPE; INL (A)	8-97178-748-3	01	1	0502-0504				●
138	03.265 PIPE; INL SGL CAB&MIDDLE(NP**SF) (A)	8-97178-748-3	01	1	0505-	●	●		●	●	●
138	03.265 PIPE; INL (B)	8-97180-566-1	01	1	0211-0501			●
138	03.265 PIPE; INL (B)	8-97180-566-2	01	1	0502-1405				●
138	03.265 PIPE; INL EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97214-593-0	01	1	0211-0501							●
138	03.265 PIPE; INL HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (A)	8-97214-594-0	01	1	0211-0501							●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97084-938-2	01	1	0211-0501			●			●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97084-938-2	01	1	0502-1302			●	●	●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97084-938-2	01	1	1303-			●		●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. VEHICLE CATEGORY NQR<7NQ>	8-97084-938-2	01	1	1303-				●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL>	8-97219-649-0	01	1	0211-0501							●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL>	8-97074-682-0	01	1	0211-0501							●
306	03.265 BOLT; VLV (B) M8X85 L=101	8-97118-454-0	01	1	0211-0501			●
306	03.265 BOLT; VLV (B) M8X85 L=101	8-97118-454-0	01	1	0502-0701				●
306	03.265 BOLT; VLV (B) M8X85 L=101	8-98048-394-0	01	1	0702-				●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	0211-0501			●			●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	0502-0512			●	●	●	●
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	0601-			●	●	●	●
320	03.270 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=47	8-97202-328-1	01	1	0211-0501			●
320	03.270 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) ID=47	8-97202-328-1	01	1	0502-				●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97306-025-1	01	1	0507-	●	●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97180-546-0	01	1	0211-0501			●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97180-546-1	01	1	0502-1405				●
333	03.278 HOSE; RUBBER,INL PIPE (C)	8-97189-631-1	01	1	0507-0608	●	●
333	03.278 HOSE; RUBBER,INL PIPE (C)	8-98053-755-0	01	1	0609-	●	●
333	03.278 HOSE; RUBBER,INL PIPE (A)	8-97201-103-1	01	1	0211-0501			●
333	03.278 HOSE; RUBBER,INL PIPE (A)	8-97201-103-2	01	1	0502-1405				●
333	03.278 HOSE; RUBBER,INL PIPE (D)	8-98219-796-0	01	1	1406-				●
333	03.278 HOSE; RUBBER,INL PIPE (B)	8-97202-285-3	01	1	0211-0308			●
333	03.278 HOSE; RUBBER,INL PIPE (B)	8-97369-717-0	01	1	0309-0501			●
333	03.278 HOSE; RUBBER,INL PIPE (B)	8-97369-717-3	01	1	0502-1405				●
333	03.278 HOSE; RUBBER,INL PIPE CHARGE AIR COOLER<6PL> (C)	8-97189-631-0	01	1	0211-0501							●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0211-0501			●			●
346	02.559 CLIP; ENG HARNESS EXC. CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0211-0501							●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0502-0801			●	●	●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	0802-			●	●	●	●
346	02.559 CLIP; ENG HARNESS ENGINE POWER N-SPEC(7QV) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0211-0501						●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0502-0506					●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0507-0801	●	●			●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-	●	●			●
346	02.559 CLIP; ENG HARNESS CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	0211-0501							●
361	03.278 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512	●	●
361	03.278 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●
361	03.278 BOLT; CLIP 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0501			●
361	03.278 BOLT; CLIP 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0502-0512				●
361	03.278 BOLT; CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0601-				●
571	03.265 HOSE; AIR BOOST 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	0211-0501			●
571	03.265 HOSE; AIR BOOST 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	0502-				●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> 08.962 L=350 SERVICED BY L=3000	0-01254-300-0	01	1	0211-0501							●
571	03.265 HOSE; AIR BOOST EXC. CHARGE AIR COOLER<6PL> 08.962 L=230 SERVICED BY L=3000	0-01254-300-0	01	1	0211-0501							●
572	03.407 CLIP; BOOST HOSE 03.145 ID=8	8-94107-762-0	02	1	0211-0501			●
572	03.407 CLIP; BOOST HOSE 03.145 ID=8	8-94107-762-0	02	1	0502-				●
572	03.407 CLIP; BOOST HOSE 03.163 ID=11	8-94238-570-0	02	1	0211-0501							●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	0211-0501			●			●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	0502-1302			●	●	●	●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	1303-			●		●	●
603	03.278 CHAMBER; THROTTLE EXC. VEHICLE CATEGORY NQR<7NQ>	8-97204-780-0	01	1	1303-				●

2 144 685 228 20 228 633 346 361 13 324 138 53 445 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	03.407 COVER; INL	8-97310-495-0	01	1	0507-	●	●
2	03.407 COVER; INL	8-97212-454-2	01	1	0211-0501			●
2	03.407 COVER; INL	8-97212-454-3	01	1	0502-				●
2	03.407 COVER; INL EXC. TURBOCHARGER(K51)	8-97146-864-2	01	1	0211-0501			●
2	03.407 COVER; INL	8-97146-864-2	01	1	0211-0501						●
2	03.407 COVER; INL	8-97146-864-2	01	1	0502-1310			●		●	●
2	03.407 COVER; INL	8-98245-382-0	01	1	1311-			●		●	●
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97219-653-1	01	1	0211-0501							●
2	03.407 COVER; INL EXC. CHARGE AIR COOLER<6PL>	8-97074-680-1	01	1	0211-0501							●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	09	1	0507-0512	●	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	09	1	0601-	●	●
13	03.275 BOLT; INL MANIF TURBOCHARGER(K51) (A) M8X30 FLANGE	0-28080-830-0	07	1	0211-0501			●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> (A) M8X30 FLANGE	0-28080-830-0	07	1	0211-0501							●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	07	1	0502-0512				●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	0601-				●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-97118-455-0	01	1	0211-0501			●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-97118-455-0	01	1	0502-0701				●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	0702-				●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER(K51) (A) M8X30 FLANGE	0-28080-830-0	08	1	0211-0501			●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	0211-0501						●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	0502-0512			●		●	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	0601-			●		●	●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> (A) M8X30 FLANGE	0-28080-830-0	06	1	0211-0501							●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501			●			●
20	03.275 NUT; INL MANIF EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501							●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0506			●	●	●	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●	●	●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●	●	●
53	03.602 BOLT; INL PIPE 07.010 (D) M8X20 FLANGE	0-28080-820-0	01	1	0507-0512	●	●
53	03.602 BOLT; INL PIPE 04.338 (D) M8X20 FLANGE	0-28050-820-0	01	1	0601-	●	●
53	03.602 BOLT; INL PIPE 04.686 (D) M8X30 FLANGE	0-28680-830-0	04	1	0507-0512	●	●
53	03.602 BOLT; INL PIPE 03.403 (D) M8X30 FLANGE	0-28650-830-0	04	1	0601-	●	●
53	03.602 BOLT; INL PIPE 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501			●
53	03.602 BOLT; INL PIPE 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0502-0512				●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-1405				●
53	03.602 BOLT; INL PIPE 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1406-				●
53	03.602 BOLT; INL PIPE 04.686 (B) M8X30 FLANGE	0-28680-830-0	02	1	0211-0501			●
53	03.602 BOLT; INL PIPE 04.686 (B) M8X30 FLANGE	0-28680-830-0	02	1	0502-0512				●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-1405				●
53	03.602 BOLT; INL PIPE 03.405 (C) M10X25 FLANGE	0-28681-025-0	02	1	0211-0501			●
53	03.602 BOLT; INL PIPE 03.405 (C) M10X25 FLANGE	0-28681-025-0	02	1	0502-0512				●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	0601-1405				●
138	03.265 PIPE; INL (C)	8-98001-263-0	01	1	0507-	●	●
138	03.265 PIPE; INL TURBOCHARGER(K51) (A)	8-97178-748-2	01	1	0211-0501			●
138	03.265 PIPE; INL (A)	8-97178-748-3	01	1	0502-0504				●
138	03.265 PIPE; INL SGL CAB&MIDDLE(NP**SF) (A)	8-97178-748-3	01	1	0505-	●	●		●	●	●
138	03.265 PIPE; INL (B)	8-97180-566-1	01	1	0211-0501			●
138	03.265 PIPE; INL (B)	8-97180-566-2	01	1	0502-1405				●
138	03.265 PIPE; INL EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97214-593-0	01	1	0211-0501							●
138	03.265 PIPE; INL HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (A)	8-97214-594-0	01	1	0211-0501							●
144	03.275 BOLT; BRKT FIX 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512	●	●
144	03.275 BOLT; BRKT FIX 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●
228	03.407 STUD; INL COVER 03.275 M8X117 L=128	8-97111-477-0	02	1	0507-	●	●
228	03.407 STUD; INL COVER CHARGE AIR COOLER<6PL> M8X84 L=95	8-97181-739-0	02	1	0211-0501							●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97306-025-1	01	1	0507-	●	●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97180-546-0	01	1	0211-0501			●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97180-546-1	01	1	0502-1405				●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0211-0501			●			●
346	02.559 CLIP; ENG HARNESS EXC. CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0211-0501							●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0502-0801			●	●	●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	0802-			●	●	●	●
346	02.559 CLIP; ENG HARNESS ENGINE POWER N-SPEC(7QV) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0211-0501						●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0502-0506					●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0507-0801	●	●			●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-	●	●			●
346	02.559 CLIP; ENG HARNESS CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	0211-0501							●
361	03.278 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512	●	●
361	03.278 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●
361	03.278 BOLT; CLIP 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0501			●
361	03.278 BOLT; CLIP 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0502-0512				●
361	03.278 BOLT; CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0601-				●
445	03.275 NUT; THROTTLE BODY TO MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●
445	03.275 NUT; THROTTLE BODY TO MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
445	03.275 NUT; THROTTLE BODY TO MANIF EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501							●
633	03.275 STUD; THROTTLE BODY 03.901 M8X25 L=37	9-04110-825-0	01	1	0507-0604	●	●
633	03.275 STUD; THROTTLE BODY M8X25 L=37	0-41010-825-0	01	1	0605-	●	●
633	03.275 STUD; THROTTLE BODY 00.413 M8X55 L=67	9-04110-855-0	01	1	0507-0604	●	●
633	03.275 STUD; THROTTLE BODY 01.097 M8X55 L=67	0-41010-855-0	01	1	0605-	●	●
685	03.265 BRACKET; HARNESS	8-97331-921-1	01	1	0507-	●	●

203 95 170 95 205 208 95 333 349

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	G
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-114-0	01	1	0211-0307			●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-198-0	01	1	0308-0501			●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-198-0	01	1	0502-0810				●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-114-0	01	1	0811-1405				●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	02	1	0211-0307			●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-65	1-09707-204-0	02	1	0308-0501			●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-65	1-09707-204-0	02	1	0502-0810				●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	02	1	0811-				●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	8-94320-428-0	01	1	0211-0307			●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	1-09707-202-0	01	1	0308-0501			●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	1-09707-202-0	01	1	0502-0810				●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	8-94320-428-0	01	1	0811-1405				●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.162 (B) L=140	5-09707-031-1	01	1	0211-0501					●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.163 (A) ID=11	8-94238-570-0	01	1	0211-0501					●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 01.097 (C) ID=11	8-94238-925-0	01	1	0211-0501					●
95	03.278 CLIP; RUBBER HOSE EXC. CHARGE AIR COOLER<6PL> 01.219 (B) ID=13	8-94238-571-0	02	1	0211-0501					●
170	03.162 BOLT; BRKT 02.483 (B) M12X20 FLANGE	0-28181-220-0	01	1	0211-0501					●
170	03.162 BOLT; BRKT CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0211-0501					●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	0507-	●	●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	0211-0501					●
205	01.745 HOSE; OIL DRAIN CHARGE AIR COOLER<6PL>	8-97149-011-1	01	1	0211-0501					●
205	01.745 HOSE; OIL DRAIN EXC. CHARGE AIR COOLER<6PL>	8-97088-684-1	01	1	0211-0501					●
208	01.750 BRACKET; CATCH TANK,OIL	8-97375-702-0	01	1	0507-	●	●
208	01.750 BRACKET; CATCH TANK,OIL CHARGE AIR COOLER<6PL>	8-97166-887-0	01	1	0211-0501					●
208	01.750 BRACKET; CATCH TANK,OIL EXC. CHARGE AIR COOLER<6PL>	8-97094-449-0	01	1	0211-0501					●
333	03.278 HOSE; RUBBER,INL PIPE (C)	8-97189-631-1	01	1	0507-0608	●	●
333	03.278 HOSE; RUBBER,INL PIPE (C)	8-98053-755-0	01	1	0609-	●	●
333	03.278 HOSE; RUBBER,INL PIPE (A)	8-97201-103-1	01	1	0211-0501			●
333	03.278 HOSE; RUBBER,INL PIPE (A)	8-97201-103-2	01	1	0502-1405				●
333	03.278 HOSE; RUBBER,INL PIPE (D)	8-98219-796-0	01	1	1406-				●
333	03.278 HOSE; RUBBER,INL PIPE (B)	8-97202-285-3	01	1	0211-0308			●
333	03.278 HOSE; RUBBER,INL PIPE (B)	8-97369-717-0	01	1	0309-0501			●
333	03.278 HOSE; RUBBER,INL PIPE (B)	8-97369-717-3	01	1	0502-1405				●
333	03.278 HOSE; RUBBER,INL PIPE CHARGE AIR COOLER<6PL> (C)	8-97189-631-0	01	1	0211-0501					●
349	03.417 BOLT; BRKT,INL PIPE CHARGE AIR COOLER<6PL> 04.595 M8X20 FLANGE	0-28480-820-0	04	1	0211-0501					●

346 94 260 346 20 2 306 13 28 131 507 603 222 336 2 229 283 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	03.407 COVER; INL	8-97310-495-0	01	1	0507-	●	●
2	03.407 COVER; INL	8-97212-454-2	01	1	0211-0501			●
2	03.407 COVER; INL	8-97212-454-3	01	1	0502-				●
2	03.407 COVER; INL EXC. TURBOCHARGER(K51)	8-97146-864-2	01	1	0211-0501			●
2	03.407 COVER; INL	8-97146-864-2	01	1	0211-0501						●
2	03.407 COVER; INL	8-97146-864-2	01	1	0502-1310			●		●	●
2	03.407 COVER; INL	8-98245-382-0	01	1	1311-			●		●	●
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97219-653-1	01	1	0211-0501							●
2	03.407 COVER; INL EXC. CHARGE AIR COOLER<6PL>	8-97074-680-1	01	1	0211-0501							●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	09	1	0507-0512	●	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	09	1	0601-	●	●
13	03.275 BOLT; INL MANIF TURBOCHARGER(K51) (A) M8X30 FLANGE	0-28080-830-0	07	1	0211-0501			●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> (A) M8X30 FLANGE	0-28080-830-0	07	1	0211-0501							●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	07	1	0502-0512				●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	0601-				●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-97118-455-0	01	1	0211-0501			●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-97118-455-0	01	1	0502-0701				●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	0702-				●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER(K51) (A) M8X30 FLANGE	0-28080-830-0	08	1	0211-0501			●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	0211-0501						●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	0502-0512			●		●	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	0601-			●		●	●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> (A) M8X30 FLANGE	0-28080-830-0	06	1	0211-0501							●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501			●			●
20	03.275 NUT; INL MANIF EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501							●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0506			●	●	●	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●	●	●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●	●	●
28	03.278 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0501			●			●
28	03.278 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0502-0512			●	●	●	●
28	03.278 BOLT; CHAMBER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0601-1302			●	●	●	●
28	03.278 BOLT; CHAMBER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1303-			●		●	●
28	03.278 BOLT; CHAMBER EXC. VEHICLE CATEGORY NQR<7NQ> 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1303-				●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	01	1	0211-0501			●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	01	1	0502-0512				●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	01	1	0601-				●
94	02.559 BOLT EXC. TURBOCHARGER(K51) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0211-0501			●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0211-0501						●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0502-0512			●		●	●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	02	1	0601-			●		●	●
94	02.559 BOLT CHARGE AIR COOLER<6PL> 01.540 M8X45 FLANGE	0-28080-845-0	04	1	0211-0501							●
94	02.559 BOLT CHARGE AIR COOLER<6PL> 01.780 M8X50 FLANGE	0-28080-850-0	02	1	0211-0501							●
131	03.278 PIPE; PCV,INL EXC. TURBOCHARGER(K51)	8-97102-601-0	01	1	0211-0501			●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	0211-0501						●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	0502-			●		●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97084-938-2	01	1	0211-0501			●			●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97084-938-2	01	1	0502-1302			●	●	●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97084-938-2	01	1	1303-			●		●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. VEHICLE CATEGORY NQR<7NQ>	8-97084-938-2	01	1	1303-				●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL>	8-97219-649-0	01	1	0211-0501							●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL>	8-97074-682-0	01	1	0211-0501							●
229	03.278 SCREW; VENTILATION VLV EXC. TURBOCHARGER(K51) 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	0211-0501			●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	0211-0501						●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	0502-0604			●		●	●
229	03.278 SCREW; VENTILATION VLV 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	0605-			●		●	●
260	03.278 CAP; RUBBER EXC. TURBOCHARGER(K51) 01.780 ID=4	8-94217-809-0	01	1	0211-0501			●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0211-0501						●	●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0502-			●		●	●
283	03.265 RUBBER EXC. TURBOCHARGER(K51) OD=23	8-97105-689-6	10	1	0211-0501			●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	0211-0501						●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	0502-			●		●	●
283	03.265 RUBBER CHARGE AIR COOLER<6PL> L=18	8-97219-650-0	09	1	0211-0501							●
306	03.265 BOLT; VLV (B) M8X85 L=101	8-97118-454-0	01	1	0211-0501			●
306	03.265 BOLT; VLV (B) M8X85 L=101	8-97118-454-0	01	1	0502-0701				●
306	03.265 BOLT; VLV (B) M8X85 L=101	8-98048-394-0	01	1	0702-				●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	0211-0501			●			●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	0502-0512			●	●	●	●
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	0601-			●	●	●	●
336	03.415 VALVE; VENTILATION EXC. TURBOCHARGER(K51)	8-97119-887-0	01	1	0211-0501			●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	0211-0501						●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	0502-1310			●		●	●
336	03.415 VALVE; VENTILATION	8-98245-399-0	01	1	1311-			●		●	●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0211-0501			●			●
346	02.559 CLIP; ENG HARNESS EXC. CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0211-0501							●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0502-0801			●	●	●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	0802-			●	●	●	●
346	02.559 CLIP; ENG HARNESS ENGINE POWER N-SPEC(7QV) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0211-0501						●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0502-0506					●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0507-0801	●	●			●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-	●	●			●
346	02.559 CLIP; ENG HARNESS CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	0211-0501							●
507	03.415 ORIFICE EXC. TURBOCHARGER(K51)	8-97088-649-0	01	1	0211-0501			●
507	03.415 ORIFICE	8-97088-649-0	01	1	0211-0501						●
507	03.415 ORIFICE	8-97088-649-0	01	1	0502-			●		●	●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	0211-0501			●			●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	0502-1302			●	●	●	●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	1303-			●		●	●
603	03.278 CHAMBER; THROTTLE EXC. VEHICLE CATEGORY NQR<7NQ>	8-97204-780-0	01	1	1303-				●

170 232 2 222 283 281 228 594 346 94 280 260 571 572 13 572

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	03.407 COVER; INL	8-97310-495-0	01	1	0507-	●	●
2	03.407 COVER; INL	8-97212-454-2	01	1	0211-0501			●
2	03.407 COVER; INL	8-97212-454-3	01	1	0502-				●
2	03.407 COVER; INL EXC. TURBOCHARGER(K51)	8-97146-864-2	01	1	0211-0501			●
2	03.407 COVER; INL	8-97146-864-2	01	1	0211-0501						●
2	03.407 COVER; INL	8-97146-864-2	01	1	0502-1310			●		●	●
2	03.407 COVER; INL	8-98245-382-0	01	1	1311-			●		●	●
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97219-653-1	01	1	0211-0501							●
2	03.407 COVER; INL EXC. CHARGE AIR COOLER<6PL>	8-97074-680-1	01	1	0211-0501							●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	09	1	0507-0512	●	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	09	1	0601-	●	●
13	03.275 BOLT; INL MANIF TURBOCHARGER(K51) (A) M8X30 FLANGE	0-28080-830-0	07	1	0211-0501			●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> (A) M8X30 FLANGE	0-28080-830-0	07	1	0211-0501							●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	07	1	0502-0512				●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	0601-				●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-97118-455-0	01	1	0211-0501			●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-97118-455-0	01	1	0502-0701				●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	0702-				●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER(K51) (A) M8X30 FLANGE	0-28080-830-0	08	1	0211-0501			●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	0211-0501						●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	0502-0512			●		●	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	0601-			●		●	●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> (A) M8X30 FLANGE	0-28080-830-0	06	1	0211-0501							●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	01	1	0211-0501			●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	01	1	0502-0512				●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	01	1	0601-				●
94	02.559 BOLT EXC. TURBOCHARGER(K51) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0211-0501			●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0211-0501						●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0502-0512			●		●	●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	02	1	0601-			●		●	●
94	02.559 BOLT CHARGE AIR COOLER<6PL> 01.540 M8X45 FLANGE	0-28080-845-0	04	1	0211-0501							●
94	02.559 BOLT CHARGE AIR COOLER<6PL> 01.780 M8X50 FLANGE	0-28080-850-0	02	1	0211-0501							●
170	03.162 BOLT; BRKT 02.483 (B) M12X20 FLANGE	0-28181-220-0	01	1	0211-0501							●
170	03.162 BOLT; BRKT CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0211-0501							●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97084-938-2	01	1	0211-0501			●			●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97084-938-2	01	1	0502-1302			●	●	●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97084-938-2	01	1	1303-			●		●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. VEHICLE CATEGORY NQR<7NQ>	8-97084-938-2	01	1	1303-				●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) CHARGE AIR COOLER<6PL>	8-97219-649-0	01	1	0211-0501							●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. CHARGE AIR COOLER<6PL>	8-97074-682-0	01	1	0211-0501							●
228	03.407 STUD; INL COVER 03.275 M8X117 L=128	8-97111-477-0	02	1	0507-	●	●
228	03.407 STUD; INL COVER CHARGE AIR COOLER<6PL> M8X84 L=95	8-97181-739-0	02	1	0211-0501							●
232	03.407 BRACKET; INJ PIPE CHARGE AIR COOLER<6PL>	8-97190-249-0	01	1	0211-0501							●
260	03.278 CAP; RUBBER EXC. TURBOCHARGER(K51) 01.780 ID=4	8-94217-809-0	01	1	0211-0501			●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0211-0501						●	●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0502-			●		●	●
280	03.403 BOLT; INL COVER CHARGE AIR COOLER<6PL> 09.171 M8X80 FLANGE	0-28080-880-0	01	1	0211-0501							●
281	03.407 NUT; INL COVER CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501							●
283	03.265 RUBBER EXC. TURBOCHARGER(K51) OD=23	8-97105-689-6	10	1	0211-0501			●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	0211-0501						●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	0502-			●		●	●
283	03.265 RUBBER CHARGE AIR COOLER<6PL> L=18	8-97219-650-0	09	1	0211-0501							●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0211-0501			●			●
346	02.559 CLIP; ENG HARNESS EXC. CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0211-0501							●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0502-0801			●	●	●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	0802-			●	●	●	●
346	02.559 CLIP; ENG HARNESS ENGINE POWER N-SPEC(7QV) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0211-0501						●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0502-0506					●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0507-0801	●	●			●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-	●	●			●
346	02.559 CLIP; ENG HARNESS CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	0211-0501							●
571	03.265 HOSE; AIR BOOST 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	0211-0501			●
571	03.265 HOSE; AIR BOOST 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	0502-				●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> 08.962 L=350 SERVICED BY L=3000	0-01254-300-0	01	1	0211-0501							●
571	03.265 HOSE; AIR BOOST EXC. CHARGE AIR COOLER<6PL> 08.962 L=230 SERVICED BY L=3000	0-01254-300-0	01	1	0211-0501							●
572	03.407 CLIP; BOOST HOSE 03.145 ID=8	8-94107-762-0	02	1	0211-0501			●
572	03.407 CLIP; BOOST HOSE 03.145 ID=8	8-94107-762-0	02	1	0502-				●
572	03.407 CLIP; BOOST HOSE 03.163 ID=11	8-94238-570-0	02	1	0211-0501							●
594	03.278 CASE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2)	8-97187-617-0	01	1	0211-0501							●
594	03.278 CASE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2)	8-97230-991-0	01	1	0211-0501							●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
