◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50948 - NPR/NQR RHDEXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#42542) — 185 parça

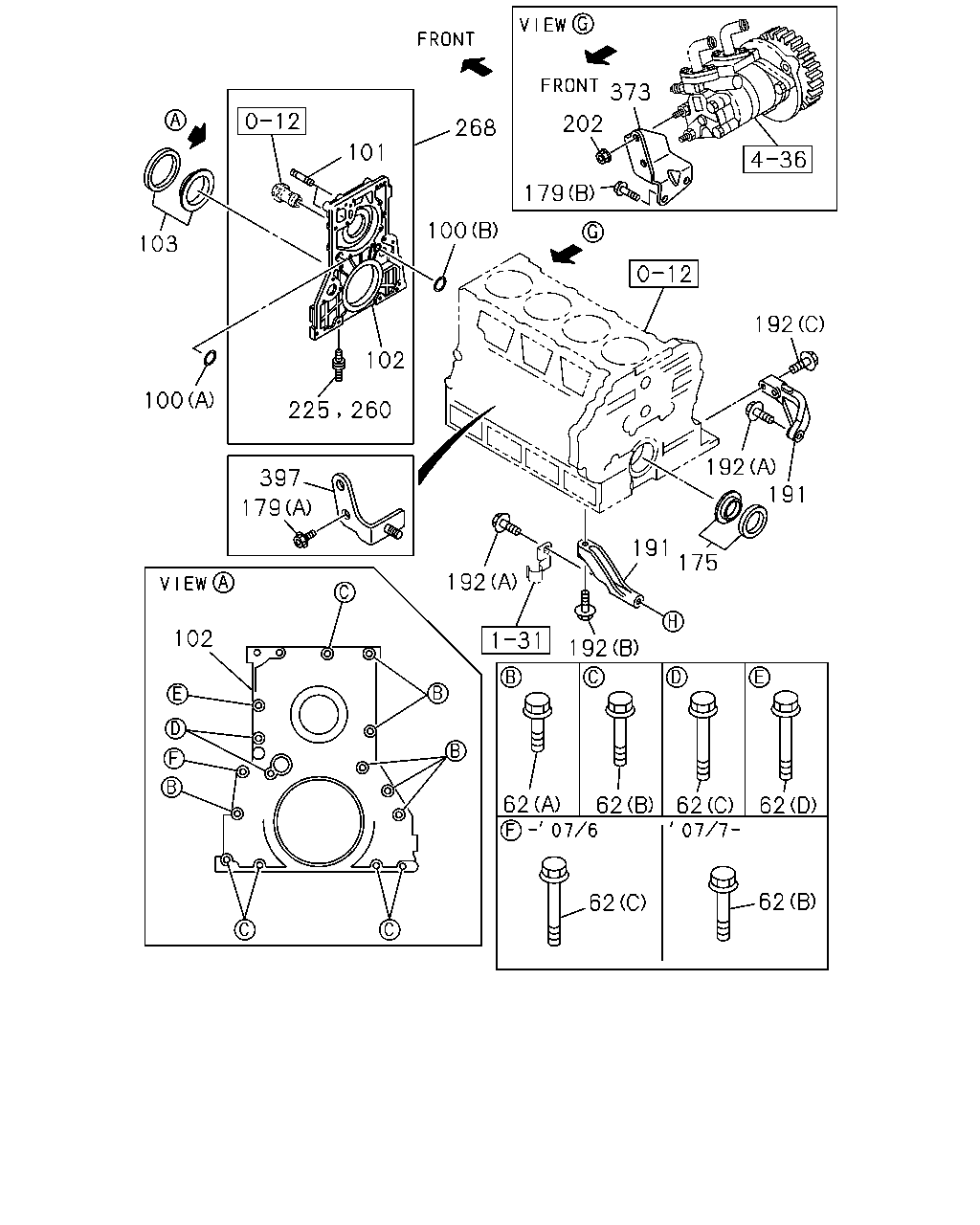

çizim 53729
373 202 268 101 179 100 103 192 102 100 225 192 191 397 179 191 175 192 102 192 62 62 62 62 62 62 260
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
62 00.206 BOLT; COVER
02.559 (A) M8X25 FLANGE 		0-28680-825-0 06 1 0211-0501 ● ● ●
62 00.206 BOLT; COVER
02.559 (A) M8X25 FLANGE 		0-28680-825-0 06 1 0502-0506 ● ● ● ●
62 00.206 BOLT; COVER
02.559 (A) M8X25 FLANGE 		0-28680-825-0 06 1 0507-0512 ● ● ● ● ● ●
62 00.206 BOLT; COVER
06.216 (A) M8X25 FLANGE 		0-28650-825-0 06 1 0601- ● ● ● ● ● ●
62 00.206 BOLT; COVER
02.183 (B) M8X35 FLANGE 		0-28680-835-0 05 1 0211-0501 ● ● ●
62 00.206 BOLT; COVER
02.183 (B) M8X35 FLANGE 		0-28680-835-0 05 1 0502-0506 ● ● ● ●
62 00.206 BOLT; COVER
02.183 (B) M8X35 FLANGE 		0-28680-835-0 05 1 0507-0512 ● ● ● ● ● ●
62 00.206 BOLT; COVER
01.060 (B) M8X35 FLANGE 		0-28650-835-0 05 1 0601-0706 ● ● ● ● ● ●
62 00.206 BOLT; COVER
01.060 (B) M8X35 FLANGE 		0-28650-835-0 06 1 0707- ● ● ● ● ● ●
62 00.206 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 03 1 0211-0501 ● ● ●
62 00.206 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 03 1 0502-0506 ● ● ● ●
62 00.206 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 03 1 0507-0706 ● ● ● ● ● ●
62 00.206 BOLT; COVER
01.097 (C) M8X65 FLANGE 		1-09044-072-1 02 1 0707- ● ● ● ● ● ●
62 00.206 BOLT; COVER
04.686 (D) M8X30 FLANGE 		0-28680-830-0 01 1 0306-0404 ● ● ●
62 00.206 BOLT; COVER
04.686 (D) M8X30 FLANGE 		0-28680-830-0 01 1 0405-0501 ● ●
62 00.206 BOLT; COVER
CHARGE AIR COOLER<6PL> 04.686 (D) M8X30 FLANGE 		0-28680-830-0 01 1 0405-0501 ●
62 00.206 BOLT; COVER
04.686 (D) M8X30 FLANGE 		0-28680-830-0 01 1 0502-0506 ● ● ● ●
62 00.206 BOLT; COVER
04.686 (D) M8X30 FLANGE 		0-28680-830-0 01 1 0507-0512 ● ● ● ● ● ●
62 00.206 BOLT; COVER
03.403 (D) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ● ● ● ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1 		8-97028-748-1 01 1 0211-0501 ● ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1 		8-97028-748-1 01 1 0502-0506 ● ● ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1 		8-97028-748-1 01 1 0507- ● ● ● ● ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8 		9-09561-318-0 01 1 0211-0501 ● ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8 		9-09561-318-0 01 1 0502-0506 ● ● ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8 		9-09561-318-0 01 1 0507- ● ● ● ● ● ●
101 01.073 STUD; WATER PUMP
00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 0211-0501 ● ● ●
101 01.073 STUD; WATER PUMP
00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 0502-0506 ● ● ● ●
101 01.073 STUD; WATER PUMP
00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 0507- ● ● ● ● ● ●
101 01.073 STUD; WATER PUMP
01.428 UPPER M8X18 L=30 		9-04110-818-0 01 1 0211-0501 ● ● ●
101 01.073 STUD; WATER PUMP
01.428 UPPER M8X18 L=30 		9-04110-818-0 01 1 0502-0506 ● ● ● ●
101 01.073 STUD; WATER PUMP
01.428 UPPER M8X18 L=30 		9-04110-818-0 01 1 0507-0604 ● ● ● ● ● ●
101 01.073 STUD; WATER PUMP
01.428 UPPER M8X18 L=30 		0-41010-818-0 01 1 0605- ● ● ● ● ● ●
102 00.137 RETAINER; FRT
ANTI EROSION SPEC<7XK> 		8-98081-351-1 01 1 0812-1007 ●
102 00.137 RETAINER; FRT
ANTI EROSION SPEC<7XK> 		8-98081-351-1 01 1 1008-1103 ● ●
102 00.137 RETAINER; FRT
ANTI EROSION SPEC<7XK> 		8-98081-351-1 01 1 1104-1405 ● ● ● ●
102 00.137 RETAINER; FRT
ANTI EROSION SPEC<7XK> 		8-98081-351-1 01 1 1406- ● ● ● ● ●
102 00.137 RETAINER; FRT 8-97148-938-1 01 1 0507-0706 ● ●
102 00.137 RETAINER; FRT 8-98039-932-1 01 1 0707-0811 ● ● ● ● ● ●
102 00.137 RETAINER; FRT 8-98039-932-1 01 1 0812-1103 ● ● ● ● ●
102 00.137 RETAINER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-932-1 01 1 0812-1103 ●
102 00.137 RETAINER; FRT 8-98039-932-2 01 1 1104-1405 ● ●
102 00.137 RETAINER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-932-2 01 1 1104-1405 ● ● ● ●
102 00.137 RETAINER; FRT 8-98039-932-2 01 1 1406- ●
102 00.137 RETAINER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-932-2 01 1 1406- ● ● ● ● ●
102 00.137 RETAINER; FRT 8-97094-943-3 01 1 0211-0501 ● ●
102 00.137 RETAINER; FRT
EXC. CHARGE AIR COOLER<6PL> 		8-97094-943-3 01 1 0211-0501 ●
102 00.137 RETAINER; FRT 8-97094-943-3 01 1 0502-0706 ● ● ● ●
102 00.137 RETAINER; FRT
CHARGE AIR COOLER<6PL> 		8-97148-938-1 01 1 0211-0501 ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 0211-0501 ● ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 0502-0506 ● ● ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 0507- ● ● ● ● ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0211-0501 ● ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0502-0506 ● ● ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0507- ● ● ● ● ● ●
179 00.206 BOLT; BRKT
ENGINE POWER N-SPEC(7QV) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 0211-0501 ●
179 00.206 BOLT; BRKT
01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 0502-0512 ●
179 00.206 BOLT; BRKT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 00.004 (B) M10X18 FLANGE 		0-28181-018-0 02 1 0211-0501 ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 00.004 (B) M10X18 FLANGE 		0-28181-018-0 02 1 0502-0506 ●
179 00.206 BOLT; BRKT
00.004 (B) M10X18 FLANGE 		0-28181-018-0 02 1 0507-1405 ● ● ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 00.004 (B) M10X18 FLANGE 		0-28181-018-0 02 1 1406- ● ● ● ●
179 00.206 BOLT; BRKT
00.004 (B) M10X18 FLANGE 		0-28181-018-0 02 1 1406- ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 0507- ● ●
191 00.669 STAY; FLYWHEEL HSG
TURBOCHARGER(K51) 		8-97167-292-0 01 1 0211-0501 ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 0211-0501 ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 0211-0501 ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 0502-0506 ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 0507- ● ● ●
192 00.206 BOLT; STAY TO HSG
04.510 (C) M10X40 FLANGE 		0-28181-040-0 02 1 0507-0512 ● ●
192 00.206 BOLT; STAY TO HSG
09.171 (C) M10X40 FLANGE 		0-28151-040-0 02 1 0601- ● ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28181-250-0 02 1 0507-0512 ● ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28151-250-0 02 1 0601- ● ●
192 00.206 BOLT; STAY TO HSG
TURBOCHARGER(K51) 00.685 (A) M12X50 FLANGE 		0-28181-250-0 01 1 0211-0501 ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28181-250-0 01 1 0502-0512 ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28151-250-0 01 1 0601- ●
192 00.206 BOLT; STAY TO HSG
TURBOCHARGER(K51) (B) M12X100 FLANGE 		0-28181-200-0 01 1 0211-0501 ●
192 00.206 BOLT; STAY TO HSG
(B) M12X100 FLANGE 		0-28181-200-0 01 1 0211-0501 ●
192 00.206 BOLT; STAY TO HSG
(B) M12X100 FLANGE 		0-28181-200-0 01 1 0502-0506 ●
192 00.206 BOLT; STAY TO HSG
(B) M12X100 FLANGE 		0-28181-200-0 01 1 0507-0512 ● ● ●
192 00.206 BOLT; STAY TO HSG
02.510 (B) M12X100 FLANGE 		0-28151-200-0 01 1 0601- ● ● ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28181-250-0 02 1 0211-0501 ●
192 00.206 BOLT; STAY TO HSG
04.510 (C) M10X40 FLANGE 		0-28181-040-0 02 1 0211-0501 ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0311 ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0312-0501 ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0506 ●
202 00.206 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ●
202 00.206 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-1405 ● ● ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1406- ● ● ● ●
202 00.206 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1406- ●
225 01.428 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 0211-0501 ● ●
225 01.428 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 0502- ● ● ● ●
260 01.428 STUD; OIL PAN
ANTI EROSION SPEC<7XK> 02.510 M8X20 L=32 		0-41010-820-0 04 1 1104- ● ●
268 00.206 COVER; FRT
ANTI EROSION SPEC<7XK> 		8-98096-851-1 01 1 1104- ● ●
268 00.206 COVER; FRT
ANTI EROSION SPEC<7XK> 		8-98079-080-1 01 1 0812-1007 ●
268 00.206 COVER; FRT
ANTI EROSION SPEC<7XK> 		8-98079-080-1 01 1 1008-1405 ● ●
268 00.206 COVER; FRT
ANTI EROSION SPEC<7XK> 		8-98079-080-1 01 1 1406- ● ● ●
268 00.206 COVER; FRT 8-97148-937-3 01 1 0507- ● ●
268 00.206 COVER; FRT 8-97259-416-0 01 1 0211-0501 ● ●
268 00.206 COVER; FRT 8-97259-416-0 01 1 0502-0706 ● ● ● ●
268 00.206 COVER; FRT 8-98039-931-1 01 1 0707-0811 ● ● ● ●
268 00.206 COVER; FRT 8-98039-931-1 01 1 0812-1007 ● ● ●
268 00.206 COVER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-931-1 01 1 0812-1007 ●
268 00.206 COVER; FRT 8-98039-931-2 01 1 1008-1405 ● ●
268 00.206 COVER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-931-2 01 1 1008-1405 ● ●
268 00.206 COVER; FRT 8-98039-931-2 01 1 1406- ●
268 00.206 COVER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-931-2 01 1 1406- ● ● ●
268 00.206 COVER; FRT
CHARGE AIR COOLER<6PL> 		8-97148-937-1 01 1 0211-0501 ●
268 00.206 COVER; FRT
EXC. CHARGE AIR COOLER<6PL> 		8-97113-768-1 01 1 0211-0501 ●
373 00.206 BRACKET; PUMP
HYDRO BRAKE BOOSTER<7QQ> 		8-97149-333-0 01 1 0211-0501 ●
373 00.206 BRACKET; PUMP
HYDRO BRAKE BOOSTER<7QQ> 		8-97149-333-0 01 1 0502-0506 ●
373 00.206 BRACKET; PUMP 8-97149-333-0 01 1 0507-1405 ● ● ●
373 00.206 BRACKET; PUMP
HYDRO BRAKE BOOSTER<7QQ> 		8-97149-333-0 01 1 1406- ● ● ● ●
373 00.206 BRACKET; PUMP 8-97149-333-0 01 1 1406- ●
397 00.206 BRACKET; CONNECTOR
ENGINE POWER N-SPEC(7QV) 		8-97163-042-0 01 1 0211-0501 ●
397 00.206 BRACKET; CONNECTOR 8-97163-042-0 01 1 0502- ●

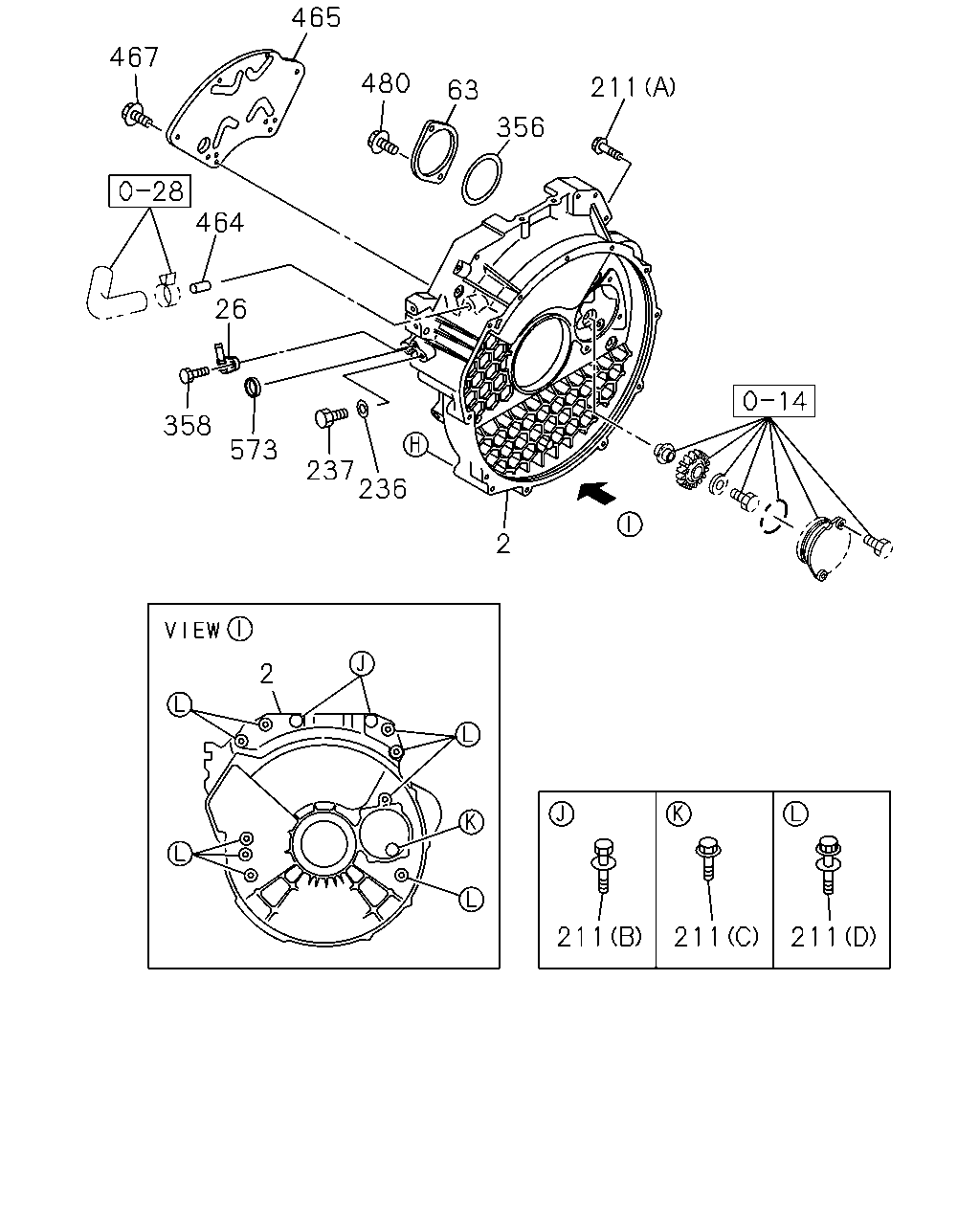

çizim 54655
465 467 480 211 63 356 464 26 358 573 237 236 2 2 211 211 211
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 00.683 HOUSING; FLYWHEEL 8-97364-901-5 01 1 0507- ● ●
2 00.683 HOUSING; FLYWHEEL 8-97241-584-0 01 1 0211-0308 ● ●
2 00.683 HOUSING; FLYWHEEL 8-97364-899-2 01 1 0309-0501 ● ●
2 00.683 HOUSING; FLYWHEEL 8-97364-899-6 01 1 0502- ● ● ● ●
2 00.683 HOUSING; FLYWHEEL 8-97209-886-3 01 1 0211-0308 ●
2 00.683 HOUSING; FLYWHEEL 8-97364-901-0 01 1 0309-0501 ●
26 03.306 ADAPTER 8-97354-819-0 01 1 0507- ● ●
63 00.206 COVER; P/S
EXC. POWER STEERING<N40> 		8-97126-392-0 01 1 0211-0501 ● ●
63 00.206 COVER; P/S
EXC. POWER STEERING<N40> 		8-97126-392-0 01 1 0502-0506 ● ● ●
63 00.206 COVER; P/S
EXC. POWER STEERING<N40> 		8-97126-392-0 01 1 0507- ● ● ● ●
211 00.669 BOLT; HSG
(B),(D) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 0507-1102 ● ●
211 00.669 BOLT; HSG
(B),(D) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1103- ● ●
211 00.669 BOLT; HSG
TURBOCHARGER(K51) (B) M8X20,M8X65 L=90 		8-97200-622-1 02 1 0211-0302 ●
211 00.669 BOLT; HSG
(B) M8X20,M8X65 L=90 		8-97200-622-1 02 1 0303-0501 ●
211 00.669 BOLT; HSG
(B) M8X20,M8X65 L=90 		8-97200-622-1 02 1 0502-1007 ●
211 00.669 BOLT; HSG
HYDRO BRAKE BOOSTER<7QQ> (B) M8X20,M8X65 L=90 		8-97200-622-1 02 1 1008- ● ●
211 00.669 BOLT; HSG
(B) M8X20,M8X65 L=90 		8-97200-622-1 02 1 1008- ●
211 00.669 BOLT; HSG
EXC. TURBOCHARGER(K51) (B) M8X65 W/PL WASHER 		8-94388-781-0 02 1 0211-0501 ●
211 00.669 BOLT; HSG
(B) M8X65 W/PL WASHER 		8-94388-781-0 02 1 0211-0501 ●
211 00.669 BOLT; HSG
(B) M8X65 W/PL WASHER 		8-94388-781-0 02 1 0502-1302 ● ● ●
211 00.669 BOLT; HSG
EXC. HYDRO BRAKE BOOSTER<7QQ> (B) M8X65 W/PL WASHER 		8-94388-781-0 02 1 1303- ● ●
211 00.669 BOLT; HSG
(B) M8X65 W/PL WASHER 		8-94388-781-0 02 1 1303- ●
211 00.669 BOLT; HSG
(D) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 09 1 0211-0501 ● ●
211 00.669 BOLT; HSG
(D) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 09 1 0502-1102 ● ● ● ●
211 00.669 BOLT; HSG
(D) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 09 1 1103- ● ● ● ●
211 00.669 BOLT; HSG
EXC. POWER STEERING<N40> (D) M14X35 FLANGE 		0-28791-435-0 01 1 0211-0501 ● ●
211 00.669 BOLT; HSG
EXC. POWER STEERING<N40> (D) M14X35 FLANGE 		0-28791-435-0 01 1 0502-0506 ● ● ●
211 00.669 BOLT; HSG
EXC. POWER STEERING<N40> (D) M14X35 FLANGE 		0-28791-435-0 01 1 0507-0512 ● ● ● ●
211 00.669 BOLT; HSG
EXC. POWER STEERING<N40> (D) M14X35 FLANGE 		0-28761-435-0 01 1 0601- ● ● ● ●
211 00.669 BOLT; HSG
(A) M10X40 FLANGE 		0-28781-040-0 01 1 0211-0501 ● ● ●
211 00.669 BOLT; HSG
(A) M10X40 FLANGE 		0-28781-040-0 01 1 0502-0506 ● ● ● ●
211 00.669 BOLT; HSG
(A) M10X40 FLANGE 		0-28781-040-0 01 1 0507-0512 ● ● ● ● ● ●
211 00.669 BOLT; HSG
00.029 (A) M10X40 FLANGE 		0-28751-040-0 01 1 0601- ● ● ● ● ● ●
211 00.669 BOLT; HSG
(C) M12X30 FLANGE 		8-97135-419-0 01 1 0211-0501 ● ● ●
211 00.669 BOLT; HSG
(C) M12X30 FLANGE 		8-97135-419-0 01 1 0502-0506 ● ● ● ●
211 00.669 BOLT; HSG
(C) M12X30 FLANGE 		8-97135-419-0 01 1 0507- ● ● ● ● ● ●
211 00.669 BOLT; HSG
(B),(D) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 0211-0501 ●
236 00.669 GASKET; FLYWHEEL HSG
ENGINE POWER N-SPEC(7QV) 01.531 ID=10.2 OD=15.2 		1-09630-083-0 01 1 0211-0501 ●
236 00.669 GASKET; FLYWHEEL HSG
01.531 ID=10.2 OD=15.2 		1-09630-083-0 01 1 0502- ●
237 00.686 PLUG; FLYWHEEL HSG
ENGINE POWER N-SPEC(7QV) 04.640 M10X12 FLANGE 		0-28081-012-0 01 1 0211-0501 ●
237 00.686 PLUG; FLYWHEEL HSG
04.640 M10X12 FLANGE 		0-28081-012-0 01 1 0502-0506 ●
237 00.686 PLUG; FLYWHEEL HSG
04.640 M10X12 FLANGE 		0-28081-012-0 01 1 0507-0512 ● ● ●
237 00.686 PLUG; FLYWHEEL HSG
06.225 M10X12 FLANGE 		0-28051-012-0 01 1 0601- ● ● ●
356 00.207 GASKET; COVER
EXC. POWER STEERING<N40> 06.673 		8-97101-875-2 01 1 0211-0501 ● ●
356 00.207 GASKET; COVER
EXC. POWER STEERING<N40> 06.673 		8-97101-875-2 01 1 0502-0506 ● ● ●
356 00.207 GASKET; COVER
EXC. POWER STEERING<N40> 06.673 		8-97101-875-2 01 1 0507- ● ● ● ●
358 00.206 BOLT; ADAPTER
00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0507-0512 ● ●
358 00.206 BOLT; ADAPTER
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0601- ● ●
464 00.686 PIPE; PCV,FLYWHEEL HSG
00.669 		8-94373-246-3 01 1 0211-0501 ● ● ●
464 00.686 PIPE; PCV,FLYWHEEL HSG
00.669 		8-94373-246-3 01 1 0502-0506 ● ● ● ●
464 00.686 PIPE; PCV,FLYWHEEL HSG
00.669 		8-94373-246-3 01 1 0507- ● ● ● ● ● ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-823-0 01 1 0507- ● ●
465 00.686 PLATE; FLYWHEEL HSG
00.669 		8-94370-384-3 01 1 0211-0308 ● ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-824-1 01 1 0309-0501 ● ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-824-1 01 1 0502- ● ● ● ●
465 00.686 PLATE; FLYWHEEL HSG 8-97212-490-0 01 1 0211-0308 ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-823-0 01 1 0309-0501 ●
467 00.686 BOLT; PLATE
02.500 M6X10 FLANGE 		0-28080-610-0 06 1 0211-0501 ● ● ●
467 00.686 BOLT; PLATE
02.500 M6X10 FLANGE 		0-28080-610-0 06 1 0502-0506 ● ● ● ●
467 00.686 BOLT; PLATE
02.500 M6X10 FLANGE 		0-28080-610-0 06 1 0507-0507 ● ● ● ● ● ●
467 00.686 BOLT; PLATE
05.815 M6X10 		0-20800-610-0 06 1 0508-0805 ● ● ● ● ● ●
467 00.686 BOLT; PLATE
06.321 M6X10 		8-98030-649-0 06 1 0806- ● ● ● ● ● ●
480 00.206 BOLT; COVER
M/T MZZ6U(RSF) EXC. PTO TRANSMISSION SIDE(V66) M10X20 FLANGE 		8-98014-142-0 08 1 0605- ●
480 00.206 BOLT; COVER
EXC. POWER STEERING<N40> 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0211-0501 ● ●
480 00.206 BOLT; COVER
EXC. POWER STEERING<N40> 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0502-0506 ● ● ●
480 00.206 BOLT; COVER
EXC. POWER STEERING<N40> 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0507-0805 ● ● ● ●
480 00.206 BOLT; COVER
EXC. POWER STEERING<N40> 04.439 M10X28 FLANGE 		8-98044-944-0 02 1 0806-1010 ● ● ● ●
480 00.206 BOLT; COVER
EXC. POWER STEERING<N40> 00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1011- ● ● ● ●
573 00.206 CUP; SEALING
00.034 OD=19 		8-94150-231-0 01 1 0211-0501 ● ● ●
573 00.206 CUP; SEALING
00.034 OD=19 		8-94150-231-0 01 1 0502- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
