0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#42541) — 153 parça

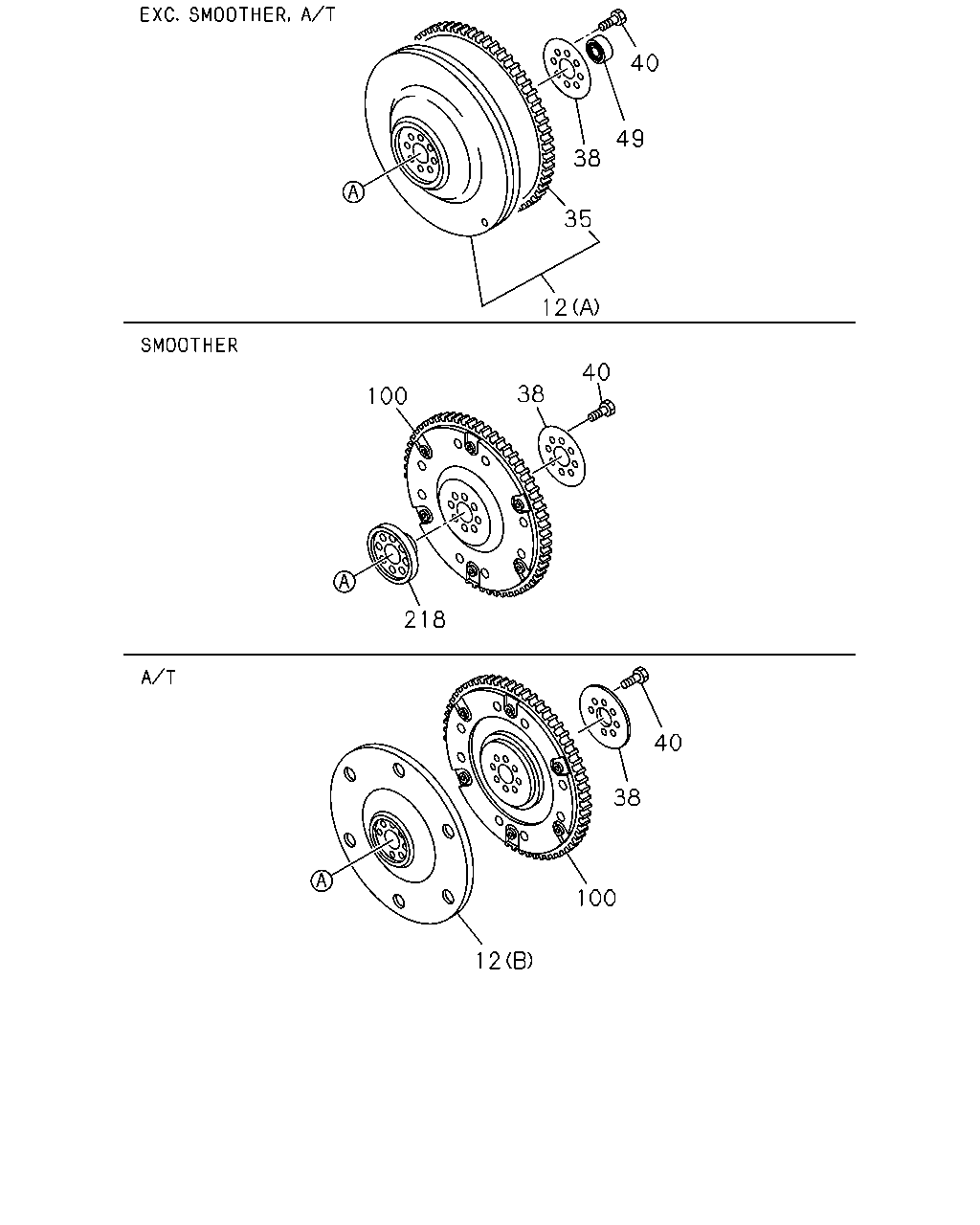

çizim 54142
40 49 38 35 12 40 38 100 218 40 38 100 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
12 00.666 FLYWHEEL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97326-227-2 01 1 0507- ● ●
12 00.666 FLYWHEEL
(A) 		8-97330-892-0 01 1 0211-0501 ● ●
12 00.666 FLYWHEEL
ENGINE POWER N-SPEC(7QV) (A) 		8-97330-892-0 01 1 0211-0501 ●
12 00.666 FLYWHEEL
(A) 		8-97330-892-1 01 1 0502- ● ● ● ●
12 00.666 FLYWHEEL
A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> (B) 		8-97170-778-1 01 1 0211-0501 ●
12 00.666 FLYWHEEL
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97166-516-0 01 1 0211-0501 ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-0 01 1 0211-0501 ● ●
35 00.673 GEAR; RING
FLOOR REMOTE SHIFT<M11> Z=138 		8-97046-366-0 01 1 0211-0501 ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-0 01 1 0502-0506 ● ● ● ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-1 01 1 0507-1007 ● ● ● ● ● ●
35 00.673 GEAR; RING
Z=138 		8-97046-366-1 01 1 1008- ● ● ● ●
35 00.673 GEAR; RING
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=138 		8-97046-366-1 01 1 1008- ● ●
38 00.862 WASHER; FLYWHEEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97170-830-1 01 1 0507-0703 ●
38 00.862 WASHER; FLYWHEEL
TRANSMISSION CONTROL-SMOOTHER(8GF) ID=50 OD=120 		8-98001-510-0 01 1 0704-1009 ●
38 00.862 WASHER; FLYWHEEL
TRANSMISSION CONTROL-SMOOTHER(8GF) ID=50 OD=140 		8-98176-366-0 01 1 1010- ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0211-0501 ● ●
38 00.862 WASHER; FLYWHEEL
FLOOR REMOTE SHIFT<M11> ID=55 OD=110 		8-94397-496-1 01 1 0211-0501 ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0502-0506 ● ● ● ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0507-1007 ● ● ● ● ●
38 00.862 WASHER; FLYWHEEL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=55 OD=110 		8-94397-496-1 01 1 0507-1007 ●
38 00.862 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 1008- ● ● ● ●
38 00.862 WASHER; FLYWHEEL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=55 OD=110 		8-94397-496-1 01 1 1008- ● ●
38 00.862 WASHER; FLYWHEEL
A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> 		8-97170-830-1 01 1 0211-0311 ●
40 00.669 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 0211-0501 ● ●
40 00.669 BOLT; FLYWHEEL
FLOOR REMOTE SHIFT<M11> M16X42 		8-97178-013-0 08 1 0211-0501 ●
40 00.669 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 0502-0506 ● ● ● ●
40 00.669 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 0507- ● ● ● ● ● ●
40 00.669 BOLT; FLYWHEEL
A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> M16X51 		8-94334-870-1 08 1 0211-0501 ●
49 00.669 BEARING; PILOT 8-97258-239-0 01 1 0211-0501 ● ●
49 00.669 BEARING; PILOT
FLOOR REMOTE SHIFT<M11> 		8-97258-239-0 01 1 0211-0501 ●
49 00.669 BEARING; PILOT 8-97258-239-0 01 1 0502-0506 ● ● ● ●
49 00.669 BEARING; PILOT 8-97258-239-0 01 1 0507-1007 ● ● ● ● ●
49 00.669 BEARING; PILOT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97258-239-0 01 1 0507-1007 ●
49 00.669 BEARING; PILOT 8-97258-239-0 01 1 1008- ● ● ● ●
49 00.669 BEARING; PILOT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97258-239-0 01 1 1008- ● ●
49 00.669 BEARING; PILOT
BEST VALUE PARTS 		5-87610-164-0 01 1 0211-0501 ● ●
49 00.669 BEARING; PILOT
FLOOR REMOTE SHIFT<M11> BEST VALUE PARTS 		5-87610-164-0 01 1 0211-0501 ●
49 00.669 BEARING; PILOT
BEST VALUE PARTS 		5-87610-164-0 01 1 0502-0506 ● ● ● ●
49 00.669 BEARING; PILOT
BEST VALUE PARTS 		5-87610-164-0 01 1 0507-1007 ● ● ● ● ●
49 00.669 BEARING; PILOT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BEST VALUE PARTS 		5-87610-164-0 01 1 0507-1007 ●
49 00.669 BEARING; PILOT
BEST VALUE PARTS 		5-87610-164-0 01 1 1008- ● ● ● ●
49 00.669 BEARING; PILOT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BEST VALUE PARTS 		5-87610-164-0 01 1 1008- ● ●
100 00.666 PLATE; FLEX
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97362-336-3 01 1 0507- ●
100 00.666 PLATE; FLEX
A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> 		8-97170-780-2 01 1 0211-0501 ●
218 00.662 SPACER; CRANK END
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97332-858-1 01 1 0507- ●

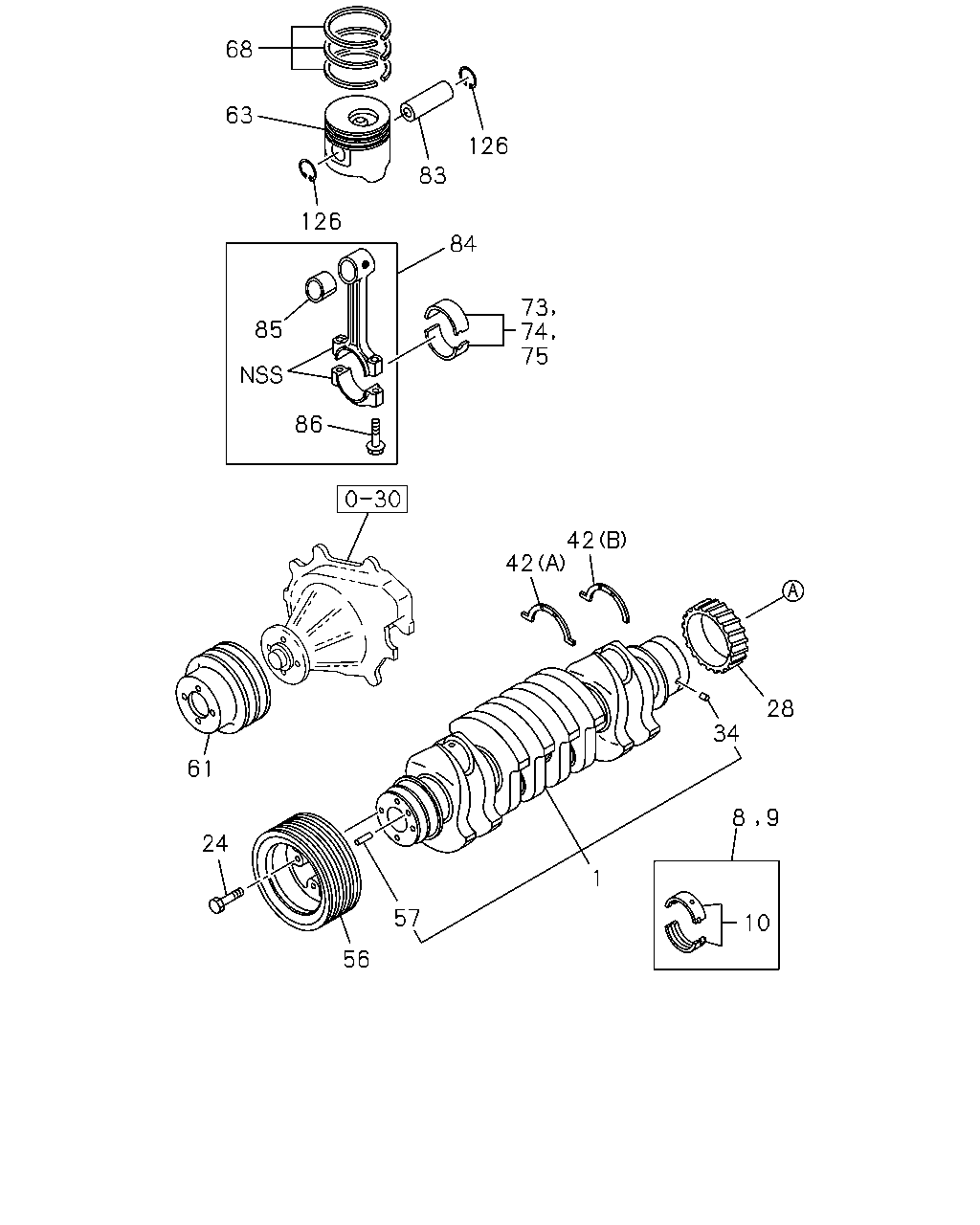

çizim 55671
68 63 126 83 126 84 73 74 75 85 86 42 42 28 34 61 9 8 24 1 57 10 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.646 CRANKSHAFT 8-97352-534-3 01 1 0507-0509 ● ●
1 00.646 CRANKSHAFT 8-98029-270-0 01 1 0510- ● ●
1 00.646 CRANKSHAFT 8-97112-981-3 01 1 0211-0501 ● ●
1 00.646 CRANKSHAFT 8-97112-981-3 01 1 0502- ● ● ● ●
1 00.646 CRANKSHAFT 8-97165-483-0 01 1 0211-0212 ●
1 00.646 CRANKSHAFT 8-97352-534-2 01 1 0301-0501 ●
8 00.094 METAL KIT; CRANKSHAFT,U/S=0.25 5-87310-546-0 01 1 0211-0303 ● ●
9 00.094 METAL KIT; CRANKSHAFT,U/S=0.50 5-87310-547-0 01 1 0211-0303 ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97219-456-0 05 1 0211-0303 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-0 05 1 0304-0501 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-0 05 1 0502-0506 ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-1 05 1 0507- ● ● ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97219-457-0 05 1 0211-0303 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-0 05 1 0304-0501 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-0 05 1 0502-0506 ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-1 05 1 0507- ● ● ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97219-458-0 05 1 0211-0303 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-0 05 1 0304-0501 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-0 05 1 0502-0506 ● ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-1 05 1 0507- ● ● ● ● ● ●
24 00.659 BOLT; DAMPER
M16X42 		8-97028-733-0 04 1 0211-0501 ● ● ●
24 00.659 BOLT; DAMPER
M16X42 		8-97028-733-0 04 1 0502-0506 ● ● ● ●
24 00.659 BOLT; DAMPER
M16X42 		8-97028-733-0 04 1 0507- ● ● ● ● ● ●
28 00.728 GEAR; CR/SHF
Z=42 		8-94394-342-4 01 1 0507- ● ●
28 00.728 GEAR; CR/SHF
Z=42 		8-97109-626-1 01 1 0211-0501 ● ●
28 00.728 GEAR; CR/SHF
Z=42 		8-97109-626-1 01 1 0502- ● ● ● ●
28 00.728 GEAR; CR/SHF
Z=42 		8-94394-342-4 01 1 0211-0501 ●
34 00.738 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 02 1 0502- ● ● ● ●
34 00.738 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 0507- ● ●
34 00.738 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 0211-0501 ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 0211-0501 ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 0502-0506 ● ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 0507-0703 ● ● ● ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-97386-548-0 01 1 0704- ● ● ● ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 0211-0501 ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 0502-0506 ● ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 0507-0703 ● ● ● ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-97386-549-0 02 1 0704- ● ● ● ● ● ●
56 00.659 PULLEY; CR/SHF DAMPER
4-GROOVE 		8-97222-031-3 01 1 0211-0501 ● ● ●
56 00.659 PULLEY; CR/SHF DAMPER
4-GROOVE 		8-97222-031-3 01 1 0502-0506 ● ● ● ●
56 00.659 PULLEY; CR/SHF DAMPER
4-GROOVE 		8-97222-031-3 01 1 0507- ● ● ● ● ● ●
57 00.662 PIN; PULLEY
00.862 OD=8 L=20 		9-08150-820-0 04 1 0502- ● ● ● ●
57 00.662 PIN; PULLEY
00.862 OD=8 L=20 		9-08150-820-0 02 1 0507- ● ●
57 00.662 PIN; PULLEY
08.939 OD=8 L=16 		9-08150-816-0 02 1 0211-0212 ● ● ●
57 00.662 PIN; PULLEY
08.939 OD=8 L=20 		9-08160-820-0 02 1 0301-0304 ● ● ●
57 00.662 PIN; PULLEY
00.862 OD=8 L=20 		9-08150-820-0 02 1 0305-0501 ● ● ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97364-396-1 01 1 0507- ● ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97174-757-3 01 1 0211-0501 ● ● ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97174-757-3 01 1 0502- ● ● ● ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97602-800-0 04 1 0507- ● ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97219-032-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97219-032-1 04 1 0502-1112 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-98209-745-0 04 1 1201- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER(K51) NON GRADE 		8-97183-666-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97183-666-1 04 1 0502-1112 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-98209-746-0 04 1 1201- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97176-657-2 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97176-657-2 04 1 0502- ● ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX 		8-97251-696-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX 		8-97251-697-0 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=AX 		8-97176-652-1 04 1 0211-0501 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=CX 		8-97176-653-1 04 1 0211-0501 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97603-423-1 04 1 0507- ● ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97219-054-0 04 1 0211-0501 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97219-054-0 04 1 0502- ● ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97109-462-0 04 1 0211-0501 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97109-462-0 04 1 0502- ● ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> 		8-97166-992-1 04 1 0211-0501 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> 		8-97078-779-1 04 1 0211-0501 ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-94395-757-1 04 1 0507-0701 ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-98064-282-0 04 1 0702-0706 ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-98055-480-0 04 1 0707- ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97131-186-1 04 1 0507-0701 ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-98064-281-0 04 1 0702-0706 ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-98055-479-0 04 1 0707- ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 0211-0501 ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 0502- ● ● ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 0211-0501 ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 0502- ● ● ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-94395-757-1 04 1 0211-0501 ●
74 00.616 METAL SET; CONN ROD,U/S=0.25 8-97175-127-0 04 1 0211-0501 ● ●
74 00.616 METAL SET; CONN ROD,U/S=0.25 8-97175-127-0 04 1 0502- ● ● ● ●
75 00.616 METAL SET; CONN ROD,U/S=0.50 8-97175-128-0 04 1 0211-0501 ● ●
75 00.616 METAL SET; CONN ROD,U/S=0.50 8-97175-128-0 04 1 0502- ● ● ● ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-731-1 04 1 0507- ● ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-1 04 1 0211-0501 ● ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-1 04 1 0502- ● ● ● ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-731-1 04 1 0211-0501 ●
84 00.603 ROD ASM; CONN 8-94399-661-2 04 1 0507-0706 ● ●
84 00.603 ROD ASM; CONN 8-98018-425-3 04 1 0707- ● ●
84 00.603 ROD ASM; CONN 8-97135-032-1 04 1 0211-0501 ● ●
84 00.603 ROD ASM; CONN 8-97135-032-6 04 1 0502- ● ● ● ●
84 00.603 ROD ASM; CONN 8-94399-661-2 04 1 0211-0501 ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94394-613-0 04 1 0507-0706 ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94391-794-1 04 1 0707- ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-036-0 04 1 0211-0501 ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-036-0 04 1 0502-0805 ● ● ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 00.603 		8-98075-233-0 04 1 0806-0905 ● ● ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-98121-309-0 04 1 0906- ● ● ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94394-613-0 04 1 0211-0501 ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 0211-0501 ● ● ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 0502-0506 ● ● ● ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 0507-1004 ● ● ● ● ● ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		8-98091-141-0 08 1 1005- ● ● ● ● ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-081-1 08 1 0507- ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=38.8 		8-94318-798-2 08 1 0211-0501 ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=38.8 		8-94318-798-2 08 1 0502- ● ● ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-081-1 08 1 0211-0501 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
