0-10 — CYLINDER HEAD COVER (#42536) — 91 parça

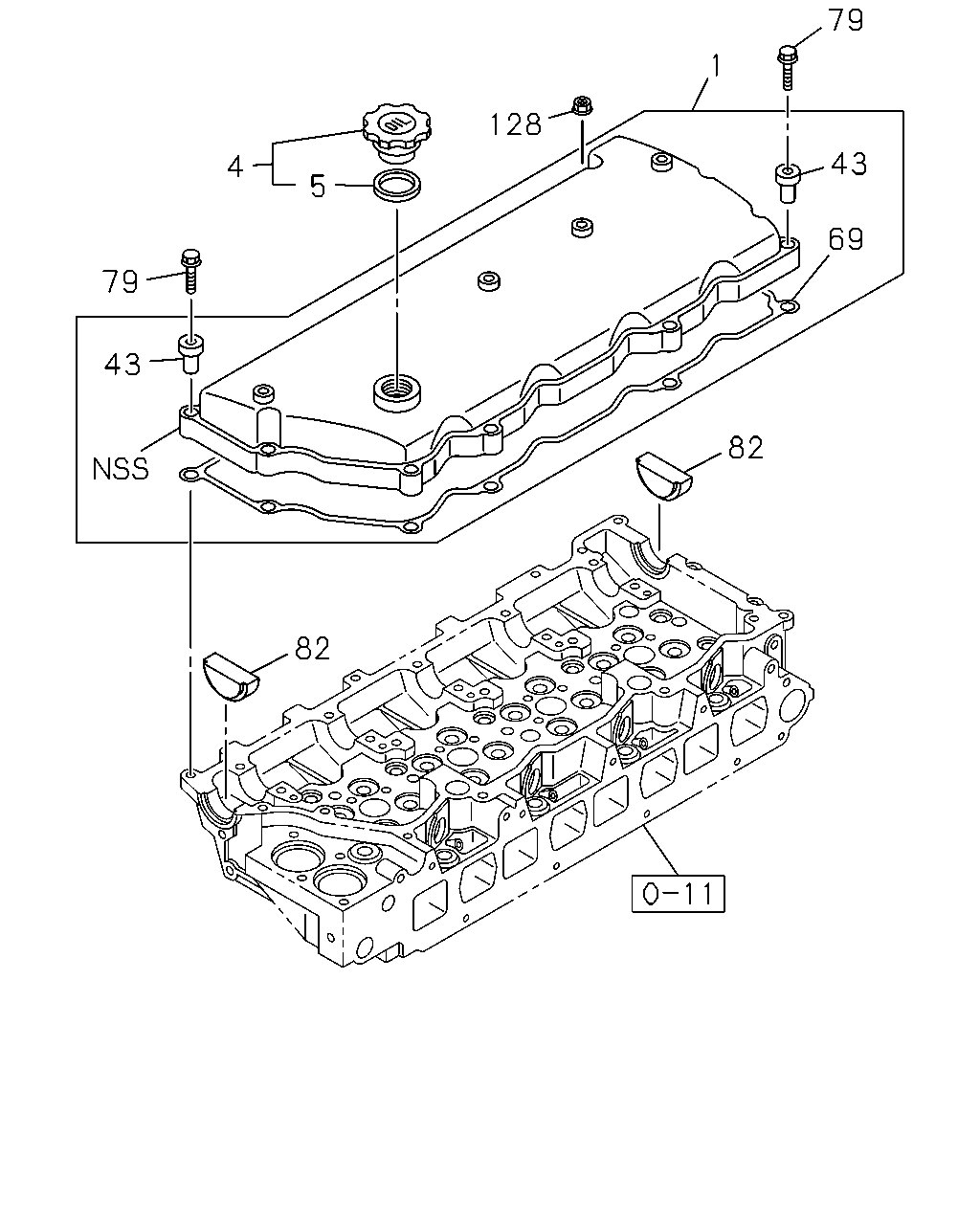

çizim 54110
79 1 128 43 4 5 69 79 43 82 82
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.386 COVER; CYL HD 8-97331-361-2 01 1 0507- ● ●
1 00.386 COVER; CYL HD
TURBOCHARGER(K51) 		8-97113-025-3 01 1 0211-0501 ●
1 00.386 COVER; CYL HD 8-97113-025-3 01 1 0211-0501 ●
1 00.386 COVER; CYL HD 8-97113-025-3 01 1 0502-0910 ●
1 00.386 COVER; CYL HD 8-97113-025-3 01 1 0911-1006 ● ● ● ●
1 00.386 COVER; CYL HD 8-98171-615-0 01 1 1007- ● ● ● ●
1 00.386 COVER; CYL HD
EXC. TURBOCHARGER(K51) 		8-97226-760-1 01 1 0211-0501 ●
1 00.386 COVER; CYL HD 8-97226-760-1 01 1 0211-0501 ●
1 00.386 COVER; CYL HD 8-97226-760-1 01 1 0502-0910 ● ● ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0211-0501 ● ● ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0502-0506 ● ● ● ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0507- ● ● ● ● ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0502-0506 ● ● ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0507- ● ● ● ● ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0211-0501 ● ● ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
OD=22 		8-94395-684-0 11 1 0507- ● ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
TURBOCHARGER(K51) 03.265 OD=23 		8-97105-689-6 15 1 0211-0501 ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
03.265 OD=23 		8-97105-689-6 15 1 0211-0501 ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
03.265 OD=23 		8-97105-689-6 15 1 0502-0910 ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
03.265 OD=23 		8-97105-689-6 15 1 0911- ● ● ● ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
EXC. TURBOCHARGER(K51) OD=23 		8-97190-120-2 08 1 0211-0501 ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
OD=23 		8-97190-120-2 08 1 0211-0501 ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
OD=23 		8-97190-120-2 08 1 0502-0910 ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97331-359-1 01 1 0507- ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97105-690-2 01 1 0211-0501 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97105-690-2 01 1 0211-0501 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97105-690-2 01 1 0502-0910 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97105-690-2 01 1 0911- ● ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97189-871-1 01 1 0211-0501 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97189-871-1 01 1 0211-0501 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97189-871-1 01 1 0502-0910 ● ● ●
79 00.293 BOLT; COVER
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0507-0512 ● ●
79 00.293 BOLT; COVER
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
79 00.293 BOLT; COVER
01.097 M8X65 FLANGE 		1-09044-072-1 07 1 0507- ● ●
82 00.386 PLUG; CYL HD COVER 8-94399-605-0 02 1 0211-0501 ● ● ●
82 00.386 PLUG; CYL HD COVER 8-94399-605-0 02 1 0502-0506 ● ● ● ●
82 00.386 PLUG; CYL HD COVER 8-94399-605-0 02 1 0507-1005 ● ● ● ● ● ●
82 00.386 PLUG; CYL HD COVER 8-98163-813-0 02 1 1006- ● ● ● ● ● ●
128 00.413 NUT; COVER,CYL HEAD COVER
07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ●
128 00.413 NUT; COVER,CYL HEAD COVER
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●

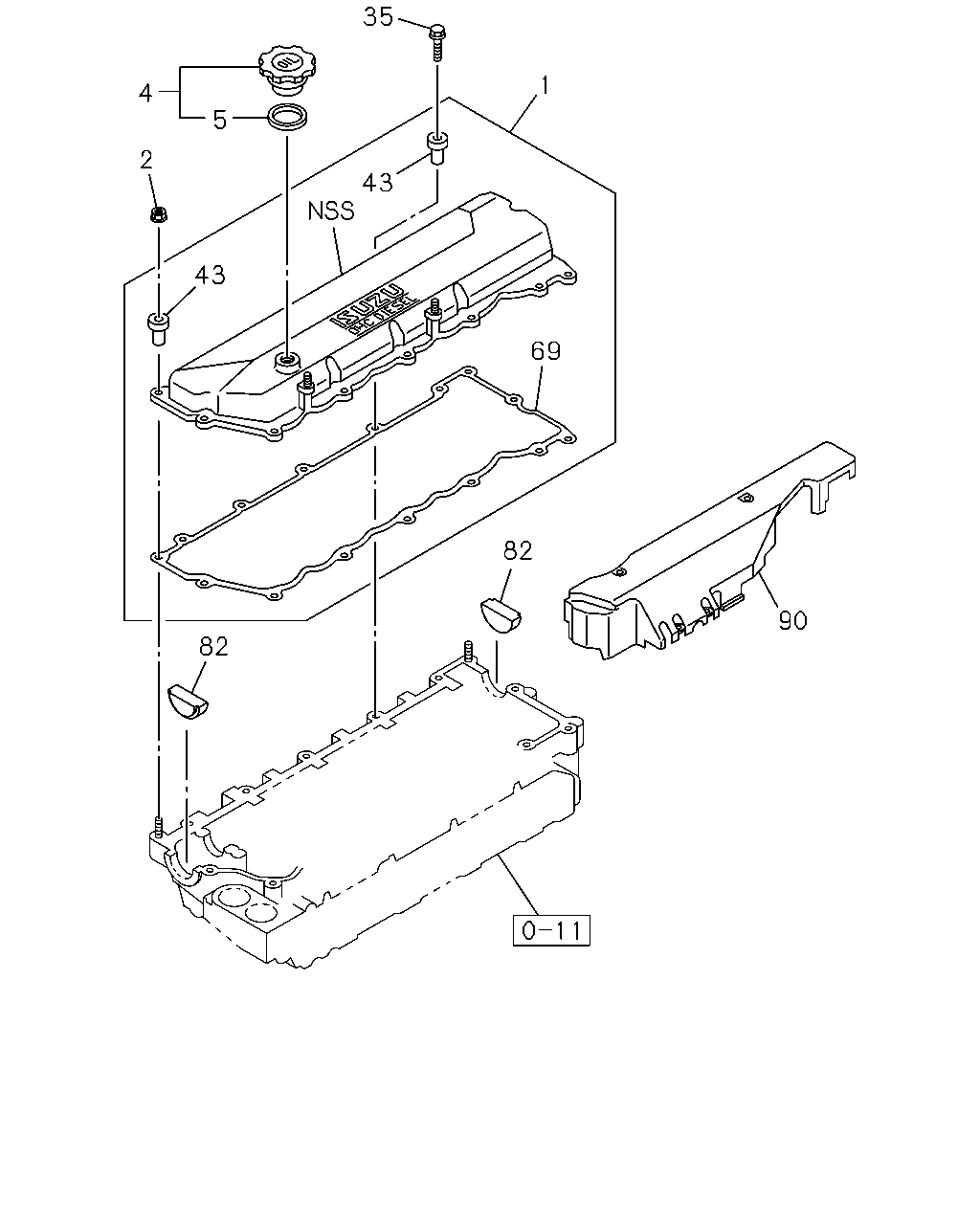

çizim 55621
35 1 4 5 2 43 43 69 82 90 82
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.386 COVER; CYL HD 8-97331-361-2 01 1 0507- ● ●
1 00.386 COVER; CYL HD
TURBOCHARGER(K51) 		8-97113-025-3 01 1 0211-0501 ●
1 00.386 COVER; CYL HD 8-97113-025-3 01 1 0211-0501 ●
1 00.386 COVER; CYL HD 8-97113-025-3 01 1 0502-0910 ●
1 00.386 COVER; CYL HD 8-97113-025-3 01 1 0911-1006 ● ● ● ●
1 00.386 COVER; CYL HD 8-98171-615-0 01 1 1007- ● ● ● ●
1 00.386 COVER; CYL HD
EXC. TURBOCHARGER(K51) 		8-97226-760-1 01 1 0211-0501 ●
1 00.386 COVER; CYL HD 8-97226-760-1 01 1 0211-0501 ●
1 00.386 COVER; CYL HD 8-97226-760-1 01 1 0502-0910 ● ● ●
2 00.413 NUT; COVER,HD
07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
2 00.413 NUT; COVER,HD
07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
2 00.413 NUT; COVER,HD
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ●
2 00.413 NUT; COVER,HD
07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ●
2 00.413 NUT; COVER,HD
07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ● ●
2 00.413 NUT; COVER,HD
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0211-0501 ● ● ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0502-0506 ● ● ● ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0507- ● ● ● ● ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0502-0506 ● ● ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0507- ● ● ● ● ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0211-0501 ● ● ●
35 00.293 BOLT; NOISE SHIELD COVER
04.686 M8X30 FLANGE 		0-28680-830-0 12 1 0211-0501 ●
35 00.293 BOLT; NOISE SHIELD COVER
04.686 M8X30 FLANGE 		0-28680-830-0 12 1 0502-0512 ●
35 00.293 BOLT; NOISE SHIELD COVER
03.403 M8X30 FLANGE 		0-28650-830-0 12 1 0601- ●
35 00.293 BOLT; NOISE SHIELD COVER
EXC. TURBOCHARGER(K51) 03.704 M8X40 FLANGE 		0-28680-840-0 06 1 0211-0501 ●
35 00.293 BOLT; NOISE SHIELD COVER
03.704 M8X40 FLANGE 		0-28680-840-0 06 1 0211-0501 ●
35 00.293 BOLT; NOISE SHIELD COVER
03.704 M8X40 FLANGE 		0-28680-840-0 06 1 0502-0512 ● ● ●
35 00.293 BOLT; NOISE SHIELD COVER
00.685 M8X40 FLANGE 		0-28650-840-0 06 1 0601-0910 ● ● ●
35 00.293 BOLT; NOISE SHIELD COVER
03.403 M8X30 FLANGE 		0-28650-830-0 13 1 0911- ● ● ●
35 00.293 BOLT; NOISE SHIELD COVER
04.686 M8X30 FLANGE 		0-28680-830-0 13 1 0211-0501 ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
OD=22 		8-94395-684-0 11 1 0507- ● ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
TURBOCHARGER(K51) 03.265 OD=23 		8-97105-689-6 15 1 0211-0501 ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
03.265 OD=23 		8-97105-689-6 15 1 0211-0501 ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
03.265 OD=23 		8-97105-689-6 15 1 0502-0910 ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
03.265 OD=23 		8-97105-689-6 15 1 0911- ● ● ● ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
EXC. TURBOCHARGER(K51) OD=23 		8-97190-120-2 08 1 0211-0501 ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
OD=23 		8-97190-120-2 08 1 0211-0501 ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
OD=23 		8-97190-120-2 08 1 0502-0910 ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97331-359-1 01 1 0507- ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97105-690-2 01 1 0211-0501 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97105-690-2 01 1 0211-0501 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97105-690-2 01 1 0502-0910 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97105-690-2 01 1 0911- ● ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) EXC. TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97189-871-1 01 1 0211-0501 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97189-871-1 01 1 0211-0501 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97189-871-1 01 1 0502-0910 ● ● ●
82 00.386 PLUG; CYL HD COVER 8-94399-605-0 02 1 0211-0501 ● ● ●
82 00.386 PLUG; CYL HD COVER 8-94399-605-0 02 1 0502-0506 ● ● ● ●
82 00.386 PLUG; CYL HD COVER 8-94399-605-0 02 1 0507-1005 ● ● ● ● ● ●
82 00.386 PLUG; CYL HD COVER 8-98163-813-0 02 1 1006- ● ● ● ● ● ●
90 00.386 COVER; NOZZLE,INJ
CHARGE AIR COOLER<6PL> 		8-97175-141-0 01 1 0211-0501 ●
