◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50948 - NPR/NQR RHDEXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#42535) — 138 parça

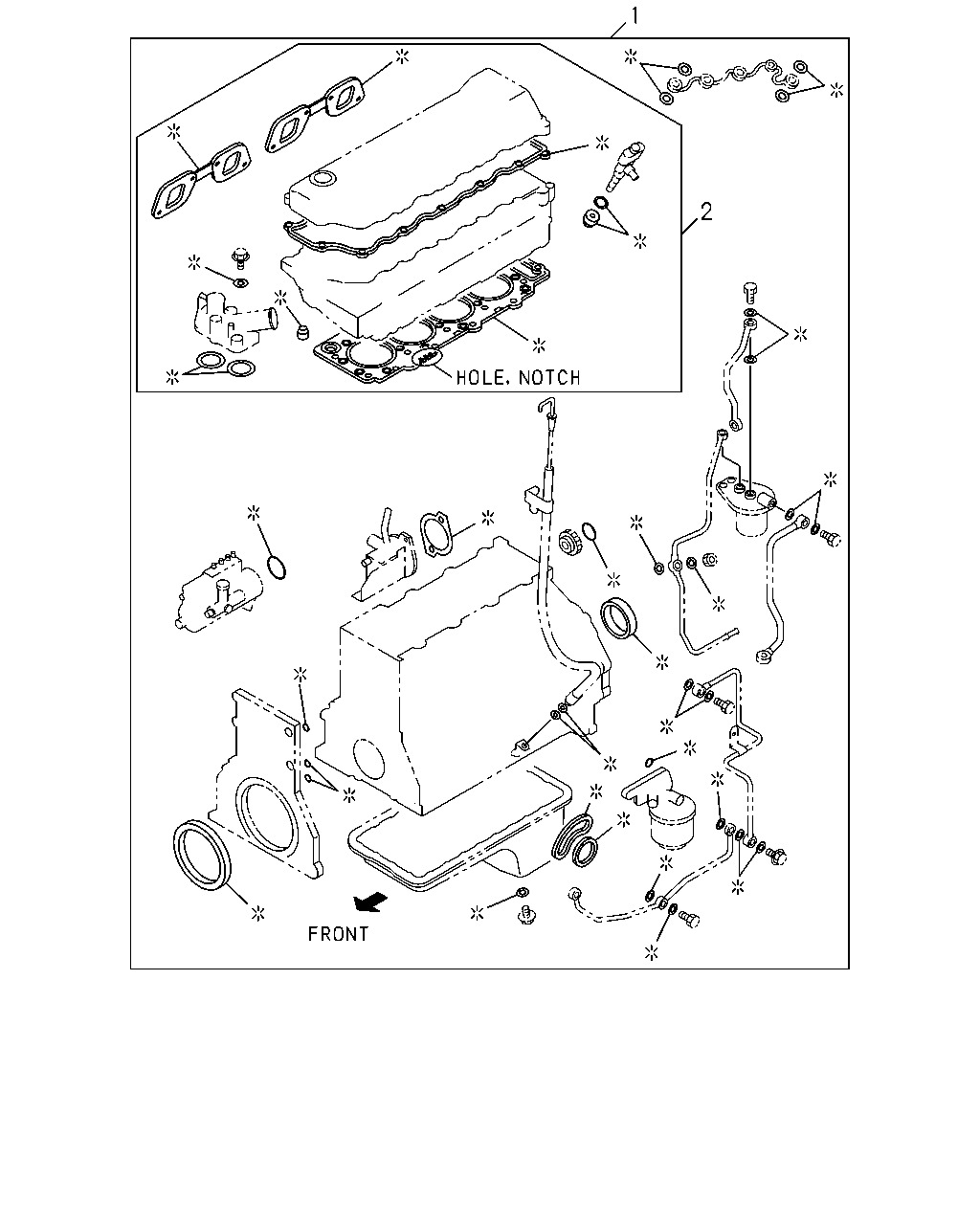

çizim 54833
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-770-0 01 1 0507-0507 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-881-2 01 1 0508-0707 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-193-1 01 1 0708-0902 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-473-0 01 1 0903-0908 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-540-1 01 1 0909-1005 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-786-0 01 1 1006-1006 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-792-0 01 1 1007-1101 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-999-2 01 1 1102-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-085-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-729-0 01 1 1502- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-771-0 01 1 0507-0507 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-882-2 01 1 0508-0707 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-194-1 01 1 0708-0902 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-474-0 01 1 0903-0908 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-541-1 01 1 0909-1005 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-787-0 01 1 1006-1006 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-793-0 01 1 1007-1101 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87816-001-2 01 1 1102-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-086-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-730-0 01 1 1502- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-772-0 01 1 0507-0507 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-883-2 01 1 0508-0707 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-195-1 01 1 0708-0902 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-475-0 01 1 0903-0908 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-542-1 01 1 0909-1005 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-788-0 01 1 1006-1006 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-794-0 01 1 1007-1101 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87816-002-2 01 1 1102-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-087-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-731-0 01 1 1502- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-350-2 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-350-3 01 1 0502-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-494-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-706-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-968-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-032-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-351-2 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-351-3 01 1 0502-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-495-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-707-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-969-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-033-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-352-2 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-352-3 01 1 0502-0902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-496-1 01 1 0903-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-708-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-970-1 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-034-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87814-347-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-347-4 01 1 0502-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-653-2 01 1 0911-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-029-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87814-348-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-348-4 01 1 0502-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-654-2 01 1 0911-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-030-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87814-349-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-349-4 01 1 0502-0910 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-655-2 01 1 0911-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-031-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-344-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-344-4 01 1 0502-0910 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-428-4 01 1 0911-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-207-1 01 1 1401- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-345-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-345-4 01 1 0502-0910 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-429-4 01 1 0911-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-208-1 01 1 1401- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-346-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-346-4 01 1 0502-0910 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-430-4 01 1 0911-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-209-1 01 1 1401- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-332-1 01 1 0211-0307 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-433-1 01 1 0308-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-333-1 01 1 0211-0307 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-434-1 01 1 0308-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-334-1 01 1 0211-0307 ●
1 00.010 GASKET SET; ENG OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-435-1 01 1 0308-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-341-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-342-3 01 1 0211-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-343-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-691-0 01 1 0507-0507 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-884-0 01 1 0508-0512 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-938-0 01 1 0601-0707 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-127-1 01 1 0708-0908 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-543-3 01 1 0909-1501 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-732-0 01 1 1502- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-692-0 01 1 0507-0507 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-885-0 01 1 0508-0512 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-939-0 01 1 0601-0707 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-128-1 01 1 0708-0908 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-544-3 01 1 0909-1501 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-733-0 01 1 1502- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-693-0 01 1 0507-0507 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-886-0 01 1 0508-0512 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-940-0 01 1 0601-0707 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-129-1 01 1 0708-0908 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-545-3 01 1 0909-1501 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-734-0 01 1 1502- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-963-2 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-963-4 01 1 0502-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-038-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-964-2 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-964-4 01 1 0502-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-039-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-965-2 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-965-4 01 1 0502-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-040-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.475 NON-HOLE 		5-87814-232-1 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-232-1 01 1 0502-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-656-2 01 1 0911-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-035-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.525 1-HOLE 		5-87814-233-1 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-233-1 01 1 0502-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-657-2 01 1 0911-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-036-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER(K51) T=1.575 2-HOLE 		5-87814-234-1 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-234-1 01 1 0502-0910 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-658-2 01 1 0911-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-037-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-229-1 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-229-1 01 1 0502-0910 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-957-4 01 1 0911-1312 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-123-1 01 1 1401- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-230-1 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-230-1 01 1 0502-0910 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-958-4 01 1 0911-1312 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-124-1 01 1 1401- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-231-1 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-231-1 01 1 0502-0910 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-959-4 01 1 0911-1312 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-125-1 01 1 1401- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-338-2 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-339-2 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-340-2 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.70 WO/NOTCH 		5-87814-353-2 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.75 1-NOTCH 		5-87814-354-2 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. CHARGE AIR COOLER<6PL> T=1.80 2-NOTCH 		5-87814-355-2 01 1 0211-0501 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
