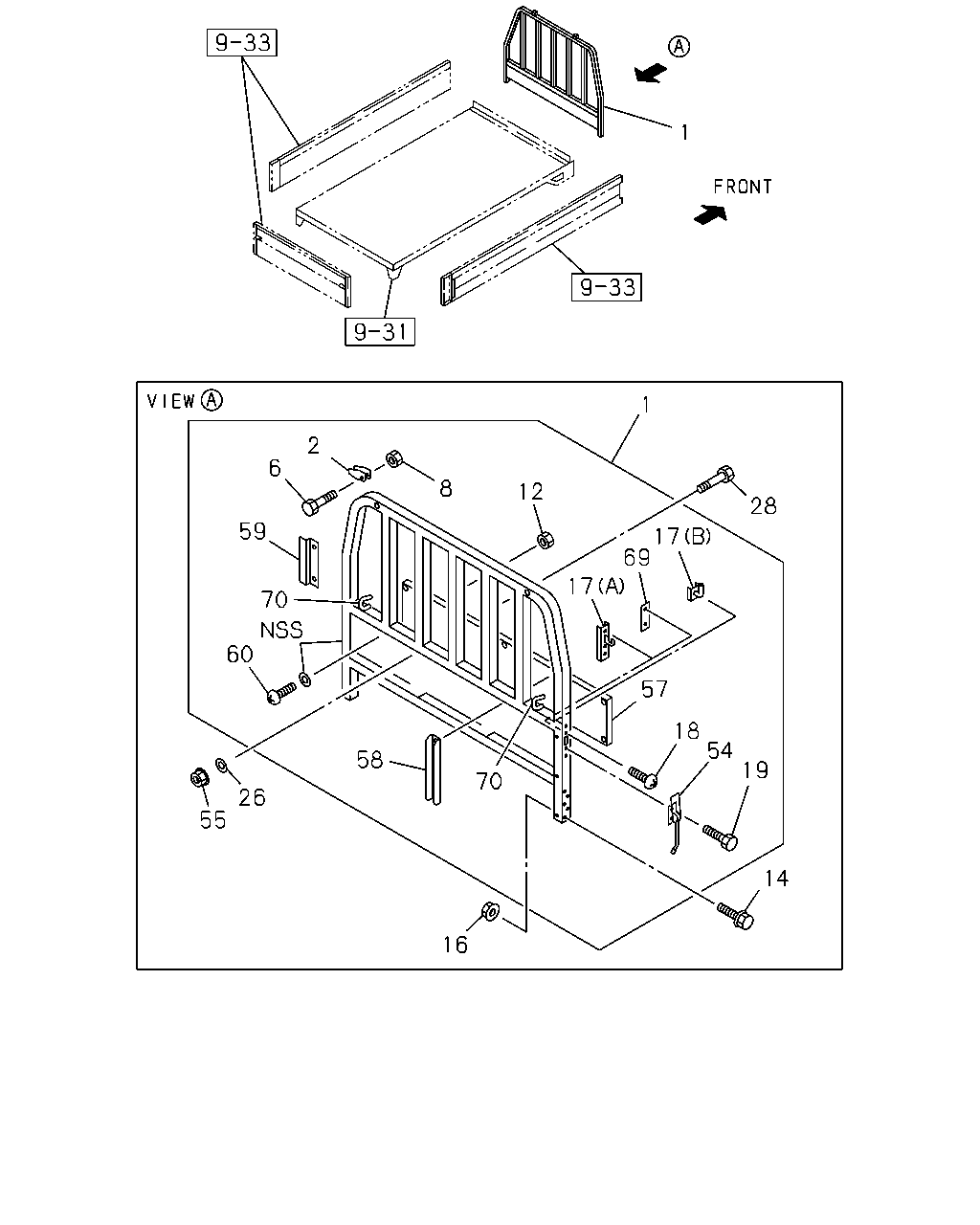

9-32 — REAR BODY; GUARD FRAME (#42532) — 48 parça

1 1 28 17 69 17 12 8 2 6 59 70 60 26 55 58 70 16 14 19 54 18 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97590-477-1	01	1	0211-0501	●	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97592-149-0	01	1	0502-0801	●	●
1	17.455 FRAME; GUARD,RR BODY RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97594-698-0	01	1	0802-	●	●
2	17.447 STOPPER; GUARD FRAME RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97590-396-0	02	1	0211-	●	●
6	17.447 BOLT; STOPPER TO GUARD FRAME RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97590-488-0	02	1	0211-	●	●
8	17.447 NUT; STOPPER BOLT RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> M10	8-97590-493-0	02	1	0211-	●	●
12	17.455 NUT; GUARD FRAME RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> 17.447 M8 FLANGE	8-94193-939-0	05	1	0211-0501	●
12	17.455 NUT; GUARD FRAME RR BODY FLAT BED(RS6) 17.447 M8 FLANGE	8-94193-939-0	05	1	0211-0501		●
12	17.455 NUT; GUARD FRAME RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> 17.447 M8 FLANGE	8-94193-939-2	04	1	0502-	●	●
12	17.455 NUT; GUARD FRAME RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> 17.447 M8 FLANGE	8-94193-939-0	05	1	0502-		●
14	17.455 BOLT; GUARD FRAME TO GUSSET RR BODY FLAT BED(RS6) M10X22	8-97233-077-0	08	1	0211-	●	●
16	17.455 NUT; GUARD FRAME TO GUSSET RR BODY FLAT BED(RS6) M10 FLANGE	8-97065-439-0	08	1	0211-	●	●
17	17.455 HOOK; GUARD FRAME RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94194-628-0	02	1	0211-0501	●	●
17	17.455 HOOK; GUARD FRAME RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97591-974-0	01	1	0502-0801	●	●
17	17.455 HOOK; GUARD FRAME RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> (B) TAKADA	8-97593-683-0	02	1	0802-	●	●
17	17.455 HOOK; GUARD FRAME RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97591-975-0	01	1	0502-0801	●	●
18	17.455 SCREW; HOOK TO GUARD FRAME RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> M8X30 TAKADA	8-94193-938-1	02	1	0211-0501	●	●
19	17.455 BOLT; HANDLE TO GUARD FRAME RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> M8X20	8-94193-942-2	04	1	0211-	●
19	17.455 BOLT; HANDLE TO GUARD FRAME RR BODY FLAT BED(RS6) M8X20	8-94193-942-2	04	1	0211-		●
26	17.455 WASHER; LK,GUARD FRAME TO BOLSTE RR BODY FLAT BED(RS6) 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0211-0605	●	●
26	17.455 WASHER; LK,GUARD FRAME TO BOLSTE RR BODY FLAT BED(RS6) 04.595 ID=8.4 OD=22	0-91610-708-0	02	1	0606-	●	●
28	17.070 BOLT; MEMBER TO BOLSTER RR BODY FLAT BED(RS6) 09.008 M8X100	8-97090-620-0	02	1	0211-	●	●
54	17.455 HANDLE; LOCK,GATE,FRT RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97593-639-1	02	1	0802-	●	●
54	17.455 HANDLE; LOCK,GATE,FRT RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> 17.490	8-94193-936-0	02	1	0211-0801	●
54	17.455 HANDLE; LOCK,GATE,FRT RR BODY FLAT BED(RS6) 17.490	8-94193-936-0	02	1	0211-0801		●
54	17.455 HANDLE; LOCK,GATE,FRT RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> 17.490	8-94193-936-0	02	1	0802-		●
55	17.070 NUT; MEMBER RR BODY FLAT BED(RS6) 09.011 M8 W/LK WASHER	8-97065-435-0	02	1	0211-	●	●
57	17.400 BOARD; HEADER RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-466-0	01	1	0211-0211	●	●
57	17.400 BOARD; HEADER RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97591-876-0	01	1	0212-0501	●	●
57	17.400 BOARD; HEADER RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97592-260-0	01	1	0502-0801	●	●
57	17.400 BOARD; HEADER RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97594-713-0	01	1	0802-	●	●
58	17.505 MEMBER; HEADER BOARD RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97590-017-0	02	1	0211-0501	●	●
58	17.505 MEMBER; HEADER BOARD RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97590-019-0	02	1	0502-	●	●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97590-024-0	01	1	0211-0801	●	●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97590-023-0	01	1	0211-0801	●	●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94194-454-0	01	1	0211-0801		●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94194-454-0	01	1	0802-	●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED(RS6) TAKADA	8-94194-454-0	01	1	0802-		●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94194-453-0	01	1	0211-0801		●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94194-453-0	01	1	0802-	●
59	17.455 REINFORCEMENT; HEADER BOARD RR BODY FLAT BED(RS6) TAKADA	8-94194-453-0	01	1	0802-		●
60	17.455 SCREW; BOARD RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> M8X30 TAKADA	8-94193-938-1	05	1	0211-0501	●
60	17.455 SCREW; BOARD RR BODY FLAT BED(RS6) M8X30 TAKADA	8-94193-938-1	05	1	0211-0501		●
60	17.455 SCREW; BOARD RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> M8X30 TAKADA	8-94193-938-1	05	1	0502-		●
60	17.455 SCREW; BOARD RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> M8X35	8-94193-941-1	04	1	0502-0801	●	●
60	17.455 SCREW; BOARD RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> M8X30 TAKADA	8-94193-938-3	04	1	0802-	●	●
69	17.455 SETTING PLATE; LOCK HANDLE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97591-976-0	02	1	0502-	●	●
70	17.455 HOOK; ROPE,GUARD FRAME RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97592-598-0	02	1	0802-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
