9-31 — REAR BODY; FLOOR AND FENDER (#42531) — 98 parça

52 64 1 71 53 50 8 58 59 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97162-720-0	02	1	0211-1604	●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98253-302-0	02	1	1605-	●	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> EXC. SAUDI ARABIA EQUIPMENT(EU2) MAKE HOLE FOR FIX	1-66900-796-1	01	1	0211-		●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> EXC. SAUDI ARABIA EQUIPMENT(EU2)	1-66900-795-1	01	1	0211-		●
8	08.212 HOLDER; FLAP RUBBER RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97179-829-0	02	1	0211-	●	●
8	08.212 HOLDER; FLAP RUBBER RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ>	1-66900-349-0	02	1	0211-		●
50	17.447 NUT; RR FENDER RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94194-114-0	08	1	0211-		●
52	17.447 BOLT; FENDER STAY,RR RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> 01.252 M8X60 W/LK WASHER	0-50040-860-0	08	1	0211-0512	●	●
52	17.447 BOLT; FENDER STAY,RR RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> 09.171 M8X60 W/LK WASHER	0-50540-860-0	08	1	0601-0705	●	●
52	17.447 BOLT; FENDER STAY,RR RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> M8X60 W/LK WASHER	0-50740-860-0	08	1	0706-	●	●
52	17.447 BOLT; FENDER STAY,RR RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94194-357-0	08	1	0211-		●
53	17.447 NUT; FENDER STAY,RR RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	16	1	0211-0602	●	●
53	17.447 NUT; FENDER STAY,RR RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	16	1	0603-	●	●
53	17.447 NUT; FENDER STAY,RR RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> EXC. SAUDI ARABIA EQUIPMENT(EU2) M8 FLANGE	8-94193-939-0	08	1	0211-		●
57	08.214 RUBBER; FLAP RR RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> H=440 B=430	8-97214-177-1	02	1	0211-	●	●
57	08.214 RUBBER; FLAP RR RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> H=425 B=485	1-66901-621-1	02	1	0211-		●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> 08.212 M6X16 FLANGE	8-97065-432-2	06	1	0211-0711	●	●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> M6X16 FLANGE	8-98098-459-0	06	1	0712-	●	●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> 08.212 M6X16 FLANGE	8-97065-432-2	08	1	0211-0711		●
58	17.208 BOLT; RUBBER,RR FENDER RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> M6X16 FLANGE	8-98098-459-0	08	1	0712-		●
59	17.208 NUT; RUBBER,RR FENDER RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> 08.212 M6 FLANGE	8-97065-431-0	06	1	0211-	●	●
59	17.208 NUT; RUBBER,RR FENDER RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> 08.212 M6 FLANGE	8-97065-431-0	08	1	0211-		●
64	17.447 WASHER; PL,RR FENDER,UPR RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 ID=8.4 OD=26	9-09164-808-0	08	1	0211-0605	●	●
64	17.447 WASHER; PL,RR FENDER,UPR RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> 03.706 ID=8.4 OD=26	0-91614-808-0	08	1	0606-	●	●
64	17.447 WASHER; PL,RR FENDER,UPR RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94194-112-0	08	1	0211-		●
64	17.447 WASHER; PL,RR FENDER,UPR RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 03.706 ID=8.4 OD=26	0-91614-808-0	09	1	0606-		●
64	17.447 WASHER; PL,RR FENDER,UPR RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 00.002 ID=10.5 OD=32	0-91614-810-0	28	1	0606-		●
71	08.212 STAY; RR FENDER RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97179-830-1	08	1	0211-	●	●
71	08.212 STAY; RR FENDER RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94195-561-0	08	1	0211-		●

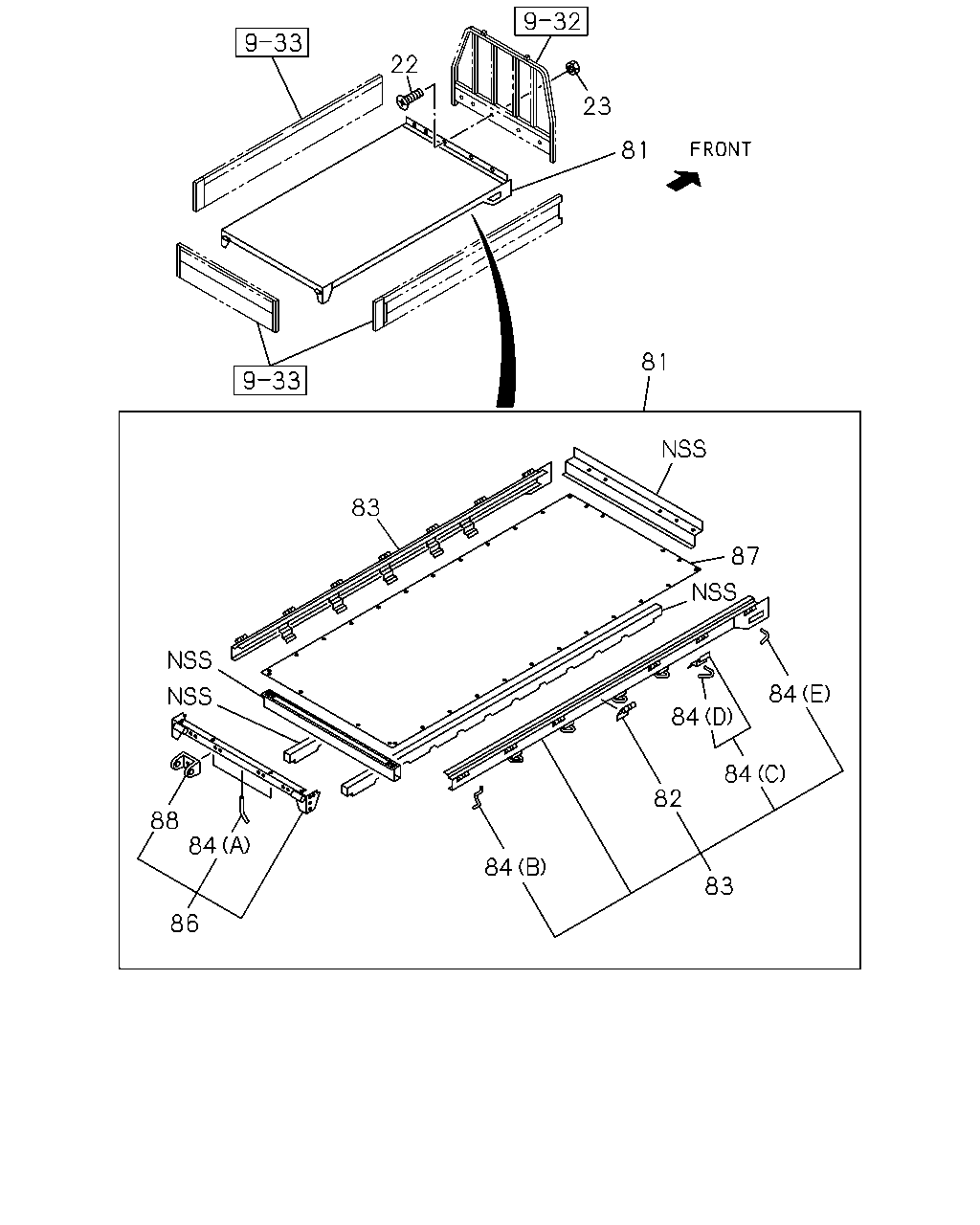

22 23 81 81 83 87 84 84 84 82 88 84 84 83 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	17.405 SCREW; ANGLE RR BODY FLAT BED(RS6)	8-97065-437-0	05	1	0211-	●	●
23	17.405 NUT; ANGLE RR BODY FLAT BED(RS6) 09.011 M8 W/LK WASHER	8-97065-435-0	05	1	0211-	●	●
81	17.400 FLOOR ASM; RR BODY SAUDI ARABIA EQUIPMENT(EU2) RR BODY FLAT BED(RS6) VIN MODEL YEAR 2004(8JA)	8-97591-838-1	01	1	0211-0409	●
81	17.400 FLOOR ASM; RR BODY SAUDI ARABIA EQUIPMENT(EU2) RR BODY FLAT BED(RS6) VIN MODEL YEAR 2004(8JA)	8-97592-103-0	01	1	0410-0501	●
81	17.400 FLOOR ASM; RR BODY SAUDI ARABIA EQUIPMENT(EU2) RR BODY FLAT BED(RS6)	8-97592-143-0	01	1	0502-	●
81	17.400 FLOOR ASM; RR BODY SAUDI ARABIA EQUIPMENT(EU2) RR BODY FLAT BED(RS6) EXC. VIN MODEL YEAR 2004(8JA)	8-97590-483-2	01	1	0211-0409	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED(RS6) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97590-483-2	01	1	0211-0409	●
81	17.400 FLOOR ASM; RR BODY SAUDI ARABIA EQUIPMENT(EU2) RR BODY FLAT BED(RS6) EXC. VIN MODEL YEAR 2004(8JA)	8-97592-100-0	01	1	0410-0501	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED(RS6) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97592-100-0	01	1	0410-0501	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED(RS6) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97592-137-0	01	1	0502-	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94195-560-0	01	1	0211-		●
81	17.400 FLOOR ASM; RR BODY SAUDI ARABIA EQUIPMENT(EU2) RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>,VIN MODEL YEAR 2004(8JA)	8-97590-484-2	01	1	0211-0409		●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED(RS6) EXC. SAUDI ARABIA EQUIPMENT(EU2), FRAME STRAIGHT TYPE<7KJ>	8-97590-484-2	01	1	0211-0409		●
81	17.400 FLOOR ASM; RR BODY SAUDI ARABIA EQUIPMENT(EU2) RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>,VIN MODEL YEAR 2004(8JA)	8-97592-106-0	01	1	0410-0501		●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED(RS6) EXC. SAUDI ARABIA EQUIPMENT(EU2), FRAME STRAIGHT TYPE<7KJ>	8-97592-106-0	01	1	0410-0501		●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED(RS6) EXC. SAUDI ARABIA EQUIPMENT(EU2), FRAME STRAIGHT TYPE<7KJ>	8-97592-140-0	01	1	0502-		●
81	17.400 FLOOR ASM; RR BODY SAUDI ARABIA EQUIPMENT(EU2) RR BODY FLAT BED(RS6) VIN MODEL YEAR 2004(8JA) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97591-839-1	01	1	0211-0409		●
81	17.400 FLOOR ASM; RR BODY SAUDI ARABIA EQUIPMENT(EU2) RR BODY FLAT BED(RS6) VIN MODEL YEAR 2004(8JA) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97592-109-0	01	1	0410-0501		●
81	17.400 FLOOR ASM; RR BODY SAUDI ARABIA EQUIPMENT(EU2) RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97592-146-0	01	1	0502-		●
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED(RS6) TAKADA	8-97590-219-0	14	1	0211-	●
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 17.208	8-94193-345-0	18	1	0211-		●
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97590-219-0	16	1	0211-		●
83	08.309 FRAME; SIDE SAUDI ARABIA EQUIPMENT(EU2) RR BODY FLAT BED(RS6) VIN MODEL YEAR 2004(8JA)	8-97590-206-0	01	1	0211-0501	●
83	08.309 FRAME; SIDE SAUDI ARABIA EQUIPMENT(EU2) RR BODY FLAT BED(RS6) VIN MODEL YEAR 2004(8JA)	8-97590-205-0	01	1	0211-0501	●
83	08.309 FRAME; SIDE SAUDI ARABIA EQUIPMENT(EU2) RR BODY FLAT BED(RS6) EXC. VIN MODEL YEAR 2004(8JA)	8-97590-534-0	01	1	0211-0501	●
83	08.309 FRAME; SIDE RR BODY FLAT BED(RS6) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97590-534-0	01	1	0211-0501	●
83	08.309 FRAME; SIDE RR BODY FLAT BED(RS6)	8-97592-535-0	01	1	0502-	●
83	08.309 FRAME; SIDE SAUDI ARABIA EQUIPMENT(EU2) RR BODY FLAT BED(RS6) EXC. VIN MODEL YEAR 2004(8JA)	8-97590-533-0	01	1	0211-0501	●
83	08.309 FRAME; SIDE RR BODY FLAT BED(RS6) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97590-533-0	01	1	0211-0501	●
83	08.309 FRAME; SIDE RR BODY FLAT BED(RS6)	8-97592-534-0	01	1	0502-	●
83	08.309 FRAME; SIDE SAUDI ARABIA EQUIPMENT(EU2) RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>,VIN MODEL YEAR 2004(8JA)	8-97590-537-0	01	1	0211-0501		●
83	08.309 FRAME; SIDE RR BODY FLAT BED(RS6) EXC. SAUDI ARABIA EQUIPMENT(EU2), FRAME STRAIGHT TYPE<7KJ>	8-97590-537-0	01	1	0211-0501		●
83	08.309 FRAME; SIDE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97592-537-0	01	1	0502-		●
83	08.309 FRAME; SIDE SAUDI ARABIA EQUIPMENT(EU2) RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>,VIN MODEL YEAR 2004(8JA)	8-97590-536-0	01	1	0211-0501		●
83	08.309 FRAME; SIDE RR BODY FLAT BED(RS6) EXC. SAUDI ARABIA EQUIPMENT(EU2), FRAME STRAIGHT TYPE<7KJ>	8-97590-536-0	01	1	0211-0501		●
83	08.309 FRAME; SIDE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97592-536-0	01	1	0502-		●
83	08.309 FRAME; SIDE SAUDI ARABIA EQUIPMENT(EU2) RR BODY FLAT BED(RS6) VIN MODEL YEAR 2004(8JA) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97590-212-0	01	1	0211-0501		●
83	08.309 FRAME; SIDE SAUDI ARABIA EQUIPMENT(EU2) RR BODY FLAT BED(RS6) VIN MODEL YEAR 2004(8JA) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97590-211-0	01	1	0211-0501		●
84	08.820 HOOK; ROPE RR BODY FLAT BED(RS6) (E)	8-97590-218-0	02	1	0211-0501	●
84	08.820 HOOK; ROPE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-97590-218-0	02	1	0211-0501		●
84	08.820 HOOK; ROPE RR BODY FLAT BED(RS6) (B)	8-97590-221-0	02	1	0211-	●
84	08.820 HOOK; ROPE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97590-221-0	02	1	0211-		●
84	08.820 HOOK; ROPE RR BODY FLAT BED(RS6) (D)	8-97590-232-0	09	1	0211-0501	●
84	08.820 HOOK; ROPE RR BODY FLAT BED(RS6) (A)	8-97590-252-0	03	1	0211-	●
84	08.820 HOOK; ROPE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97590-252-0	03	1	0211-		●
84	08.820 HOOK; ROPE RR BODY FLAT BED(RS6) (C)	8-97590-231-0	09	1	0211-	●
84	08.820 HOOK; ROPE RR BODY FLAT BED(RS6) (C)	8-97590-230-0	09	1	0211-	●
84	08.820 HOOK; ROPE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97590-232-0	11	1	0211-0501		●
84	08.820 HOOK; ROPE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97590-231-0	11	1	0211-		●
84	08.820 HOOK; ROPE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97590-230-0	11	1	0211-		●
86	17.202 FRAME; RR SAUDI ARABIA EQUIPMENT(EU2) RR BODY FLAT BED(RS6) VIN MODEL YEAR 2004(8JA)	8-97590-244-0	01	1	0211-0501	●
86	17.202 FRAME; RR SAUDI ARABIA EQUIPMENT(EU2) RR BODY FLAT BED(RS6) VIN MODEL YEAR 2004(8JA) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97590-244-0	01	1	0211-0501		●
86	17.202 FRAME; RR SAUDI ARABIA EQUIPMENT(EU2) RR BODY FLAT BED(RS6) EXC. VIN MODEL YEAR 2004(8JA)	8-97590-535-0	01	1	0211-0501	●
86	17.202 FRAME; RR RR BODY FLAT BED(RS6) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97590-535-0	01	1	0211-0501	●
86	17.202 FRAME; RR SAUDI ARABIA EQUIPMENT(EU2) RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>,VIN MODEL YEAR 2004(8JA)	8-97590-535-0	01	1	0211-0501		●
86	17.202 FRAME; RR RR BODY FLAT BED(RS6) EXC. SAUDI ARABIA EQUIPMENT(EU2), FRAME STRAIGHT TYPE<7KJ>	8-97590-535-0	01	1	0211-0501		●
86	17.202 FRAME; RR RR BODY FLAT BED(RS6)	8-97592-539-0	01	1	0502-	●
86	17.202 FRAME; RR RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97592-539-0	01	1	0502-		●
87	17.400 BOARD; FLOOR SAUDI ARABIA EQUIPMENT(EU2) RR BODY FLAT BED(RS6) VIN MODEL YEAR 2004(8JA)	8-97590-122-1	01	1	0211-0501	●
87	17.400 BOARD; FLOOR SAUDI ARABIA EQUIPMENT(EU2) RR BODY FLAT BED(RS6) EXC. VIN MODEL YEAR 2004(8JA)	8-97590-115-0	01	1	0211-0501	●
87	17.400 BOARD; FLOOR RR BODY FLAT BED(RS6) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97590-115-0	01	1	0211-0501	●
87	17.400 BOARD; FLOOR RR BODY FLAT BED(RS6)	8-97592-545-0	01	1	0502-	●
87	17.400 BOARD; FLOOR SAUDI ARABIA EQUIPMENT(EU2) RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>,VIN MODEL YEAR 2004(8JA)	8-97590-117-0	01	1	0211-0501		●
87	17.400 BOARD; FLOOR RR BODY FLAT BED(RS6) EXC. SAUDI ARABIA EQUIPMENT(EU2), FRAME STRAIGHT TYPE<7KJ>	8-97590-117-0	01	1	0211-0501		●
87	17.400 BOARD; FLOOR RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97592-546-0	01	1	0502-		●
87	17.400 BOARD; FLOOR SAUDI ARABIA EQUIPMENT(EU2) RR BODY FLAT BED(RS6) VIN MODEL YEAR 2004(8JA) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97590-123-1	01	1	0211-0501		●
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED(RS6) TAKADA	8-97590-251-0	04	1	0211-	●
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97590-251-0	04	1	0211-		●
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-94193-520-0	04	1	0211-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
