◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40B - FUEL INJECTION SYSTEM ▶
0-40B — FUEL INJECTION SYSTEM (#4253) — 401 parça

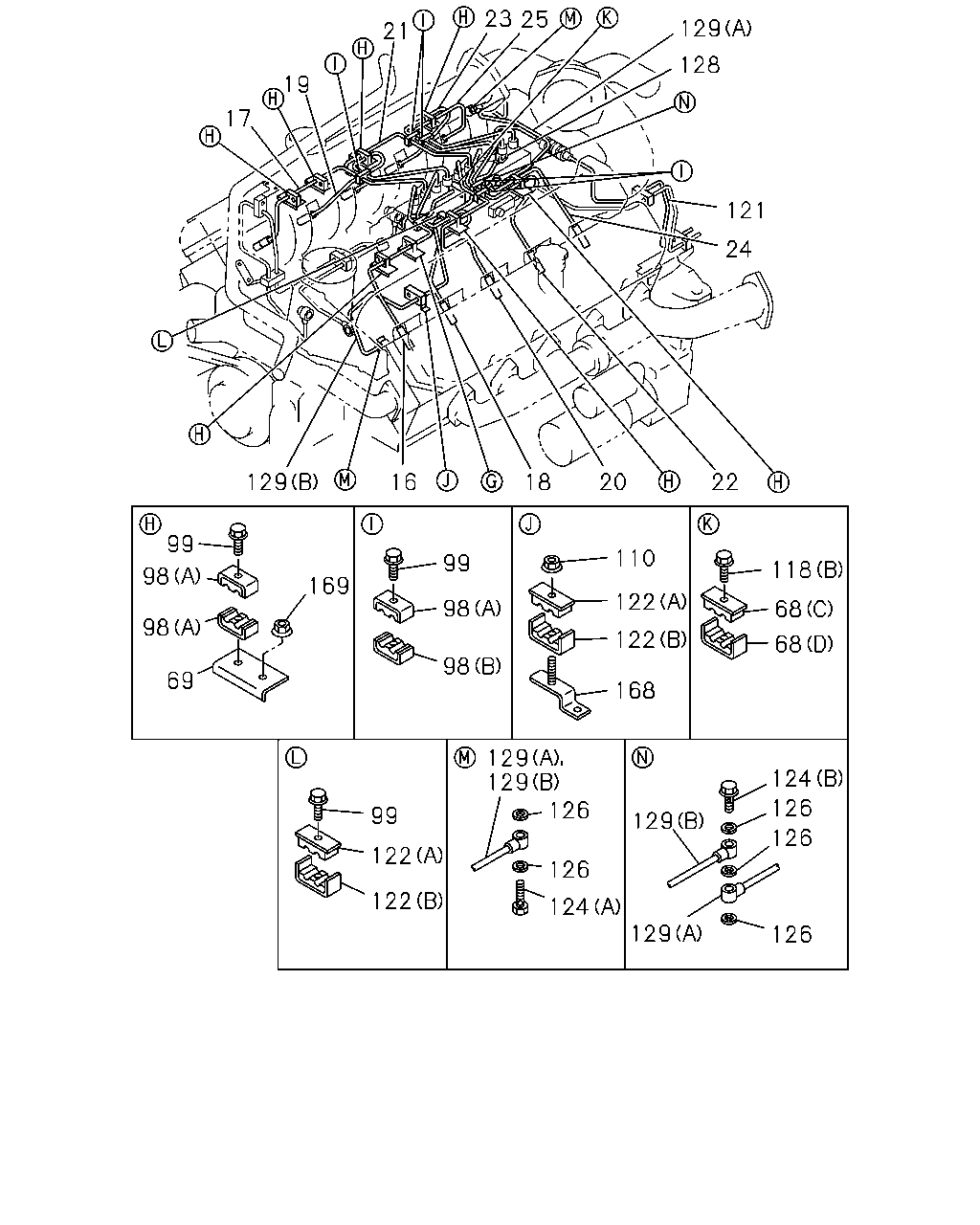

çizim 5797
21 129 128 19 17 121 24 129 16 18 20 22 99 110 99 118 98 169 122 98 68 98 122 68 98 69 168 129 129 126 124 126 99 129 126 122 126 122 124 129 126 23 25
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 PIPE; INJ NO.1 1-15415-929-1 01 1 9603- ●
16 PIPE; INJ NO.1
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-559-1 01 1 9603-9904 ●
16 PIPE; INJ NO.1 1-15415-559-1 01 1 9905- ●
16 PIPE; INJ NO.1
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-919-1 01 1 9603-9904 ●
16 PIPE; INJ NO.1 1-15415-919-1 01 1 9905- ● ●
17 PIPE; INJ NO.2 1-15415-922-1 01 1 9603- ●
17 PIPE; INJ NO.2
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-560-1 01 1 9603-9904 ●
17 PIPE; INJ NO.2 1-15415-560-1 01 1 9905- ●
17 PIPE; INJ NO.2
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-920-1 01 1 9603-9904 ●
17 PIPE; INJ NO.2 1-15415-920-1 01 1 9905- ● ●
18 PIPE; INJ NO.3 1-15415-923-1 01 1 9603- ●
18 PIPE; INJ NO.3
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-589-2 01 1 9603-9904 ●
18 PIPE; INJ NO.3 1-15415-589-2 01 1 9905- ●
18 PIPE; INJ NO.3
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-921-1 01 1 9603-9904 ●
18 PIPE; INJ NO.3 1-15415-921-1 01 1 9905- ● ●
19 PIPE; INJ NO.4 1-15415-924-1 01 1 9603- ●
19 PIPE; INJ NO.4
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-562-1 01 1 9603-9904 ●
19 PIPE; INJ NO.4 1-15415-562-1 01 1 9905- ●
19 PIPE; INJ NO.4
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-922-1 01 1 9603-9904 ●
19 PIPE; INJ NO.4 1-15415-922-1 01 1 9905- ● ●
20 PIPE; INJ NO.5 1-15415-930-1 01 1 9603- ●
20 PIPE; INJ NO.5
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-563-1 01 1 9603-9904 ●
20 PIPE; INJ NO.5 1-15415-563-1 01 1 9905- ●
20 PIPE; INJ NO.5
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-923-1 01 1 9603-9904 ●
20 PIPE; INJ NO.5 1-15415-923-1 01 1 9905- ● ●
21 PIPE; INJ NO.6 1-15415-926-1 01 1 9603- ●
21 PIPE; INJ NO.6
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-564-1 01 1 9603-9904 ●
21 PIPE; INJ NO.6 1-15415-564-1 01 1 9905- ●
21 PIPE; INJ NO.6
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-924-1 01 1 9603-9904 ●
21 PIPE; INJ NO.6 1-15415-924-1 01 1 9905- ● ●
22 PIPE; INJ NO.7 1-15415-927-1 01 1 9603- ●
22 PIPE; INJ NO.7
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-590-2 01 1 9603-9904 ●
22 PIPE; INJ NO.7 1-15415-590-2 01 1 9905- ●
22 PIPE; INJ NO.7
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-925-1 01 1 9603-9904 ●
22 PIPE; INJ NO.7 1-15415-925-1 01 1 9905- ● ●
23 PIPE; INJ NO.8 1-15415-928-1 01 1 9603- ●
23 PIPE; INJ NO.8
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-566-1 01 1 9603-9904 ●
23 PIPE; INJ NO.8 1-15415-566-1 01 1 9905- ●
23 PIPE; INJ NO.8
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-926-1 01 1 9603-9904 ●
23 PIPE; INJ NO.8 1-15415-926-1 01 1 9905- ● ●
24 PIPE; INJ NO.9
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-567-1 01 1 9603-9904 ●
24 PIPE; INJ NO.9 1-15415-567-1 01 1 9905- ●
24 PIPE; INJ NO.9
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-927-1 01 1 9603-9904 ●
24 PIPE; INJ NO.9 1-15415-927-1 01 1 9905- ● ●
25 PIPE; INJ NO.10
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-568-1 01 1 9603-9904 ●
25 PIPE; INJ NO.10 1-15415-568-1 01 1 9905- ●
25 PIPE; INJ NO.10
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-928-1 01 1 9603-9904 ●
25 PIPE; INJ NO.10 1-15415-928-1 01 1 9905- ● ●
68 CLIP; INJ PIPE
(A) 		1-09701-132-1 12 1 9603- ●
68 CLIP; INJ PIPE
(B) 		1-09701-213-0 04 1 9603- ●
68 CLIP; INJ PIPE
(C) 		1-09701-180-0 01 1 9603-9904 ● ●
68 CLIP; INJ PIPE
(C) 		1-09701-180-0 01 1 9905- ● ● ● ●
68 CLIP; INJ PIPE
(D) ID=10 & 10 L=25 		8-94393-280-1 01 1 9603-9904 ● ●
68 CLIP; INJ PIPE
(D) ID=10 & 10 L=25 		8-94393-280-2 01 1 9905- ● ● ● ●
69 BRACKET; INJ PIPE CLIP 1-15419-391-1 04 1 9603- ●
69 BRACKET; INJ PIPE CLIP 1-15419-391-1 08 1 9603-9904 ●
69 BRACKET; INJ PIPE CLIP 1-15419-391-1 08 1 9905- ● ● ●
98 CLIP; "A",INJ PIPE
(A) 		1-09701-132-0 22 1 9603-9904 ●
98 CLIP; "A",INJ PIPE
(A) 		1-09701-132-1 22 1 9905- ● ● ●
98 CLIP; "A",INJ PIPE
(B) 		1-09701-213-0 06 1 9603-9904 ●
98 CLIP; "A",INJ PIPE
(B) 		1-09701-213-0 06 1 9905- ● ● ●
99 BOLT; CLIP,INJ,PIPE
M6X30 FLANGE 		0-28080-630-0 08 1 9603- ●
99 BOLT; CLIP,INJ,PIPE
M6X30 FLANGE 		0-28080-630-0 14 1 9603-9904 ●
99 BOLT; CLIP,INJ,PIPE
M6X30 FLANGE 		0-28080-630-0 14 1 9905- ● ● ●
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 9603-9706 ●
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 9707-9904 ●
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 9905- ● ● ●
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 02 1 9603- ●
118 BOLT; CLIP,INJ PIPE
(A) M6X35 FLANGE 		0-28080-635-0 01 1 9703- ●
118 BOLT; CLIP,INJ PIPE
(B) M6X30 FLANGE 		0-28080-630-0 01 1 9603-9904 ● ●
118 BOLT; CLIP,INJ PIPE
(B) M6X30 FLANGE 		0-28080-630-0 01 1 9905- ● ● ● ●
118 BOLT; CLIP,INJ PIPE
(A) M6X35 FLANGE 		0-28080-635-0 02 1 9703-9904 ●
118 BOLT; CLIP,INJ PIPE
(A) M6X35 FLANGE 		0-28080-635-0 02 1 9905- ● ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
ENGINE REAR PTO(SV1) 		1-15415-800-0 01 1 9603-9904 ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
ENGINE REAR PTO(SV1) 		1-15415-800-0 01 1 9905- ● ● ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
EXC. ENGINE REAR PTO(SV1) 		1-15415-657-0 01 1 9603-9904 ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
EXC. ENGINE REAR PTO(SV1) 		1-15415-657-0 01 1 9905- ● ● ● ●
122 CLIP; LEAK OFF PIPE
(A) 		1-09701-172-1 02 1 9603-9904 ● ●
122 CLIP; LEAK OFF PIPE
(A) 		1-09701-172-2 02 1 9905- ● ● ● ●
122 CLIP; LEAK OFF PIPE
(B) 		1-09701-173-0 02 1 9603-9904 ● ●
122 CLIP; LEAK OFF PIPE
(B) 		1-09701-173-1 02 1 9905- ● ● ● ●
122 CLIP; LEAK OFF PIPE
(D) L=19 		1-09709-104-0 04 1 9603-9904 ● ●
122 CLIP; LEAK OFF PIPE
(D) L=19 		1-09709-104-0 04 1 9905- ● ● ● ●
122 CLIP; LEAK OFF PIPE
(C) L=22 		1-09709-156-0 02 1 9603-9904 ● ●
122 CLIP; LEAK OFF PIPE
(C) L=22 		1-09709-156-0 02 1 9905- ● ● ● ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 02 1 9603-9904 ● ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 02 1 9905- ● ● ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M8X30 FLANGE 		1-09675-039-1 01 1 9603-9904 ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M8X30 FLANGE 		1-09675-039-1 01 1 9905- ● ● ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 07 1 9603-9904 ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 07 1 9905- ● ● ● ●
128 PIPE ASM; INJ 1-15415-741-0 01 1 9603- ●
128 PIPE ASM; INJ 1-15415-740-0 01 1 9603-9904 ●
128 PIPE ASM; INJ 1-15415-740-1 01 1 9905- ● ● ●
129 PIPE ASM; LEAK OFF OUTER
(A) 		1-15415-621-0 01 1 9603- ●
129 PIPE ASM; LEAK OFF OUTER
(B) 		1-15415-689-0 01 1 9603- ●
129 PIPE ASM; LEAK OFF OUTER
(B) 		1-15415-390-0 01 1 9603-9904 ●
129 PIPE ASM; LEAK OFF OUTER
(B) 		1-15415-390-0 01 1 9905- ● ● ●
129 PIPE ASM; LEAK OFF OUTER
(A) 		1-15415-620-0 01 1 9603-9904 ●
129 PIPE ASM; LEAK OFF OUTER
(A) 		1-15415-620-0 01 1 9905- ● ● ●
168 BRACKET; FUEL PIPE 1-15419-363-1 02 1 9603-9910 ●
168 BRACKET; FUEL PIPE 1-15419-622-0 02 1 9911- ●
168 BRACKET; FUEL PIPE 1-15419-363-1 01 1 9603-9904 ●
168 BRACKET; FUEL PIPE 1-15419-363-1 01 1 9905-9910 ● ● ●
168 BRACKET; FUEL PIPE 1-15419-622-0 01 1 9911- ● ● ●
169 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 9603- ●
169 NUT; BRKT
M8 FLANGE 		0-91150-108-0 08 1 9603-9904 ●
169 NUT; BRKT
M8 FLANGE 		0-91150-108-0 08 1 9905- ● ● ●

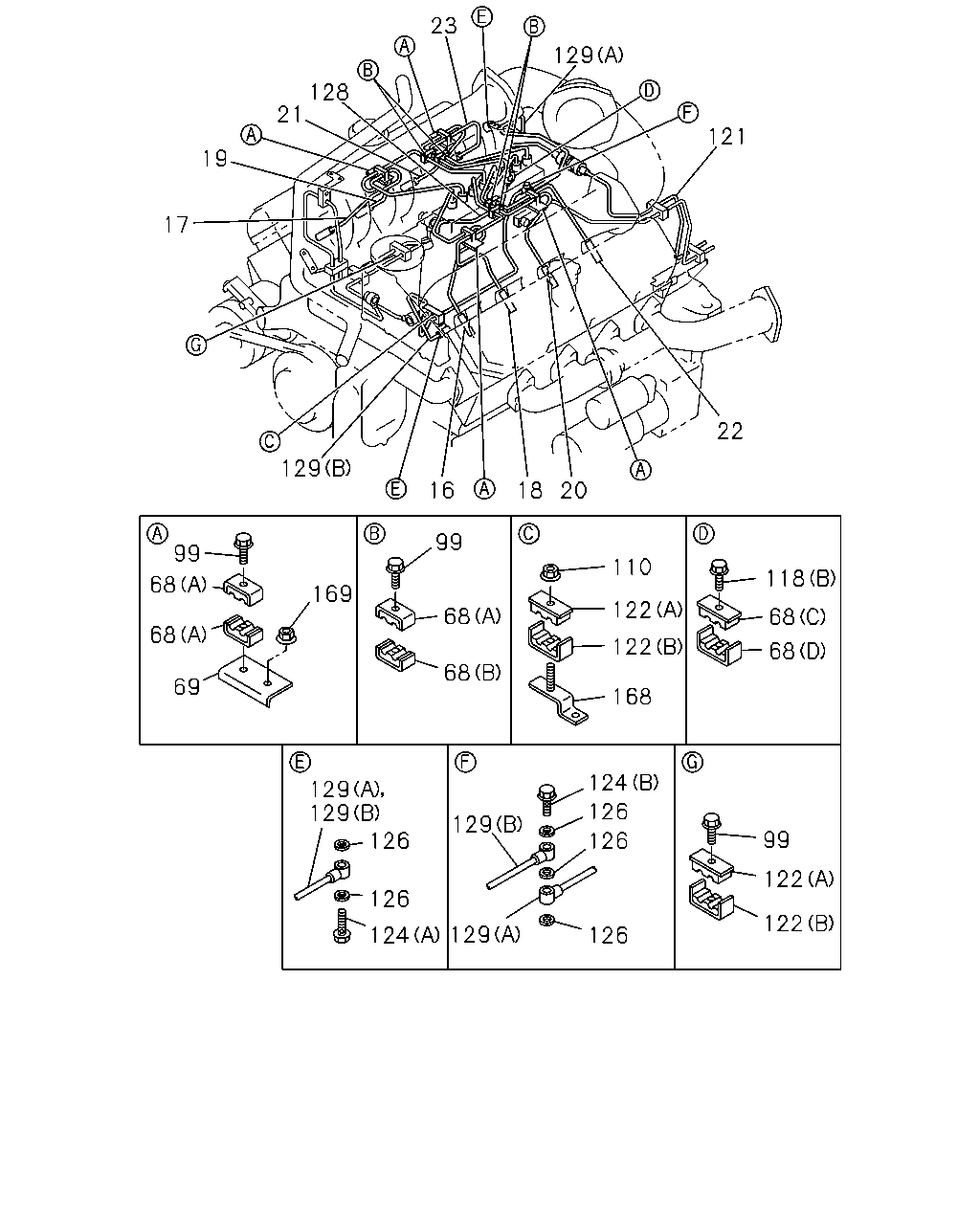

çizim 5853
23 129 128 21 121 19 17 22 129 16 18 20 99 99 110 118 68 169 122 68 68 68 122 68 68 69 168 124 129 129 126 126 129 99 126 122 126 122 129 124 126
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 PIPE; INJ NO.1 1-15415-929-1 01 1 9603- ●
16 PIPE; INJ NO.1
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-559-1 01 1 9603-9904 ●
16 PIPE; INJ NO.1 1-15415-559-1 01 1 9905- ●
16 PIPE; INJ NO.1
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-919-1 01 1 9603-9904 ●
16 PIPE; INJ NO.1 1-15415-919-1 01 1 9905- ● ●
17 PIPE; INJ NO.2 1-15415-922-1 01 1 9603- ●
17 PIPE; INJ NO.2
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-560-1 01 1 9603-9904 ●
17 PIPE; INJ NO.2 1-15415-560-1 01 1 9905- ●
17 PIPE; INJ NO.2
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-920-1 01 1 9603-9904 ●
17 PIPE; INJ NO.2 1-15415-920-1 01 1 9905- ● ●
18 PIPE; INJ NO.3 1-15415-923-1 01 1 9603- ●
18 PIPE; INJ NO.3
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-589-2 01 1 9603-9904 ●
18 PIPE; INJ NO.3 1-15415-589-2 01 1 9905- ●
18 PIPE; INJ NO.3
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-921-1 01 1 9603-9904 ●
18 PIPE; INJ NO.3 1-15415-921-1 01 1 9905- ● ●
19 PIPE; INJ NO.4 1-15415-924-1 01 1 9603- ●
19 PIPE; INJ NO.4
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-562-1 01 1 9603-9904 ●
19 PIPE; INJ NO.4 1-15415-562-1 01 1 9905- ●
19 PIPE; INJ NO.4
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-922-1 01 1 9603-9904 ●
19 PIPE; INJ NO.4 1-15415-922-1 01 1 9905- ● ●
20 PIPE; INJ NO.5 1-15415-930-1 01 1 9603- ●
20 PIPE; INJ NO.5
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-563-1 01 1 9603-9904 ●
20 PIPE; INJ NO.5 1-15415-563-1 01 1 9905- ●
20 PIPE; INJ NO.5
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-923-1 01 1 9603-9904 ●
20 PIPE; INJ NO.5 1-15415-923-1 01 1 9905- ● ●
21 PIPE; INJ NO.6 1-15415-926-1 01 1 9603- ●
21 PIPE; INJ NO.6
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-564-1 01 1 9603-9904 ●
21 PIPE; INJ NO.6 1-15415-564-1 01 1 9905- ●
21 PIPE; INJ NO.6
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-924-1 01 1 9603-9904 ●
21 PIPE; INJ NO.6 1-15415-924-1 01 1 9905- ● ●
22 PIPE; INJ NO.7 1-15415-927-1 01 1 9603- ●
22 PIPE; INJ NO.7
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-590-2 01 1 9603-9904 ●
22 PIPE; INJ NO.7 1-15415-590-2 01 1 9905- ●
22 PIPE; INJ NO.7
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-925-1 01 1 9603-9904 ●
22 PIPE; INJ NO.7 1-15415-925-1 01 1 9905- ● ●
23 PIPE; INJ NO.8 1-15415-928-1 01 1 9603- ●
23 PIPE; INJ NO.8
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-566-1 01 1 9603-9904 ●
23 PIPE; INJ NO.8 1-15415-566-1 01 1 9905- ●
23 PIPE; INJ NO.8
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15415-926-1 01 1 9603-9904 ●
23 PIPE; INJ NO.8 1-15415-926-1 01 1 9905- ● ●
68 CLIP; INJ PIPE
(A) 		1-09701-132-1 12 1 9603- ●
68 CLIP; INJ PIPE
(B) 		1-09701-213-0 04 1 9603- ●
68 CLIP; INJ PIPE
(C) 		1-09701-180-0 01 1 9603-9904 ● ●
68 CLIP; INJ PIPE
(C) 		1-09701-180-0 01 1 9905- ● ● ● ●
68 CLIP; INJ PIPE
(D) ID=10 & 10 L=25 		8-94393-280-1 01 1 9603-9904 ● ●
68 CLIP; INJ PIPE
(D) ID=10 & 10 L=25 		8-94393-280-2 01 1 9905- ● ● ● ●
69 BRACKET; INJ PIPE CLIP 1-15419-391-1 04 1 9603- ●
69 BRACKET; INJ PIPE CLIP 1-15419-391-1 08 1 9603-9904 ●
69 BRACKET; INJ PIPE CLIP 1-15419-391-1 08 1 9905- ● ● ●
99 BOLT; CLIP,INJ,PIPE
M6X30 FLANGE 		0-28080-630-0 08 1 9603- ●
99 BOLT; CLIP,INJ,PIPE
M6X30 FLANGE 		0-28080-630-0 14 1 9603-9904 ●
99 BOLT; CLIP,INJ,PIPE
M6X30 FLANGE 		0-28080-630-0 14 1 9905- ● ● ●
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 9603-9706 ●
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 9707-9904 ●
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 9905- ● ● ●
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 02 1 9603- ●
118 BOLT; CLIP,INJ PIPE
(A) M6X35 FLANGE 		0-28080-635-0 01 1 9703- ●
118 BOLT; CLIP,INJ PIPE
(B) M6X30 FLANGE 		0-28080-630-0 01 1 9603-9904 ● ●
118 BOLT; CLIP,INJ PIPE
(B) M6X30 FLANGE 		0-28080-630-0 01 1 9905- ● ● ● ●
118 BOLT; CLIP,INJ PIPE
(A) M6X35 FLANGE 		0-28080-635-0 02 1 9703-9904 ●
118 BOLT; CLIP,INJ PIPE
(A) M6X35 FLANGE 		0-28080-635-0 02 1 9905- ● ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
ENGINE REAR PTO(SV1) 		1-15415-800-0 01 1 9603-9904 ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
ENGINE REAR PTO(SV1) 		1-15415-800-0 01 1 9905- ● ● ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
EXC. ENGINE REAR PTO(SV1) 		1-15415-657-0 01 1 9603-9904 ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
EXC. ENGINE REAR PTO(SV1) 		1-15415-657-0 01 1 9905- ● ● ● ●
122 CLIP; LEAK OFF PIPE
(A) 		1-09701-172-1 02 1 9603-9904 ● ●
122 CLIP; LEAK OFF PIPE
(A) 		1-09701-172-2 02 1 9905- ● ● ● ●
122 CLIP; LEAK OFF PIPE
(B) 		1-09701-173-0 02 1 9603-9904 ● ●
122 CLIP; LEAK OFF PIPE
(B) 		1-09701-173-1 02 1 9905- ● ● ● ●
122 CLIP; LEAK OFF PIPE
(D) L=19 		1-09709-104-0 04 1 9603-9904 ● ●
122 CLIP; LEAK OFF PIPE
(D) L=19 		1-09709-104-0 04 1 9905- ● ● ● ●
122 CLIP; LEAK OFF PIPE
(C) L=22 		1-09709-156-0 02 1 9603-9904 ● ●
122 CLIP; LEAK OFF PIPE
(C) L=22 		1-09709-156-0 02 1 9905- ● ● ● ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 02 1 9603-9904 ● ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 02 1 9905- ● ● ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M8X30 FLANGE 		1-09675-039-1 01 1 9603-9904 ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M8X30 FLANGE 		1-09675-039-1 01 1 9905- ● ● ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 07 1 9603-9904 ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 07 1 9905- ● ● ● ●
128 PIPE ASM; INJ 1-15415-741-0 01 1 9603- ●
128 PIPE ASM; INJ 1-15415-740-0 01 1 9603-9904 ●
128 PIPE ASM; INJ 1-15415-740-1 01 1 9905- ● ● ●
129 PIPE ASM; LEAK OFF OUTER
(A) 		1-15415-621-0 01 1 9603- ●
129 PIPE ASM; LEAK OFF OUTER
(B) 		1-15415-689-0 01 1 9603- ●
129 PIPE ASM; LEAK OFF OUTER
(B) 		1-15415-390-0 01 1 9603-9904 ●
129 PIPE ASM; LEAK OFF OUTER
(B) 		1-15415-390-0 01 1 9905- ● ● ●
129 PIPE ASM; LEAK OFF OUTER
(A) 		1-15415-620-0 01 1 9603-9904 ●
129 PIPE ASM; LEAK OFF OUTER
(A) 		1-15415-620-0 01 1 9905- ● ● ●
168 BRACKET; FUEL PIPE 1-15419-363-1 02 1 9603-9910 ●
168 BRACKET; FUEL PIPE 1-15419-622-0 02 1 9911- ●
168 BRACKET; FUEL PIPE 1-15419-363-1 01 1 9603-9904 ●
168 BRACKET; FUEL PIPE 1-15419-363-1 01 1 9905-9910 ● ● ●
168 BRACKET; FUEL PIPE 1-15419-622-0 01 1 9911- ● ● ●
169 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 9603- ●
169 NUT; BRKT
M8 FLANGE 		0-91150-108-0 08 1 9603-9904 ●
169 NUT; BRKT
M8 FLANGE 		0-91150-108-0 08 1 9905- ● ● ●
çizim 39699
37 38 40 39 143 44 141 140 31 32 47 140 138 45 46 33 35
BalonParca AdiParca NoAdetTipApplied Date A B C D
31 NOZZLE ASM; INJ 1-15300-204-1 08 1 9603- ●
31 NOZZLE ASM; INJ
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15300-328-0 10 1 9603-9709 ●
31 NOZZLE ASM; INJ
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15300-368-0 10 1 9710-9904 ●
31 NOZZLE ASM; INJ 1-15300-368-0 10 1 9905- ●
31 NOZZLE ASM; INJ
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15300-204-1 10 1 9603-9904 ●
31 NOZZLE ASM; INJ 1-15300-204-1 10 1 9905- ● ●
32 HOLDER ASM; NOZZLE 1-15330-089-1 08 1 9603- ●
32 HOLDER ASM; NOZZLE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15330-109-0 10 1 9603-9904 ●
32 HOLDER ASM; NOZZLE 1-15330-109-0 10 1 9905- ●
32 HOLDER ASM; NOZZLE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15330-089-1 10 1 9603-9904 ●
32 HOLDER ASM; NOZZLE 1-15330-089-1 10 1 9905- ● ●
33 NOZZLE; INJ 1-15311-180-0 08 1 9603- ●
33 NOZZLE; INJ
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15311-261-0 10 1 9603-9709 ●
33 NOZZLE; INJ
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15311-286-0 10 1 9710-9904 ●
33 NOZZLE; INJ 1-15311-286-0 10 1 9905- ●
33 NOZZLE; INJ
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15311-180-0 10 1 9603-9904 ●
33 NOZZLE; INJ 1-15311-180-0 10 1 9905- ● ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15332-017-0 08 1 9603- ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15332-017-0 10 1 9603-9904 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15332-017-0 10 1 9905- ● ● ●
37 NUT; CAP,NOZZLE HOLDER 1-15334-015-0 08 1 9603- ●
37 NUT; CAP,NOZZLE HOLDER
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15334-004-0 10 1 9603-9904 ●
37 NUT; CAP,NOZZLE HOLDER 1-15334-004-0 10 1 9905- ●
37 NUT; CAP,NOZZLE HOLDER
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15334-015-0 10 1 9603-9904 ●
37 NUT; CAP,NOZZLE HOLDER 1-15334-015-0 10 1 9905- ● ●
38 GASKET; CAP NUT,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-15339-056-0 08 1 9603- ●
38 GASKET; CAP NUT,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		9-15339-056-0 10 1 9603-9904 ●
38 GASKET; CAP NUT,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-15339-056-0 10 1 9905- ● ●
39 SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER 1-15345-004-0 08 1 9603- ●
39 SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER 1-15345-004-0 10 1 9603-9904 ●
39 SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER 1-15345-004-0 10 1 9905- ● ● ●
40 NUT; ADJ SCREW,NOZZLE HOLDER 1-15332-011-0 08 1 9603- ●
40 NUT; ADJ SCREW,NOZZLE HOLDER 1-15332-011-0 10 1 9603-9904 ●
40 NUT; ADJ SCREW,NOZZLE HOLDER 1-15332-011-0 10 1 9905- ● ● ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94246-531-0 08 1 9603- ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94246-531-0 10 1 9603-9904 ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94246-531-0 10 1 9905- ● ● ●
45 ROD; PUSH,NOZZLE HOLDER 1-15341-004-0 08 1 9603- ●
45 ROD; PUSH,NOZZLE HOLDER
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15341-005-0 10 1 9603-9904 ●
45 ROD; PUSH,NOZZLE HOLDER 1-15341-005-0 10 1 9905- ●
45 ROD; PUSH,NOZZLE HOLDER
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15341-004-0 10 1 9603-9904 ●
45 ROD; PUSH,NOZZLE HOLDER 1-15341-004-0 10 1 9905- ● ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 9-15347-003-0 16 1 9603- ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 9-15347-003-0 20 1 9603-9904 ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 9-15347-003-0 20 1 9905- ● ● ●
47 SPACER; NOZZLE SPRING,NOZZLE HOLDER 1-15339-015-0 08 1 9603- ●
47 SPACER; NOZZLE SPRING,NOZZLE HOLDER 1-15339-015-0 10 1 9603-9904 ●
47 SPACER; NOZZLE SPRING,NOZZLE HOLDER 1-15339-015-0 10 1 9905- ● ● ●
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 1-15343-001-0 08 1 9603- ●
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 1-15343-001-0 10 1 9603-9904 ●
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 1-15343-001-0 10 1 9905- ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		5-15339-007-0 AR 1 9603-9904 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		5-15339-007-0 AR 1 9905- ● ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.60 		5-15339-008-0 AR 1 9603-9904 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.60 		5-15339-008-0 AR 1 9905- ● ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.70 		5-15339-009-0 AR 1 9603-9904 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.70 		5-15339-009-0 AR 1 9905- ● ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.80 		5-15339-010-0 AR 1 9603-9904 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.80 		5-15339-010-0 AR 1 9905- ● ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.90 		5-15339-011-0 AR 1 9603-9904 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.90 		5-15339-011-0 AR 1 9905- ● ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.00 		5-15339-012-0 AR 1 9603-9904 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.00 		5-15339-012-0 AR 1 9905- ● ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		5-15339-018-0 AR 1 9603-9904 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		5-15339-018-0 AR 1 9905- ● ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		5-15339-019-0 AR 1 9603-9904 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		5-15339-019-0 AR 1 9905- ● ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		5-15339-020-0 AR 1 9603-9904 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		5-15339-020-0 AR 1 9905- ● ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		5-15339-021-0 AR 1 9603-9904 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		5-15339-021-0 AR 1 9905- ● ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-94128-982-0 AR 1 9603-9904 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-94128-982-0 AR 1 9905- ● ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-94128-983-0 AR 1 9603-9904 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-94128-983-0 AR 1 9905- ● ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-94128-984-0 AR 1 9603-9904 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-94128-984-0 AR 1 9905- ● ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-94128-985-0 AR 1 9603-9904 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-94128-985-0 AR 1 9905- ● ● ● ●
141 ROD; PUSH,UPR,NOZZLE HOLDER 1-15341-005-0 08 1 9603- ●
141 ROD; PUSH,UPR,NOZZLE HOLDER
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15341-004-0 10 1 9603-9904 ●
141 ROD; PUSH,UPR,NOZZLE HOLDER 1-15341-004-0 10 1 9905- ●
141 ROD; PUSH,UPR,NOZZLE HOLDER
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15341-005-0 10 1 9603-9904 ●
141 ROD; PUSH,UPR,NOZZLE HOLDER 1-15341-005-0 10 1 9905- ● ●
143 SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER 1-15345-003-0 08 1 9603- ●
143 SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER 1-15345-003-0 10 1 9603-9904 ●
143 SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER 1-15345-003-0 10 1 9905- ● ● ●

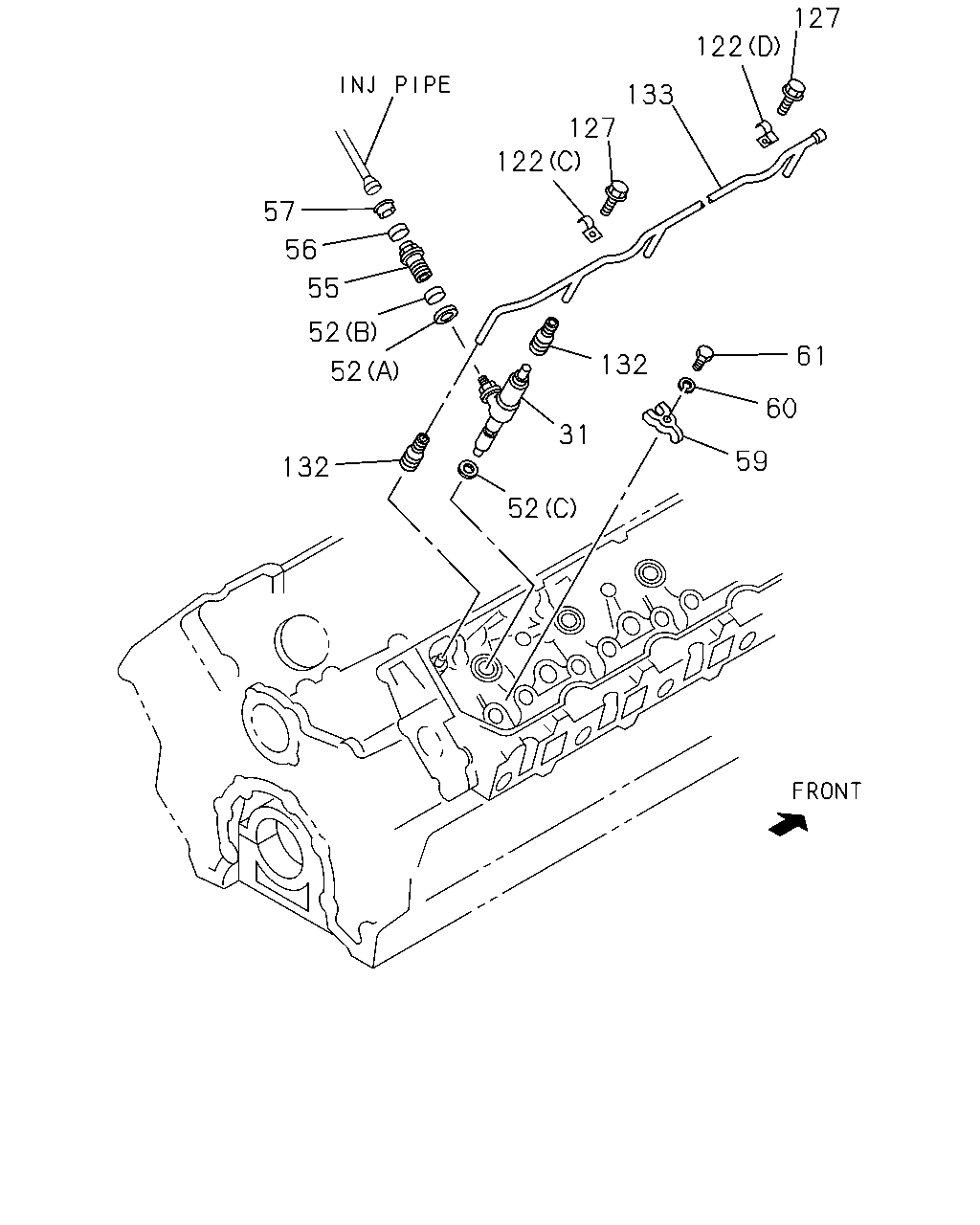

çizim 39740
127 122 133 127 122 57 56 55 52 61 132 52 60 31 59 132 52
BalonParca AdiParca NoAdetTipApplied Date A B C D
31 NOZZLE ASM; INJ 1-15300-204-1 08 1 9603- ●
31 NOZZLE ASM; INJ
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15300-328-0 10 1 9603-9709 ●
31 NOZZLE ASM; INJ
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15300-368-0 10 1 9710-9904 ●
31 NOZZLE ASM; INJ 1-15300-368-0 10 1 9905- ●
31 NOZZLE ASM; INJ
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15300-204-1 10 1 9603-9904 ●
31 NOZZLE ASM; INJ 1-15300-204-1 10 1 9905- ● ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0 		1-09630-111-0 08 1 9603- ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5 		1-09639-030-0 08 1 9603- ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15 		1-15315-011-0 08 1 9603- ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0 		1-09630-111-0 10 1 9603-9904 ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0 		1-09630-111-0 10 1 9905- ● ● ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5 		1-09639-030-0 10 1 9603-9904 ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5 		1-09639-030-0 10 1 9905- ● ● ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15 		1-15315-011-0 10 1 9603-9904 ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15 		1-15315-011-0 10 1 9905- ● ● ●
55 SLEEVE; INJ PUMP 1-15339-094-0 08 1 9603- ●
55 SLEEVE; INJ PUMP 1-15339-094-0 10 1 9603-9904 ●
55 SLEEVE; INJ PUMP 1-15339-094-0 10 1 9905- ● ● ●
56 COVER 1-15419-028-0 08 1 9603- ●
56 COVER 1-15419-028-0 10 1 9603-9904 ●
56 COVER 1-15419-028-0 10 1 9905- ● ● ●
57 GASKET; DUST COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-15419-027-1 08 1 9603- ●
57 GASKET; DUST COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-15419-027-1 10 1 9603-9904 ●
57 GASKET; DUST COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-15419-027-1 10 1 9905- ● ● ●
59 CLAMP; NOZZLE HOLDER 1-15337-012-0 08 1 9603- ●
59 CLAMP; NOZZLE HOLDER 1-15337-012-0 10 1 9603-9904 ●
59 CLAMP; NOZZLE HOLDER 1-15337-012-0 10 1 9905- ● ● ●
60 WASHER; NOZZLE HOLDER 1-09509-046-0 08 1 9603- ●
60 WASHER; NOZZLE HOLDER 1-09509-046-0 10 1 9603-9904 ●
60 WASHER; NOZZLE HOLDER 1-09509-046-0 10 1 9905- ● ● ●
61 BOLT; CLAMP NOZZLE HOLDER
M12X50 		9-01666-250-0 08 1 9603- ●
61 BOLT; CLAMP NOZZLE HOLDER
M12X50 		9-01666-250-0 10 1 9603-9904 ●
61 BOLT; CLAMP NOZZLE HOLDER
M12X50 		9-01666-250-0 10 1 9905- ● ● ●
122 CLIP; LEAK OFF PIPE
(A) 		1-09701-172-1 02 1 9603-9904 ● ●
122 CLIP; LEAK OFF PIPE
(A) 		1-09701-172-2 02 1 9905- ● ● ● ●
122 CLIP; LEAK OFF PIPE
(B) 		1-09701-173-0 02 1 9603-9904 ● ●
122 CLIP; LEAK OFF PIPE
(B) 		1-09701-173-1 02 1 9905- ● ● ● ●
122 CLIP; LEAK OFF PIPE
(D) L=19 		1-09709-104-0 04 1 9603-9904 ● ●
122 CLIP; LEAK OFF PIPE
(D) L=19 		1-09709-104-0 04 1 9905- ● ● ● ●
122 CLIP; LEAK OFF PIPE
(C) L=22 		1-09709-156-0 02 1 9603-9904 ● ●
122 CLIP; LEAK OFF PIPE
(C) L=22 		1-09709-156-0 02 1 9905- ● ● ● ●
127 BOLT; CLIP LEAK OFF PIPE
M8X18 FLANGE 		0-28080-818-0 06 1 9603-9904 ● ●
127 BOLT; CLIP LEAK OFF PIPE
M8X18 FLANGE 		0-28080-818-0 06 1 9905- ● ● ● ●
132 CONNECTOR ASM; LEAK OFF 1-15449-009-0 10 1 9603- ●
132 CONNECTOR ASM; LEAK OFF 1-15449-009-0 12 1 9603-9904 ●
132 CONNECTOR ASM; LEAK OFF 1-15449-009-0 12 1 9905- ● ● ●
133 PIPE; INJ NOZZLE LEAK OFF 1-15414-533-0 02 1 9603- ●
133 PIPE; INJ NOZZLE LEAK OFF 1-15414-534-0 02 1 9603-9904 ●
133 PIPE; INJ NOZZLE LEAK OFF 1-15414-534-0 02 1 9905- ● ● ●

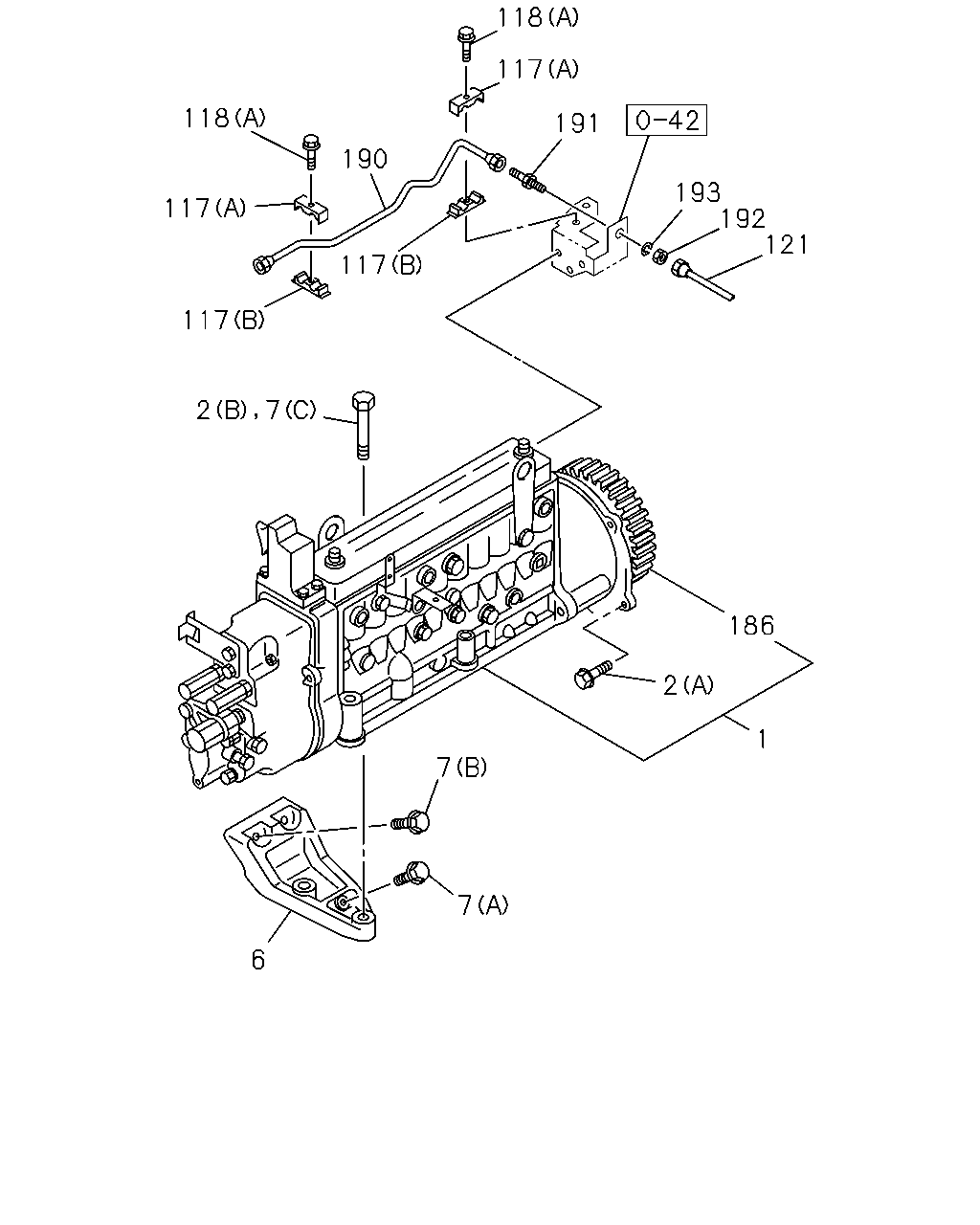

çizim 40180
118 117 118 191 190 193 192 121 117 117 117 186 2 1 7 7 6 2 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. GOVERNOR CONTROL<W69> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15603-208-2 01 1 9905- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. GOVERNOR CONTROL<W69> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15603-207-2 01 1 9905- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15603-063-2 01 1 9603-9702 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15603-205-0 01 1 9703-9904 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. GOVERNOR CONTROL<W69> 		1-15603-205-2 01 1 9905- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15603-062-2 01 1 9603-9702 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15603-204-0 01 1 9703-9904 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. GOVERNOR CONTROL<W69>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15603-204-2 01 1 9905- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15603-059-2 01 1 9603-9702 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15603-201-0 01 1 9703-9904 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. GOVERNOR CONTROL<W69> 		1-15603-201-2 01 1 9905- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15603-123-2 01 1 9603-9702 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15603-209-0 01 1 9703-9904 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		1-15603-209-1 01 1 9905- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>, GOVERNOR CONTROL<W69>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15603-060-2 01 1 9603-9702 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>, GOVERNOR CONTROL<W69>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15603-202-0 01 1 9703-9904 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. GOVERNOR CONTROL<W69>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15603-202-2 01 1 9905- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. GOVERNOR CONTROL<W69> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15603-315-2 01 1 9905- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. GOVERNOR CONTROL<W69> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15603-072-1 01 1 9603-9702 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. GOVERNOR CONTROL<W69> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15603-206-2 01 1 9703- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, GOVERNOR CONTROL<W69> 		1-15603-061-2 01 1 9603-9702 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, GOVERNOR CONTROL<W69> 		1-15603-203-0 01 1 9703-9904 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. GOVERNOR CONTROL<W69> 		1-15603-203-2 01 1 9905- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. GOVERNOR CONTROL<W69> 		1-15603-227-2 01 1 9905- ●
2 BOLT; INJ PUMP
(A) M10X80 FLANGE 		0-28181-080-0 04 1 9603-9904 ● ●
2 BOLT; INJ PUMP
(A) M10X80 FLANGE 		0-28181-080-0 04 1 9905- ● ● ● ●
2 BOLT; INJ PUMP
(B) M10X95 FLANGE 		8-94397-027-1 02 1 9603-9904 ●
2 BOLT; INJ PUMP
(B) M10X95 FLANGE 		8-94397-027-1 02 1 9905- ● ● ●
6 BRACKET; INJ PUMP TO C/BL 1-19751-051-0 01 1 9603-9904 ● ●
6 BRACKET; INJ PUMP TO C/BL 1-19751-051-0 01 1 9905- ● ● ● ●
7 BOLT; INJ PUMP BRKT
(C) M10X95 FLANGE 		8-94397-027-1 02 1 9603- ●
7 BOLT; INJ PUMP BRKT
(A) M10X22 FLANGE 		0-28181-022-0 01 1 9603-9904 ● ●
7 BOLT; INJ PUMP BRKT
(A) M10X22 FLANGE 		0-28181-022-0 01 1 9905- ● ● ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X40 FLANGE 		0-28181-040-0 01 1 9603-9904 ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X40 FLANGE 		0-28181-040-0 01 1 9905- ● ● ● ●
117 CLIP; INJ PIPE
(B) 		1-09701-195-2 01 1 9703- ●
117 CLIP; INJ PIPE
(A) 		1-09701-196-1 01 1 9703- ●
117 CLIP; INJ PIPE
(B) 		1-09701-195-1 02 1 9703-9904 ●
117 CLIP; INJ PIPE
(B) 		1-09701-195-2 02 1 9905- ● ● ●
117 CLIP; INJ PIPE
(A) 		1-09701-196-0 02 1 9703-9904 ●
117 CLIP; INJ PIPE
(A) 		1-09701-196-1 02 1 9905- ● ● ●
118 BOLT; CLIP,INJ PIPE
(A) M6X35 FLANGE 		0-28080-635-0 01 1 9703- ●
118 BOLT; CLIP,INJ PIPE
(B) M6X30 FLANGE 		0-28080-630-0 01 1 9603-9904 ● ●
118 BOLT; CLIP,INJ PIPE
(B) M6X30 FLANGE 		0-28080-630-0 01 1 9905- ● ● ● ●
118 BOLT; CLIP,INJ PIPE
(A) M6X35 FLANGE 		0-28080-635-0 02 1 9703-9904 ●
118 BOLT; CLIP,INJ PIPE
(A) M6X35 FLANGE 		0-28080-635-0 02 1 9905- ● ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
ENGINE REAR PTO(SV1) 		1-15415-800-0 01 1 9603-9904 ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
ENGINE REAR PTO(SV1) 		1-15415-800-0 01 1 9905- ● ● ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
EXC. ENGINE REAR PTO(SV1) 		1-15415-657-0 01 1 9603-9904 ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
EXC. ENGINE REAR PTO(SV1) 		1-15415-657-0 01 1 9905- ● ● ● ●
186 GEAR; INJ PUMP 1-12524-085-2 01 1 9603-9904 ● ●
186 GEAR; INJ PUMP 1-12524-085-3 01 1 9905- ● ● ● ●
190 PIPE; FUEL INLET 1-15415-916-0 01 1 9703- ●
190 PIPE; FUEL INLET 1-15415-915-0 01 1 9703-9904 ●
190 PIPE; FUEL INLET 1-15415-915-0 01 1 9905- ● ● ●
191 UNION; FLARE
M20 L=77.5 		9-09223-212-1 01 1 9703-9904 ● ●
191 UNION; FLARE
M20 L=77.5 		9-09233-212-1 01 1 9905- ● ● ● ●
192 NUT; UNION
M20 		9-99110-420-0 01 1 9703-9904 ● ●
192 NUT; UNION
M20 		9-99110-420-0 01 1 9905- ● ● ● ●
193 WASHER; UNION
ID=20.2 		9-09150-520-0 01 1 9703-9904 ● ●
193 WASHER; UNION
ID=20.2 		9-09150-520-0 01 1 9905- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
