Sayfa 9-01 - Isuzu EPC

9-01 — TOOLS (#42529) — 208 parça

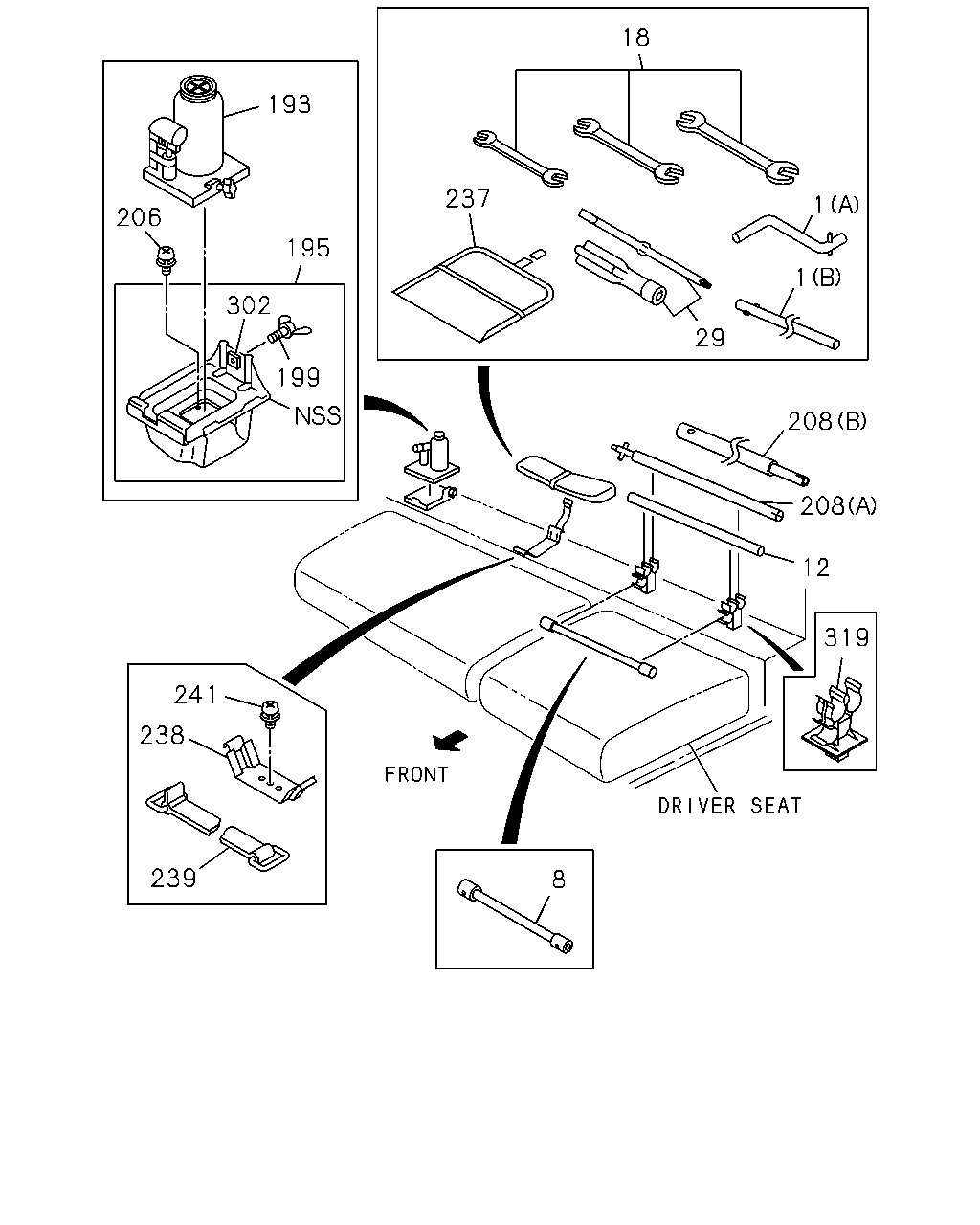

18 193 237 1 206 195 1 302 29 199 208 208 12 319 241 238 239 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	07.629 HANDLE; SPARE TIRE CARRIER FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280	1-85515-007-0	01	1	0211-0501	●	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280	1-85515-007-0	01	1	0502-1108	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER FRAME STRAIGHT TYPE<7KJ> (B) L=280	8-98181-251-0	01	1	1109-	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97218-985-0	01	1	0211-0501	●	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-97218-985-0	01	1	0211-0501					●	●
1	07.629 HANDLE; SPARE TIRE CARRIER EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97218-985-0	01	1	0502-	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-97218-985-0	01	1	0502-				●	●
8	08.821 WRENCH; WHEEL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) B=41X21 L=440	1-85113-015-1	01	1	0211-0501	●	●	●		●
8	08.821 WRENCH; WHEEL ISRAEL EQUIPMENT(7LX) G.V.W. 6.0-6.5TON(RPV) B=41X21 L=440	1-85113-015-1	01	1	0211-0501		●	●	●		●
8	08.821 WRENCH; WHEEL G.V.W. 7.0-7.5TON(RPX) B=41X21 L=440	1-85113-015-1	01	1	0502-0709	●
8	08.821 WRENCH; WHEEL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) B=41X21 L=440	1-85113-015-1	01	1	0502-0709		●	●
8	08.821 WRENCH; WHEEL G.V.W. 3.5-4.0TON(RPQ) TURKISH EQUIPMENT(S6S) B=41X21 L=440	1-85113-015-1	01	1	0502-0709		●
8	08.821 WRENCH; WHEEL G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) B=41X21 L=440	1-85113-015-1	01	1	0502-0709					●
8	08.821 WRENCH; WHEEL G.V.W. 7.0-7.5TON(RPX) B=41X21 L=440	1-85113-015-1	01	1	0710-	●
8	08.821 WRENCH; WHEEL G.V.W. 3.5-4.0TON(RPQ) TURKISH EQUIPMENT(S6S) B=41X21 L=440	1-85113-015-1	01	1	0710-		●
8	08.821 WRENCH; WHEEL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) B=41X21 L=440	1-85113-015-1	01	1	0710-		●
8	08.821 WRENCH; WHEEL RUSSIA EQUIPMENT(B12) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) B=41X21 L=440	1-85113-015-1	01	1	0710-			●
8	08.821 WRENCH; WHEEL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. RUSSIA EQUIPMENT(B12) B=41X21 L=440	1-85113-015-1	01	1	0710-			●
8	08.821 WRENCH; WHEEL RUSSIA EQUIPMENT(B12) G.V.W. 7.5-8.0TON(RPY) B=41X21 L=440	1-85113-015-1	01	1	0710-					●
8	08.821 WRENCH; WHEEL G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. RUSSIA EQUIPMENT(B12) B=41X21 L=440	1-85113-015-1	01	1	0710-					●
8	08.821 WRENCH; WHEEL G.V.W. 6.0-6.5TON(RPV) EXC. ISRAEL EQUIPMENT(7LX) B=41X19 L=330	8-94386-490-1	01	1	0211-0401	●	●	●	●
8	08.821 WRENCH; WHEEL G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. ISRAEL EQUIPMENT(7LX) B=41X19 L=330	8-94386-490-1	01	1	0402-0501	●	●	●	●
8	08.821 WRENCH; WHEEL G.V.W. 6.0-6.5TON(RPV) B=41X19 L=330	8-94386-490-1	01	1	0502-	●	●	●
8	08.821 WRENCH; WHEEL G.V.W. 3.5-4.0TON(RPQ) EXC. TURKISH EQUIPMENT(S6S) B=41X19 L=330	8-94386-490-1	01	1	0502-		●
8	08.821 WRENCH; WHEEL B=41X19 L=330	8-94386-490-1	01	1	0502-				●
12	08.821 HANDLE; WRENCH,WHEEL PIN EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590	8-97332-988-0	01	1	0211-0501	●	●	●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN OD=25 L=590	8-97332-988-0	01	1	0211-0501					●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590	8-97332-988-0	01	1	0502-1001	●	●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN OD=25 L=590	8-97332-988-0	01	1	0502-1001				●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN EXC. FRAME STRAIGHT TYPE<7KJ> 08.820 OD=25 L=480	1-85116-011-0	01	1	1002-1407	●	●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN 08.820 OD=25 L=480	1-85116-011-0	01	1	1002-1407				●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=480	8-98257-407-0	01	1	1408-	●	●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN OD=25 L=480	8-98257-407-0	01	1	1408-				●	●
18	08.821 WRENCH KIT RUSSIA EQUIPMENT(B12) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY)	9-85161-902-0	01	1	0710-			●
18	08.821 WRENCH KIT RUSSIA EQUIPMENT(B12) G.V.W. 7.5-8.0TON(RPY)	9-85161-902-0	01	1	0710-					●
29	08.821 DRIVER; SCREW G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) <+>,<-> L=160	8-94242-798-1	01	1	0211-0401	●
29	08.821 DRIVER; SCREW G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) <+>,<-> L=160	8-94242-798-1	01	1	0211-0401		●	●
29	08.821 DRIVER; SCREW G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) <+>,<-> L=160	8-94242-798-1	01	1	0211-0401					●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	0211-0401				●		●
29	08.821 DRIVER; SCREW G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) <+>,<-> L=160	8-94242-798-1	01	1	0402-0501	●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	0402-0501		●		●		●
29	08.821 DRIVER; SCREW G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) <+>,<-> L=160	8-94242-798-1	01	1	0402-0501			●
29	08.821 DRIVER; SCREW G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) <+>,<-> L=160	8-94242-798-1	01	1	0402-0501					●
29	08.821 DRIVER; SCREW G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) <+>,<-> L=160	8-94242-798-1	01	1	0502-0709	●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	0502-0709		●		●
29	08.821 DRIVER; SCREW G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) <+>,<-> L=160	8-94242-798-1	01	1	0502-0709			●
29	08.821 DRIVER; SCREW G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) <+>,<-> L=160	8-94242-798-1	01	1	0502-0709					●
29	08.821 DRIVER; SCREW G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) <+>,<-> L=160	8-94242-798-1	01	1	0710-	●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	0710-		●		●
29	08.821 DRIVER; SCREW G.V.W. 6.0-6.5TON(RPV) <+>,<-> L=160	8-94242-798-1	01	1	0710-			●
29	08.821 DRIVER; SCREW RUSSIA EQUIPMENT(B12) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) <+>,<-> L=160	8-94242-798-1	01	1	0710-			●
29	08.821 DRIVER; SCREW G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. RUSSIA EQUIPMENT(B12) <+>,<-> L=160	8-94242-798-1	01	1	0710-			●
29	08.821 DRIVER; SCREW RUSSIA EQUIPMENT(B12) G.V.W. 7.5-8.0TON(RPY) <+>,<-> L=160	8-94242-798-1	01	1	0710-					●
29	08.821 DRIVER; SCREW G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. RUSSIA EQUIPMENT(B12) <+>,<-> L=160	8-94242-798-1	01	1	0710-					●
193	08.820 JACK ASM (AUJ),(AUS),(AVK),(AYS),(BRT),(07H), (95H),(96H),(98H) 4TON	8-97131-075-2	01	1	0211-0302	●	●	●	●	●	●
193	08.820 JACK ASM (AUJ),(AUS),(AVK),(AYS),(CQT),(CQU), (07H),(95H),(96H),(98H) 4TON	8-97131-075-2	01	1	0303-0305	●	●	●	●	●	●
193	08.820 JACK ASM (AUJ),(AUS),(AVK),(AYS),(CQT),(CQU), (07H),(95H),(96H),(98H) 4TON	8-97371-123-0	01	1	0306-0501	●	●	●	●	●	●
193	08.820 JACK ASM (AUJ),(AUS),(AVK),(07H),(95H),(96H), (98H) 4TON	8-97371-123-0	01	1	0502-0504	●	●	●	●	●
193	08.820 JACK ASM (AUJ),(AUS),(AVK),(07H),(95H),(96H), (98H) 4TON	8-98012-285-0	01	1	0505-0505	●	●	●	●	●
193	08.820 JACK ASM (AUJ),(AUS),(AVK),(CQU),(CSB),(07H), (95H),(96H),(98H) 4TON	8-98012-285-0	01	1	0506-0604	●	●	●	●	●
193	08.820 JACK ASM (AUJ),(AUS),(AVK),(CQU),(CRV),(CSB), (07H),(95H),(96H),(98H) 4TON	8-98012-285-0	01	1	0605-0706	●	●	●	●	●
193	08.820 JACK ASM (AUJ),(AUS),(AVK),(CQU),(CRV),(07H), (95H),(96H),(98H) 4TON	8-98012-285-0	01	1	0707-0804	●	●	●	●	●
193	08.820 JACK ASM (AUJ),(AUS),(AVK),(CQU),(CRV),(CUA), (07H),(95H),(96H),(98H) 4TON	8-98012-285-0	01	1	0805-	●	●	●	●	●
193	08.820 JACK ASM (AQK),(BPR),(BPS),(BPT),(BQQ),(BUM), (BUN),(BXQ),(03C),(04C),(05C),(10H), (11H),(12H),(14H),(19H),(83V),(9BP), (95V),(97V) 5TON	8-97131-076-2	01	1	0211-0305	●	●	●	●	●
193	08.820 JACK ASM (AQK),(BPR),(BPS),(BPT),(BQQ),(BUM), (BUN),(BXQ),(03C),(04C),(05C),(10H), (11H),(12H),(14H),(19H),(83V),(9BP), (95V),(97V) 5TON	8-97371-124-0	01	1	0306-0501	●	●	●	●	●
193	08.820 JACK ASM (BPR),(BPS),(BPT),(BQQ),(BUM),(BUN), (BXQ),(03C),(04C),(05C),(10H),(11H), (12H),(14H),(19H),(83V),(9BP),(95V), (97V) 5TON	8-97371-124-0	01	1	0502-0505	●	●	●	●	●
193	08.820 JACK ASM (BPR),(BPS),(BQQ),(BUM),(BUN),(BXQ), (CNY),(CSC),(03C),(04C),(05C),(10H), (11H),(12H),(14H),(19H),(83V),(9BP), (95V),(97V) 5TON	8-97371-124-0	01	1	0506-0706	●	●	●	●	●
193	08.820 JACK ASM (BQQ),(BUM),(BUN),(BXQ),(03C),(04C), (05C),(10H),(11H),(12H),(14H),(19H), (83V),(9BP),(95V),(97V) 5TON	8-97371-124-0	01	1	0707-0804	●	●	●	●	●
193	08.820 JACK ASM (BQQ),(BUM),(BUN),(BXQ),(CTZ),(CUB), (03C),(04C),(05C),(10H),(11H),(12H), (14H),(19H),(83V),(9BP),(95V),(97V) 5TON	8-97371-124-0	01	1	0805-0805	●	●	●	●	●
193	08.820 JACK ASM (BQQ),(BUM),(BUN),(BXQ),(CTZ),(CUB), (03C),(04C),(05C),(10H),(11H),(12H), (14H),(19H),(83V),(9BP),(95V),(97V) 5TON	8-98114-047-0	01	1	0806-0811	●	●	●	●	●
193	08.820 JACK ASM (BQQ),(BUM),(BUN),(BXQ),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),(CTZ), (CUB),FRT&RR 7.5R-16-10 DISC 6.00GSX16- 127(CUV),(03C),(04C),(05C),(10H), (11H),(12H),(14H),(19H),(83V),(9BP),(95V) ,(97V) 5TON	8-98114-047-0	01	1	0812-	●	●	●	●	●
193	08.820 JACK ASM (9ZM),(9ZP) 5TON	8-97131-077-2	01	1	0211-0805		●	●		●
193	08.820 JACK ASM (9ZM),(9ZP) 5TON	8-98114-045-0	01	1	0806-		●	●		●
195	08.820 BRACKET; JACK (BQQ),(BUM),(BUN),(BXQ),(CTZ),(CUB), (03C),(04C),(05C),(10H),(11H),(12H), (14H),(19H),(83V),(9BP),(95V),(97V)	8-97856-994-3	01	1	0806-0811	●
195	08.820 BRACKET; JACK (BQQ),(BUM),(BUN),(BXQ),(CTZ),(CUB), (03C),(04C),(05C),(10H),(11H),(12H), (14H),(19H),(83V),(9BP),(9ZM),(9ZP), (95V),(97V)	8-97856-994-3	01	1	0806-0811		●	●
195	08.820 BRACKET; JACK (05C),(83V),(9BP),(9ZM),(9ZP),(97V)	8-97856-994-3	01	1	0806-0811					●
195	08.820 BRACKET; JACK (BQQ),(BUM),(BUN),(BXQ),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),(CTZ), (CUB),FRT&RR 7.5R-16-10 DISC 6.00GSX16- 127(CUV),(03C),(04C),(05C),(10H), (11H),(12H),(14H),(19H),(83V),(9BP),(9ZM) ,(9ZP),(95V),(97V)	8-97856-994-3	01	1	0812-	●	●	●		●
195	08.820 BRACKET; JACK (10H),(11H),(12H),(14H),(19H)	8-94273-287-7	01	1	0806-0811				●
195	08.820 BRACKET; JACK FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),(10H),(11H),(12H),(14H),(19H)	8-94273-287-7	01	1	0812-				●
195	08.820 BRACKET; JACK	8-97856-997-4	01	1	0211-0501	●	●	●		●	●
195	08.820 BRACKET; JACK	8-97856-997-4	01	1	0502-0805	●	●	●		●
195	08.820 BRACKET; JACK (CQU),(CRV),(CUA),(07H),(95H),(96H), (98H)	8-97856-997-4	01	1	0806-1408	●
195	08.820 BRACKET; JACK (AUJ),(AUS),(AVK),(CQU),(CRV),(CUA), (07H),(95H),(96H),(98H)	8-97856-997-4	01	1	0806-1408		●	●
195	08.820 BRACKET; JACK (CQU),(CRV)	8-97856-997-4	01	1	0806-1408					●
195	08.820 BRACKET; JACK (CRV),(CUA),(07H),(95H),(96H),(98H)	8-97856-997-4	01	1	1409-	●
195	08.820 BRACKET; JACK (AUJ),(AUS),(AVK),(CQU),(CRV),(CUA), (07H),(95H),(96H),(98H)	8-97856-997-4	01	1	1409-		●	●
195	08.820 BRACKET; JACK (CQU),(CRV)	8-97856-997-4	01	1	1409-					●
195	08.820 BRACKET; JACK	8-94262-068-3	01	1	0211-0805				●
195	08.820 BRACKET; JACK (07H),(95H),(96H),(98H)	8-94262-068-3	01	1	0806-				●
199	08.820 BOLT; JACK (BQQ),(BUM),(BUN),(BXQ),(CTZ),(CUB), (03C),(04C),(05C),(10H),(11H),(12H), (14H),(19H),(83V),(9BP),(95V),(97V) M8X30 WING	8-94279-018-1	01	1	0806-0811	●
199	08.820 BOLT; JACK (BQQ),(BUM),(BUN),(BXQ),(CTZ),(CUB), (03C),(04C),(05C),(10H),(11H),(12H), (14H),(19H),(83V),(9BP),(9ZM),(9ZP), (95V),(97V) M8X30 WING	8-94279-018-1	01	1	0806-0811		●	●
199	08.820 BOLT; JACK (05C),(83V),(9BP),(9ZM),(9ZP),(97V) M8X30 WING	8-94279-018-1	01	1	0806-0811					●
199	08.820 BOLT; JACK (10H),(11H),(12H),(14H),(19H) M8X30 WING	8-94279-018-1	01	1	0806-0811				●
199	08.820 BOLT; JACK (BQQ),(BUM),(BUN),(BXQ),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),(CTZ), (CUB),FRT&RR 7.5R-16-10 DISC 6.00GSX16- 127(CUV),(03C),(04C),(05C),(10H), (11H),(12H),(14H),(19H),(83V),(9BP),(95V) ,(97V) M8X30 WING	8-94279-018-1	01	1	0812-	●
199	08.820 BOLT; JACK (BQQ),(BUM),(BUN),(BXQ),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),(CTZ), (CUB),FRT&RR 7.5R-16-10 DISC 6.00GSX16- 127(CUV),(03C),(04C),(05C),(10H), (11H),(12H),(14H),(19H),(83V),(9BP),(9ZM) ,(9ZP),(95V),(97V) M8X30 WING	8-94279-018-1	01	1	0812-		●	●
199	08.820 BOLT; JACK FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),(05C),(83V),(9BP),(9ZM),(9ZP), (97V) M8X30 WING	8-94279-018-1	01	1	0812-					●
199	08.820 BOLT; JACK FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),(10H),(11H),(12H),(14H),(19H) M8X30 WING	8-94279-018-1	01	1	0812-				●
199	08.820 BOLT; JACK M8X50 WING	8-94279-136-0	01	1	0211-0501	●	●	●	●	●	●
199	08.820 BOLT; JACK M8X50 WING	8-94279-136-0	01	1	0502-0805	●	●	●	●	●
199	08.820 BOLT; JACK (AUJ),(AUS),(AVK),(CQU),(CRV),(CUA), (07H),(95H),(96H),(98H) M8X50 WING	8-94279-136-0	01	1	0806-	●	●	●	●	●
206	08.820 SCREW; OIL JACK BRKT 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	01	1	0211-0501	●	●	●	●	●	●
206	08.820 SCREW; OIL JACK BRKT 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	01	1	0502-0612	●	●	●	●	●
206	08.820 SCREW; OIL JACK BRKT 16.570 M6X16	0-38050-616-0	01	1	0701-	●	●	●	●	●
208	08.820 HANDLE; JACK FRAME STRAIGHT TYPE<7KJ> (B) L=580	1-85515-005-1	01	1	0211-0501	●	●	●	●
208	08.820 HANDLE; JACK FRAME STRAIGHT TYPE<7KJ> (B) L=580	1-85515-005-1	01	1	0502-1108	●	●	●
208	08.820 HANDLE; JACK FRAME STRAIGHT TYPE<7KJ> (B) L=580	8-98181-249-0	01	1	1109-	●	●	●
208	08.820 HANDLE; JACK EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-97217-800-0	01	1	0211-0501	●	●	●	●
208	08.820 HANDLE; JACK (A) L=642	8-97217-800-0	01	1	0211-0501					●	●
208	08.820 HANDLE; JACK EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-97217-800-0	01	1	0502-1108	●	●	●
208	08.820 HANDLE; JACK (A) L=642	8-97217-800-0	01	1	0502-1108				●	●
208	08.820 HANDLE; JACK EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-98181-477-0	01	1	1109-	●	●	●
208	08.820 HANDLE; JACK (A) L=642	8-98181-477-0	01	1	1109-				●	●
237	08.821 BAG; TOOL G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX)	8-97130-903-0	01	1	0211-0401	●
237	08.821 BAG; TOOL G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ)	8-97130-903-0	01	1	0211-0401		●	●
237	08.821 BAG; TOOL G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)	8-97130-903-0	01	1	0211-0401					●
237	08.821 BAG; TOOL	8-97130-903-0	01	1	0211-0401				●		●
237	08.821 BAG; TOOL G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX)	8-97130-903-0	01	1	0402-0501	●
237	08.821 BAG; TOOL	8-97130-903-0	01	1	0402-0501		●		●		●
237	08.821 BAG; TOOL G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ)	8-97130-903-0	01	1	0402-0501			●
237	08.821 BAG; TOOL G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)	8-97130-903-0	01	1	0402-0501					●
237	08.821 BAG; TOOL G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX)	8-97130-903-0	01	1	0502-0709	●
237	08.821 BAG; TOOL	8-97130-903-0	01	1	0502-0709		●		●
237	08.821 BAG; TOOL G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ)	8-97130-903-0	01	1	0502-0709			●
237	08.821 BAG; TOOL G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)	8-97130-903-0	01	1	0502-0709					●
237	08.821 BAG; TOOL G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX)	8-97130-903-1	01	1	0710-	●
237	08.821 BAG; TOOL	8-97130-903-1	01	1	0710-		●		●
237	08.821 BAG; TOOL G.V.W. 6.0-6.5TON(RPV)	8-97130-903-1	01	1	0710-			●
237	08.821 BAG; TOOL RUSSIA EQUIPMENT(B12) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY)	8-97130-903-1	01	1	0710-			●
237	08.821 BAG; TOOL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. RUSSIA EQUIPMENT(B12)	8-97130-903-1	01	1	0710-			●
237	08.821 BAG; TOOL RUSSIA EQUIPMENT(B12) G.V.W. 7.5-8.0TON(RPY)	8-97130-903-1	01	1	0710-					●
237	08.821 BAG; TOOL G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. RUSSIA EQUIPMENT(B12)	8-97130-903-1	01	1	0710-					●
238	08.820 SUPPORT; TOOL BAG	8-97994-977-0	01	1	0211-0501	●	●	●		●	●
238	08.820 SUPPORT; TOOL BAG	8-97994-977-0	01	1	0502-	●	●	●		●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	0211-0501	●	●	●	●	●	●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	0502-	●	●	●	●	●
241	08.820 SCREW; TOOL BAG SUPPORT 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	01	1	0211-0501	●	●	●		●	●
241	08.820 SCREW; TOOL BAG SUPPORT 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	01	1	0502-0612	●	●	●		●
241	08.820 SCREW; TOOL BAG SUPPORT 16.570 M6X16	0-38050-616-0	01	1	0701-	●	●	●		●
302	08.820 NUT; JACK BRKT	8-94279-522-0	01	1	0211-0501	●	●	●	●	●	●
302	08.820 NUT; JACK BRKT	8-94279-522-0	01	1	0502-0805	●	●	●	●	●
302	08.820 NUT; JACK BRKT	8-94279-522-0	01	1	0806-	●	●	●	●	●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	0211-0501	●	●	●	●	●	●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	0502-	●	●	●	●	●

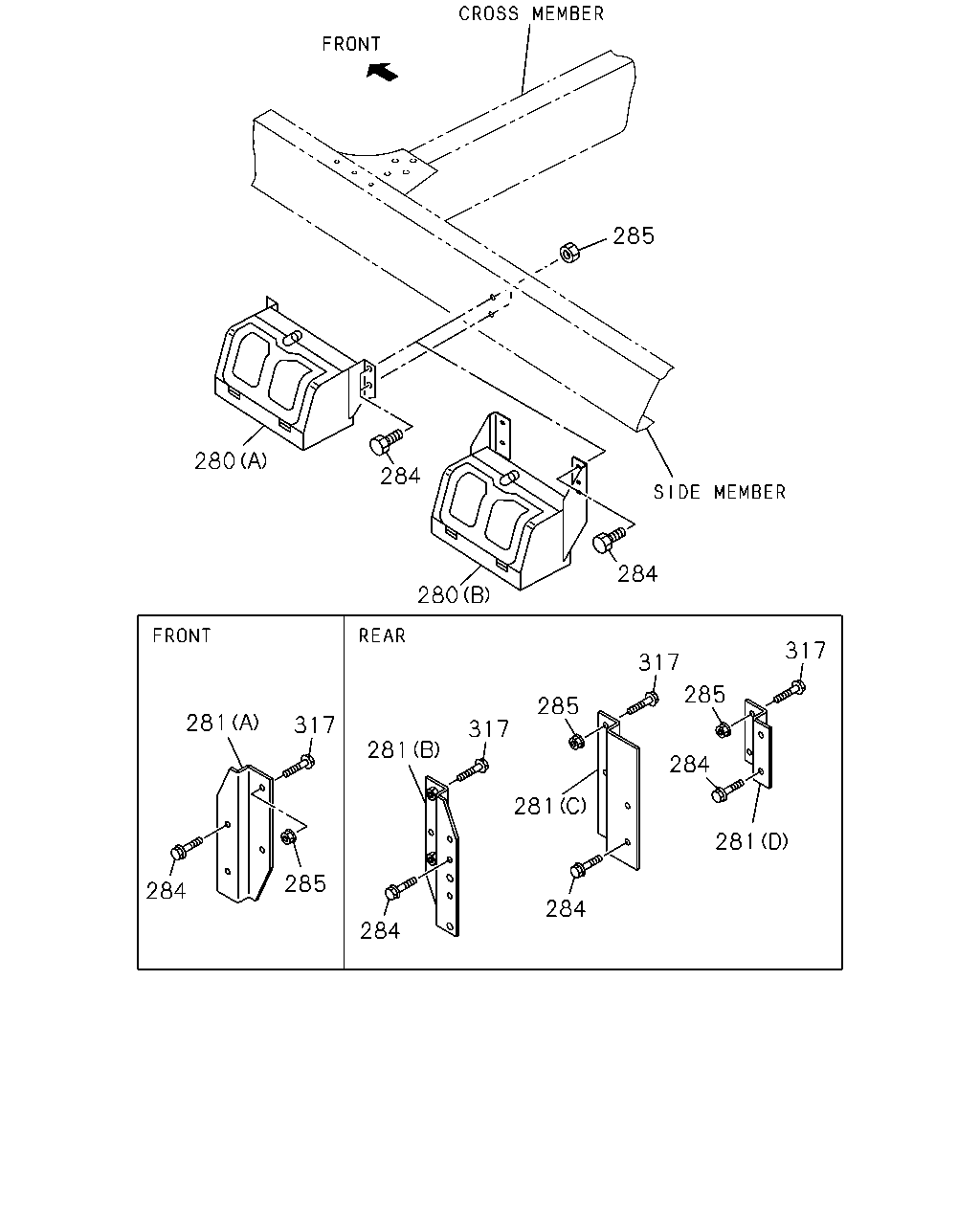

285 280 284 284 280 317 317 285 285 281 317 317 281 284 281 281 285 284 284 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D),FRAME STRAIGHTTYPE<7KJ> (B)	8-94123-034-1	01	1	0211-	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (A)	8-97222-496-0	01	1	0211-0501	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> (A)	8-97222-496-0	01	1	0211-0501		●	●	●	●	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (A)	8-97222-496-0	01	1	0502-	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> (A)	8-97222-496-0	01	1	0502-		●	●	●	●
281	08.821 BRACKET; TOOL BOX 4HG1 ENG(RJH),4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (B) REAR	8-97095-539-0	01	1	0211-0501		●	●		●
281	08.821 BRACKET; TOOL BOX 4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR	8-97095-539-0	01	1	0211-0501				●
281	08.821 BRACKET; TOOL BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (B) REAR	8-97095-539-0	01	1	0502-0612		●	●
281	08.821 BRACKET; TOOL BOX 4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (B) REAR	8-97095-539-0	01	1	0502-0612					●
281	08.821 BRACKET; TOOL BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (B) REAR	8-97095-539-0	01	1	0701-		●	●		●
281	08.821 BRACKET; TOOL BOX 4HG1 ENG(RJH),4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (A) FRONT	8-97209-719-0	01	1	0211-0501		●	●		●
281	08.821 BRACKET; TOOL BOX 4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (A) FRONT	8-97209-719-0	01	1	0211-0501				●
281	08.821 BRACKET; TOOL BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (A) FRONT	8-97209-719-0	01	1	0502-0612		●	●
281	08.821 BRACKET; TOOL BOX 4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (A) FRONT	8-97209-719-0	01	1	0502-0612					●
281	08.821 BRACKET; TOOL BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> (A) FRONT	8-97209-719-0	01	1	0701-		●	●		●
281	08.821 BRACKET; TOOL BOX 4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) REAR	8-97254-546-0	01	1	0211-0308			●
281	08.821 BRACKET; TOOL BOX 4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (C) REAR	8-97254-546-0	01	1	0211-0308					●
281	08.821 BRACKET; TOOL BOX 4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) REAR	8-97254-546-0	01	1	0309-0501			●		●
281	08.821 BRACKET; TOOL BOX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TOOL & STORAGE BOX<VK2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) REAR	8-97254-546-0	01	1	0502-0506			●
281	08.821 BRACKET; TOOL BOX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TOOL & STORAGE BOX<VK2> (C) REAR	8-97254-546-0	01	1	0502-0506					●
281	08.821 BRACKET; TOOL BOX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) TOOL & STORAGE BOX<VK2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) REAR	8-97254-546-0	01	1	0507-0606			●
281	08.821 BRACKET; TOOL BOX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TOOL & STORAGE BOX<VK2> (C) REAR	8-97254-546-0	01	1	0507-0606					●
281	08.821 BRACKET; TOOL BOX 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) TOOL & STORAGE BOX<VK2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) REAR	8-97254-546-0	01	1	0607-0612			●
281	08.821 BRACKET; TOOL BOX 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) TOOL & STORAGE BOX<VK2> (C) REAR	8-97254-546-0	01	1	0607-0612					●
281	08.821 BRACKET; TOOL BOX 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) TOOL & STORAGE BOX<VK2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) REAR	8-97254-546-0	01	1	0701-			●		●
281	08.821 BRACKET; TOOL BOX 4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (D) REAR	8-97248-971-0	01	1	0211-0501				●
284	08.821 BOLT; TOOL BOX 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE	0-28680-825-0	03	1	0502-0512	●
284	08.821 BOLT; TOOL BOX 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0601-	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0211-0501	●	●	●	●	●	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0502-0512	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0502-0512		●	●	●	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0601-		●	●	●	●
285	08.821 NUT; TOOL BOX 4HF1-S ENG(RLS) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE	0-91150-108-0	04	1	0211-0501	●	●	●
285	08.821 NUT; TOOL BOX 4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	04	1	0211-0501		●	●		●
285	08.821 NUT; TOOL BOX 4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE	0-91150-108-0	04	1	0211-0501				●
285	08.821 NUT; TOOL BOX 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE	0-91150-108-0	04	1	0502-0602	●	●	●
285	08.821 NUT; TOOL BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	04	1	0502-0602		●	●
285	08.821 NUT; TOOL BOX 4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	04	1	0502-0602					●
285	08.821 NUT; TOOL BOX 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) TOOL & STORAGE BOX<VK2> 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-0612	●	●	●
285	08.821 NUT; TOOL BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-0612		●	●
285	08.821 NUT; TOOL BOX 4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-0612					●
285	08.821 NUT; TOOL BOX 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) TOOL & STORAGE BOX<VK2> 01.062 M8 FLANGE	0-91180-108-0	04	1	0701-0801	●	●	●
285	08.821 NUT; TOOL BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	04	1	0701-0801		●	●		●
285	08.821 NUT; TOOL BOX 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) TOOL & STORAGE BOX<VK2> 01.062 M8 FLANGE	0-91180-108-0	04	1	0802-	●	●	●
285	08.821 NUT; TOOL BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	04	1	0802-		●
285	08.821 NUT; TOOL BOX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) TOOL & STORAGE BOX<VK2> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	04	1	0802-			●		●
285	08.821 NUT; TOOL BOX 4HG1 ENG(RJH),4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501		●	●		●
285	08.821 NUT; TOOL BOX 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●
285	08.821 NUT; TOOL BOX 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602		●	●
285	08.821 NUT; TOOL BOX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602					●
285	08.821 NUT; TOOL BOX 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TOOL & STORAGE BOX<VK2> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0612	●
285	08.821 NUT; TOOL BOX 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0612		●	●
285	08.821 NUT; TOOL BOX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0612					●
285	08.821 NUT; TOOL BOX 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TOOL & STORAGE BOX<VK2> 01.062 M8 FLANGE	0-91180-108-0	01	1	0701-	●
285	08.821 NUT; TOOL BOX 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> 01.062 M8 FLANGE	0-91180-108-0	01	1	0701-		●	●		●
285	08.821 NUT; TOOL BOX 4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	03	1	0211-0501				●
317	08.821 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0211-0501		●	●		●
317	08.821 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0211-0501				●
317	08.821 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0502-0512		●	●
317	08.821 BOLT; BRKT TO FRAME 4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0502-0512					●
317	08.821 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0601-0612		●	●
317	08.821 BOLT; BRKT TO FRAME 4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0601-0612					●
317	08.821 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0701-		●	●		●
317	08.821 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 02.183 M8X35 FLANGE	0-28680-835-0	03	1	0211-0501				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
