8-75 — CONDENSER (#42526) — 65 parça

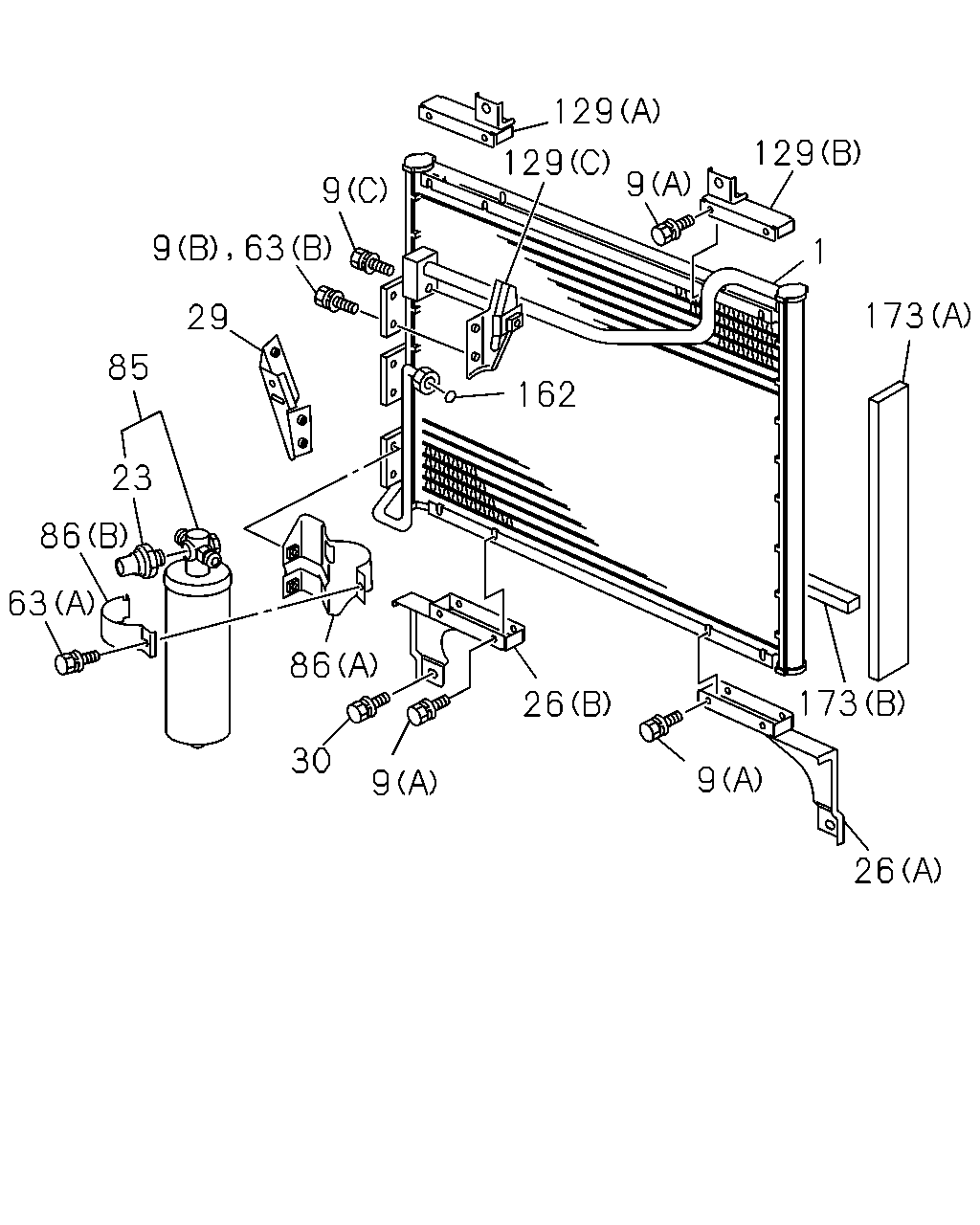

çizim 54432
129 129 129 9 9 1 173 29 85 162 23 86 63 86 173 26 30 9 9 26 9 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.190 CONDENSER; A/C
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97108-624-1 01 1 0211-0501 ● ● ● ●
1 09.190 CONDENSER; A/C
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 		8-97376-813-0 01 1 0502-0508 ● ● ● ●
1 09.190 CONDENSER; A/C
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 		8-97376-813-0 01 1 0509- ● ● ●
1 09.190 CONDENSER; A/C
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 		8-97376-815-0 01 1 0509- ● ● ●
9 09.190 BOLT; BRKT
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97091-336-0 01 1 0211-0501 ● ● ● ●
9 09.190 BOLT; BRKT
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97112-752-0 04 1 0211-0501 ● ● ● ●
9 09.190 BOLT; BRKT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 09.175 (B) 		8-97112-752-0 02 1 0502- ● ● ● ●
9 09.190 BOLT; BRKT
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97114-209-0 08 1 0211-0501 ● ● ● ●
9 09.190 BOLT; BRKT
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 09.262 (D) 		8-97046-505-0 02 1 0509- ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97095-659-0 01 1 0211-0501 ● ● ● ●
26 09.190 BRACKET; LOW
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97096-035-2 01 1 0211-0501 ● ● ● ●
26 09.190 BRACKET; LOW
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-036-2 01 1 0211-0501 ● ● ● ●
26 09.190 BRACKET; LOW
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-97328-498-0 01 1 0509- ● ● ●
26 09.190 BRACKET; LOW
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (D) 		8-97328-499-0 01 1 0509- ● ● ●
29 09.190 BRACKET; SIDE
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97108-626-0 01 1 0211-0501 ● ● ● ●
29 09.190 BRACKET; SIDE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 		8-97219-180-0 01 1 0502- ● ● ● ●
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0211-0501 ● ● ● ● ● ●
30 09.190 BOLT; CONDENSER,A/C
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0502-0508 ● ● ● ●
30 09.190 BOLT; CONDENSER,A/C
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0509-0512 ● ● ●
30 09.190 BOLT; CONDENSER,A/C
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 03.162 M6X12 FLANGE 		0-28050-612-0 04 1 0601- ● ● ●
30 09.190 BOLT; CONDENSER,A/C
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0509-0512 ● ● ●
30 09.190 BOLT; CONDENSER,A/C
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0601- ● ● ●
63 09.175 BOLT; RECEIVER TANK
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 		1-15729-461-0 01 1 0211-0501 ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97112-752-0 02 1 0211-0501 ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97112-752-0 02 1 0502- ● ● ● ●
85 09.172 DRYER; RECEIVER
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 		8-97096-032-0 01 1 0211-0501 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97077-536-2 01 1 0211-0501 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97107-367-1 01 1 0211-0501 ● ● ● ●
129 09.190 BRACKET; UPR
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97095-955-2 01 1 0211-0501 ● ● ● ●
129 09.190 BRACKET; UPR
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-956-2 01 1 0211-0501 ● ● ● ●
129 09.190 BRACKET; UPR
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97095-962-1 01 1 0211-0501 ● ● ● ●
162 09.195 GASKET; PIPE TO DRYER
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6 		8-94481-700-0 01 1 0211-0501 ● ● ● ●
162 09.195 GASKET; PIPE TO DRYER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 		8-97161-776-0 01 1 0502- ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-033-1 02 1 0211-0501 ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97096-037-1 02 1 0211-0501 ● ● ● ●

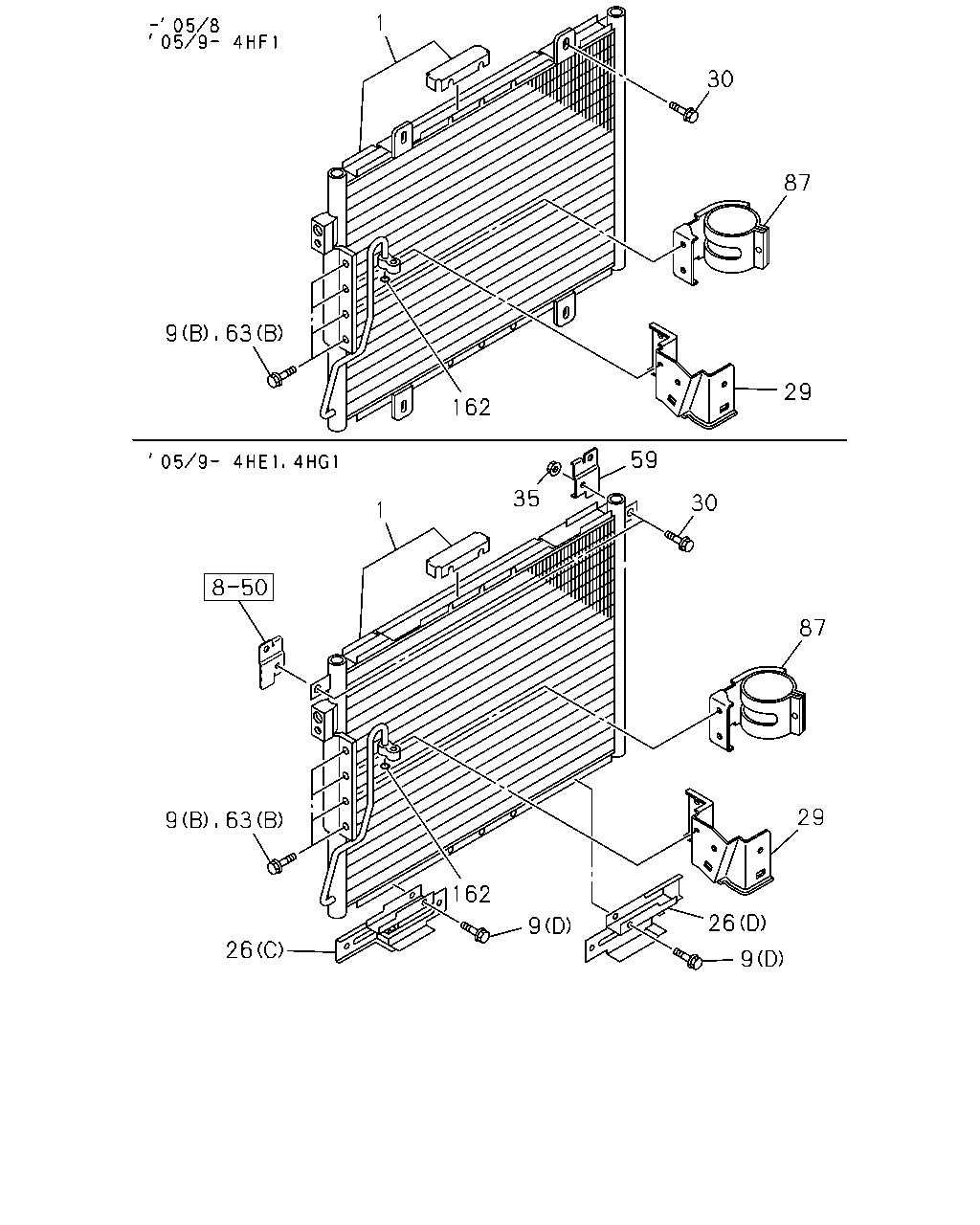

çizim 55612
1 30 87 29 162 59 35 30 1 87 29 162 26 9 26 9 9 63 9 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.190 CONDENSER; A/C
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97108-624-1 01 1 0211-0501 ● ● ● ●
1 09.190 CONDENSER; A/C
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 		8-97376-813-0 01 1 0502-0508 ● ● ● ●
1 09.190 CONDENSER; A/C
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 		8-97376-813-0 01 1 0509- ● ● ●
1 09.190 CONDENSER; A/C
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 		8-97376-815-0 01 1 0509- ● ● ●
9 09.190 BOLT; BRKT
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97091-336-0 01 1 0211-0501 ● ● ● ●
9 09.190 BOLT; BRKT
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97112-752-0 04 1 0211-0501 ● ● ● ●
9 09.190 BOLT; BRKT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 09.175 (B) 		8-97112-752-0 02 1 0502- ● ● ● ●
9 09.190 BOLT; BRKT
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97114-209-0 08 1 0211-0501 ● ● ● ●
9 09.190 BOLT; BRKT
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 09.262 (D) 		8-97046-505-0 02 1 0509- ● ● ●
26 09.190 BRACKET; LOW
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97096-035-2 01 1 0211-0501 ● ● ● ●
26 09.190 BRACKET; LOW
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-036-2 01 1 0211-0501 ● ● ● ●
26 09.190 BRACKET; LOW
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (C) 		8-97328-498-0 01 1 0509- ● ● ●
26 09.190 BRACKET; LOW
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (D) 		8-97328-499-0 01 1 0509- ● ● ●
29 09.190 BRACKET; SIDE
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97108-626-0 01 1 0211-0501 ● ● ● ●
29 09.190 BRACKET; SIDE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 		8-97219-180-0 01 1 0502- ● ● ● ●
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0211-0501 ● ● ● ● ● ●
30 09.190 BOLT; CONDENSER,A/C
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0502-0508 ● ● ● ●
30 09.190 BOLT; CONDENSER,A/C
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0509-0512 ● ● ●
30 09.190 BOLT; CONDENSER,A/C
4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 03.162 M6X12 FLANGE 		0-28050-612-0 04 1 0601- ● ● ●
30 09.190 BOLT; CONDENSER,A/C
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0509-0512 ● ● ●
30 09.190 BOLT; CONDENSER,A/C
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0601- ● ● ●
35 09.190 NUT; CONDENSER,A/C
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 04.594 M6 FLANGE 		0-91150-106-0 04 1 0509-0602 ● ● ●
35 09.190 NUT; CONDENSER,A/C
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 01.062 M6 FLANGE 		0-91180-106-0 04 1 0603- ● ● ●
59 09.190 BRACKET; CONDENSER
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 		8-97039-998-3 01 1 0509- ● ● ●
63 09.175 BOLT; RECEIVER TANK
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 		1-15729-461-0 01 1 0211-0501 ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97112-752-0 02 1 0211-0501 ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97112-752-0 02 1 0502- ● ● ● ●
87 09.196 BRACKET; RECEIVER DRYER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 09.190 		8-97262-878-0 01 1 0502- ● ● ● ●
162 09.195 GASKET; PIPE TO DRYER
4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6 		8-94481-700-0 01 1 0211-0501 ● ● ● ●
162 09.195 GASKET; PIPE TO DRYER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 		8-97161-776-0 01 1 0502- ● ● ● ●
