8-73 — BLOWER UNIT (#42524) — 44 parça

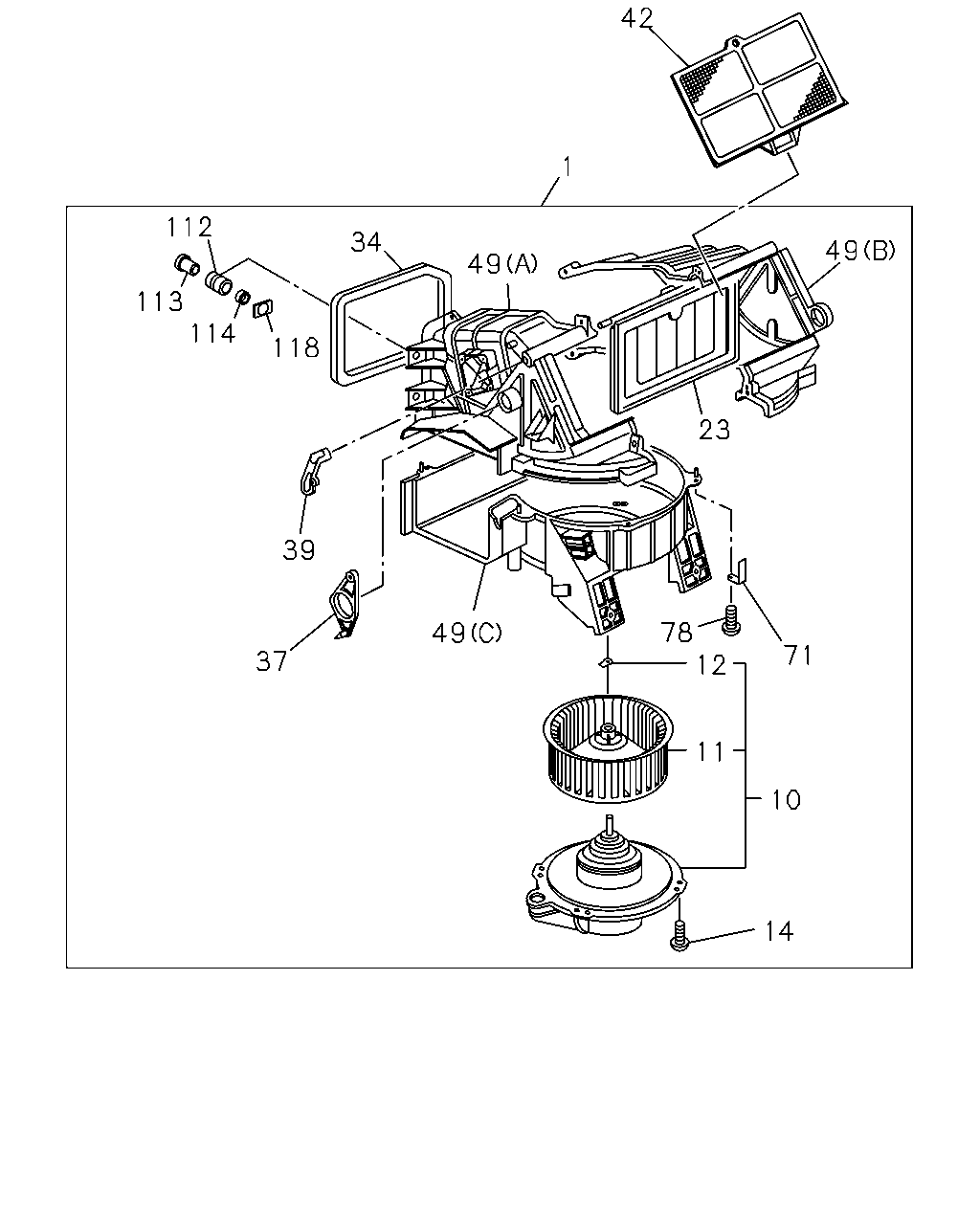

çizim 55651
42 1 112 34 49 49 113 114 118 23 39 78 12 49 71 37 11 10 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 08.855 BLOWER ASM 8-97288-168-0 01 1 0211-0501 ● ● ●
1 08.855 BLOWER ASM
VOLTAGE 24V<7AE> 		8-97288-168-0 01 1 0211-0501 ● ● ●
1 08.855 BLOWER ASM 8-97288-168-0 01 1 0502- ● ●
1 08.855 BLOWER ASM
VOLTAGE 24V<7AE> 		8-97288-168-0 01 1 0502- ● ● ●
1 08.855 BLOWER ASM
EXC. VOLTAGE 24V<7AE> 		8-97288-167-0 01 1 0211- ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-97211-954-0 01 1 0211-0501 ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
VOLTAGE 24V<7AE> 		8-97211-954-0 01 1 0211-0501 ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-97211-954-0 01 1 0502- ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
VOLTAGE 24V<7AE> 		8-97211-954-0 01 1 0502- ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
EXC. VOLTAGE 24V<7AE> 		8-97211-953-0 01 1 0211- ● ● ●
11 08.857 IMPELLER; FAN MOTOR 8-97096-067-0 01 1 0211-0501 ● ● ● ● ● ●
11 08.857 IMPELLER; FAN MOTOR 8-97096-067-0 01 1 0502- ● ● ● ● ●
12 08.857 RING; SNAP,FAN MOTOR 8-94243-962-0 01 1 0211-0501 ● ● ● ● ● ●
12 08.857 RING; SNAP,FAN MOTOR 8-94243-962-0 01 1 0502- ● ● ● ● ●
14 08.857 SCREW; COVER TO CASE
10.240 M5X20 		9-09829-324-1 04 1 0211-0501 ● ● ● ● ● ●
14 08.857 SCREW; COVER TO CASE
10.240 M5X20 		9-09829-324-1 04 1 0502- ● ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-97096-640-3 01 1 0211-0501 ● ● ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-97096-640-3 01 1 0502- ● ● ● ● ●
34 08.856 LINING; BLOWER UNIT 8-97085-612-1 01 1 0211-0501 ● ● ● ● ● ●
34 08.856 LINING; BLOWER UNIT 8-97085-612-1 01 1 0502- ● ● ● ● ●
37 09.786 LEVER; MODE LEVER 8-97101-667-1 01 1 0211-0501 ● ● ● ● ● ●
37 09.786 LEVER; MODE LEVER 8-97101-667-1 01 1 0502- ● ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT 8-97101-666-1 01 1 0211-0501 ● ● ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT 8-97101-666-1 01 1 0502- ● ● ● ● ●
42 08.857 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-97288-163-0 01 1 0211-0501 ● ● ● ● ● ●
42 08.857 FILTER; BLOWER UNIT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 		8-97288-163-0 01 1 0502- ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(A) 		8-97101-647-3 01 1 0211-0501 ● ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(A) 		8-97101-647-3 01 1 0502- ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(B) 		8-97101-648-1 01 1 0211-0501 ● ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(B) 		8-97101-648-1 01 1 0502- ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(C) 		8-97101-649-0 01 1 0211-0501 ● ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(C) 		8-97101-649-0 01 1 0502- ● ● ● ● ●
71 08.857 CLIP; HARNESS
08.854 		8-94158-260-0 01 1 0211-0501 ● ● ● ● ● ●
71 08.857 CLIP; HARNESS
08.854 		8-94158-260-0 01 1 0502- ● ● ● ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 		8-94324-850-0 08 1 0211-0501 ● ● ● ● ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 		8-94324-850-0 08 1 0502- ● ● ● ● ●
112 08.857 ISOLATOR; CASE 8-97096-641-0 02 1 0211-0501 ● ● ● ● ● ●
112 08.857 ISOLATOR; CASE 8-97096-641-0 02 1 0502- ● ● ● ● ●
113 08.857 BUSHING; ISOLATOR 8-97096-642-0 02 1 0211-0501 ● ● ● ● ● ●
113 08.857 BUSHING; ISOLATOR 8-97096-642-0 02 1 0502- ● ● ● ● ●
114 08.857 NUT; ISOLATOR
00.854 M8 FLANGE 		5-09440-005-0 02 1 0211-0501 ● ● ● ● ● ●
114 08.857 NUT; ISOLATOR
00.854 M8 FLANGE 		5-09440-005-0 02 1 0502- ● ● ● ● ●
118 08.857 BRACKET; BUSHING 8-97107-979-0 01 1 0211-0501 ● ● ● ● ● ●
118 08.857 BRACKET; BUSHING 8-97107-979-0 01 1 0502- ● ● ● ● ●
