Sayfa 8-52 - Isuzu EPC

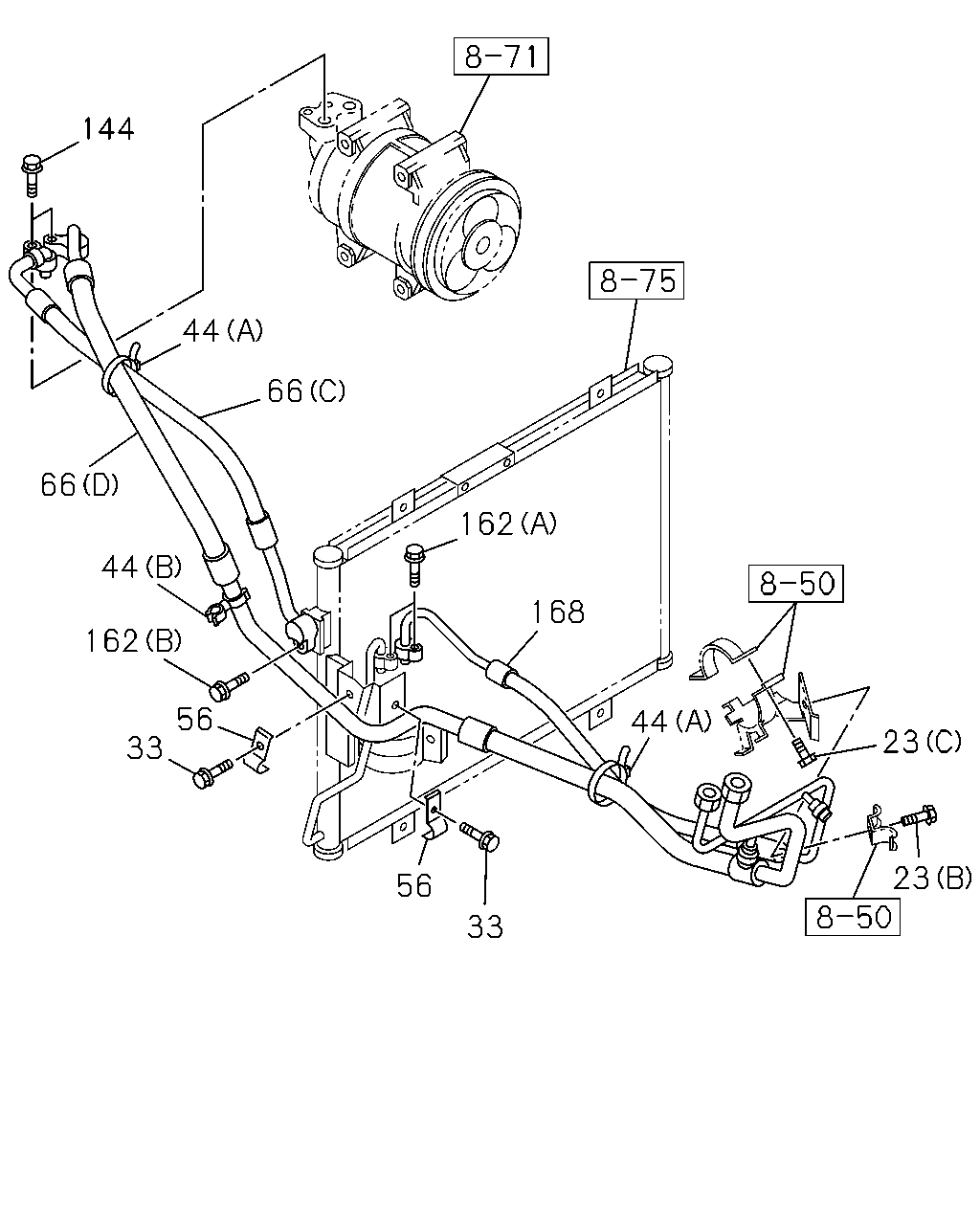

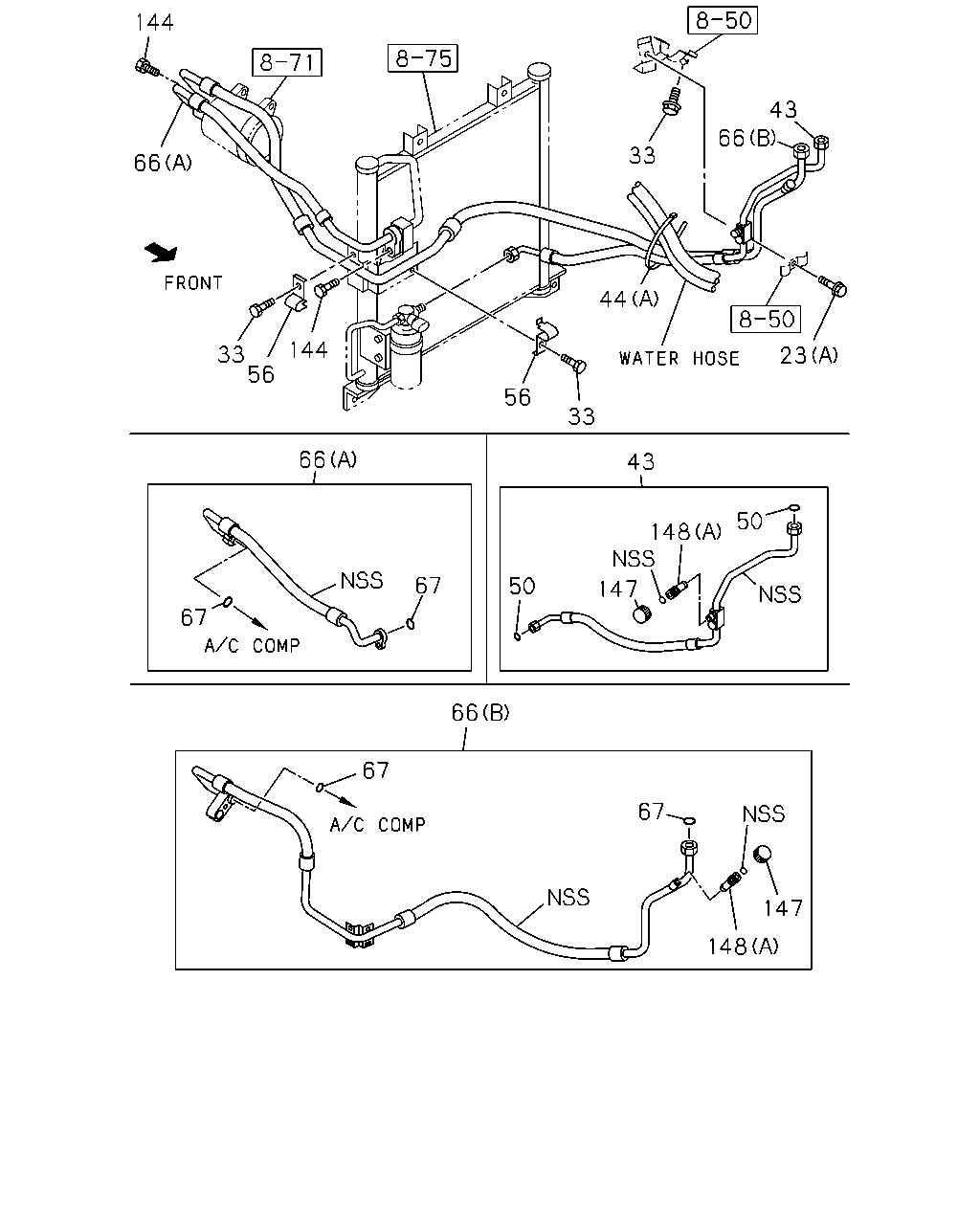

8-52 — PIPING; AIR CONDITIONING (#42520) — 111 parça

144 43 66 33 66 44 144 33 56 23 56 33 66 43 50 148 67 50 147 67 66 67 67 147 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
23	09.171 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 04.930 (B) M6X20 FLANGE	0-28680-620-0	01	1	0502-0512	●	●	●	●
23	09.171 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0601-	●	●	●	●
23	09.171 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 03.670 (A) M6X20 FLANGE	0-28080-620-0	01	1	0211-0501	●	●	●	●	●	●
23	09.171 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 00.738 (C) M6X16 FLANGE	0-28080-616-0	01	1	0502-0512	●	●	●	●
23	09.171 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 09.242 (C) M6X16 FLANGE	0-28050-616-0	01	1	0601-	●	●	●	●
33	09.920 BOLT; CLIP 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0211-0501	●	●	●			●
33	09.920 BOLT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 03.670 M6X20 FLANGE	0-28080-620-0	02	1	0502-0512	●	●	●	●
33	09.920 BOLT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 00.386 M6X20 FLANGE	0-28050-620-0	02	1	0601-	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97100-862-2	01	1	0211-0501	●	●	●			●
44	09.242 CLIP; FLEX HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 04.104 (B) ID=12 & 16.5	8-94400-865-0	01	1	0502-	●	●	●	●
44	09.242 CLIP; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	04	1	0211-0501	●	●	●			●
44	09.242 CLIP; FLEX HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 02.559 (A) L=250	5-09707-030-1	02	1	0502-	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	02	1	0211-0501	●	●	●			●
50	09.222 GASKET; FLEX HOSE,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 09.195	8-97161-776-0	02	1	0502-	●	●	●	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97024-716-0	02	1	0211-0501	●	●	●	●	●	●
56	09.242 CLIP; PIPE,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 09.190	8-97024-716-0	02	1	0502-0611	●	●	●	●
56	09.242 CLIP; PIPE,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2)	8-98059-179-0	02	1	0612-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97091-246-3	01	1	0211-0304	●	●	●			●
66	09.225 HOSE; FLEX,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97365-289-0	01	1	0305-0501	●	●	●			●
66	09.225 HOSE; FLEX,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (C)	8-97331-507-0	01	1	0502-0508	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (C)	8-97331-507-0	01	1	0509-	●	●	●
66	09.225 HOSE; FLEX,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97103-576-3	01	1	0211-0304	●	●	●			●
66	09.225 HOSE; FLEX,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97365-290-0	01	1	0305-0501	●	●	●			●
66	09.225 HOSE; FLEX,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (D)	8-97376-698-0	01	1	0502-0508	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (D)	8-97376-698-0	01	1	0509-	●	●	●
66	09.225 HOSE; FLEX,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (C)	8-97358-816-0	01	1	0509-		●	●	●
66	09.225 HOSE; FLEX,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (D)	8-98029-260-0	01	1	0509-		●	●	●
67	09.260 GASKET; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=13.9	8-94113-330-0	01	1	0211-0501	●	●	●			●
67	09.260 GASKET; FLEX HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) ID=15.5	8-97161-777-0	02	1	0502-	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=10.8	8-94113-331-0	01	1	0211-0501	●	●	●			●
67	09.260 GASKET; FLEX HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) ID=21.3	8-97223-125-0	01	1	0502-	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) ID=11.0	8-94461-900-0	01	1	0211-0304	●	●	●			●
67	09.260 GASKET; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.225 ID=18.3	8-97161-778-0	01	1	0305-0501	●	●	●			●
67	09.260 GASKET; FLEX HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 09.225 ID=18.3	8-97161-778-0	01	1	0502-	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) ID=14.8	8-94461-901-0	01	1	0211-0304	●	●	●			●
67	09.260 GASKET; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97196-177-0	01	1	0305-0501	●	●	●			●
144	09.242 BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0211-0501	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●
147	09.242 CAP; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) CAP MARK H	8-97083-101-0	01	1	0211-0501	●	●	●			●
147	09.242 CAP; FLEX HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) CAP MARK H	8-97083-101-0	01	1	0502-	●	●	●	●
147	09.242 CAP; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	0211-0501	●	●	●			●
147	09.242 CAP; FLEX HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 09.226 CAP MARK L	8-97083-102-0	01	1	0502-	●	●	●	●
148	09.262 VALVE; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97083-100-0	02	1	0211-0501	●	●	●			●
148	09.262 VALVE; FLEX HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (A)	8-97083-100-0	02	1	0502-0508	●	●	●	●
148	09.262 VALVE; FLEX HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (A)	8-97083-100-0	01	1	0509-	●	●	●	●
148	09.262 VALVE; FLEX HOSE 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (A)	8-97083-100-0	01	1	0509-	●	●	●
148	09.262 VALVE; FLEX HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 09.198 (B)	8-97083-892-0	01	1	0509-		●	●	●

66 168 67 50 50 67 148 147 66 67 67 148 148 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	F
50	09.222 GASKET; FLEX HOSE,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	02	1	0211-0501	●	●	●		●
50	09.222 GASKET; FLEX HOSE,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 09.195	8-97161-776-0	02	1	0502-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97091-246-3	01	1	0211-0304	●	●	●		●
66	09.225 HOSE; FLEX,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97365-289-0	01	1	0305-0501	●	●	●		●
66	09.225 HOSE; FLEX,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (C)	8-97331-507-0	01	1	0502-0508	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (C)	8-97331-507-0	01	1	0509-	●	●	●
66	09.225 HOSE; FLEX,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97103-576-3	01	1	0211-0304	●	●	●		●
66	09.225 HOSE; FLEX,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97365-290-0	01	1	0305-0501	●	●	●		●
66	09.225 HOSE; FLEX,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (D)	8-97376-698-0	01	1	0502-0508	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (D)	8-97376-698-0	01	1	0509-	●	●	●
66	09.225 HOSE; FLEX,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (C)	8-97358-816-0	01	1	0509-		●	●	●
66	09.225 HOSE; FLEX,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (D)	8-98029-260-0	01	1	0509-		●	●	●
67	09.260 GASKET; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=13.9	8-94113-330-0	01	1	0211-0501	●	●	●		●
67	09.260 GASKET; FLEX HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) ID=15.5	8-97161-777-0	02	1	0502-	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.222 ID=10.8	8-94113-331-0	01	1	0211-0501	●	●	●		●
67	09.260 GASKET; FLEX HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) ID=21.3	8-97223-125-0	01	1	0502-	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) ID=11.0	8-94461-900-0	01	1	0211-0304	●	●	●		●
67	09.260 GASKET; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.225 ID=18.3	8-97161-778-0	01	1	0305-0501	●	●	●		●
67	09.260 GASKET; FLEX HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 09.225 ID=18.3	8-97161-778-0	01	1	0502-	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) ID=14.8	8-94461-901-0	01	1	0211-0304	●	●	●		●
67	09.260 GASKET; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97196-177-0	01	1	0305-0501	●	●	●		●
147	09.242 CAP; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) CAP MARK H	8-97083-101-0	01	1	0211-0501	●	●	●		●
147	09.242 CAP; FLEX HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) CAP MARK H	8-97083-101-0	01	1	0502-	●	●	●	●
147	09.242 CAP; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	0211-0501	●	●	●		●
147	09.242 CAP; FLEX HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 09.226 CAP MARK L	8-97083-102-0	01	1	0502-	●	●	●	●
148	09.262 VALVE; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97083-100-0	02	1	0211-0501	●	●	●		●
148	09.262 VALVE; FLEX HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (A)	8-97083-100-0	02	1	0502-0508	●	●	●	●
148	09.262 VALVE; FLEX HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (A)	8-97083-100-0	01	1	0509-	●	●	●	●
148	09.262 VALVE; FLEX HOSE 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (A)	8-97083-100-0	01	1	0509-	●	●	●
148	09.262 VALVE; FLEX HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 09.198 (B)	8-97083-892-0	01	1	0509-		●	●	●
168	09.225 HOSE; FLEX,TANK TO EVAP 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2)	8-97376-700-0	01	1	0502-	●	●	●	●

144 44 66 66 162 44 168 162 56 44 23 33 23 56 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
23	09.171 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 04.930 (B) M6X20 FLANGE	0-28680-620-0	01	1	0502-0512	●	●	●	●
23	09.171 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0601-	●	●	●	●
23	09.171 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) 03.670 (A) M6X20 FLANGE	0-28080-620-0	01	1	0211-0501	●	●	●	●	●	●
23	09.171 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 00.738 (C) M6X16 FLANGE	0-28080-616-0	01	1	0502-0512	●	●	●	●
23	09.171 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 09.242 (C) M6X16 FLANGE	0-28050-616-0	01	1	0601-	●	●	●	●
33	09.920 BOLT; CLIP 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0211-0501	●	●	●			●
33	09.920 BOLT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 03.670 M6X20 FLANGE	0-28080-620-0	02	1	0502-0512	●	●	●	●
33	09.920 BOLT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 00.386 M6X20 FLANGE	0-28050-620-0	02	1	0601-	●	●	●	●
44	09.242 CLIP; FLEX HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 04.104 (B) ID=12 & 16.5	8-94400-865-0	01	1	0502-	●	●	●	●
44	09.242 CLIP; FLEX HOSE 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	04	1	0211-0501	●	●	●			●
44	09.242 CLIP; FLEX HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 02.559 (A) L=250	5-09707-030-1	02	1	0502-	●	●	●	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 09.190	8-97024-716-0	02	1	0211-0501	●	●	●	●	●	●
56	09.242 CLIP; PIPE,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 09.190	8-97024-716-0	02	1	0502-0611	●	●	●	●
56	09.242 CLIP; PIPE,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2)	8-98059-179-0	02	1	0612-	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97091-246-3	01	1	0211-0304	●	●	●			●
66	09.225 HOSE; FLEX,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97365-289-0	01	1	0305-0501	●	●	●			●
66	09.225 HOSE; FLEX,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (C)	8-97331-507-0	01	1	0502-0508	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (C)	8-97331-507-0	01	1	0509-	●	●	●
66	09.225 HOSE; FLEX,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97103-576-3	01	1	0211-0304	●	●	●			●
66	09.225 HOSE; FLEX,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97365-290-0	01	1	0305-0501	●	●	●			●
66	09.225 HOSE; FLEX,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (D)	8-97376-698-0	01	1	0502-0508	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (D)	8-97376-698-0	01	1	0509-	●	●	●
66	09.225 HOSE; FLEX,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (C)	8-97358-816-0	01	1	0509-		●	●	●
66	09.225 HOSE; FLEX,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (D)	8-98029-260-0	01	1	0509-		●	●	●
144	09.242 BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0211-0501	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 02.334 (A) M6X25 FLANGE	0-28680-625-0	02	1	0502-0512	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 00.685 (A) M6X25 FLANGE	0-28650-625-0	02	1	0601-	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●
168	09.225 HOSE; FLEX,TANK TO EVAP 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2)	8-97376-700-0	01	1	0502-	●	●	●	●
