Sayfa 8-45 - Isuzu EPC

8-45 — HEATER PIPING (#42518) — 236 parça

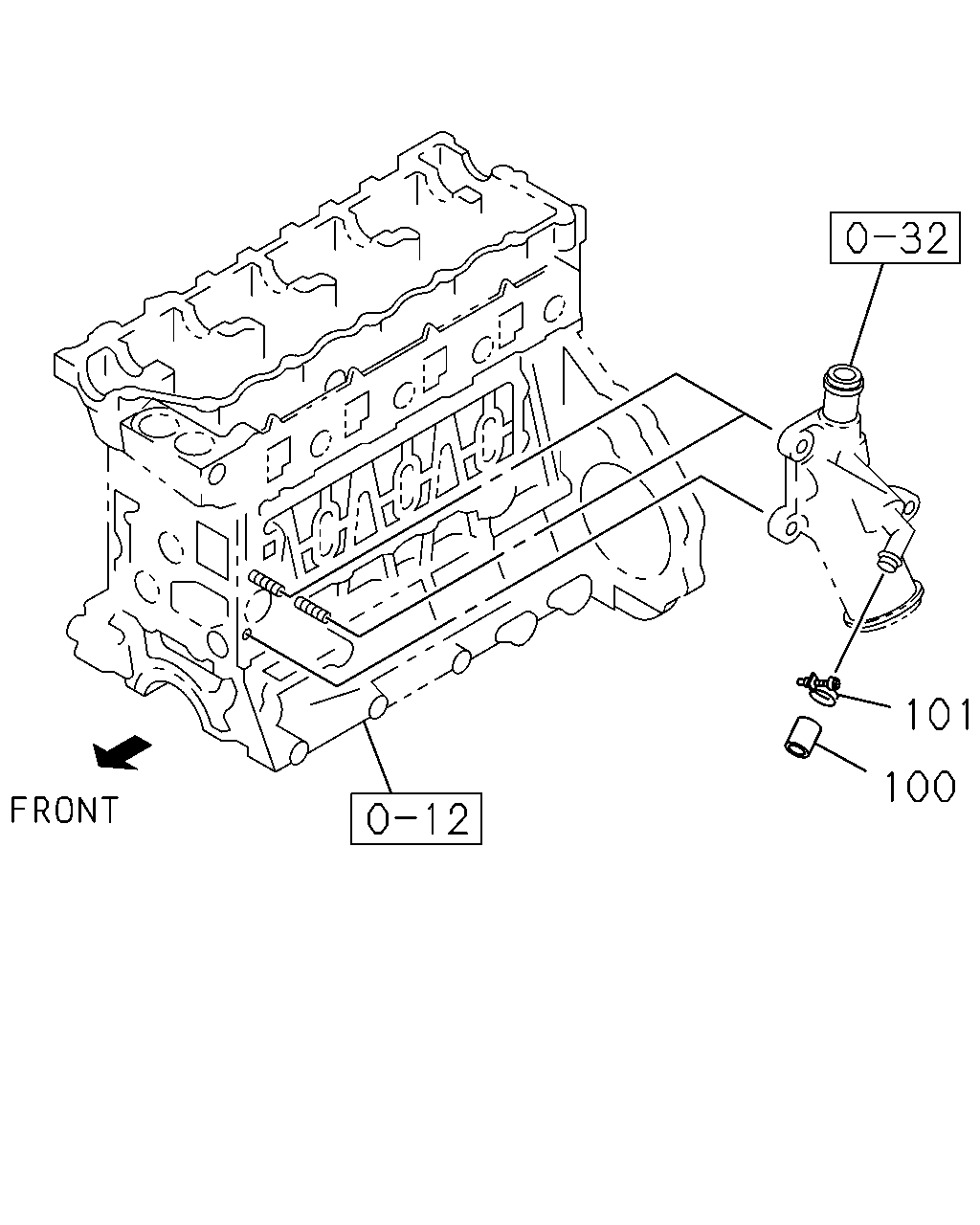

101 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
100	08.846 CAP; RUBBER,WATER PIPE 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166	8-94107-793-0	02	1	0211-0501	●	●	●
100	08.846 CAP; RUBBER,WATER PIPE 4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166	8-94107-793-0	02	1	0502-1202	●	●	●
100	08.846 CAP; RUBBER,WATER PIPE 4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166	8-94107-793-0	01	1	1203-	●	●	●
100	08.846 CAP; RUBBER,WATER PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 01.166	8-94107-793-0	01	1	0211-0501	●	●	●	●	●	●
100	08.846 CAP; RUBBER,WATER PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 01.166	8-94107-793-0	01	1	0211-0501	●	●	●	●		●
100	08.846 CAP; RUBBER,WATER PIPE 4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR C OOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.166	8-94107-793-0	01	1	0211-0501		●	●	●
100	08.846 CAP; RUBBER,WATER PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166	8-94107-793-0	01	1	0502-1202	●	●	●	●		●
100	08.846 CAP; RUBBER,WATER PIPE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. HEATER & DEFROSTER(C41) 01.166	8-94107-793-0	01	1	0502-1202		●	●	●
101	08.846 CLIP; CAP,WATER PIPE 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25	8-94233-115-0	02	1	0211-0501	●	●	●
101	08.846 CLIP; CAP,WATER PIPE 4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25	8-94233-115-0	02	1	0502-1202	●	●	●
101	08.846 CLIP; CAP,WATER PIPE 4HF1-N ENG(RJZ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25	8-94233-115-0	01	1	1203-	●	●	●
101	08.846 CLIP; CAP,WATER PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 01.166 ID=25	8-94233-115-0	01	1	0211-0501	●	●	●	●	●	●
101	08.846 CLIP; CAP,WATER PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 01.166 ID=25	8-94233-115-0	01	1	0211-0501	●	●	●	●		●
101	08.846 CLIP; CAP,WATER PIPE 4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR C OOLER<6PL>,ENGINE POWER N-SPEC(7QV) 01.166 ID=25	8-94233-115-0	01	1	0211-0501		●	●	●
101	08.846 CLIP; CAP,WATER PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25	8-94233-115-0	01	1	0502-1202	●	●	●	●		●
101	08.846 CLIP; CAP,WATER PIPE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. HEATER & DEFROSTER(C41) 01.166 ID=25	8-94233-115-0	01	1	0502-1202		●	●	●

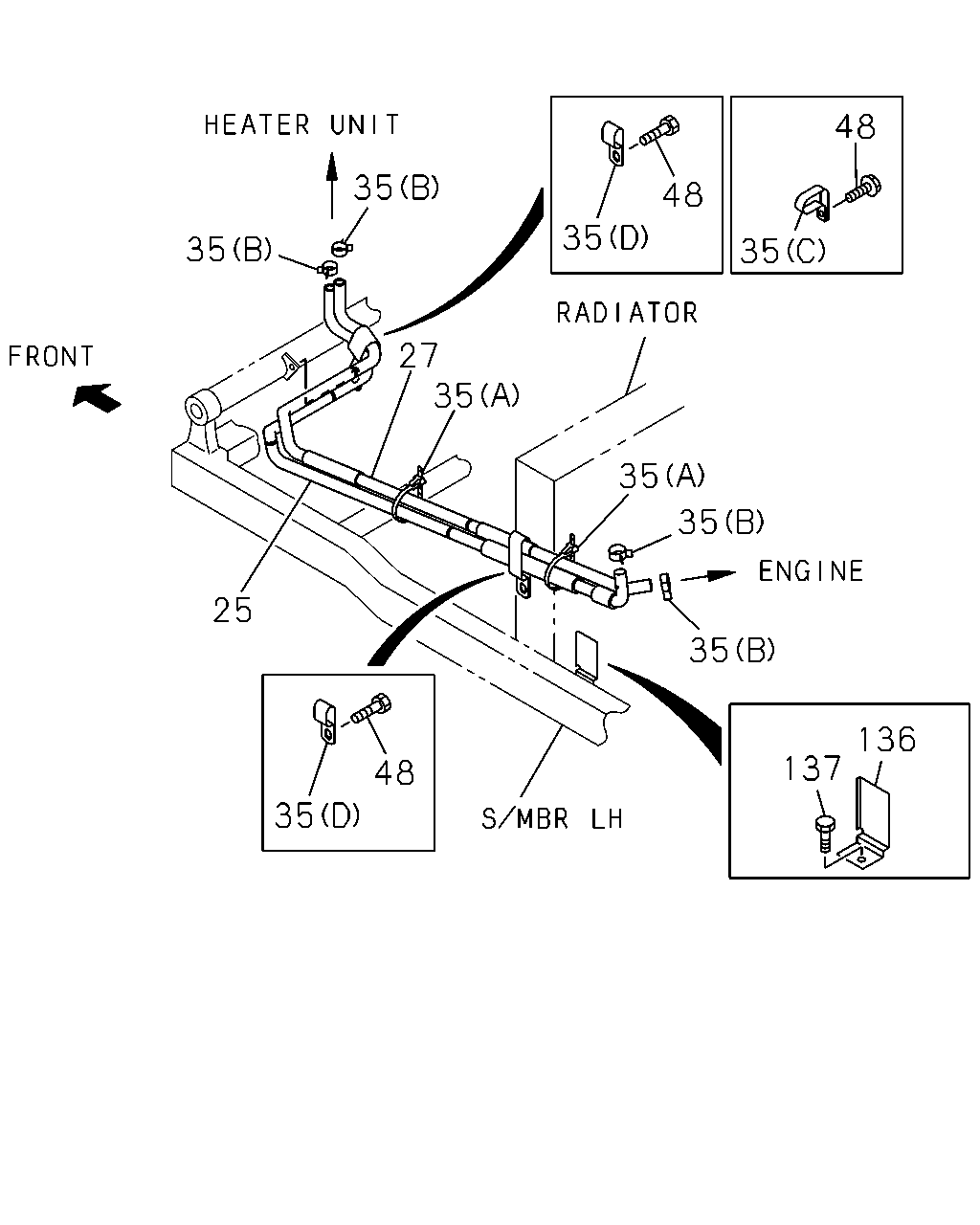

48 35 48 35 35 35 27 35 35 35 25 35 136 137 48 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HG1 ENG(RJH),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-224-1	01	1	0211-0306	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-224-1	01	1	0211-0306	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HG1 ENG(RJH),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97370-623-0	01	1	0307-0501	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97370-623-0	01	1	0307-0501	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97384-094-0	01	1	0502-	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97148-860-3	01	1	0211-0501	●	●	●	●		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97148-860-3	01	1	0211-0501					●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HEATER & DEFROSTER(C41)	8-97148-860-3	01	1	0502-	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1 ENG(RJH),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-223-2	01	1	0211-0501	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-223-2	01	1	0211-0501	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-223-2	01	1	0502-	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97148-861-2	01	1	0211-0501	●	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97148-861-2	01	1	0211-0501					●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HEATER & DEFROSTER(C41)	8-97148-861-2	01	1	0502-	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-006-0	01	1	0211-0501	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (C)	5-83574-006-0	01	1	0211-0501	●	●	●	●		●
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-006-0	01	1	0211-0501	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-006-0	01	1	0502-0610	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-006-0	01	1	0502-0610	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	8-98029-677-0	01	1	0611-	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	8-98029-677-0	01	1	0611-	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (D) B=18	9-83651-948-1	01	1	0211-0501	●	●	●	●		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0211-0501					●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0502-0506	●	●	●	●		●
35	08.852 CLIP; WATER HOSE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HEATER & DEFROSTER(C41) 08.846 (D) B=18	9-83651-948-1	01	1	0502-0506	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0507-0606	●	●	●	●		●
35	08.852 CLIP; WATER HOSE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HEATER & DEFROSTER(C41) 08.846 (D) B=18	9-83651-948-1	01	1	0507-0606	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0607-0610	●	●	●	●		●
35	08.852 CLIP; WATER HOSE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HEATER & DEFROSTER(C41) 08.846 (D) B=18	9-83651-948-1	01	1	0607-0610	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	8-97359-144-0	01	1	0611-1205	●	●	●	●		●
35	08.852 CLIP; WATER HOSE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HEATER & DEFROSTER(C41) 08.846 (D) B=18	8-97359-144-0	01	1	0611-1205	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	8-98166-023-0	01	1	1206-	●	●	●	●		●
35	08.852 CLIP; WATER HOSE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HEATER & DEFROSTER(C41) 08.846 (D) B=18	8-98166-023-0	01	1	1206-	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0502-	●	●	●	●		●
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	04	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	04	1	0502-0610	●	●	●	●		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	0611-	●	●	●	●		●
35	08.852 CLIP; WATER HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0507-0606			●
35	08.852 CLIP; WATER HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0607-			●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (F) ID=25	8-94233-115-0	02	1	0508-0606			●
35	08.852 CLIP; WATER HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (F) ID=25	8-94233-115-0	02	1	0607-			●	●
35	08.852 CLIP; WATER HOSE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-97191-097-0	01	1	0211-0501						●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-97191-097-0	01	1	0502-0611						●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98032-131-0	01	1	0612-						●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0501	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0501						●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0502-0512	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0601-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE	0-28080-610-0	01	1	0211-0501	●	●	●	●		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	01	1	0211-0501					●
48	09.262 BOLT; CLIP FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HEATER & DEFROSTER(C41) 02.500 M6X10 FLANGE	0-28080-610-0	01	1	0502-0512	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HEATER & DEFROSTER(C41) 03.671 M6X10 FLANGE	0-28050-610-0	01	1	0601-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501						●
48	09.262 BOLT; CLIP FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0512	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0512						●
48	09.262 BOLT; CLIP FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-						●
136	08.846 GUIDE; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97183-818-2	01	1	0211-0501	●	●	●	●		●
136	08.846 GUIDE; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97183-818-2	01	1	0211-0501					●
136	08.846 GUIDE; WATER HOSE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HEATER & DEFROSTER(C41)	8-97183-818-2	01	1	0502-0502	●	●	●	●
136	08.846 GUIDE; WATER HOSE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HEATER & DEFROSTER(C41)	8-98011-924-0	01	1	0502-	●	●	●	●
137	08.846 BOLT; GUIDE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0501	●	●	●	●		●
137	08.846 BOLT; GUIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0501					●
137	08.846 BOLT; GUIDE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HEATER & DEFROSTER(C41) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0502-0512	●	●	●	●
137	08.846 BOLT; GUIDE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HEATER & DEFROSTER(C41) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●	●	●

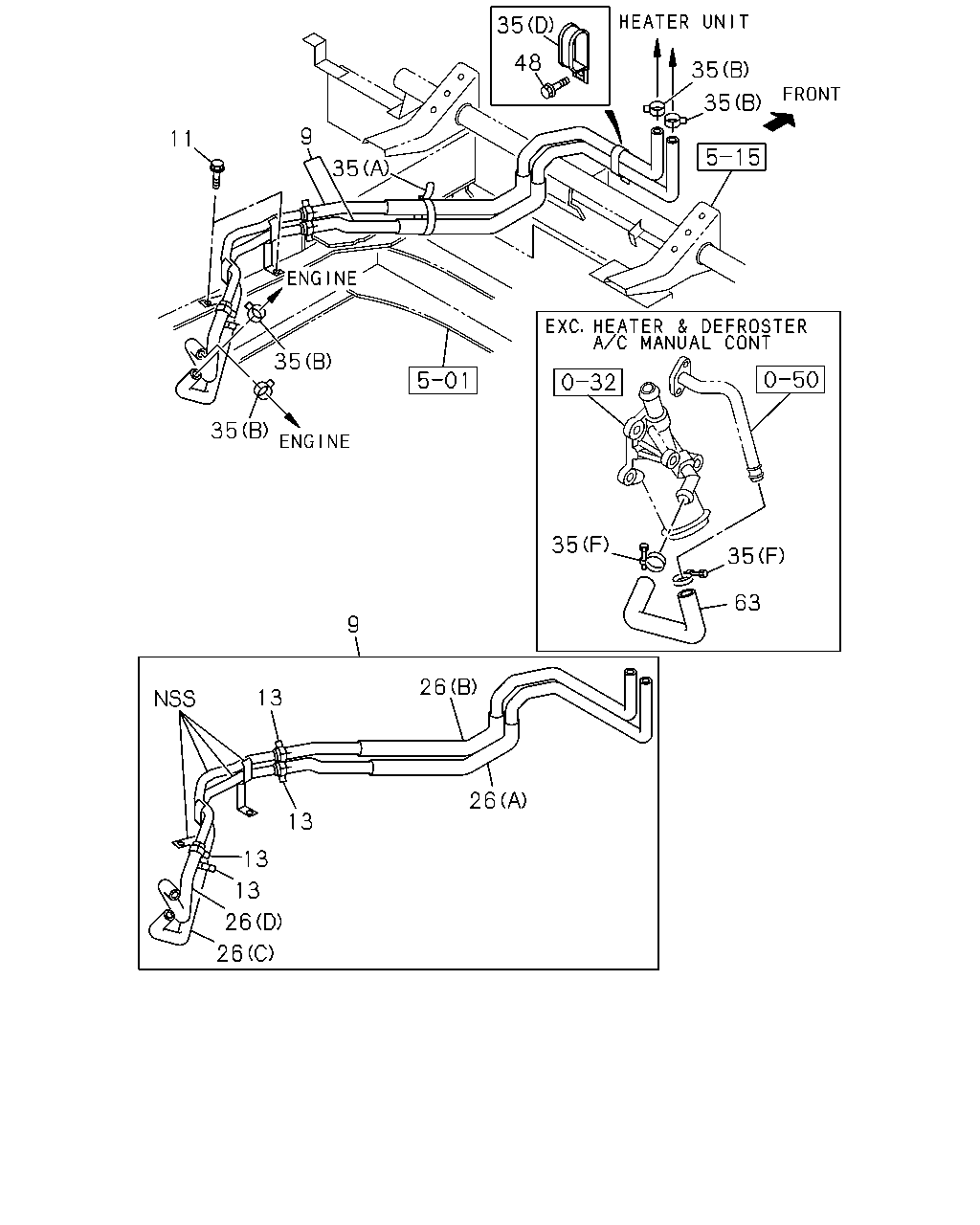

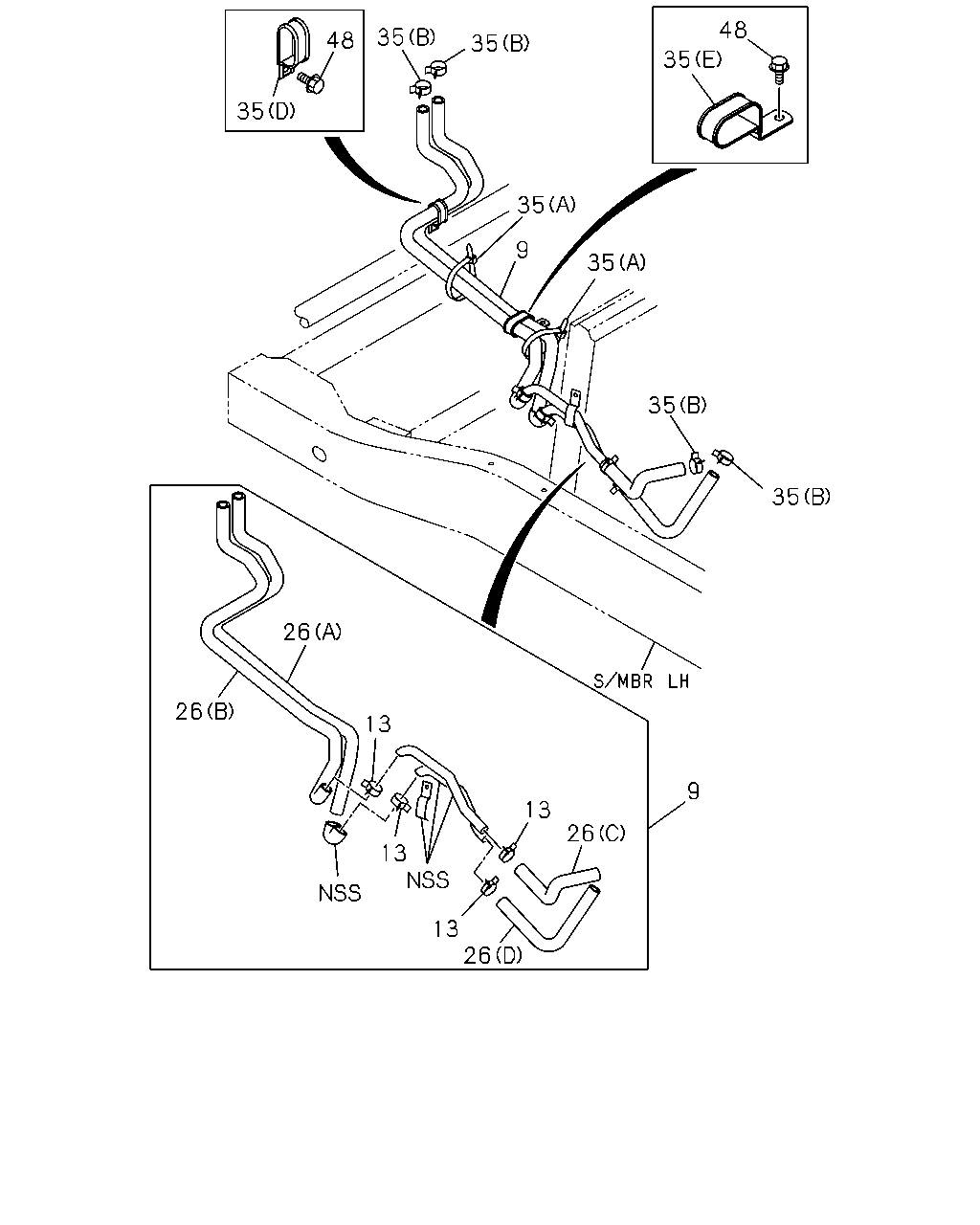

48 35 48 35 35 35 35 9 35 35 35 26 26 13 9 13 26 13 13 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
9	08.846 PIPE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97333-099-2	01	1	0507-0606			●
9	08.846 PIPE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97333-099-2	01	1	0607-			●	●
9	08.846 PIPE; HTR 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97329-768-0	01	1	0211-0501						●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41)	8-97329-768-0	01	1	0502-						●
13	08.846 CLIP; HTR HOSE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	0211-0501						●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	04	1	0502-0506						●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	0507-0606			●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	04	1	0507-0606						●
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	0607-			●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	04	1	0607-						●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97373-830-0	01	1	0507-0606			●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97373-830-0	01	1	0607-			●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97373-831-0	01	1	0507-0606			●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97373-831-0	01	1	0607-			●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97373-832-0	01	1	0507-0606			●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97373-832-0	01	1	0607-			●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97373-833-0	01	1	0507-0606			●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97373-833-0	01	1	0607-			●	●
26	08.846 HOSE; HTR 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97356-191-0	01	1	0211-0501						●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41) (A)	8-97356-191-0	01	1	0502-						●
26	08.846 HOSE; HTR 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97356-192-0	01	1	0211-0501						●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41) (B)	8-97356-192-0	01	1	0502-						●
26	08.846 HOSE; HTR 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97356-193-0	01	1	0211-0501						●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41) (C)	8-97356-193-0	01	1	0502-						●
26	08.846 HOSE; HTR 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97356-194-0	01	1	0211-0501						●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41) (D)	8-97356-194-0	01	1	0502-						●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-006-0	01	1	0211-0501	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (C)	5-83574-006-0	01	1	0211-0501	●	●	●	●		●
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-006-0	01	1	0211-0501	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-006-0	01	1	0502-0610	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-006-0	01	1	0502-0610	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	8-98029-677-0	01	1	0611-	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	8-98029-677-0	01	1	0611-	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (D) B=18	9-83651-948-1	01	1	0211-0501	●	●	●	●		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0211-0501					●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0502-0506	●	●	●	●		●
35	08.852 CLIP; WATER HOSE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HEATER & DEFROSTER(C41) 08.846 (D) B=18	9-83651-948-1	01	1	0502-0506	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0507-0606	●	●	●	●		●
35	08.852 CLIP; WATER HOSE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HEATER & DEFROSTER(C41) 08.846 (D) B=18	9-83651-948-1	01	1	0507-0606	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0607-0610	●	●	●	●		●
35	08.852 CLIP; WATER HOSE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HEATER & DEFROSTER(C41) 08.846 (D) B=18	9-83651-948-1	01	1	0607-0610	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	8-97359-144-0	01	1	0611-1205	●	●	●	●		●
35	08.852 CLIP; WATER HOSE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HEATER & DEFROSTER(C41) 08.846 (D) B=18	8-97359-144-0	01	1	0611-1205	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	8-98166-023-0	01	1	1206-	●	●	●	●		●
35	08.852 CLIP; WATER HOSE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HEATER & DEFROSTER(C41) 08.846 (D) B=18	8-98166-023-0	01	1	1206-	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0502-	●	●	●	●		●
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	04	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	04	1	0502-0610	●	●	●	●		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	0611-	●	●	●	●		●
35	08.852 CLIP; WATER HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0507-0606			●
35	08.852 CLIP; WATER HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0607-			●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (F) ID=25	8-94233-115-0	02	1	0508-0606			●
35	08.852 CLIP; WATER HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (F) ID=25	8-94233-115-0	02	1	0607-			●	●
35	08.852 CLIP; WATER HOSE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-97191-097-0	01	1	0211-0501						●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-97191-097-0	01	1	0502-0611						●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98032-131-0	01	1	0612-						●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0501	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0501						●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0502-0512	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0601-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE	0-28080-610-0	01	1	0211-0501	●	●	●	●		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	01	1	0211-0501					●
48	09.262 BOLT; CLIP FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HEATER & DEFROSTER(C41) 02.500 M6X10 FLANGE	0-28080-610-0	01	1	0502-0512	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HEATER & DEFROSTER(C41) 03.671 M6X10 FLANGE	0-28050-610-0	01	1	0601-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501						●
48	09.262 BOLT; CLIP FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0512	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0512						●
48	09.262 BOLT; CLIP FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-						●

35 48 35 35 9 11 35 35 35 35 35 63 9 26 13 26 13 13 13 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
9	08.846 PIPE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97333-099-2	01	1	0507-0606			●
9	08.846 PIPE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97333-099-2	01	1	0607-			●	●
9	08.846 PIPE; HTR 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97329-768-0	01	1	0211-0501						●
9	08.846 PIPE; HTR HEATER & DEFROSTER(C41)	8-97329-768-0	01	1	0502-						●
11	08.845 BOLT; HTR PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0507-0512			●
11	08.845 BOLT; HTR PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0606			●
11	08.845 BOLT; HTR PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-			●	●
13	08.846 CLIP; HTR HOSE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	0211-0501						●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	04	1	0502-0506						●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	0507-0606			●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	04	1	0507-0606						●
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	0607-			●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	04	1	0607-						●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97373-830-0	01	1	0507-0606			●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97373-830-0	01	1	0607-			●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97373-831-0	01	1	0507-0606			●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97373-831-0	01	1	0607-			●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97373-832-0	01	1	0507-0606			●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97373-832-0	01	1	0607-			●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97373-833-0	01	1	0507-0606			●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97373-833-0	01	1	0607-			●	●
26	08.846 HOSE; HTR 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97356-191-0	01	1	0211-0501						●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41) (A)	8-97356-191-0	01	1	0502-						●
26	08.846 HOSE; HTR 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97356-192-0	01	1	0211-0501						●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41) (B)	8-97356-192-0	01	1	0502-						●
26	08.846 HOSE; HTR 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97356-193-0	01	1	0211-0501						●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41) (C)	8-97356-193-0	01	1	0502-						●
26	08.846 HOSE; HTR 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97356-194-0	01	1	0211-0501						●
26	08.846 HOSE; HTR HEATER & DEFROSTER(C41) (D)	8-97356-194-0	01	1	0502-						●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-006-0	01	1	0211-0501	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.846 (C)	5-83574-006-0	01	1	0211-0501	●	●	●	●		●
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-006-0	01	1	0211-0501	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-006-0	01	1	0502-0610	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	5-83574-006-0	01	1	0502-0610	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	8-98029-677-0	01	1	0611-	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C)	8-98029-677-0	01	1	0611-	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.846 (D) B=18	9-83651-948-1	01	1	0211-0501	●	●	●	●		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0211-0501					●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0502-0506	●	●	●	●		●
35	08.852 CLIP; WATER HOSE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HEATER & DEFROSTER(C41) 08.846 (D) B=18	9-83651-948-1	01	1	0502-0506	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0507-0606	●	●	●	●		●
35	08.852 CLIP; WATER HOSE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HEATER & DEFROSTER(C41) 08.846 (D) B=18	9-83651-948-1	01	1	0507-0606	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0607-0610	●	●	●	●		●
35	08.852 CLIP; WATER HOSE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HEATER & DEFROSTER(C41) 08.846 (D) B=18	9-83651-948-1	01	1	0607-0610	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	8-97359-144-0	01	1	0611-1205	●	●	●	●		●
35	08.852 CLIP; WATER HOSE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HEATER & DEFROSTER(C41) 08.846 (D) B=18	8-97359-144-0	01	1	0611-1205	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	8-98166-023-0	01	1	1206-	●	●	●	●		●
35	08.852 CLIP; WATER HOSE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HEATER & DEFROSTER(C41) 08.846 (D) B=18	8-98166-023-0	01	1	1206-	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	0502-	●	●	●	●		●
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	04	1	0211-0501	●	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	04	1	0502-0610	●	●	●	●		●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	0611-	●	●	●	●		●
35	08.852 CLIP; WATER HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0507-0606			●
35	08.852 CLIP; WATER HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0607-			●	●
35	08.852 CLIP; WATER HOSE 4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (F) ID=25	8-94233-115-0	02	1	0508-0606			●
35	08.852 CLIP; WATER HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (F) ID=25	8-94233-115-0	02	1	0607-			●	●
35	08.852 CLIP; WATER HOSE 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-97191-097-0	01	1	0211-0501						●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-97191-097-0	01	1	0502-0611						●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98032-131-0	01	1	0612-						●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0501	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0501						●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0502-0512	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0601-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE	0-28080-610-0	01	1	0211-0501	●	●	●	●		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	01	1	0211-0501					●
48	09.262 BOLT; CLIP FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HEATER & DEFROSTER(C41) 02.500 M6X10 FLANGE	0-28080-610-0	01	1	0502-0512	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HEATER & DEFROSTER(C41) 03.671 M6X10 FLANGE	0-28050-610-0	01	1	0601-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0501						●
48	09.262 BOLT; CLIP FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0512	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0502-0512						●
48	09.262 BOLT; CLIP FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-	●	●	●	●		●
48	09.262 BOLT; CLIP FIX 4HF1-S ENG(RLS) HEATER & DEFROSTER(C41) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-						●
63	08.846 HOSE; WATER 4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540	8-94134-250-1	01	1	0508-0606			●
63	08.846 HOSE; WATER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540	8-94134-250-1	01	1	0607-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
