8-28 — CHASSIS ELECTRICAL (#42516) — 244 parça

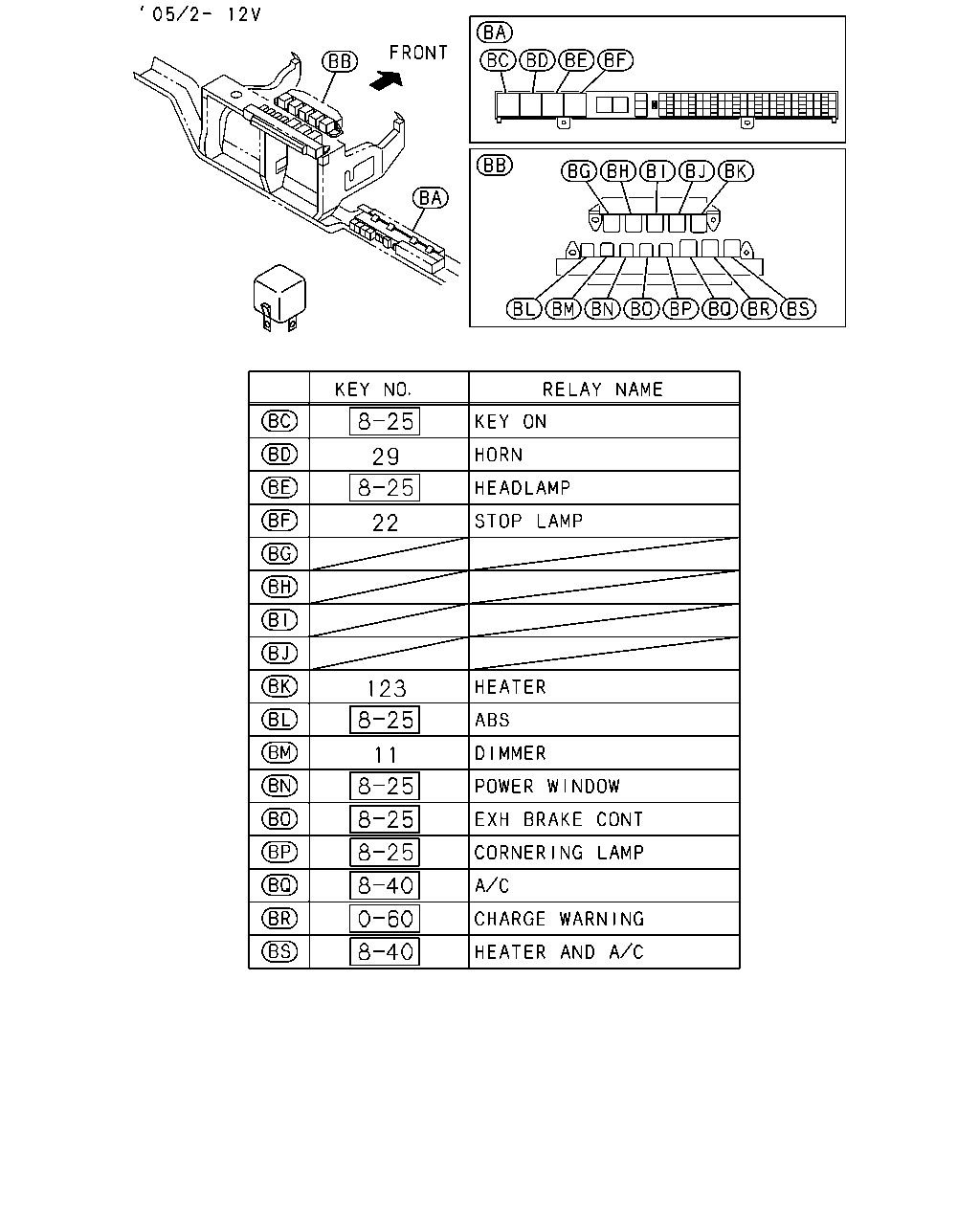

çizim 10995
29 22 123 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 02.485 RELAY; DIMMER
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ●
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
29 02.815 RELAY; HORN
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
123 02.270 RELAY; HTR
4HK1-TCS ENG(RJS) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ●
123 02.270 RELAY; HTR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ●
685 02.510 RELAY; WEAR INDI
4 WHEEL ANTI LOCK BRAKE<JE5> TURKISH EQUIPMENT(S6S) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0702- ● ●
çizim 11987
22 11 29 574
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 02.485 RELAY; DIMMER
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ●
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
29 02.815 RELAY; HORN
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
574 02.510 RELAY; CANCEL,BUZZER
4HE1 ENG(RLY) VENEZUELA EQUIPMENT(S2L) EXC. HYDRO BRAKE BOOSTER<7QQ> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
574 02.510 RELAY; CANCEL,BUZZER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) VENEZUELA EQUIPMENT(S2L) EXC. VOLTAGE 24V<7AE>,HYDRO BRAKE BOOSTER<7QQ> 12V 20A 		8-97173-037-1 01 1 0502- ●
574 02.510 RELAY; CANCEL,BUZZER
VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
574 02.510 RELAY; CANCEL,BUZZER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
574 02.510 RELAY; CANCEL,BUZZER
VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
685 02.510 RELAY; WEAR INDI
4 WHEEL ANTI LOCK BRAKE<JE5> TURKISH EQUIPMENT(S6S) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0702- ● ●
çizim 51739
376 624 377
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
376 03.342 BOLT; RELAY
ISRAEL EQUIPMENT(7LX) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0303-0309 ● ●
376 03.342 BOLT; RELAY
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0303-0309 ●
376 03.342 BOLT; RELAY
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0310-0501 ● ●
376 03.342 BOLT; RELAY
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0310-0501 ●
376 03.342 BOLT; RELAY
TURKISH EQUIPMENT(S6S) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0502 ●
376 03.342 BOLT; RELAY
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0503-0512 ● ● ● ●
376 03.342 BOLT; RELAY
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ●
377 02.892 NUT; RELAY
ISRAEL EQUIPMENT(7LX) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0303-0309 ● ●
377 02.892 NUT; RELAY
07.633 M8 FLANGE 		0-91150-108-0 01 1 0303-0309 ●
377 02.892 NUT; RELAY
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0310-0501 ● ●
377 02.892 NUT; RELAY
07.633 M8 FLANGE 		0-91150-108-0 01 1 0310-0501 ●
377 02.892 NUT; RELAY
TURKISH EQUIPMENT(S6S) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0502 ●
377 02.892 NUT; RELAY
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0503-0602 ● ● ● ●
377 02.892 NUT; RELAY
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ●
624 02.892 RELAY; SIDE TURN
TURKISH EQUIPMENT(S6S) EXC. VOLTAGE 24V<7AE> 		8-97363-874-0 01 1 0310-0606 ●
624 02.892 RELAY; SIDE TURN
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) 		8-97363-874-0 01 1 0607- ● ● ● ●
624 02.892 RELAY; SIDE TURN
ISRAEL EQUIPMENT(7LX) VOLTAGE 24V<7AE> 		8-97363-873-0 01 1 0303-0309 ● ●
624 02.892 RELAY; SIDE TURN 8-97363-873-0 01 1 0303-0309 ●
624 02.892 RELAY; SIDE TURN
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) VOLTAGE 24V<7AE> 		8-97363-873-0 01 1 0310-0501 ● ●
624 02.892 RELAY; SIDE TURN 8-97363-873-0 01 1 0310-0501 ●
624 02.892 RELAY; SIDE TURN
TURKISH EQUIPMENT(S6S) VOLTAGE 24V<7AE> 		8-97363-873-0 01 1 0502-0502 ●
685 02.510 RELAY; WEAR INDI
4 WHEEL ANTI LOCK BRAKE<JE5> TURKISH EQUIPMENT(S6S) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0702- ● ●
çizim 51894
100 360 100 360 694 333 333
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
100 09.277 NUT; RELAY BOX COVER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0211-0501 ● ● ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HG1 ENG(RJH),4HF1-S ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0211-0501 ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. TIRE SIZE 8.25-16<7QP> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 07.633 M8 FLANGE 		0-91150-108-0 03 1 0502-0506 ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0502-0506 ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) 07.633 M8 FLANGE 		0-91150-108-0 03 1 0507-0602 ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0507-0602 ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 03 1 0603-0606 ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) TIRE SIZE 8.25-16<7QP> 01.062 M8 FLANGE 		0-91180-108-0 03 1 0603-0606 ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 03 1 0607- ● ● ● ●
100 09.277 NUT; RELAY BOX COVER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) TIRE SIZE 8.25-16<7QP> 01.062 M8 FLANGE 		0-91180-108-0 03 1 0607- ● ● ● ●
333 09.277 RELAY; MARKER LAMP
ISRAEL EQUIPMENT(7LX) VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0309 ● ●
333 09.277 RELAY; MARKER LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0309 ●
333 09.277 RELAY; MARKER LAMP
ISRAEL EQUIPMENT(7LX) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0309 ●
333 09.277 RELAY; MARKER LAMP
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0310-0501 ● ●
333 09.277 RELAY; MARKER LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0310-0501 ●
333 09.277 RELAY; MARKER LAMP
ISRAEL EQUIPMENT(7LX) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0310-0501 ●
333 09.277 RELAY; MARKER LAMP
TURKISH EQUIPMENT(S6S) VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0506 ●
333 09.277 RELAY; MARKER LAMP
TURKISH EQUIPMENT(S6S) VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0709 ● ●
333 09.277 RELAY; MARKER LAMP
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0710- ● ● ●
333 09.277 RELAY; MARKER LAMP
ISRAEL EQUIPMENT(7LX) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ●
333 09.277 RELAY; MARKER LAMP
TURKISH EQUIPMENT(S6S) EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502-0506 ●
333 09.277 RELAY; MARKER LAMP
TURKISH EQUIPMENT(S6S) EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0507-0709 ● ●
333 09.277 RELAY; MARKER LAMP
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0710- ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0211-0501 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0502-1210 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
02.587 (A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 04 1 1211- ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 03 1 0211-0501 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
02.559 (C) M8X25 FLANGE 		0-28680-825-0 03 1 0211-0501 ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. TIRE SIZE 8.25-16<7QP> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 0502-0512 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. TIRE SIZE 8.25-16<7QP> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0501 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. TIRE SIZE 8.25-16<7QP> 01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 0502-0512 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. TIRE SIZE 8.25-16<7QP> 02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 0211-0501 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 02.559 (C) M8X25 FLANGE 		0-28680-825-0 03 1 0502-0506 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) 02.559 (C) M8X25 FLANGE 		0-28680-825-0 03 1 0507-0512 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 03 1 0601-0606 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 03 1 0607- ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-S ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE 		0-28080-820-0 03 1 0211-0501 ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE 		0-28080-820-0 03 1 0211-0501 ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE 		0-28080-820-0 03 1 0502-0512 ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE 		0-28080-820-0 03 1 0502-0512 ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) TIRE SIZE 8.25-16<7QP> 04.338 (B) M8X20 FLANGE 		0-28050-820-0 03 1 0601-0612 ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH) TIRE SIZE 8.25-16<7QP> 04.338 (B) M8X20 FLANGE 		0-28050-820-0 03 1 0601-0612 ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) TIRE SIZE 8.25-16<7QP> 04.338 (B) M8X20 FLANGE 		0-28050-820-0 03 1 0701- ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH) TIRE SIZE 8.25-16<7QP> 04.338 (B) M8X20 FLANGE 		0-28050-820-0 03 1 0701- ●
685 02.510 RELAY; WEAR INDI
4 WHEEL ANTI LOCK BRAKE<JE5> TURKISH EQUIPMENT(S6S) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0702- ● ●
694 09.277 RELAY; RR FOG LAMP
RR FOG LAMP<T79> VOLTAGE 24V<7AE> ISRAEL EQUIPMENT(7LX) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ●

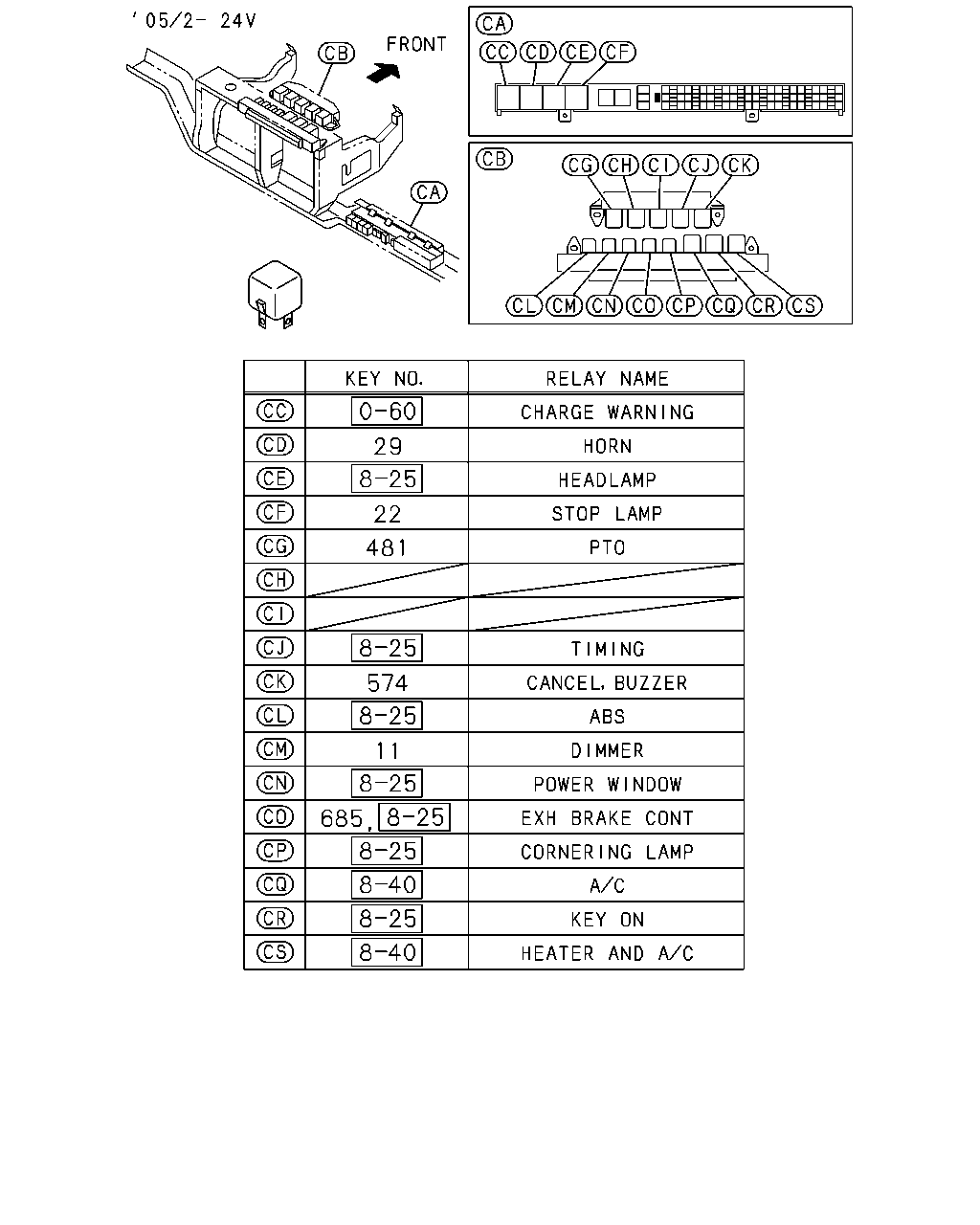

çizim 53156
29 22 481 574 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 02.485 RELAY; DIMMER
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ●
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
29 02.815 RELAY; HORN
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
481 04.439 RELAY; PTO
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0611- ● ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
574 02.510 RELAY; CANCEL,BUZZER
4HE1 ENG(RLY) VENEZUELA EQUIPMENT(S2L) EXC. HYDRO BRAKE BOOSTER<7QQ> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
574 02.510 RELAY; CANCEL,BUZZER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) VENEZUELA EQUIPMENT(S2L) EXC. VOLTAGE 24V<7AE>,HYDRO BRAKE BOOSTER<7QQ> 12V 20A 		8-97173-037-1 01 1 0502- ●
574 02.510 RELAY; CANCEL,BUZZER
VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
574 02.510 RELAY; CANCEL,BUZZER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ●
574 02.510 RELAY; CANCEL,BUZZER
HYDRO BRAKE BOOSTER<7QQ> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ●
574 02.510 RELAY; CANCEL,BUZZER
VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
685 02.510 RELAY; WEAR INDI
4 WHEEL ANTI LOCK BRAKE<JE5> TURKISH EQUIPMENT(S6S) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0702- ● ●

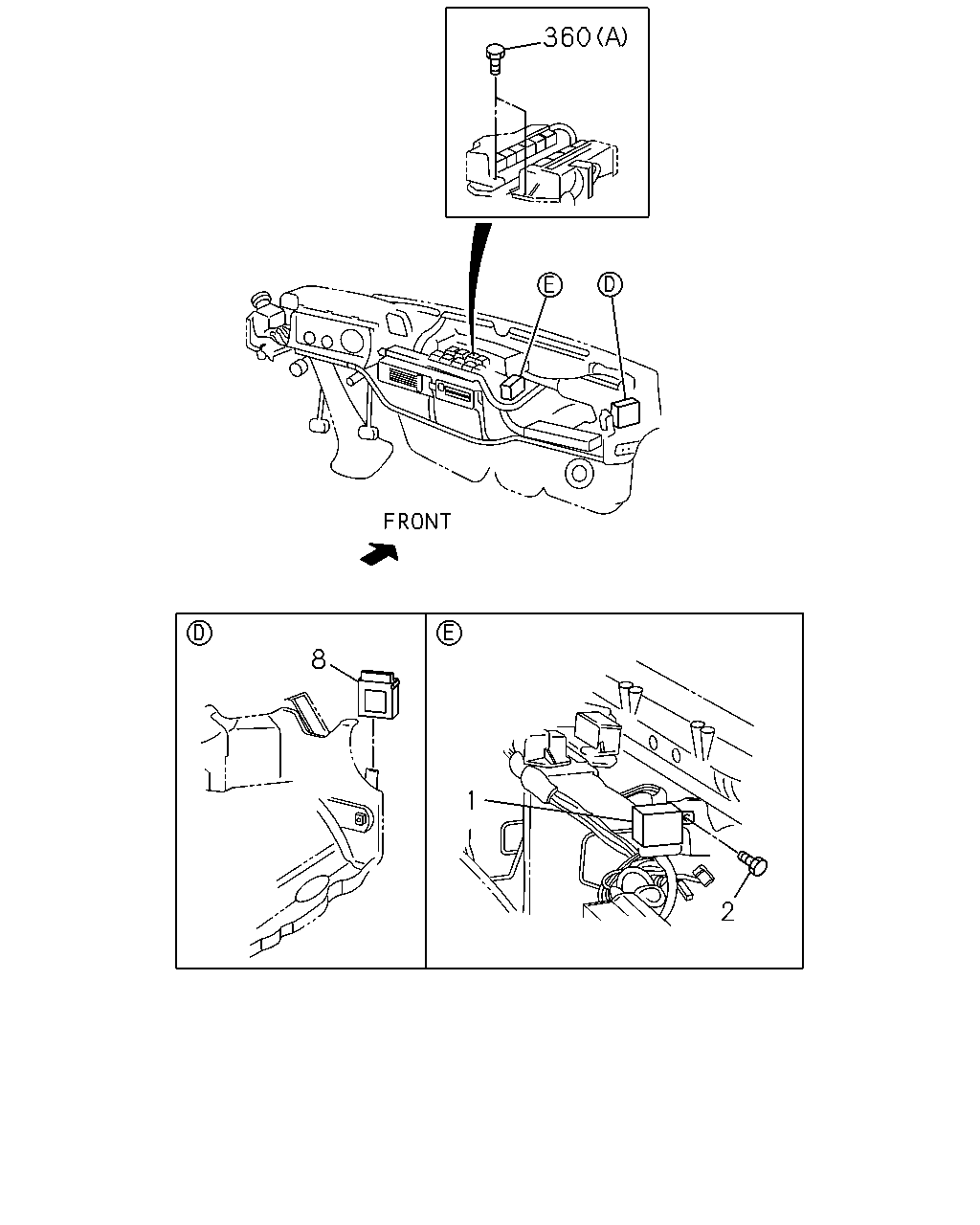

çizim 54074
360 8 1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.575 UNIT; FLASHER 8-97086-508-1 01 1 0211-0211 ● ● ●
1 02.575 UNIT; FLASHER
VOLTAGE 24V<7AE> 		8-97086-508-1 01 1 0211-0211 ● ● ●
1 02.575 UNIT; FLASHER 8-97360-084-0 01 1 0212-0302 ● ● ●
1 02.575 UNIT; FLASHER
VOLTAGE 24V<7AE> 		8-97360-084-0 01 1 0212-0302 ● ● ●
1 02.575 UNIT; FLASHER 8-97360-084-0 01 1 0303-0501 ● ●
1 02.575 UNIT; FLASHER
VOLTAGE 24V<7AE> 		8-97360-084-0 01 1 0303-0501 ● ● ●
1 02.575 UNIT; FLASHER
EXC. ISRAEL EQUIPMENT(7LX) 		8-97360-084-0 01 1 0303-0501 ●
1 02.575 UNIT; FLASHER 8-97360-084-0 01 1 0502-0502 ● ●
1 02.575 UNIT; FLASHER
VOLTAGE 24V<7AE> 		8-97360-084-0 01 1 0502-0502 ● ● ●
1 02.575 UNIT; FLASHER 8-97360-084-1 01 1 0503-0506 ● ●
1 02.575 UNIT; FLASHER
VOLTAGE 24V<7AE> EXC. TURKISH EQUIPMENT(S6S) 		8-97360-084-1 01 1 0503-0506 ●
1 02.575 UNIT; FLASHER
VOLTAGE 24V<7AE> 		8-97360-084-1 01 1 0503-0506 ● ●
1 02.575 UNIT; FLASHER 8-97360-084-1 01 1 0507-0709 ● ●
1 02.575 UNIT; FLASHER
VOLTAGE 24V<7AE> EXC. TURKISH EQUIPMENT(S6S) 		8-97360-084-1 01 1 0507-0709 ● ●
1 02.575 UNIT; FLASHER
VOLTAGE 24V<7AE> 		8-97360-084-1 01 1 0507-0709 ●
1 02.575 UNIT; FLASHER 8-97360-084-1 01 1 0710- ● ●
1 02.575 UNIT; FLASHER
VOLTAGE 24V<7AE> EXC. TURKISH EQUIPMENT(S6S) 		8-97360-084-1 01 1 0710- ●
1 02.575 UNIT; FLASHER
VOLTAGE 24V<7AE> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) 		8-97360-084-1 01 1 0710- ●
1 02.575 UNIT; FLASHER
VOLTAGE 24V<7AE> EXC. RUSSIA EQUIPMENT(B12) 		8-97360-084-1 01 1 0710- ●
1 02.575 UNIT; FLASHER
TURKISH EQUIPMENT(S6S) VOLTAGE 24V<7AE> 		8-97360-085-1 01 1 0503-0506 ●
1 02.575 UNIT; FLASHER
TURKISH EQUIPMENT(S6S) VOLTAGE 24V<7AE> 		8-97360-085-1 01 1 0507-0709 ● ●
1 02.575 UNIT; FLASHER
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) VOLTAGE 24V<7AE> 		8-97360-085-1 01 1 0710- ● ● ●
1 02.575 UNIT; FLASHER
EXC. VOLTAGE 24V<7AE> 		8-97228-398-0 01 1 0211- ● ● ●
1 02.575 UNIT; FLASHER
ISRAEL EQUIPMENT(7LX) 		8-97360-085-0 01 1 0303-0501 ●
2 02.892 BOLT; FLASHER UNIT
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 0211-0501 ● ● ● ● ● ●
2 02.892 BOLT; FLASHER UNIT
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 0502-1210 ● ● ● ● ●
2 02.892 BOLT; FLASHER UNIT
02.587 M6X19.5 W/LK&PL WASHER 		8-97360-226-0 01 1 1211- ● ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97184-233-0 01 1 0211-0301 ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> VOLTAGE 24V<7AE> 		8-97184-233-0 01 1 0211-0301 ● ● ●
8 16.067 RELAY; WIPER 8-97184-233-0 01 1 0211-0301 ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97363-983-0 01 1 0302-0501 ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> VOLTAGE 24V<7AE> 		8-97363-983-0 01 1 0302-0501 ● ● ●
8 16.067 RELAY; WIPER 8-97363-983-0 01 1 0302-0501 ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97363-983-0 01 1 0502- ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> VOLTAGE 24V<7AE> 		8-97363-983-0 01 1 0502- ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE> 		8-97855-186-0 01 1 0211-0301 ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE> 		8-97363-984-0 01 1 0302- ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0211-0501 ● ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0502-1210 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
02.587 (A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 04 1 1211- ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 03 1 0211-0501 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
02.559 (C) M8X25 FLANGE 		0-28680-825-0 03 1 0211-0501 ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. TIRE SIZE 8.25-16<7QP> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 0502-0512 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. TIRE SIZE 8.25-16<7QP> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0501 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. TIRE SIZE 8.25-16<7QP> 01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 0502-0512 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. TIRE SIZE 8.25-16<7QP> 02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 0211-0501 ● ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 02.559 (C) M8X25 FLANGE 		0-28680-825-0 03 1 0502-0506 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) 02.559 (C) M8X25 FLANGE 		0-28680-825-0 03 1 0507-0512 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 03 1 0601-0606 ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 03 1 0607- ● ● ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-S ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE 		0-28080-820-0 03 1 0211-0501 ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE 		0-28080-820-0 03 1 0211-0501 ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE 		0-28080-820-0 03 1 0502-0512 ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE 		0-28080-820-0 03 1 0502-0512 ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) TIRE SIZE 8.25-16<7QP> 04.338 (B) M8X20 FLANGE 		0-28050-820-0 03 1 0601-0612 ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH) TIRE SIZE 8.25-16<7QP> 04.338 (B) M8X20 FLANGE 		0-28050-820-0 03 1 0601-0612 ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) TIRE SIZE 8.25-16<7QP> 04.338 (B) M8X20 FLANGE 		0-28050-820-0 03 1 0701- ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH) TIRE SIZE 8.25-16<7QP> 04.338 (B) M8X20 FLANGE 		0-28050-820-0 03 1 0701- ●
685 02.510 RELAY; WEAR INDI
4 WHEEL ANTI LOCK BRAKE<JE5> TURKISH EQUIPMENT(S6S) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0702- ● ●

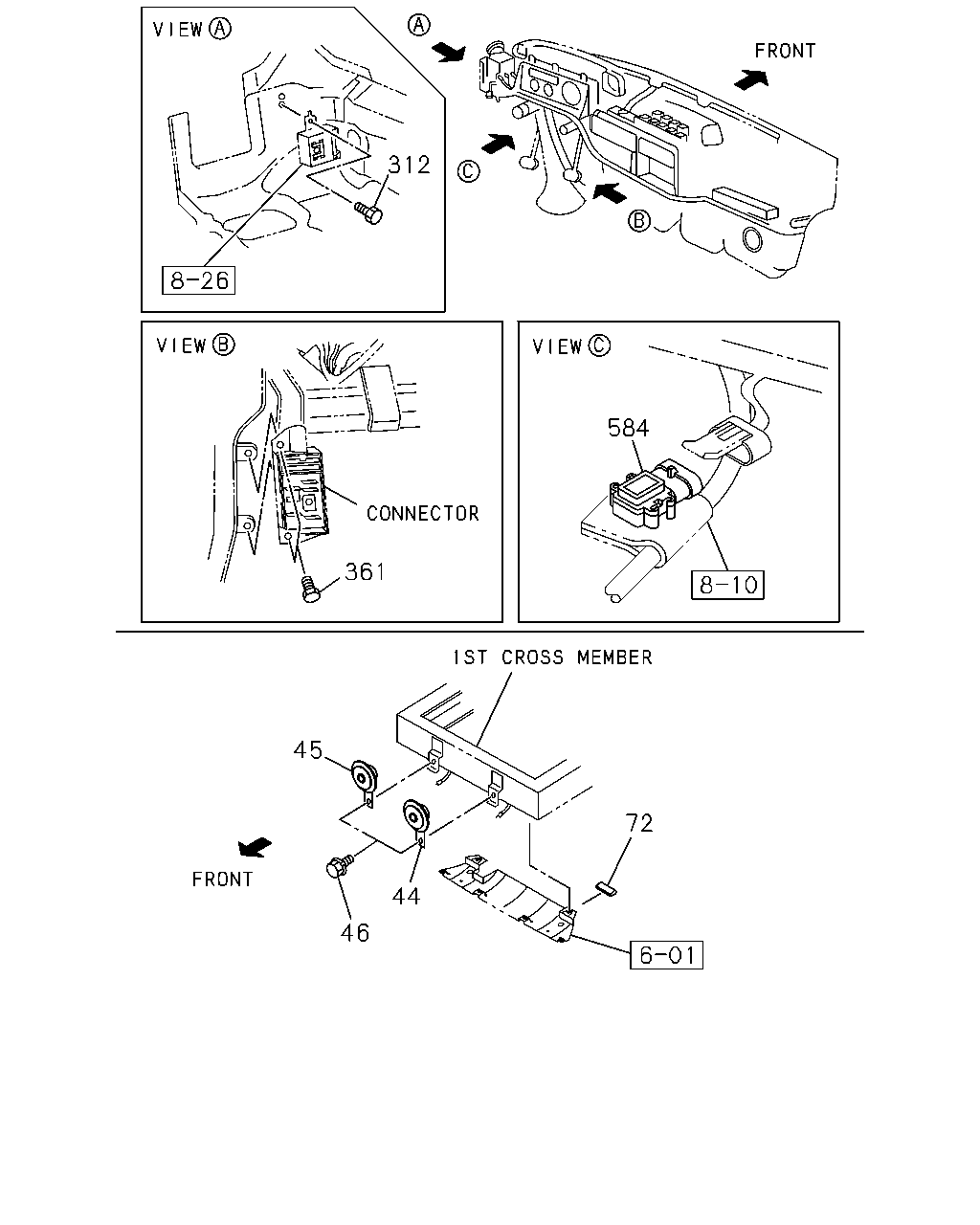

çizim 55626
312 584 361 45 72 44 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-97211-741-1 01 1 0211-0501 ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> VOLTAGE 24V<7AE> 		8-97211-741-1 01 1 0211-0501 ● ● ●
44 02.810 HORN; HIGH NOTE 8-97211-741-1 01 1 0211-0501 ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-97211-741-2 01 1 0502- ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> VOLTAGE 24V<7AE> 		8-97211-741-2 01 1 0502- ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> EXC. VOLTAGE 24V<7AE> 		8-97211-743-2 01 1 0211- ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG> 		8-97109-364-1 01 1 0211- ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG> VOLTAGE 24V<7AE> 		8-97109-364-1 01 1 0211- ● ● ●
45 02.810 HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN<6HG> 		8-97211-740-1 01 1 0211-0501 ● ●
45 02.810 HORN; LOW NOTE
VOLTAGE 24V<7AE> EXC. SINGLE HEAVY DUTY HORN<6HG> 		8-97211-740-1 01 1 0211-0501 ● ● ●
45 02.810 HORN; LOW NOTE 8-97211-740-1 01 1 0211-0501 ●
45 02.810 HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN<6HG> 		8-97211-740-2 01 1 0502- ● ●
45 02.810 HORN; LOW NOTE
VOLTAGE 24V<7AE> EXC. SINGLE HEAVY DUTY HORN<6HG> 		8-97211-740-2 01 1 0502- ● ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG> EXC. VOLTAGE 24V<7AE> 		8-97109-362-1 01 1 0211- ● ● ●
45 02.810 HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN<6HG>, VOLTAGE 24V<7AE> 		8-97211-744-2 01 1 0211- ● ● ●
46 02.812 BOLT; HORN TO BODY
DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0211-0501 ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0211-0501 ●
46 02.812 BOLT; HORN TO BODY
DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0502-1004 ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
DUAL TONE HORN<U05> 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1005- ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
EXC. DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0211-1004 ● ● ● ● ●
46 02.812 BOLT; HORN TO BODY
EXC. DUAL TONE HORN<U05> 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005- ● ● ● ● ●
72 02.760 PROTECTOR; RELAY
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 03.008 L=80 		5-22439-006-0 01 1 0211-0501 ● ● ● ● ●
72 02.760 PROTECTOR; RELAY
PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 03.008 L=80 		5-22439-006-0 01 1 0502- ● ● ● ●
312 09.765 BOLT; BUZZER
RUSSIA EQUIPMENT(B12) 10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 0710-1210 ● ●
312 09.765 BOLT; BUZZER
RUSSIA EQUIPMENT(B12) 02.587 M6X19.5 W/LK&PL WASHER 		8-97360-226-0 01 1 1211- ● ●
312 09.765 BOLT; BUZZER
ISRAEL EQUIPMENT(7LX) 10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 0211-0501 ● ● ●
312 09.765 BOLT; BUZZER
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 0211-0501 ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0211-0501 ● ● ● ● ● ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0502-1210 ● ● ● ● ●
361 02.559 BOLT; CONNECTOR
02.587 M6X19.5 W/LK&PL WASHER 		8-97360-226-0 01 1 1211- ● ● ● ● ●
584 02.440 SENSOR; PRESSURE
4HK1-TCS ENG(RJS) 02.510 		8-09350-899-1 01 1 0507-0606 ●
584 02.440 SENSOR; PRESSURE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.510 		8-09350-899-1 01 1 0607-0810 ● ●
584 02.440 SENSOR; PRESSURE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-28180-175-0 01 1 0811- ● ●
685 02.510 RELAY; WEAR INDI
4 WHEEL ANTI LOCK BRAKE<JE5> TURKISH EQUIPMENT(S6S) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0702- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
