8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#42515) — 91 parça
çizim 14002
204 21 21 2 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0211-0501 ● ● ●
1 09.709 LIGHTER; CIGAR
VOLTAGE 24V<7AE> 		8-97320-325-0 01 1 0211-0501 ● ● ●
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0502- ● ●
1 09.709 LIGHTER; CIGAR
VOLTAGE 24V<7AE> 		8-97320-325-0 01 1 0502- ● ● ●
1 09.709 LIGHTER; CIGAR
EXC. VOLTAGE 24V<7AE> 		8-97320-322-0 01 1 0211- ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0211-0501 ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0502-0706 ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-98091-060-0 01 1 0707- ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0211-0501 ● ● ●
3 08.991 BULB; CIGAR LIGHTER
VOLTAGE 24V<7AE> 28V 1.8W 		8-97173-159-0 01 1 0211-0501 ● ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0502- ● ●
3 08.991 BULB; CIGAR LIGHTER
VOLTAGE 24V<7AE> 28V 1.8W 		8-97173-159-0 01 1 0502- ● ● ●
3 08.991 BULB; CIGAR LIGHTER
EXC. VOLTAGE 24V<7AE> 14V 1.4W 		8-97173-160-0 01 1 0211- ● ● ●
21 09.744 COVER; HOLE
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-97136-694-0 01 1 0211-0501 ● ● ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0211-0501 ● ● ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0211-0501 ● ● ● ● ● ●
21 09.744 COVER; HOLE
4HE1 ENG(RLY) EXC. CHILE EQUIPMENT(6KB),ISRAEL EQUIPMENT(7LX) (A) 		8-97136-694-0 01 1 0211-0501 ● ● ● ● ●
21 09.744 COVER; HOLE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97136-694-0 01 1 0502-0506 ● ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0502-0506 ● ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0507-0507 ● ● ● ● ●
21 09.744 COVER; HOLE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97136-694-0 01 1 0507-0507 ● ● ● ● ●
21 09.744 COVER; HOLE
4HK1-TCS ENG(RJS) EXC. CHILE EQUIPMENT(6KB) (A) 		8-97136-694-0 01 1 0507-0507 ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0507-0509 ● ● ● ● ●
21 09.744 COVER; HOLE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97136-694-0 01 1 0507-0509 ● ● ● ● ●
21 09.744 COVER; HOLE
4HK1-TCS ENG(RJS) EXC. CHILE EQUIPMENT(6KB) (A) 		8-97136-694-0 01 1 0507-0509 ●
21 09.744 COVER; HOLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97136-694-0 01 1 0510-0606 ● ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0510-0606 ● ● ● ● ●
21 09.744 COVER; HOLE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) EXC. CHILE EQUIPMENT(6KB) (A) 		8-97136-694-0 01 1 0510-0606 ● ● ● ●
21 09.744 COVER; HOLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97136-694-0 01 1 0607-0709 ● ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0607-0709 ● ● ● ● ●
21 09.744 COVER; HOLE
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) EXC. CHILE EQUIPMENT(6KB) (A) 		8-97136-694-0 01 1 0607-0709 ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0710- ● ● ● ● ●
21 09.744 COVER; HOLE
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (A) 		8-97136-694-0 01 1 0710- ●
21 09.744 COVER; HOLE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97136-694-0 01 1 0710- ●
21 09.744 COVER; HOLE
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(6KB) (A) 		8-97136-694-0 01 1 0710- ● ●
21 09.744 COVER; HOLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A) 		8-97136-694-0 01 1 0710- ●
21 09.744 COVER; HOLE
4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) 		8-97136-694-0 01 1 0710- ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0710- ●
21 09.744 COVER; HOLE
FLOOR REMOTE SHIFT<M11> ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0211-0501 ● ● ● ●
21 09.744 COVER; HOLE
ADJUST HEADLAMP<6RC> EXC. FLOOR REMOTE SHIFT<M11> 02.485 (B) 		8-94310-890-0 01 1 0211-0501 ● ● ● ●
21 09.744 COVER; HOLE
ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 0211-0501 ●
21 09.744 COVER; HOLE
FLOOR REMOTE SHIFT<M11> ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0502- ● ● ● ●
21 09.744 COVER; HOLE
ADJUST HEADLAMP<6RC> EXC. FLOOR REMOTE SHIFT<M11> 02.485 (B) 		8-94310-890-0 01 1 0502- ● ● ● ●
204 02.195 BUZZER; KEY REMIND
RUSSIA EQUIPMENT(B12) 09.765 		8-97036-649-0 01 1 0710- ● ●
204 02.195 BUZZER; KEY REMIND
ISRAEL EQUIPMENT(7LX) 09.765 		8-97036-649-0 01 1 0211-0501 ● ● ●
204 02.195 BUZZER; KEY REMIND
09.765 		8-97036-649-0 01 1 0211-0501 ●
çizim 55628
101 106 263
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
101 04.115 CONTROL UNIT; ELEC,A/T
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) ISRAEL EQUIPMENT(7LX) 		8-97351-502-0 01 1 0211-0501 ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T 8-97351-502-0 01 1 0211-0501 ●
101 04.115 CONTROL UNIT; ELEC,A/T
A/T 4 SPEED-AISIN(RNJ) VENEZUELA EQUIPMENT(S2L) 		8-97323-553-0 01 1 0510- ●
101 04.115 CONTROL UNIT; ELEC,A/T
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VENEZUELA EQUIPMENT(S2L) 		8-97323-553-0 01 1 0211-0501 ●
106 04.115 NUT; ELEC CONT UNIT
A/T 4 SPEED-AISIN(RNJ) 04.594 M6 FLANGE 		0-91150-106-0 04 1 0211-0501 ● ● ● ●
106 04.115 NUT; ELEC CONT UNIT
04.594 M6 FLANGE 		0-91150-106-0 04 1 0211-0501 ●
106 04.115 NUT; ELEC CONT UNIT
A/T 4 SPEED-AISIN(RNJ) VENEZUELA EQUIPMENT(S2L) 01.062 M6 FLANGE 		0-91180-106-0 04 1 0510- ●
263 04.115 BOLT; CONT UNIT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0211-0501 ● ● ● ● ●
263 04.115 BOLT; CONT UNIT
4HG1 ENG(RJH) TURBOCHARGER(K51) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0211-0501 ● ● ●
263 04.115 BOLT; CONT UNIT
04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0211-0501 ●
263 04.115 BOLT; CONT UNIT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0502-0512 ● ● ● ●
263 04.115 BOLT; CONT UNIT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) 03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0601- ● ● ● ●

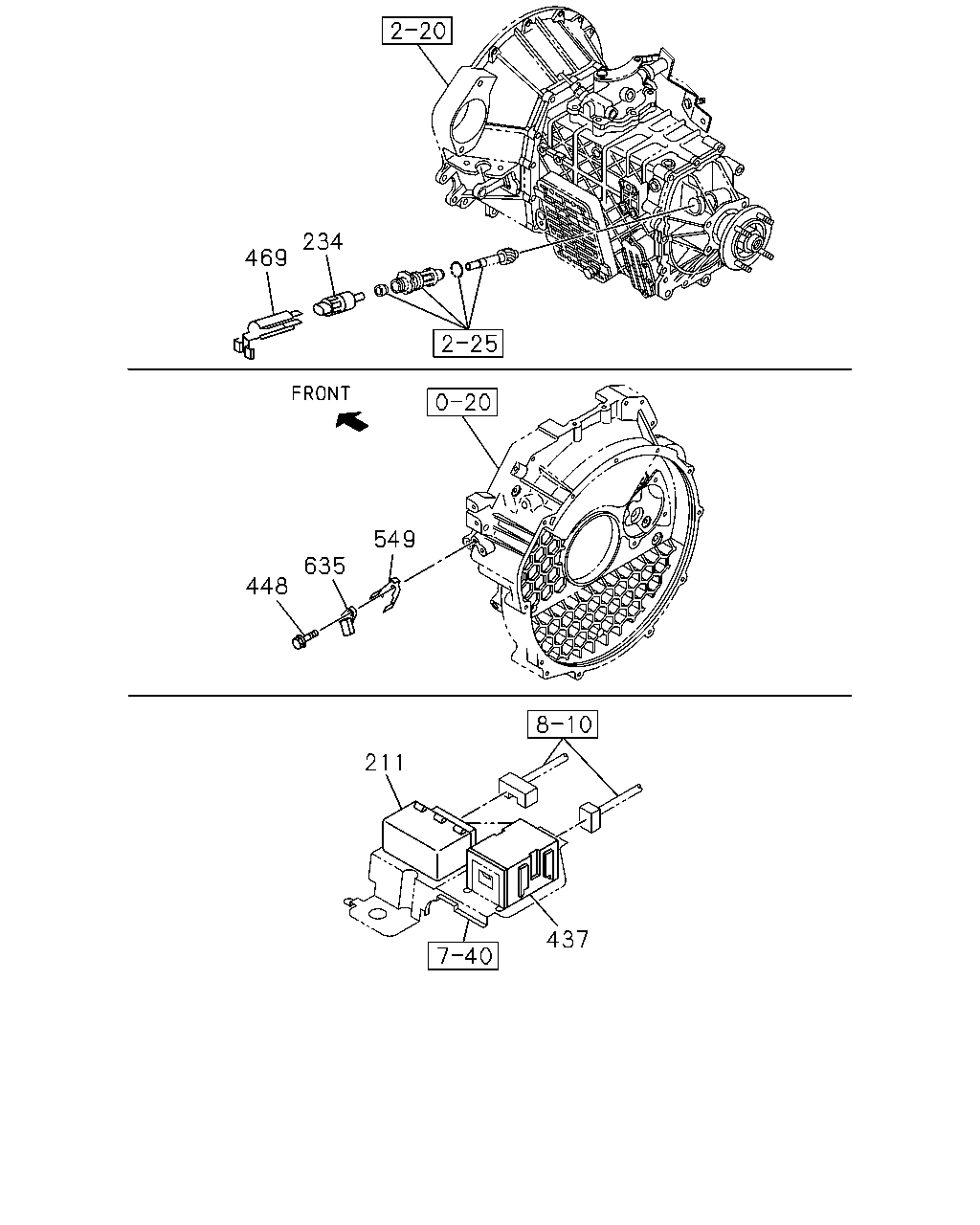

çizim 55629
234 469 549 635 448 211 437
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
211 02.487 RESISTOR; SW
ADJUST HEADLAMP<6RC> 		8-97359-130-1 01 1 0502- ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM 		8-97256-525-0 01 1 0211-0501 ● ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 PULSE ALUMINUM 		8-97256-525-0 01 1 0502- ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4HK1-TCS ENG(RJS) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0507-0606 ●
234 03.682 SENSOR; VEHICLE SPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0607- ● ●
437 10.485 CONVERTER; DC
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> KOITO 		8-97359-129-0 01 1 0502- ● ● ● ●
448 02.500 BOLT; SENSOR
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0211-0501 ● ● ● ● ● ●
448 02.500 BOLT; SENSOR
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0502-0506 ● ● ● ● ●
448 02.500 BOLT; SENSOR
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0507-0512 ● ● ● ● ●
448 02.500 BOLT; SENSOR
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0601-0606 ● ● ● ● ●
448 02.500 BOLT; SENSOR
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0607- ● ● ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
A/T 4 SPEED-AISIN(RNJ) 		8-97168-308-0 01 1 0211-0501 ● ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR 8-97168-308-0 01 1 0211-0501 ●
469 03.682 PROTECTOR; SPEED SENSOR
A/T 4 SPEED-AISIN(RNJ) 		8-97168-308-0 01 1 0502-0808 ●
469 03.682 PROTECTOR; SPEED SENSOR
A/T 4 SPEED-AISIN(RNJ) 		8-98119-901-0 01 1 0809- ●
549 02.510 SHEET
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 09.743 		8-97161-633-2 01 1 0211-0501 ● ● ● ● ● ●
549 02.510 SHEET
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 09.743 		8-97161-633-2 01 1 0502- ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> YAZAKI 		8-97214-325-0 01 1 0211-0407 ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH) TURBOCHARGER(K51) YAZAKI 		8-97214-325-0 01 1 0211-0407 ● ●
635 09.750 SENSOR; TACHOMETER
YAZAKI 		8-97214-325-0 01 1 0211-0407 ●
635 09.750 SENSOR; TACHOMETER
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> YAZAKI 		8-97214-325-0 01 1 0408-0501 ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH) TURBOCHARGER(K51) YAZAKI 		8-97214-325-0 01 1 0408-0501 ● ● ●
635 09.750 SENSOR; TACHOMETER
YAZAKI 		8-97214-325-0 01 1 0408-0501 ●
635 09.750 SENSOR; TACHOMETER
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) YAZAKI 		8-97214-325-0 01 1 0502- ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HF1-S ENG(RLS) CALSONIC KANSEI 		8-97163-104-0 01 1 0211-0405 ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) CALSONIC KANSEI 		8-97163-104-0 01 1 0211-0405 ● ● ●
635 09.750 SENSOR; TACHOMETER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> CALSONIC KANSEI 		8-97163-104-0 01 1 0211-0405 ● ● ●
635 09.750 SENSOR; TACHOMETER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> CALSONIC KANSEI 		8-97163-104-0 01 1 0406-0501 ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HF1-S ENG(RLS) CALSONIC KANSEI 		8-97163-104-0 01 1 0406-0501 ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) CALSONIC KANSEI 		8-97163-104-0 01 1 0406-0501 ● ● ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) CALSONIC KANSEI 		8-97163-104-0 01 1 0502- ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HK1-TCS ENG(RJS) DENSO 		8-97306-113-1 01 1 0507-0606 ●
635 09.750 SENSOR; TACHOMETER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) DENSO 		8-97306-113-1 01 1 0607- ● ●
