◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50947 - NPR/NQR LHDEXC.EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#42514) — 431 parça

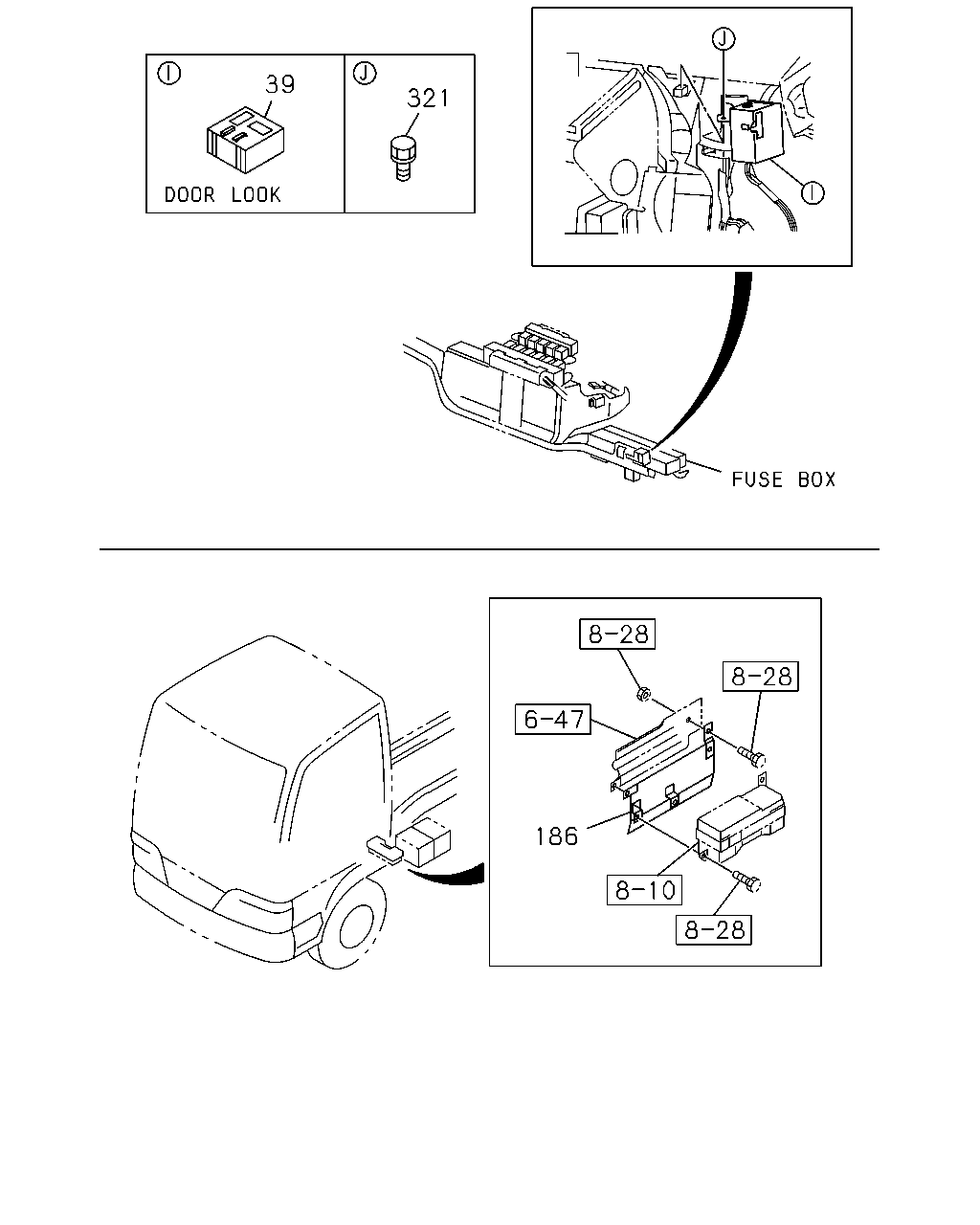

çizim 9982
39 321 186
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97177-214-0 01 1 0211-0501 ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> 		8-97177-214-0 01 1 0211-0501 ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97177-214-0 01 1 0502- ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> 		8-97177-214-0 01 1 0502- ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> 		8-97177-215-0 01 1 0211-0211 ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> 		8-97359-591-0 01 1 0212- ● ● ●
186 09.277 BRACKET; RELAY BOX
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 		8-97088-652-1 01 1 0211-0501 ● ● ● ● ●
186 09.277 BRACKET; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. TIRE SIZE 8.25-16<7QP> 		8-97088-652-1 01 1 0502- ● ● ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20 		8-94436-927-0 01 1 0211-0501 ● ● ● ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20 		8-94436-927-0 01 1 0502-0612 ● ● ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0701-1101 ● ● ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ● ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ● ● ●

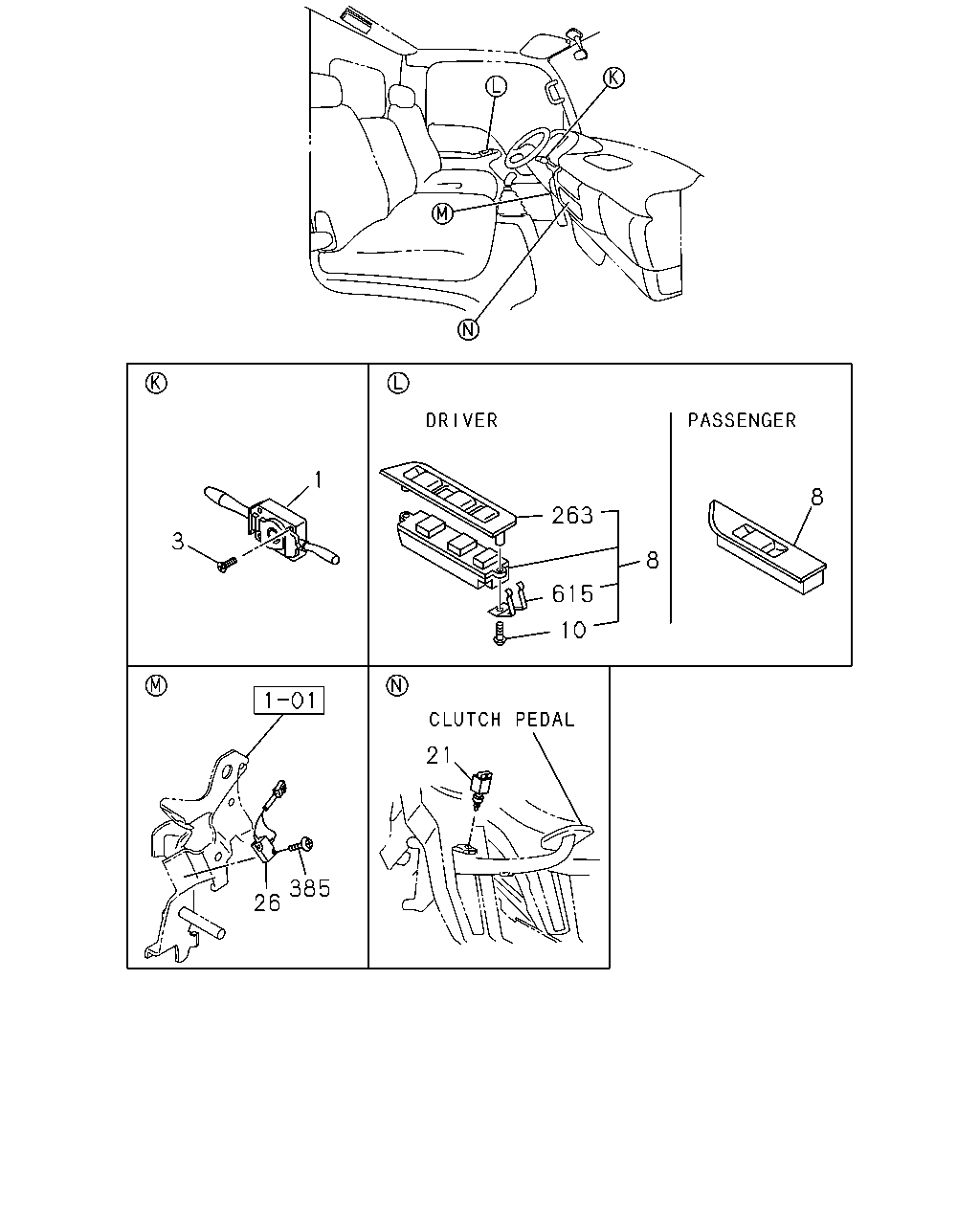

çizim 11639
1 8 263 3 8 615 10 21 385 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97287-891-2 01 1 0211-0301 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8>,RR FOG LAMP<T79> 		8-97287-891-2 01 1 0211-0301 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97364-075-0 01 1 0302-0501 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8>,RR FOG LAMP<T79> 		8-97364-075-0 01 1 0302-0501 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8>,RR FOG LAMP<T79> 		8-97383-518-0 01 1 0502- ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97287-883-2 01 1 0211-0301 ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8>,RR FOG LAMP<T79> 		8-97287-883-2 01 1 0211-0301 ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97364-071-0 01 1 0302-0501 ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8>,RR FOG LAMP<T79> 		8-97364-071-0 01 1 0302-0501 ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8>,RR FOG LAMP<T79> 		8-97383-514-0 01 1 0502- ● ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-97287-882-2 01 1 0211-0301 ● ● ● ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-97364-070-0 01 1 0302-0501 ● ● ● ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-97383-513-0 01 1 0502- ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. RR FOG LAMP<T79> 		8-97287-890-2 01 1 0211-0301 ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. RR FOG LAMP<T79> 		8-97364-074-0 01 1 0302-0501 ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. RR FOG LAMP<T79> 		8-97383-517-0 01 1 0502- ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> 		8-97287-896-2 01 1 0211-0301 ● ● ●
1 02.895 SWITCH; COMB 8-97287-896-2 01 1 0211-0301 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> 		8-97364-078-0 01 1 0302-0501 ● ● ●
1 02.895 SWITCH; COMB 8-97364-078-0 01 1 0302-0501 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> 		8-97383-521-0 01 1 0502-0506 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> 		8-97383-521-0 01 1 0507-0709 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> 		8-97383-521-0 01 1 0710- ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> RR FOG LAMP<T79> 		8-97383-521-0 01 1 0710- ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 0211-0501 ● ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 0502-0604 ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		0-36220-520-0 04 1 0605-0612 ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 04 1 0701- ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97214-399-0 01 1 0211-0501 ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97214-399-0 01 1 0502-0703 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98075-446-0 01 1 0704-0907 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98147-236-0 01 1 0908- ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97315-178-0 01 1 0211-0501 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97315-178-0 01 1 0211-0501 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97315-178-0 01 1 0502-0907 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97315-178-0 01 1 0502-0907 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98147-226-0 01 1 0908- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-98147-226-0 01 1 0908- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97315-179-0 01 1 0211-0301 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97364-113-0 01 1 0302-0907 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-98147-228-0 01 1 0908- ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 0211-0501 ● ● ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 0502- ● ● ● ● ●
21 02.575 SWITCH; CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> 04.054 		8-94331-723-1 01 1 0211-0211 ● ● ● ● ●
21 02.575 SWITCH; CLU
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 0212-0501 ● ● ● ● ●
21 02.575 SWITCH; CLU
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 0502-0506 ● ● ● ● ●
21 02.575 SWITCH; CLU
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 0507-0606 ● ● ● ● ●
21 02.575 SWITCH; CLU
4HK1-TCS ENG(RJS) 		8-97358-248-0 01 1 0507-0606 ●
21 02.575 SWITCH; CLU
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 0607- ● ● ● ● ●
21 02.575 SWITCH; CLU
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97358-248-0 01 1 0607- ● ●
26 03.636 SWITCH; ACCEL
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> 		8-97855-192-0 01 1 0211-0501 ● ● ● ● ● ●
26 03.636 SWITCH; ACCEL
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 		8-97855-192-0 01 1 0502- ● ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-236-0 01 1 0211-0501 ● ● ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-236-0 01 1 0502- ● ● ● ● ●
385 08.909 SCREW; ACCEL SW
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> 03.451 M3X16 TAPPING 		0-71280-316-0 02 1 0211-0501 ● ● ● ● ● ●
385 08.909 SCREW; ACCEL SW
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 03.451 M3X16 TAPPING 		0-71280-316-0 02 1 0502-0603 ● ● ● ● ●
385 08.909 SCREW; ACCEL SW
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 03.425 M3X16 TAPPING 		0-71340-316-0 02 1 0604- ● ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 0211-0501 ● ● ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 0502- ● ● ● ● ●

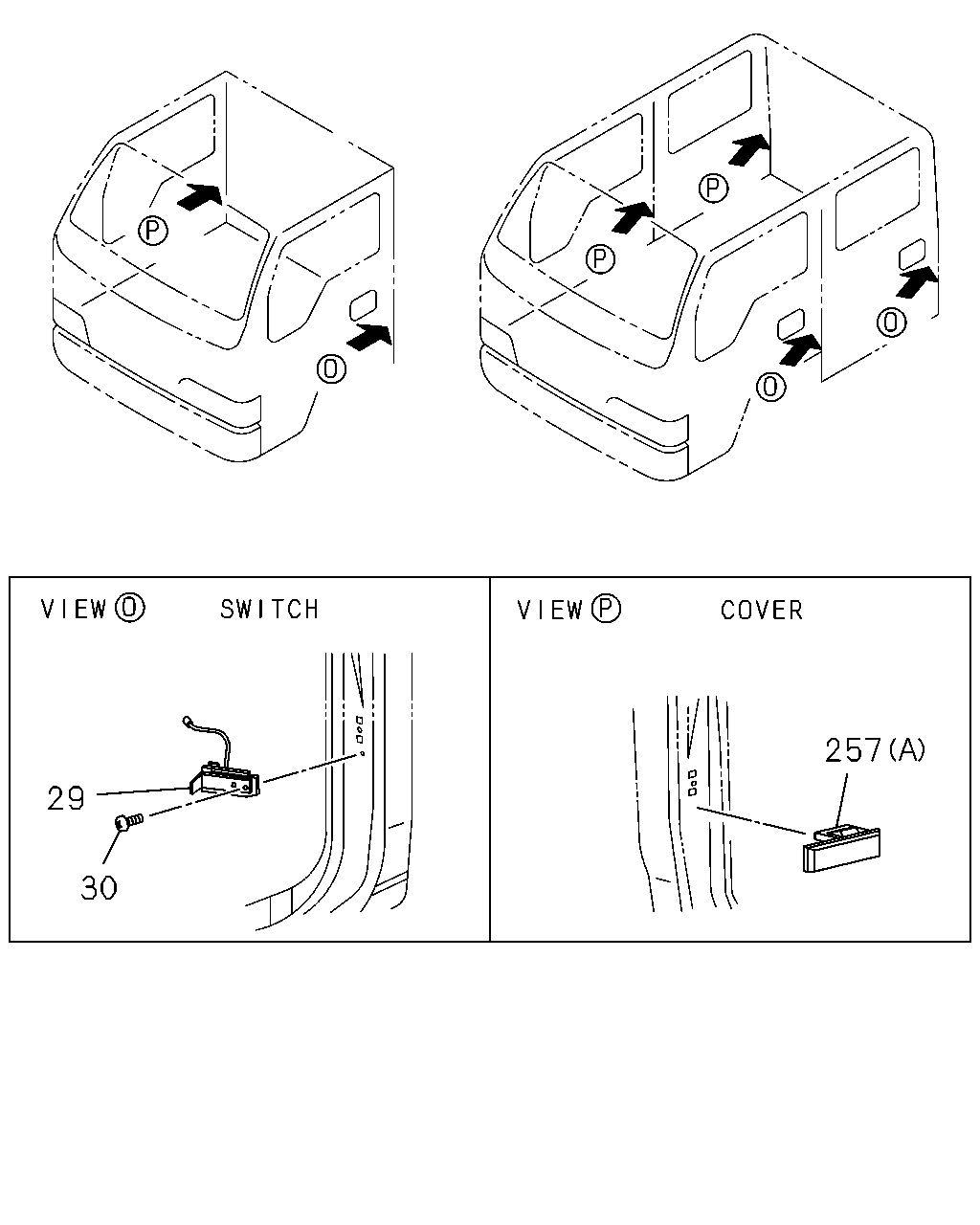

çizim 12247
257 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
29 16.263 SWITCH; DOOR 8-97855-032-3 01 1 0211-0501 ● ●
29 16.263 SWITCH; DOOR
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 		8-97855-032-3 01 1 0211-0501 ● ●
29 16.263 SWITCH; DOOR 8-97855-032-3 01 1 0502- ● ● ● ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) 		8-97855-032-3 02 1 0211-0501 ● ●
29 16.263 SWITCH; DOOR 8-97855-032-3 02 1 0211-0501 ●
29 16.263 SWITCH; DOOR
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 		8-97855-032-3 02 1 0211-0501 ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) 		8-97855-032-3 04 1 0211-0501 ●
29 16.263 SWITCH; DOOR 8-97855-032-3 02 1 0502- ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 0211-0501 ● ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) M5X16 		8-94279-341-0 01 1 0211-0501 ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 0502- ● ● ● ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) M5X16 		8-94279-341-0 02 1 0211-0501 ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 02 1 0211-0501 ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) M5X16 		8-94279-341-0 02 1 0211-0501 ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) M5X16 		8-94279-341-0 04 1 0211-0501 ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 02 1 0502- ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (B) 		8-97136-694-0 01 1 0211-0501 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (B) 		8-97136-694-0 01 1 0502-0506 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
09.744 (B) 		8-97136-694-0 01 1 0502-0506 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (B) 		8-97136-694-0 01 1 0507-0612 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
09.744 (B) 		8-97136-694-0 01 1 0507-0612 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> 09.744 (B) 		8-97136-694-0 01 1 0507-0612 ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (B) 		8-97136-694-0 01 1 0701- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
09.744 (B) 		8-97136-694-0 01 1 0701- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> 09.744 (B) 		8-97136-694-0 01 1 0701- ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0211-0501 ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 16.494 (A) 		8-94229-914-1 01 1 0211-0501 ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0502- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 16.494 (A) 		8-94229-914-1 02 1 0211-0501 ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 0502- ●

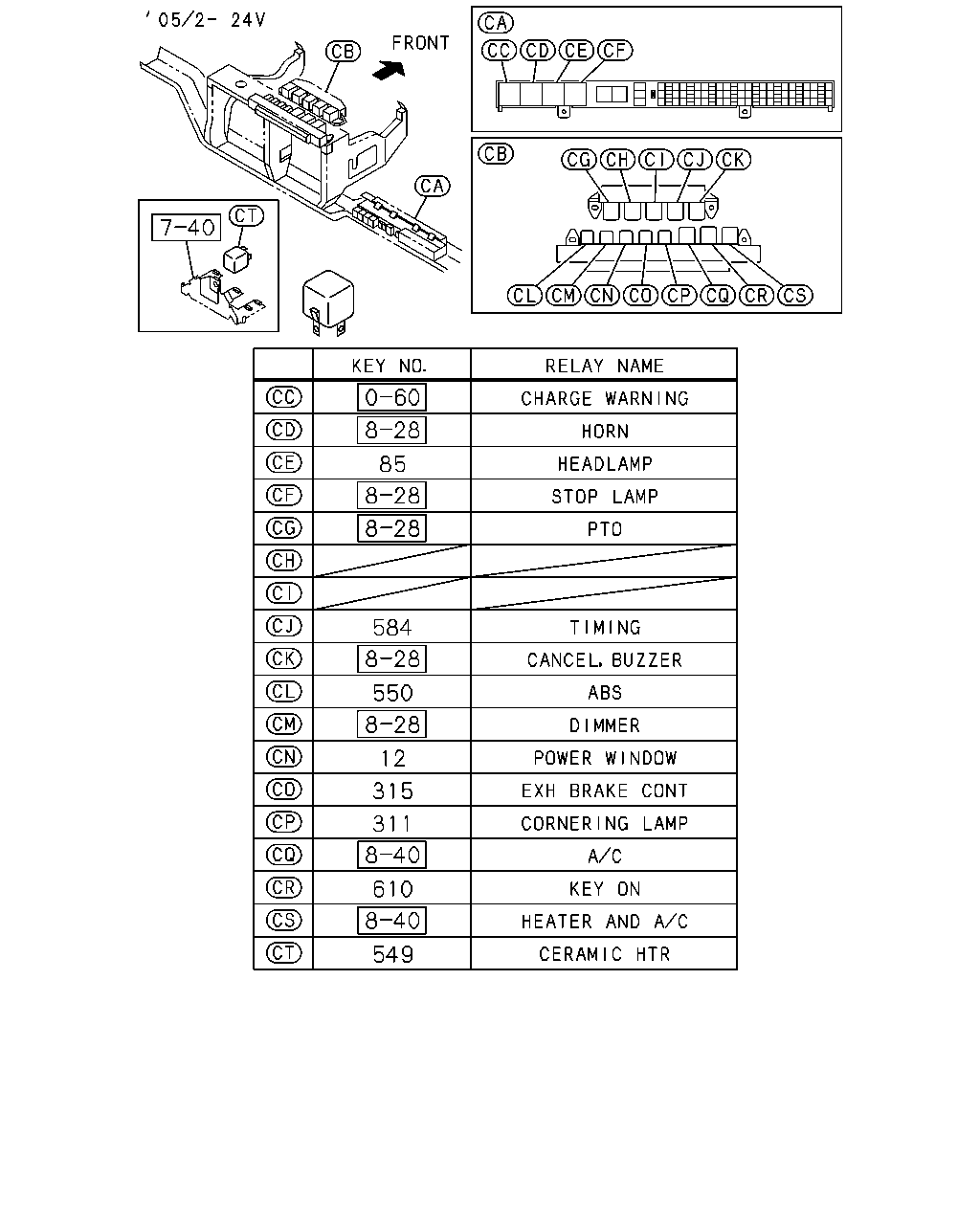

çizim 53193
85 584 12 315 311 610 549 550
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
85 02.485 RELAY; HEADLAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0303 ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0304-0309 ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. BRAZIL EQUIPMENT(RWF),TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0310-0501 ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. TURKISH EQUIPMENT(S6S) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0709 ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0710- ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE>,ISRAEL EQUIPMENT(7LX) 08.852 12V 20A 		8-97060-926-1 01 1 0211-0303 ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0303 ●
311 02.596 RELAY; CORNERING LAMP
EXC. BRAZIL EQUIPMENT(RWF),VOLTAGE 24V<7AE>,ISRAEL EQUIPMENT(7LX) 08.852 12V 20A 		8-97060-926-1 01 1 0304-0501 ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0304-0501 ●
311 02.596 RELAY; CORNERING LAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502-0709 ● ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. RUSSIA EQUIPMENT(B12),VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0710- ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0612 ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> EXC. REAR HEATER<C35> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0612 ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0612 ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0701- ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0701- ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH) VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0701- ●
315 09.277 RELAY; EXH BRAKE CONT
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0701- ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502-0612 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502-0612 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0701- ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0701- ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH) EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0701- ●
549 02.510 RELAY; CERAMIC HTR
CERAMIC HEATER<6YX> 24V 		1-82550-308-1 01 1 0710-0710 ● ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0308 ● ●
550 02.510 RELAY; ABS
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0308 ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0308 ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309-0501 ● ● ●
550 02.510 RELAY; ABS
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309-0501 ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309-0501 ●
550 02.510 RELAY; ABS
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0612 ●
550 02.510 RELAY; ABS
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0612 ● ●
550 02.510 RELAY; ABS
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0701- ● ● ● ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0308 ● ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0309-0501 ● ● ●
550 02.510 RELAY; ABS
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97173-037-1 01 1 0502-0612 ● ●
550 02.510 RELAY; ABS
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97173-037-1 01 1 0701- ● ● ●
584 02.510 RELAY; TIMING
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ● ●
584 02.510 RELAY; TIMING
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ● ●
584 02.510 RELAY; TIMING
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
584 02.510 RELAY; TIMING
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0502- ● ●
610 02.510 RELAY; KEY ON
VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0502- ● ● ●
610 02.510 RELAY; KEY ON
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●

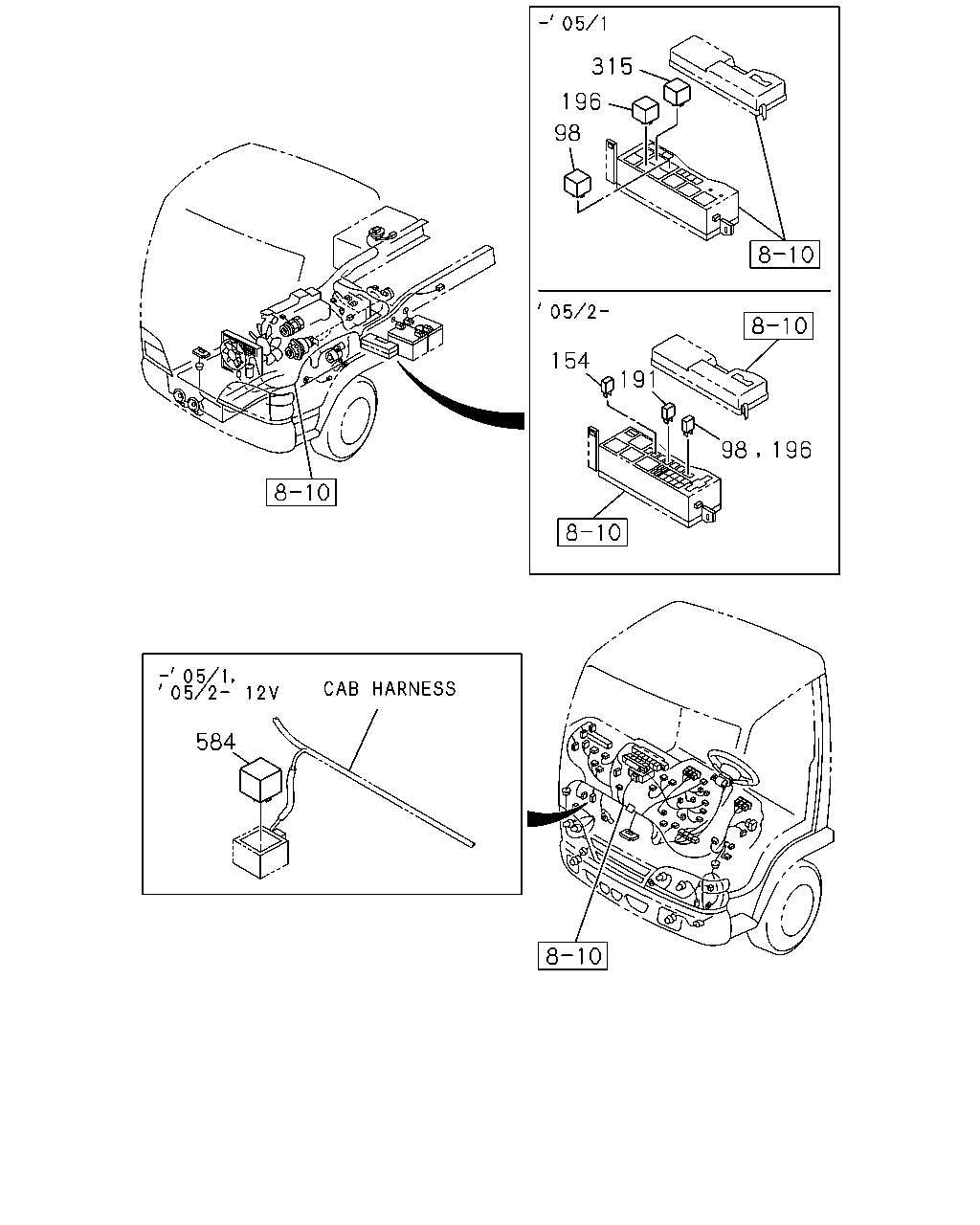

çizim 53660
315 196 98 154 191 98 196 584
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> VOLTAGE 24V<7AE> EXC. ISRAEL EQUIPMENT(7LX) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> EXC. ISRAEL EQUIPMENT(7LX) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0506 ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0709 ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0710- ● ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502-0506 ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0507-0709 ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0710- ● ● ●
154 09.277 RELAY; CONDENSER FAN
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0506 ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0308 ● ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0308 ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309-0501 ● ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309-0501 ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0612 ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0612 ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0701- ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0701- ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1 ENG(RJH),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VENEZUELA EQUIPMENT(S2L) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ●
191 02.510 RELAY; EXH BRK CUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97173-037-1 01 1 0502- ●
196 02.510 RELAY; BACKUP LAMP
A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
196 02.510 RELAY; BACKUP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ●
196 02.510 RELAY; BACKUP LAMP
A/T 4 SPEED-AISIN(RNJ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ●
196 02.510 RELAY; BACKUP LAMP
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0504 ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0612 ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> EXC. REAR HEATER<C35> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0612 ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0612 ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0701- ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0701- ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH) VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0701- ●
315 09.277 RELAY; EXH BRAKE CONT
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0701- ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502-0612 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502-0612 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0701- ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0701- ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH) EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0701- ●
584 02.510 RELAY; TIMING
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ● ●
584 02.510 RELAY; TIMING
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ● ●
584 02.510 RELAY; TIMING
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
584 02.510 RELAY; TIMING
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●

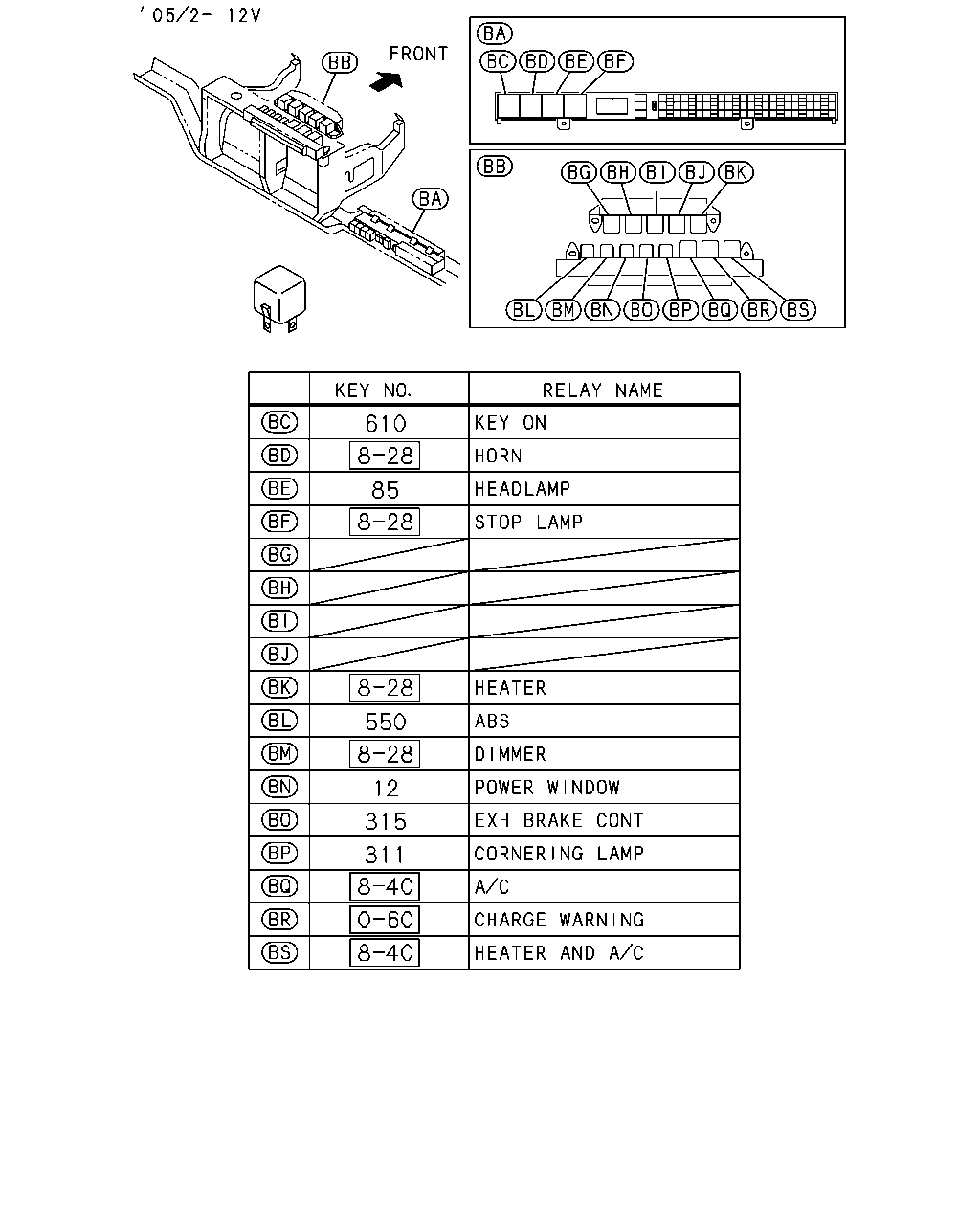

çizim 53694
610 85 550 12 315 311
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
85 02.485 RELAY; HEADLAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0303 ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0304-0309 ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. BRAZIL EQUIPMENT(RWF),TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0310-0501 ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. TURKISH EQUIPMENT(S6S) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0709 ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0710- ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE>,ISRAEL EQUIPMENT(7LX) 08.852 12V 20A 		8-97060-926-1 01 1 0211-0303 ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0303 ●
311 02.596 RELAY; CORNERING LAMP
EXC. BRAZIL EQUIPMENT(RWF),VOLTAGE 24V<7AE>,ISRAEL EQUIPMENT(7LX) 08.852 12V 20A 		8-97060-926-1 01 1 0304-0501 ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0304-0501 ●
311 02.596 RELAY; CORNERING LAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502-0709 ● ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. RUSSIA EQUIPMENT(B12),VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0710- ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0612 ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> EXC. REAR HEATER<C35> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0612 ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0612 ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0701- ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0701- ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH) VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0701- ●
315 09.277 RELAY; EXH BRAKE CONT
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0701- ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502-0612 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502-0612 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0701- ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0701- ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH) EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0701- ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0308 ● ●
550 02.510 RELAY; ABS
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0308 ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0308 ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309-0501 ● ● ●
550 02.510 RELAY; ABS
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309-0501 ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309-0501 ●
550 02.510 RELAY; ABS
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0612 ●
550 02.510 RELAY; ABS
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0612 ● ●
550 02.510 RELAY; ABS
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0701- ● ● ● ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0308 ● ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0309-0501 ● ● ●
550 02.510 RELAY; ABS
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97173-037-1 01 1 0502-0612 ● ●
550 02.510 RELAY; ABS
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97173-037-1 01 1 0701- ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0502- ● ●
610 02.510 RELAY; KEY ON
VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0502- ● ● ●
610 02.510 RELAY; KEY ON
EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●

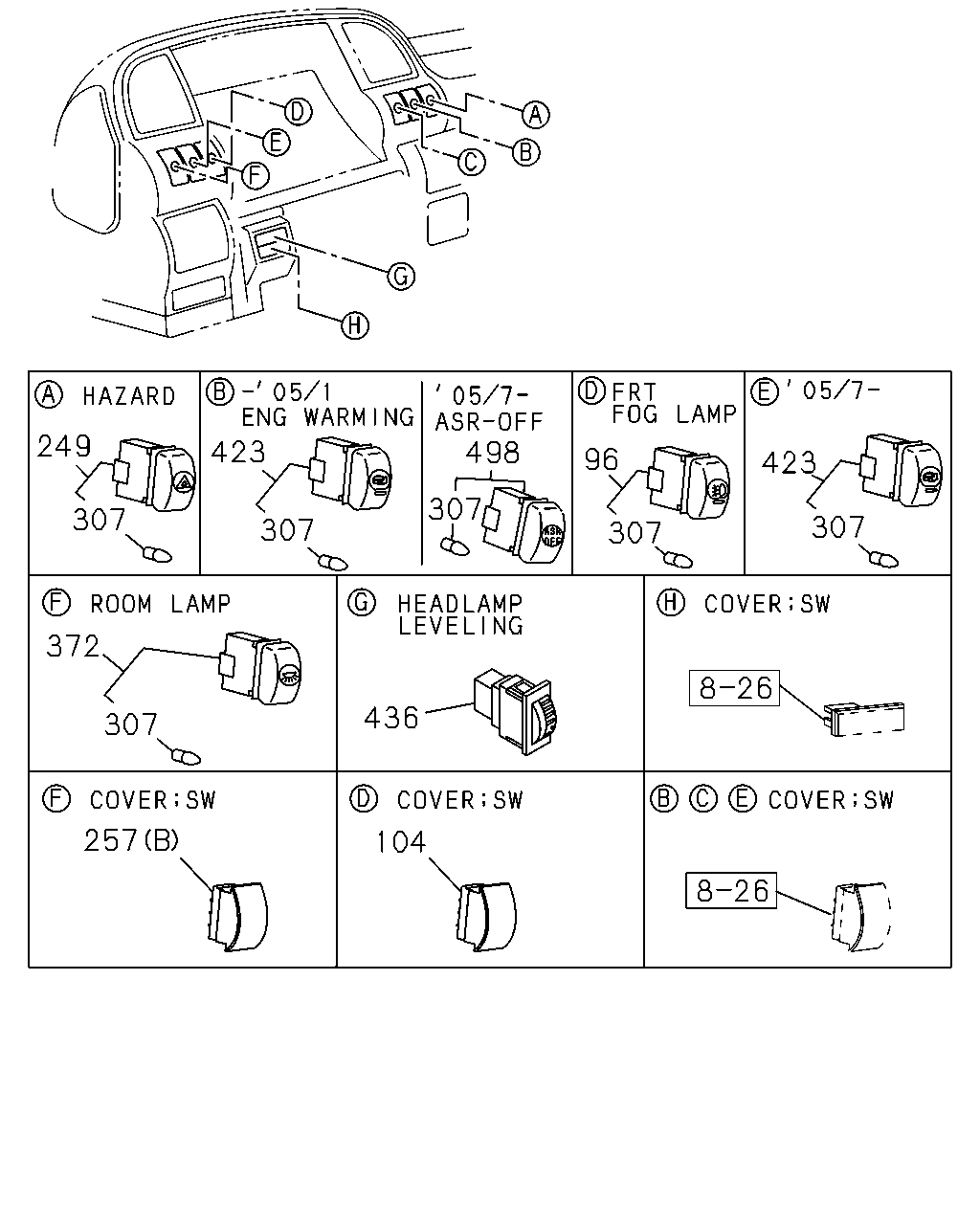

çizim 55226
423 498 249 96 423 307 307 307 307 307 372 436 307 257 104
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97170-441-0 01 1 0211-0302 ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97170-441-0 01 1 0211-0302 ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. ISRAEL EQUIPMENT(7LX) 		8-97170-441-0 01 1 0303-0309 ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97170-441-0 01 1 0310-0501 ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) 		8-97170-441-0 01 1 0310-0501 ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97170-441-0 01 1 0310-0501 ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. ISRAEL EQUIPMENT(7LX) 		8-97170-441-0 01 1 0310-0501 ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. TURKISH EQUIPMENT(S6S) 		8-97170-441-0 01 1 0502-0709 ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) 		8-97170-441-0 01 1 0710- ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
TURKISH EQUIPMENT(S6S) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97206-020-1 01 1 0310-0501 ● ●
96 02.485 SWITCH; FOG LAMP
TURKISH EQUIPMENT(S6S) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97206-020-1 01 1 0502-0506 ●
96 02.485 SWITCH; FOG LAMP
TURKISH EQUIPMENT(S6S) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97206-020-1 01 1 0507-0709 ● ●
96 02.485 SWITCH; FOG LAMP
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97206-020-1 01 1 0710- ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97140-964-0 01 1 0211-0309 ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. TURKISH EQUIPMENT(S6S),VOLTAGE 24V<7AE> 		8-97140-964-0 01 1 0310-0501 ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97140-964-0 01 1 0310-0501 ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. TURKISH EQUIPMENT(S6S),VOLTAGE 24V<7AE> 		8-97140-964-0 01 1 0502-0709 ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S),VOLTAGE 24V<7AE> 		8-97140-964-0 01 1 0710- ● ● ●
96 02.485 SWITCH; FOG LAMP
ISRAEL EQUIPMENT(7LX) FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97206-021-1 01 1 0303-0309 ● ● ● ●
96 02.485 SWITCH; FOG LAMP
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97206-021-1 01 1 0310-0501 ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97206-021-1 01 1 0310-0501 ●
96 02.485 SWITCH; FOG LAMP
ISRAEL EQUIPMENT(7LX) FOG LAMP<T96> 		8-97206-021-1 01 1 0310-0501 ●
96 02.485 SWITCH; FOG LAMP
TURKISH EQUIPMENT(S6S) FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97206-021-1 01 1 0502-0506 ●
96 02.485 SWITCH; FOG LAMP
TURKISH EQUIPMENT(S6S) FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97206-021-1 01 1 0507-0709 ● ●
96 02.485 SWITCH; FOG LAMP
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97206-021-1 01 1 0710- ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 09.744 		8-97136-694-0 01 1 0211-0501 ● ● ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 09.744 		8-97136-694-0 01 1 0502- ● ● ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-475-0 01 1 0211-0501 ● ● ●
249 02.485 SWITCH; HAZARD
VOLTAGE 24V<7AE> 		8-97202-475-0 01 1 0211-0501 ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-475-0 01 1 0502- ● ●
249 02.485 SWITCH; HAZARD
VOLTAGE 24V<7AE> 		8-97202-475-0 01 1 0502- ● ● ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97202-476-0 01 1 0211- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (B) 		8-97136-694-0 01 1 0211-0501 ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (B) 		8-97136-694-0 01 1 0502-0506 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
09.744 (B) 		8-97136-694-0 01 1 0502-0506 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (B) 		8-97136-694-0 01 1 0507-0612 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
09.744 (B) 		8-97136-694-0 01 1 0507-0612 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> 09.744 (B) 		8-97136-694-0 01 1 0507-0612 ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (B) 		8-97136-694-0 01 1 0701- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
09.744 (B) 		8-97136-694-0 01 1 0701- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> 09.744 (B) 		8-97136-694-0 01 1 0701- ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0211-0501 ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 16.494 (A) 		8-94229-914-1 01 1 0211-0501 ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 0502- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) 16.494 (A) 		8-94229-914-1 02 1 0211-0501 ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 0502- ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 01 1 0211-0302 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0211-0302 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 0303-0309 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
4HE1 ENG(RLY) CHILE EQUIPMENT(6KB),ISRAEL EQUIPMENT(7LX) 28V 40MA 		8-97116-331-0 02 1 0303-0309 ● ● ● ●
307 08.991 BULB ASM; SW
ISRAEL EQUIPMENT(7LX) FOG LAMP<T96> VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 0303-0309 ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 0310-0501 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
4HE1 ENG(RLY) CHILE EQUIPMENT(6KB),ISRAEL EQUIPMENT(7LX) 28V 40MA 		8-97116-331-0 02 1 0310-0501 ● ● ● ●
307 08.991 BULB ASM; SW
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) FOG LAMP<T96> VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 0310-0501 ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 0502-0506 ● ● ● ● ●
307 08.991 BULB ASM; SW
TURKISH EQUIPMENT(S6S) FOG LAMP<T96> VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 0502-0506 ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 0507-0509 ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 0507-0509 ● ● ●
307 08.991 BULB ASM; SW
TURKISH EQUIPMENT(S6S) FOG LAMP<T96> VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 0507-0509 ● ●
307 08.991 BULB ASM; SW
4HK1-TCS ENG(RJS) CHILE EQUIPMENT(6KB) 28V 40MA 		8-97116-331-0 02 1 0507-0509 ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 0510-0606 ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 0510-0606 ● ● ●
307 08.991 BULB ASM; SW
TURKISH EQUIPMENT(S6S) FOG LAMP<T96> VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 0510-0606 ● ●
307 08.991 BULB ASM; SW
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) CHILE EQUIPMENT(6KB) 28V 40MA 		8-97116-331-0 02 1 0510-0606 ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 0607-0709 ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 0607-0709 ● ● ●
307 08.991 BULB ASM; SW
TURKISH EQUIPMENT(S6S) FOG LAMP<T96> VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 0607-0709 ● ●
307 08.991 BULB ASM; SW
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) CHILE EQUIPMENT(6KB) 28V 40MA 		8-97116-331-0 02 1 0607-0709 ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 0710- ● ● ● ● ●
307 08.991 BULB ASM; SW
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) FOG LAMP<T96> VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 0710- ● ● ●
307 08.991 BULB ASM; SW
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(6KB) 28V 40MA 		8-97116-331-0 02 1 0710- ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> 28V 40MA 		8-97116-331-0 02 1 0211-0302 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
4HE1 ENG(RLY) CHILE EQUIPMENT(6KB),ISRAEL EQUIPMENT(7LX) 28V 40MA 		8-97116-331-0 02 1 0211-0302 ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0303-0309 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. ISRAEL EQUIPMENT(7LX) 28V 40MA 		8-97116-331-0 01 1 0303-0309 ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0310-0501 ● ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) 28V 40MA 		8-97116-331-0 01 1 0310-0501 ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0502-0709 ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. TURKISH EQUIPMENT(S6S) 28V 40MA 		8-97116-331-0 01 1 0502-0709 ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0710- ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) 28V 40MA 		8-97116-331-0 01 1 0710- ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 0211-0309 ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 0211-0309 ● ● ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 0310-0501 ● ● ●
307 08.991 BULB ASM; SW
TURKISH EQUIPMENT(S6S) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 0310-0501 ● ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 0502-0506 ● ● ●
307 08.991 BULB ASM; SW
TURKISH EQUIPMENT(S6S) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 0502-0506 ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 0507-0709 ● ● ●
307 08.991 BULB ASM; SW
TURKISH EQUIPMENT(S6S) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 0507-0709 ● ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 0710- ● ● ●
307 08.991 BULB ASM; SW
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 0710- ● ● ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 02 1 0211-0309 ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 0310-0501 ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. TURKISH EQUIPMENT(S6S),VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 0310-0501 ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 0310-0501 ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 0502-0506 ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. TURKISH EQUIPMENT(S6S),VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 0502-0506 ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 0507-0709 ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. TURKISH EQUIPMENT(S6S),VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 0507-0709 ● ● ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 0710- ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S),VOLTAGE 24V<7AE> 14V 60MA 		8-97116-329-0 01 1 0710- ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97136-693-0 01 1 0211-0501 ● ● ●
372 08.852 SWITCH; ROOM LAMP
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 		8-97136-693-0 01 1 0211-0501 ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97136-693-0 01 1 0502- ● ●
372 08.852 SWITCH; ROOM LAMP
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 		8-97136-693-0 01 1 0502- ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 		8-97136-692-0 01 1 0211- ● ● ●
423 03.883 SWITCH; ENG WARMING
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) 		8-97136-814-0 01 1 0211-0501 ● ●
423 03.883 SWITCH; ENG WARMING
4HE1 ENG(RLY) CHILE EQUIPMENT(6KB),ISRAEL EQUIPMENT(7LX) 		8-97136-814-0 01 1 0211-0501 ●
423 03.883 SWITCH; ENG WARMING 8-97136-814-0 01 1 0211-0501 ●
423 03.883 SWITCH; ENG WARMING
4HK1-TCS ENG(RJS) CHILE EQUIPMENT(6KB) 		8-97136-814-1 01 1 0507-0509 ●
423 03.883 SWITCH; ENG WARMING
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) CHILE EQUIPMENT(6KB) 		8-97136-814-1 01 1 0510-0606 ●
423 03.883 SWITCH; ENG WARMING
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) CHILE EQUIPMENT(6KB) 		8-97136-814-1 01 1 0607-0709 ● ●
423 03.883 SWITCH; ENG WARMING
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(6KB) 		8-97136-814-1 01 1 0710- ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97260-401-1 01 1 0211-0501 ● ● ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97260-401-1 01 1 0502- ● ● ● ●
498 03.883 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> 		8-97140-601-0 01 1 0507-0612 ●
498 03.883 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> 		8-97140-601-0 01 1 0701- ● ●
çizim 55649
85 550 550 311 12 191
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
85 02.485 RELAY; HEADLAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0308 ● ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0308 ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309-0501 ● ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309-0501 ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0612 ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0612 ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0701- ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0701- ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1 ENG(RJH),4HE1 ENG(RLY) EXHAUST BRAKE<NF8> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) VENEZUELA EQUIPMENT(S2L) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0501 ●
191 02.510 RELAY; EXH BRK CUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97173-037-1 01 1 0502- ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97173-037-1 01 1 0502- ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0303 ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0304-0309 ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. BRAZIL EQUIPMENT(RWF),TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0310-0501 ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. TURKISH EQUIPMENT(S6S) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0709 ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0710- ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE>,ISRAEL EQUIPMENT(7LX) 08.852 12V 20A 		8-97060-926-1 01 1 0211-0303 ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0303 ●
311 02.596 RELAY; CORNERING LAMP
EXC. BRAZIL EQUIPMENT(RWF),VOLTAGE 24V<7AE>,ISRAEL EQUIPMENT(7LX) 08.852 12V 20A 		8-97060-926-1 01 1 0304-0501 ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0304-0501 ●
311 02.596 RELAY; CORNERING LAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0502-0709 ● ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. RUSSIA EQUIPMENT(B12),VOLTAGE 24V<7AE> 02.510 12V 20A 		8-97173-037-1 01 1 0710- ● ● ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0308 ● ●
550 02.510 RELAY; ABS
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0308 ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0308 ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309-0501 ● ● ●
550 02.510 RELAY; ABS
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309-0501 ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309-0501 ●
550 02.510 RELAY; ABS
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0612 ●
550 02.510 RELAY; ABS
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-0612 ● ●
550 02.510 RELAY; ABS
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0701- ● ● ● ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0211-0308 ● ●
550 02.510 RELAY; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0309-0501 ● ● ●
550 02.510 RELAY; ABS
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97173-037-1 01 1 0502-0612 ● ●
550 02.510 RELAY; ABS
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97173-037-1 01 1 0701- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
