◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50947 - NPR/NQR LHDEXC.EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#42512) — 837 parça
çizim 10087
239 139 8 239 386 38 38 358 150 139 150 377 386 377 386 239 8 38 239 516 38 19 38 219 54 219 219 294 515 524 219 294 515 219 294 469 515 519 525 139 64 219 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 02.559 BOLT; BRKT,CONNECTOR
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
08.225 (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0211-0501 ● ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
08.225 (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0502-1210 ● ● ● ● ●
8 02.559 BOLT; BRKT,CONNECTOR
02.587 (A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 03 1 1211- ● ● ● ● ●
19 02.559 BOLT; PROTECTOR
4HF1-S ENG(RLS),4HE1 ENG(RLY) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0211-0501 ● ● ● ●
19 02.559 BOLT; PROTECTOR
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0211-0501 ● ● ●
19 02.559 BOLT; PROTECTOR
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0211-0501 ● ● ●
19 02.559 BOLT; PROTECTOR
4HE1 ENG(RLY) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0211-0501 ●
19 02.559 BOLT; PROTECTOR
03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0211-0501 ●
19 02.559 BOLT; PROTECTOR
03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0502-0506 ● ● ● ● ●
19 02.559 BOLT; PROTECTOR
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0507-0512 ● ● ● ● ●
19 02.559 BOLT; PROTECTOR
FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0507-0512 ● ● ● ●
19 02.559 BOLT; PROTECTOR
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0601- ● ● ● ● ●
19 02.559 BOLT; PROTECTOR
FRAME STRAIGHT TYPE<7KJ> 02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0601- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ISRAEL EQUIPMENT(7LX) (D) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0506 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0506 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0506 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L) (D) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0506 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0506 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0506 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) (D) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0506 ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L) (D) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HK1-TCS ENG(RJS) (D) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ●
38 02.559 BOLT; CLIP,HARNESS
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) (D) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME STRAIGHT TYPE<7KJ> 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L) 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HK1-TCS ENG(RJS) 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ●
38 02.559 BOLT; CLIP,HARNESS
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME STRAIGHT TYPE<7KJ> 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L) 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0607- ●
38 02.559 BOLT; CLIP,HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.686 (E) M8X30 FLANGE 		0-28680-830-0 01 1 0211-0501 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.686 (E) M8X30 FLANGE 		0-28680-830-0 01 1 0502-0512 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.403 (E) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 0211-0501 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 0502-0512 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 0502-0512 ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0601- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0601- ●
38 02.559 BOLT; CLIP,HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 0601- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 0601- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
MINI BUS CHASSIS(V4B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 0211-0501 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> HYDRO MASTER<7LT> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 0211-0501 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
MINI BUS CHASSIS(V4B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 0502-0604 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
MINI BUS CHASSIS(V4B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M5X16 W/LK WASHER 		0-36220-516-0 01 1 0605- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MYY6P(RSJ),M/T MYY5T(RSM) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (F) M6X20 FLANGE 		0-28680-620-0 03 1 0310-0501 ● ● ●
54 02.559 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MYY6P(RSJ),M/T MYY5T(RSM) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 03 1 0310-0501 ● ● ●
55 02.559 WASHER; PL,CLIP
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MYY6P(RSJ),M/T MYY5T(RSM) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 0310-0501 ● ● ●
64 02.559 SCREW; CLIP
16.742 M4X16 TAPPING 		1-09981-477-0 01 1 0211- ●
139 02.559 BOLT; BRKT
01.062 (B) M8X16 FLANGE 		0-28080-816-0 03 1 0211-0501 ● ● ● ● ● ●
139 02.559 BOLT; BRKT
01.062 (B) M8X16 FLANGE 		0-28080-816-0 03 1 0502-0512 ● ● ● ● ●
139 02.559 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 03 1 0601- ● ● ● ● ●
139 02.559 BOLT; BRKT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97028-451-3 01 1 0211-0501 ● ● ● ● ●
139 02.559 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97028-451-3 01 1 0502- ● ● ● ●
139 02.559 BOLT; BRKT
(A) 		8-97028-451-3 01 1 0502- ●
139 02.559 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 (C) M8X10 W/LK WASHER 		8-97025-916-0 02 1 0211-0308 ● ● ●
139 02.559 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 (C) M8X10 W/LK WASHER 		8-97025-916-0 02 1 0309-0501 ● ● ● ●
139 02.559 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 (C) M8X10 W/LK WASHER 		8-97025-916-0 02 1 0502-0610 ● ● ●
139 02.559 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 (C) M8X10 W/LK WASHER 		8-98029-928-0 02 1 0611-0612 ● ● ●
139 02.559 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 (C) M8X10 W/LK WASHER 		8-98029-928-0 02 1 0701- ● ● ● ●
150 02.343 BOLT; CLIP
4HK1-TCS ENG(RJS) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0507-0512 ●
150 02.343 BOLT; CLIP
4HK1-TCS ENG(RJS) (A) M8X12 FLANGE 		0-28050-812-0 01 1 0601-0606 ●
150 02.343 BOLT; CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) M8X12 FLANGE 		0-28050-812-0 01 1 0607- ● ●
150 02.343 BOLT; CLIP
4HK1-TCS ENG(RJS) 01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 0507-0512 ●
150 02.343 BOLT; CLIP
4HK1-TCS ENG(RJS) (B) M8X16 FLANGE 		0-28050-816-0 01 1 0601-0606 ●
150 02.343 BOLT; CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) M8X16 FLANGE 		0-28050-816-0 01 1 0607- ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ● ● ●
219 02.559 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ● ● ●
219 02.559 NUT
07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ● ● ●
219 02.559 NUT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ISRAEL EQUIPMENT(7LX) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ● ●
219 02.559 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ● ●
219 02.559 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ●
219 02.559 NUT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ● ●
219 02.559 NUT
07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0502-0506 ● ● ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0502-0506 ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0502-0506 ● ● ● ●
219 02.559 NUT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0502-0506 ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0502-0506 ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0502-0506 ● ● ● ●
219 02.559 NUT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0502-0506 ●
219 02.559 NUT
07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ● ●
219 02.559 NUT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ● ●
219 02.559 NUT
4HK1-TCS ENG(RJS) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ●
219 02.559 NUT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ●
219 02.559 NUT
01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ● ●
219 02.559 NUT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L) 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ● ●
219 02.559 NUT
4HK1-TCS ENG(RJS) 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
219 02.559 NUT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
219 02.559 NUT
01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0607- ● ● ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0607- ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0607- ● ● ● ●
219 02.559 NUT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L) 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0607- ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0607- ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0607- ● ● ● ●
219 02.559 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0607- ● ●
219 02.559 NUT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0607- ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 0211-0501 ● ● ● ● ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 0502-0602 ● ● ● ●
219 02.559 NUT
04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 0502-0602 ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0603- ● ● ● ●
219 02.559 NUT
03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0603- ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97108-658-0 01 1 0211-0501 ● ● ● ● ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97108-658-0 01 1 0502- ● ● ● ●
219 02.559 NUT
(E) 		8-97108-658-0 01 1 0502- ●
219 02.559 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ● ● ● ● ●
219 02.559 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ● ● ● ● ●
219 02.559 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 03 1 0304-0501 ● ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 03 1 0502-0602 ● ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M6 FLANGE 		0-91180-106-0 03 1 0603-0612 ● ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M6 FLANGE 		0-91180-106-0 03 1 0701- ● ● ● ●
219 02.559 NUT
01.062 (B) M6 FLANGE 		0-91180-106-0 03 1 0701- ●
219 02.559 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>, HYDRO MASTER<7LT> 07.829 (F) M6 FLANGE 		5-09440-004-0 01 1 0211-0501 ● ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 07.829 (F) M6 FLANGE 		5-09440-004-0 01 1 0502- ● ● ● ● ●
219 02.559 NUT
4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0211-0303 ● ●
219 02.559 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0211-0303 ● ●
219 02.559 NUT
4HG1 ENG(RJH),4HE1 ENG(RLY) 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0211-0303 ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0211-0303 ●
219 02.559 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0304-0501 ● ● ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0502-0602 ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M6 FLANGE 		0-91180-106-0 02 1 0603- ● ● ● ●
219 02.559 NUT
MINI BUS CHASSIS(V4B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 09.744 (D) M5 FLANGE 		5-09440-003-0 01 1 0211-0501 ● ● ●
219 02.559 NUT
FUEL SEDIMENTER WITH HEATER<6HU> HYDRO MASTER<7LT> 09.744 (D) M5 FLANGE 		5-09440-003-0 01 1 0211-0501 ● ● ●
219 02.559 NUT
MINI BUS CHASSIS(V4B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> 09.744 (D) M5 FLANGE 		5-09440-003-0 01 1 0502- ● ● ●
219 02.559 NUT
4HK1-TCS ENG(RJS) 04.594 (B) M6 FLANGE 		0-91150-106-0 04 1 0507-0602 ●
219 02.559 NUT
4HK1-TCS ENG(RJS) 01.062 (B) M6 FLANGE 		0-91180-106-0 04 1 0603-0606 ●
219 02.559 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (B) M6 FLANGE 		0-91180-106-0 04 1 0607- ● ●
239 02.559 BOLT; GRAND
CERAMIC HEATER<6YX> 02.343 (C) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0710-0710 ● ●
239 02.559 BOLT; GRAND
4 WHEEL ANTI LOCK BRAKE<JE5> TURKISH EQUIPMENT(S6S) (B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0702- ● ●
239 02.559 BOLT; GRAND
02.343 (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0211-0501 ● ● ● ● ● ●
239 02.559 BOLT; GRAND
02.343 (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0502-1004 ● ● ● ● ●
239 02.559 BOLT; GRAND
02.343 (D) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ● ● ● ● ●
294 02.559 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ● ● ● ● ● ●
294 02.559 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ● ● ● ● ●
294 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0502-0506 ● ● ● ●
294 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0507-0602 ● ● ● ●
294 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0603-0606 ● ● ● ●
294 02.559 NUT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0607- ● ● ● ●
294 02.559 NUT
FLOOR REMOTE SHIFT<M11> 07.633 (C) M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ● ● ●
294 02.559 NUT
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 07.633 (C) M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ● ● ●
294 02.559 NUT
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 01.062 (C) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
294 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE 		0-91150-106-0 02 1 0502-0602 ● ● ● ● ●
294 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M6 FLANGE 		0-91180-106-0 02 1 0603-0612 ● ● ● ● ●
294 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M6 FLANGE 		0-91180-106-0 02 1 0701- ● ● ● ●
294 02.559 NUT
01.062 (A) M6 FLANGE 		0-91180-106-0 02 1 0701- ●
294 02.559 NUT
4HK1-TCS ENG(RJS) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ●
294 02.559 NUT
4HK1-TCS ENG(RJS) 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
294 02.559 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0607- ● ●
294 02.559 NUT
4HE1 ENG(RLY) M/T MZZ6U(RSF) 04.785 (B) M10 FLANGE 		0-91150-110-0 01 1 0211-0211 ● ●
294 02.559 NUT
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 04.785 (B) M10 FLANGE 		0-91150-110-0 01 1 0212-0602 ● ● ● ● ●
294 02.559 NUT
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0603- ● ● ● ● ●
358 02.480 BOLT; EARTH
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0211-0403 ● ● ●
377 02.559 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0211-0501 ● ● ● ● ● ●
377 02.559 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0502-1004 ● ● ● ● ●
377 02.559 BOLT; CAB EARTH
02.343 (B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005- ● ● ● ● ●
386 02.559 BOLT; GRAND HARNESS
02.343 (A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0211-0501 ● ● ● ● ● ●
386 02.559 BOLT; GRAND HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0502-1004 ● ● ● ● ●
386 02.559 BOLT; GRAND HARNESS
02.343 (C) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005- ● ● ● ● ●
469 02.559 NUT; PROTECTOR
4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0501 ● ● ● ●
469 02.559 NUT; PROTECTOR
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),FRAME STRAIGHTTYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0501 ● ● ●
469 02.559 NUT; PROTECTOR
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0501 ● ● ●
469 02.559 NUT; PROTECTOR
4HE1 ENG(RLY) 04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0501 ●
469 02.559 NUT; PROTECTOR
04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0501 ●
469 02.559 NUT; PROTECTOR
04.785 M10 FLANGE 		0-91150-110-0 01 1 0502-0506 ● ● ● ● ●
469 02.559 NUT; PROTECTOR
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0507-0602 ● ● ● ● ●
469 02.559 NUT; PROTECTOR
FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0507-0602 ● ● ● ●
469 02.559 NUT; PROTECTOR
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603- ● ● ● ● ●
469 02.559 NUT; PROTECTOR
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603- ● ● ● ●
515 02.559 NUT; BRKT
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 04.785 (C) M10 FLANGE 		0-91150-110-0 01 1 0502-0602 ● ● ● ●
515 02.559 NUT; BRKT
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0603- ● ● ● ●
515 02.559 NUT; BRKT
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ● ●
515 02.559 NUT; BRKT
4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ● ●
515 02.559 NUT; BRKT
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ● ● ● ●
515 02.559 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ● ●
515 02.559 NUT; BRKT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE 		0-91150-106-0 02 1 0211-0501 ● ● ● ● ●
515 02.559 NUT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE 		0-91150-106-0 02 1 0502-0602 ● ● ● ●
515 02.559 NUT; BRKT
04.594 (A) M6 FLANGE 		0-91150-106-0 02 1 0502-0602 ●
515 02.559 NUT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M6 FLANGE 		0-91180-106-0 02 1 0603- ● ● ● ●
515 02.559 NUT; BRKT
01.062 (A) M6 FLANGE 		0-91180-106-0 02 1 0603- ●
516 02.559 BOLT; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE 		0-28680-825-0 01 1 0211-0308 ● ● ●
516 02.559 BOLT; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE 		0-28680-825-0 01 1 0309-0501 ● ● ● ●
516 02.559 BOLT; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ● ●
516 02.559 BOLT; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0612 ● ● ●
516 02.559 BOLT; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0701- ● ● ● ●
519 02.559 NUT; EARTH CABLE
4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0501 ● ●
519 02.559 NUT; EARTH CABLE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0501 ● ●
519 02.559 NUT; EARTH CABLE
4HG1 ENG(RJH),4HE1 ENG(RLY) 04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0501 ●
519 02.559 NUT; EARTH CABLE
04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0501 ●
519 02.559 NUT; EARTH CABLE
04.785 M10 FLANGE 		0-91150-110-0 01 1 0502-0602 ● ● ● ● ●
519 02.559 NUT; EARTH CABLE
03.162 M10 FLANGE 		0-91180-110-0 01 1 0603- ● ● ● ● ●
524 02.559 NUT; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MYY6P(RSJ),M/T MYY5T(RSM) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0211-0309 ● ●
524 02.559 NUT; HARNESS
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0211-0309 ●
525 02.559 NUT; CLIP
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0501 ● ● ● ● ●
525 02.559 NUT; CLIP
04.785 M10 FLANGE 		0-91150-110-0 01 1 0211-0501 ●
525 02.559 NUT; CLIP
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 04.785 M10 FLANGE 		0-91150-110-0 01 1 0502-0602 ● ● ● ●
525 02.559 NUT; CLIP
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603- ● ● ● ●
çizim 11368
312 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E F

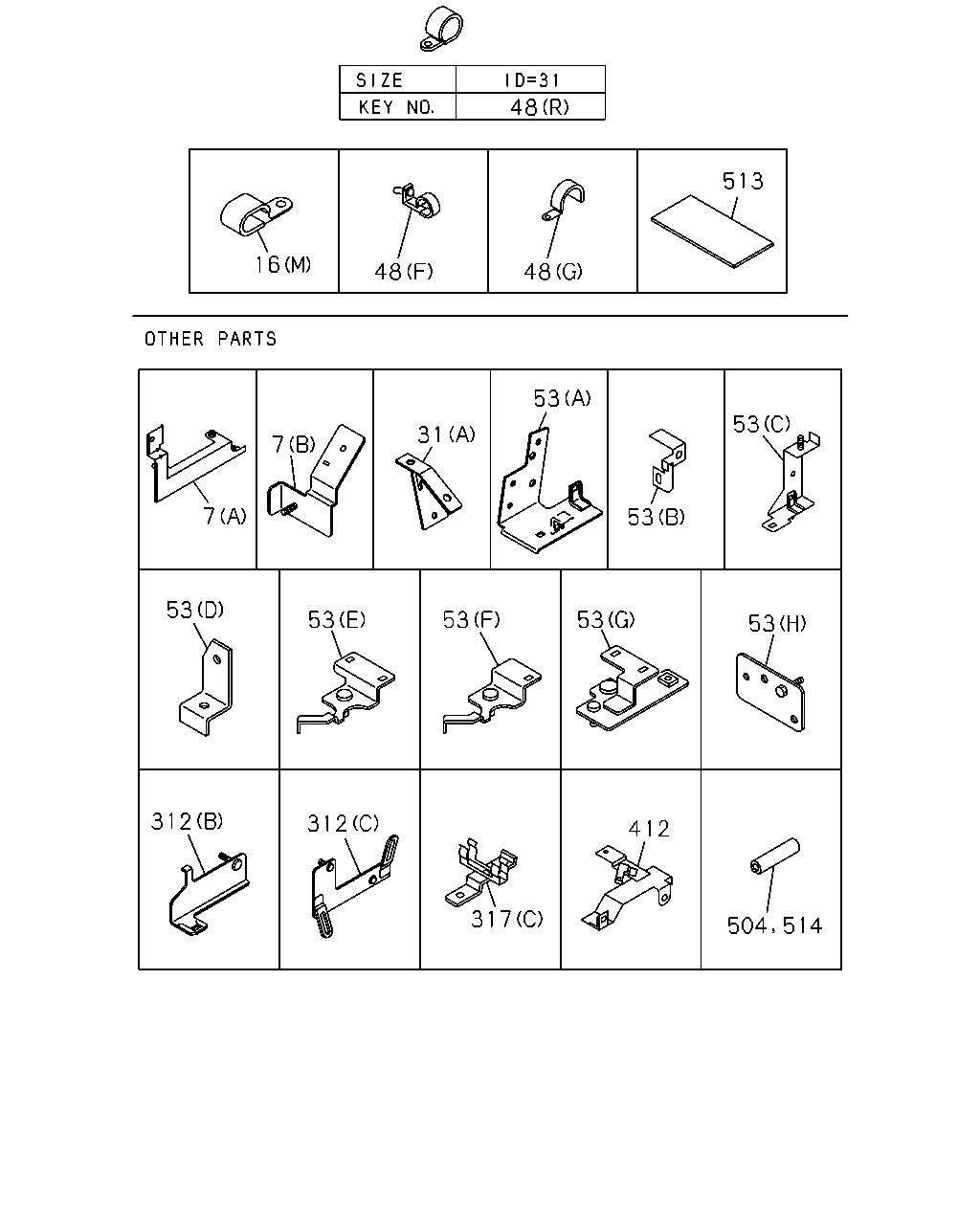

31 02.559 BRACKET; HARNESS CLIP,PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) L=47 		8-97042-635-0 01 1 0211-0501 ● ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B) L=47 		8-97042-635-0 01 1 0502-0502 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (B) L=47 		8-97042-635-0 01 1 0502-0506 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (B) L=47 		8-97042-635-0 01 1 0507-0606 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (B) L=47 		8-97042-635-0 01 1 0607- ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) L=73 		8-97077-845-0 02 1 0211-0501 ● ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B) L=73 		8-97077-845-0 02 1 0502-0502 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (B) L=73 		8-97077-845-0 02 1 0502-0506 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (B) L=73 		8-97077-845-0 02 1 0507-0606 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (B) L=73 		8-97077-845-0 02 1 0607- ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97357-142-0 03 1 0211-0211 ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97362-859-0 03 1 0211-0501 ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97362-859-0 03 1 0502- ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
(A) 		8-97362-859-0 03 1 0502- ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (B) L=47 		8-97042-635-0 03 1 0502- ● ● ●
312 02.559 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EGYPT EQUIPMENT(YJ4) GENERATOR 24V80A(7YN) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98299-772-0 01 1 1501- ●
312 02.559 BRACKET; CLIP HARNESS
4HG1 ENG(RJH) EGYPT EQUIPMENT(YJ4) GENERATOR 24V80A(7YN) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98299-772-0 01 1 1501- ●
312 02.559 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97017-072-2 01 1 0211-0501 ● ● ● ● ● ●
312 02.559 BRACKET; CLIP HARNESS
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97017-072-2 01 1 0502- ● ● ● ●
312 02.559 BRACKET; CLIP HARNESS
4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97357-050-0 01 1 0211-0501 ● ●
312 02.559 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97357-050-0 01 1 0211-0501 ● ●
312 02.559 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97357-050-0 01 1 0211-0501 ●
312 02.559 BRACKET; CLIP HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97357-050-0 01 1 0502-0612 ● ● ● ● ●
312 02.559 BRACKET; CLIP HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97357-050-0 01 1 0701-1412 ● ● ● ●
312 02.559 BRACKET; CLIP HARNESS
(B) 		8-97357-050-0 01 1 0701-1412 ●
312 02.559 BRACKET; CLIP HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. EGYPT EQUIPMENT(YJ4),FRAME STRAIGHT TYPE<7KJ> (B) 		8-97357-050-0 01 1 1501- ● ● ● ● ●
312 02.559 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EGYPT EQUIPMENT(YJ4) EXC. FRAME STRAIGHT TYPE<7KJ>, GENERATOR 24V80A(7YN) (B) 		8-97357-050-0 01 1 1501- ● ●
312 02.559 BRACKET; CLIP HARNESS
4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97357-051-1 01 1 0211-0501 ● ●
312 02.559 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97357-051-1 01 1 0211-0501 ● ●
312 02.559 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97357-051-1 01 1 0211-0501 ●
312 02.559 BRACKET; CLIP HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97357-051-1 01 1 0502-0612 ● ● ● ● ●
312 02.559 BRACKET; CLIP HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97357-051-1 01 1 0701- ● ● ● ●
312 02.559 BRACKET; CLIP HARNESS
(C) 		8-97357-051-1 01 1 0701- ●
çizim 51934
464 488 220 483 593 22 102 16 22 220 488 551 14 16 22 48 102 16 205 48 142 488 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
14 02.559 CLIP; BAND,HARNESS
ISRAEL EQUIPMENT(7LX) 03.162 L=140 		5-09707-031-1 01 1 0211-0501 ● ● ●
14 02.559 CLIP; BAND,HARNESS
03.162 L=140 		5-09707-031-1 01 1 0211-0501 ●
14 02.559 CLIP; BAND,HARNESS
SAUDI ARABIA EQUIPMENT(EU2),TURKISH EQUIPMENT(S6S) 03.162 L=140 		5-09707-031-1 01 1 0502- ● ● ● ●
16 02.559 CLIP; HARNESS
(M) 		1-09701-025-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (D) 1 SET=5 PIECE 		1-09987-214-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.589 (K) ID=27 		5-09700-323-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(L) L=250 		5-09707-030-1 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (H) L=140 		5-09707-031-1 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.525 (I) T=4.5 & 9 		5-09709-023-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(J) T=6.0 		5-09709-024-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) L=100 		8-94327-067-1 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (E) ID=10 & 16 		8-94413-325-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=100 		8-94442-388-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=60 		8-94457-053-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (C) ID=22 & 22 		8-94464-837-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (F) ID=6 & 10-13 		8-97069-515-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=15-32 		8-97174-404-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) L=36.5 		8-97019-892-0 AR 1 0303- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(R) L=135 		1-09987-143-1 AR 1 0502- ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (C) L=250 		5-09707-030-1 01 1 0507-0508 ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (C) L=250 		5-09707-030-1 01 1 0507-0508 ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (C) L=250 		5-09707-030-1 01 1 0509-0606 ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> (C) L=250 		5-09707-030-1 01 1 0509-0606 ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) L=250 		5-09707-030-1 01 1 0607- ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) L=250 		5-09707-030-1 01 1 0607- ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) 03.162 (A) L=140 		5-09707-031-1 03 1 0507-0606 ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (A) L=140 		5-09707-031-1 03 1 0607- ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) 03.162 (B) L=170 		5-09707-054-0 02 1 0507-0606 ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (B) L=170 		5-09707-054-0 02 1 0607- ● ●
48 02.559 CLIP; FRAME HARNESS
04.197 (G) ID=32 L=75 		1-09700-702-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=31 L=30 		1-09700-969-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=32 L=35 		1-09701-244-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) L=170.3 		1-09987-182-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (H) ID=14 L=47 		5-09700-319-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (O) ID=27 		5-09700-323-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.446 (I) ID=12 B=14 ID=8.5 		5-09700-350-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (B) L=140 		5-09707-031-1 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (D) T=4.5 & 9 		5-09709-023-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (A) T=9.2 & 9 		5-09709-025-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (Q) ID=9.6 		8-94147-870-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(P) ID=24 		8-94149-610-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(J) ID=20 		8-94169-650-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.115 (E) T=9 & 10.5 		8-97041-091-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=9 		8-97063-874-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=30 W/STUD 		8-97078-642-2 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (K) ID=11 L=28 		9-09525-055-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) ID=5-12 L=14.5 		1-09987-221-0 AR 1 0306- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(T) ID=13 L=32 		9-09525-265-0 AR 1 0310- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(U) T=6.0 		5-09709-012-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(V) T=6.0 		5-09709-024-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) ID=11 L=50 		9-09525-085-0 AR 1 0507- ● ● ● ● ●
102 02.559 CLIP; BAND
4HK1-TCS ENG(RJS) 03.162 (A) L=140 		5-09707-031-1 01 1 0507-0508 ●
102 02.559 CLIP; BAND
4HK1-TCS ENG(RJS) 03.162 (B) L=170 		5-09707-054-0 01 1 0507-0606 ●
102 02.559 CLIP; BAND
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (B) L=170 		5-09707-054-0 01 1 0607- ● ●
142 02.559 CLIP; HARNESS,ENG
FLOOR REMOTE SHIFT<M11> (A) L=170.3 		1-09987-182-0 01 1 0211-0501 ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) (A) L=170.3 		1-09987-182-0 01 1 0502- ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.483 (B) 		8-97101-436-0 01 1 0211-0501 ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
03.483 (B) 		8-97101-436-0 01 1 0211-0501 ●
142 02.559 CLIP; HARNESS,ENG
4HE1-TCN ENG(RDR) 03.483 (B) 		8-97101-436-0 01 1 0502-0506 ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4HE1-TCN ENG(RDR),4HK1-TCS ENG(RJS) 03.483 (B) 		8-97101-436-0 01 1 0507-0511 ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 03.483 (B) 		8-97101-436-0 01 1 0512- ● ● ● ●
205 02.559 CLIP; BACK LAMP HARNESS
L=135 		1-09987-143-1 01 1 0211-0211 ● ● ● ● ● ●
205 02.559 CLIP; BACK LAMP HARNESS
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) L=135 		1-09987-143-1 01 1 0212- ● ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ),M/T MYY5T(RSM) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 03.162 (B) L=140 		5-09707-031-1 01 1 0211-0501 ● ● ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) VOLTAGE 24V<7AE> 03.162 (B) L=140 		5-09707-031-1 01 1 0502- ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=25.5 & 8.0 		8-94363-538-0 01 1 0211-0501 ● ●
220 02.559 CLIP; HARNESS TO CABLE
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=25.5 & 8.0 		8-94363-538-0 01 1 0211-0501 ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 03.680 (A) ID=25.5 & 8.0 		8-94363-538-0 01 1 0502- ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
4HK1-TCS ENG(RJS) (C) L=250 		5-09707-030-1 01 1 0507-0606 ●
220 02.559 CLIP; HARNESS TO CABLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) L=250 		5-09707-030-1 01 1 0607- ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COO LER<6PL>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0211-0501 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0211-0501 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0211-0501 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) MINI BUS CHASSIS(V4B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0211-0501 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0502- ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0502- ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0502- ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0502- ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>, HYDRO MASTER<7LT> 02.587 (A) L=112 		8-94232-618-0 01 1 0211-0501 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 02.587 (A) L=112 		8-94232-618-0 01 1 0502- ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0502-0503 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0504- ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0504- ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
HYDRO MASTER<7LT> 02.559 (D) ID=9 		8-97063-874-0 01 1 0211-0501 ● ● ●
483 02.559 CLIP; ENG HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L) 03.162 L=140 		5-09707-031-1 01 1 0211-0309 ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. VENEZUELA EQUIPMENT(S2L) 03.162 L=140 		5-09707-031-1 01 1 0211-0309 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.162 L=140 		5-09707-031-1 01 1 0211-0309 ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.162 L=140 		5-09707-031-1 02 1 0310-0501 ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1-N ENG(RJZ) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.162 L=140 		5-09707-031-1 02 1 0502- ● ● ●
483 02.559 CLIP; ENG HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 03.162 L=140 		5-09707-031-1 01 1 0406-0501 ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.162 L=140 		5-09707-031-1 01 1 0502-0508 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> 03.162 L=140 		5-09707-031-1 01 1 0502-0508 ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1-N ENG(RJZ) HIGH ALTITUDE COMPENSATOR(EE2) 03.162 L=140 		5-09707-031-1 01 1 0502-0508 ● ● ●
483 02.559 CLIP; ENG HARNESS
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.162 L=140 		5-09707-031-1 01 1 0509-1103 ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HF1-N ENG(RJZ) HIGH ALTITUDE COMPENSATOR(EE2) 03.162 L=140 		5-09707-031-1 01 1 0509-1103 ● ● ●
483 02.559 CLIP; ENG HARNESS
03.162 L=140 		5-09707-031-1 01 1 1104- ● ● ● ● ●
488 02.559 CLIP; CABLE,TRAILER
EXC. DUMP CHASSIS(V4D) (A) L=250 		5-09707-030-1 01 1 0211-0309 ●
488 02.559 CLIP; CABLE,TRAILER
ISRAEL EQUIPMENT(7LX) (A) L=250 		5-09707-030-1 01 1 0211-0309 ● ● ●
488 02.559 CLIP; CABLE,TRAILER
EXC. RR BODY FLAT BED(RS6) (A) L=250 		5-09707-030-1 01 1 0211-0309 ● ●
488 02.559 CLIP; CABLE,TRAILER
(A) L=250 		5-09707-030-1 01 1 0211-0309 ● ● ●
488 02.559 CLIP; CABLE,TRAILER
(A) L=250 		5-09707-030-1 01 1 0211-0309 ●
488 02.559 CLIP; CABLE,TRAILER
EXC. DUMP CHASSIS(V4D) (A) L=250 		5-09707-030-1 01 1 0310-0501 ●
488 02.559 CLIP; CABLE,TRAILER
EXC. RR BODY FLAT BED(RS6) (A) L=250 		5-09707-030-1 01 1 0310-0501 ● ●
488 02.559 CLIP; CABLE,TRAILER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) (A) L=250 		5-09707-030-1 01 1 0310-0501 ● ●
488 02.559 CLIP; CABLE,TRAILER
(A) L=250 		5-09707-030-1 01 1 0310-0501 ● ● ●
488 02.559 CLIP; CABLE,TRAILER
(A) L=250 		5-09707-030-1 01 1 0310-0501 ●
488 02.559 CLIP; CABLE,TRAILER
ISRAEL EQUIPMENT(7LX) (A) L=250 		5-09707-030-1 01 1 0310-0501 ●
488 02.559 CLIP; CABLE,TRAILER
EXC. RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D) (A) L=250 		5-09707-030-1 01 1 0502-0503 ● ● ● ● ●
488 02.559 CLIP; CABLE,TRAILER
TURKISH EQUIPMENT(S6S) (A) L=250 		5-09707-030-1 01 1 0502-0503 ●
488 02.559 CLIP; CABLE,TRAILER
EXC. RR BODY FLAT BED(RS6) (A) L=250 		5-09707-030-1 01 1 0504-0506 ● ● ● ● ●
488 02.559 CLIP; CABLE,TRAILER
TURKISH EQUIPMENT(S6S) (A) L=250 		5-09707-030-1 01 1 0504-0506 ●
488 02.559 CLIP; CABLE,TRAILER
EXC. RR BODY FLAT BED(RS6) (A) L=250 		5-09707-030-1 01 1 0507-0709 ● ● ● ● ●
488 02.559 CLIP; CABLE,TRAILER
TURKISH EQUIPMENT(S6S) (A) L=250 		5-09707-030-1 01 1 0507-0709 ● ●
488 02.559 CLIP; CABLE,TRAILER
(A) L=250 		5-09707-030-1 01 1 0710- ● ● ●
488 02.559 CLIP; CABLE,TRAILER
EXC. RR BODY FLAT BED(RS6) (A) L=250 		5-09707-030-1 01 1 0710- ● ●
488 02.559 CLIP; CABLE,TRAILER
TURKISH EQUIPMENT(S6S) (A) L=250 		5-09707-030-1 01 1 0710- ●
488 02.559 CLIP; CABLE,TRAILER
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) (A) L=250 		5-09707-030-1 01 1 0710- ●
488 02.559 CLIP; CABLE,TRAILER
RUSSIA EQUIPMENT(B12) (A) L=250 		5-09707-030-1 01 1 0710- ●
488 02.559 CLIP; CABLE,TRAILER
RR BODY FLAT BED(RS6) 02.587 (B) L=112 		8-94232-618-0 05 1 0211- ● ●
488 02.559 CLIP; CABLE,TRAILER
ISRAEL EQUIPMENT(7LX) (C) L=170.3 		1-09987-182-0 02 1 0211-0309 ● ● ●
488 02.559 CLIP; CABLE,TRAILER
(C) L=170.3 		1-09987-182-0 02 1 0211-0309 ●
488 02.559 CLIP; CABLE,TRAILER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) (C) L=170.3 		1-09987-182-0 02 1 0310-0501 ● ● ● ●
488 02.559 CLIP; CABLE,TRAILER
TURKISH EQUIPMENT(S6S) (C) L=170.3 		1-09987-182-0 02 1 0502-0506 ●
488 02.559 CLIP; CABLE,TRAILER
TURKISH EQUIPMENT(S6S) (C) L=170.3 		1-09987-182-0 02 1 0507-0709 ● ●
488 02.559 CLIP; CABLE,TRAILER
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) (C) L=170.3 		1-09987-182-0 02 1 0710- ● ● ●
551 02.559 CLIP; HARNESS,SIDE TURN
TURKISH EQUIPMENT(S6S) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=6.0 		5-09709-024-0 02 1 0310-0501 ●
551 02.559 CLIP; HARNESS,SIDE TURN
ISRAEL EQUIPMENT(7LX) FRAME STRAIGHT TYPE<7KJ> (A) L=250 		5-09707-030-1 01 1 0303-0309 ● ●
551 02.559 CLIP; HARNESS,SIDE TURN
(A) L=250 		5-09707-030-1 01 1 0303-0309 ●
551 02.559 CLIP; HARNESS,SIDE TURN
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) FRAME STRAIGHT TYPE<7KJ> (A) L=250 		5-09707-030-1 01 1 0310-0501 ● ●
551 02.559 CLIP; HARNESS,SIDE TURN
(A) L=250 		5-09707-030-1 01 1 0310-0501 ●
593 02.559 CLIP
4HF1-S ENG(RLS),4HE1 ENG(RLY) 03.162 L=140 		5-09707-031-1 01 1 0211-0211 ● ●
593 02.559 CLIP
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 03.162 L=140 		5-09707-031-1 01 1 0211-0211 ● ●
593 02.559 CLIP
4HG1 ENG(RJH),4HE1 ENG(RLY) 03.162 L=140 		5-09707-031-1 01 1 0211-0211 ●
593 02.559 CLIP
03.162 L=140 		5-09707-031-1 01 1 0211-0211 ●
593 02.559 CLIP
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 03.162 L=140 		5-09707-031-1 01 1 0212-0212 ● ● ● ● ●
çizim 51969
48 48 48 16 48 464 16 48 48 48 48 48 48 16 48 16 48 551 48 48 16 220 16 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
(M) 		1-09701-025-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (D) 1 SET=5 PIECE 		1-09987-214-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.589 (K) ID=27 		5-09700-323-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(L) L=250 		5-09707-030-1 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (H) L=140 		5-09707-031-1 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.525 (I) T=4.5 & 9 		5-09709-023-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(J) T=6.0 		5-09709-024-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) L=100 		8-94327-067-1 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (E) ID=10 & 16 		8-94413-325-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=100 		8-94442-388-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=60 		8-94457-053-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (C) ID=22 & 22 		8-94464-837-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (F) ID=6 & 10-13 		8-97069-515-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=15-32 		8-97174-404-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) L=36.5 		8-97019-892-0 AR 1 0303- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(R) L=135 		1-09987-143-1 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.197 (G) ID=32 L=75 		1-09700-702-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=31 L=30 		1-09700-969-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=32 L=35 		1-09701-244-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) L=170.3 		1-09987-182-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (H) ID=14 L=47 		5-09700-319-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (O) ID=27 		5-09700-323-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.446 (I) ID=12 B=14 ID=8.5 		5-09700-350-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (B) L=140 		5-09707-031-1 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (D) T=4.5 & 9 		5-09709-023-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (A) T=9.2 & 9 		5-09709-025-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (Q) ID=9.6 		8-94147-870-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(P) ID=24 		8-94149-610-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(J) ID=20 		8-94169-650-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.115 (E) T=9 & 10.5 		8-97041-091-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=9 		8-97063-874-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=30 W/STUD 		8-97078-642-2 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (K) ID=11 L=28 		9-09525-055-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) ID=5-12 L=14.5 		1-09987-221-0 AR 1 0306- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(T) ID=13 L=32 		9-09525-265-0 AR 1 0310- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(U) T=6.0 		5-09709-012-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(V) T=6.0 		5-09709-024-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) ID=11 L=50 		9-09525-085-0 AR 1 0507- ● ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ),M/T MYY5T(RSM) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 03.162 (B) L=140 		5-09707-031-1 01 1 0211-0501 ● ● ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) VOLTAGE 24V<7AE> 03.162 (B) L=140 		5-09707-031-1 01 1 0502- ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=25.5 & 8.0 		8-94363-538-0 01 1 0211-0501 ● ●
220 02.559 CLIP; HARNESS TO CABLE
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=25.5 & 8.0 		8-94363-538-0 01 1 0211-0501 ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 03.680 (A) ID=25.5 & 8.0 		8-94363-538-0 01 1 0502- ● ● ● ●
220 02.559 CLIP; HARNESS TO CABLE
4HK1-TCS ENG(RJS) (C) L=250 		5-09707-030-1 01 1 0507-0606 ●
220 02.559 CLIP; HARNESS TO CABLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) L=250 		5-09707-030-1 01 1 0607- ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COO LER<6PL>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0211-0501 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0211-0501 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0211-0501 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) MINI BUS CHASSIS(V4B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0211-0501 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0502- ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0502- ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0502- ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0502- ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>, HYDRO MASTER<7LT> 02.587 (A) L=112 		8-94232-618-0 01 1 0211-0501 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 02.587 (A) L=112 		8-94232-618-0 01 1 0502- ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0502-0503 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0504- ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0504- ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
HYDRO MASTER<7LT> 02.559 (D) ID=9 		8-97063-874-0 01 1 0211-0501 ● ● ●
551 02.559 CLIP; HARNESS,SIDE TURN
TURKISH EQUIPMENT(S6S) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=6.0 		5-09709-024-0 02 1 0310-0501 ●
551 02.559 CLIP; HARNESS,SIDE TURN
ISRAEL EQUIPMENT(7LX) FRAME STRAIGHT TYPE<7KJ> (A) L=250 		5-09707-030-1 01 1 0303-0309 ● ●
551 02.559 CLIP; HARNESS,SIDE TURN
(A) L=250 		5-09707-030-1 01 1 0303-0309 ●
551 02.559 CLIP; HARNESS,SIDE TURN
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) FRAME STRAIGHT TYPE<7KJ> (A) L=250 		5-09707-030-1 01 1 0310-0501 ● ●
551 02.559 CLIP; HARNESS,SIDE TURN
(A) L=250 		5-09707-030-1 01 1 0310-0501 ●

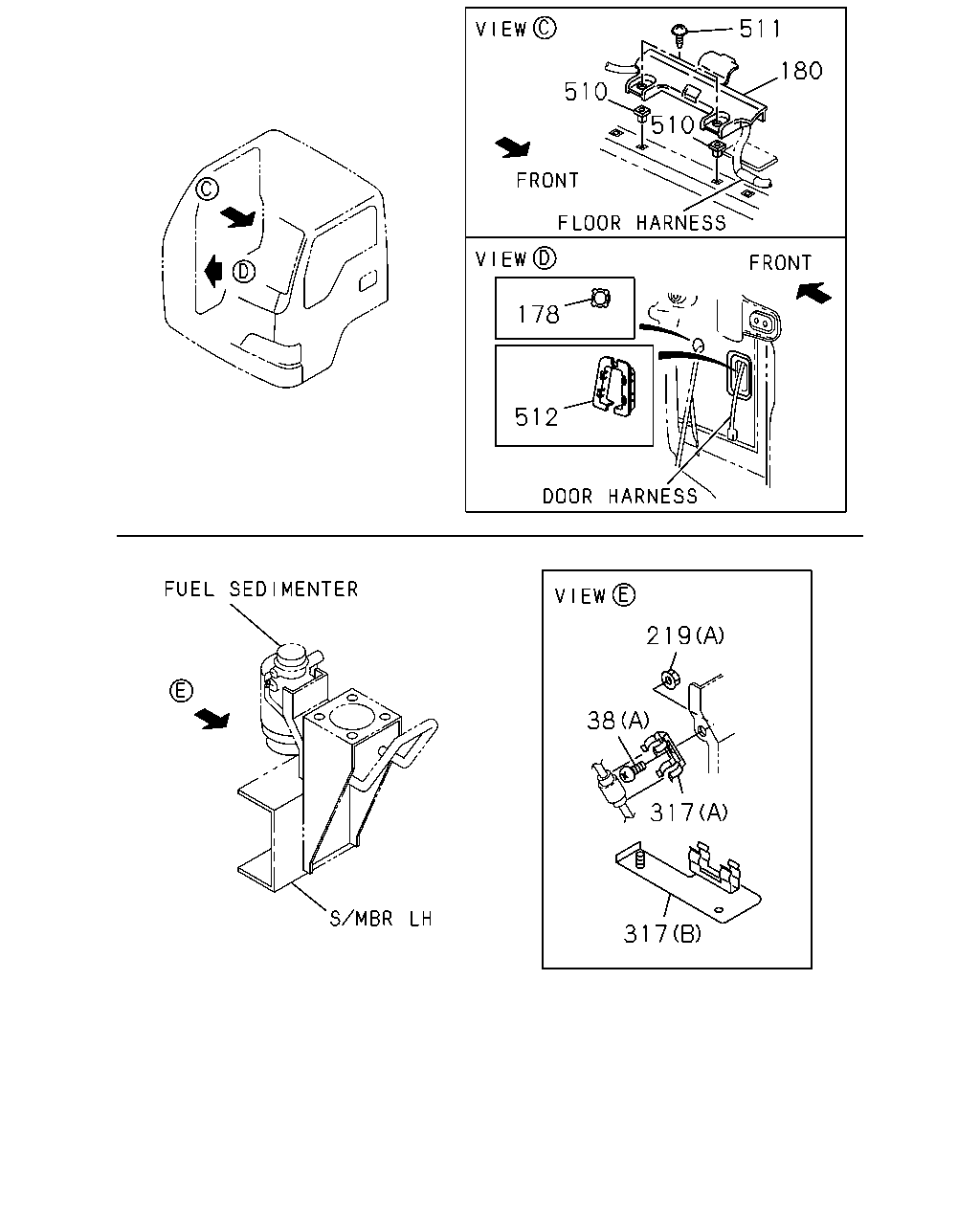

çizim 51976
511 180 510 510 178 512 219 38 317 317
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
38 02.559 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ISRAEL EQUIPMENT(7LX) (D) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0506 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0506 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0506 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L) (D) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0506 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0506 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0506 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) (D) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0506 ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L) (D) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HK1-TCS ENG(RJS) (D) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ●
38 02.559 BOLT; CLIP,HARNESS
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) (D) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME STRAIGHT TYPE<7KJ> 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L) 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HK1-TCS ENG(RJS) 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ●
38 02.559 BOLT; CLIP,HARNESS
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FRAME STRAIGHT TYPE<7KJ> 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L) 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ●
38 02.559 BOLT; CLIP,HARNESS
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0607- ●
38 02.559 BOLT; CLIP,HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.686 (E) M8X30 FLANGE 		0-28680-830-0 01 1 0211-0501 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.686 (E) M8X30 FLANGE 		0-28680-830-0 01 1 0502-0512 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.403 (E) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 0211-0501 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 0502-0512 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 0502-0512 ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0601- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0601- ●
38 02.559 BOLT; CLIP,HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 0601- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 0601- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
MINI BUS CHASSIS(V4B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 0211-0501 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> HYDRO MASTER<7LT> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 0211-0501 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
MINI BUS CHASSIS(V4B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> 04.329 (A) M5X16 W/LK WASHER 		9-03910-516-0 01 1 0502-0604 ● ● ●
38 02.559 BOLT; CLIP,HARNESS
MINI BUS CHASSIS(V4B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M5X16 W/LK WASHER 		0-36220-516-0 01 1 0605- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M/T MYY6P(RSJ),M/T MYY5T(RSM) MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (F) M6X20 FLANGE 		0-28680-620-0 03 1 0310-0501 ● ● ●
178 02.559 GROMMET; HARNESS
ID=47 		8-94279-735-0 01 1 0211-0501 ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
ID=47 		8-94279-735-0 01 1 0502- ● ● ● ● ●
180 02.559 COVER; HARNESS 8-97856-130-4 02 1 0211-0501 ● ● ● ● ● ●
180 02.559 COVER; HARNESS 8-97856-130-4 02 1 0502- ● ● ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ● ● ●
219 02.559 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ● ● ●
219 02.559 NUT
07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ● ● ●
219 02.559 NUT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. ISRAEL EQUIPMENT(7LX) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ● ●
219 02.559 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ● ●
219 02.559 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ●
219 02.559 NUT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ● ●
219 02.559 NUT
07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0502-0506 ● ● ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0502-0506 ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0502-0506 ● ● ● ●
219 02.559 NUT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0502-0506 ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0502-0506 ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0502-0506 ● ● ● ●
219 02.559 NUT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0502-0506 ●
219 02.559 NUT
07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ● ●
219 02.559 NUT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ● ●
219 02.559 NUT
4HK1-TCS ENG(RJS) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ●
219 02.559 NUT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ●
219 02.559 NUT
01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ● ●
219 02.559 NUT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L) 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ● ●
219 02.559 NUT
4HK1-TCS ENG(RJS) 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
219 02.559 NUT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
219 02.559 NUT
01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0607- ● ● ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0607- ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0607- ● ● ● ●
219 02.559 NUT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV),VENEZUELA EQUIPMENT(S2L) 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0607- ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0607- ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0607- ● ● ● ●
219 02.559 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0607- ● ●
219 02.559 NUT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) 01.062 (C) M8 FLANGE 		0-91180-108-0 01 1 0607- ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 0211-0501 ● ● ● ● ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 0502-0602 ● ● ● ●
219 02.559 NUT
04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 0502-0602 ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0603- ● ● ● ●
219 02.559 NUT
03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0603- ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97108-658-0 01 1 0211-0501 ● ● ● ● ●
219 02.559 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97108-658-0 01 1 0502- ● ● ● ●
219 02.559 NUT
(E) 		8-97108-658-0 01 1 0502- ●
219 02.559 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ● ● ● ● ●
219 02.559 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ● ● ● ● ●
219 02.559 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 03 1 0304-0501 ● ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 03 1 0502-0602 ● ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M6 FLANGE 		0-91180-106-0 03 1 0603-0612 ● ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M6 FLANGE 		0-91180-106-0 03 1 0701- ● ● ● ●
219 02.559 NUT
01.062 (B) M6 FLANGE 		0-91180-106-0 03 1 0701- ●
219 02.559 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>, HYDRO MASTER<7LT> 07.829 (F) M6 FLANGE 		5-09440-004-0 01 1 0211-0501 ● ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 07.829 (F) M6 FLANGE 		5-09440-004-0 01 1 0502- ● ● ● ● ●
219 02.559 NUT
4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0211-0303 ● ●
219 02.559 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0211-0303 ● ●
219 02.559 NUT
4HG1 ENG(RJH),4HE1 ENG(RLY) 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0211-0303 ●
219 02.559 NUT
04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0211-0303 ●
219 02.559 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0304-0501 ● ● ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 0502-0602 ● ● ● ●
219 02.559 NUT
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M6 FLANGE 		0-91180-106-0 02 1 0603- ● ● ● ●
219 02.559 NUT
MINI BUS CHASSIS(V4B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 09.744 (D) M5 FLANGE 		5-09440-003-0 01 1 0211-0501 ● ● ●
219 02.559 NUT
FUEL SEDIMENTER WITH HEATER<6HU> HYDRO MASTER<7LT> 09.744 (D) M5 FLANGE 		5-09440-003-0 01 1 0211-0501 ● ● ●
219 02.559 NUT
MINI BUS CHASSIS(V4B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> 09.744 (D) M5 FLANGE 		5-09440-003-0 01 1 0502- ● ● ●
219 02.559 NUT
4HK1-TCS ENG(RJS) 04.594 (B) M6 FLANGE 		0-91150-106-0 04 1 0507-0602 ●
219 02.559 NUT
4HK1-TCS ENG(RJS) 01.062 (B) M6 FLANGE 		0-91180-106-0 04 1 0603-0606 ●
219 02.559 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (B) M6 FLANGE 		0-91180-106-0 04 1 0607- ● ●
317 02.559 CLAMP; CONNECTOR
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>, HYDRO MASTER<7LT> (B) 		8-94366-903-0 01 1 0211-0501 ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (B) 		8-94366-903-0 01 1 0502- ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (C) 		8-94466-377-0 01 1 0211-0501 ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> (C) 		8-94466-377-0 01 1 0211-0501 ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (C) 		8-94466-377-0 01 1 0502- ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (C) 		8-94466-377-0 01 1 0502- ● ● ● ●
317 02.559 CLAMP; CONNECTOR
MINI BUS CHASSIS(V4B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> (A) 		8-94441-365-0 01 1 0211-0501 ● ● ●
317 02.559 CLAMP; CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> HYDRO MASTER<7LT> (A) 		8-94441-365-0 01 1 0211-0501 ● ● ●
317 02.559 CLAMP; CONNECTOR
MINI BUS CHASSIS(V4B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94441-365-0 01 1 0502- ● ● ●
510 02.559 GROMMET; SCREW
04.931 H=15 		8-94463-268-1 04 1 0211-0501 ● ● ● ● ● ●
510 02.559 GROMMET; SCREW
04.931 H=15 		8-94463-268-1 04 1 0502- ● ● ● ● ●
511 02.559 SCREW; HARNESS COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 0211-0501 ● ● ● ● ● ●
511 02.559 SCREW; HARNESS COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 0502-0604 ● ● ● ● ●
511 02.559 SCREW; HARNESS COVER
16.800 M5X14 TAPPING W/PL WASHER 		0-74160-514-0 04 1 0605-0702 ● ● ● ● ●
511 02.559 SCREW; HARNESS COVER
04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 04 1 0703- ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0211-0501 ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0211-0501 ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> 		8-97072-950-0 02 1 0211-0501 ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM/FM STEREO 2 S PEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2SPEAKERS(6VL) 		8-97072-950-0 02 1 0211-0501 ● ● ● ●
512 02.559 PROTECTOR; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97072-950-0 02 1 0211-0501 ●
512 02.559 PROTECTOR; HARNESS 8-97072-950-0 02 1 0211-0501 ●
512 02.559 PROTECTOR; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0502- ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0502- ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97072-950-0 02 1 0502- ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32> 		8-97072-950-0 02 1 0502- ● ● ● ● ●
çizim 52857
16 48 48 462 464 48 16 142 183 16 16 16 264 16 264 397 464
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
(M) 		1-09701-025-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (D) 1 SET=5 PIECE 		1-09987-214-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.589 (K) ID=27 		5-09700-323-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(L) L=250 		5-09707-030-1 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (H) L=140 		5-09707-031-1 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.525 (I) T=4.5 & 9 		5-09709-023-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(J) T=6.0 		5-09709-024-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) L=100 		8-94327-067-1 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (E) ID=10 & 16 		8-94413-325-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=100 		8-94442-388-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=60 		8-94457-053-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (C) ID=22 & 22 		8-94464-837-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (F) ID=6 & 10-13 		8-97069-515-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=15-32 		8-97174-404-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) L=36.5 		8-97019-892-0 AR 1 0303- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(R) L=135 		1-09987-143-1 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.197 (G) ID=32 L=75 		1-09700-702-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=31 L=30 		1-09700-969-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=32 L=35 		1-09701-244-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) L=170.3 		1-09987-182-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (H) ID=14 L=47 		5-09700-319-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (O) ID=27 		5-09700-323-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.446 (I) ID=12 B=14 ID=8.5 		5-09700-350-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (B) L=140 		5-09707-031-1 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (D) T=4.5 & 9 		5-09709-023-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (A) T=9.2 & 9 		5-09709-025-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (Q) ID=9.6 		8-94147-870-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(P) ID=24 		8-94149-610-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(J) ID=20 		8-94169-650-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.115 (E) T=9 & 10.5 		8-97041-091-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=9 		8-97063-874-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=30 W/STUD 		8-97078-642-2 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (K) ID=11 L=28 		9-09525-055-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) ID=5-12 L=14.5 		1-09987-221-0 AR 1 0306- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(T) ID=13 L=32 		9-09525-265-0 AR 1 0310- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(U) T=6.0 		5-09709-012-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(V) T=6.0 		5-09709-024-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) ID=11 L=50 		9-09525-085-0 AR 1 0507- ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
FLOOR REMOTE SHIFT<M11> (A) L=170.3 		1-09987-182-0 01 1 0211-0501 ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) (A) L=170.3 		1-09987-182-0 01 1 0502- ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.483 (B) 		8-97101-436-0 01 1 0211-0501 ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
03.483 (B) 		8-97101-436-0 01 1 0211-0501 ●
142 02.559 CLIP; HARNESS,ENG
4HE1-TCN ENG(RDR) 03.483 (B) 		8-97101-436-0 01 1 0502-0506 ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4HE1-TCN ENG(RDR),4HK1-TCS ENG(RJS) 03.483 (B) 		8-97101-436-0 01 1 0507-0511 ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 03.483 (B) 		8-97101-436-0 01 1 0512- ● ● ● ●
183 02.559 CLIP; CONNECTOR
L=15 		8-94315-436-1 02 1 0211- ●
264 02.559 CLIP; HARNESS,HEADLAMP
02.343 (A) ID=10 & 16 		8-94413-325-0 02 1 0211-0501 ● ● ● ● ● ●
264 02.559 CLIP; HARNESS,HEADLAMP
02.694 (B) ID=6 & 10-13 		8-97069-515-0 01 1 0211-0501 ● ● ● ● ● ●
264 02.559 CLIP; HARNESS,HEADLAMP
02.694 (B) ID=6 & 10-13 		8-97069-515-0 01 1 0502- ● ● ● ● ●
397 02.559 CLIP; RR DOOR HARNESS
AUTO DOOR LOCK<AU4> 10.154 ID=7 		8-97014-713-0 02 1 0211- ●
462 02.559 CLIP; HARNESS,HTR
FUEL SEDIMENTER WITH HEATER<6HU> HYDRO MASTER<7LT> ID=9 		8-97063-874-0 01 1 0211-0501 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COO LER<6PL>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0211-0501 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0211-0501 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0211-0501 ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) MINI BUS CHASSIS(V4B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0211-0501 ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0502- ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0502- ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0502- ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0502- ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>, HYDRO MASTER<7LT> 02.587 (A) L=112 		8-94232-618-0 01 1 0211-0501 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 02.587 (A) L=112 		8-94232-618-0 01 1 0502- ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0211-0501 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0502-0503 ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0504- ● ● ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0504- ● ● ●
464 02.525 CLIP; SEDIMENTER HARNESS
HYDRO MASTER<7LT> 02.559 (D) ID=9 		8-97063-874-0 01 1 0211-0501 ● ● ●
çizim 52889
48 16 48 48 513 7 7 31 53 53 53 53 53 53 53 53 312 312 317 412 504 514
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
7 02.559 BRACKET; CONNECTOR
(A) 		8-97094-992-1 01 1 0211-0501 ● ● ● ● ● ●
7 02.559 BRACKET; CONNECTOR
(A) 		8-97094-992-1 01 1 0502- ● ● ● ● ●
7 02.559 BRACKET; CONNECTOR
4HK1-TCS ENG(RJS) (B) 		8-98003-671-1 01 1 0507-0606 ●
7 02.559 BRACKET; CONNECTOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98003-671-1 01 1 0607- ● ●
16 02.559 CLIP; HARNESS
(M) 		1-09701-025-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
16.065 (D) 1 SET=5 PIECE 		1-09987-214-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.240 (B) ID=14 L=47 		5-09700-319-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.589 (K) ID=27 		5-09700-323-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(L) L=250 		5-09707-030-1 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (H) L=140 		5-09707-031-1 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.525 (I) T=4.5 & 9 		5-09709-023-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(J) T=6.0 		5-09709-024-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(P) L=100 		8-94327-067-1 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (E) ID=10 & 16 		8-94413-325-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(N) L=100 		8-94442-388-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(O) L=60 		8-94457-053-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.166 (C) ID=22 & 22 		8-94464-837-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (F) ID=6 & 10-13 		8-97069-515-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(G) ID=15-32 		8-97174-404-0 AR 1 0211- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(Q) L=36.5 		8-97019-892-0 AR 1 0303- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(R) L=135 		1-09987-143-1 AR 1 0502- ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) L=47 		8-97042-635-0 01 1 0211-0501 ● ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B) L=47 		8-97042-635-0 01 1 0502-0502 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (B) L=47 		8-97042-635-0 01 1 0502-0506 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (B) L=47 		8-97042-635-0 01 1 0507-0606 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (B) L=47 		8-97042-635-0 01 1 0607- ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) L=73 		8-97077-845-0 02 1 0211-0501 ● ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B) L=73 		8-97077-845-0 02 1 0502-0502 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (B) L=73 		8-97077-845-0 02 1 0502-0506 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCSENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (B) L=73 		8-97077-845-0 02 1 0507-0606 ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (B) L=73 		8-97077-845-0 02 1 0607- ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97357-142-0 03 1 0211-0211 ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97362-859-0 03 1 0211-0501 ● ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97362-859-0 03 1 0502- ● ● ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
(A) 		8-97362-859-0 03 1 0502- ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (B) L=47 		8-97042-635-0 03 1 0502- ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.197 (G) ID=32 L=75 		1-09700-702-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(R) ID=31 L=30 		1-09700-969-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(N) ID=32 L=35 		1-09701-244-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(L) L=170.3 		1-09987-182-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (H) ID=14 L=47 		5-09700-319-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.589 (O) ID=27 		5-09700-323-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
00.446 (I) ID=12 B=14 ID=8.5 		5-09700-350-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (B) L=140 		5-09707-031-1 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (D) T=4.5 & 9 		5-09709-023-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
02.525 (A) T=9.2 & 9 		5-09709-025-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (Q) ID=9.6 		8-94147-870-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(P) ID=24 		8-94149-610-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(J) ID=20 		8-94169-650-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
03.115 (E) T=9 & 10.5 		8-97041-091-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(M) ID=9 		8-97063-874-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) ID=30 W/STUD 		8-97078-642-2 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
04.785 (K) ID=11 L=28 		9-09525-055-0 AR 1 0211- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(S) ID=5-12 L=14.5 		1-09987-221-0 AR 1 0306- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(T) ID=13 L=32 		9-09525-265-0 AR 1 0310- ● ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(U) T=6.0 		5-09709-012-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(V) T=6.0 		5-09709-024-0 AR 1 0502- ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(W) ID=11 L=50 		9-09525-085-0 AR 1 0507- ● ● ● ● ●
53 02.483 BRACKET; HARNESS
EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (E) 		8-98003-048-0 01 1 0502- ● ● ● ● ●
53 02.483 BRACKET; HARNESS
A/T 4 SPEED-AISIN(RNJ) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98003-048-0 01 1 0502- ●
53 02.483 BRACKET; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97352-527-0 01 1 0211-0501 ● ● ● ● ●
53 02.483 BRACKET; HARNESS
4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) (C) 		8-97352-527-0 01 1 0211-0501 ● ● ● ● ●
53 02.483 BRACKET; HARNESS
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97352-527-0 01 1 0502- ● ● ● ●
53 02.483 BRACKET; HARNESS
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97357-140-0 01 1 0211-0501 ● ●
53 02.483 BRACKET; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97357-140-0 01 1 0211-0501 ● ●
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97357-140-0 01 1 0502- ● ● ● ●
53 02.483 BRACKET; HARNESS
(A) 		8-97357-140-0 01 1 0502- ●
53 02.483 BRACKET; HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> TURKISH EQUIPMENT(S6S) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97359-614-0 01 1 0304-0501 ● ●
53 02.483 BRACKET; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97359-614-0 01 1 0502-0612 ● ● ●
53 02.483 BRACKET; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97359-614-0 01 1 0701- ● ● ● ●
53 02.483 BRACKET; HARNESS
4HG1-T ENG(RDP) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97065-158-2 01 1 0507-0612 ● ●
53 02.483 BRACKET; HARNESS
4HG1-T ENG(RDP) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97065-158-2 01 1 0701- ● ● ●
53 02.483 BRACKET; HARNESS
MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98003-049-0 01 1 0502- ● ● ●
53 02.483 BRACKET; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97065-158-2 01 1 0211-0501 ● ● ●
53 02.483 BRACKET; HARNESS
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (G) 		8-98003-050-0 01 1 0502- ● ● ● ●
53 02.483 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (H) 		8-98012-847-0 01 1 0507-0606 ●
53 02.483 BRACKET; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (H) 		8-98012-847-0 01 1 0607- ●
312 02.559 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EGYPT EQUIPMENT(YJ4) GENERATOR 24V80A(7YN) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98299-772-0 01 1 1501- ●
312 02.559 BRACKET; CLIP HARNESS
4HG1 ENG(RJH) EGYPT EQUIPMENT(YJ4) GENERATOR 24V80A(7YN) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98299-772-0 01 1 1501- ●
312 02.559 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97017-072-2 01 1 0211-0501 ● ● ● ● ● ●
312 02.559 BRACKET; CLIP HARNESS
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97017-072-2 01 1 0502- ● ● ● ●
312 02.559 BRACKET; CLIP HARNESS
4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97357-050-0 01 1 0211-0501 ● ●
312 02.559 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97357-050-0 01 1 0211-0501 ● ●
312 02.559 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97357-050-0 01 1 0211-0501 ●
312 02.559 BRACKET; CLIP HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97357-050-0 01 1 0502-0612 ● ● ● ● ●
312 02.559 BRACKET; CLIP HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97357-050-0 01 1 0701-1412 ● ● ● ●
312 02.559 BRACKET; CLIP HARNESS
(B) 		8-97357-050-0 01 1 0701-1412 ●
312 02.559 BRACKET; CLIP HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. EGYPT EQUIPMENT(YJ4),FRAME STRAIGHT TYPE<7KJ> (B) 		8-97357-050-0 01 1 1501- ● ● ● ● ●
312 02.559 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EGYPT EQUIPMENT(YJ4) EXC. FRAME STRAIGHT TYPE<7KJ>, GENERATOR 24V80A(7YN) (B) 		8-97357-050-0 01 1 1501- ● ●
312 02.559 BRACKET; CLIP HARNESS
4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97357-051-1 01 1 0211-0501 ● ●
312 02.559 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97357-051-1 01 1 0211-0501 ● ●
312 02.559 BRACKET; CLIP HARNESS
4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97357-051-1 01 1 0211-0501 ●
312 02.559 BRACKET; CLIP HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97357-051-1 01 1 0502-0612 ● ● ● ● ●
312 02.559 BRACKET; CLIP HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97357-051-1 01 1 0701- ● ● ● ●
312 02.559 BRACKET; CLIP HARNESS
(C) 		8-97357-051-1 01 1 0701- ●
317 02.559 CLAMP; CONNECTOR
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>, HYDRO MASTER<7LT> (B) 		8-94366-903-0 01 1 0211-0501 ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (B) 		8-94366-903-0 01 1 0502- ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (C) 		8-94466-377-0 01 1 0211-0501 ● ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> (C) 		8-94466-377-0 01 1 0211-0501 ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (C) 		8-94466-377-0 01 1 0502- ● ● ● ●
317 02.559 CLAMP; CONNECTOR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (C) 		8-94466-377-0 01 1 0502- ● ● ● ●
317 02.559 CLAMP; CONNECTOR
MINI BUS CHASSIS(V4B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO MASTER<7LT> (A) 		8-94441-365-0 01 1 0211-0501 ● ● ●
317 02.559 CLAMP; CONNECTOR
FUEL SEDIMENTER WITH HEATER<6HU> HYDRO MASTER<7LT> (A) 		8-94441-365-0 01 1 0211-0501 ● ● ●
317 02.559 CLAMP; CONNECTOR
MINI BUS CHASSIS(V4B) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94441-365-0 01 1 0502- ● ● ●
412 02.559 BRACKET; HARNESS,TRANS 8-97324-451-1 01 1 0211-0211 ● ● ● ● ● ●
412 02.559 BRACKET; HARNESS,TRANS
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97324-451-1 01 1 0212- ● ● ● ● ●
504 02.559 PROTECTOR; HARNESS
04.785 L=200 		8-97096-423-0 01 1 0211-0501 ● ● ● ● ● ●
504 02.559 PROTECTOR; HARNESS
04.785 L=200 		8-97096-423-0 01 1 0502- ● ● ● ● ●
504 02.559 PROTECTOR; HARNESS
4HK1-TCS ENG(RJS) 03.008 L=80 		5-22439-006-0 01 1 0507-0606 ●
504 02.559 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.008 L=80 		5-22439-006-0 01 1 0607-0608 ● ●
504 02.559 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.008 L=80 		5-22439-006-0 01 1 0609- ● ●
504 02.559 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.008 L=80 		5-22439-006-0 01 1 0609- ● ●
513 02.559 TAPE; SOFT,HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> TURKISH EQUIPMENT(S6S) 100X50 		8-97304-371-0 03 1 0702- ● ●
514 02.559 FINISHER; HARNESS
ADJUST HEADLAMP<6RC> 03.885 L=50 		8-94270-377-1 01 1 0506-0508 ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 L=120 SERVICED BY L=2040 		1-71997-513-1 01 1 0211-0501 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
L=120 SERVICED BY L=500 		1-79937-746-0 01 1 0502- ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 L=120 SERVICED BY L=2040 		1-71997-513-1 03 1 0211-0501 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
L=120 SERVICED BY L=500 		1-79937-746-0 03 1 0502- ● ● ● ● ●
514 02.559 FINISHER; HARNESS
16.550 L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0211-0501 ● ● ● ● ● ●
514 02.559 FINISHER; HARNESS
L=175 SERVICED BY L=500 		1-79937-746-0 01 1 0502-0504 ● ● ● ● ●
514 02.559 FINISHER; HARNESS
L=175 SERVICED BY L=500 		1-79937-746-0 01 1 0505- ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0211-0501 ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4HG1 ENG(RJH) TURBOCHARGER(K51) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0211-0501 ● ● ●
514 02.559 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0211-0501 ●
514 02.559 FINISHER; HARNESS
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0502-0502 ● ● ● ●
514 02.559 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0503-0506 ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0503-0506 ● ● ● ●
514 02.559 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0507-0507 ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0507-0507 ● ● ● ●
514 02.559 FINISHER; HARNESS
4HK1-TCS ENG(RJS) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0507-0507 ●
514 02.559 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0507-0606 ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4HK1-TCS ENG(RJS) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0507-0606 ●
514 02.559 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0607-1508 ● ● ● ● ●
514 02.559 FINISHER; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0607-1508 ● ●
514 02.559 FINISHER; HARNESS
4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 1509- ●
514 02.559 FINISHER; HARNESS
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 1509- ●
514 02.559 FINISHER; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 1509- ● ●
514 02.559 FINISHER; HARNESS
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N EN G(RJZ),4HF1-S ENG(RLS) EXC. VIN MODEL YEAR 2015<VZF> L=290 SERVICED BY L=500 		1-79937-746-0 01 1 1509- ●
514 02.559 FINISHER; HARNESS
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1ENG(RJH),4HK1-TCS ENG(RJS) EXC. VIN MODEL YEAR 2015<VZF> L=290 SERVICED BY L=500 		1-79937-746-0 01 1 1509- ●
514 02.559 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 01 1 1509- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
