◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50947 - NPR/NQR LHDEXC.EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-05 - INTERIOR LAMP ▶
8-05 — INTERIOR LAMP (#42510) — 10 parça

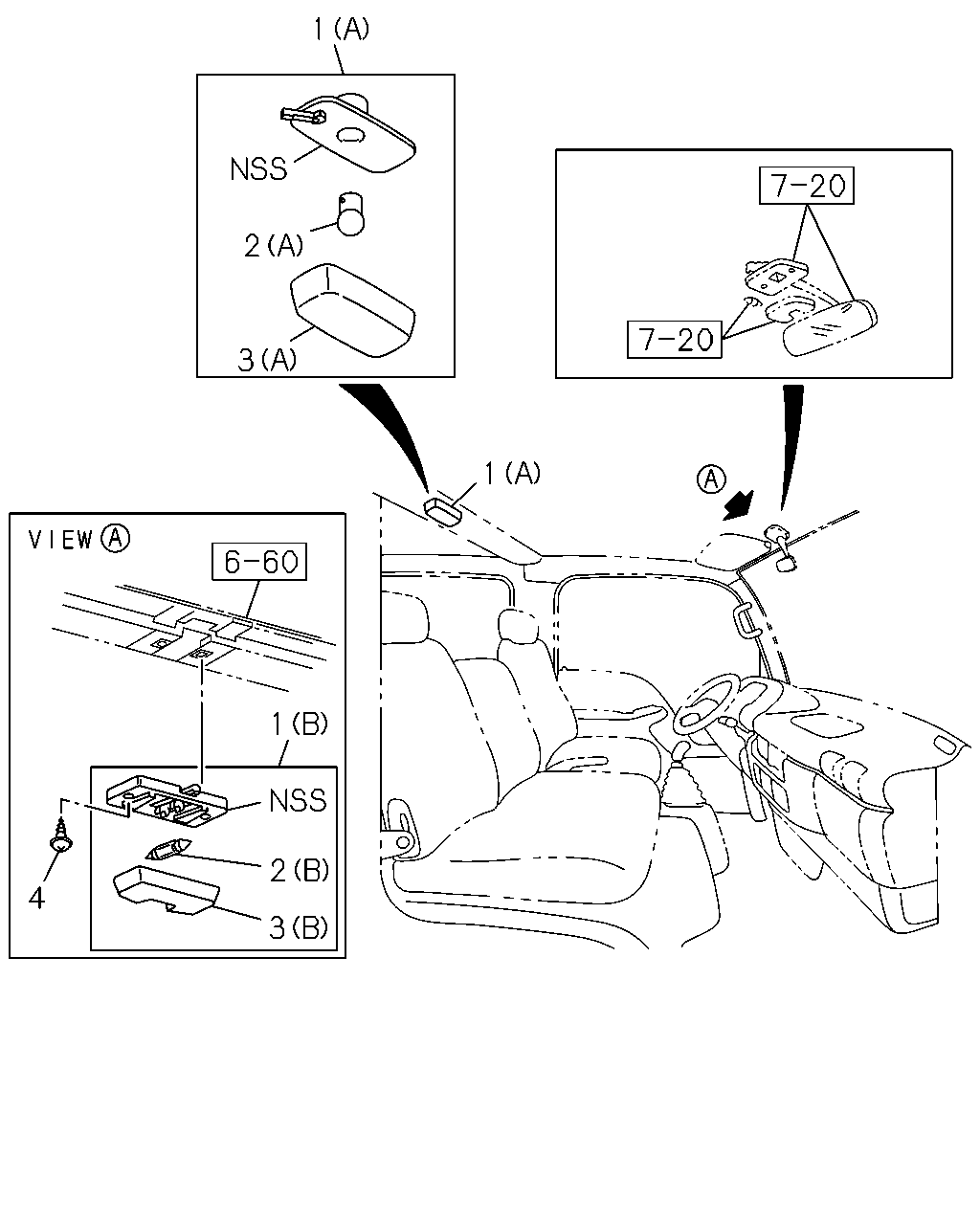

çizim 52792
1 2 3 1 1 2 4 3
BalonParca AdiParca NoAdetTipApplied Date
1 16.494 LAMP ASM; ROOM
ROOM LAMP W/ALL DOORS SW(SDF) (B) 24V 10W LIGHT GRAY 		8-97898-451-0 01 1 0211-0501
1 16.494 LAMP ASM; ROOM
EXC. ROOM LAMP W/ALL DOORS SW(SDF) (A) 24V 12W 		8-97080-775-0 01 1 0211-0501
1 16.494 LAMP ASM; ROOM
(A) 24V 12W 		8-97080-775-0 01 1 0502-
2 08.991 BULB; ROOM LAMP
ROOM LAMP W/ALL DOORS SW(SDF) (B) 24V 10W 		5-82194-030-0 01 1 0211-0501
2 08.991 BULB; ROOM LAMP
EXC. ROOM LAMP W/ALL DOORS SW(SDF) (A) 24V 12W 		9-82691-302-0 01 1 0211-0501
2 08.991 BULB; ROOM LAMP
(A) 24V 12W 		9-82691-302-0 01 1 0502-
3 16.495 LENS; ROOM LAMP
ROOM LAMP W/ALL DOORS SW(SDF) 16.068 (B) 		5-73117-108-0 01 1 0211-0501
3 16.495 LENS; ROOM LAMP
EXC. ROOM LAMP W/ALL DOORS SW(SDF) (A) 		5-82145-002-0 01 1 0211-0501
3 16.495 LENS; ROOM LAMP
(A) 		5-82145-002-0 01 1 0502-
4 16.495 SCREW; ROOM LAMP
ROOM LAMP W/ALL DOORS SW(SDF) 03.671 M5X20 		5-09981-059-0 02 1 0211-0501
