7-60 — SEAT BELT (#42507) — 217 parça

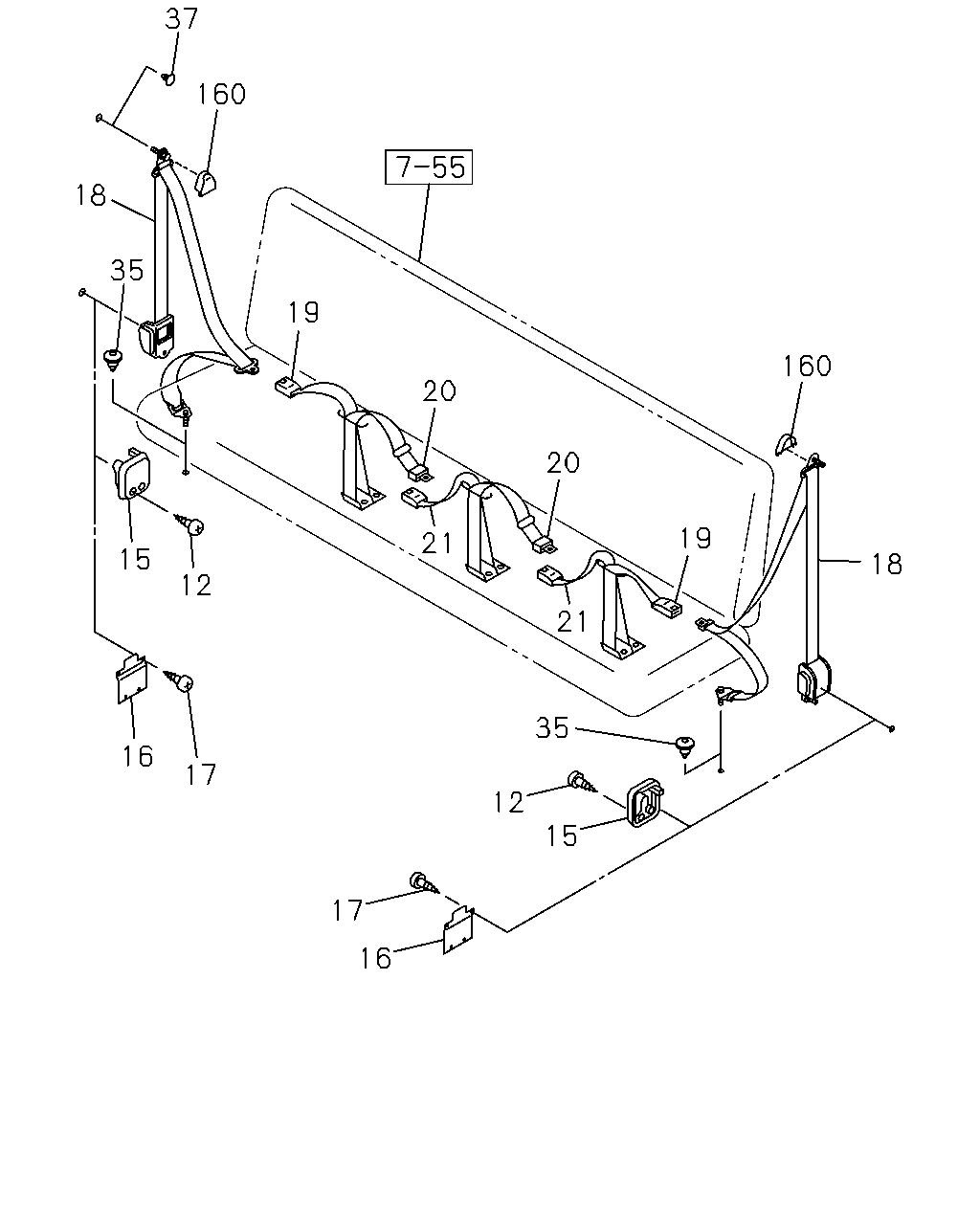

çizim 51382
37 160 18 35 19 160 20 20 19 21 15 18 12 21 35 16 17 12 15 17 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.584 M6X13 		5-09981-074-0 04 1 0211-0611 ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> M4X14 TAPPING 		0-74360-414-0 04 1 0612- ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-94351-619-3 02 1 0211-0501 ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97396-955-3 02 1 0502-0708 ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.578 GRAY 		8-97405-192-3 02 1 0709- ●
16 16.714 COVER; HOLE,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTO R<A49> 		8-97854-868-1 02 1 0211- ●
17 16.714 SCREW; HOLE COVER,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTO R<A49> 16.584 M6X13 		5-09981-074-0 08 1 0211-0611 ●
17 16.714 SCREW; HOLE COVER,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTO R<A49> M4X14 TAPPING 		0-74360-414-0 08 1 0612- ●
18 16.714 BELT; SEAT,RR
ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97394-532-1 02 1 0211-0406 ●
18 16.714 BELT; SEAT,RR
ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97400-799-0 02 1 0407-0501 ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97394-528-0 02 1 0211-0406 ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97400-797-0 02 1 0407-0501 ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97394-544-1 01 1 0211-0406 ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97400-803-0 01 1 0407-0501 ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97394-543-1 01 1 0211-0406 ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97400-802-0 01 1 0407-0501 ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97393-790-0 01 1 0211-0406 ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97400-801-0 01 1 0407-0501 ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97393-789-0 01 1 0211-0406 ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97400-800-0 01 1 0407-0501 ●
35 16.714 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 0211- ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 P OINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 04 1 0211- ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. ISRAEL EQUIPMENT(7LX) OD=22 		9-61168-535-0 06 1 0211-0501 ●
35 16.714 GROMMET; SEAT BELT ANCHOR
OD=22 		9-61168-535-0 06 1 0502- ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 P OINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0211-0501 ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. ISRAEL EQUIPMENT(7LX) L=18.5 		8-94279-726-0 02 1 0211-0501 ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 P OINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0502- ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
L=18.5 		8-94279-726-0 02 1 0502- ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 0211-0501 ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0211-0501 ●
160 16.714 COVER; THROUGH ANCHOR
ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97854-897-0 02 1 0211-0501 ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97396-954-0 02 1 0502-1506 ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97396-954-0 01 1 1507- ● ● ● ● ●

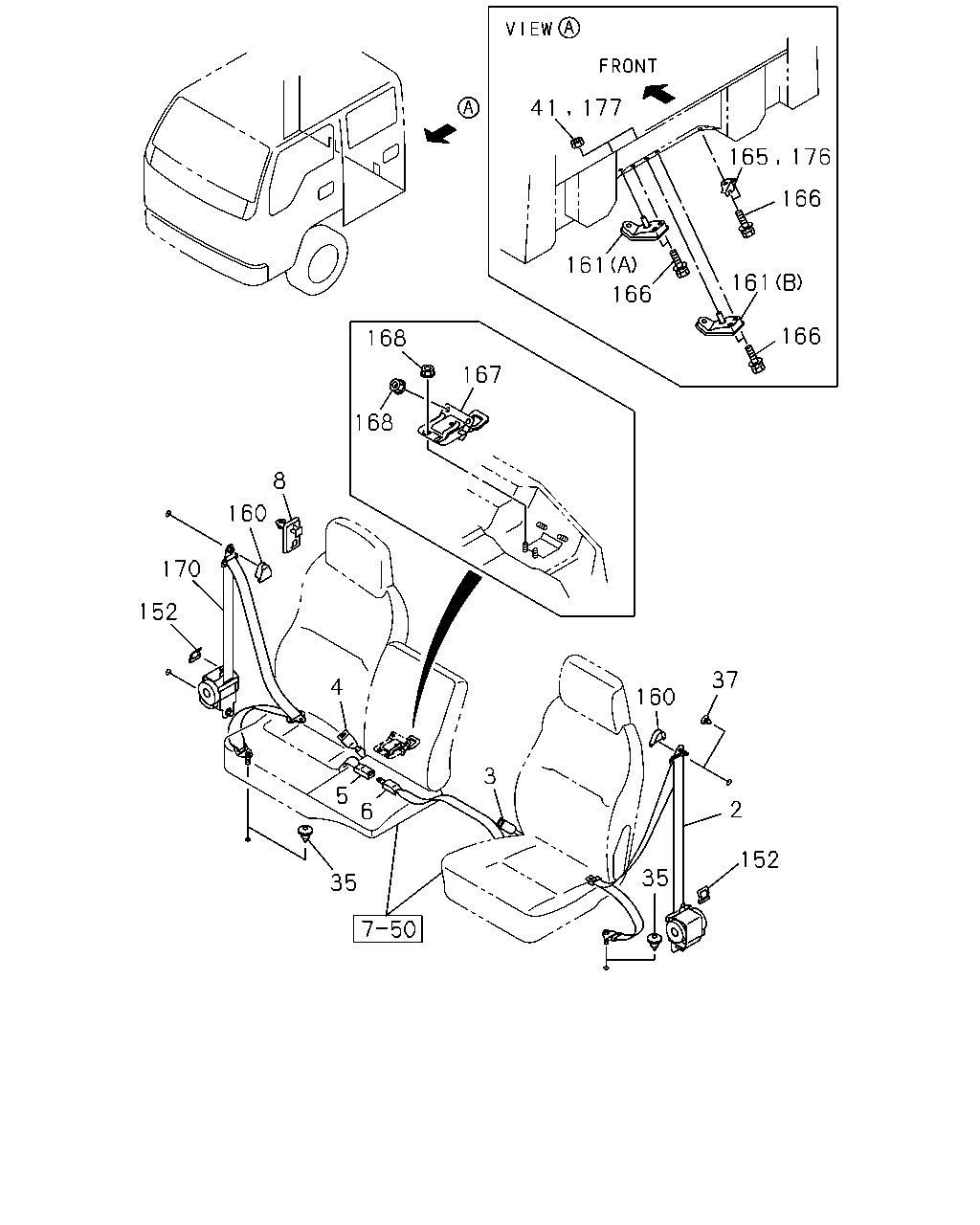

çizim 53656
177 41 165 176 166 161 161 166 166 168 167 168 8 160 170 152 37 4 160 3 5 2 6 152 35 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> RUSSIA EQUIPMENT(B12) GRAY 		8-97400-921-1 01 1 0710- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK GRAY 		8-97394-511-0 01 1 0211-0501 ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY 		8-97400-353-1 01 1 0502- ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97394-512-0 01 1 0211-0501 ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97400-623-1 01 1 0502-0709 ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97400-623-2 01 1 0710- ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. RUSSIA EQUIPMENT(B12) GRAY 		8-97400-623-2 01 1 0710- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97394-513-1 01 1 0211-0406 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97400-796-0 01 1 0407-0501 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> RUSSIA EQUIPMENT(B12) GRAY 		8-97400-919-0 01 1 0710- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2), BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97394-508-0 01 1 0211-0501 ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97400-348-0 01 1 0502-0709 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97400-348-0 01 1 0502-0709 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. RUSSIA EQUIPMENT(B12),SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97400-348-0 01 1 0710- ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY 		8-97394-510-0 01 1 0211-0501 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97400-621-0 01 1 0502- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97854-891-1 01 1 0211-0406 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97400-782-0 01 1 0407-0501 ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> RUSSIA EQUIPMENT(B12) GRAY 		8-97400-891-0 01 1 0710- ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97394-516-0 01 1 0211-0501 ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97400-354-0 01 1 0502- ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> DARK GRAY 		8-97326-220-0 01 1 0211-0501 ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) DARK GRAY 		8-97326-220-0 01 1 0211-0501 ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. DISC BRAKE FRT<J52>,LIMITED SLIPDIFF<6LV>,FRAME STRAIGHT TYPE<7KJ> DARK GRAY 		8-97326-220-0 01 1 0211-0501 ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> DARK GRAY 		8-97326-220-0 01 1 0211-0501 ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97396-952-0 01 1 0502-0709 ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97396-952-0 01 1 0710- ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. RUSSIA EQUIPMENT(B12) GRAY 		8-97396-952-0 01 1 0710- ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97394-517-0 01 1 0211-0406 ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97400-780-0 01 1 0407-0501 ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97326-221-0 01 1 0211-0409 ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
DARK GRAY 		8-97326-221-0 01 1 0211-0409 ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY 		8-97401-281-0 01 1 0410-0501 ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
DARK GRAY 		8-97401-281-0 01 1 0410-0501 ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97401-516-0 01 1 0502-0512 ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97404-304-0 01 1 0601- ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> RUSSIA EQUIPMENT(B12) GRAY 		8-97400-893-0 01 1 0710- ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97326-224-0 01 1 0211-0501 ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97400-451-0 01 1 0502-0709 ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY 		8-97400-451-1 01 1 0710- ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> EXC. RUSSIA EQUIPMENT(B12) GRAY 		8-97400-451-1 01 1 0710- ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97394-525-1 01 1 0211-0406 ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97400-781-0 01 1 0407-0501 ● ● ● ●
8 16.714 HOOK; SEAT BELT
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> 		8-94276-268-1 02 1 0211- ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22 		9-61168-535-0 01 1 0211- ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 P OINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 04 1 0211- ● ● ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. ISRAEL EQUIPMENT(7LX) OD=22 		9-61168-535-0 06 1 0211-0501 ●
35 16.714 GROMMET; SEAT BELT ANCHOR
OD=22 		9-61168-535-0 06 1 0502- ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 P OINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0211-0501 ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. ISRAEL EQUIPMENT(7LX) L=18.5 		8-94279-726-0 02 1 0211-0501 ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 P OINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0502- ● ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
L=18.5 		8-94279-726-0 02 1 0502- ●
41 05.545 NUT; BRKT,ANCHOR
SAUDI ARABIA EQUIPMENT(EU2) 07.833 M8 W/LK WASHER 		8-94327-073-0 04 1 0211-0211 ● ● ●
41 05.545 NUT; BRKT,ANCHOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) 07.833 M8 W/LK WASHER 		8-94327-073-0 04 1 0212-0501 ● ● ● ●
41 05.545 NUT; BRKT,ANCHOR
MANUAL TILT CAB<RWZ> 07.833 M8 W/LK WASHER 		8-94327-073-0 04 1 0502-0506 ● ● ●
41 05.545 NUT; BRKT,ANCHOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 07.833 M8 W/LK WASHER 		8-94327-073-0 04 1 0502-0506 ●
41 05.545 NUT; BRKT,ANCHOR
MANUAL TILT CAB<RWZ> 07.833 M8 W/LK WASHER 		8-94327-073-0 04 1 0507-0709 ● ●
41 05.545 NUT; BRKT,ANCHOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 07.833 M8 W/LK WASHER 		8-94327-073-0 04 1 0507-0709 ● ●
41 05.545 NUT; BRKT,ANCHOR
MANUAL TILT CAB<RWZ> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) 07.833 M8 W/LK WASHER 		8-94327-073-0 04 1 0710-0805 ● ● ● ●
41 05.545 NUT; BRKT,ANCHOR
MANUAL TILT CAB<RWZ> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) 03.417 M8 W/LK WASHER 		8-97581-234-0 04 1 0806- ● ● ● ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 		8-97287-563-0 02 1 0211-0501 ● ● ● ● ●
152 16.714 PROTECTOR 8-97287-563-0 02 1 0211-0501 ●
152 16.714 PROTECTOR
ISRAEL EQUIPMENT(7LX) 		8-97287-563-0 02 1 0211-0501 ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 		8-97287-563-0 02 1 0502- ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 0211-0501 ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0211-0501 ●
160 16.714 COVER; THROUGH ANCHOR
ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97854-897-0 02 1 0211-0501 ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97396-954-0 02 1 0502-1506 ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97396-954-0 01 1 1507- ● ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(B) CENTER 		8-97850-427-1 01 1 0211-0501 ● ● ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(B) CENTER 		8-97850-427-1 01 1 0502- ● ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(A) 		8-97850-376-2 01 1 0211-0501 ● ● ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(A) 		8-97850-376-2 01 1 0502- ● ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97850-286-5 01 1 0211-0211 ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) (A) 		8-97850-286-5 01 1 0212-0501 ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
MANUAL TILT CAB<RWZ> (A) 		8-97850-286-5 01 1 0502-0506 ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (A) 		8-97850-286-5 01 1 0502-0506 ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
MANUAL TILT CAB<RWZ> (A) 		8-97850-286-5 01 1 0507-0709 ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (A) 		8-97850-286-5 01 1 0507-0709 ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
MANUAL TILT CAB<RWZ> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) (A) 		8-97850-286-5 01 1 0710- ● ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97869-416-0 01 1 0211-0211 ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97869-416-0 01 1 0211-0211 ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR
EXC. MANUAL TILT CAB<RWZ> 		8-97869-416-0 01 1 0212-0501 ● ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 		8-97869-416-0 01 1 0212-0501 ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97869-416-0 01 1 0212-0501 ● ●
165 16.714 HOOK; SEAT BELT ANCHOR
EXC. MANUAL TILT CAB<RWZ> 		8-97869-416-0 01 1 0502-0506 ● ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 		8-97869-416-0 01 1 0502-0506 ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97869-416-0 01 1 0502-0506 ●
165 16.714 HOOK; SEAT BELT ANCHOR
EXC. MANUAL TILT CAB<RWZ> 		8-97869-416-0 01 1 0507-0709 ● ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 		8-97869-416-0 01 1 0507-0709 ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97869-416-0 01 1 0507-0709 ●
165 16.714 HOOK; SEAT BELT ANCHOR
EXC. MANUAL TILT CAB<RWZ> 		8-97869-416-0 01 1 0710- ● ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 		8-97869-416-0 01 1 0710- ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97869-416-0 01 1 0710- ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.559 M8X25 FLANGE 		0-28680-825-0 06 1 0211-0211 ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
EXC. SAUDI ARABIA EQUIPMENT(EU2) 02.559 M8X25 FLANGE 		0-28680-825-0 06 1 0211-0211 ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) 02.559 M8X25 FLANGE 		0-28680-825-0 07 1 0212-0501 ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 07 1 0502-0506 ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 02.559 M8X25 FLANGE 		0-28680-825-0 07 1 0502-0506 ●
166 16.714 BOLT; SEAT BELT ANCHOR
MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 07 1 0507-0512 ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 02.559 M8X25 FLANGE 		0-28680-825-0 07 1 0507-0512 ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE 		0-28650-825-0 07 1 0601-0709 ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 06.216 M8X25 FLANGE 		0-28650-825-0 07 1 0601-0709 ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
MANUAL TILT CAB<RWZ> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) 06.216 M8X25 FLANGE 		0-28650-825-0 07 1 0710- ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
SAUDI ARABIA EQUIPMENT(EU2) 02.559 M8X25 FLANGE 		0-28680-825-0 07 1 0211-0211 ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
EXC. MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 06 1 0212-0501 ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 06 1 0212-0501 ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.559 M8X25 FLANGE 		0-28680-825-0 06 1 0212-0501 ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
EXC. MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 06 1 0502-0506 ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 06 1 0502-0506 ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.559 M8X25 FLANGE 		0-28680-825-0 06 1 0502-0506 ●
166 16.714 BOLT; SEAT BELT ANCHOR
EXC. MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 06 1 0507-0512 ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 06 1 0507-0512 ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.559 M8X25 FLANGE 		0-28680-825-0 06 1 0507-0512 ●
166 16.714 BOLT; SEAT BELT ANCHOR
EXC. MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE 		0-28650-825-0 06 1 0601-0709 ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE 		0-28650-825-0 06 1 0601-0709 ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
06.216 M8X25 FLANGE 		0-28650-825-0 06 1 0601-0709 ●
166 16.714 BOLT; SEAT BELT ANCHOR
EXC. MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE 		0-28650-825-0 06 1 0710- ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE 		0-28650-825-0 06 1 0710- ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
06.216 M8X25 FLANGE 		0-28650-825-0 06 1 0710- ●
167 16.714 PLATE; ANCHOR 8-97869-412-0 01 1 0211-0211 ● ● ●
167 16.714 PLATE; ANCHOR
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97869-412-0 01 1 0211-0211 ● ● ●
167 16.714 PLATE; ANCHOR
EXC. MANUAL TILT CAB<RWZ> 		8-97869-412-1 01 1 0212-0501 ● ● ● ●
167 16.714 PLATE; ANCHOR
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 		8-97869-412-1 01 1 0212-0501 ● ●
167 16.714 PLATE; ANCHOR 8-97869-412-1 01 1 0212-0501 ● ●
167 16.714 PLATE; ANCHOR
EXC. MANUAL TILT CAB<RWZ> 		8-97869-412-2 01 1 0502-0506 ● ● ● ●
167 16.714 PLATE; ANCHOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 		8-97869-412-2 01 1 0502-0506 ●
167 16.714 PLATE; ANCHOR 8-97869-412-2 01 1 0502-0506 ●
167 16.714 PLATE; ANCHOR
EXC. MANUAL TILT CAB<RWZ> 		8-97869-412-2 01 1 0507-0709 ● ● ● ●
167 16.714 PLATE; ANCHOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 		8-97869-412-2 01 1 0507-0709 ● ●
167 16.714 PLATE; ANCHOR 8-97869-412-2 01 1 0507-0709 ●
167 16.714 PLATE; ANCHOR
EXC. MANUAL TILT CAB<RWZ> 		8-97869-412-2 01 1 0710- ● ● ● ●
167 16.714 PLATE; ANCHOR
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 		8-97869-412-2 01 1 0710- ● ● ●
167 16.714 PLATE; ANCHOR 8-97869-412-2 01 1 0710- ●
168 16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE 		5-09440-005-0 04 1 0211-0211 ● ● ●
168 16.714 NUT; ANCHOR PLATE
EXC. SAUDI ARABIA EQUIPMENT(EU2) 00.854 M8 FLANGE 		5-09440-005-0 04 1 0211-0211 ● ● ●
168 16.714 NUT; ANCHOR PLATE
EXC. MANUAL TILT CAB<RWZ> 00.854 M8 FLANGE 		5-09440-005-0 04 1 0212-0501 ● ● ● ●
168 16.714 NUT; ANCHOR PLATE
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 00.854 M8 FLANGE 		5-09440-005-0 04 1 0212-0501 ● ●
168 16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE 		5-09440-005-0 04 1 0212-0501 ● ●
168 16.714 NUT; ANCHOR PLATE
EXC. MANUAL TILT CAB<RWZ> 00.854 M8 FLANGE 		5-09440-005-0 04 1 0502-0506 ● ● ● ●
168 16.714 NUT; ANCHOR PLATE
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 00.854 M8 FLANGE 		5-09440-005-0 04 1 0502-0506 ●
168 16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE 		5-09440-005-0 04 1 0502-0506 ●
168 16.714 NUT; ANCHOR PLATE
EXC. MANUAL TILT CAB<RWZ> 00.854 M8 FLANGE 		5-09440-005-0 04 1 0507-0709 ● ● ● ●
168 16.714 NUT; ANCHOR PLATE
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 00.854 M8 FLANGE 		5-09440-005-0 04 1 0507-0709 ● ●
168 16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE 		5-09440-005-0 04 1 0507-0709 ●
168 16.714 NUT; ANCHOR PLATE
EXC. MANUAL TILT CAB<RWZ> 00.854 M8 FLANGE 		5-09440-005-0 04 1 0710-0712 ● ● ● ●
168 16.714 NUT; ANCHOR PLATE
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 00.854 M8 FLANGE 		5-09440-005-0 04 1 0710-0712 ● ● ●
168 16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE 		5-09440-005-0 04 1 0710-0712 ●
168 16.714 NUT; ANCHOR PLATE
EXC. MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE 		0-91180-108-0 04 1 0801- ● ● ● ●
168 16.714 NUT; ANCHOR PLATE
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE 		0-91180-108-0 04 1 0801- ● ● ●
168 16.714 NUT; ANCHOR PLATE
01.062 M8 FLANGE 		0-91180-108-0 04 1 0801- ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> RUSSIA EQUIPMENT(B12) GRAY 		8-97400-886-1 01 1 0710- ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK GRAY 		8-97394-511-0 01 1 0211-0501 ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY 		8-97400-353-1 01 1 0502- ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97392-992-0 01 1 0211-0501 ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97397-380-1 01 1 0502-0709 ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97397-380-2 01 1 0710- ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. RUSSIA EQUIPMENT(B12) GRAY 		8-97397-380-2 01 1 0710- ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97394-520-1 01 1 0211-0406 ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BRAZIL EQUIPMENT(RWF),ISRAEL EQUIPMENT(7LX) DARK GRAY 		8-97400-779-0 01 1 0407-0501 ● ● ● ●
176 16.714 PATCH ASM; ANCHOR HOLE FIX
SAUDI ARABIA EQUIPMENT(EU2) 		1-79998-900-0 01 1 0211-0211 ● ● ●
176 16.714 PATCH ASM; ANCHOR HOLE FIX
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) 		1-79998-900-0 01 1 0212-0501 ● ● ● ●
176 16.714 PATCH ASM; ANCHOR HOLE FIX
MANUAL TILT CAB<RWZ> 		1-79998-900-0 01 1 0502-0506 ● ● ●
176 16.714 PATCH ASM; ANCHOR HOLE FIX
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		1-79998-900-0 01 1 0502-0506 ●
176 16.714 PATCH ASM; ANCHOR HOLE FIX
MANUAL TILT CAB<RWZ> 		1-79998-900-0 01 1 0507-0709 ● ●
176 16.714 PATCH ASM; ANCHOR HOLE FIX
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		1-79998-900-0 01 1 0507-0709 ● ●
176 16.714 PATCH ASM; ANCHOR HOLE FIX
MANUAL TILT CAB<RWZ> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) 		1-79998-900-0 01 1 0710- ● ● ● ●
177 16.714 NUT
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0211-0211 ● ● ●
177 16.714 NUT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0211-0211 ● ● ●
177 16.714 NUT
EXC. MANUAL TILT CAB<RWZ> 07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0212-0501 ● ● ● ●
177 16.714 NUT
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0212-0501 ● ●
177 16.714 NUT
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0212-0501 ● ●
177 16.714 NUT
EXC. MANUAL TILT CAB<RWZ> 07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0502-0506 ● ● ● ●
177 16.714 NUT
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0502-0506 ●
177 16.714 NUT
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0502-0506 ●
177 16.714 NUT
EXC. MANUAL TILT CAB<RWZ> 07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0507-0709 ● ● ● ●
177 16.714 NUT
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0507-0709 ● ●
177 16.714 NUT
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0507-0709 ●
177 16.714 NUT
EXC. MANUAL TILT CAB<RWZ> 07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0710-0805 ● ● ● ●
177 16.714 NUT
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0710-0805 ● ● ●
177 16.714 NUT
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0710-0805 ●
177 16.714 NUT
EXC. MANUAL TILT CAB<RWZ> 03.417 M8 W/LK WASHER 		8-97581-234-0 02 1 0806- ● ● ● ●
177 16.714 NUT
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 03.417 M8 W/LK WASHER 		8-97581-234-0 02 1 0806- ● ● ●
177 16.714 NUT
03.417 M8 W/LK WASHER 		8-97581-234-0 02 1 0806- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
