Isuzu WW
▶
TRUCKS
▶
NKR
▶
50945 - NKR(EUROPE)-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-80 - BACK PANEL
▶
6-80 — BACK PANEL
(#42500) — 21 parça
Tümü
A - NKB6SC
B - NKC6SC
C - NKC6SF
◀
[680A] NO.2 (8 parça)

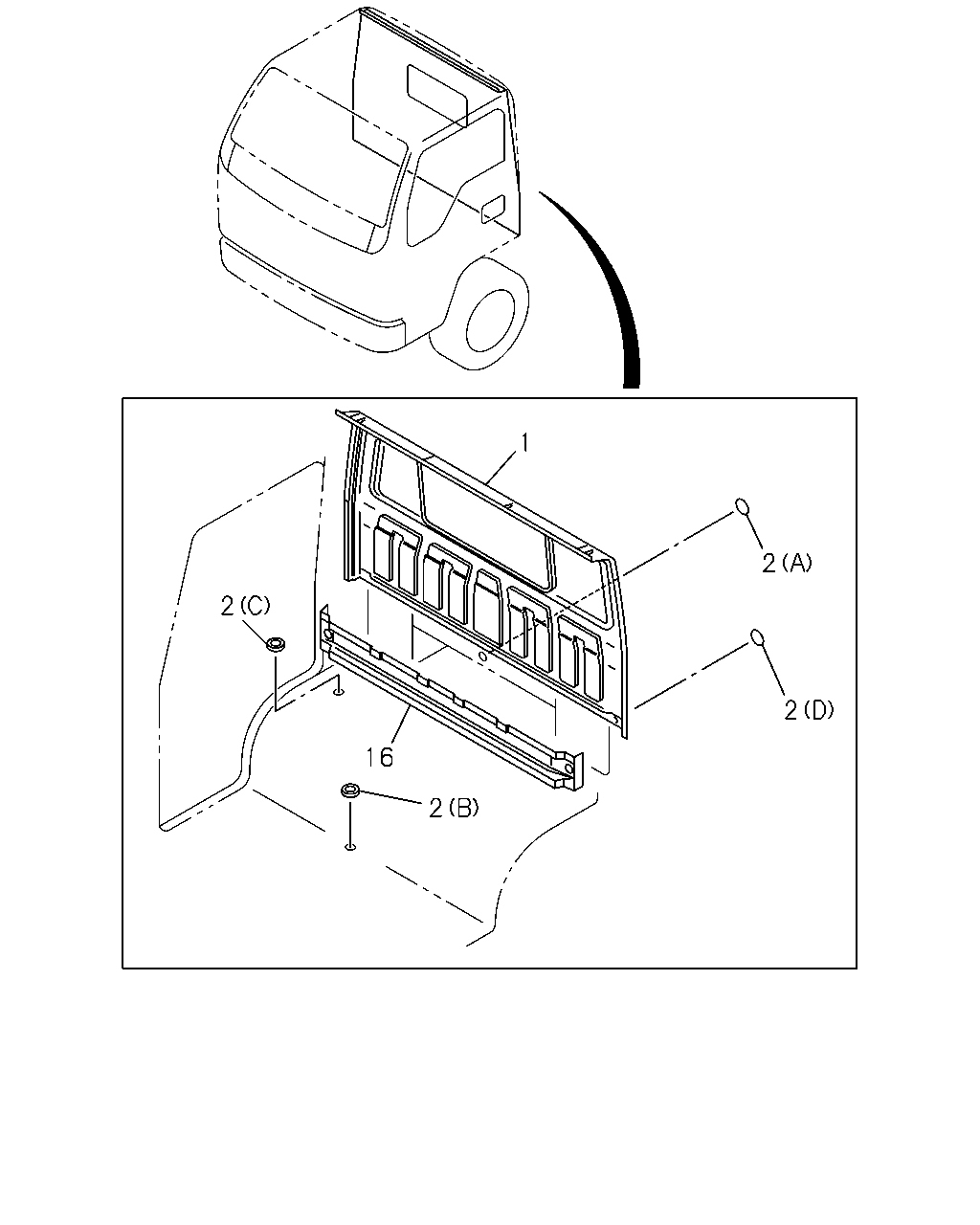

[680A] NO.1 (13 parça)
▶
6
5
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
5
16.587 PANEL; CAB BACK
4JH1 ENG(RJX) MANUAL TILT CAB<RWZ>
8-97259-949-1
01
1
0302-0506
●
●
●
5
16.587 PANEL; CAB BACK
4JH1-TC ENG(RDM) MANUAL TILT CAB<RWZ>
8-97259-949-2
01
1
0507-0606
●
●
●
6
16.587 BOLT; BACK PANEL
4JH1 ENG(RJX) MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE
0-28680-820-0
02
1
0302-0506
●
●
●
6
16.587 BOLT; BACK PANEL
4JH1-TC ENG(RDM) MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE
0-28680-820-0
02
1
0507-0512
●
●
●
6
16.587 BOLT; BACK PANEL
4JH1-TC ENG(RDM) MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE
0-28650-820-0
02
1
0601-0606
●
●
●
8
16.587 NUT; BACK PANEL
4JH1 ENG(RJX) MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE
0-91150-108-0
02
1
0302-0506
●
●
●
8
16.587 NUT; BACK PANEL
4JH1-TC ENG(RDM) MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE
0-91150-108-0
02
1
0507-0602
●
●
●
8
16.587 NUT; BACK PANEL
4JH1-TC ENG(RDM) MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE
0-91180-108-0
02
1
0603-0606
●
●
●
1
2
2
2
16
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
16.587 PANEL; BACK OUTER
4JH1 ENG(RJX) INTERIOR DELUXE<RBB>
8-97851-352-2
01
1
0302-0506
●
●
●
1
16.587 PANEL; BACK OUTER
4JH1-TC ENG(RDM)
8-97851-352-2
01
1
0507-0606
●
●
●
1
16.587 PANEL; BACK OUTER
4JJ1 ENG(LFB)
8-97851-352-2
01
1
0607-
●
●
●
1
16.587 PANEL; BACK OUTER
4JH1 ENG(RJX) EXC. INTERIOR DELUXE<RBB>
8-97851-352-2
01
1
0302-0506
●
●
●
2
16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK
1-76798-019-0
04
1
0302-
●
●
●
2
16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (D) OD=36 T=0.05 BLACK
5-76777-035-0
02
1
0302-0710
●
●
●
2
16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (D) OD=32 BLACK
8-98031-126-0
02
1
0711-
●
●
●
2
16.587 GROMMET; LOCATION HOLE,BACK PANE
08.155 (B) OD=28.5
8-94279-711-0
02
1
0302-
●
●
●
2
16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (C) OD=16.2
8-94492-493-0
02
1
0302-0512
●
●
●
2
16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (C) OD=15.0
8-94279-040-0
02
1
0601-
●
●
●
16
16.575 REINFORCEMENT; BACK OUTER PNL
4JH1 ENG(RJX)
8-97867-215-0
01
1
0302-0506
●
●
●
16
16.575 REINFORCEMENT; BACK OUTER PNL
4JH1-TC ENG(RDM)
8-97867-215-0
01
1
0507-0606
●
●
●
16
16.575 REINFORCEMENT; BACK OUTER PNL
4JJ1 ENG(LFB)
8-97867-215-0
01
1
0607-
●
●
●
