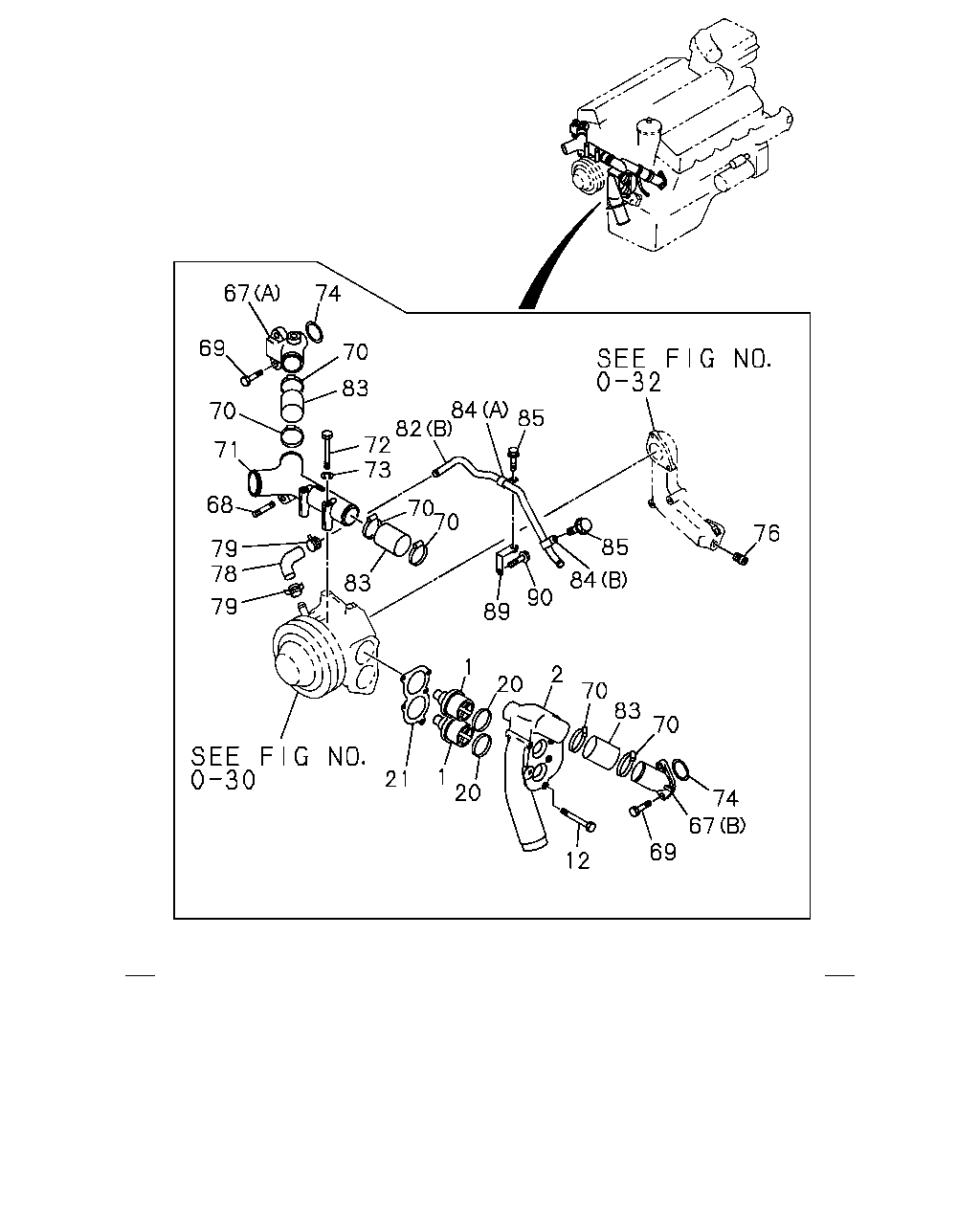

0-31B — THERMOSTAT AND HOUSING (#425) — 101 parça

67 74 69 70 70 83 71 72 68 79 79 73 82 84 85 70 70 83 85 76 84 89 90 1 21 1 20 20 2 70 83 70 74 67 69 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	THERMOSTAT 79?C	1-13770-041-0	02	1	8712-9001	●
1	THERMOSTAT 76.5?C	1-13770-080-0	02	1	9002-		●
2	HOUSING; THERMOSTAT	1-13716-028-5	01	1	8712-9001	●
2	HOUSING; THERMOSTAT	1-13716-163-0	01	1	9002-9604		●
2	HOUSING; THERMOSTAT	1-13716-188-1	01	1	9605-		●
12	BOLT; HSG M8X100 W/LK WASHER	5-09000-086-0	05	1	8712-8802	●
12	BOLT; HSG M8X100	5-09000-087-0	05	1	8803-9006	●	●
12	BOLT; HSG M8X100 W/LK&PL WASHER	0-50140-800-0	05	1	9007-		●
20	RING; SEAL	1-13779-005-0	02	1	8712-9306	●	●
20	RING; SEAL	1-13779-005-0	02	1	9307-		●
21	GASKET; PUMP TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	1-13743-023-0	01	1	8712-	●	●
67	DUCT; WATER,OUTLET (B) LH BANK	1-13711-085-2	01	1	8712-9001	●
67	DUCT; WATER,OUTLET (A) RH BANK	1-13711-291-0	01	1	8712-9001	●
67	DUCT; WATER,OUTLET (B) LH BANK	1-13711-583-0	01	1	9002-		●
67	DUCT; WATER,OUTLET (A) RH BANK	1-13711-584-2	01	1	9002-		●
68	STUD; ADJ PLATE M12X25 L=43	9-94411-225-0	01	1	8712-	●	●
69	BOLT; DUCT,WATER OUTLET M10X32	9-02351-032-0	05	1	8712-9001	●
69	BOLT; DUCT,WATER OUTLET M10X30	0-28121-030-0	04	1	9002-9002		●
69	BOLT; DUCT,WATER OUTLET M10X30 FLANGE	0-28181-030-0	04	1	9003-		●
70	CLIP; RUBBER HOSE,DUCT TO DUCT	1-09704-065-0	06	1	8712-	●	●
71	DUCT; WATER,OUTLET,CONNECTOR	1-13711-263-2	01	1	8712-9001	●
71	DUCT; WATER,OUTLET,CONNECTOR	1-13711-380-1	01	1	9002-		●
72	BOLT; CONNECTOR M10X90	9-01656-090-0	02	1	8712-9004	●	●
72	BOLT; CONNECTOR M10X90	0-16806-090-0	02	1	9005-		●
73	WASHER; LK,CONNECTOR ID=10.2	9-09150-510-0	02	1	8712-	●	●
74	GASKET; WATER OUTLET DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-196-0	02	1	8712-9001	●
74	GASKET; WATER OUTLET DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-425-0	02	1	9002-		●
76	JOINT; WATER DUCT PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	8712-	●	●
79	CLIP; RUBBER HOSE ID=20	1-09707-084-1	02	1	8712-	●	●
82	PIPE; WATER,HTR (B)	1-13721-369-1	01	1	8712-9001	●
82	PIPE; WATER,HTR (A)	1-13721-370-1	01	1	9002-9003		●
82	PIPE; WATER,HTR (B)	1-13721-369-2	01	1	9004-		●
83	HOSE; RUBBER,DUCT TO DUCT	1-09360-325-0	03	1	8712-	●	●
84	CLIP; WATER PIPE (A) ID=19 L=25	1-09700-515-1	01	1	8712-	●	●
84	CLIP; WATER PIPE (B) ID=19 L=23	5-09700-386-0	01	1	8712-	●	●
85	BOLT; CLIP M10X18	9-02351-018-0	02	1	8712-9001	●
85	BOLT; CLIP M10X16 W/LK WASHER	9-01931-016-0	02	1	9002-9004		●
85	BOLT; CLIP M10X16 W/LK WASHER	1-09033-012-0	02	1	9005-9006		●
85	BOLT; CLIP M10X16 W/LK WASHER	1-09033-012-0	01	1	9007-		●
85	BOLT; CLIP M10X18 FLANGE	8-94147-156-1	01	1	9007-		●
89	BRACKET	1-13719-027-0	01	1	8712-	●	●
90	BOLT; BRKT M10X20 W/LK WASHER	9-01911-020-0	02	1	8712-9001	●	●
90	BOLT; BRKT M10X20 W/LK WASHER	9-01911-020-0	01	1	9002-9002	●	●
90	BOLT; BRKT M10X20 W/LK WASHER	0-50041-020-0	01	1	9003-9306		●
90	BOLT; BRKT M10X18 FLANGE	8-94147-156-1	01	1	9307-		●

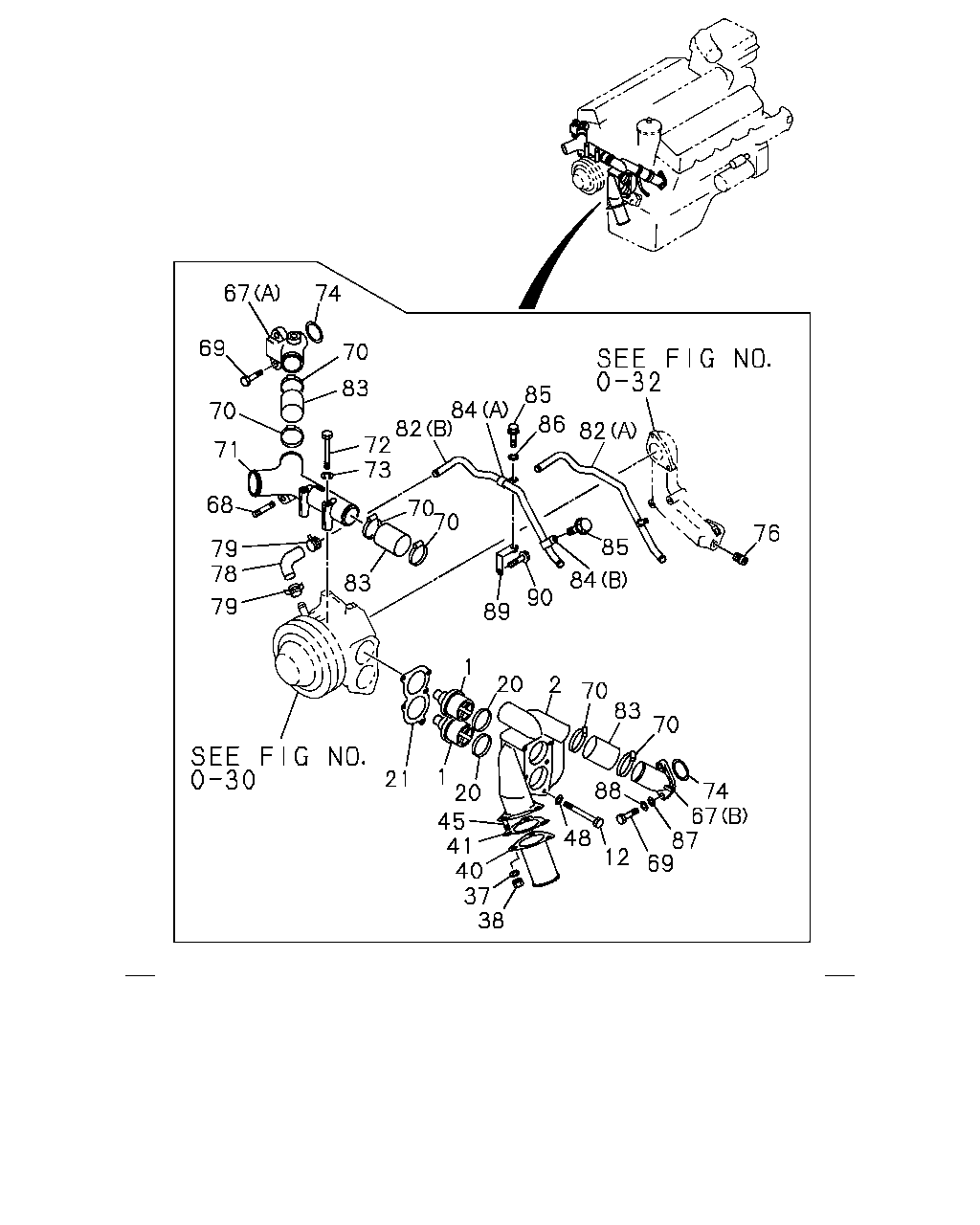

74 67 69 70 70 83 71 72 82 84 85 73 68 79 79 78 83 70 70 86 82 76 85 84 90 89 1 21 1 20 45 41 40 37 38 20 2 70 83 70 74 67 87 69 12 48 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	THERMOSTAT 79?C	1-13770-041-0	02	1	8712-9001	●
1	THERMOSTAT 76.5?C	1-13770-080-0	02	1	9002-		●
2	HOUSING; THERMOSTAT	1-13716-028-5	01	1	8712-9001	●
2	HOUSING; THERMOSTAT	1-13716-163-0	01	1	9002-9604		●
2	HOUSING; THERMOSTAT	1-13716-188-1	01	1	9605-		●
12	BOLT; HSG M8X100 W/LK WASHER	5-09000-086-0	05	1	8712-8802	●
12	BOLT; HSG M8X100	5-09000-087-0	05	1	8803-9006	●	●
12	BOLT; HSG M8X100 W/LK&PL WASHER	0-50140-800-0	05	1	9007-		●
20	RING; SEAL	1-13779-005-0	02	1	8712-9306	●	●
20	RING; SEAL	1-13779-005-0	02	1	9307-		●
21	GASKET; PUMP TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	1-13743-023-0	01	1	8712-	●	●
37	WASHER; LK,DUCT,SUCTION ID=10.2	9-09150-510-0	03	1	8712-9306	●	●
38	NUT; DUCT,SUCTION M10	9-09110-410-0	06	1	8712-9001	●
38	NUT; DUCT,SUCTION M10 FLANGE	0-91150-110-0	03	1	9002-9604		●
40	DUCT; WATER,SUCTION	1-13711-330-1	01	1	8712-9604	●	●
41	GASKET; DUCT TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	1-13742-012-0	01	1	8712-9604	●	●
45	STUD; DUCT M10X25 L=40	9-04411-025-0	03	1	8712-9604	●	●
48	WASHER; PL,THERMOSTAT HSG ID=8.4	9-09160-508-0	05	1	8712-8802	●
67	DUCT; WATER,OUTLET (B) LH BANK	1-13711-085-2	01	1	8712-9001	●
67	DUCT; WATER,OUTLET (A) RH BANK	1-13711-291-0	01	1	8712-9001	●
67	DUCT; WATER,OUTLET (B) LH BANK	1-13711-583-0	01	1	9002-		●
67	DUCT; WATER,OUTLET (A) RH BANK	1-13711-584-2	01	1	9002-		●
68	STUD; ADJ PLATE M12X25 L=43	9-94411-225-0	01	1	8712-	●	●
69	BOLT; DUCT,WATER OUTLET M10X32	9-02351-032-0	05	1	8712-9001	●
69	BOLT; DUCT,WATER OUTLET M10X30	0-28121-030-0	04	1	9002-9002		●
69	BOLT; DUCT,WATER OUTLET M10X30 FLANGE	0-28181-030-0	04	1	9003-		●
70	CLIP; RUBBER HOSE,DUCT TO DUCT	1-09704-065-0	06	1	8712-	●	●
71	DUCT; WATER,OUTLET,CONNECTOR	1-13711-263-2	01	1	8712-9001	●
71	DUCT; WATER,OUTLET,CONNECTOR	1-13711-380-1	01	1	9002-		●
72	BOLT; CONNECTOR M10X90	9-01656-090-0	02	1	8712-9004	●	●
72	BOLT; CONNECTOR M10X90	0-16806-090-0	02	1	9005-		●
73	WASHER; LK,CONNECTOR ID=10.2	9-09150-510-0	02	1	8712-	●	●
74	GASKET; WATER OUTLET DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-196-0	02	1	8712-9001	●
74	GASKET; WATER OUTLET DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-425-0	02	1	9002-		●
76	JOINT; WATER DUCT PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	8712-	●	●
78	HOSE; RUBBER,WATER PIPE	1-09360-378-0	01	1	8712-	●	●
79	CLIP; RUBBER HOSE ID=20	1-09707-084-1	02	1	8712-	●	●
82	PIPE; WATER,HTR (B)	1-13721-369-1	01	1	8712-9001	●
82	PIPE; WATER,HTR (A)	1-13721-370-1	01	1	9002-9003		●
82	PIPE; WATER,HTR (B)	1-13721-369-2	01	1	9004-		●
83	HOSE; RUBBER,DUCT TO DUCT	1-09360-325-0	03	1	8712-	●	●
84	CLIP; WATER PIPE (A) ID=19 L=25	1-09700-515-1	01	1	8712-	●	●
84	CLIP; WATER PIPE (B) ID=19 L=23	5-09700-386-0	01	1	8712-	●	●
85	BOLT; CLIP M10X18	9-02351-018-0	02	1	8712-9001	●
85	BOLT; CLIP M10X16 W/LK WASHER	9-01931-016-0	02	1	9002-9004		●
85	BOLT; CLIP M10X16 W/LK WASHER	1-09033-012-0	02	1	9005-9006		●
85	BOLT; CLIP M10X16 W/LK WASHER	1-09033-012-0	01	1	9007-		●
85	BOLT; CLIP M10X18 FLANGE	8-94147-156-1	01	1	9007-		●
86	WASHER; LK,BOLT ID=10.2	9-09150-510-0	02	1	8712-8808	●
87	WASHER; BRKT ID=10.5 OD=18	9-09160-510-0	05	1	8712-8811	●
88	WASHER; LK,DUCT,WATER OUTLET ID=10.2	9-09150-510-0	05	1	8712-8811	●
89	BRACKET	1-13719-027-0	01	1	8712-	●	●
90	BOLT; BRKT M10X20 W/LK WASHER	9-01911-020-0	02	1	8712-9001	●	●
90	BOLT; BRKT M10X20 W/LK WASHER	9-01911-020-0	01	1	9002-9002	●	●
90	BOLT; BRKT M10X20 W/LK WASHER	0-50041-020-0	01	1	9003-9306		●
90	BOLT; BRKT M10X18 FLANGE	8-94147-156-1	01	1	9307-		●
