Isuzu WW
▶
TRUCKS
▶
NKR
▶
50945 - NKR(EUROPE)-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶

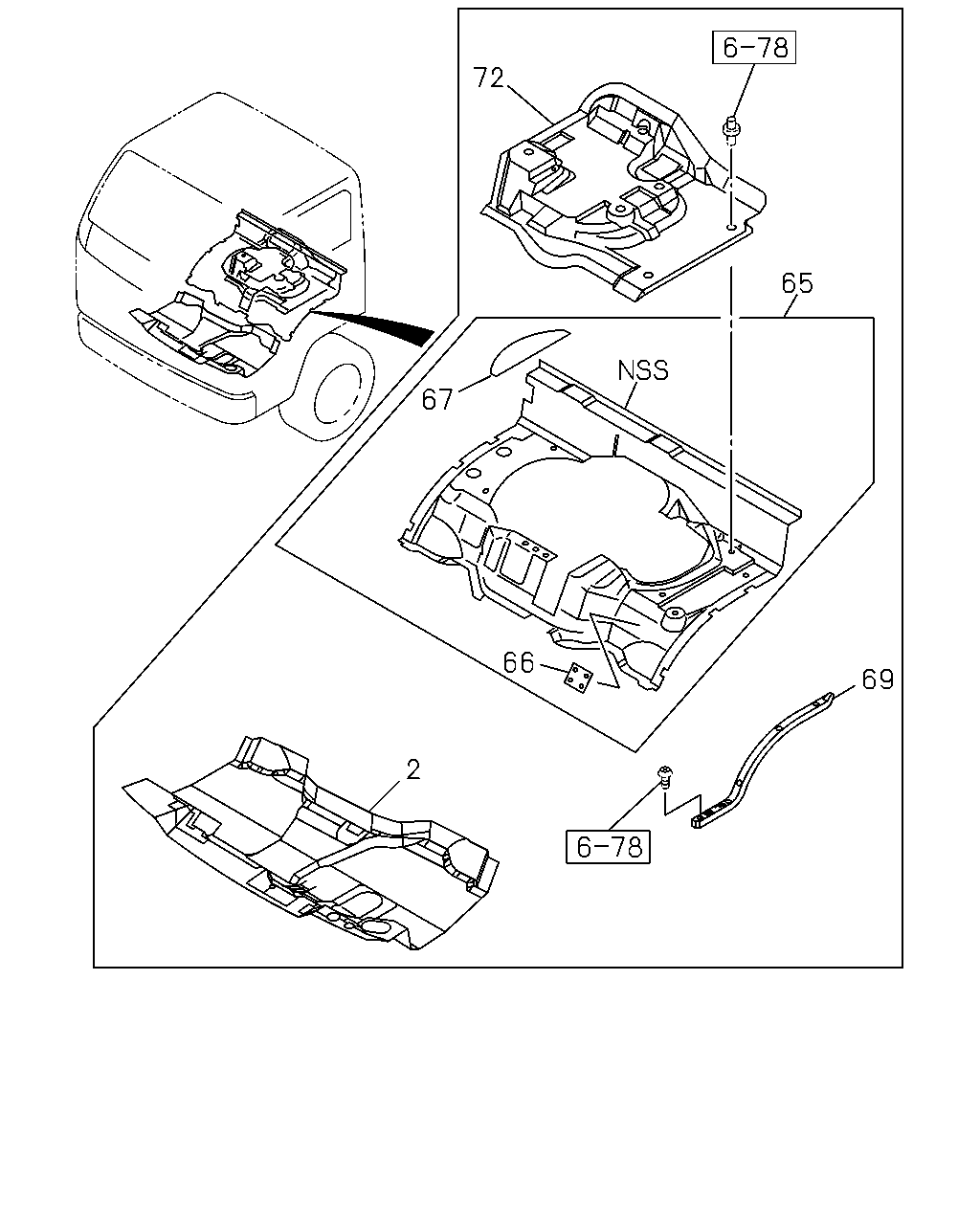

6-75 — MAT AND CARPET
(#42497) — 20 parça
Tümü
A - NKB6SC
B - NKC6SC
C - NKC6SF
72
65
67
66
69
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK GRAY
8-97996-632-2
01
1
0302-0506
●
●
●
2
16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) GRAY
8-97587-424-4
01
1
0507-
●
●
●
2
16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY
8-97996-630-2
01
1
0302-0506
●
●
●
2
16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY
8-97587-423-4
01
1
0507-
●
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
DARK GRAY
8-97996-698-0
01
1
0302-0506
●
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
GRAY
8-97587-434-1
01
1
0507-0606
●
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
GRAY
8-97407-850-0
01
1
0607-
●
●
●
66
16.549 HOOK; COVER
DARK GRAY
8-97997-582-0
02
1
0302-0506
●
●
●
66
16.549 HOOK; COVER
GRAY
8-97583-948-0
02
1
0507-
●
●
●
67
16.549 LID; COVER
DARK GRAY
8-97997-588-0
01
1
0302-0506
●
●
●
67
16.549 LID; COVER
GRAY
8-97587-505-0
01
1
0507-
●
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY
8-97857-552-0
01
1
0302-0506
●
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97582-229-1
01
1
0507-0702
●
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97409-479-0
01
1
0703-
●
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY
8-97857-551-0
01
1
0302-0506
●
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97582-228-1
01
1
0507-0702
●
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97409-478-0
01
1
0703-
●
●
●
72
16.800 MAT; SILENCER,ENG COVER
DARK GRAY
8-97996-765-0
01
1
0302-0506
●
●
●
72
16.800 MAT; SILENCER,ENG COVER
GRAY
8-97587-474-1
01
1
0507-0606
●
●
●
72
16.800 MAT; SILENCER,ENG COVER
GRAY
8-98041-106-0
01
1
0607-
●
●
●
