0-38B — AIR COMPRESSOR PIPING; ENGINE SIDE (#4249) — 104 parça

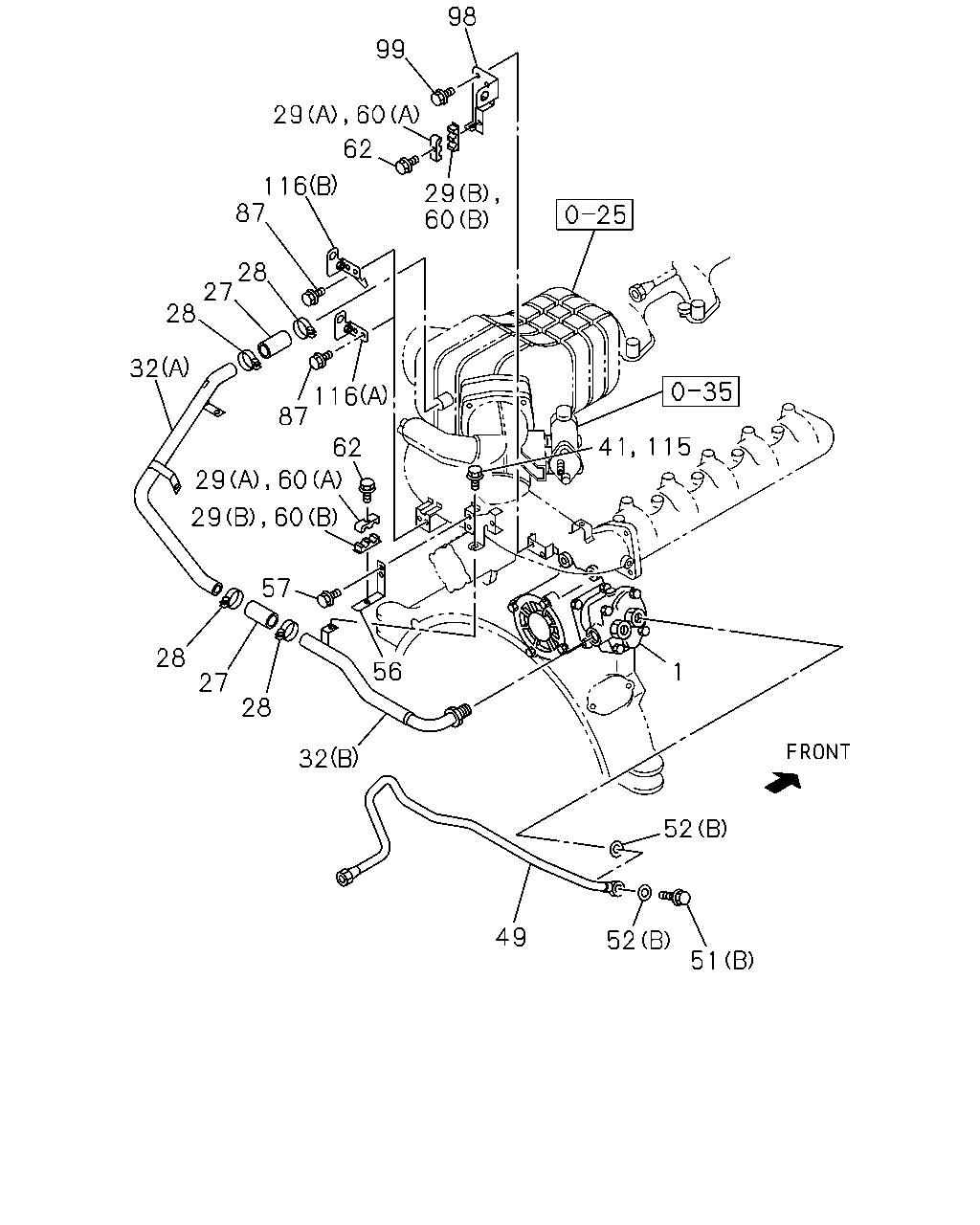

çizim 40832
98 99 29 60 62 116 87 29 60 28 27 28 32 116 87 115 41 62 29 60 57 28 56 1 27 28 32 52 49 52 51 60 29
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-177-5 01 1 9603-9904 ● ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		1-19100-177-5 01 1 9905- ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-177-5 01 1 9905- ● ● ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-212-6 01 1 9603-9611 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-212-6 01 1 9612-9904 ● ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-305-2 01 1 9905- ● ● ●
27 HOSE; AIR CMPR,SUCTION
L=55 		1-09360-784-0 02 1 9603-9904 ● ●
27 HOSE; AIR CMPR,SUCTION
L=55 		1-09360-784-0 02 1 9905- ● ● ● ●
28 CLIP; HOSE,AIR CMPR
ID=28.5 		1-09707-150-0 04 1 9603-9904 ● ●
28 CLIP; HOSE,AIR CMPR
ID=28.5 		1-09707-150-0 04 1 9905- ● ● ● ●
29 CLIP; AIR PIPE
(A) 		1-09701-193-1 02 1 9603-9904 ●
29 CLIP; AIR PIPE
(A) 		1-09701-193-1 02 1 9905- ● ● ●
29 CLIP; AIR PIPE
(B) 		1-09701-194-0 02 1 9603-9904 ●
29 CLIP; AIR PIPE
(B) 		1-09701-194-1 02 1 9905- ● ● ●
32 PIPE; AIR,AIR CMPR
(A) 		1-19192-902-0 01 1 9603-9904 ● ●
32 PIPE; AIR,AIR CMPR
(A) 		1-19192-902-0 01 1 9905- ● ● ● ●
32 PIPE; AIR,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-927-0 01 1 9603-9605 ● ●
32 PIPE; AIR,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-983-0 01 1 9606-9904 ● ●
32 PIPE; AIR,AIR CMPR
(B) 		1-19192-983-0 01 1 9905- ●
32 PIPE; AIR,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-983-0 01 1 9905- ● ● ●
32 PIPE; AIR,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-881-0 01 1 9603-9605 ●
32 PIPE; AIR,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-981-0 01 1 9606-9611 ●
32 PIPE; AIR,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-981-0 01 1 9612-9904 ● ●
32 PIPE; AIR,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-984-0 01 1 9905- ● ● ●
41 BOLT; CLIP
M6X12 FLANGE 		0-28080-612-0 03 1 9603- ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE REAR PTO(SV1) 		1-19192-928-0 01 1 9603-9904 ● ●
49 PIPE; AIR,CHARGE
EXC. ENGINE REAR PTO(SV1) 		1-19192-928-0 01 1 9905- ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE REAR PTO(SV1) 		1-19192-928-0 01 1 9905- ● ● ●
49 PIPE; AIR,CHARGE
ENGINE REAR PTO(SV1) 		1-19192-956-0 01 1 9603-9904 ● ●
49 PIPE; AIR,CHARGE
ENGINE REAR PTO(SV1) 		1-19192-956-0 01 1 9905- ●
49 PIPE; AIR,CHARGE
ENGINE REAR PTO(SV1) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19192-956-0 01 1 9905- ● ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19192-882-0 01 1 9603-9611 ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19192-882-0 01 1 9612-9904 ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) 		1-19193-073-0 01 1 9905- ● ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
(B) M24X39 		1-09675-175-1 01 1 9603-9609 ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
(B) M24X39 		1-09675-175-1 01 1 9610-9904 ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
(B) M24X39 		1-09675-175-1 01 1 9905- ● ● ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32 		9-09571-424-0 02 1 9603-9609 ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32 		9-09571-424-0 02 1 9610-9904 ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32 		9-09571-424-0 02 1 9905- ● ● ● ●
56 BRACKET; AIR PIPE FIX 1-19199-228-0 01 1 9603-9904 ● ●
56 BRACKET; AIR PIPE FIX 1-19199-228-0 01 1 9905- ● ● ● ●
57 BOLT; BRKT,AIR PIPE
M6X12 FLANGE 		0-28080-612-0 02 1 9603-9904 ● ●
57 BOLT; BRKT,AIR PIPE
M6X12 FLANGE 		0-28080-612-0 02 1 9905- ● ● ● ●
60 CLIP; AIR PIPE
(A) 		1-09701-193-1 02 1 9603- ●
60 CLIP; AIR PIPE
(B) 		1-09701-194-1 02 1 9603- ●
62 BOLT; CLIP
M6X35 FLANGE 		0-28080-635-0 02 1 9603-9904 ● ●
62 BOLT; CLIP
M6X35 FLANGE 		0-28080-635-0 02 1 9905- ● ● ● ●
87 BOLT; BRKT FIX
M8X16 FLANGE 		0-28080-816-0 02 1 9603-9904 ● ●
87 BOLT; BRKT FIX
M8X16 FLANGE 		0-28080-816-0 02 1 9905- ● ● ● ●
98 BRACKET; AIR & OIL PIPE 1-19199-227-0 01 1 9603-9904 ● ●
98 BRACKET; AIR & OIL PIPE 1-19199-227-0 01 1 9905- ● ● ● ●
99 BOLT; BRKT AIR PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 9603-9904 ● ●
99 BOLT; BRKT AIR PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 9905- ● ● ● ●
115 BOLT; AIR PIPE
M6X12 FLANGE 		0-28080-612-0 03 1 9603-9904 ● ●
115 BOLT; AIR PIPE
M6X12 FLANGE 		0-28080-612-0 03 1 9905- ● ● ● ●
116 BRACKET; AIR PIPE
ENGINE REAR PTO(SV1) (B) 		1-13319-028-0 01 1 9603-9904 ● ●
116 BRACKET; AIR PIPE
ENGINE REAR PTO(SV1) (B) 		1-13319-028-0 01 1 9905- ● ● ● ●
116 BRACKET; AIR PIPE
EXC. ENGINE REAR PTO(SV1) (A) 		1-22196-326-1 01 1 9603-9904 ● ●
116 BRACKET; AIR PIPE
EXC. ENGINE REAR PTO(SV1) (A) 		1-22196-326-1 01 1 9905- ● ● ● ●

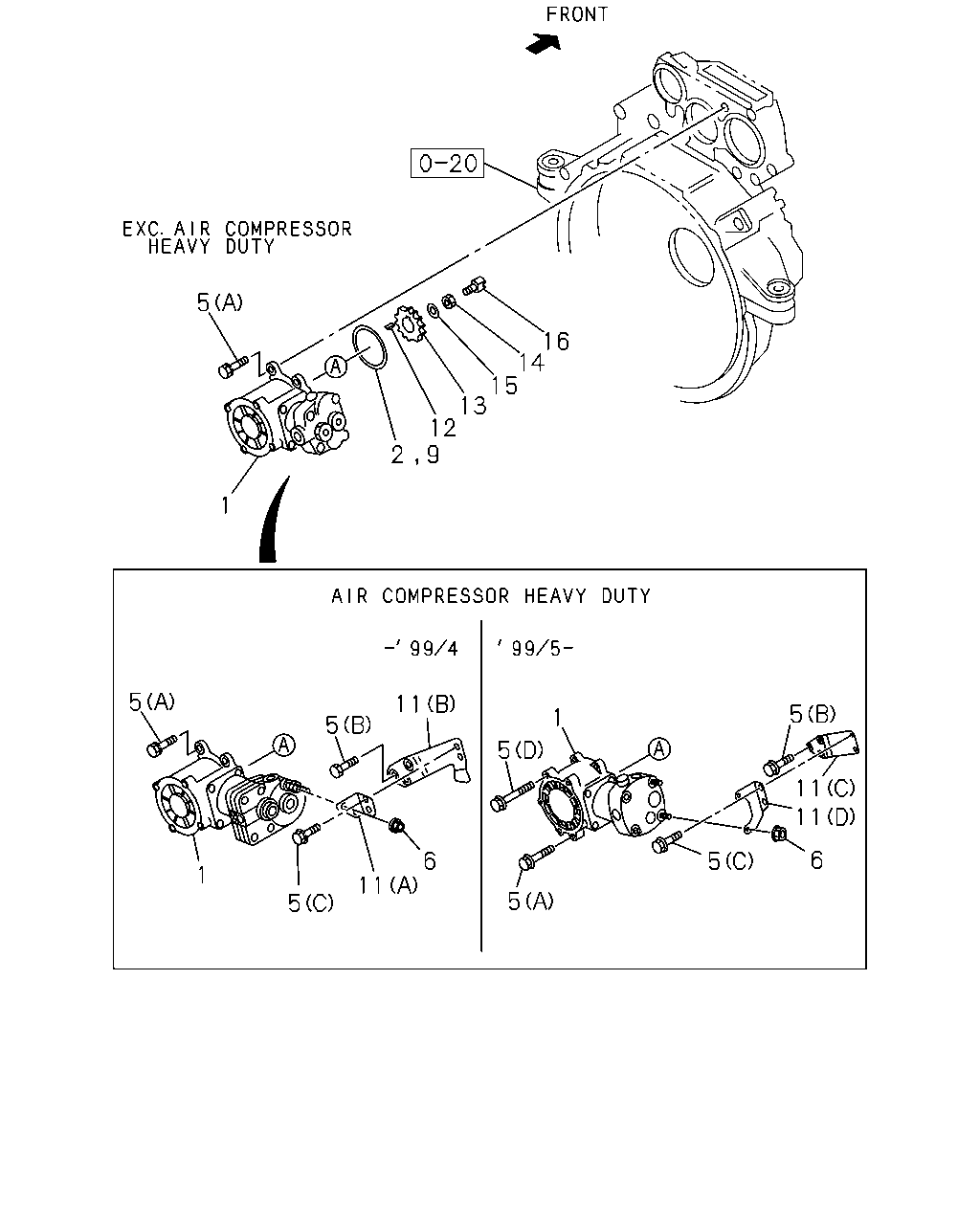

çizim 43214
5 16 14 15 13 12 9 2 1 5 11 5 1 5 5 11 11 6 6 5 1 11 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-177-5 01 1 9603-9904 ● ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		1-19100-177-5 01 1 9905- ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-177-5 01 1 9905- ● ● ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-212-6 01 1 9603-9611 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-212-6 01 1 9612-9904 ● ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-305-2 01 1 9905- ● ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6 		1-09623-423-0 01 1 9603-9904 ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6 		1-09623-423-0 01 1 9905- ● ● ●
5 BOLT; AIR CMPR FIX
(C) M10X20 FLANGE 		0-28081-020-0 02 1 9612-9904 ●
5 BOLT; AIR CMPR FIX
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M12X90 FLANGE 		0-28181-290-0 01 1 9905-9905 ● ● ●
5 BOLT; AIR CMPR FIX
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (A) M12X90 FLANGE 		0-28181-290-0 01 1 9906- ● ● ●
5 BOLT; AIR CMPR FIX
(A) M12X40 W/LK&PL WASHER 		0-50151-240-0 04 1 9603-9611 ● ●
5 BOLT; AIR CMPR FIX
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M12X40 W/LK&PL WASHER 		0-50151-240-0 04 1 9612-9702 ●
5 BOLT; AIR CMPR FIX
(A) M12X40 W/LK&PL WASHER 		0-50151-240-0 04 1 9612-9702 ●
5 BOLT; AIR CMPR FIX
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M12X35 FLANGE 		0-28181-235-0 04 1 9703-9904 ●
5 BOLT; AIR CMPR FIX
(A) M12X35 FLANGE 		0-28181-235-0 04 1 9703-9904 ●
5 BOLT; AIR CMPR FIX
(A) M12X35 FLANGE 		0-28181-235-0 04 1 9905- ●
5 BOLT; AIR CMPR FIX
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M12X35 FLANGE 		0-28181-235-0 04 1 9905- ● ● ●
5 BOLT; AIR CMPR FIX
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X18 FLANGE 		0-28181-018-0 03 1 9603-9611 ●
5 BOLT; AIR CMPR FIX
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X18 FLANGE 		0-28181-018-0 03 1 9612-9904 ● ●
5 BOLT; AIR CMPR FIX
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X18 FLANGE 		0-28181-018-0 03 1 9905- ● ● ●
5 BOLT; AIR CMPR FIX
AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M10X20 W/LK&PL WASHER 		0-50141-020-0 01 1 9603-9904 ●
5 BOLT; AIR CMPR FIX
AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M10X20 W/LK&PL WASHER 		0-50141-020-0 01 1 9905- ● ● ●
5 BOLT; AIR CMPR FIX
AIR COMPRESSOR HEAVY DUTY(E1Q) (D) M12X140 FLANGE 		0-28186-214-0 03 1 9905- ● ● ●
6 NUT; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) M10 FLANGE 		0-91150-210-0 02 1 9603-9611 ●
6 NUT; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) M10 FLANGE 		0-91150-210-0 02 1 9612-9904 ● ●
6 NUT; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) M10 FLANGE 		0-91150-210-0 02 1 9905- ● ● ●
9 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6 		1-09623-423-0 01 1 9603- ●
11 BRACKET; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-19187-018-0 01 1 9603-9611 ●
11 BRACKET; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-19187-018-0 01 1 9612-9904 ● ●
11 BRACKET; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) (C) 		1-19187-030-0 01 1 9905- ● ● ●
11 BRACKET; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19187-023-1 01 1 9603-9611 ●
11 BRACKET; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19187-023-1 01 1 9612-9904 ● ●
11 BRACKET; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) (D) 		1-19187-031-0 01 1 9905- ● ● ●
12 KEY; AIR CMPR GEAR 9-08055-516-0 01 1 9603-9904 ● ●
12 KEY; AIR CMPR GEAR 9-08055-516-0 01 1 9905- ● ● ● ●
13 GEAR; AIR CMPR DRIVE
Z=26 		1-12524-044-0 01 1 9603-9904 ● ●
13 GEAR; AIR CMPR DRIVE
Z=26 		1-12524-044-1 01 1 9905- ● ● ● ●
14 NUT; GEAR
M20 		9-99111-520-0 01 1 9603-9904 ● ●
14 NUT; GEAR
M20 		9-99111-520-0 01 1 9905- ● ● ● ●
15 WASHER; GEAR
ID=21 		9-09164-520-0 01 1 9603-9904 ● ●
15 WASHER; GEAR
ID=21 		9-09164-520-0 01 1 9905- ● ● ● ●
16 ADAPTER 1-12539-010-0 01 1 9603-9904 ● ●
16 ADAPTER 1-12539-010-0 01 1 9905- ● ● ● ●
