6-05 — FRONT PANEL (#42484) — 105 parça

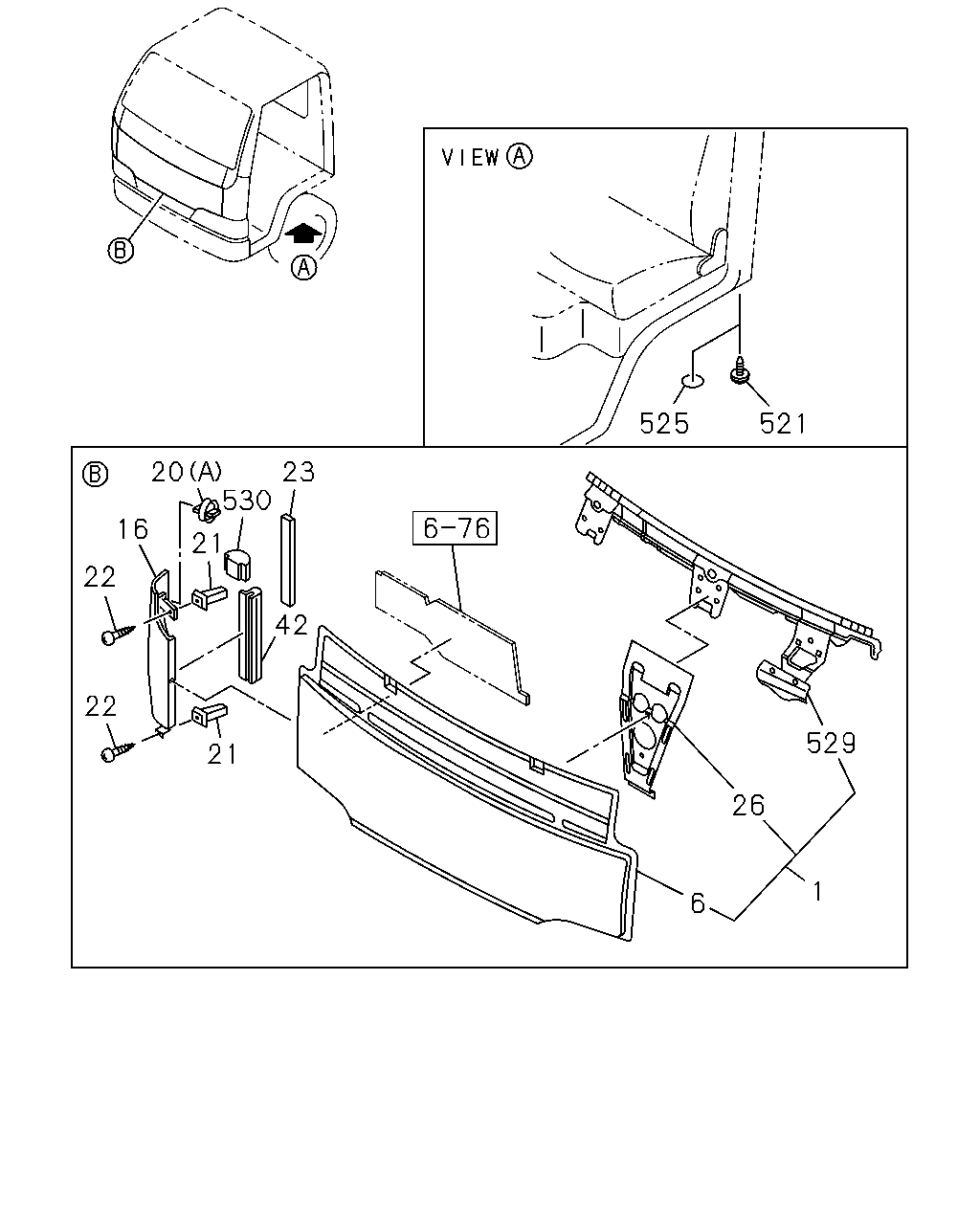

525 521 23 530 20 16 21 22 42 22 529 21 26 1 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.550 PANEL ASM; FRT	8-97869-030-1	01	1	0302-0506	●	●	●
1	16.550 PANEL ASM; FRT	8-97582-868-0	01	1	0507-	●	●	●
6	16.570 PANEL; FRONT	8-97869-031-2	01	1	0302-0506	●	●	●
6	16.570 PANEL; FRONT	8-97582-871-2	01	1	0507-	●	●	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WHITE	8-97582-169-3	01	1	0507-	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WHITE	8-97582-153-3	01	1	0507-	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE	8-97585-431-4	01	1	0507-	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE	8-97585-431-4	01	1	0507-		●	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE	8-97585-429-4	01	1	0507-	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE	8-97585-429-4	01	1	0507-		●	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> BLUE	8-97582-174-3	01	1	0507-	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> BLUE	8-97582-158-3	01	1	0507-	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> SILVER	8-97582-171-3	01	1	0507-	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> SILVER	8-97582-155-3	01	1	0507-	●
16	16.588 PANEL; FRONT,SIDE PLEASE PAINT TO MATCH BODY COLOR	8-97896-654-0	01	1	0302-0506	●	●	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE	8-97585-430-4	01	1	0507-	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE	8-97585-430-4	01	1	0507-		●	●
16	16.588 PANEL; FRONT,SIDE PLEASE PAINT TO MATCH BODY COLOR	8-97896-653-0	01	1	0302-0506	●	●	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE	8-97585-428-4	01	1	0507-	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE	8-97585-428-4	01	1	0507-		●	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE	8-97402-788-1	01	1	0507-	●	●	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE	8-97402-785-1	01	1	0507-	●	●	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE	8-97402-789-1	01	1	0507-	●	●	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE	8-97402-786-1	01	1	0507-	●	●	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR POLAR SILVER MET(845) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER	8-97402-790-1	01	1	0507-	●	●	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR POLAR SILVER MET(845) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER	8-97587-711-4	01	1	0507-	●	●	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR POLAR SILVER MET(845) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER	8-97402-787-1	01	1	0507-	●	●	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR POLAR SILVER MET(845) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER	8-97587-710-4	01	1	0507-	●	●	●
20	16.588 CLIP; FRT PANEL SIDE (A)	8-94279-814-0	04	1	0302-0506	●	●	●
20	16.588 CLIP; FRT PANEL SIDE (D)	8-97581-632-1	04	1	0507-	●	●	●
20	16.588 CLIP; FRT PANEL SIDE 16.570 (B) D4.2X13	1-09983-161-0	04	1	0507-	●	●	●
20	16.588 CLIP; FRT PANEL SIDE (C) H=11.6	8-98013-823-0	02	1	0507-	●	●	●
21	16.588 GROMMET; SCREW,FRT SIDE PANEL 16.802 D=7.8X7.8 L=18 NATURAL	8-94279-043-0	06	1	0302-	●	●	●
22	16.588 SCREW; FRT PANEL SIDE 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	06	1	0302-0506	●	●	●
23	16.588 PIECE; DIST,FRT PANEL SIDE H=10 L=55	8-97857-444-0	02	1	0302-0410	●	●	●
23	16.588 PIECE; DIST,FRT PANEL SIDE H=10 L=55	8-97410-832-0	02	1	0411-0506	●	●	●
26	16.592 PANEL; REINF,FRT PANEL CENTER,IN	8-97851-038-1	01	1	0302-	●	●	●
42	01.303 FINISHER; FRT PANEL,SIDE DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97411-043-0	01	1	0607-	●
42	01.303 FINISHER; FRT PANEL,SIDE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97411-043-0	01	1	0607-		●	●
42	01.303 FINISHER; FRT PANEL,SIDE DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97411-044-0	01	1	0607-	●
42	01.303 FINISHER; FRT PANEL,SIDE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97411-044-0	01	1	0607-		●	●
42	01.303 FINISHER; FRT PANEL,SIDE EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97581-613-3	01	1	0607-	●
42	01.303 FINISHER; FRT PANEL,SIDE DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-613-3	01	1	0607-	●
42	01.303 FINISHER; FRT PANEL,SIDE WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-613-3	01	1	0607-		●	●
42	01.303 FINISHER; FRT PANEL,SIDE EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97581-614-3	01	1	0607-	●
42	01.303 FINISHER; FRT PANEL,SIDE DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-614-3	01	1	0607-	●
42	01.303 FINISHER; FRT PANEL,SIDE WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-614-3	01	1	0607-		●	●
42	01.303 FINISHER; FRT PANEL,SIDE	8-97857-413-0	02	1	0302-0506	●	●	●
521	08.153 PLUG; HOLE,FENDER MANUAL TILT CAB<RWZ> 04.931 OD=15 L=14.5	1-76378-157-0	03	1	0302-0304	●	●	●
521	08.153 PLUG; HOLE,FENDER EXC. MANUAL TILT CAB<RWZ> 04.931 OD=15 L=14.5	1-76378-157-0	06	1	0302-0304	●	●	●
525	08.131 SEAL; FENDER MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK	1-76798-019-0	03	1	0305-	●	●	●
525	08.131 SEAL; FENDER EXC. MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK	1-76798-019-0	06	1	0305-0606	●	●	●
529	16.578 REINFORCEMENT; PANEL	8-97851-373-2	01	1	0302-	●	●	●
530	01.303 STOPPER; FRT PANEL,SIDE	8-97856-589-0	02	1	0302-0506	●	●	●

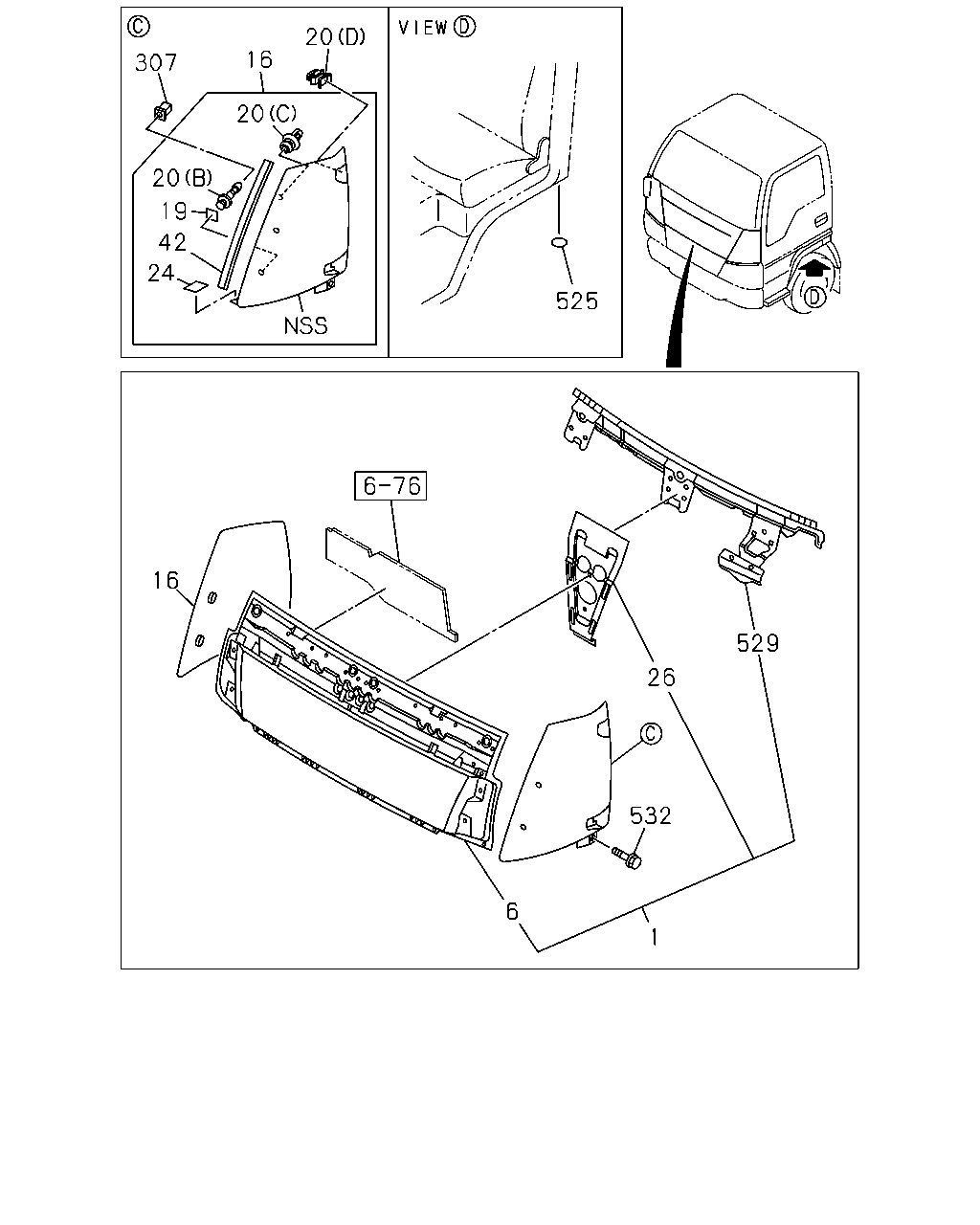

20 16 307 20 20 19 42 24 525 16 529 26 532 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.550 PANEL ASM; FRT	8-97869-030-1	01	1	0302-0506	●	●	●
1	16.550 PANEL ASM; FRT	8-97582-868-0	01	1	0507-	●	●	●
6	16.570 PANEL; FRONT	8-97869-031-2	01	1	0302-0506	●	●	●
6	16.570 PANEL; FRONT	8-97582-871-2	01	1	0507-	●	●	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WHITE	8-97582-169-3	01	1	0507-	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WHITE	8-97582-153-3	01	1	0507-	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE	8-97585-431-4	01	1	0507-	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE	8-97585-431-4	01	1	0507-		●	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE	8-97585-429-4	01	1	0507-	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE	8-97585-429-4	01	1	0507-		●	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> BLUE	8-97582-174-3	01	1	0507-	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> BLUE	8-97582-158-3	01	1	0507-	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> SILVER	8-97582-171-3	01	1	0507-	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> SILVER	8-97582-155-3	01	1	0507-	●
16	16.588 PANEL; FRONT,SIDE PLEASE PAINT TO MATCH BODY COLOR	8-97896-654-0	01	1	0302-0506	●	●	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE	8-97585-430-4	01	1	0507-	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE	8-97585-430-4	01	1	0507-		●	●
16	16.588 PANEL; FRONT,SIDE PLEASE PAINT TO MATCH BODY COLOR	8-97896-653-0	01	1	0302-0506	●	●	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE	8-97585-428-4	01	1	0507-	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE	8-97585-428-4	01	1	0507-		●	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE	8-97402-788-1	01	1	0507-	●	●	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> WHITE	8-97402-785-1	01	1	0507-	●	●	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE	8-97402-789-1	01	1	0507-	●	●	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> BLUE	8-97402-786-1	01	1	0507-	●	●	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR POLAR SILVER MET(845) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER	8-97402-790-1	01	1	0507-	●	●	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR POLAR SILVER MET(845) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER	8-97587-711-4	01	1	0507-	●	●	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR POLAR SILVER MET(845) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER	8-97402-787-1	01	1	0507-	●	●	●
16	16.588 PANEL; FRONT,SIDE BODY COLOR POLAR SILVER MET(845) DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> SILVER	8-97587-710-4	01	1	0507-	●	●	●
19	16.588 SEAL; FRT SIDE PANEL 08.131	8-97581-676-0	04	1	0507-	●	●	●
20	16.588 CLIP; FRT PANEL SIDE (A)	8-94279-814-0	04	1	0302-0506	●	●	●
20	16.588 CLIP; FRT PANEL SIDE (D)	8-97581-632-1	04	1	0507-	●	●	●
20	16.588 CLIP; FRT PANEL SIDE 16.570 (B) D4.2X13	1-09983-161-0	04	1	0507-	●	●	●
20	16.588 CLIP; FRT PANEL SIDE (C) H=11.6	8-98013-823-0	02	1	0507-	●	●	●
24	08.131 SEAL; FRT PANEL LWR	8-97583-672-0	02	1	0507-	●	●	●
26	16.592 PANEL; REINF,FRT PANEL CENTER,IN	8-97851-038-1	01	1	0302-	●	●	●
42	01.303 FINISHER; FRT PANEL,SIDE DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97411-043-0	01	1	0607-	●
42	01.303 FINISHER; FRT PANEL,SIDE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97411-043-0	01	1	0607-		●	●
42	01.303 FINISHER; FRT PANEL,SIDE DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97411-044-0	01	1	0607-	●
42	01.303 FINISHER; FRT PANEL,SIDE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97411-044-0	01	1	0607-		●	●
42	01.303 FINISHER; FRT PANEL,SIDE EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97581-613-3	01	1	0607-	●
42	01.303 FINISHER; FRT PANEL,SIDE DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-613-3	01	1	0607-	●
42	01.303 FINISHER; FRT PANEL,SIDE WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-613-3	01	1	0607-		●	●
42	01.303 FINISHER; FRT PANEL,SIDE EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF>	8-97581-614-3	01	1	0607-	●
42	01.303 FINISHER; FRT PANEL,SIDE DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-614-3	01	1	0607-	●
42	01.303 FINISHER; FRT PANEL,SIDE WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-614-3	01	1	0607-		●	●
42	01.303 FINISHER; FRT PANEL,SIDE	8-97857-413-0	02	1	0302-0506	●	●	●
307	16.125 GROMMET; FRT PANEL	8-97583-397-0	04	1	0507-	●	●	●
525	08.131 SEAL; FENDER MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK	1-76798-019-0	03	1	0305-	●	●	●
525	08.131 SEAL; FENDER EXC. MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK	1-76798-019-0	06	1	0305-0606	●	●	●
529	16.578 REINFORCEMENT; PANEL	8-97851-373-2	01	1	0302-	●	●	●
532	08.143 BOLT; FRT PANEL 02.334 M6X16 W/PL WASHER	8-97803-781-0	02	1	0507-	●	●	●
