6-03 — RADIATOR GRILLE (#42482) — 106 parça

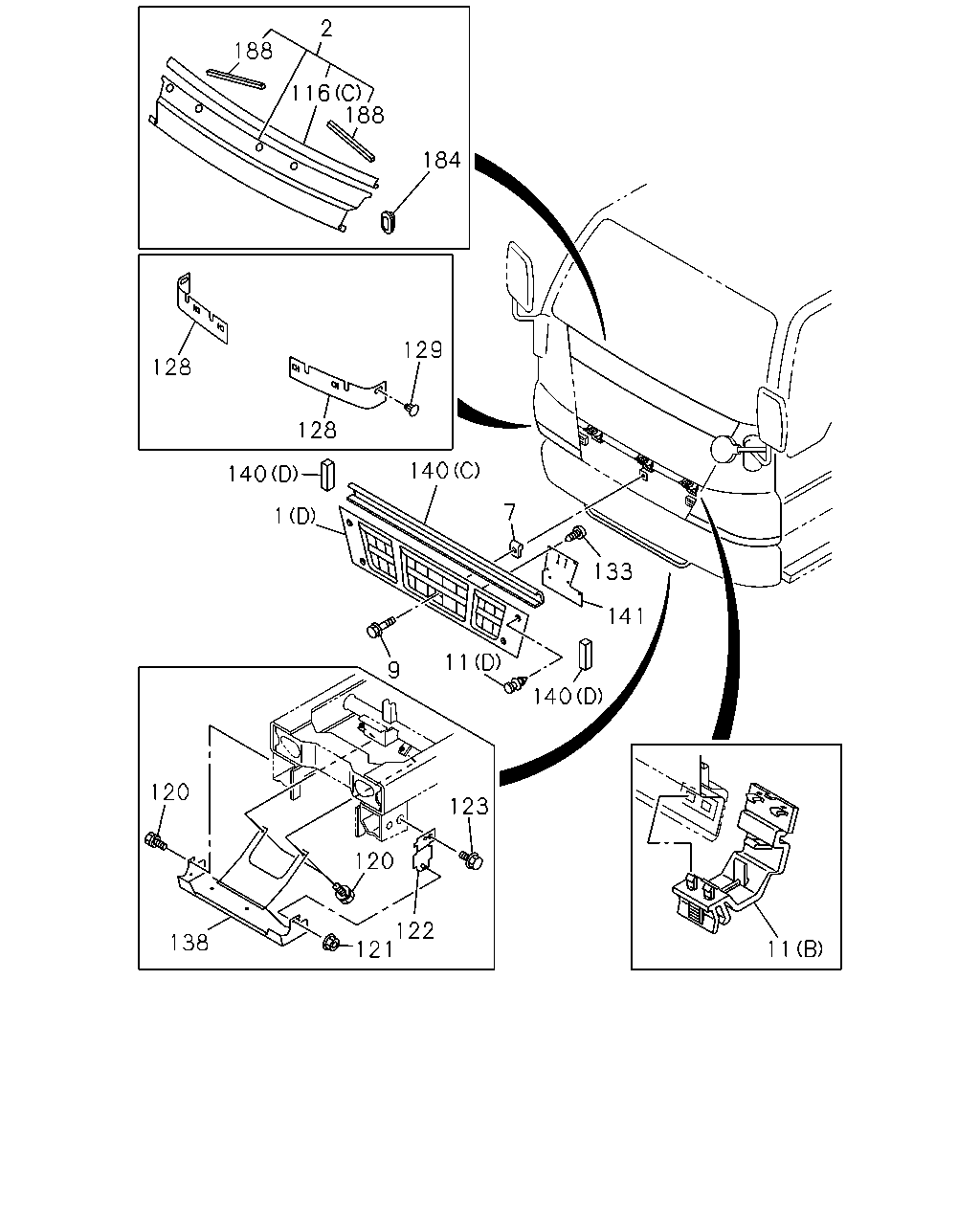

2 188 116 188 184 129 128 128 140 140 7 1 133 141 11 9 140 120 123 120 122 121 138 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.266 GRILLE; RAD BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) WHITE	8-97582-414-4	01	1	0607-0607	●	●
1	01.266 GRILLE; RAD BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) BLUE	8-97582-418-4	01	1	0607-	●	●
1	01.266 GRILLE; RAD BODY COLOR ARC WHITE(729) EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (A) WHITE	8-97995-758-0	01	1	0302-0506	●	●	●
1	01.266 GRILLE; RAD BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) SILVER	8-97582-410-4	01	1	0507-	●	●	●
1	01.266 GRILLE; RAD BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) WHITE	8-97582-414-4	01	1	0507-0606	●	●	●
1	01.266 GRILLE; RAD BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) WHITE	8-97582-414-4	01	1	0607-0607			●
1	01.266 GRILLE; RAD BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) WHITE	8-97582-414-4	01	1	0608-	●	●	●
1	01.266 GRILLE; RAD BODY COLOR MARINE BLUE(890) EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (A) BLUE	8-97995-759-0	01	1	0302-0506	●	●	●
1	01.266 GRILLE; RAD BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) BLUE	8-97582-418-4	01	1	0507-0606	●	●	●
1	01.266 GRILLE; RAD BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) BLUE	8-97582-418-4	01	1	0607-			●
1	01.266 GRILLE; RAD BODY COLOR POLAR SILVER MET(845) EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (A) SILVER	8-97995-766-0	01	1	0302-0506	●	●	●
1	01.266 GRILLE; RAD EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (B)	8-97995-026-0	01	1	0302-0506	●	●	●
1	01.266 GRILLE; RAD EXC. EXTERIOR ORNAMENTATION DELUXE<B57> (C) PLEASE PAINT TO MATCH BODY COLOR	8-97890-871-1	01	1	0302-0506	●	●	●
1	01.266 GRILLE; RAD RADIATOR GRILLE NON PAINT<7LB> (D) PLEASE PAINT TO MATCH BODY COLOR	8-97581-825-2	01	1	0507-	●	●	●
2	01.266 GRILLE; ORNAMENT WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97868-581-3	01	1	0302-0506	●	●	●
2	01.266 GRILLE; ORNAMENT WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97585-546-3	01	1	0507-	●	●	●
2	01.266 GRILLE; ORNAMENT EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97868-580-3	01	1	0302-0506	●	●	●
2	01.266 GRILLE; ORNAMENT EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97582-873-5	01	1	0507-	●	●	●
7	01.269 NUT; SPIRE,RAD GRILLE 08.155	8-97805-829-0	01	1	0302-0505	●	●	●
7	01.269 NUT; SPIRE,RAD GRILLE	8-98014-760-0	01	1	0506-	●	●	●
9	01.269 SCREW; RAD GRILLE 08.155 M6X20 W/PL WASHER TAPPING	8-94321-767-1	01	1	0302-	●	●	●
11	01.269 CLIP; RAD GRILLE (B) WHITE	8-97102-415-0	03	1	0302-	●	●	●
11	01.269 CLIP; RAD GRILLE EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (C) WHITE	8-97892-729-0	02	1	0302-0506	●	●	●
11	01.269 CLIP; RAD GRILLE (D)	8-97581-651-2	04	1	0507-	●	●	●
11	01.269 CLIP; RAD GRILLE RADIATOR GRILLE NON PAINT<7LB> EXC. EXTERIOR ORNAMENTATION DELUXE<B57> (A) WHITE	8-97892-730-0	02	1	0302-0506	●	●	●
11	01.269 CLIP; RAD GRILLE EXC. EXTERIOR ORNAMENTATION DELUXE<B57>, RADIATOR GRILLE NON PAINT<7LB> (A) WHITE	8-97892-730-0	02	1	0302-0506	●	●	●
116	01.266 MOLDING; ORNAMENT GRILLE (B)	8-97853-097-4	01	1	0302-0506	●	●	●
116	01.266 MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)	8-97853-095-2	01	1	0302-0506	●	●	●
116	01.266 MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (C)	8-97581-655-1	01	1	0507-	●	●	●
120	01.266 BOLT; AIR GUIDE FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0302-0512			●
120	01.266 BOLT; AIR GUIDE FRT INDEPENDENT SUSPENSION(6PP) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0601-0606			●
121	01.266 NUT; AIR GUIDE 01.062 M6 FLANGE	0-91150-206-0	01	1	0302-0602			●
121	01.266 NUT; AIR GUIDE 01.540 M6 FLANGE	0-91180-206-0	01	1	0603-0606			●
122	01.266 BRACKET; AIR GUIDE FRT INDEPENDENT SUSPENSION(6PP)	8-97102-842-0	01	1	0302-0606			●
123	01.266 BOLT; BRKT AIR GUIDE FRT INDEPENDENT SUSPENSION(6PP) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	0302-0512			●
123	01.266 BOLT; BRKT AIR GUIDE FRT INDEPENDENT SUSPENSION(6PP) 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0601-0606			●
128	01.267 COVER; HEADLAMP GRILLE	8-97581-653-3	02	1	0507-0606	●	●	●
128	01.267 COVER; HEADLAMP GRILLE	8-98015-934-0	02	1	0607-	●	●	●
129	01.269 CLIP; COVER HEADLAMP GRILLE D=6.5	8-97855-279-0	02	1	0507-	●	●	●
133	01.269 SCREW; COVER EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> M5X12	8-97995-036-0	06	1	0302-0506	●	●	●
133	01.269 SCREW; COVER 01.303 M5X12 W/PL WASHER	8-94385-565-0	06	1	0507-	●	●	●
138	01.266 GUIDE; AIR FRT INDEPENDENT SUSPENSION(6PP)	8-97101-740-0	01	1	0302-0606			●
140	01.266 SEAL; RAD GRILLE EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (A)	8-97995-037-0	01	1	0302-0506	●	●	●
140	01.266 SEAL; RAD GRILLE (C)	8-97581-664-0	01	1	0507-	●	●	●
140	01.266 SEAL; RAD GRILLE RADIATOR GRILLE NON PAINT<7LB> EXC. EXTERIOR ORNAMENTATION DELUXE<B57> (B)	8-97061-039-3	02	1	0302-0506	●	●	●
140	01.266 SEAL; RAD GRILLE EXC. EXTERIOR ORNAMENTATION DELUXE<B57>, RADIATOR GRILLE NON PAINT<7LB> (B)	8-97061-039-3	02	1	0302-0506	●	●	●
140	01.266 SEAL; RAD GRILLE (D)	8-97583-411-1	02	1	0507-	●	●	●
141	01.266 COVER; RAD GRILLE	8-97581-648-1	01	1	0507-	●	●	●
184	01.269 GROMMET; ORNAMENT	8-97581-668-0	03	1	0507-0602	●	●	●
184	01.269 GROMMET; ORNAMENT	8-97581-668-0	02	1	0603-	●	●	●
188	08.010 SEAL; ORNAMENT	8-97584-800-0	02	1	0507-	●	●	●

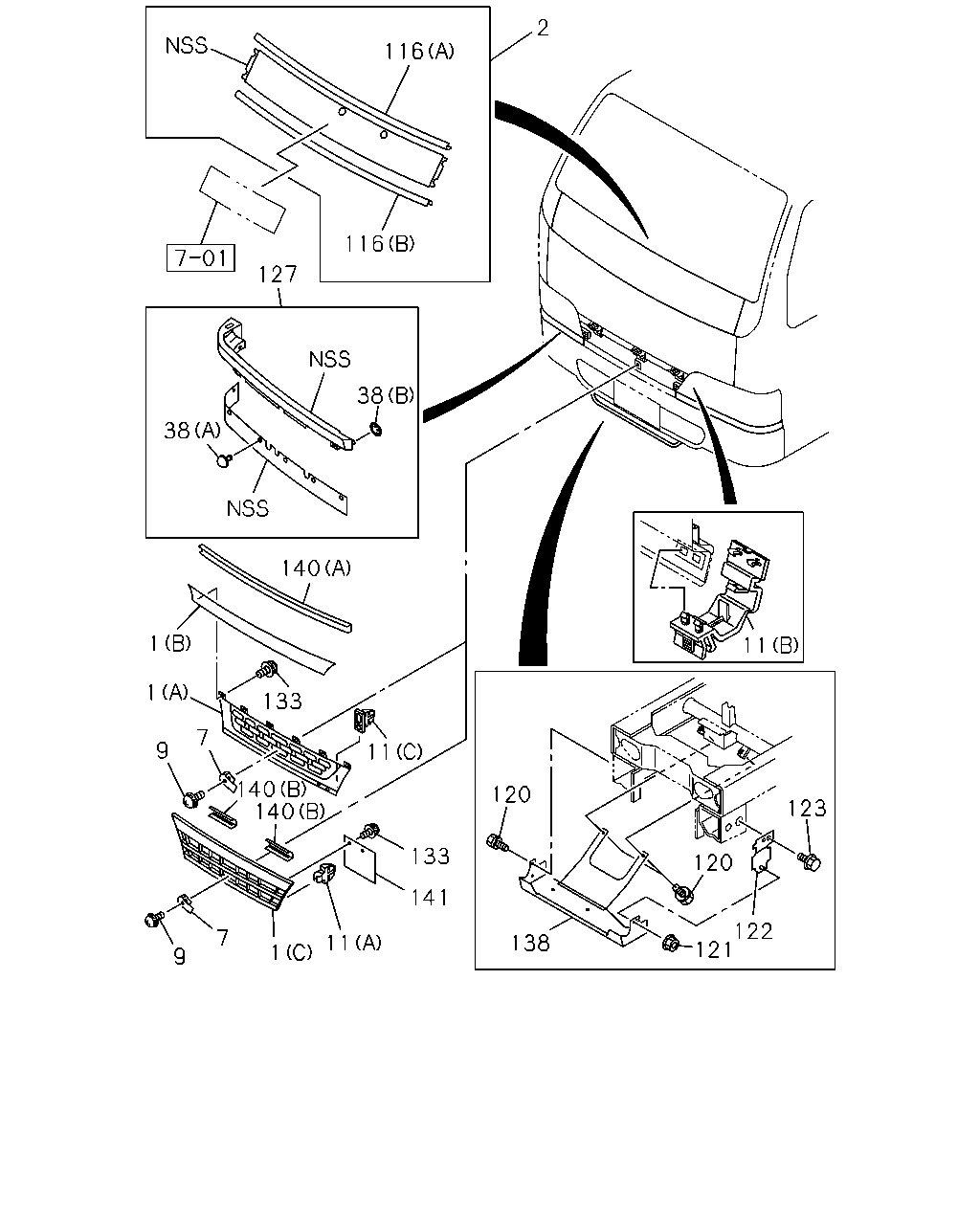

2 116 116 127 38 38 140 1 11 1 133 7 9 11 140 140 120 123 133 120 141 122 121 7 138 11 1 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.266 GRILLE; RAD BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) WHITE	8-97582-414-4	01	1	0607-0607	●	●
1	01.266 GRILLE; RAD BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) BLUE	8-97582-418-4	01	1	0607-	●	●
1	01.266 GRILLE; RAD BODY COLOR ARC WHITE(729) EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (A) WHITE	8-97995-758-0	01	1	0302-0506	●	●	●
1	01.266 GRILLE; RAD BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) SILVER	8-97582-410-4	01	1	0507-	●	●	●
1	01.266 GRILLE; RAD BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) WHITE	8-97582-414-4	01	1	0507-0606	●	●	●
1	01.266 GRILLE; RAD BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) WHITE	8-97582-414-4	01	1	0607-0607			●
1	01.266 GRILLE; RAD BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) WHITE	8-97582-414-4	01	1	0608-	●	●	●
1	01.266 GRILLE; RAD BODY COLOR MARINE BLUE(890) EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (A) BLUE	8-97995-759-0	01	1	0302-0506	●	●	●
1	01.266 GRILLE; RAD BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) BLUE	8-97582-418-4	01	1	0507-0606	●	●	●
1	01.266 GRILLE; RAD BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (D) BLUE	8-97582-418-4	01	1	0607-			●
1	01.266 GRILLE; RAD BODY COLOR POLAR SILVER MET(845) EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (A) SILVER	8-97995-766-0	01	1	0302-0506	●	●	●
1	01.266 GRILLE; RAD EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (B)	8-97995-026-0	01	1	0302-0506	●	●	●
1	01.266 GRILLE; RAD EXC. EXTERIOR ORNAMENTATION DELUXE<B57> (C) PLEASE PAINT TO MATCH BODY COLOR	8-97890-871-1	01	1	0302-0506	●	●	●
1	01.266 GRILLE; RAD RADIATOR GRILLE NON PAINT<7LB> (D) PLEASE PAINT TO MATCH BODY COLOR	8-97581-825-2	01	1	0507-	●	●	●
2	01.266 GRILLE; ORNAMENT WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97868-581-3	01	1	0302-0506	●	●	●
2	01.266 GRILLE; ORNAMENT WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97585-546-3	01	1	0507-	●	●	●
2	01.266 GRILLE; ORNAMENT EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97868-580-3	01	1	0302-0506	●	●	●
2	01.266 GRILLE; ORNAMENT EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97582-873-5	01	1	0507-	●	●	●
7	01.269 NUT; SPIRE,RAD GRILLE 08.155	8-97805-829-0	01	1	0302-0505	●	●	●
7	01.269 NUT; SPIRE,RAD GRILLE	8-98014-760-0	01	1	0506-	●	●	●
9	01.269 SCREW; RAD GRILLE 08.155 M6X20 W/PL WASHER TAPPING	8-94321-767-1	01	1	0302-	●	●	●
11	01.269 CLIP; RAD GRILLE (B) WHITE	8-97102-415-0	03	1	0302-	●	●	●
11	01.269 CLIP; RAD GRILLE EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (C) WHITE	8-97892-729-0	02	1	0302-0506	●	●	●
11	01.269 CLIP; RAD GRILLE (D)	8-97581-651-2	04	1	0507-	●	●	●
11	01.269 CLIP; RAD GRILLE RADIATOR GRILLE NON PAINT<7LB> EXC. EXTERIOR ORNAMENTATION DELUXE<B57> (A) WHITE	8-97892-730-0	02	1	0302-0506	●	●	●
11	01.269 CLIP; RAD GRILLE EXC. EXTERIOR ORNAMENTATION DELUXE<B57>, RADIATOR GRILLE NON PAINT<7LB> (A) WHITE	8-97892-730-0	02	1	0302-0506	●	●	●
38	01.269 CLIP; GRILLE EXC. RADIATOR GRILLE NON PAINT<7LB> (A) D=6.5	8-97855-279-0	09	1	0302-0506	●	●	●
38	01.269 CLIP; GRILLE EXC. RADIATOR GRILLE NON PAINT<7LB> (B)	1-09987-180-0	01	1	0302-0506	●	●	●
116	01.266 MOLDING; ORNAMENT GRILLE (B)	8-97853-097-4	01	1	0302-0506	●	●	●
116	01.266 MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)	8-97853-095-2	01	1	0302-0506	●	●	●
116	01.266 MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (C)	8-97581-655-1	01	1	0507-	●	●	●
120	01.266 BOLT; AIR GUIDE FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0302-0512			●
120	01.266 BOLT; AIR GUIDE FRT INDEPENDENT SUSPENSION(6PP) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0601-0606			●
121	01.266 NUT; AIR GUIDE 01.062 M6 FLANGE	0-91150-206-0	01	1	0302-0602			●
121	01.266 NUT; AIR GUIDE 01.540 M6 FLANGE	0-91180-206-0	01	1	0603-0606			●
122	01.266 BRACKET; AIR GUIDE FRT INDEPENDENT SUSPENSION(6PP)	8-97102-842-0	01	1	0302-0606			●
123	01.266 BOLT; BRKT AIR GUIDE FRT INDEPENDENT SUSPENSION(6PP) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	0302-0512			●
123	01.266 BOLT; BRKT AIR GUIDE FRT INDEPENDENT SUSPENSION(6PP) 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0601-0606			●
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE	8-97898-387-1	01	1	0302-0506	●	●	●
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE	8-97898-366-1	01	1	0302-0506	●	●	●
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE	8-97898-391-1	01	1	0302-0506	●	●	●
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE	8-97898-370-1	01	1	0302-0506	●	●	●
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER	8-97898-383-1	01	1	0302-0506	●	●	●
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER	8-97898-362-1	01	1	0302-0506	●	●	●
127	01.266 GRILLE; HEADLAMP,LWR RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR	8-97898-455-0	01	1	0302-0506	●	●	●
127	01.266 GRILLE; HEADLAMP,LWR RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR	8-97898-454-0	01	1	0302-0506	●	●	●
133	01.269 SCREW; COVER EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> M5X12	8-97995-036-0	06	1	0302-0506	●	●	●
133	01.269 SCREW; COVER 01.303 M5X12 W/PL WASHER	8-94385-565-0	06	1	0507-	●	●	●
138	01.266 GUIDE; AIR FRT INDEPENDENT SUSPENSION(6PP)	8-97101-740-0	01	1	0302-0606			●
140	01.266 SEAL; RAD GRILLE EXTERIOR ORNAMENTATION DELUXE<B57> EXC. RADIATOR GRILLE NON PAINT<7LB> (A)	8-97995-037-0	01	1	0302-0506	●	●	●
140	01.266 SEAL; RAD GRILLE (C)	8-97581-664-0	01	1	0507-	●	●	●
140	01.266 SEAL; RAD GRILLE RADIATOR GRILLE NON PAINT<7LB> EXC. EXTERIOR ORNAMENTATION DELUXE<B57> (B)	8-97061-039-3	02	1	0302-0506	●	●	●
140	01.266 SEAL; RAD GRILLE EXC. EXTERIOR ORNAMENTATION DELUXE<B57>, RADIATOR GRILLE NON PAINT<7LB> (B)	8-97061-039-3	02	1	0302-0506	●	●	●
140	01.266 SEAL; RAD GRILLE (D)	8-97583-411-1	02	1	0507-	●	●	●
141	01.266 COVER; RAD GRILLE	8-97581-648-1	01	1	0507-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
