Sayfa 0-38A - Isuzu EPC

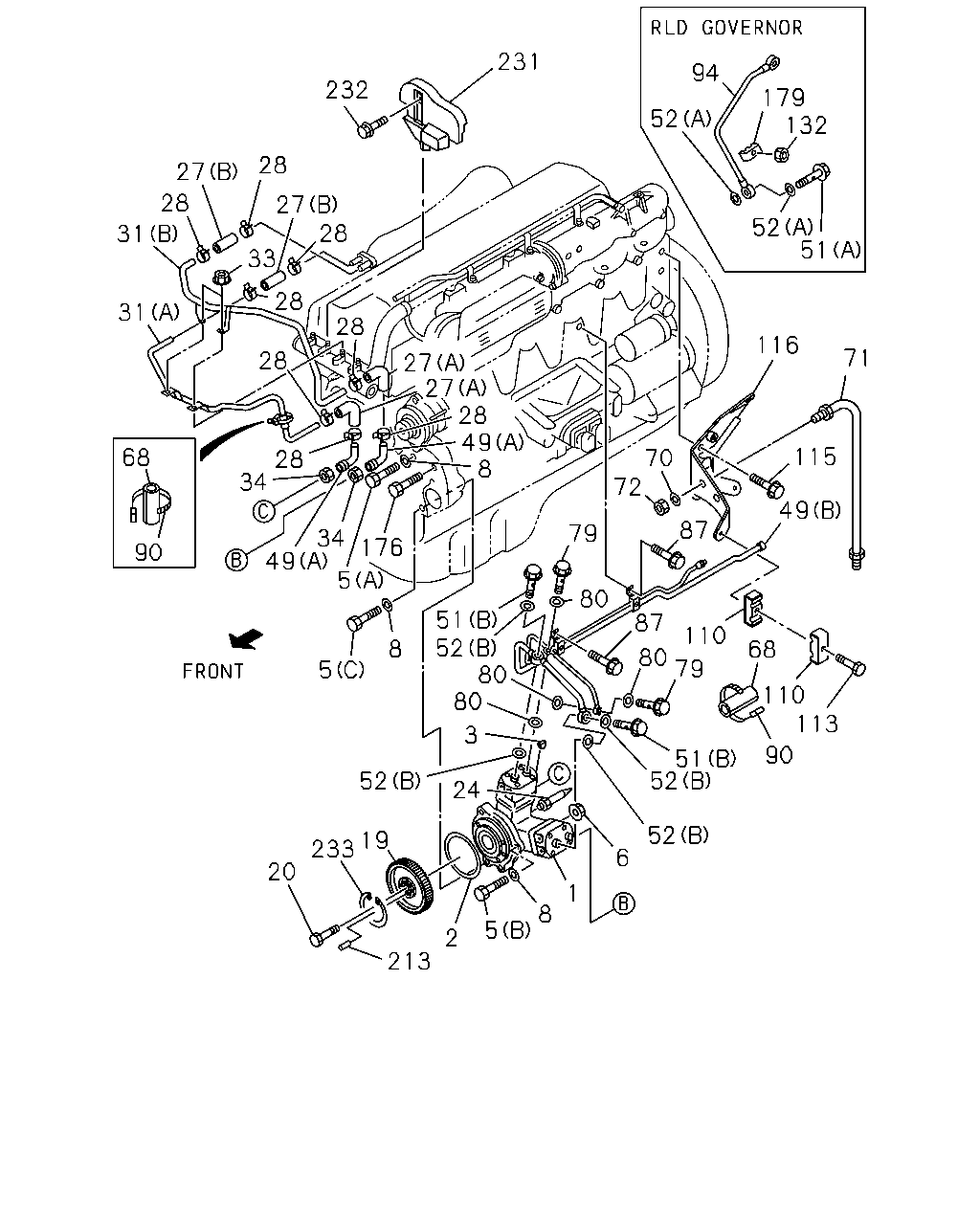

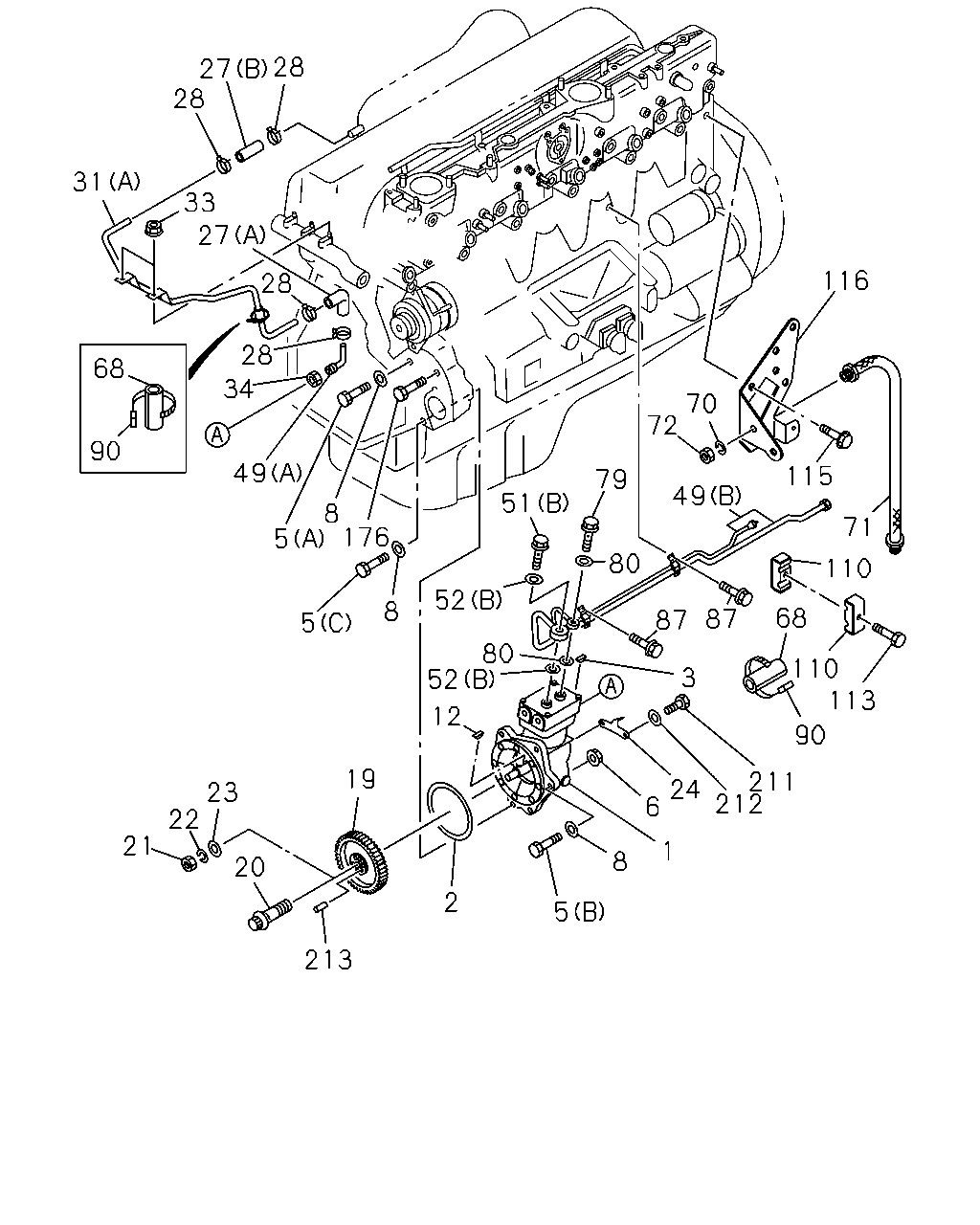

0-38A — AIR COMPRESSOR PIPING; ENGINE SIDE (#4248) — 507 parça

28 31 33 27 116 28 28 68 34 70 72 115 90 49 79 49 51 8 176 71 5 80 110 52 8 68 87 87 5 80 52 110 113 3 12 90 19 211 212 24 6 23 22 21 1 8 20 2 5 213 27 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-268-9	01	1	9603-9606	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-0	01	1	9607-9609	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-1	01	1	9610-9706	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-2	01	1	9707-9904	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-2	01	1	9707-9904		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-4	01	1	9905-	●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-4	01	1	9905-				●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-292-3	01	1	9610-9904	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-292-4	01	1	9905-					●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-299-3	01	1	9906-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	9603-9706	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	9707-9904	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	9905-	●		●	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9603-9706	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9707-9904	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9905-9905	●		●	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9906-	●		●		●
3	KEY; COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	9-08055-622-0	01	1	9906-				●
3	KEY; COUPLING,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-08055-516-0	01	1	9906-				●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	9603-9706	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	9707-9904	●	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	9905-	●		●	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	9603-9706	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	9707-9904	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	9905-	●		●	●	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140	1-09020-112-0	01	1	9610-9706	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140	1-09020-112-0	01	1	9707-9904	●
5	BOLT; AIR CMPR FIX (C) M14X140	1-09020-112-0	01	1	9707-9904		●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140	1-09020-112-0	01	1	9905-	●		●	●	●
5	BOLT; AIR CMPR FIX (C) M14X100	9-91666-400-0	01	1	9603-9609	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	9610-9904	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	9905-	●		●	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	9603-9706	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	9707-9904	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	9905-	●		●	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	9603-9706	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	9707-9904	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	9905-	●		●	●	●
12	KEY; AIR CMPR GEAR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-08055-519-0	01	1	9906-				●
19	GEAR; INJ PUMP Z=54	1-12524-087-6	01	1	9603-9604	●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	9605-9706	●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	9707-9904	●	●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	9905-9905	●		●	●	●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	9906-	●		●		●
19	GEAR; INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54	1-12524-111-1	01	1	9906-				●
19	GEAR; INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54	1-12524-113-1	01	1	9906-				●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	9603-9706	●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	9707-9904	●	●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	9905-9905	●		●	●	●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	9906-	●		●		●
20	BOLT; GEAR TO SHAFT AIR COMPRESSOR HEAVY DUTY(E1Q) M12X39 FLANGE	1-09070-116-0	05	1	9906-				●
21	NUT; PUMP GEAR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M24	9-99111-524-0	01	1	9906-				●
22	WASHER; LK,INJ PUMP GEAR FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5	9-09150-524-0	01	1	9906-				●
23	WASHER; PL,PUMP GEAR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=25	9-09160-524-0	01	1	9906-				●
24	POINTER; AIR CMPR	1-11327-017-0	01	1	9603-9609	●
24	POINTER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-017-0	01	1	9610-9706	●
24	POINTER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-017-0	01	1	9707-9904	●
24	POINTER; AIR CMPR	1-11327-017-0	01	1	9707-9904		●
24	POINTER; AIR CMPR	1-11327-017-0	01	1	9905-9905	●		●	●
24	POINTER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-017-0	01	1	9905-9905					●
24	POINTER; AIR CMPR	1-11327-017-1	01	1	9905-	●		●
24	POINTER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-017-1	01	1	9905-				●	●
24	POINTER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-040-1	01	1	9610-9904	●
24	POINTER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-040-1	01	1	9905-					●
24	POINTER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-11327-031-0	01	1	9906-				●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	9603-9609	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	9610-9706	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	9707-9904	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	9707-9904		●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	9905-	●		●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	9905-				●	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	9603-9609	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	9610-9706	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	9707-9904	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	9707-9904		●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	9905-	●		●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	9905-				●	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	01	1	9610-9904	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	01	1	9905-9905					●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	01	1	9906-				●	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	01	1	9610-9904	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	01	1	9905-9905					●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	01	1	9906-				●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	9603-9609	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	9610-9706	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	9707-9904	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	9707-9904		●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	9905-	●		●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	9905-				●	●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	04	1	9610-9904	●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	04	1	9905-9905					●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	04	1	9906-				●	●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-659-0	01	1	9603-9904	●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-659-0	01	1	9905-	●			●
31	PIPE; AIR,AIR CMPR SUCTION EXC. CAB UP +110MM<TGG> (A)	1-19192-659-0	01	1	9905-					●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-993-0	01	1	9603-9904	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-993-0	01	1	9905-	●			●
31	PIPE; AIR,AIR CMPR SUCTION EXC. CAB UP +110MM<TGG> (B)	1-19192-993-0	01	1	9905-					●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-991-0	01	1	9707-9904		●
31	PIPE; AIR,AIR CMPR SUCTION CAB UP +110MM<TGG> (A)	1-19192-991-0	01	1	9905-					●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-991-0	01	1	9905-			●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-992-0	01	1	9707-9904		●
31	PIPE; AIR,AIR CMPR SUCTION CAB UP +110MM<TGG> (B)	1-19192-992-0	01	1	9905-					●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-992-0	01	1	9905-			●
33	NUT; PIPE FIX M8 FLANGE	0-91150-108-0	02	1	9603-9706	●
33	NUT; PIPE FIX M8 FLANGE	0-91150-108-0	02	1	9707-9904	●	●
33	NUT; PIPE FIX M8 FLANGE	0-91150-108-0	02	1	9905-	●		●	●	●
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	9603-9609	●
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	9610-9706	●
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	9707-9904	●
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	9707-9904		●
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	9905-	●		●
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	9905-				●	●
34	NUT; LK SUCTION PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	01	1	9610-9904	●
34	NUT; LK SUCTION PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	01	1	9905-				●	●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	9603-9609	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	9610-9706	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	9707-9904	●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	9707-9904		●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	9905-	●		●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	9905-				●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) ENGINE REAR PTO(SV1) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR (YC4) (B)	1-19193-018-0	01	1	9703-9904	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR (YC4) (B)	1-19192-661-2	01	1	9603-9706	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B)	1-19192-661-2	01	1	9707-9904	●
49	PIPE; AIR,CHARGE (B)	1-19192-661-2	01	1	9707-9904		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	01	1	9610-9904	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	01	1	9905-9905					●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	01	1	9906-				●	●
49	PIPE; AIR,CHARGE (B)	1-19192-661-2	01	1	9905-	●		●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-661-2	01	1	9905-				●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B)	1-19192-785-2	01	1	9603-9702	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-785-2	01	1	9703-9904	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE REARPTO(SV1) (B)	1-19192-785-2	01	1	9905-					●
49	PIPE; AIR,CHARGE INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B)	1-19192-985-0	01	1	9603-9904	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (B)	1-19193-019-0	01	1	9905-9905					●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-019-0	01	1	9906-					●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-986-0	01	1	9906-				●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) ENGINE REAR PTO(SV1) (B)	1-19193-018-0	01	1	9908-					●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	01	1	9603-9904	●
51	BOLT; EYE,AIR PIPE TO CMPR (A) M10X21 FLANGE	1-09675-077-0	01	1	9905-	●			●
51	BOLT; EYE,AIR PIPE TO CMPR RLD GOVERNOR(SD7) (A) M10X21 FLANGE	1-09675-077-0	01	1	9905-					●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	02	1	9603-9609	●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	02	1	9610-9706	●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	02	1	9707-9904	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	02	1	9707-9904		●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	02	1	9905-	●		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	02	1	9905-				●	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	01	1	9610-9904	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	01	1	9905-					●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9603-9904	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-083-0	02	1	9905-	●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). RLD GOVERNOR(SD7) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9905-					●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (B) ID=24.5 OD=32	9-09571-424-0	04	1	9603-9609	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	04	1	9610-9706	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q). (B) ID=24.5 OD=32	9-09571-424-0	04	1	9707-9904	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	04	1	9707-9904		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	04	1	9905-	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	04	1	9905-				●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	02	1	9610-9904	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	02	1	9905-					●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	9603-9609	●
68	SLEEVE; RUBBER EURO2 SPECIFICATION<THN> ID=18 OD=22 L=25	8-94412-773-0	02	1	9610-9706	●
68	SLEEVE; RUBBER EURO2 SPECIFICATION<THN> ID=18 OD=22 L=25	8-94412-773-0	02	1	9707-9904	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	9707-9904		●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	9905-	●		●	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	9905-	●			●
68	SLEEVE; RUBBER AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25	8-94412-773-0	01	1	9905-					●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	9610-9902	●
68	SLEEVE; RUBBER AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25	8-94412-773-0	01	1	9610-9902	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	9903-9904	●	●
68	SLEEVE; RUBBER AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25	8-94412-773-0	01	1	9903-9904	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	9905-			●		●
68	SLEEVE; RUBBER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35	8-94127-043-0	01	1	9610-9904	●
68	SLEEVE; RUBBER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35	8-94127-043-0	01	1	9905-9905					●
68	SLEEVE; RUBBER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35	8-94127-043-0	01	1	9906-				●	●
70	WASHER; LK ID=12.2	9-09150-512-0	01	1	9603-9706	●
70	WASHER; LK ID=12.2	9-09150-512-0	01	1	9707-9904	●	●
70	WASHER; LK ID=12.2	9-09150-512-0	01	1	9905-	●		●	●	●
71	HOSE; FLEX,AIR GOV L=520	0-07030-520-0	01	1	9603-9607	●
71	HOSE; FLEX,AIR GOV L=520	1-09363-657-0	01	1	9608-9904	●
71	HOSE; FLEX,AIR GOV L=520	1-09363-657-0	01	1	9905-	●		●	●	●
71	HOSE; FLEX,AIR GOV L=560	1-09363-689-0	01	1	9707-9904		●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9603-9706	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9707-9904	●	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9905-	●		●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	9603-9609	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	02	1	9610-9706	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	02	1	9707-9904	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	9707-9904		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	9905-9905	●		●	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	02	1	9905-9905					●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	9905-	●		●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	02	1	9905-				●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9610-9904	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9905-9905					●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9906-				●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9603-9609	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	04	1	9610-9706	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9707-9904	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9707-9904		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9905-	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	04	1	9905-				●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-9904	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-				●	●
87	BOLT; BRKT FIX M10X18 FLANGE	0-28181-018-0	02	1	9603-9604	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	9605-9706	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	9707-9904	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	9905-	●		●	●	●
90	CLIP; HARNESS EURO2 SPECIFICATION<THN> L=140	5-09707-031-0	02	1	9610-9706	●
90	CLIP; HARNESS EURO2 SPECIFICATION<THN> L=140	5-09707-031-1	02	1	9707-9904	●
90	CLIP; HARNESS L=140	5-09707-031-1	02	1	9707-9904		●
90	CLIP; HARNESS L=140	5-09707-031-1	02	1	9905-			●		●
110	CLIP; AIR PIPE	1-09701-210-0	02	1	9603-9609	●
110	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-210-0	02	1	9610-9706	●
110	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-210-0	02	1	9707-9904	●
110	CLIP; AIR PIPE	1-09701-210-0	02	1	9707-9904		●
110	CLIP; AIR PIPE	1-09701-210-0	02	1	9905-9905	●		●	●
110	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-210-0	02	1	9905-9905					●
110	CLIP; AIR PIPE	1-09701-210-0	02	1	9906-	●		●
110	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-210-0	02	1	9906-				●	●
110	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-208-0	02	1	9610-9904	●
110	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-208-0	02	1	9905-9905					●
110	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-208-0	02	1	9906-				●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9603-9706	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9707-9904	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9905-	●		●	●	●
115	BOLT; AIR PIPE M10X18 FLANGE	0-28181-018-0	02	1	9603-9604	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	9605-9706	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	9707-9904	●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	9905-	●		●	●	●
116	BRACKET; AIR PIPE	1-19199-212-0	01	1	9603-9702	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1)	1-19199-212-0	01	1	9703-9706	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1)	1-19199-212-0	01	1	9707-9904	●
116	BRACKET; AIR PIPE	1-19199-212-0	01	1	9707-9904		●
116	BRACKET; AIR PIPE	1-19199-212-0	01	1	9905-	●		●	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1)	1-19199-212-0	01	1	9905-					●
116	BRACKET; AIR PIPE ENGINE REAR PTO(SV1)	1-19199-286-0	01	1	9703-9904	●
116	BRACKET; AIR PIPE ENGINE REAR PTO(SV1)	1-19199-286-0	01	1	9905-					●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	9603-9706	●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	9707-9904	●	●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	9905-	●		●	●	●
211	BOLT; POINTER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X16	0-23801-016-0	02	1	9610-9904	●
211	BOLT; POINTER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X16	0-23801-016-0	02	1	9905-					●
212	WASHER; LK,POINTER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-510-0	02	1	9610-9904	●
212	WASHER; LK,POINTER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-510-0	02	1	9905-					●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	9603-9706	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	9707-9904	●	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	9905-9905	●		●	●	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	9906-	●		●		●
213	PIN; AIR CMPR GEAR EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR (YC4) OD=5 L=10	9-08150-510-0	01	1	9906-				●

231 94 232 179 132 52 28 27 28 27 28 52 51 31 33 28 31 28 27 27 28 49 8 116 71 28 70 72 115 68 28 34 49 87 79 34 176 90 49 5 80 87 51 52 80 80 110 8 68 80 79 5 110 113 3 90 51 52 52 24 52 19 233 6 20 1 8 5 2 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-268-9	01	1	9603-9606	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-0	01	1	9607-9609	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-1	01	1	9610-9706	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-2	01	1	9707-9904	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-2	01	1	9707-9904		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-4	01	1	9905-	●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-4	01	1	9905-				●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-292-3	01	1	9610-9904	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-292-4	01	1	9905-					●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-299-3	01	1	9906-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	9603-9706	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	9707-9904	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	9905-	●		●	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9603-9706	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9707-9904	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9905-9905	●		●	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9906-	●		●		●
3	KEY; COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	9-08055-622-0	01	1	9906-				●
3	KEY; COUPLING,INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-08055-516-0	01	1	9906-				●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	9603-9706	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	9707-9904	●	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	9905-	●		●	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	9603-9706	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	9707-9904	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	9905-	●		●	●	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140	1-09020-112-0	01	1	9610-9706	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140	1-09020-112-0	01	1	9707-9904	●
5	BOLT; AIR CMPR FIX (C) M14X140	1-09020-112-0	01	1	9707-9904		●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140	1-09020-112-0	01	1	9905-	●		●	●	●
5	BOLT; AIR CMPR FIX (C) M14X100	9-91666-400-0	01	1	9603-9609	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	9610-9904	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	9905-	●		●	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	9603-9706	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	9707-9904	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	9905-	●		●	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	9603-9706	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	9707-9904	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	9905-	●		●	●	●
19	GEAR; INJ PUMP Z=54	1-12524-087-6	01	1	9603-9604	●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	9605-9706	●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	9707-9904	●	●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	9905-9905	●		●	●	●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	9906-	●		●		●
19	GEAR; INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54	1-12524-111-1	01	1	9906-				●
19	GEAR; INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54	1-12524-113-1	01	1	9906-				●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	9603-9706	●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	9707-9904	●	●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	9905-9905	●		●	●	●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	9906-	●		●		●
20	BOLT; GEAR TO SHAFT AIR COMPRESSOR HEAVY DUTY(E1Q) M12X39 FLANGE	1-09070-116-0	05	1	9906-				●
24	POINTER; AIR CMPR	1-11327-017-0	01	1	9603-9609	●
24	POINTER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-017-0	01	1	9610-9706	●
24	POINTER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-017-0	01	1	9707-9904	●
24	POINTER; AIR CMPR	1-11327-017-0	01	1	9707-9904		●
24	POINTER; AIR CMPR	1-11327-017-0	01	1	9905-9905	●		●	●
24	POINTER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-017-0	01	1	9905-9905					●
24	POINTER; AIR CMPR	1-11327-017-1	01	1	9905-	●		●
24	POINTER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-017-1	01	1	9905-				●	●
24	POINTER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-040-1	01	1	9610-9904	●
24	POINTER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-040-1	01	1	9905-					●
24	POINTER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-11327-031-0	01	1	9906-				●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	9603-9609	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	9610-9706	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	9707-9904	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	9707-9904		●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	9905-	●		●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	9905-				●	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	9603-9609	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	9610-9706	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	9707-9904	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	9707-9904		●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	9905-	●		●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	9905-				●	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	01	1	9610-9904	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	01	1	9905-9905					●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	01	1	9906-				●	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	01	1	9610-9904	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	01	1	9905-9905					●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	01	1	9906-				●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	9603-9609	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	9610-9706	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	9707-9904	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	9707-9904		●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	9905-	●		●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	9905-				●	●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	04	1	9610-9904	●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	04	1	9905-9905					●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	04	1	9906-				●	●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-659-0	01	1	9603-9904	●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-659-0	01	1	9905-	●			●
31	PIPE; AIR,AIR CMPR SUCTION EXC. CAB UP +110MM<TGG> (A)	1-19192-659-0	01	1	9905-					●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-993-0	01	1	9603-9904	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-993-0	01	1	9905-	●			●
31	PIPE; AIR,AIR CMPR SUCTION EXC. CAB UP +110MM<TGG> (B)	1-19192-993-0	01	1	9905-					●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-991-0	01	1	9707-9904		●
31	PIPE; AIR,AIR CMPR SUCTION CAB UP +110MM<TGG> (A)	1-19192-991-0	01	1	9905-					●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-991-0	01	1	9905-			●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-992-0	01	1	9707-9904		●
31	PIPE; AIR,AIR CMPR SUCTION CAB UP +110MM<TGG> (B)	1-19192-992-0	01	1	9905-					●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-992-0	01	1	9905-			●
33	NUT; PIPE FIX M8 FLANGE	0-91150-108-0	02	1	9603-9706	●
33	NUT; PIPE FIX M8 FLANGE	0-91150-108-0	02	1	9707-9904	●	●
33	NUT; PIPE FIX M8 FLANGE	0-91150-108-0	02	1	9905-	●		●	●	●
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	9603-9609	●
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	9610-9706	●
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	9707-9904	●
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	9707-9904		●
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	9905-	●		●
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	9905-				●	●
34	NUT; LK SUCTION PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	01	1	9610-9904	●
34	NUT; LK SUCTION PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	01	1	9905-				●	●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	9603-9609	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	9610-9706	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	9707-9904	●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	9707-9904		●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	9905-	●		●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	9905-				●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) ENGINE REAR PTO(SV1) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR (YC4) (B)	1-19193-018-0	01	1	9703-9904	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR (YC4) (B)	1-19192-661-2	01	1	9603-9706	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B)	1-19192-661-2	01	1	9707-9904	●
49	PIPE; AIR,CHARGE (B)	1-19192-661-2	01	1	9707-9904		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	01	1	9610-9904	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	01	1	9905-9905					●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	01	1	9906-				●	●
49	PIPE; AIR,CHARGE (B)	1-19192-661-2	01	1	9905-	●		●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-661-2	01	1	9905-				●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B)	1-19192-785-2	01	1	9603-9702	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-785-2	01	1	9703-9904	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE REARPTO(SV1) (B)	1-19192-785-2	01	1	9905-					●
49	PIPE; AIR,CHARGE INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B)	1-19192-985-0	01	1	9603-9904	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (B)	1-19193-019-0	01	1	9905-9905					●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-019-0	01	1	9906-					●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-986-0	01	1	9906-				●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) ENGINE REAR PTO(SV1) (B)	1-19193-018-0	01	1	9908-					●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	01	1	9603-9904	●
51	BOLT; EYE,AIR PIPE TO CMPR (A) M10X21 FLANGE	1-09675-077-0	01	1	9905-	●			●
51	BOLT; EYE,AIR PIPE TO CMPR RLD GOVERNOR(SD7) (A) M10X21 FLANGE	1-09675-077-0	01	1	9905-					●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	02	1	9603-9609	●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	02	1	9610-9706	●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	02	1	9707-9904	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	02	1	9707-9904		●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	02	1	9905-	●		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	02	1	9905-				●	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	01	1	9610-9904	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	01	1	9905-					●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9603-9904	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-083-0	02	1	9905-	●			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). RLD GOVERNOR(SD7) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9905-					●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (B) ID=24.5 OD=32	9-09571-424-0	04	1	9603-9609	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	04	1	9610-9706	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q). (B) ID=24.5 OD=32	9-09571-424-0	04	1	9707-9904	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	04	1	9707-9904		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	04	1	9905-	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	04	1	9905-				●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	02	1	9610-9904	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	02	1	9905-					●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	9603-9609	●
68	SLEEVE; RUBBER EURO2 SPECIFICATION<THN> ID=18 OD=22 L=25	8-94412-773-0	02	1	9610-9706	●
68	SLEEVE; RUBBER EURO2 SPECIFICATION<THN> ID=18 OD=22 L=25	8-94412-773-0	02	1	9707-9904	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	9707-9904		●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	9905-	●		●	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	9905-	●			●
68	SLEEVE; RUBBER AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25	8-94412-773-0	01	1	9905-					●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	9610-9902	●
68	SLEEVE; RUBBER AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25	8-94412-773-0	01	1	9610-9902	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	9903-9904	●	●
68	SLEEVE; RUBBER AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25	8-94412-773-0	01	1	9903-9904	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	9905-			●		●
68	SLEEVE; RUBBER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35	8-94127-043-0	01	1	9610-9904	●
68	SLEEVE; RUBBER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35	8-94127-043-0	01	1	9905-9905					●
68	SLEEVE; RUBBER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35	8-94127-043-0	01	1	9906-				●	●
70	WASHER; LK ID=12.2	9-09150-512-0	01	1	9603-9706	●
70	WASHER; LK ID=12.2	9-09150-512-0	01	1	9707-9904	●	●
70	WASHER; LK ID=12.2	9-09150-512-0	01	1	9905-	●		●	●	●
71	HOSE; FLEX,AIR GOV L=520	0-07030-520-0	01	1	9603-9607	●
71	HOSE; FLEX,AIR GOV L=520	1-09363-657-0	01	1	9608-9904	●
71	HOSE; FLEX,AIR GOV L=520	1-09363-657-0	01	1	9905-	●		●	●	●
71	HOSE; FLEX,AIR GOV L=560	1-09363-689-0	01	1	9707-9904		●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9603-9706	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9707-9904	●	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9905-	●		●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	9603-9609	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	02	1	9610-9706	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	02	1	9707-9904	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	9707-9904		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	9905-9905	●		●	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	02	1	9905-9905					●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	9905-	●		●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	02	1	9905-				●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9610-9904	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9905-9905					●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9906-				●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9603-9609	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	04	1	9610-9706	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9707-9904	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9707-9904		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9905-	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	04	1	9905-				●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-9904	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-				●	●
87	BOLT; BRKT FIX M10X18 FLANGE	0-28181-018-0	02	1	9603-9604	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	9605-9706	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	9707-9904	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	9905-	●		●	●	●
90	CLIP; HARNESS EURO2 SPECIFICATION<THN> L=140	5-09707-031-0	02	1	9610-9706	●
90	CLIP; HARNESS EURO2 SPECIFICATION<THN> L=140	5-09707-031-1	02	1	9707-9904	●
90	CLIP; HARNESS L=140	5-09707-031-1	02	1	9707-9904		●
90	CLIP; HARNESS L=140	5-09707-031-1	02	1	9905-			●		●
94	PIPE; AIR,BOOST EXC. EURO2 SPECIFICATION<THN>	1-19192-975-0	01	1	9603-9904	●
94	PIPE; AIR,BOOST	1-19192-975-0	01	1	9905-	●			●
94	PIPE; AIR,BOOST RLD GOVERNOR(SD7)	1-19193-109-0	01	1	9905-					●
110	CLIP; AIR PIPE	1-09701-210-0	02	1	9603-9609	●
110	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-210-0	02	1	9610-9706	●
110	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-210-0	02	1	9707-9904	●
110	CLIP; AIR PIPE	1-09701-210-0	02	1	9707-9904		●
110	CLIP; AIR PIPE	1-09701-210-0	02	1	9905-9905	●		●	●
110	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-210-0	02	1	9905-9905					●
110	CLIP; AIR PIPE	1-09701-210-0	02	1	9906-	●		●
110	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-210-0	02	1	9906-				●	●
110	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-208-0	02	1	9610-9904	●
110	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-208-0	02	1	9905-9905					●
110	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-208-0	02	1	9906-				●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9603-9706	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9707-9904	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9905-	●		●	●	●
115	BOLT; AIR PIPE M10X18 FLANGE	0-28181-018-0	02	1	9603-9604	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	9605-9706	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	9707-9904	●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	9905-	●		●	●	●
116	BRACKET; AIR PIPE	1-19199-212-0	01	1	9603-9702	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1)	1-19199-212-0	01	1	9703-9706	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1)	1-19199-212-0	01	1	9707-9904	●
116	BRACKET; AIR PIPE	1-19199-212-0	01	1	9707-9904		●
116	BRACKET; AIR PIPE	1-19199-212-0	01	1	9905-	●		●	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1)	1-19199-212-0	01	1	9905-					●
116	BRACKET; AIR PIPE ENGINE REAR PTO(SV1)	1-19199-286-0	01	1	9703-9904	●
116	BRACKET; AIR PIPE ENGINE REAR PTO(SV1)	1-19199-286-0	01	1	9905-					●
132	NUT; CLIP EXC. EURO2 SPECIFICATION<THN> M6 FLANGE	0-91150-106-0	01	1	9603-9904	●
132	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9905-	●			●
132	NUT; CLIP RLD GOVERNOR(SD7) M6 FLANGE	0-91150-106-0	01	1	9905-					●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	9603-9706	●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	9707-9904	●	●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	9905-	●		●	●	●
179	CLIP; PIPE EXC. EURO2 SPECIFICATION<THN>	1-09701-132-0	02	1	9603-9904	●
179	CLIP; PIPE	1-09701-132-1	02	1	9905-	●			●
179	CLIP; PIPE RLD GOVERNOR(SD7)	1-09701-132-1	02	1	9905-					●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	9603-9706	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	9707-9904	●	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	9905-9905	●		●	●	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	9906-	●		●		●
213	PIN; AIR CMPR GEAR EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR (YC4) OD=5 L=10	9-08150-510-0	01	1	9906-				●
231	INSULATOR; HEAD COVER	1-19389-208-1	01	1	9707-9904		●
231	INSULATOR; HEAD COVER	1-19389-208-1	01	1	9905-			●
232	BOLT; INSULATOR M8X12 FLANGE	0-28080-812-0	01	1	9707-9904		●
232	BOLT; INSULATOR M8X12 FLANGE	0-28080-812-0	01	1	9905-			●
233	RING; FRICTION	1-12529-003-0	01	1	9707-9904		●
233	RING; FRICTION	1-12529-003-0	01	1	9905-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
