5-20 — BATTERY CARRIER (#42479) — 98 parça

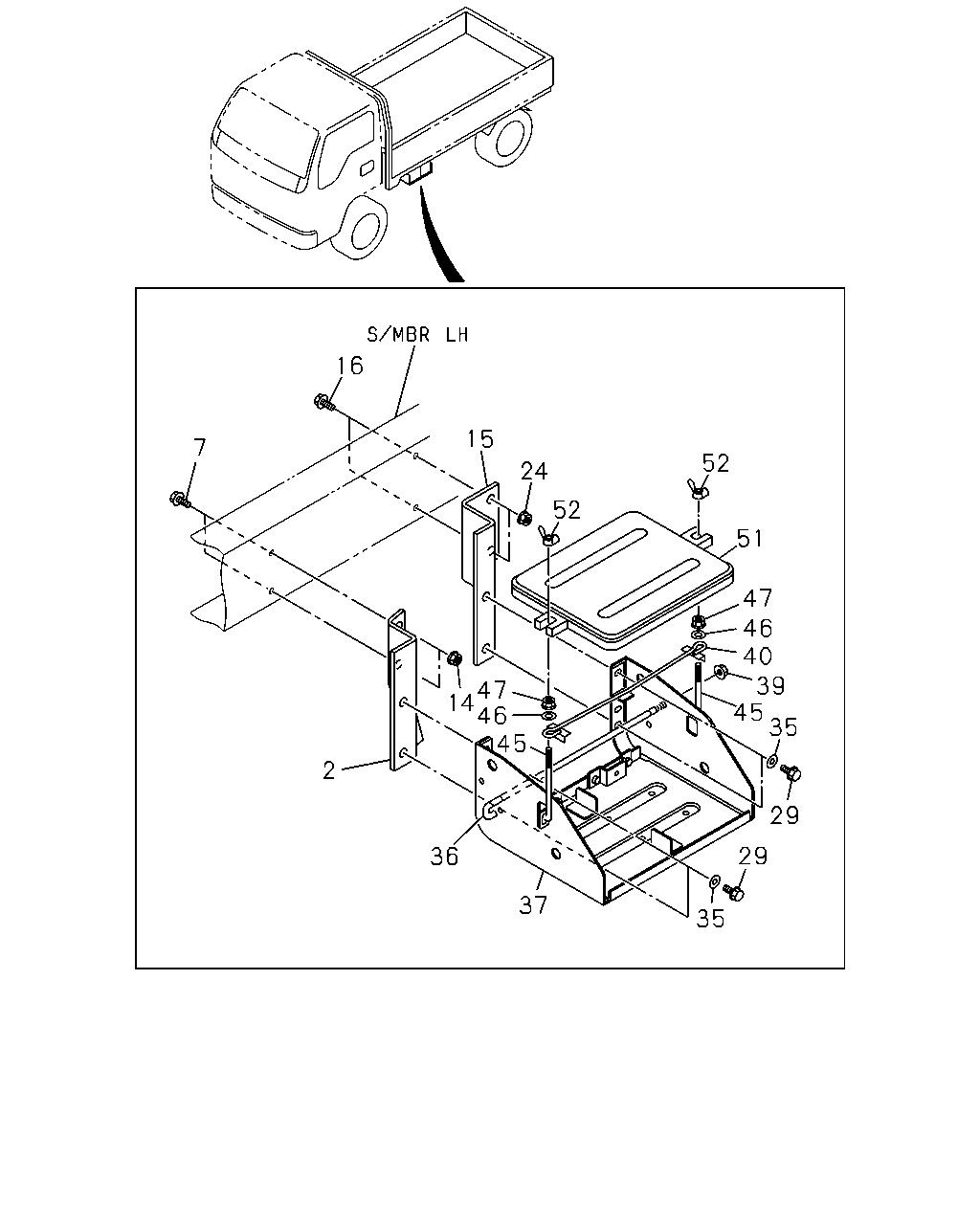

16 15 7 52 24 52 51 47 46 40 39 45 35 47 14 46 45 2 29 29 36 37 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	02.333 BRACKET; BATTERY	8-98029-286-0	01	1	0607-	●	●	●
7	02.333 BOLT; BRKT TO FRAME 09.171 M10X25 FLANGE	0-28051-025-0	02	1	0607-	●	●	●
14	02.333 NUT; BRKT TO FRAME 04.085 M10 FLANGE	0-91180-210-0	02	1	0607-	●	●	●
15	02.333 BRACKET; BATTERY	8-98029-287-0	01	1	0607-	●	●	●
16	02.334 BOLT; BRKT TO FRAME 09.171 M10X25 FLANGE	0-28051-025-0	02	1	0607-	●	●	●
24	02.334 NUT; BRKT TO FRAME 04.085 M10 FLANGE	0-91180-210-0	02	1	0607-	●	●	●
29	02.334 BOLT; BRKT TO FRAME 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0302-0512	●	●	●
29	02.334 BOLT; BRKT TO FRAME 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-	●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0302-0605	●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0606-	●	●	●
36	02.334 STOPPER; BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>	8-94145-894-0	01	1	0607-	●	●	●
37	02.333 BRACKET; BATTERY	8-97356-174-0	01	1	0302-0606	●	●	●
37	02.333 BRACKET; BATTERY LEYLAND EQUIPMENT<S9Z>	8-97356-174-0	01	1	0607-0610	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>, BATTERY 75D23R<7PC> EXC. LEYLAND EQUIPMENT<S9Z>	8-97356-174-0	01	1	0607-0610	●	●	●
37	02.333 BRACKET; BATTERY LEYLAND EQUIPMENT<S9Z>	8-97384-068-2	01	1	0611-0612	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>, BATTERY 75D23R<7PC> EXC. LEYLAND EQUIPMENT<S9Z>	8-97384-068-2	01	1	0611-0612	●	●	●
37	02.333 BRACKET; BATTERY LEYLAND EQUIPMENT<S9Z>	8-97384-067-2	01	1	0701-	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>, BATTERY 75D23R<7PC> EXC. LEYLAND EQUIPMENT<S9Z>	8-97384-067-2	01	1	0701-	●	●	●
39	02.334 NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-	●	●	●
40	02.335 CLAMP; BATTERY	5-53615-004-1	01	1	0302-0506	●	●	●
40	02.335 CLAMP; BATTERY 4JH1-TC ENG(RDM) LEYLAND EQUIPMENT<S9Z>	5-53615-004-1	01	1	0507-0606	●	●	●
40	02.335 CLAMP; BATTERY 4JH1-TC ENG(RDM) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT<S9Z>	5-53615-004-1	01	1	0507-0606	●	●	●
40	02.335 CLAMP; BATTERY LEYLAND EQUIPMENT<S9Z>	5-53615-004-1	01	1	0607-	●	●	●
40	02.335 CLAMP; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>, BATTERY 75D23R<7PC> EXC. LEYLAND EQUIPMENT<S9Z>	5-53615-004-1	01	1	0607-	●	●	●
45	02.334 ROD; TENSION,BATTERY	9-53616-615-0	02	1	0302-	●	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0302-0506	●	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JH1-TC ENG(RDM) LEYLAND EQUIPMENT<S9Z> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0507-0605	●	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JH1-TC ENG(RDM) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT<S9Z> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0507-0605	●	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JH1-TC ENG(RDM) LEYLAND EQUIPMENT<S9Z> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0606-0606	●	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JH1-TC ENG(RDM) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT<S9Z> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0606-0606	●	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER LEYLAND EQUIPMENT<S9Z> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0607-	●	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>, BATTERY 75D23R<7PC> EXC. LEYLAND EQUIPMENT<S9Z> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0607-	●	●	●
47	02.334 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●	●	●
47	02.334 NUT; BRKT 4JH1-TC ENG(RDM) LEYLAND EQUIPMENT<S9Z> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●
47	02.334 NUT; BRKT 4JH1-TC ENG(RDM) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT<S9Z> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●
47	02.334 NUT; BRKT 4JH1-TC ENG(RDM) LEYLAND EQUIPMENT<S9Z> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●	●
47	02.334 NUT; BRKT 4JH1-TC ENG(RDM) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT<S9Z> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●	●
47	02.334 NUT; BRKT LEYLAND EQUIPMENT<S9Z> 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●	●	●
47	02.334 NUT; BRKT BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>, BATTERY 75D23R<7PC> EXC. LEYLAND EQUIPMENT<S9Z> 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●	●	●
51	02.335 COVER; BATTERY	8-97218-309-0	01	1	0302-0506	●	●	●
51	02.335 COVER; BATTERY 4JH1-TC ENG(RDM) LEYLAND EQUIPMENT<S9Z>	8-97218-309-0	01	1	0507-0606	●	●	●
51	02.335 COVER; BATTERY 4JH1-TC ENG(RDM) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT<S9Z>	8-97218-309-0	01	1	0507-0606	●	●	●
51	02.335 COVER; BATTERY LEYLAND EQUIPMENT<S9Z>	8-97120-747-0	01	1	0607-	●	●	●
51	02.335 COVER; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>, BATTERY 75D23R<7PC> EXC. LEYLAND EQUIPMENT<S9Z>	8-97120-747-0	01	1	0607-	●	●	●
52	02.335 NUT; WING,COVER FIX M8 WING NUT	9-09118-408-0	02	1	0302-0506	●	●	●
52	02.335 NUT; WING,COVER FIX 4JH1-TC ENG(RDM) LEYLAND EQUIPMENT<S9Z> M8 WING NUT	9-09118-408-0	02	1	0507-0512	●	●	●
52	02.335 NUT; WING,COVER FIX 4JH1-TC ENG(RDM) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT<S9Z> M8 WING NUT	9-09118-408-0	02	1	0507-0512	●	●	●
52	02.335 NUT; WING,COVER FIX 4JH1-TC ENG(RDM) LEYLAND EQUIPMENT<S9Z> M8 WING NUT	0-91118-408-0	02	1	0601-0606	●	●	●
52	02.335 NUT; WING,COVER FIX 4JH1-TC ENG(RDM) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT<S9Z> M8 WING NUT	0-91118-408-0	02	1	0601-0606	●	●	●
52	02.335 NUT; WING,COVER FIX LEYLAND EQUIPMENT<S9Z> M8 WING NUT	0-91118-408-0	02	1	0607-	●	●	●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>, BATTERY 75D23R<7PC> EXC. LEYLAND EQUIPMENT<S9Z> M8 WING NUT	0-91118-408-0	02	1	0607-	●	●	●

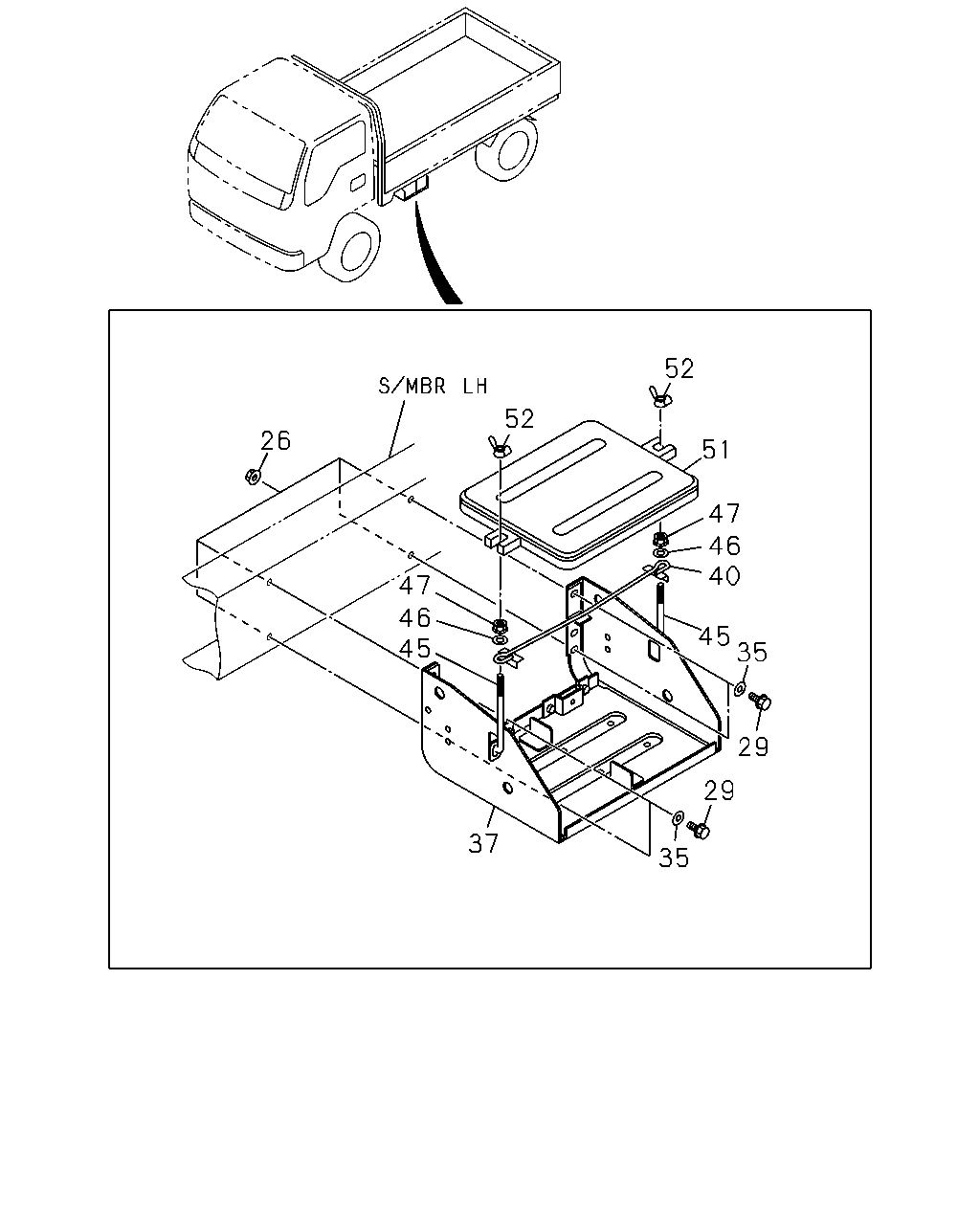

52 52 26 51 47 46 40 47 46 45 45 35 29 29 37 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
26	02.334 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	02	1	0302-0602	●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0606	●
26	02.334 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	04	1	0302-0602		●	●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	04	1	0603-0606		●	●
29	02.334 BOLT; BRKT TO FRAME 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0302-0512	●	●	●
29	02.334 BOLT; BRKT TO FRAME 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-	●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0302-0605	●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0606-	●	●	●
37	02.333 BRACKET; BATTERY	8-97356-174-0	01	1	0302-0606	●	●	●
37	02.333 BRACKET; BATTERY LEYLAND EQUIPMENT<S9Z>	8-97356-174-0	01	1	0607-0610	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>, BATTERY 75D23R<7PC> EXC. LEYLAND EQUIPMENT<S9Z>	8-97356-174-0	01	1	0607-0610	●	●	●
37	02.333 BRACKET; BATTERY LEYLAND EQUIPMENT<S9Z>	8-97384-068-2	01	1	0611-0612	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>, BATTERY 75D23R<7PC> EXC. LEYLAND EQUIPMENT<S9Z>	8-97384-068-2	01	1	0611-0612	●	●	●
37	02.333 BRACKET; BATTERY LEYLAND EQUIPMENT<S9Z>	8-97384-067-2	01	1	0701-	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>, BATTERY 75D23R<7PC> EXC. LEYLAND EQUIPMENT<S9Z>	8-97384-067-2	01	1	0701-	●	●	●
40	02.335 CLAMP; BATTERY	5-53615-004-1	01	1	0302-0506	●	●	●
40	02.335 CLAMP; BATTERY 4JH1-TC ENG(RDM) LEYLAND EQUIPMENT<S9Z>	5-53615-004-1	01	1	0507-0606	●	●	●
40	02.335 CLAMP; BATTERY 4JH1-TC ENG(RDM) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT<S9Z>	5-53615-004-1	01	1	0507-0606	●	●	●
40	02.335 CLAMP; BATTERY LEYLAND EQUIPMENT<S9Z>	5-53615-004-1	01	1	0607-	●	●	●
40	02.335 CLAMP; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>, BATTERY 75D23R<7PC> EXC. LEYLAND EQUIPMENT<S9Z>	5-53615-004-1	01	1	0607-	●	●	●
45	02.334 ROD; TENSION,BATTERY	9-53616-615-0	02	1	0302-	●	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0302-0506	●	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JH1-TC ENG(RDM) LEYLAND EQUIPMENT<S9Z> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0507-0605	●	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JH1-TC ENG(RDM) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT<S9Z> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0507-0605	●	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JH1-TC ENG(RDM) LEYLAND EQUIPMENT<S9Z> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0606-0606	●	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER 4JH1-TC ENG(RDM) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT<S9Z> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0606-0606	●	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER LEYLAND EQUIPMENT<S9Z> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0607-	●	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>, BATTERY 75D23R<7PC> EXC. LEYLAND EQUIPMENT<S9Z> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0607-	●	●	●
47	02.334 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●	●	●
47	02.334 NUT; BRKT 4JH1-TC ENG(RDM) LEYLAND EQUIPMENT<S9Z> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●
47	02.334 NUT; BRKT 4JH1-TC ENG(RDM) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT<S9Z> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●
47	02.334 NUT; BRKT 4JH1-TC ENG(RDM) LEYLAND EQUIPMENT<S9Z> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●	●
47	02.334 NUT; BRKT 4JH1-TC ENG(RDM) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT<S9Z> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●	●
47	02.334 NUT; BRKT LEYLAND EQUIPMENT<S9Z> 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●	●	●
47	02.334 NUT; BRKT BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>, BATTERY 75D23R<7PC> EXC. LEYLAND EQUIPMENT<S9Z> 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●	●	●
51	02.335 COVER; BATTERY	8-97218-309-0	01	1	0302-0506	●	●	●
51	02.335 COVER; BATTERY 4JH1-TC ENG(RDM) LEYLAND EQUIPMENT<S9Z>	8-97218-309-0	01	1	0507-0606	●	●	●
51	02.335 COVER; BATTERY 4JH1-TC ENG(RDM) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT<S9Z>	8-97218-309-0	01	1	0507-0606	●	●	●
51	02.335 COVER; BATTERY LEYLAND EQUIPMENT<S9Z>	8-97120-747-0	01	1	0607-	●	●	●
51	02.335 COVER; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>, BATTERY 75D23R<7PC> EXC. LEYLAND EQUIPMENT<S9Z>	8-97120-747-0	01	1	0607-	●	●	●
52	02.335 NUT; WING,COVER FIX M8 WING NUT	9-09118-408-0	02	1	0302-0506	●	●	●
52	02.335 NUT; WING,COVER FIX 4JH1-TC ENG(RDM) LEYLAND EQUIPMENT<S9Z> M8 WING NUT	9-09118-408-0	02	1	0507-0512	●	●	●
52	02.335 NUT; WING,COVER FIX 4JH1-TC ENG(RDM) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT<S9Z> M8 WING NUT	9-09118-408-0	02	1	0507-0512	●	●	●
52	02.335 NUT; WING,COVER FIX 4JH1-TC ENG(RDM) LEYLAND EQUIPMENT<S9Z> M8 WING NUT	0-91118-408-0	02	1	0601-0606	●	●	●
52	02.335 NUT; WING,COVER FIX 4JH1-TC ENG(RDM) BATTERY 80D26R<6KC> EXC. LEYLAND EQUIPMENT<S9Z> M8 WING NUT	0-91118-408-0	02	1	0601-0606	●	●	●
52	02.335 NUT; WING,COVER FIX LEYLAND EQUIPMENT<S9Z> M8 WING NUT	0-91118-408-0	02	1	0607-	●	●	●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>, BATTERY 75D23R<7PC> EXC. LEYLAND EQUIPMENT<S9Z> M8 WING NUT	0-91118-408-0	02	1	0607-	●	●	●
